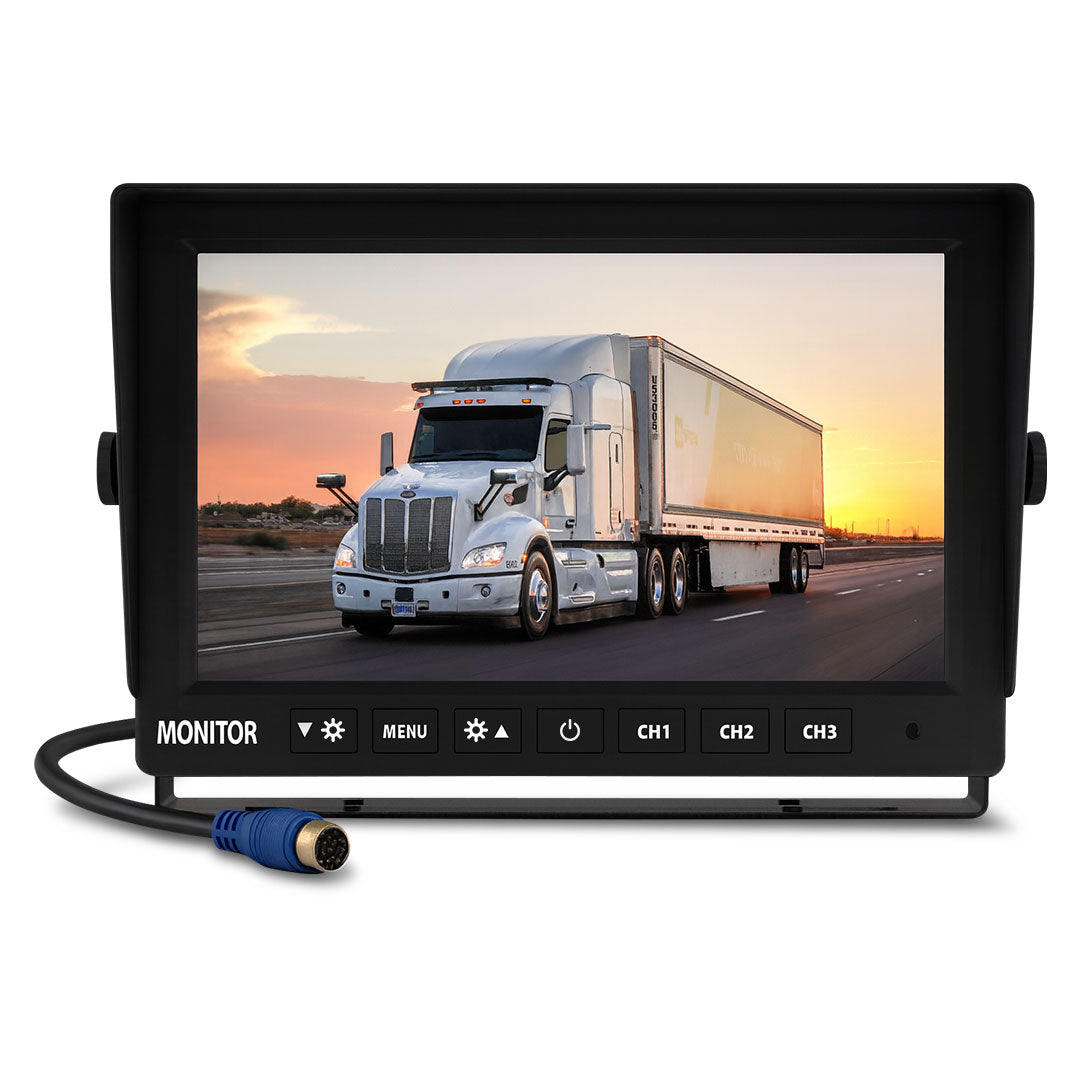

Mongoose MM73A 7" AHD 1080P Monitor with 3 Camera Input

SKU: MM73A
Regular price
$239
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Professional 7" AHD monitor with triple camera input for superior vehicle surveillance

The Mongoose MM73A is a professional-grade 7" AHD (Analog High Definition) monitor designed for commercial vehicles requiring multiple camera coverage. This HD digital colour monitor supports up to 3 camera inputs with automatic reverse switching, delivering super clear 1080P image display that enhances safety and visibility for trucks, buses, heavy machinery, and fleet vehicles.

Operating on both 12V and 24V systems, the MM73A automatically regulates power to supply 12V to connected cameras while providing crystal-clear video quality. The built-in speaker delivers audio from compatible cameras, while the robust U-frame mount ensures secure installation in demanding commercial environments.

Features & Benefits

  • 7" HD AHD Display: Professional digital panel provides exceptional clarity and detail for 1080P super clear images
  • Triple Camera Support: 3 AV inputs allow simultaneous connection of multiple cameras (2 video + 1 with audio)
  • 1080P AHD Quality: Supports 720P and 1080P resolution for crystal-clear video from compatible cameras
  • Automatic Reverse Switching: Auto reverse trigger wire switches to backup camera when reversing
  • Dual Voltage Operation: 12V~24V input with automatic 12V output regulation for cameras
  • Built-in Audio: Integrated speaker provides audio from compatible cameras with audio capability
  • Professional Installation: Heavy-duty U-frame mount bracket for secure commercial vehicle mounting
  • Built-in Sun Visor: Integrated hood reduces glare and improves visibility in bright conditions
  • Manual Controls: Brightness, contrast, and colour adjustments for optimal viewing in any condition
  • Heavy Duty Connections: 4-pin camera connections compatible with MC10 series and MC6 camera ranges
  • Commercial Grade: Built to withstand harsh conditions in trucks, buses, and heavy machinery
  • Compact Size: 7" screen provides excellent visibility without taking up excessive dashboard space

Technical Specs

  • Monitor Size: 7.0" HD digital colour panel
  • Video Standard: AHD (Analog High Definition)
  • Resolution Support: 720P, 1080P only
  • Operating Voltage: 12V~24V DC input
  • Camera Power Output: 12V DC regulated output
  • Video Inputs: 3 AV inputs (2 video, 1 with audio)
  • Audio: Built-in speaker
  • Auto Switching: Reverse trigger wire for automatic camera switching
  • Controls: Brightness, contrast, colour adjustment
  • Sun Visor: Built-in hood
  • Mounting: Heavy duty U-frame bracket included
  • Camera Connections: 4-pin heavy duty (cameras not included)
  • Compatible Cameras: MC10 series, MC6 series cameras
  • Brand: Mongoose
  • Model Number: MM73A

Compatible With

  • MC10 series cameras (1080P AHD)
  • MC6 series cameras (AHD compatible)
  • PEC cable range (5m, 10m, 15m, 20m lengths available separately)
  • 4-pin heavy duty extension cables
  • Commercial vehicles and heavy machinery
  • Trucks, buses, and delivery vehicles
  • Agricultural and construction equipment
  • Fleet vehicle installations

Installation Notes:

  • Cameras and cables sold separately
  • Choose appropriate PEC cable length (5m, 10m, 15m, 20m) for your installation
  • Professional installation recommended for optimal performance
  • Requires reverse trigger wire connection for automatic switching
  • Compatible with AHD cameras only (720P/1080P)
