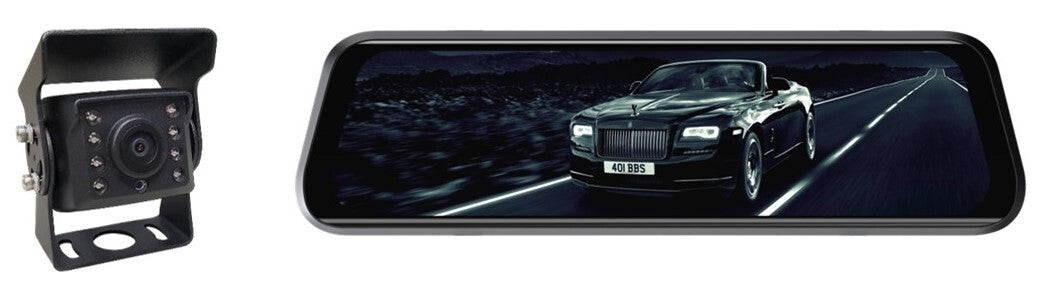

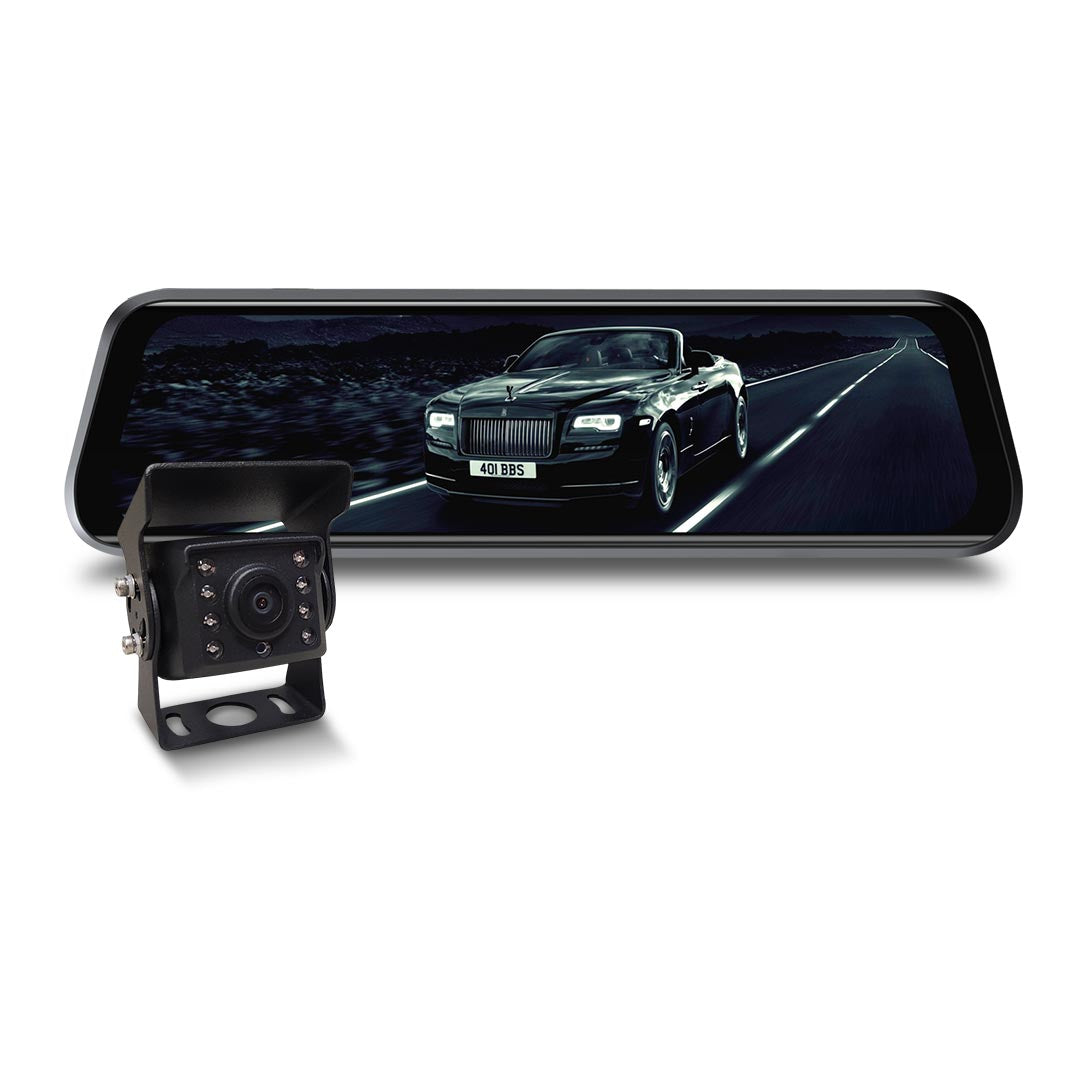

Mongoose MCM96P 9.6 inch mirror monitor with the heavy duty camera in front
Mongoose MCM96P 9.6 inch mirror monitor with the heavy duty camera in front

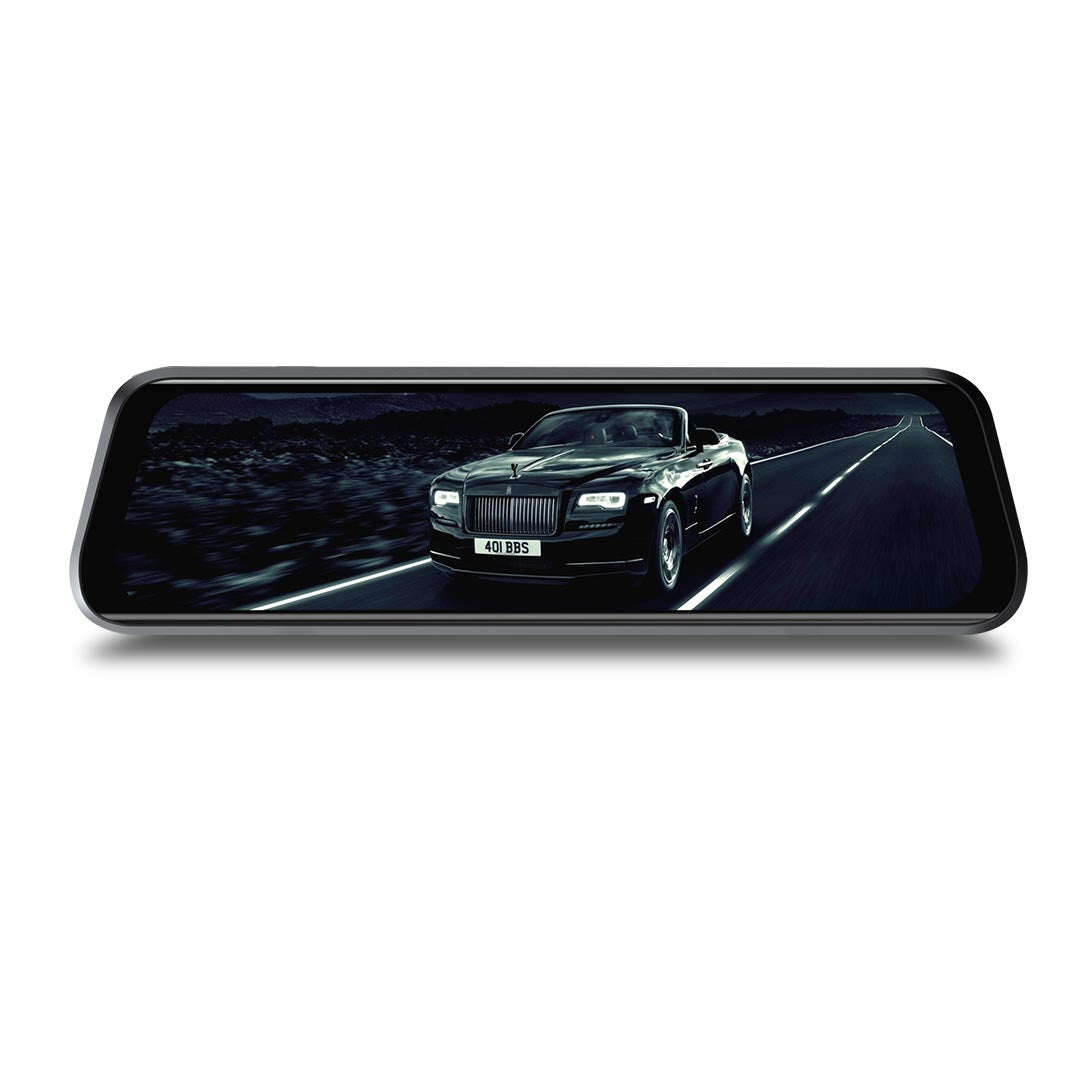

MCM96P mirror monitor face on showing a full width camera image
MCM96P mirror monitor face on showing a full width camera image

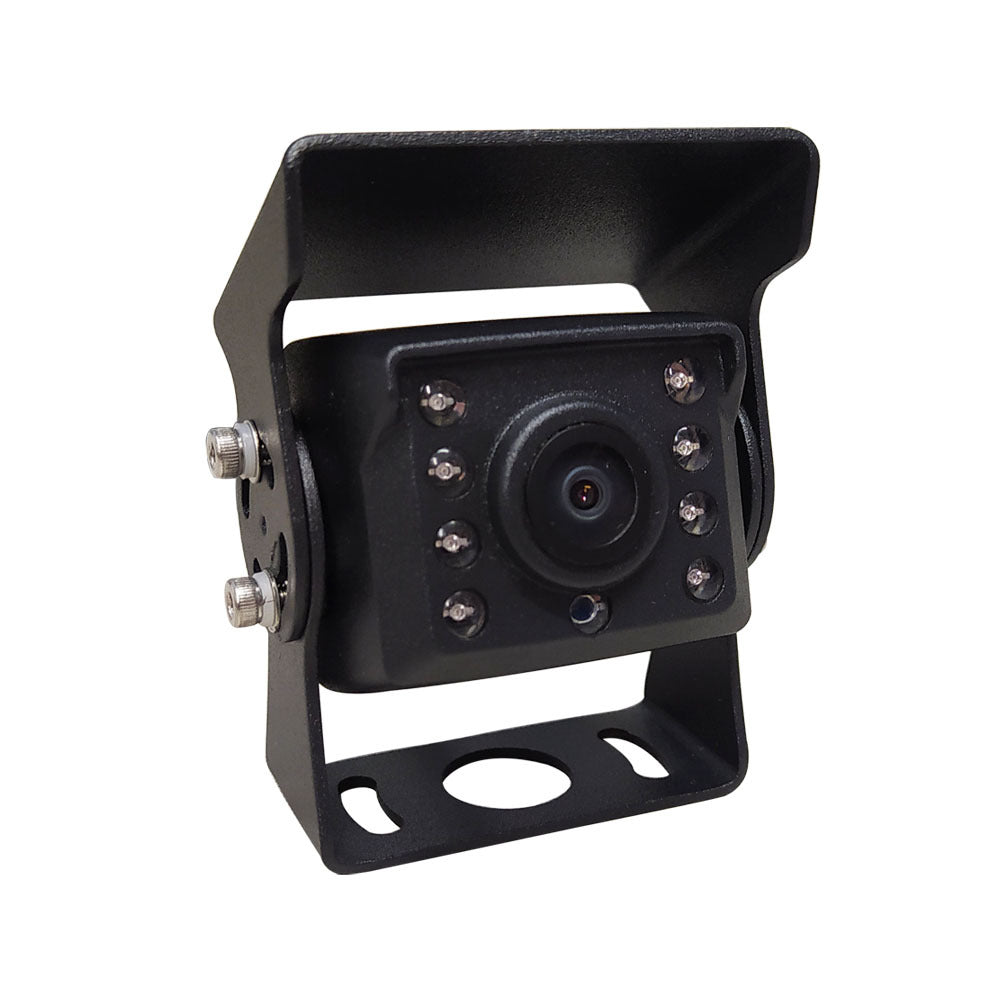

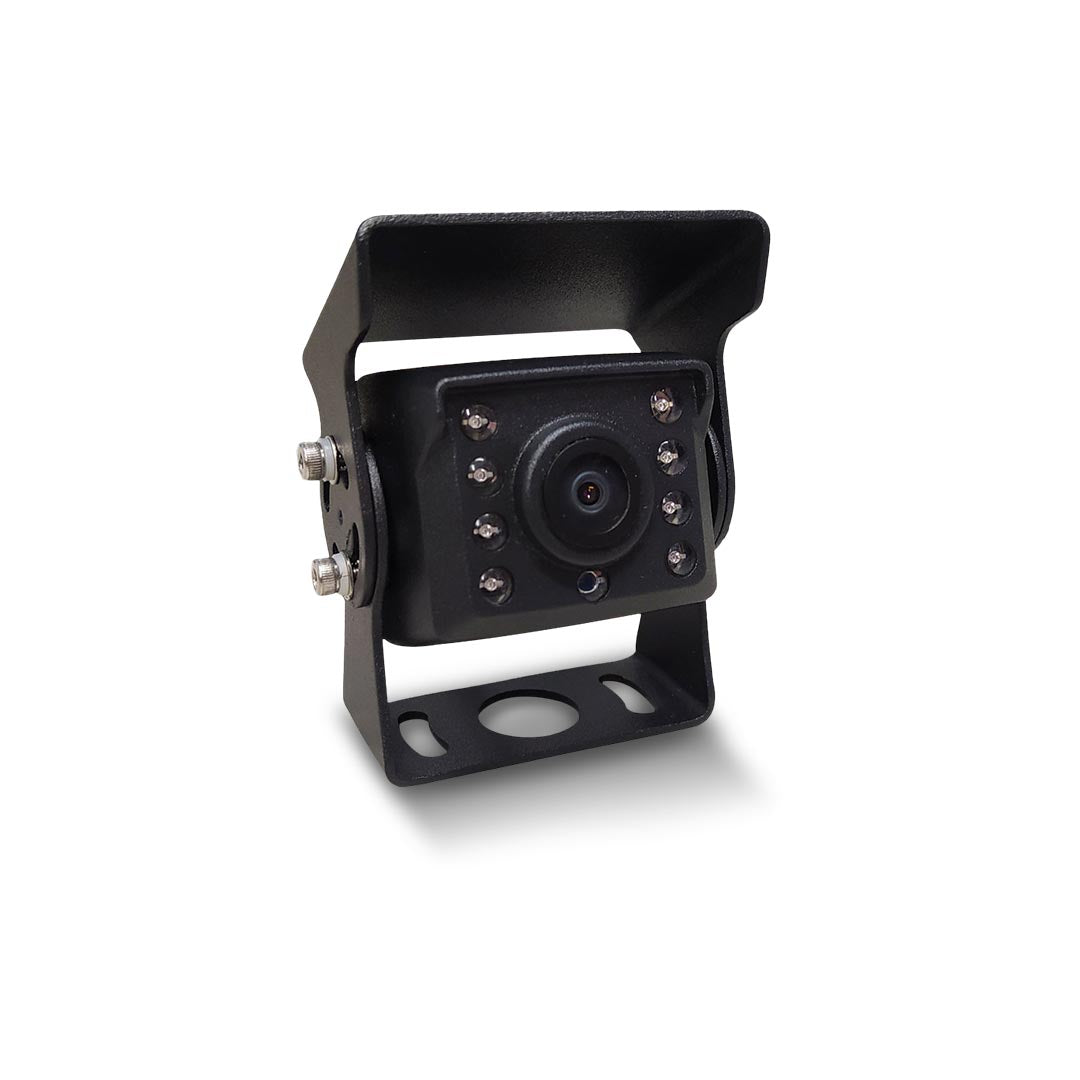

Heavy duty camera with sun visor, infrared LEDs and U mounting bracket
Heavy duty camera with sun visor, infrared LEDs and U mounting bracket

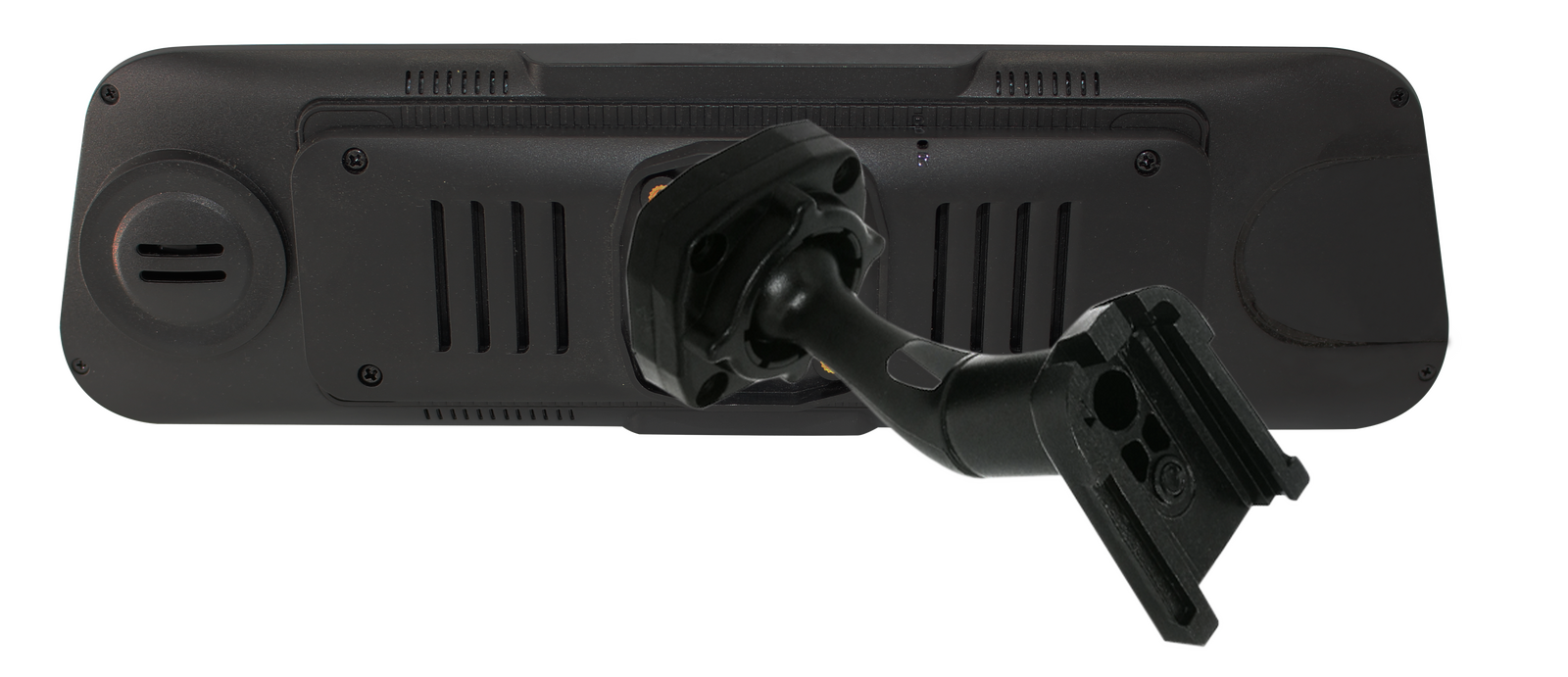

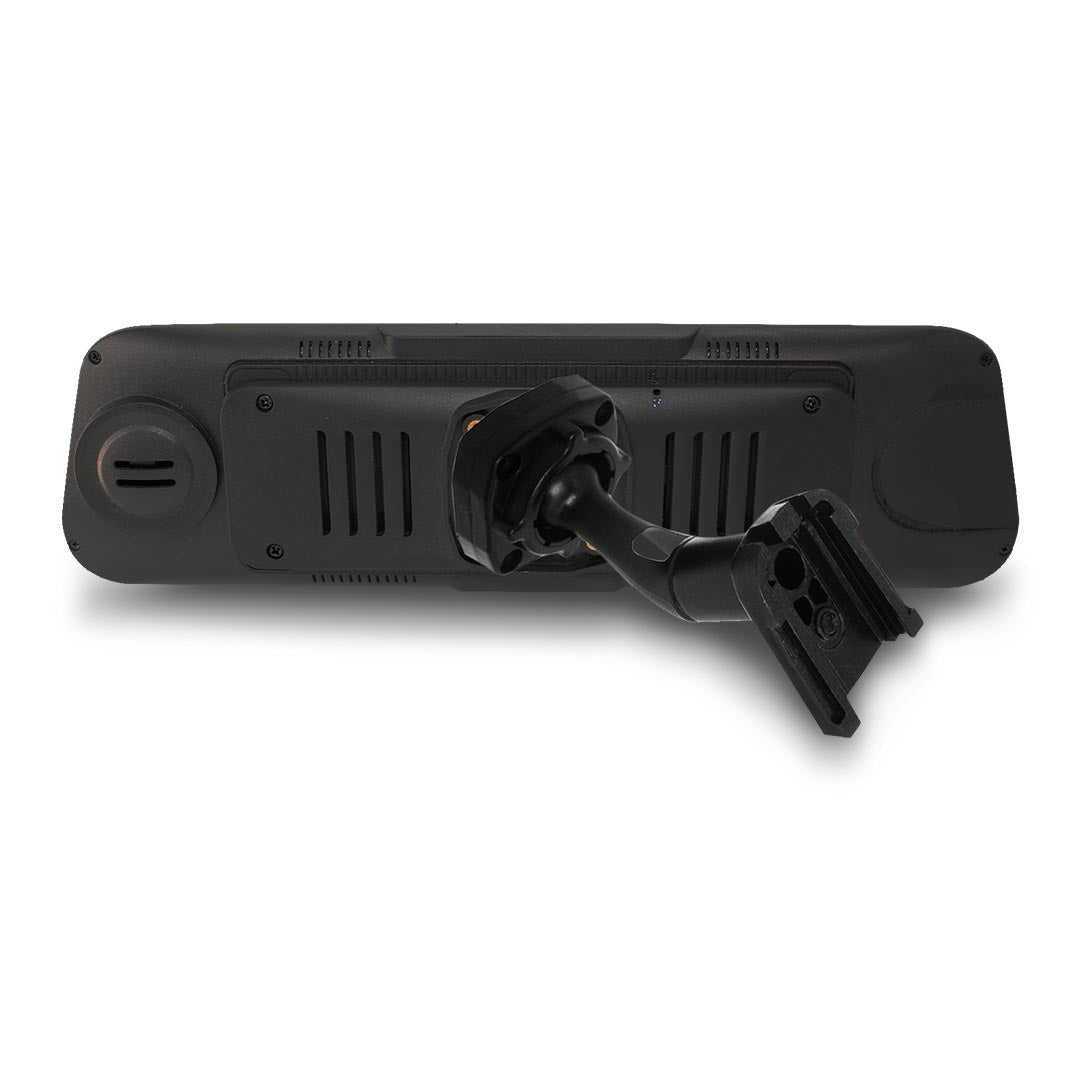

Rear of the MCM96P monitor with the mirror mounting bracket
Rear of the MCM96P monitor with the mirror mounting bracket

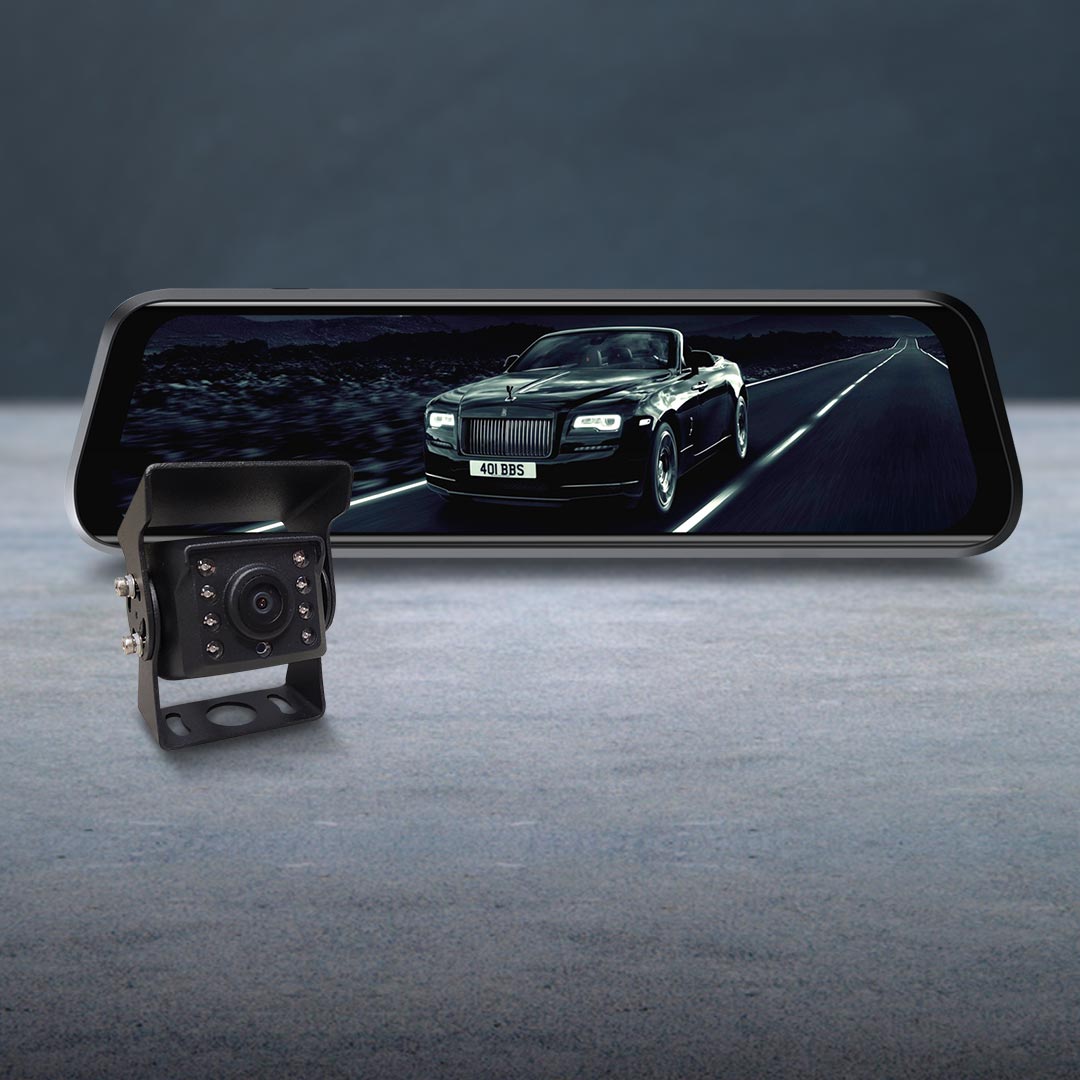

MCM96P monitor and heavy duty camera on a dark studio background
MCM96P monitor and heavy duty camera on a dark studio background

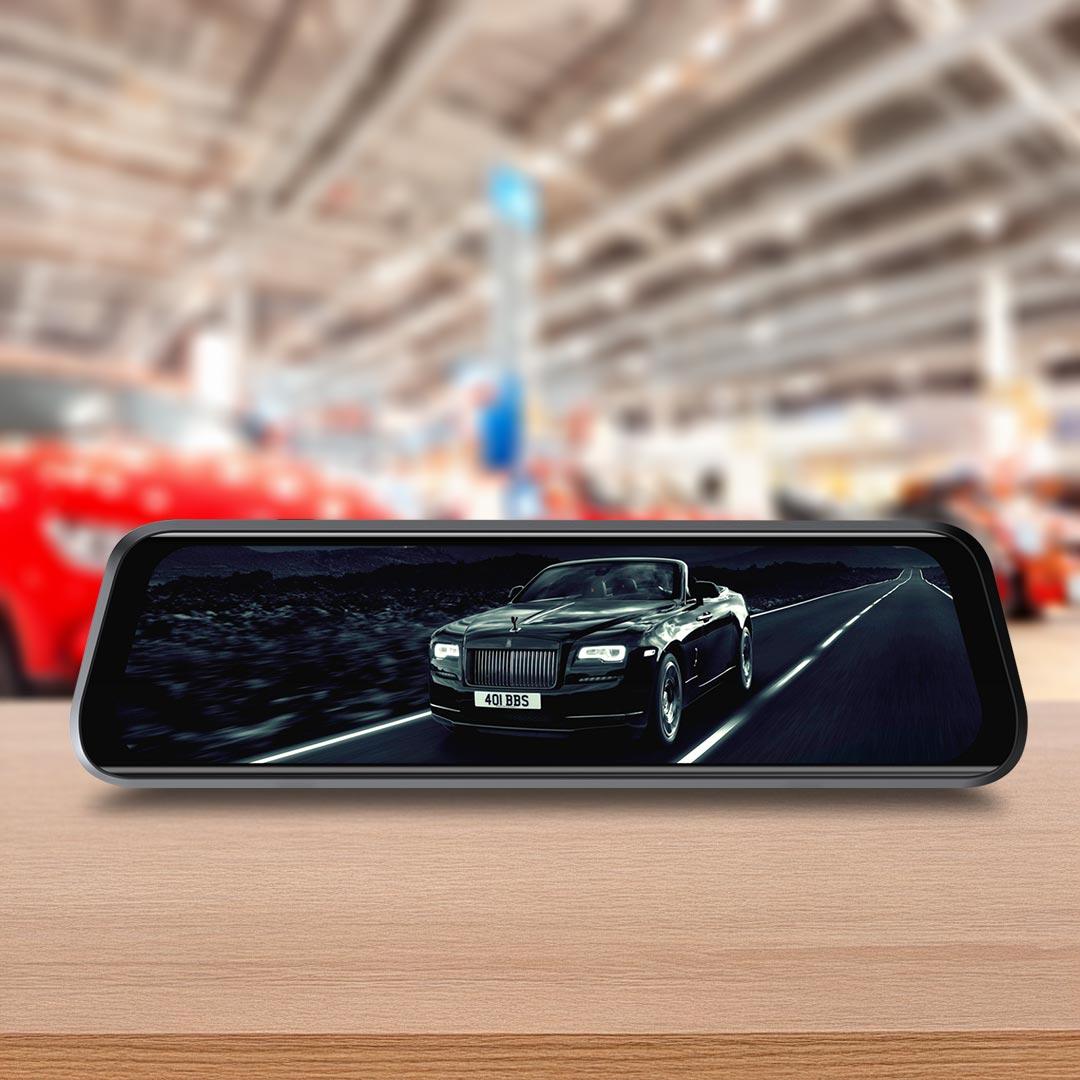

MCM96P mirror monitor sitting on a bench in a car showroom
MCM96P mirror monitor sitting on a bench in a car showroom

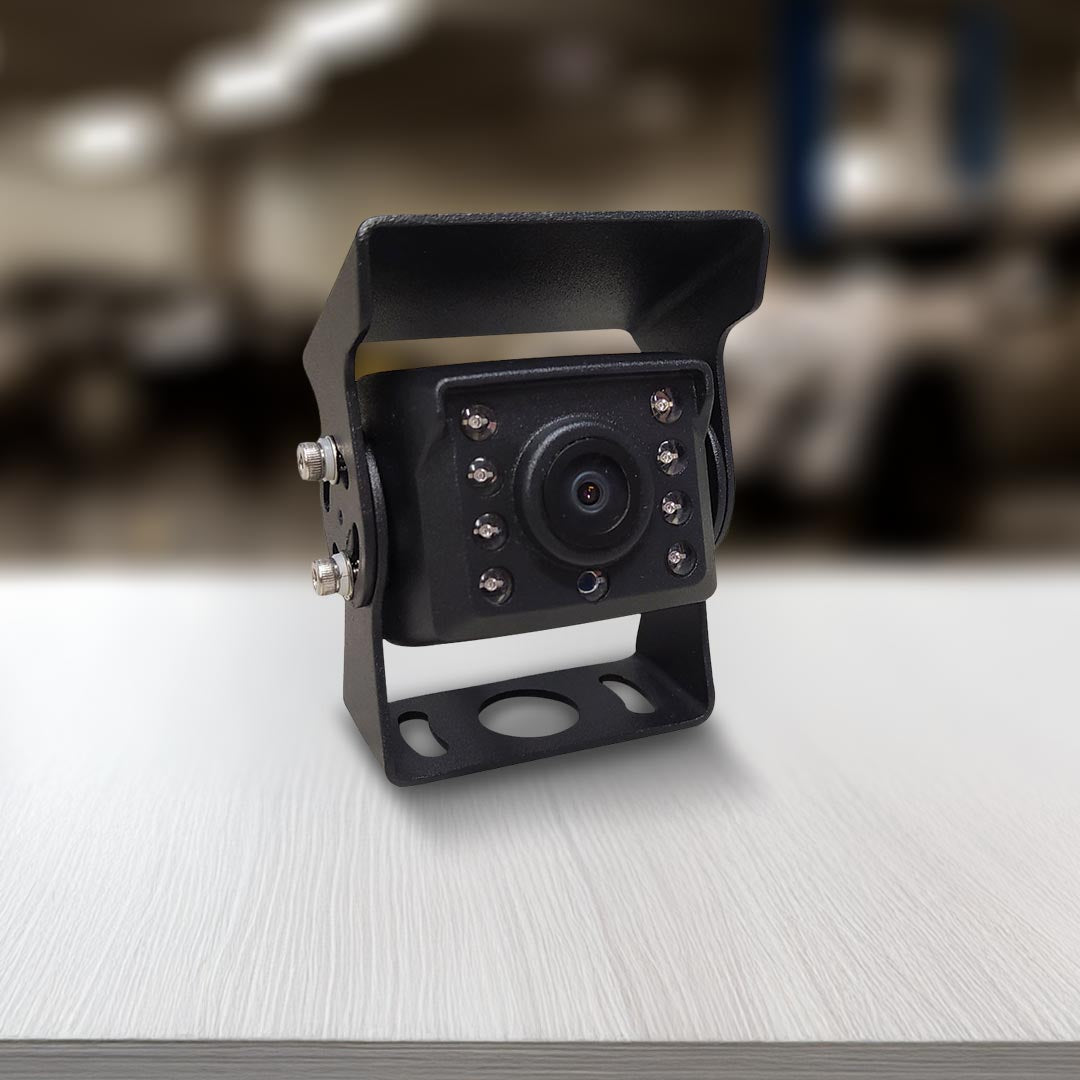

Heavy duty reversing camera with visor shown on a workshop bench
Heavy duty reversing camera with visor shown on a workshop bench
Back of the replacement mirror monitor showing the mounting arm on a marble background
Back of the replacement mirror monitor showing the mounting arm on a marble background
Click to open expanded view
MONGOOSE logo

Mongoose MCM96P 9.6 Inch Full HD Mirror Monitor and Heavy Duty Camera Kit

SKU: MCM96P
Price
$369
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Mongoose MCM96P 9.6 inch mirror monitor with the heavy duty camera in front

Mongoose MCM96P 9.6 Inch Full HD Mirror Monitor and Heavy Duty Camera Kit

$369

Product features

Quick answer

The Mongoose MCM96P is a 9.6 inch mirror monitor kit with a heavy duty 1080P camera and 10 metres of cable, clipping over your interior mirror to show a reversing or rear view.

The Mongoose MCM96P is a 9.6 inch mirror monitor kit with a heavy duty 1080P camera and 10 metres of cable, clipping over your interior mirror to show a reversing or rear view.

A canopy, tool box or caravan blocks the centre mirror and you end up reversing on side mirrors and guesswork. With this kit the camera picture fills the mirror, and when the reverse trigger is wired it switches to the camera as soon as you select reverse.

What it does

  • 9.6 inch mirror monitor with two AHD inputs (720P or 1080P)
  • Heavy duty MC680 camera on a bracket mount, 1080P wide angle, IP69K
  • Three viewing modes: camera 1 on, camera 2 on, or mirror with camera on reverse
  • Reverse trigger overrides the mirror and shows camera 2
  • 10 metre camera cable for anything from a hatch to a van
  • Clips over your existing mirror with a rubber buffer
  • Acts as a normal mirror when the screen is off

Specifications

Screen 9.6 inch
Resolution 320 x 1280
Brightness Over 650cd/m²
Video inputs 2 x AHD, 720P or 1080P
Supply voltage 10 to 28V DC
Current 350mA working, 89mA standby
Camera MC680, 1080P, IP69K, low light

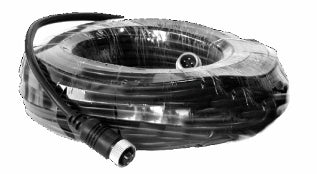

Camera cable 10m

Fitment and what comes in the box

The monitor clips over most interior mirrors, and the 12 to 24V supply suits cars through to trucks. The camera needs a flat mounting point at the rear; send us a photo of the back of your vehicle and we will suggest the spot.

Mongoose lists the MCM96P kit as:

  • 9.6 inch mirror monitor
  • MC680 heavy duty camera with bracket mount
  • 10 metre camera cable

Installation notes

Wire the reverse trigger if you want the screen to switch automatically to camera 2. A second camera with a 4 pin plug can be added on the other input for a caravan or side view.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Book the MCM96P in at Albion Park Rail (02) 4257 2636 or South Nowra (02) 4423 5254 and we will run the cable and wire the reverse trigger.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the MCM96P

What is the Mongoose MCM96P?

It is the Mongoose 9.6 Inch Full HD Mirror Monitor and Heavy Duty Camera Kit.

What are the main features of the MCM96P?

9.6 inch mirror monitor with two AHD inputs (720P or 1080P). Heavy duty MC680 camera on a bracket mount, 1080P wide angle, IP69K. Three viewing modes: camera 1 on, camera 2 on, or mirror with camera on reverse.

What warranty comes with the MCM96P?

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.
