Mongoose MCK713A 7" AHD Monitor and Camera Kit Complete System

Quick answer

The Mongoose MCK713A is a professional-grade AHD (Analog High Definition) reversing camera system designed specifically for larger vehicles including trucks, buses, campervans, and mobile homes.

Complete AHD full high definition reversing camera system for larger vehicles

The Mongoose MCK713A is a professional-grade AHD (Analog High Definition) reversing camera system designed specifically for larger vehicles including trucks, buses, campervans, and mobile homes. This complete kit combines a crystal-clear 7" AHD monitor with a high-performance night vision camera, delivering super clear video images that enhance safety and confidence when reversing or maneuvering large vehicles.

Operating on both 12V and 24V systems, this versatile kit is perfect for commercial fleets, recreational vehicles, and anyone who needs reliable backup camera assistance. The system's 3-camera input capability allows you to expand your coverage with additional cameras for trailers, blind spots, or interior monitoring.

Features & Benefits

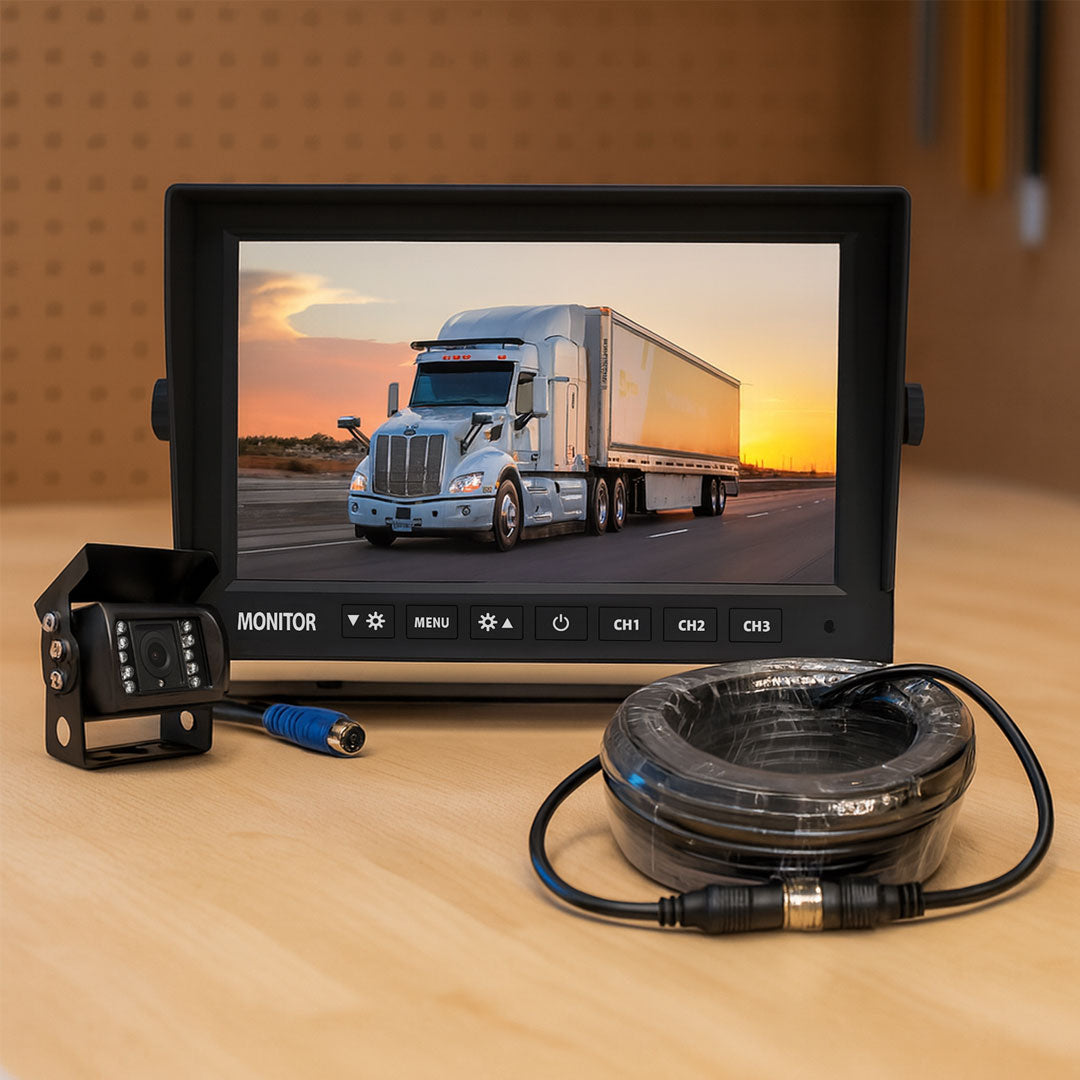

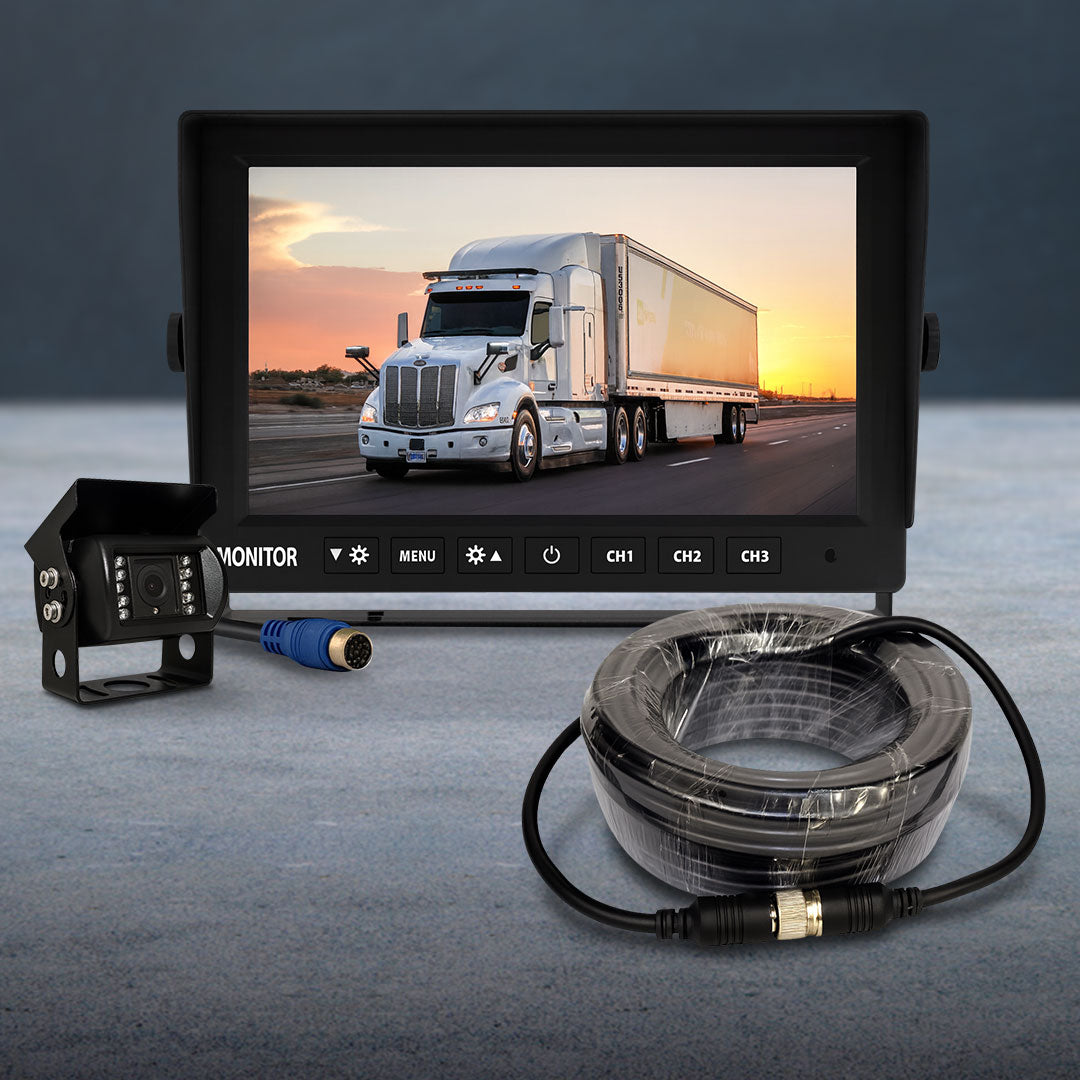

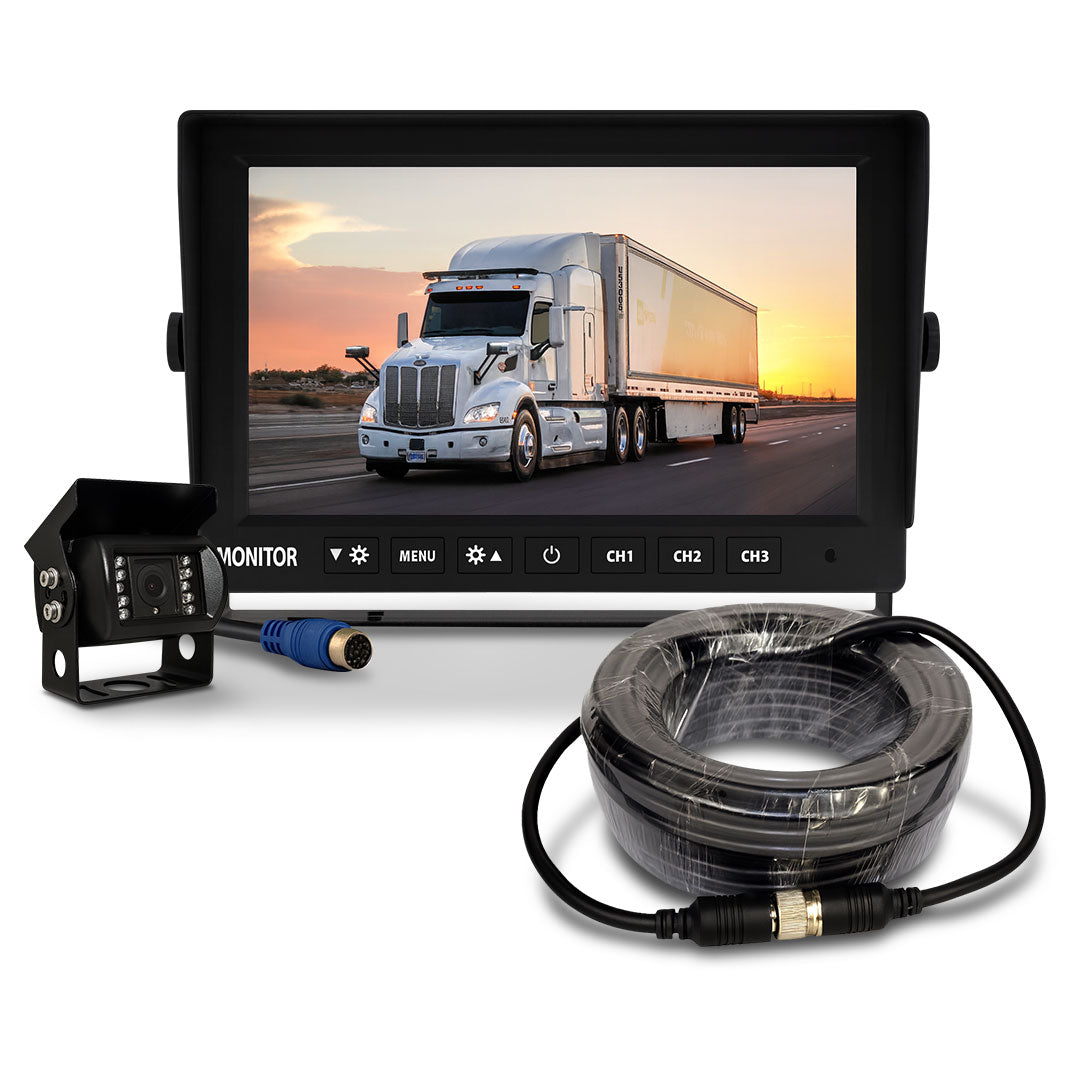

• Complete Camera System: Everything needed for professional installation, monitor, camera, and cables included

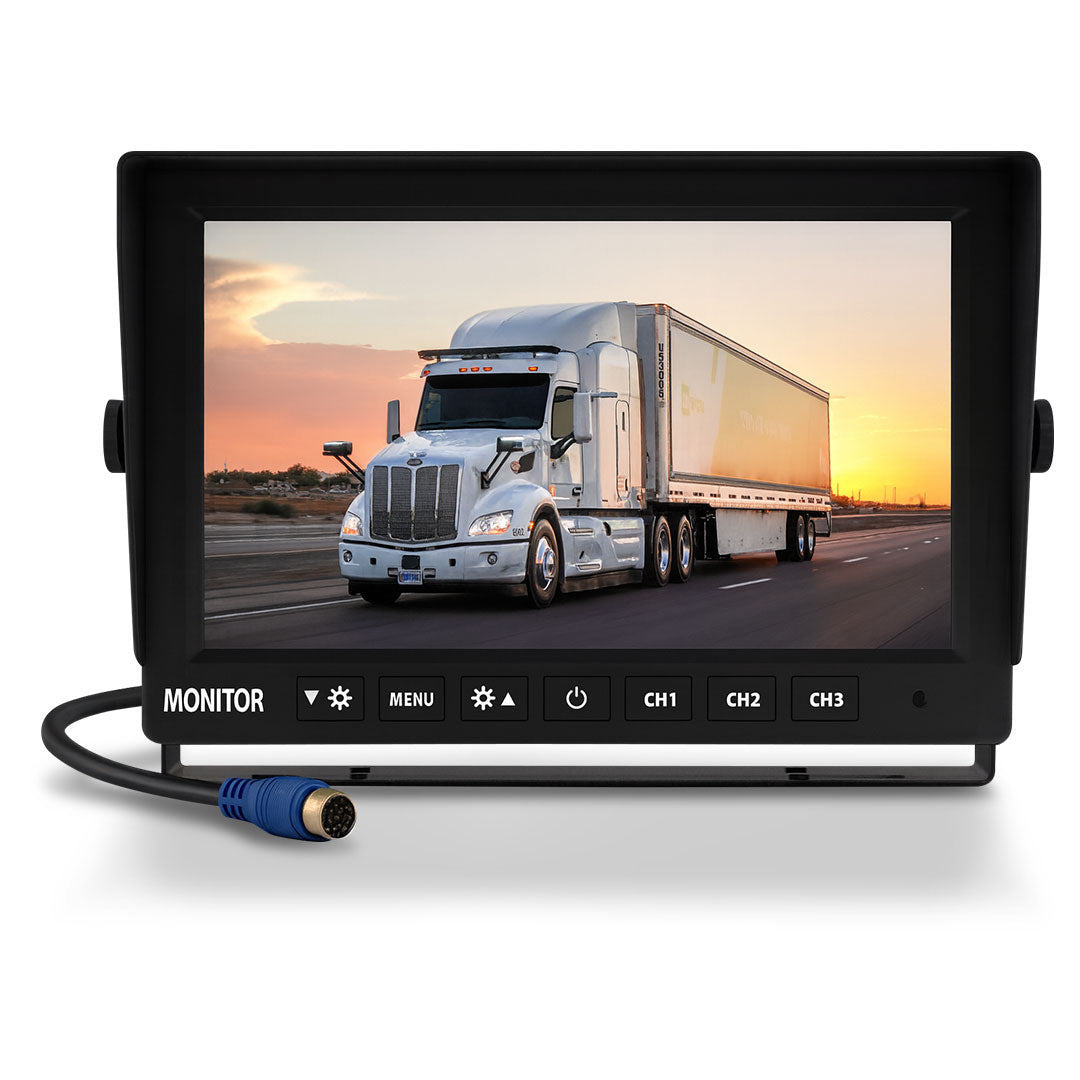

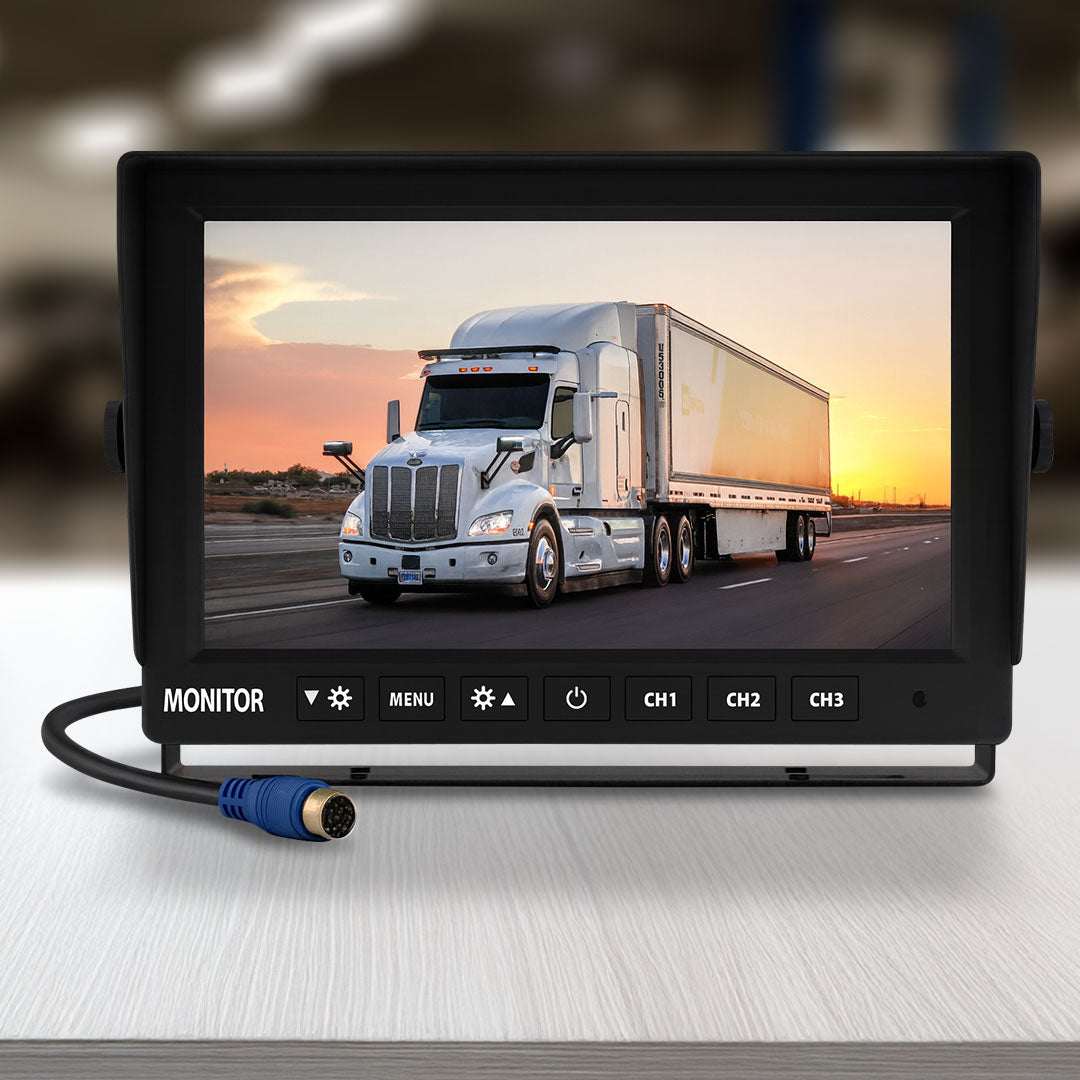

• 7" AHD Colour Monitor: Large, clear display with detachable sun visor for optimal viewing in all conditions
• Dual Voltage Operation: 12V~24V compatibility perfect for cars, trucks, buses, and heavy machinery
• Power Regulation: Monitor automatically regulates power to supply 12V to camera regardless of vehicle voltage

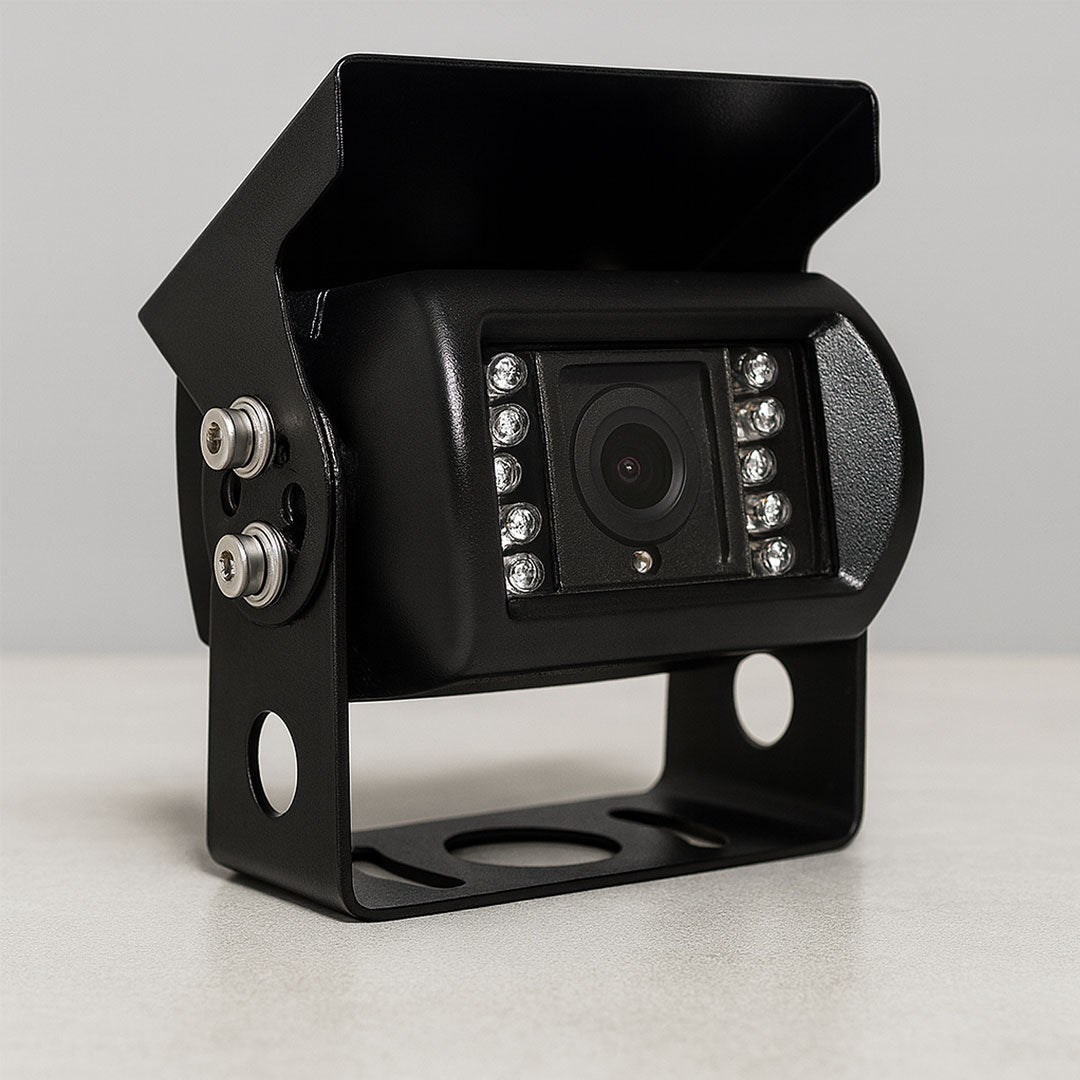

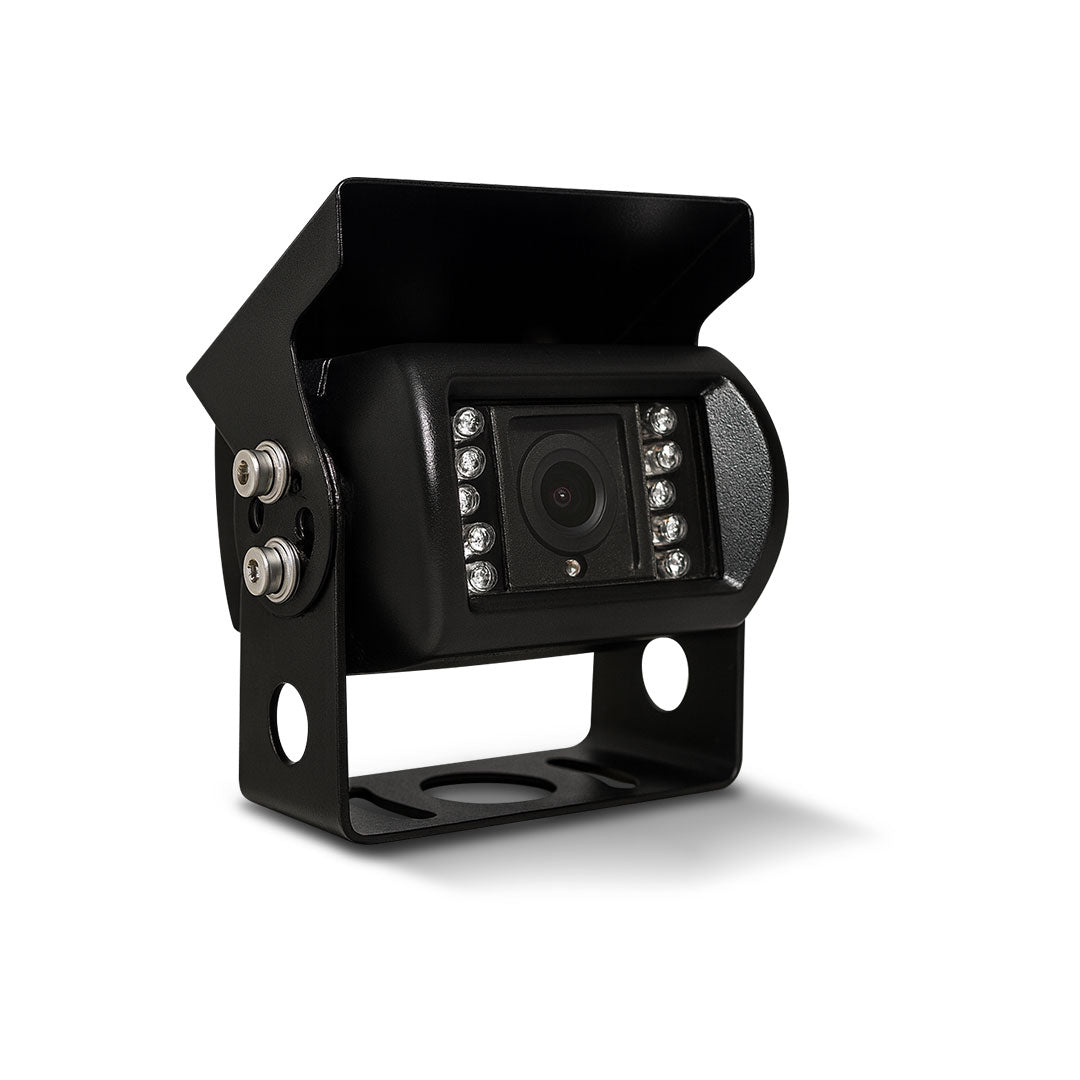

• 150° Diagonal Coverage: Ultra-wide night vision camera (MC10) captures maximum area behind your vehicle
• Superior Night Vision: Advanced imaging technology ensures clear visibility in low-light conditions

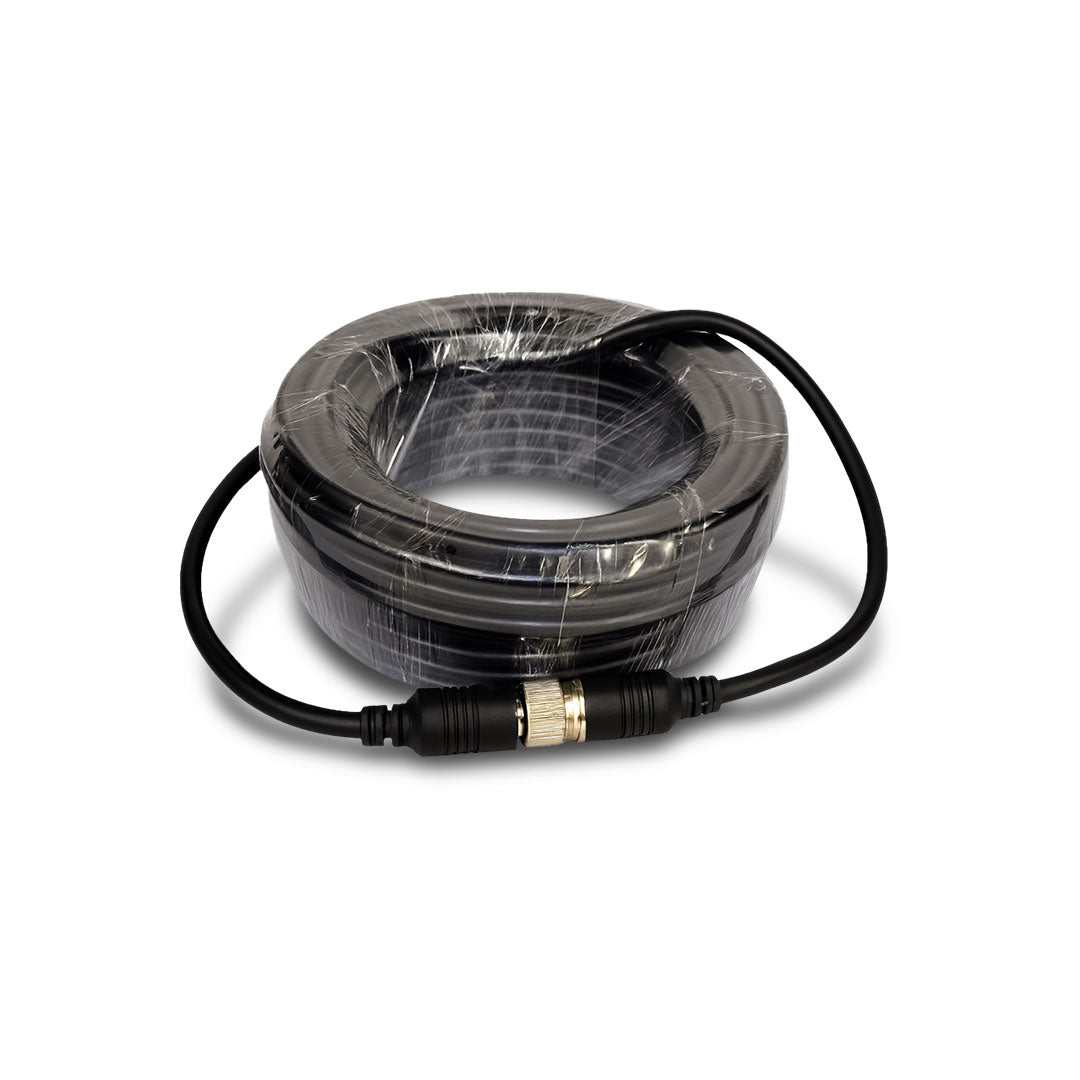

• 20 Metre Heavy Duty Cable: Professional-grade 4-pin video cable for reliable signal transmission
• 3 Camera Input Capability: Expandable system supports up to 3 cameras for comprehensive coverage
• Dash or Screen Mounting: Flexible installation options to suit your vehicle's layout
• Extension Ready: Compatible with 5m, 10m, 15m & 20m extension cables (available separately)
• Trailer Compatible: Add trailer connectors for seamless connection to towed equipment

Technical Specs

• Monitor Size: 7.0" AHD colour display
• Operating Voltage: 12V~24V DC
• Camera Model: MC10 (150° diagonal field of view)
• Camera Inputs: 3 channels
• Cable Length: 20 metres (4-pin heavy duty)
• Cable Type: Professional grade video cable
• Night Vision: Advanced low-light performance
• Power Regulation: Automatic 12V camera supply
• Mounting Options: Dash mount or screen mount
• Sun Visor: Detachable
• Video Standard: AHD Full High Definition
• Brand: Mongoose
• Model Number: MCK713A

Compatible With

• Extension cables (5m, 10m, 15m, 20m available separately)
• Trailer connector accessories
• Additional MC10 cameras for multi-camera setups
• Commercial vehicles and heavy machinery
• Campervans, motorhomes, and RVs
• Trucks, buses, and delivery vehicles
• Agricultural and construction equipment

Safety Notes:

• Professional installation recommended for optimal performance
• Driver must always check surroundings and operate vehicle safely
• Camera system is a driving aid, does not replace careful observation
• Suitable for personal and commercial vehicle applications

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the MCK713A

What is the Mongoose MCK713A?

It is the Mongoose 7" AHD Monitor and Camera Kit Complete System.

What are the main features of the MCK713A?

Complete Camera System : Everything needed for professional installation, monitor, camera, and cables included. 7" AHD Colour Monitor : Large, clear display with detachable sun visor for optimal viewing in all conditions. Dual Voltage Operation : 12V~24V compatibility perfect for cars, trucks, buses, and heavy machinery.

What warranty comes with the MCK713A?

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.
