Mongoose MC10SB | AHD Multi-Mount Camera

Quick answer

The Mongoose MC10SB is the | AHD Multi-Mount Camera. This smart mini design camera features adjustable mounting hardware plus swivel capability within the housing, allowing optimal positioning regardless of vehicle configuration or mounting constraints.

Revolutionary multi-angle mounting camera with top-side-bottom installation flexibility for any vehicle configuration.

Product Overview

The Mongoose MC10SB AHD Multi-Mount Camera delivers professional 1080P Full HD monitoring with unprecedented installation flexibility through its innovative top-side-bottom mounting system. This smart mini design camera features adjustable mounting hardware plus swivel capability within the housing, allowing optimal positioning regardless of vehicle configuration or mounting constraints.

Built around a premium 1/3" Sony CMOS AR0130 sensor, the MC10SB provides exceptional image quality for MDVR and AHD monitor systems. The IP67-rated construction with 12x infrared LEDs ensures reliable operation in harsh Australian conditions while maintaining the compact profile essential for versatile commercial vehicle installations.

Key Specifications

• Multi-angle mounting: Top-Side-Bottom installation options
• AHD 1080P Full HD resolution (1280x1080)
• 1/3" Sony CMOS AR0130 image sensor
• 2 Megapixel capture capability
• PAL TV system standard
• Viewing angles: Horizontal 95°, Vertical 75°, Diagonal 125°
• Night vision: 12x infrared LEDs
• IP67 water resistant rating
• Smart mini design: 78.5(L) x 63(H) x 48.5(W)mm
• Weight: 123g
• Heavy duty 4-pin connector system

Features & Benefits

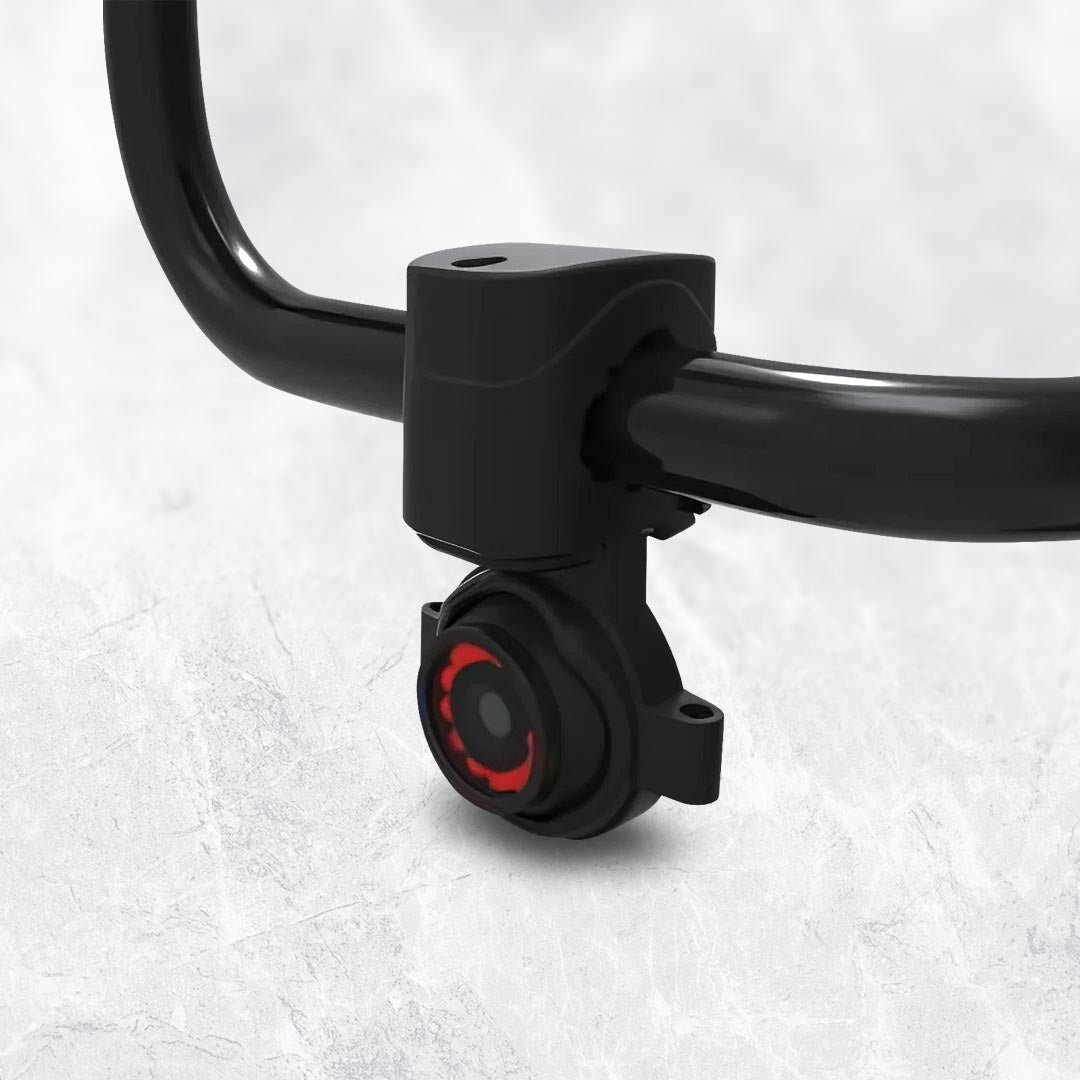

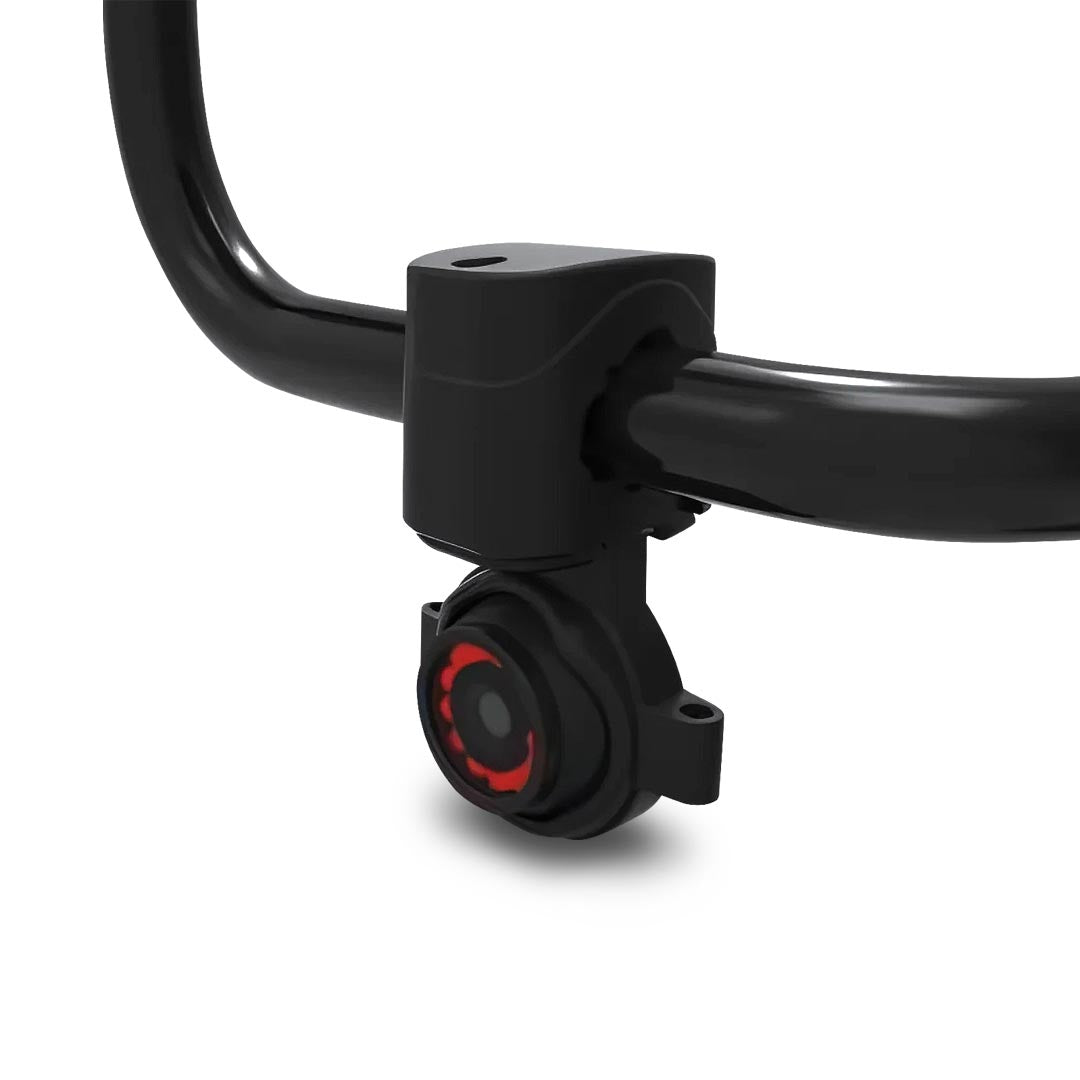

Revolutionary Multi-Angle Mounting: Unique top-side-bottom mounting capability with adjustable hardware and in-housing swivel provides installation flexibility for any vehicle configuration, eliminating mounting constraints that limit traditional cameras.

Professional Sony CMOS Performance: Premium 1/3" Sony CMOS AR0130 sensor delivers exceptional 1080P image quality with superior colour accuracy and low-light performance, ideal for professional fleet monitoring and security applications.

Smart Mini Design Flexibility: Compact 78.5mm profile with complete mounting kit accommodates tight installation spaces while providing professional-grade monitoring capability, perfect for modern commercial vehicles with space constraints.

Enhanced Night Vision Coverage: 12x infrared LEDs provide superior low-light and nighttime monitoring capability essential for 24-hour commercial operations and security applications across varying Australian conditions.

Advantages & Limitations

Advantages:

• Multi-angle mounting flexibility (top/side/bottom)
• In-housing swivel capability for precise positioning
• Professional Sony CMOS AR0130 sensor
• Smart mini design fits tight spaces
• IP67 water resistant construction
• 12x IR LEDs for superior night vision
• Complete mounting kit included

Limitations:

• Requires compatible AHD monitor or MDVR system
• Camera cable sold separately (choose appropriate length)
• PAL system (ensure monitor compatibility)
• Professional installation recommended for optimal positioning

Technical Specs

• Resolution: 1080P Full HD AHD (1280x1080)
• Image sensor: 1/3" Sony CMOS AR0130, 2 Megapixel
• TV system: PAL standard
• Mounting: Multi-angle (top-side-bottom) with swivel housing
• Viewing angles: 95°H, 75°V, 125°D
• Night vision: 12x infrared LEDs
• Weather rating: IP67 water resistant
• Housing: Smart mini design
• Connector: Heavy duty 4-pin system
• Dimensions: 78.5 x 63 x 48.5mm
• Weight: 123g
• Installation: Complete mounting kit with instructions

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the MC10SB

What is the Mongoose MC10SB?

It is the Mongoose | AHD Multi-Mount Camera. This smart mini design camera features adjustable mounting hardware plus swivel capability within the housing, allowing optimal positioning regardless of vehicle configuration or mounting constraints.

What are the main features of the MC10SB?

Multi-angle mounting: Top-Side-Bottom installation options. AHD 1080P Full HD resolution (1280x1080). 1/3" Sony CMOS AR0130 image sensor.

What warranty comes with the MC10SB?

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.
