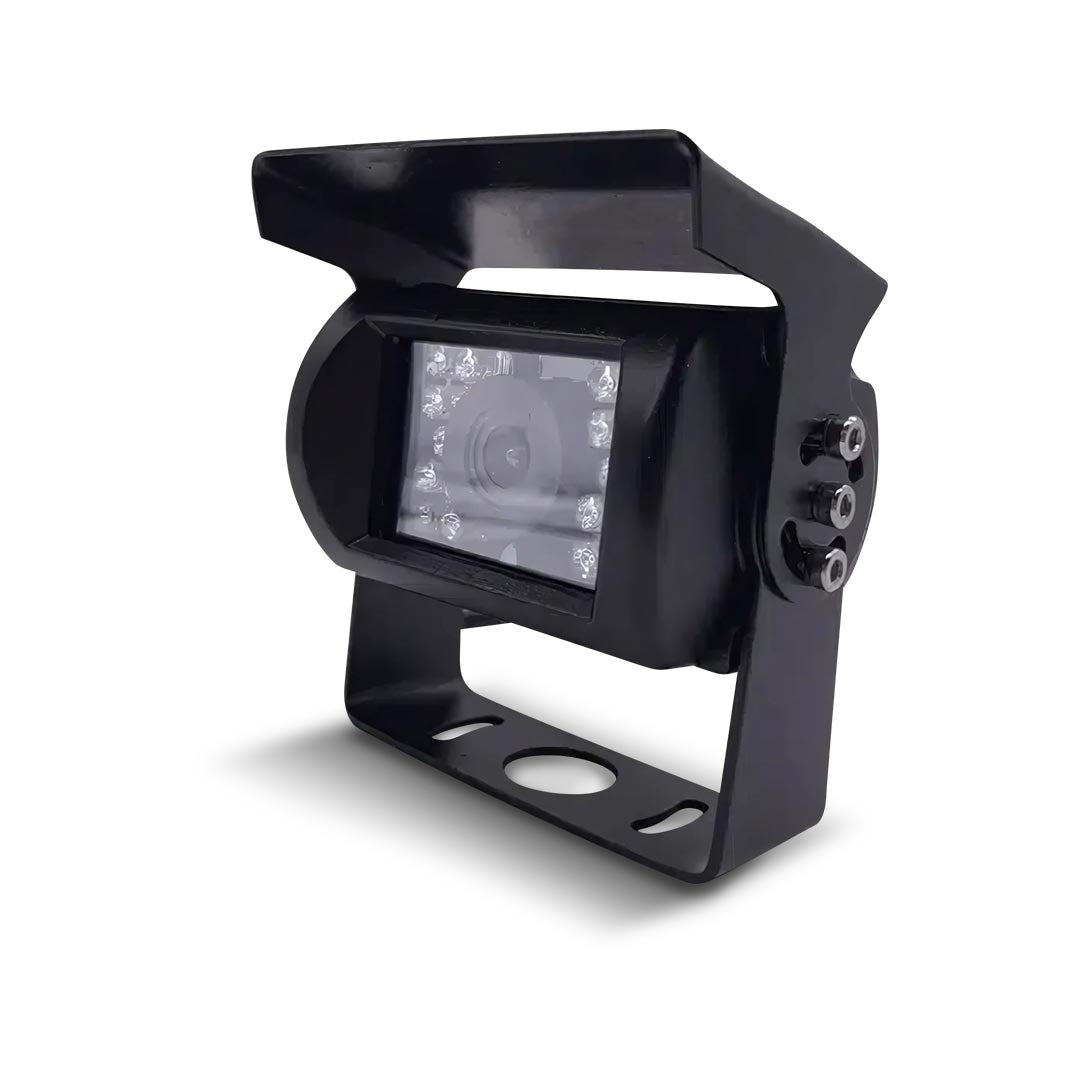

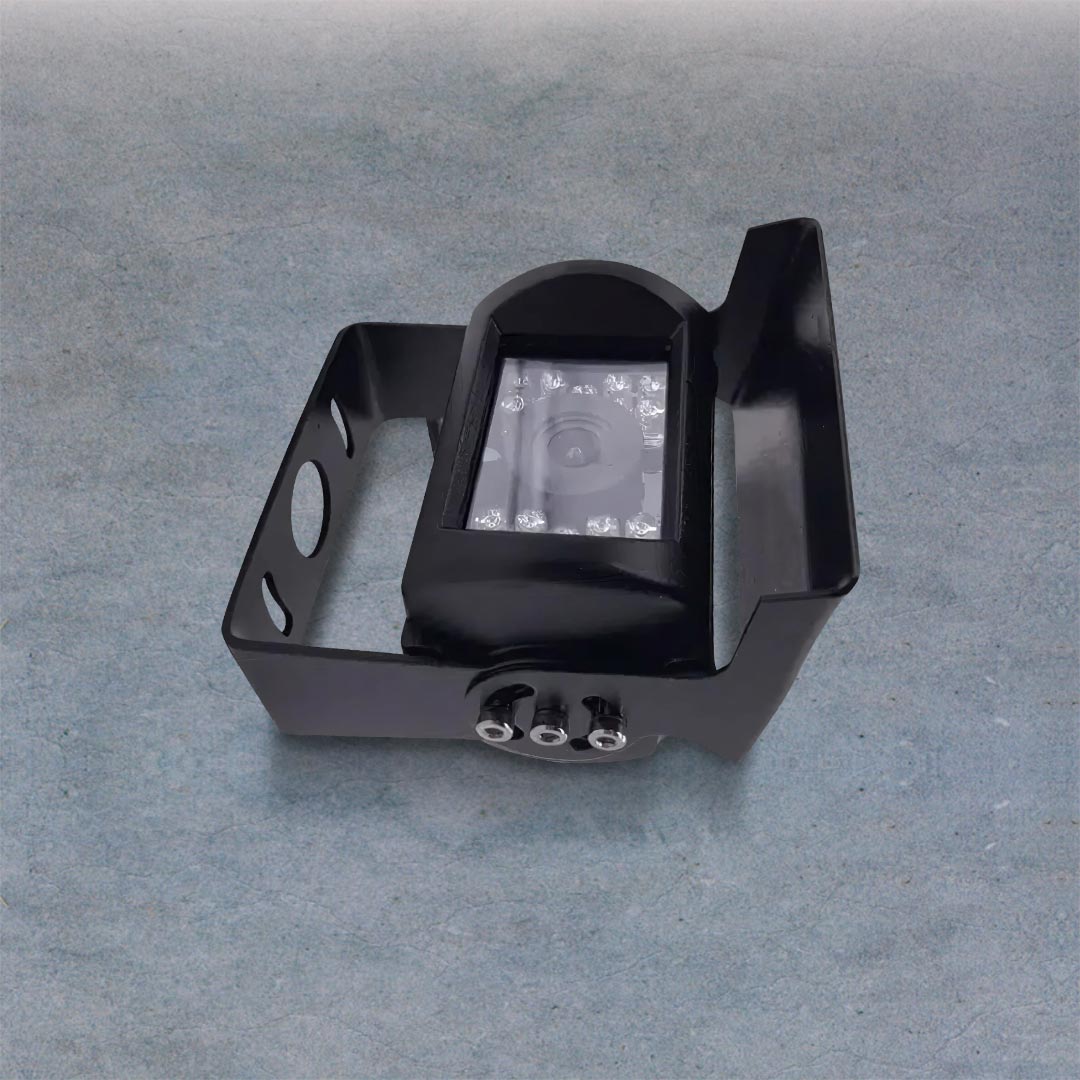

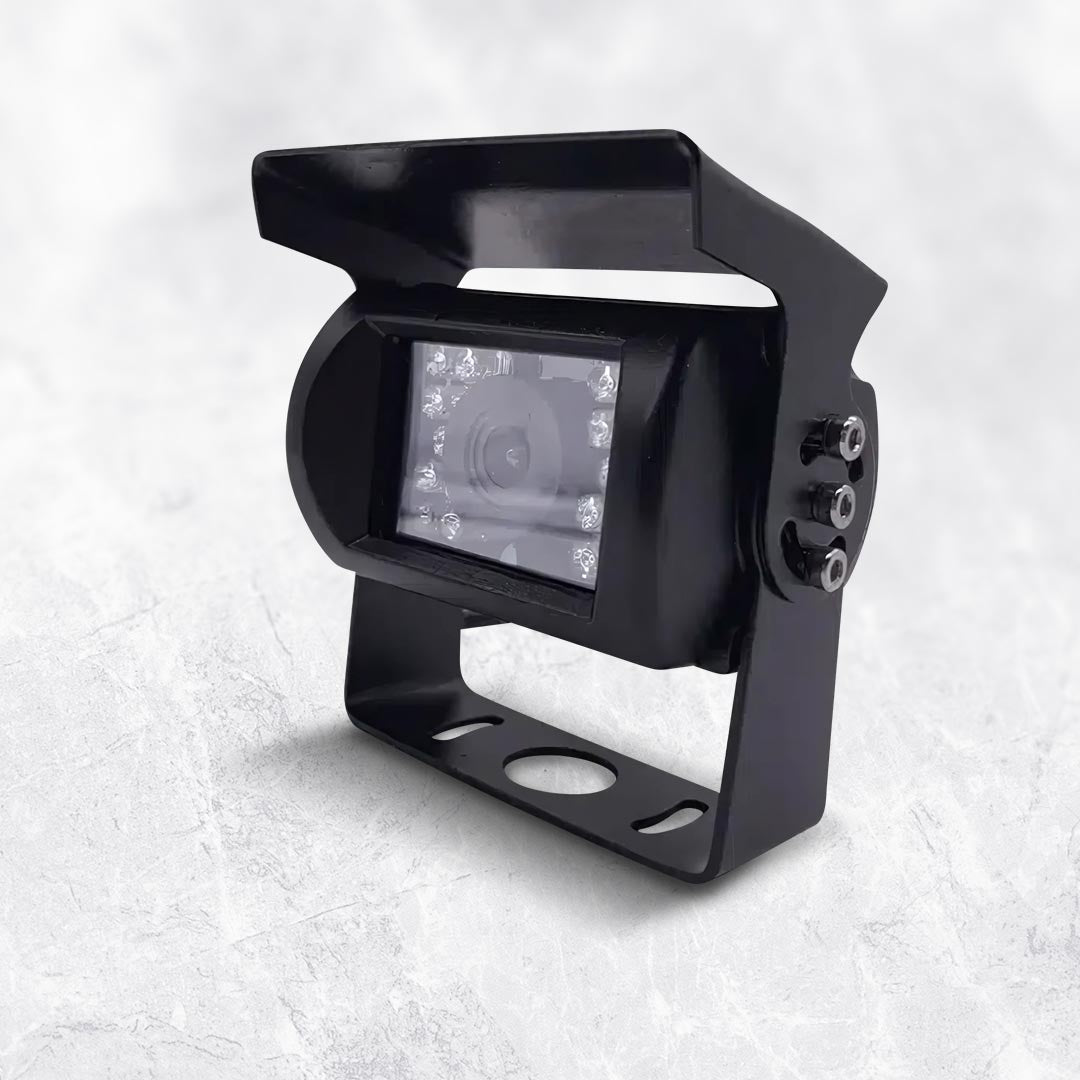

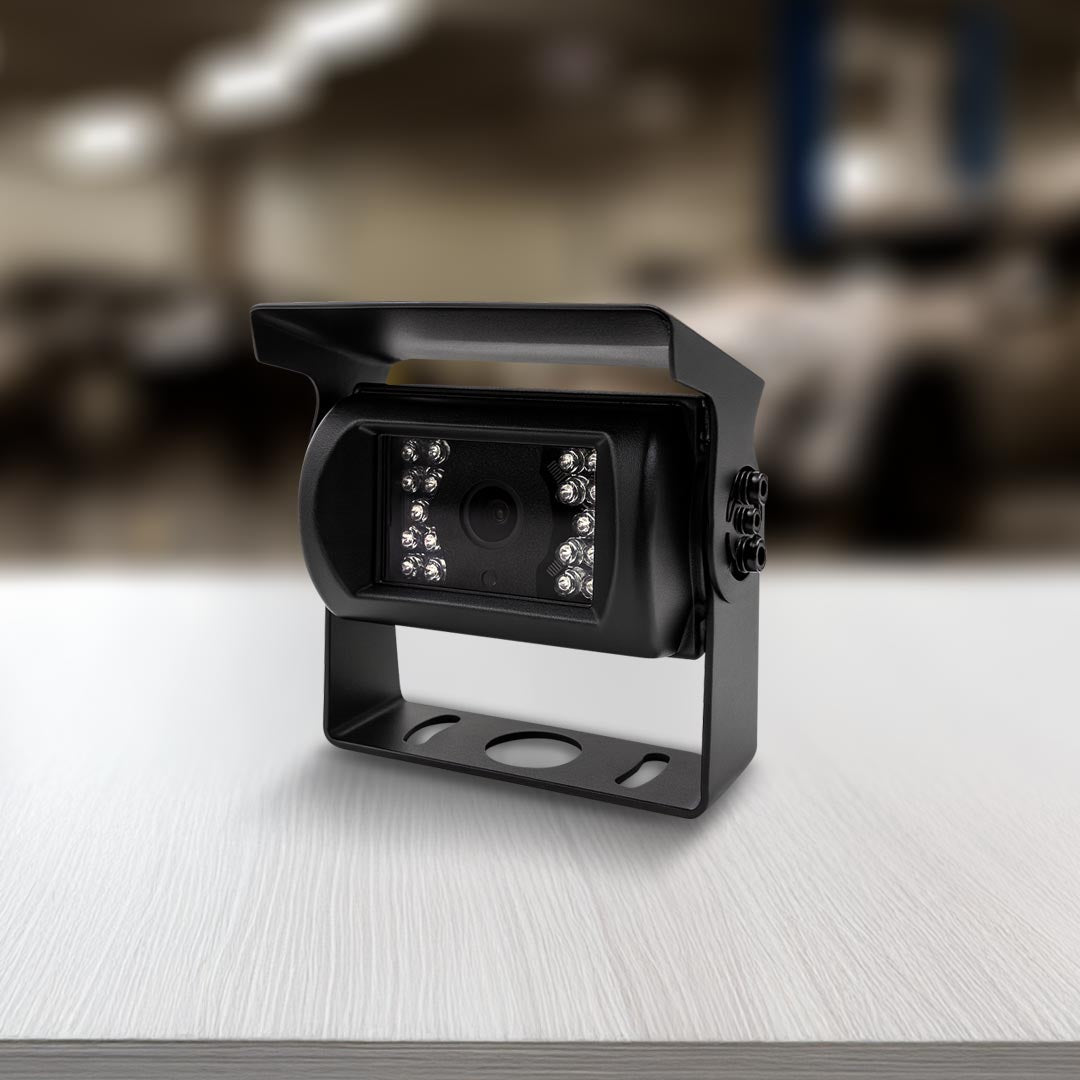

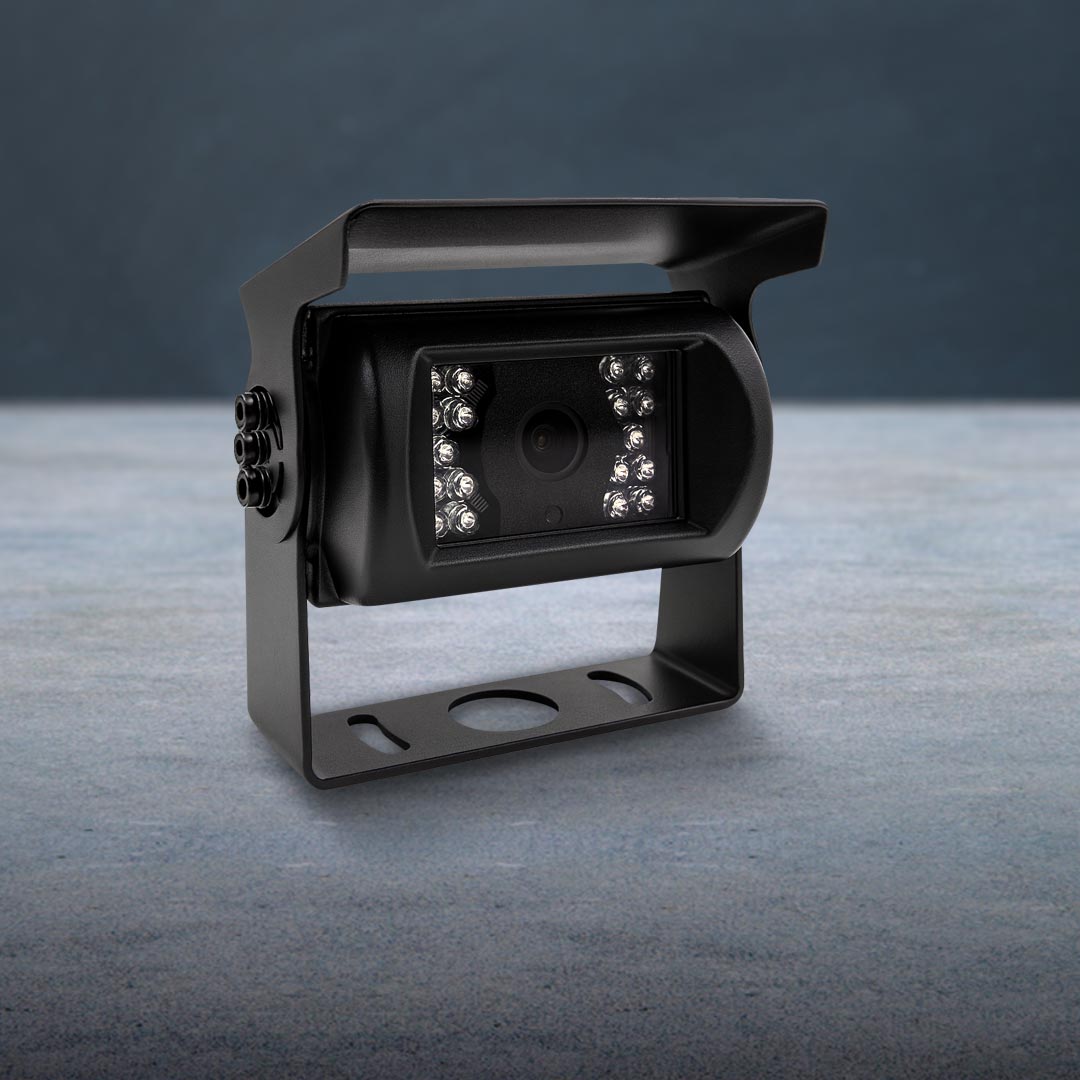

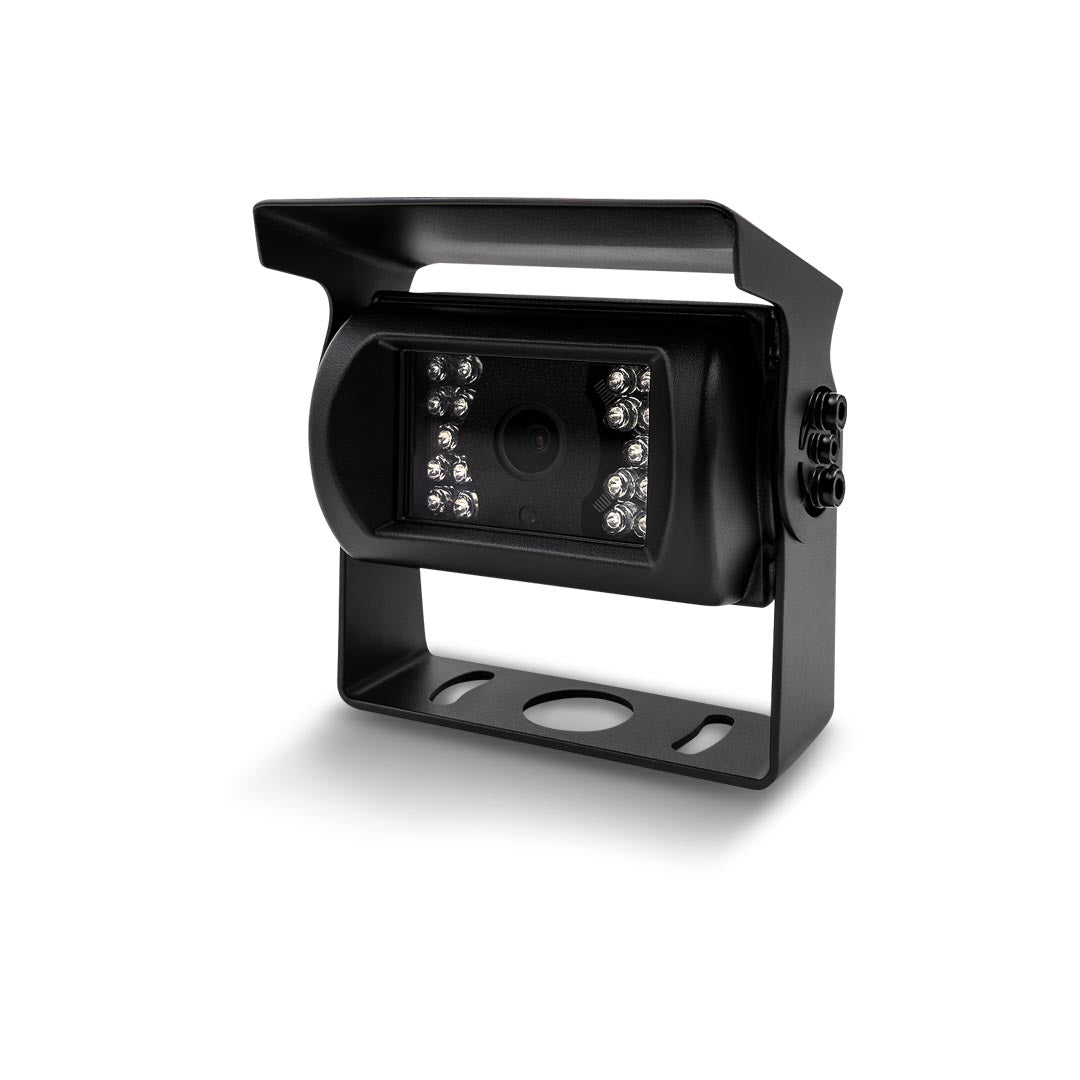

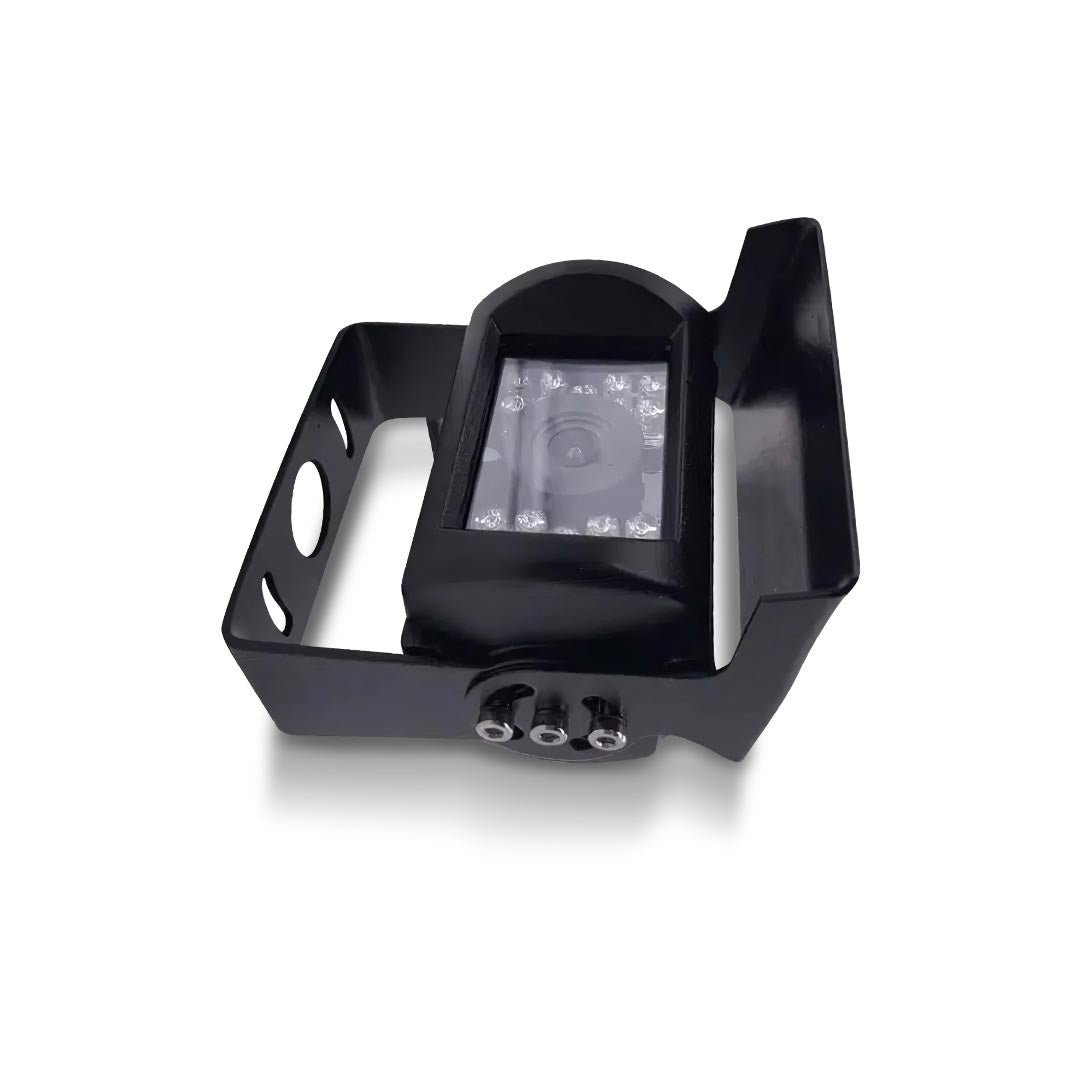

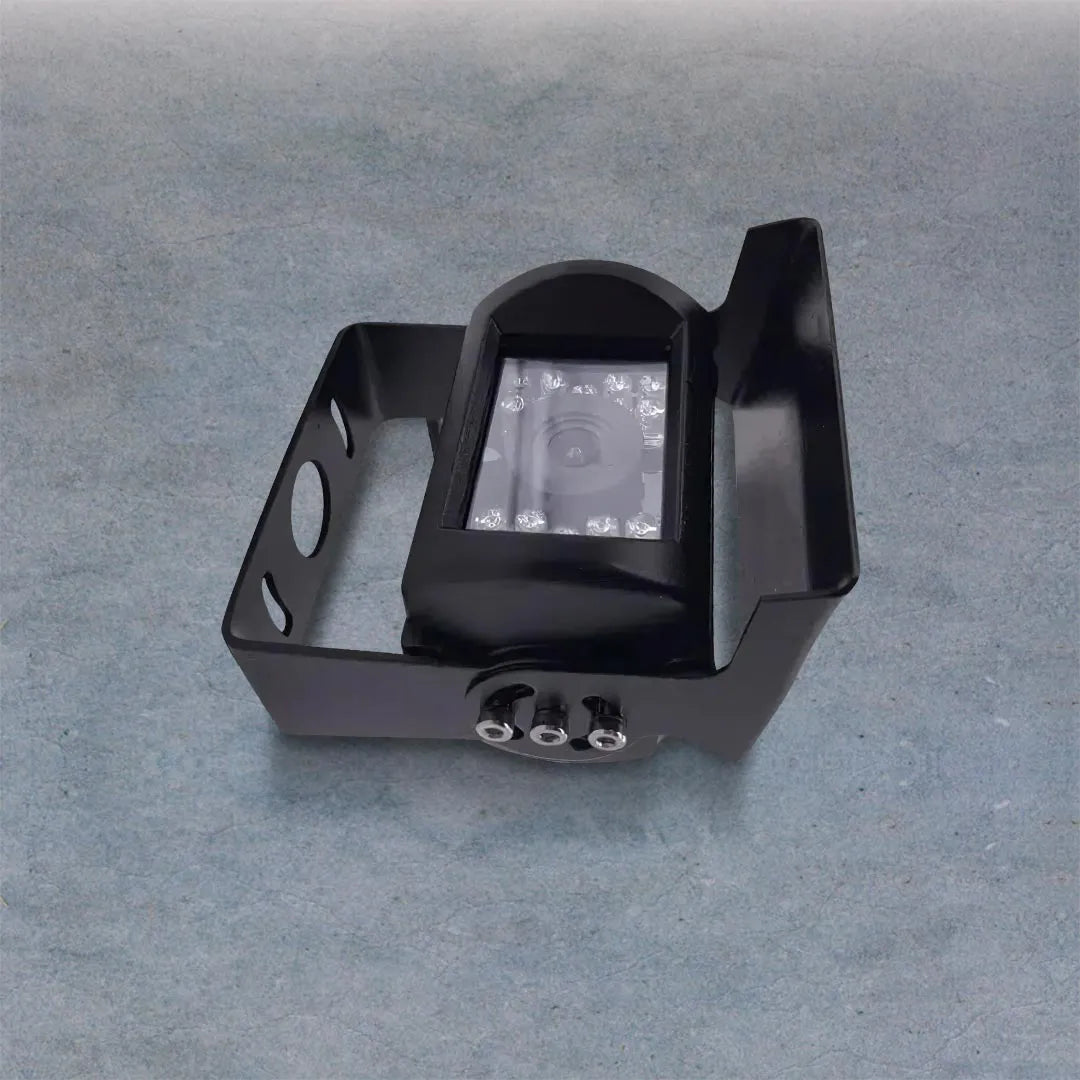

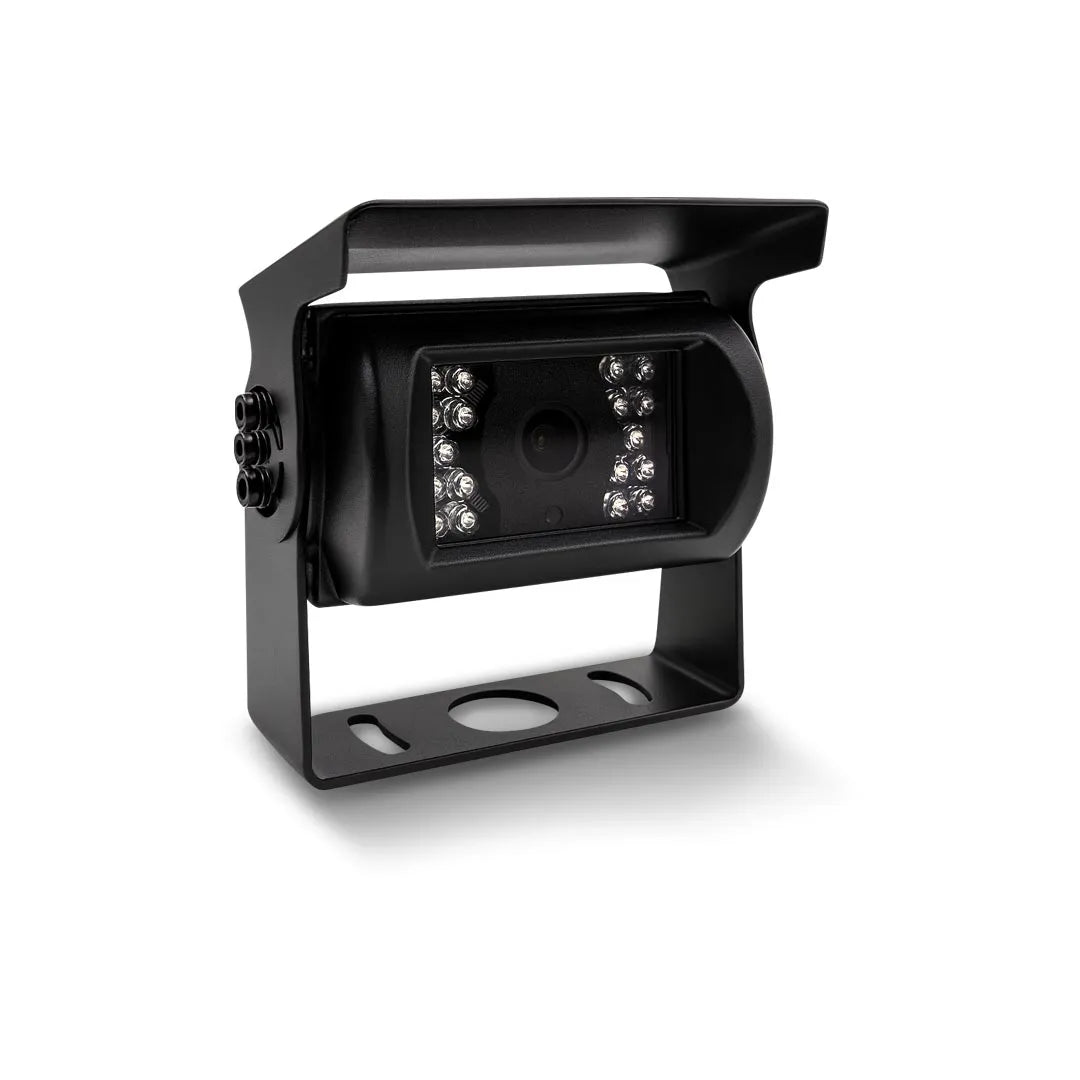

Mongoose MC10 | AHD 1080P Rear Camera

Commercial-grade AHD 1080P camera with Sony CMOS sensor for professional vehicle safety systems.

Product Overview

The Mongoose MC10 AHD 1080P Rear Camera represents heavy-duty commercial-level technology designed for professional vehicle safety systems, MDVR installations, and high-definition monitoring applications. This advanced AHD (Analog High Definition) camera delivers exceptional image quality through its 1/3" Sony CMOS sensor, providing crystal-clear 1080P Full HD resolution that significantly surpasses standard camera systems.

Built for demanding commercial environments, the MC10 features robust metal construction with IP67 water and dust resistance, 18x infrared LEDs for superior night vision, and heavy-duty 4-pin connectivity. The professional-grade design makes it ideal for trucks, buses, commercial fleets, and any application requiring reliable, high-definition rear monitoring capability.

Key Specifications

• AHD 1080P Full HD resolution (1280x1080)
• 1/3" Sony CMOS image sensor technology
• 2 Megapixel capture capability
• PAL TV system standard
• Night vision: 18x infrared LEDs
• Viewing angles: Horizontal 95°, Vertical 75°, Diagonal 125°
• IP67 water resistant and dust proof rating
• Metal case construction for durability
• Surface mount U-bracket with adjustable shield
• Heavy duty 4-pin connector system
• Dimensions: 78(L) x 75.5(H) x 70(W)mm
• Weight: 350g

Features & Benefits

Professional AHD Technology - Advanced Analog High Definition system provides superior image quality compared to standard cameras, delivering crisp 1080P resolution when connected to compatible AHD monitors like MM73A or MQ74A for professional fleet applications.

Sony CMOS Superior Performance - 1/3" Sony CMOS sensor ensures exceptional image clarity, colour accuracy, and low-light performance, making it ideal for commercial vehicles operating in varying Australian conditions from bright sun to evening operations.

Heavy-Duty Commercial Construction - IP67-rated metal housing with 350g robust build quality withstands harsh commercial environments, road vibration, and extreme weather conditions from coastal humidity to outback dust and heat.

Professional Night Vision Capability - 18x infrared LEDs provide excellent visibility in low-light and nighttime conditions, essential for commercial operations, security applications, and 24-hour fleet management.

Advantages & Limitations

Advantages:

• Commercial-grade 1080P AHD technology
• Sony CMOS sensor for superior image quality
• IP67 water and dust resistant construction
• 18x IR LEDs for excellent night vision
• Heavy-duty 4-pin connector for reliability
• 2-year commercial warranty coverage
• Professional mounting system with adjustable shield

Limitations:

• Requires compatible AHD monitor (MM73A, MQ74A, or equivalent)
• Camera cable sold separately (choose length for installation)
• PAL system (ensure monitor compatibility)
• Professional installation recommended for commercial applications

Technical Specs

• Resolution: 1080P Full HD (1280x1080)
• Image sensor: 1/3" Sony CMOS, 2 Megapixel
• TV system: PAL standard
• Viewing angles: 95°H, 75°V, 125°D
• Night vision: 18x infrared LEDs
• Weather rating: IP67 water resistant and dust proof
• Construction: Metal case housing
• Mounting: Surface mount U-bracket with adjustable shield
• Connector: Heavy duty 4-pin system
• Dimensions: 78 x 75.5 x 70mm
• Weight: 350g
• Warranty: 2 years commercial coverage

Frequently Asked Questions

Which monitors work with this AHD camera? The MC10 is designed for AHD monitors like the MM73A (3-channel) and MQ74A (quad 4-channel), or other professional AHD monitoring systems.

Do I need special cables for installation? Yes, you'll need to purchase a compatible camera cable in the appropriate length for your specific installation requirements.

Is this suitable for harsh commercial environments? Absolutely - the IP67 rating, metal construction, and heavy-duty components are specifically designed for demanding commercial vehicle applications.

Compatible With / Goes Well With

• MM73A AHD Monitor (3-channel inputs)
• MQ74A Quad AHD Monitor (4-channel inputs)
• Professional MDVR systems
• Commercial vehicle safety systems
• Heavy-duty camera cables (sold separately)
• Professional fleet installation services
