Product Overview

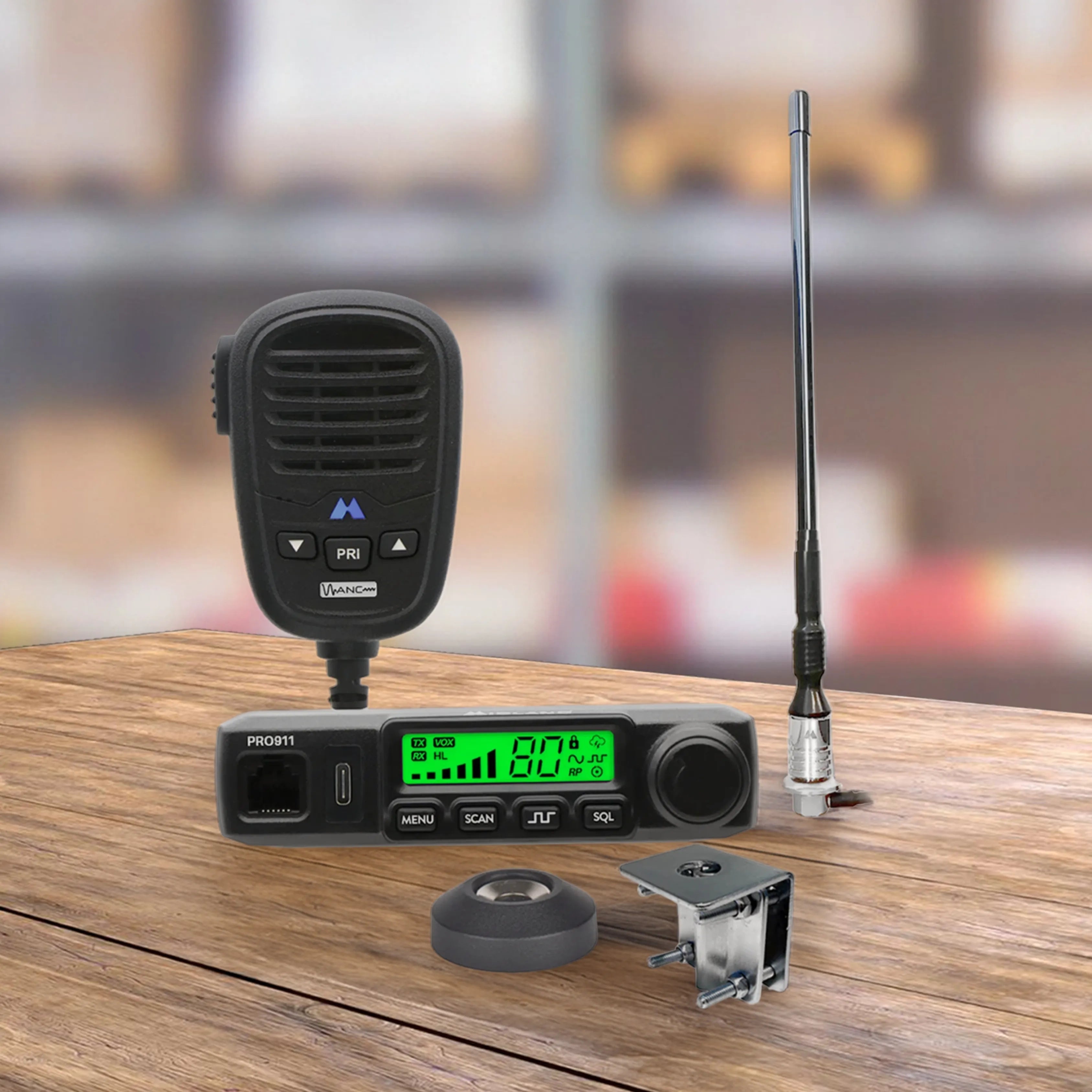

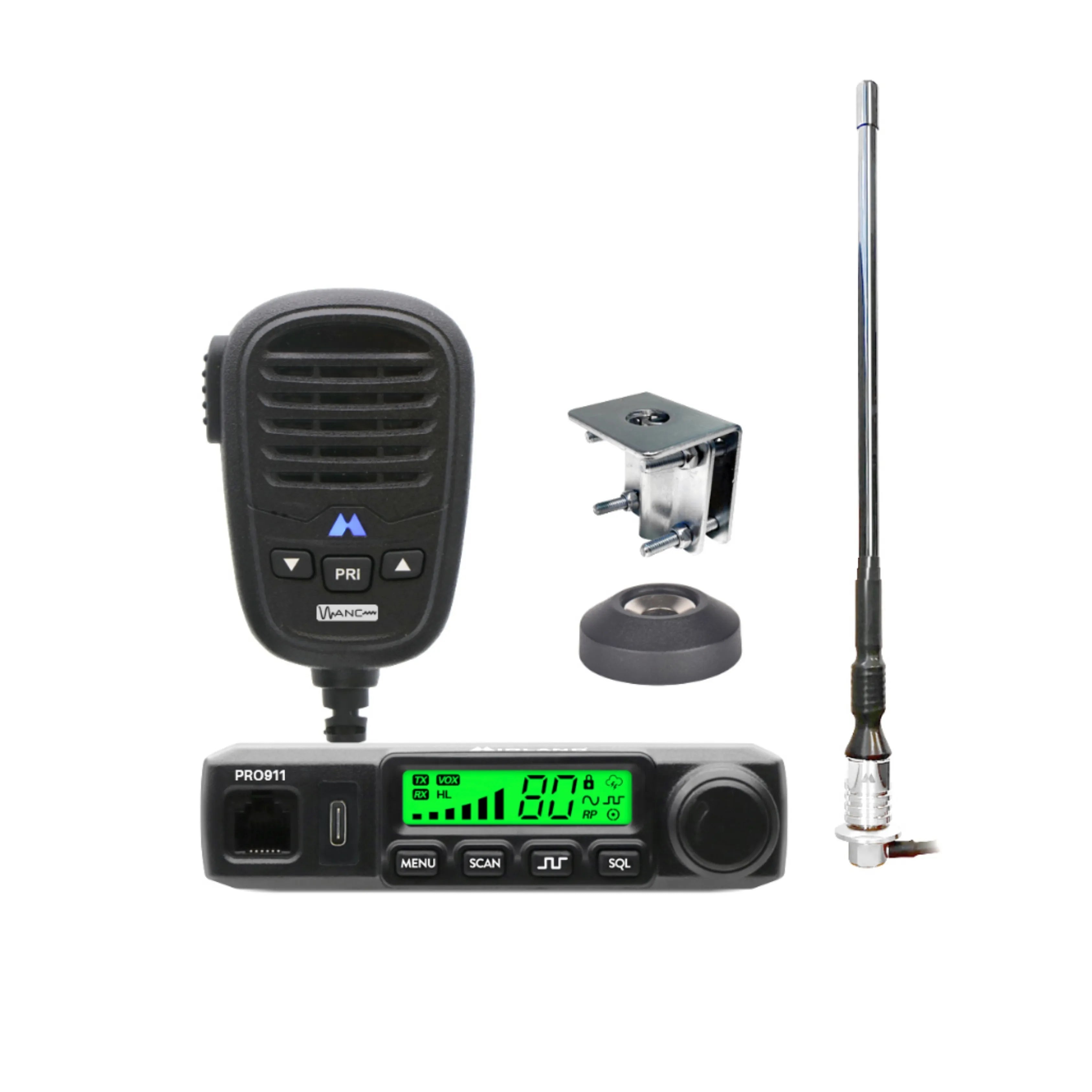

The Midland PRO911KIT is a comprehensive commercial-gnplrade UHF CB installation package combining the professional PRO911 12/24V mobile radio with complete antenna and mounting hardware for immediate deployment. This all-in-one kit includes the robust PRO911 compact radio featuring dual-voltage operation (11.2-30V DC), premium MXTA37 Active Noise Cancelling IP66 microphone, 3.1dBi flexi-dipole antenna with 330mm removable mast, 4.5-meter RG58 coaxial cable, and versatile mirror/L bracket for flexible mounting options. Designed specifically for commercial installations in heavy-duty trucks, earthmoving equipment, mining machinery, and industrial vehicles using 24V electrical systems, this kit eliminates the need for separate component purchases. The PRO911KIT delivers 5-watt output power across 80 transmit and 99 receive channels with advanced features including USB-C charging port, 7 selectable display colors, duplex capability, and channel scanning. This complete package provides professional-grade communication capability ready for immediate installation in demanding commercial environments across construction, agriculture, mining, transport, and industrial applications.

Key Features

Complete Installation Package - All-in-one kit includes PRO911 radio, MXTA37 ANC microphone, 3.1dBi antenna, coaxial cable, and mounting bracket, eliminating separate component sourcing and ensuring compatibility across all kit components for immediate professional installation.

12/24V Dual-Voltage Compatibility - Wide 11.2-30V DC input range enables direct installation in 24V commercial trucks, heavy machinery, and industrial vehicles without requiring voltage reducers, while maintaining full compatibility with standard 12V vehicle electrical systems.

MXTA37 Active Noise Cancelling Microphone - Premium IP66-rated waterproof and dustproof ANC microphone automatically filters background noise from diesel engines, machinery, and environmental sources, ensuring clear voice transmission in demanding commercial environments.

3.1dBi Flexi-Dipole Antenna - Included 330mm removable-mast flexi-dipole antenna with SO239 base and 4.5-meter RG58 coaxial cable provides reliable signal coverage optimized for commercial vehicle applications with flexible installation options.

Versatile Mounting Solutions - Complete kit includes mirror/L bracket in zinc-plated steel plus slide-in radio mounting cradle, providing flexible installation options for various commercial vehicle configurations and equipment cab layouts.

USB-C Charging Port - Integrated USB-C port provides convenient fast-charging capability for mobile phones, tablets, and handheld radios directly from the radio unit, reducing cable clutter in commercial vehicle installations.

7 Selectable Display Colors - Adjustable backlit LCD display with 7 color options allows customization to match vehicle interior lighting or operator preference, improving visibility in varying lighting conditions.

Professional Communication Features - 80 transmit CB channels plus 99 receive channels with dealer-programmable 19 additional channels, priority channel function, channel memory scan, duplex capability, 50 CTCSS tones, and 104 DCS codes for comprehensive commercial requirements.

Technical Specifications

Radio Specifications:

Power and Channels:

• Output Power: 5 Watts (@13.8V)
• CB Transmit Channels: 80
• CB Receive Channels: 99
• Dealer Programmable Channels: 19 (requires programming lead)
• Frequency Range: 476.425-477.4125MHz (CB)
• Channel Width: 12.5kHz (Narrowband)
• Maximum Range: 18km Line of Sight

Power Supply:

• Input Voltage: 11.2-30V DC (12/24V Compatible)
• Maximum TX Current: 1.3A

Microphone:

• Model: MXTA37 with RJ45 Connection
• Active Noise Cancelling: Yes
• IP Rating: IP66 (Dustproof/Waterproof)
• Mounting Options: Magnetic + Standard Holders

Audio:

• Base Speaker Power: 3W Maximum @1KHz
• External Speaker Jack: Yes

Features:

• Display: Backlit Segment LCD
• Display Colors: 7 Selectable
• CTCSS Tones: 50
• DCS Codes: 104
• Priority Channel: Yes
• Duplex Capability: Yes
• Channel Memory Scan: Yes
• TX/RX Indicator: Yes
• Key Beep: On/Off Selectable
• USB-C Charging Port: Yes
• Mounting: Slide-In Cradle
• Dimensions (excl. Bracket): 120mm (W) x 25mm (H) x 110mm (D)

Antenna & Bracket Specifications:

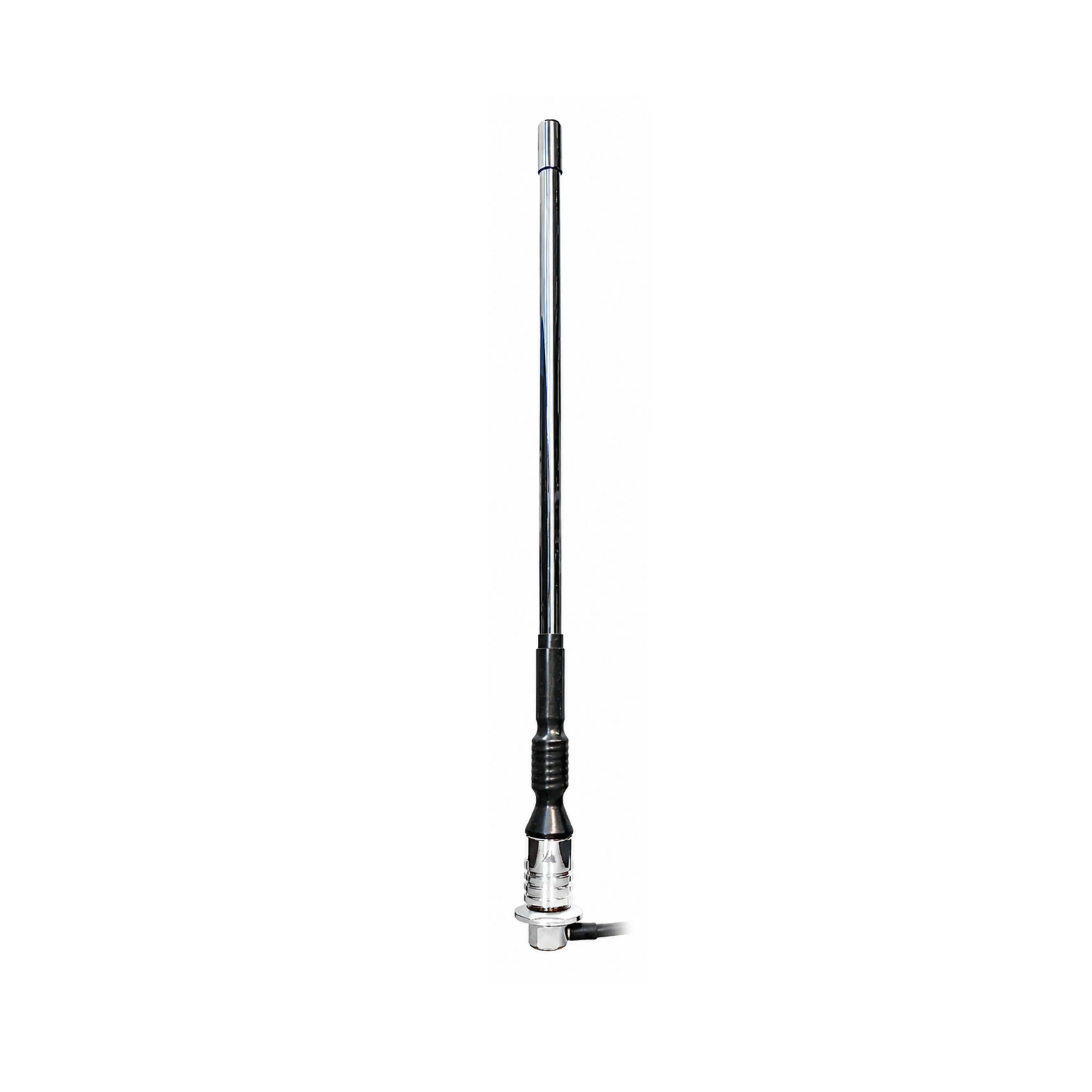

Antenna:

• Type: 477MHz Flexi-Dipole
• Gain: 3.1dBi
• Height: 330mm
• Mast: Removable
• Base Connector: SO239
• Cable: 4.5m RG58 Coaxial

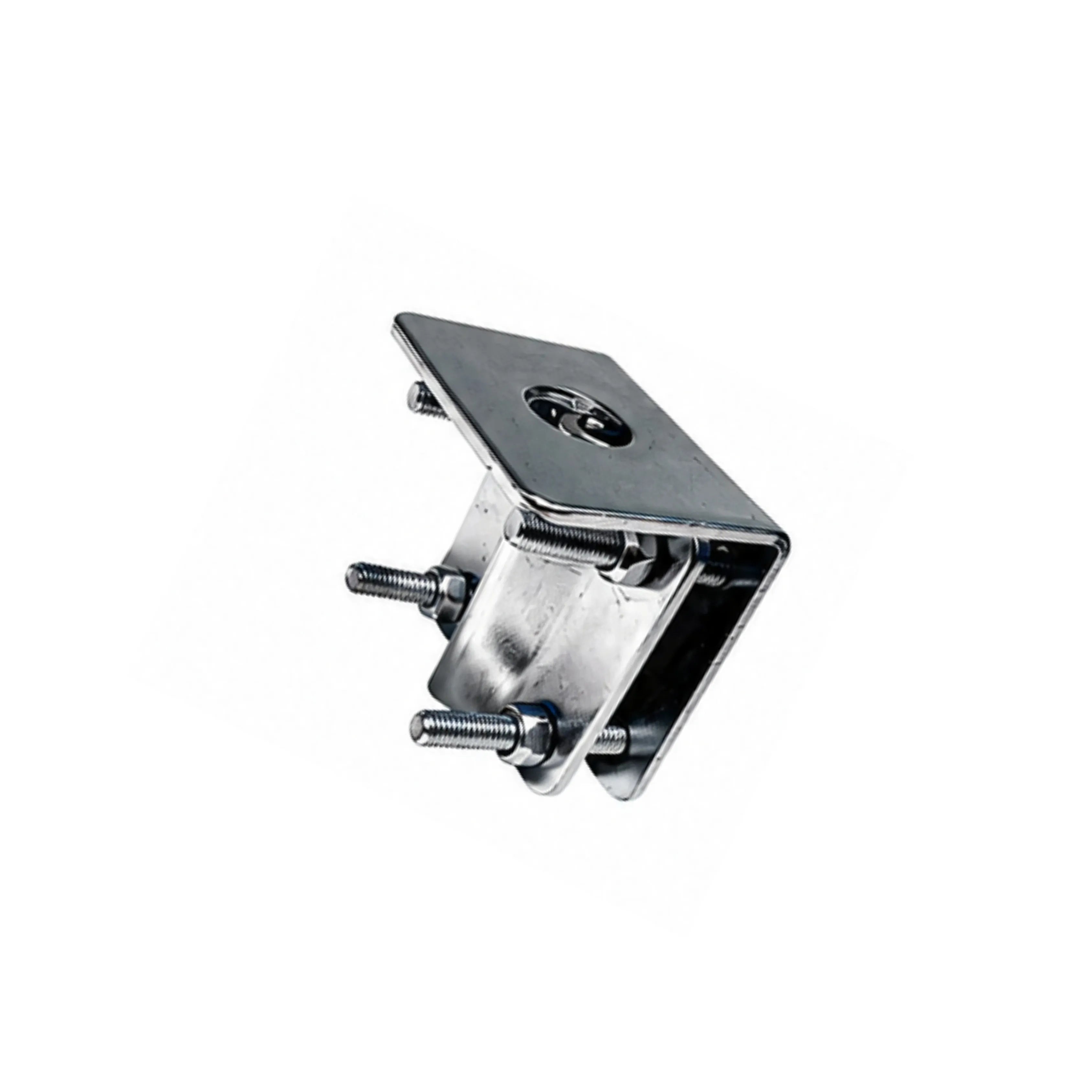

Bracket:

• Type: Mirror / L Bracket
• Material: Zinc Plated Steel

Installation Notes

The Midland PRO911KIT provides complete installation components for commercial vehicle deployment. Mount the included mirror/L bracket to the vehicle exterior using appropriate hardware for your vehicle configuration. Thread the antenna onto the SO239 base and secure to the bracket. Route the 4.5-meter RG58 coaxial cable through the vehicle body to the radio location. Mount the radio slide-in cradle within the dashboard or equipment control panel. Connect the radio power cable to the vehicle electrical system observing proper polarity (red to positive, black to negative/ground). The PRO911 accepts 11.2-30V DC input, operating efficiently on both 12V and 24V systems. Connect the antenna coaxial cable to the radio's SO239 connector. Connect the MXTA37 microphone to the RJ45 port. Mount the microphone using either magnetic or standard holder. Test all functions after installation. To program the 19 dealer-programmable receive channels, contact authorized Midland dealers with programming lead. The removable antenna mast allows quick removal when accessing height-restricted areas.

Frequently Asked Questions

What makes the PRO911KIT different from the standard PRO911?

The PRO911KIT is a complete installation package including the PRO911 radio plus 3.1dBi flexi-dipole antenna with 330mm removable mast, 4.5m RG58 coaxial cable, and mirror/L bracket in zinc-plated steel. This all-in-one kit eliminates separate component purchasing and ensures compatibility, providing everything needed for immediate professional installation.

Why is the flexi-dipole antenna suitable for commercial vehicles?

The 3.1dBi flexi-dipole antenna with 330mm removable mast provides reliable signal coverage while accommodating height-restricted parking and loading docks. The flexible design absorbs impacts during equipment operation, and the removable mast enables quick removal when accessing low-clearance areas, making it ideal for commercial truck and machinery applications.

Can I use this kit on both 12V and 24V vehicles?

Yes, the PRO911 radio features wide 11.2-30V DC input range, operating efficiently on both standard 12V passenger vehicles and 24V commercial trucks, buses, heavy machinery, mining equipment, and industrial vehicles without requiring voltage reducers or additional conversion equipment.

Is the mirror/L bracket suitable for all vehicle types?

The included mirror/L bracket provides versatile mounting options for most commercial vehicles. The bracket mounts to mirror arms or can be used as an L-bracket for alternative mounting locations. The zinc-plated steel construction withstands harsh commercial environments while providing secure antenna mounting.

Does the kit include everything needed for installation?

The PRO911KIT includes radio, microphone with dual mounting holders, antenna with coaxial cable, and mirror/L bracket. You may need vehicle-specific mounting hardware, power cable routing accessories, or additional installation materials depending on your specific vehicle configuration. The kit provides all primary communication components for professional installation.
