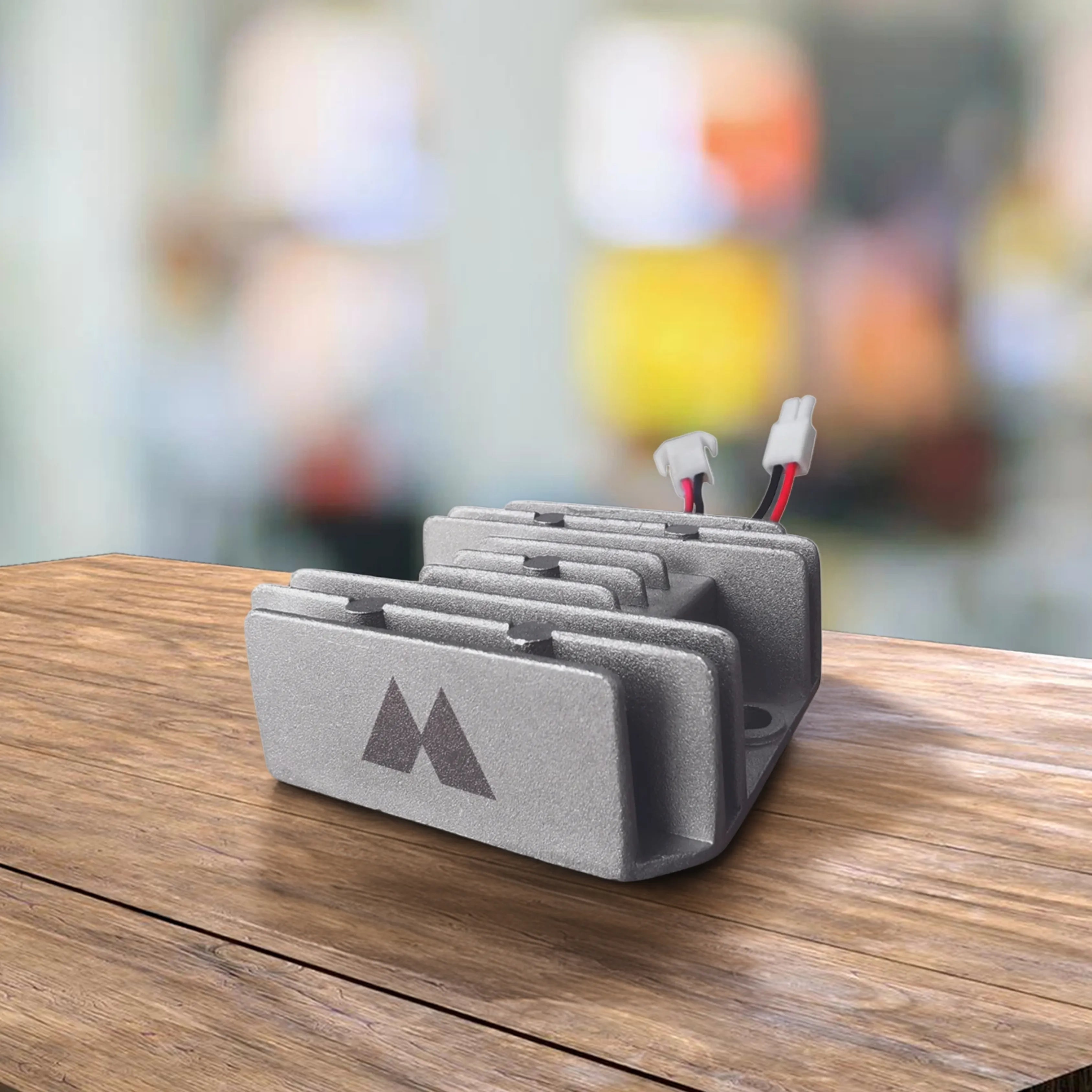

Midland PRO24V - 24V/12V Volt 5A DC-DC Voltage Reducer for UHF CB Radios

Midland PRO24V - 24V/12V Volt 5A DC-DC Voltage Reducer for UHF CB Radios

Product Overview

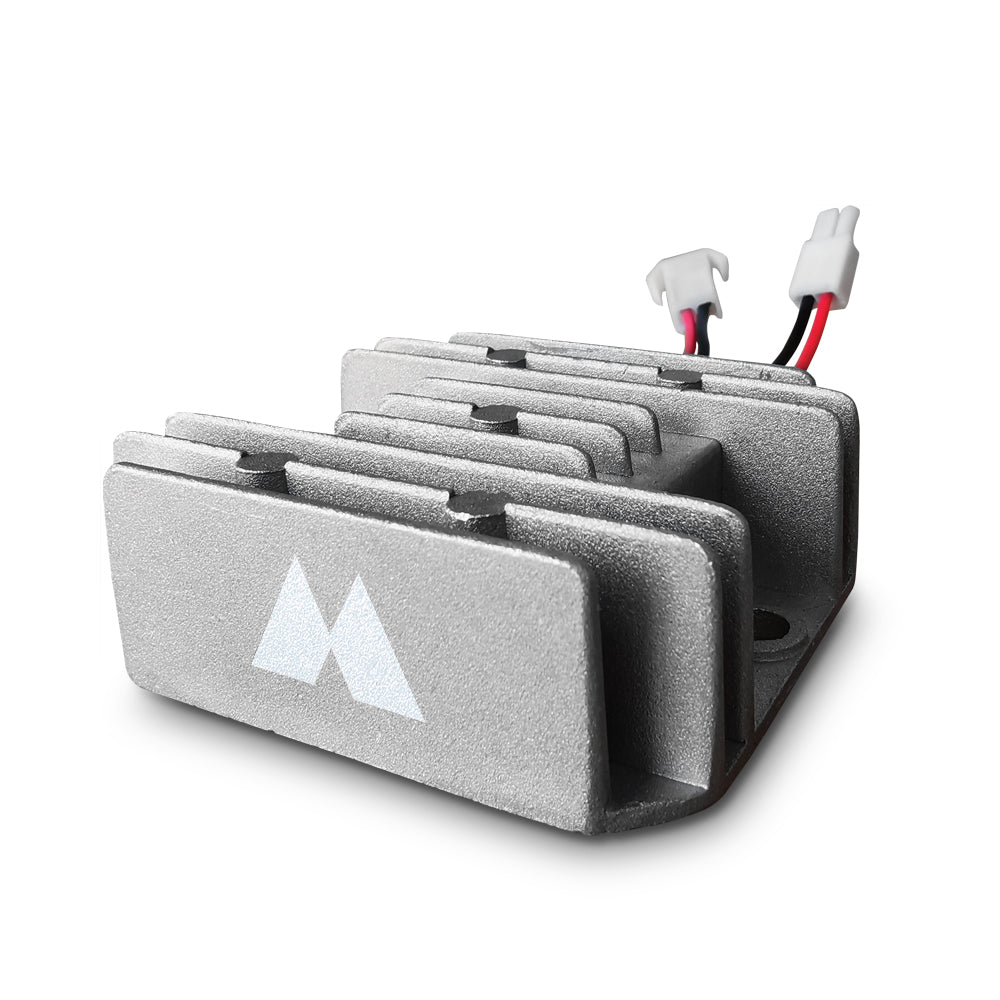

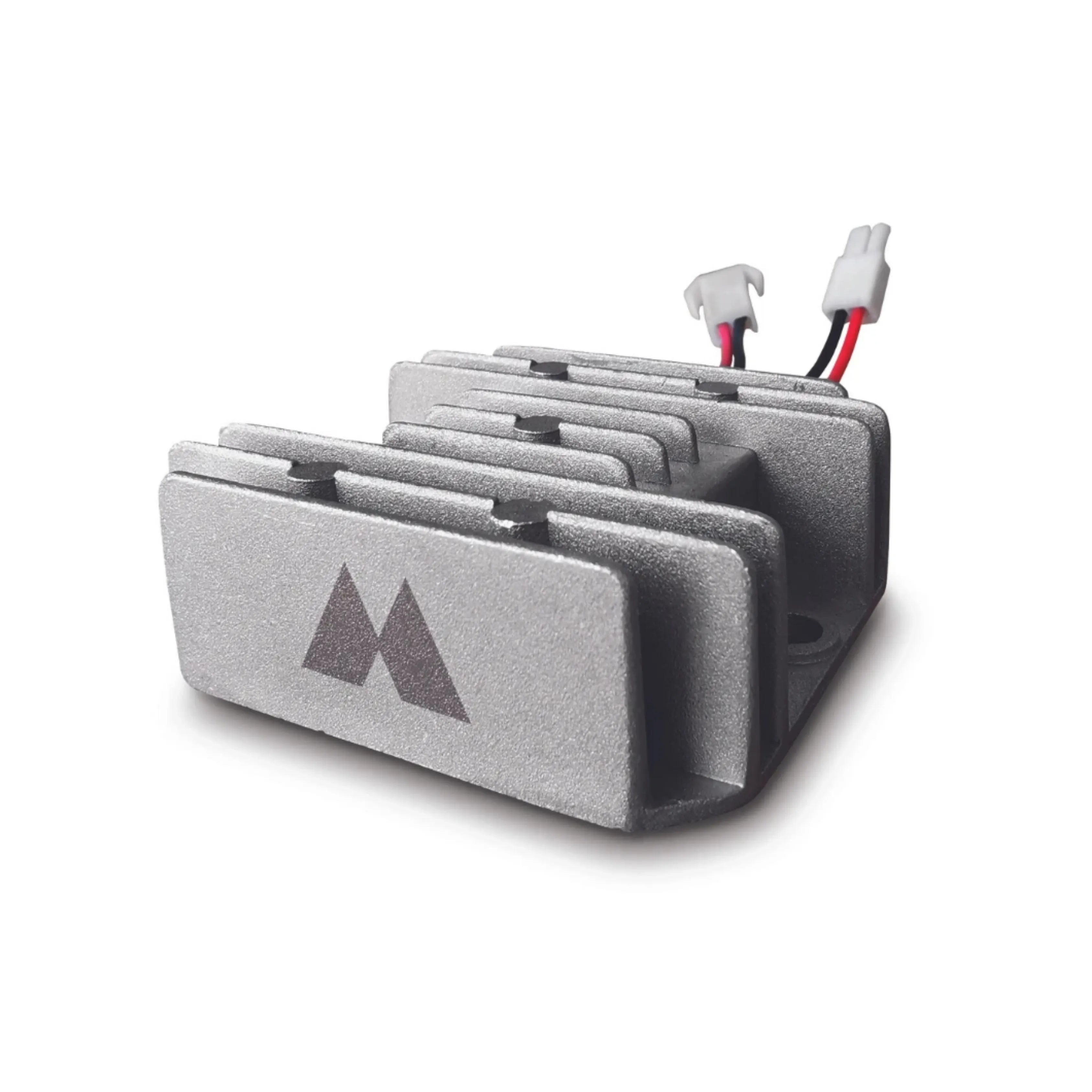

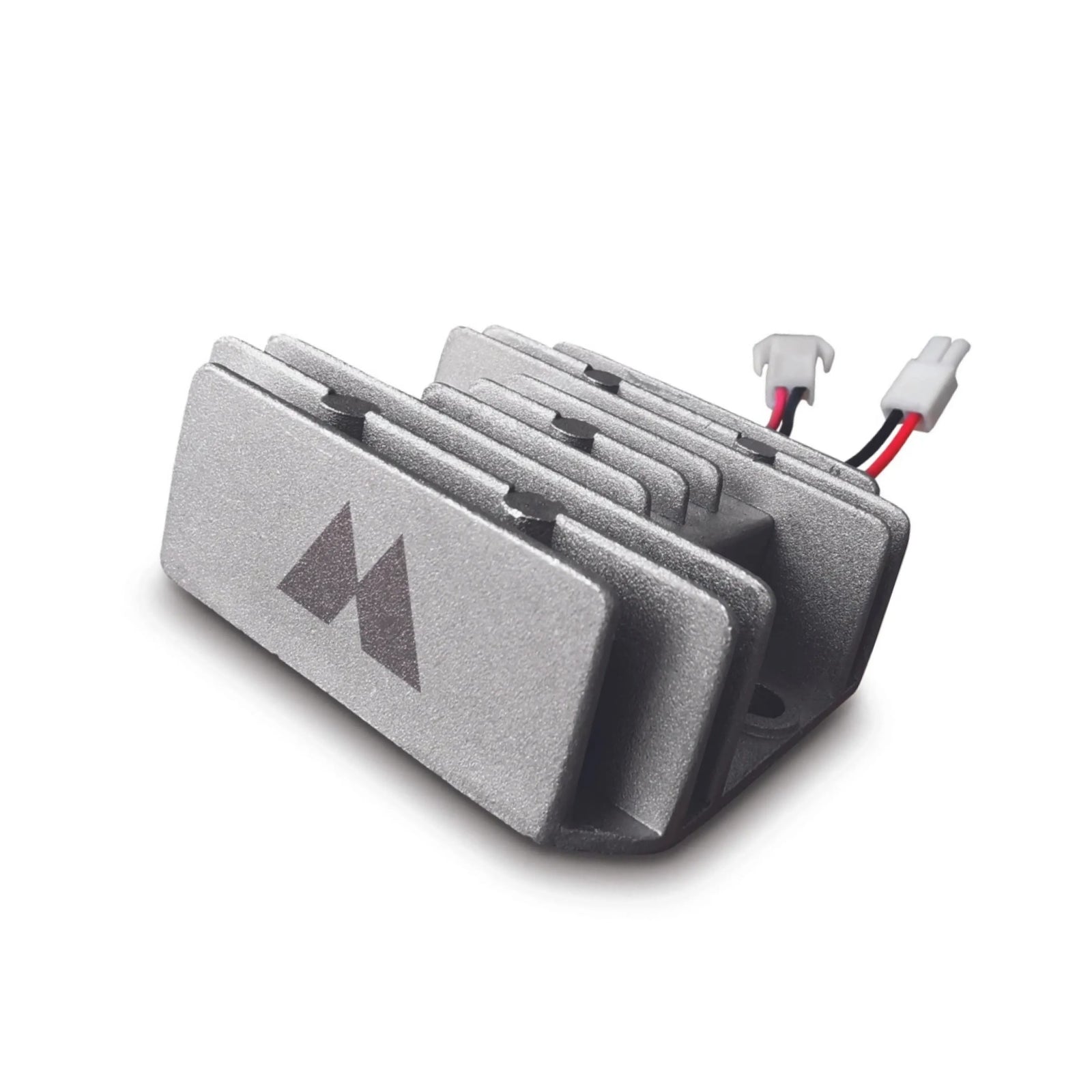

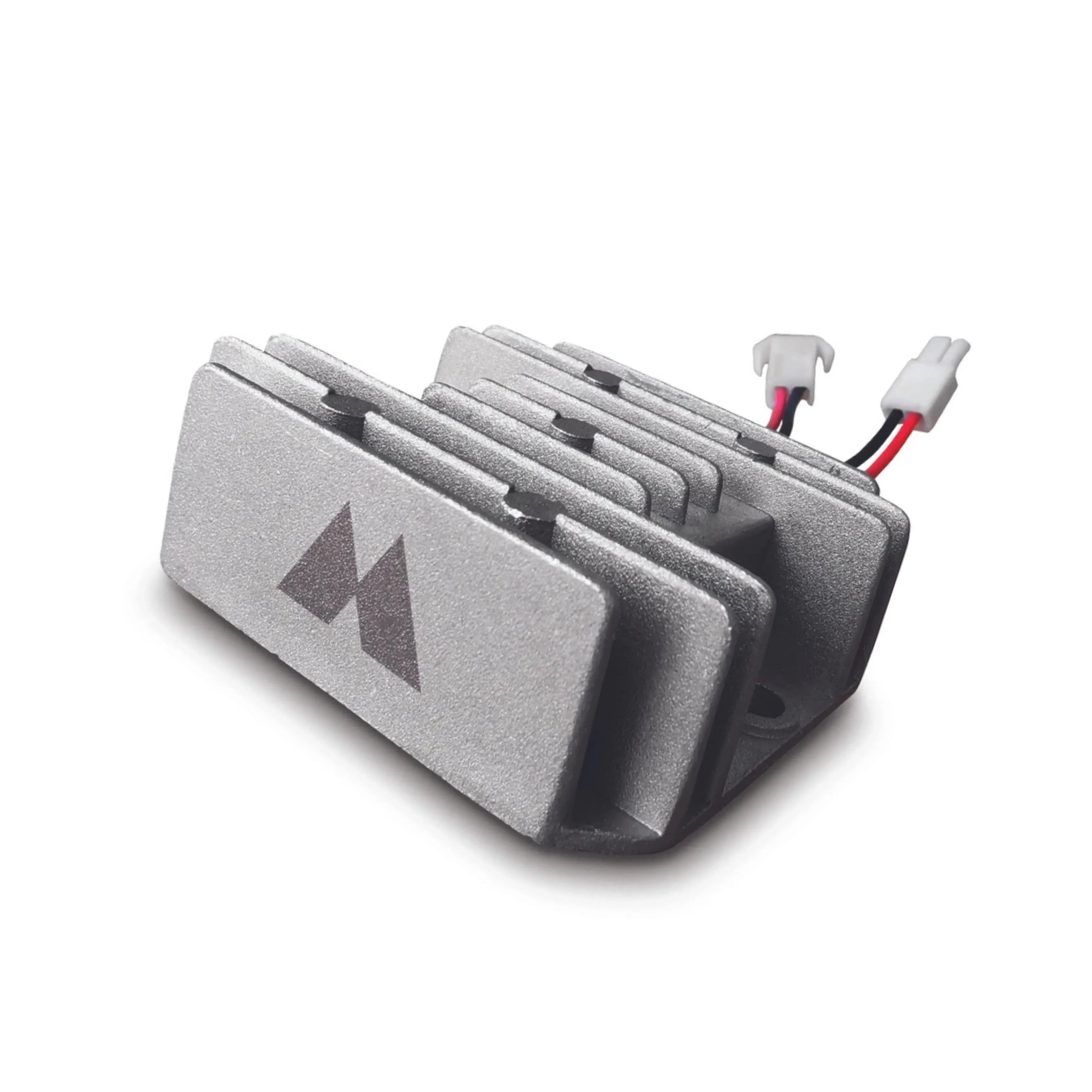

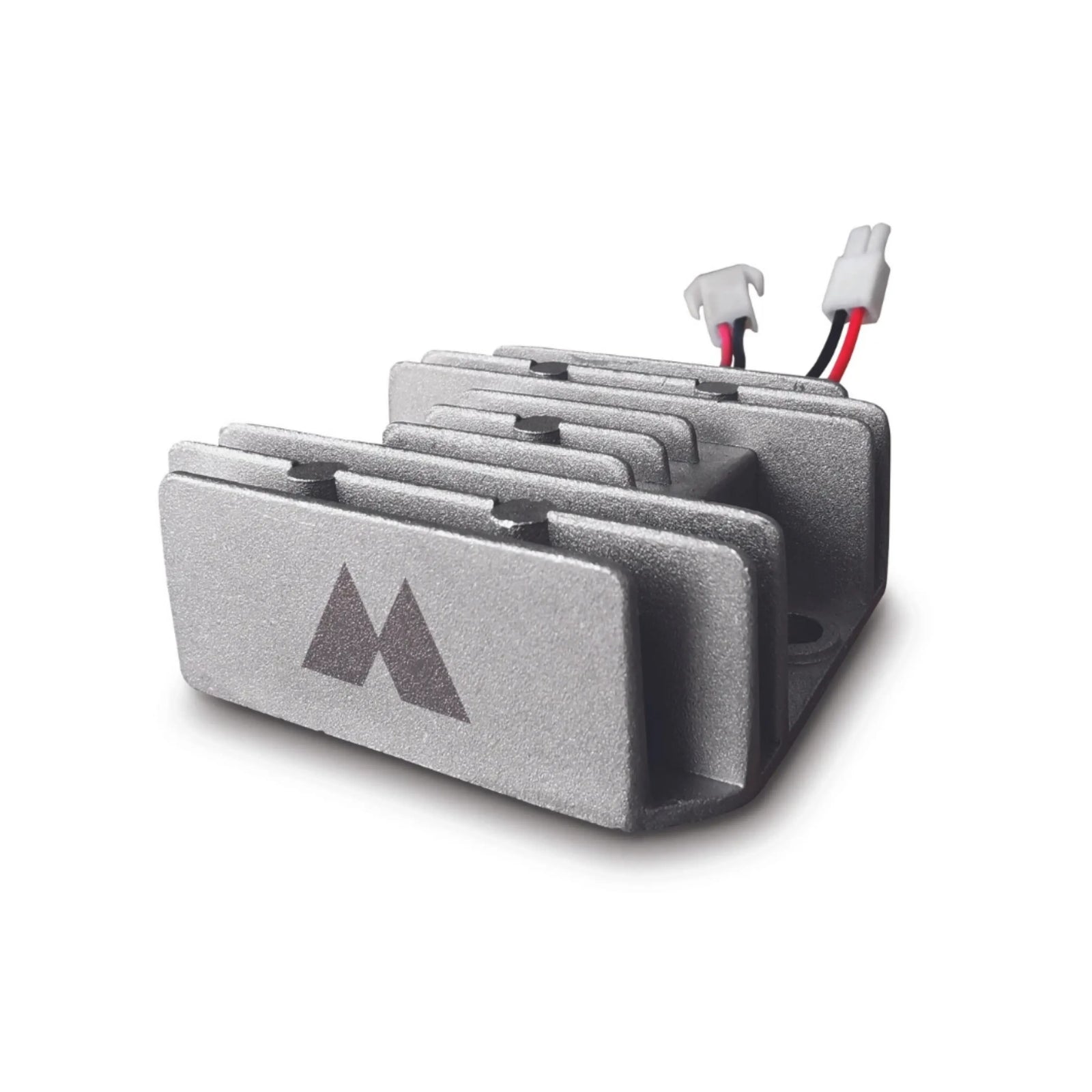

The Midland PRO24V is a professional-grade DC-DC voltage reducer designed to safely power 12V UHF CB radios from 24V electrical systems in commercial trucks, heavy machinery, and industrial vehicles. This intelligent voltage converter accepts input voltages from 15-35V DC and delivers stable 13.8V output with 3A continuous and 5A peak current capacity. The PRO24V features plug-and-play connectivity for Midland and GME UHF CB radios via standard connectors, plus includes universal fly leads for custom installations in various high-voltage applications. Built with die-cast alloy construction and IP68 dustproof/waterproof rating, this voltage reducer withstands extreme operating temperatures from -40°C to 85°C. Comprehensive protection circuits guard against over-voltage, over-current, over-temperature, and short-circuit conditions, ensuring safe reliable operation in demanding commercial and industrial environments.

Key Features

24V to 12V Voltage Conversion - Converts 24V electrical systems to stable 13.8V output required for 12V UHF CB radios, enabling safe operation of standard communication equipment in commercial trucks, earthmoving machinery, and industrial vehicles without risk of equipment damage.

Plug-and-Play Compatibility - Direct plug-in connectors for Midland and GME UHF CB radios eliminate complex wiring installations, providing convenient connection to popular Australian UHF radio brands for immediate deployment in commercial vehicle applications.

Universal Fly Leads Included - Supplied adaptor fly leads enable custom installations in various high-voltage applications beyond UHF radios, providing versatile power conversion solution for 12V accessories in 24V electrical systems.

IP68 Environmental Protection - Highest-grade dustproof and waterproof rating ensures complete protection against dust ingress and continuous submersion, maintaining reliable operation in harsh mining, construction, and agricultural environments.

Comprehensive Protection Circuits - Multiple safety systems including over-voltage protection, over-current protection, over-temperature protection, and short-circuit protection safeguard connected equipment and vehicle electrical systems from damage.

Die-Cast Alloy Construction - Robust die-cast aluminum alloy housing provides excellent heat dissipation, mechanical durability, and electromagnetic interference shielding for reliable long-term operation in demanding commercial applications.

Wide Temperature Range - Operates reliably from -40°C to 85°C ambient temperature, ensuring consistent performance in extreme cold storage facilities, desert mining operations, and tropical agricultural environments.

High Efficiency Design - 95% conversion efficiency minimizes power loss as heat, reducing electrical load on vehicle alternator while maintaining optimal operating temperature in enclosed mounting locations.

Technical Specifications

• Input Voltage: 15-35V DC
• Output Voltage: 13.8V DC (Regulated)
• Continuous Current: 3A
• Peak Current: 5A
• Efficiency: 95%
• Unloaded Current: 0.01A
• Operating Temperature: -40°C to 85°C
• Environmental Rating: IP68 (Dustproof / Waterproof)
• Protection Systems: Over-Voltage, Over-Current, Over-Temperature, Short-Circuit
• Housing Material: Die-Cast Alloy
• Dimensions: 66mm (W) x 61mm (D) x 23mm (H)
• Compatibility: Midland UHF CB Radios, GME UHF CB Radios, Universal 12V Applications
• Connectors: Direct Plug-In + Universal Fly Leads

What's Included

• Midland PRO24V DC-DC Voltage Reducer
• Direct Plug-In Connector for Midland UHF Radios
• Direct Plug-In Connector for GME UHF Radios
• Universal Adaptor Fly Leads
• Installation Instructions

Installation Notes

The Midland PRO24V installs between the 24V vehicle power source and 12V UHF CB radio. For Midland or GME radios, connect the appropriate plug-in connector directly to the radio's power cable and vehicle 24V supply. For universal applications, use the provided fly leads to create custom connections following proper polarity. Mount the reducer unit in a location with adequate ventilation for heat dissipation. Ensure secure mounting to prevent vibration damage. The IP68 rating allows installation in exposed locations subject to dust and moisture. Verify input voltage remains within 15-35V DC range. The unit automatically regulates output to stable 13.8V regardless of input voltage fluctuations.

Frequently Asked Questions

Can I use the PRO24V with any 12V UHF CB radio?

Yes, the PRO24V includes direct plug-in connectors for Midland and GME UHF radios, plus universal fly leads for connecting other 12V radio brands or accessories. The unit provides stable 13.8V output suitable for any 12V UHF CB radio operating from 24V vehicle electrical systems.

What vehicles require a 24V to 12V voltage reducer?

Commercial trucks, heavy earthmoving machinery, mining equipment, industrial vehicles, buses, and large agricultural machinery often use 24V electrical systems. These vehicles require voltage reduction to safely power standard 12V UHF CB radios without equipment damage from excessive voltage.

Is the PRO24V protected against electrical faults?

Yes, the PRO24V features comprehensive protection including over-voltage protection (prevents damage from voltage spikes), over-current protection (guards against excessive load), over-temperature protection (prevents thermal damage), and short-circuit protection (safeguards against wiring faults). These systems protect both the reducer and connected equipment.

Can the PRO24V withstand harsh environmental conditions?

Yes, the IP68 rating provides complete protection against dust ingress and continuous water submersion. The die-cast alloy construction and -40°C to 85°C operating temperature range ensure reliable operation in mining, construction, agricultural, and industrial environments with extreme dust, moisture, and temperature exposure.

What is the maximum current draw I can use?

The PRO24V delivers 3A continuous current and 5A peak current. Most UHF CB radios draw 1-1.5A continuous with 3-4A peak during transmission, well within the reducer's capacity. Verify your radio's current specifications before installation to ensure compatibility with the 5A peak rating.
