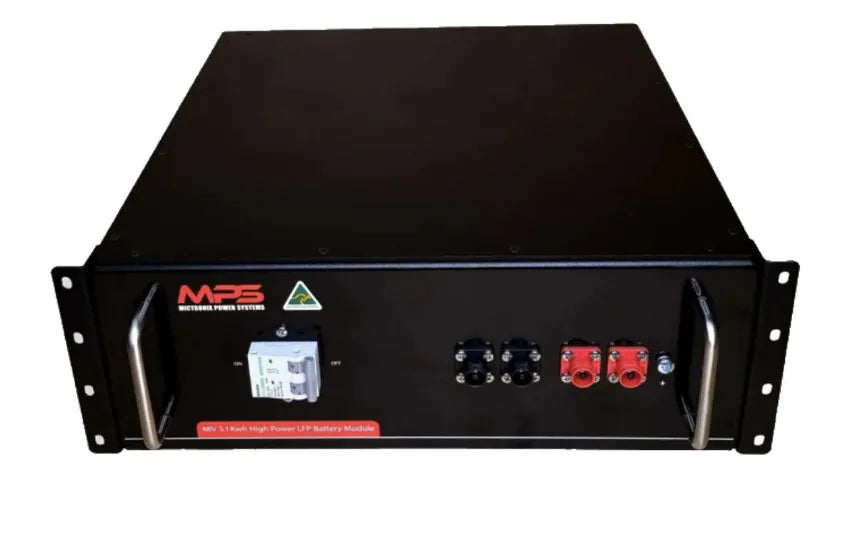

Mictronix Power Systems MPS-48-5.1 Rack Mount Lithium Battery Module 48V 5.1kWh

The Mictronix 48v, 5.1kwh High Power LFP Battery Module Is A Robust Energy Storage Solution That Can Be Used In A Wide Range Of Applications

The battery module has been designed and made in Australia to suit Australian conditions over a long service life, maintaining maximum performance. Simplicity of installation and maintenance was a priority in the design process.

Mictronix Power Systems (MPS) strives to manufacture as much of the battery module in Australia as possible, feeding money back into the local economy.

Specifications:

• Nominal Voltage (V) 51.2
• Nominal Capacity (Wh) 5100
• Usable Capacity (Wh) 4590
• Charge Voltage (V) 56
• Standby (Float) Voltage (V) 55.9
• Recommended Charge/Discharge Current (A) 33
• Max. Charge/Discharge Current (A) 63
• Peak Charge/Discharge Current 63A for 30min, 80A for 30sec
• Parallel Connection Unlimited-contact Mictronix
• Working Temperature/ ℃ Charge 0~55
• Working Temperature/ ℃ Discharge -10~65
• Short current/duration time 250A for 960us
• IP rating of enclosure IP40
• Cooling type Natural
• Humidity < 80% RH
• Altitude(M) <4000
• Design life 15+ Years (25℃/77℉)
• Cycle Life >10,000 (50% dod @ 25℃)
• Authentication Level GB/UN38.3 IEC62619
