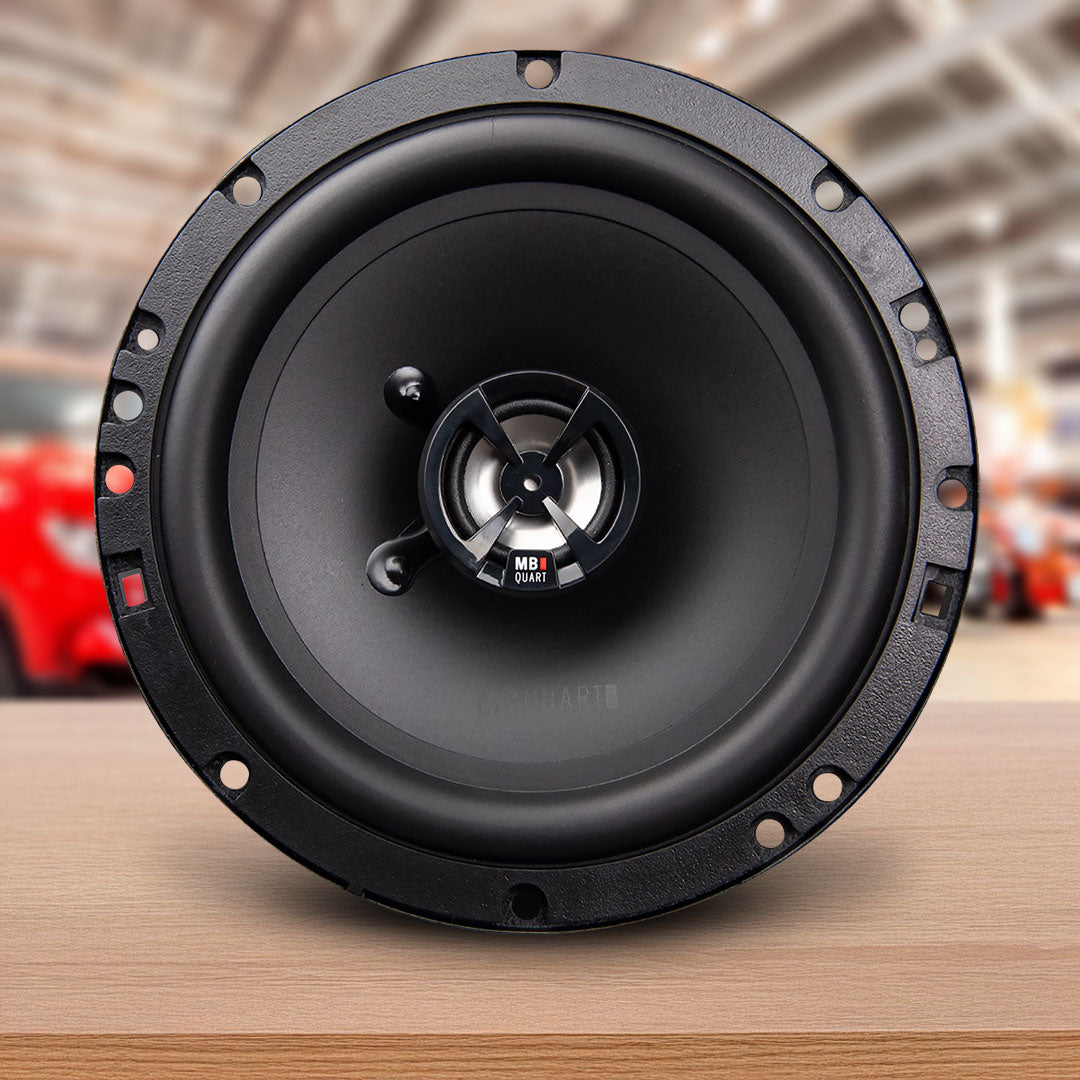

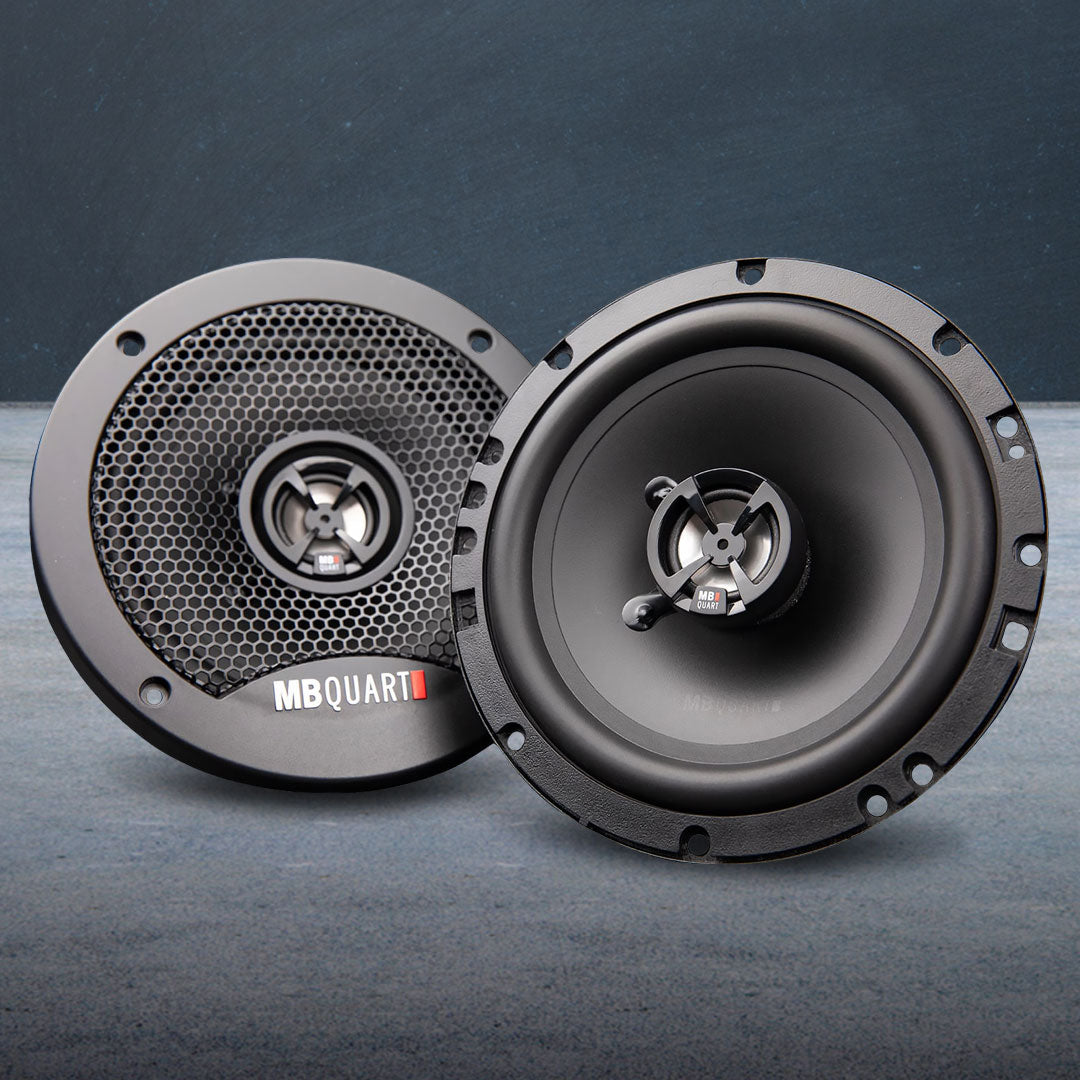

MB Quart MBQ-DK2-116 | 6.5-inch Coaxial Car Speakers | Discus 3-way

Experience Enhanced Clarity with MB Quart's Discus 6.5" 3-Way Coaxial Speakers

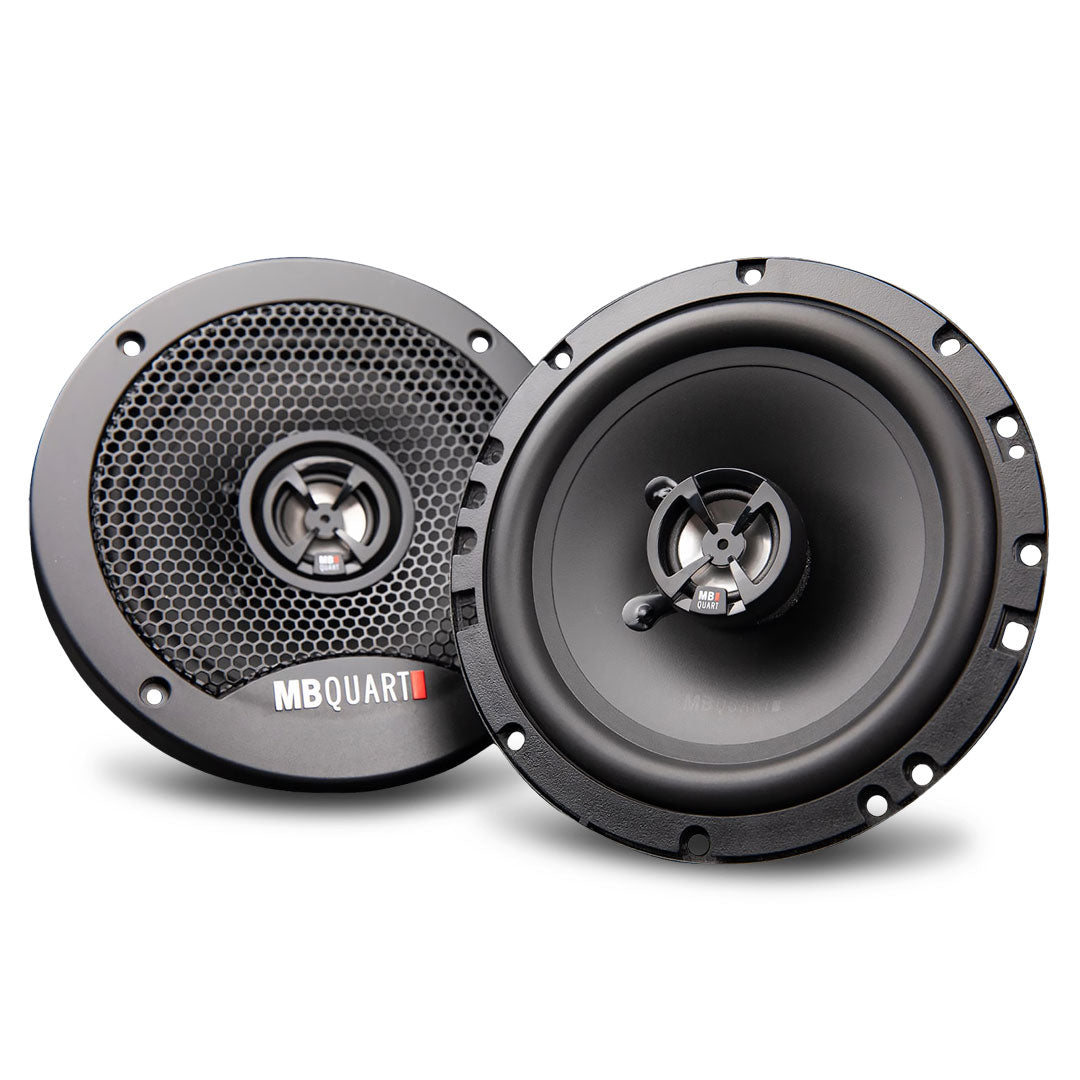

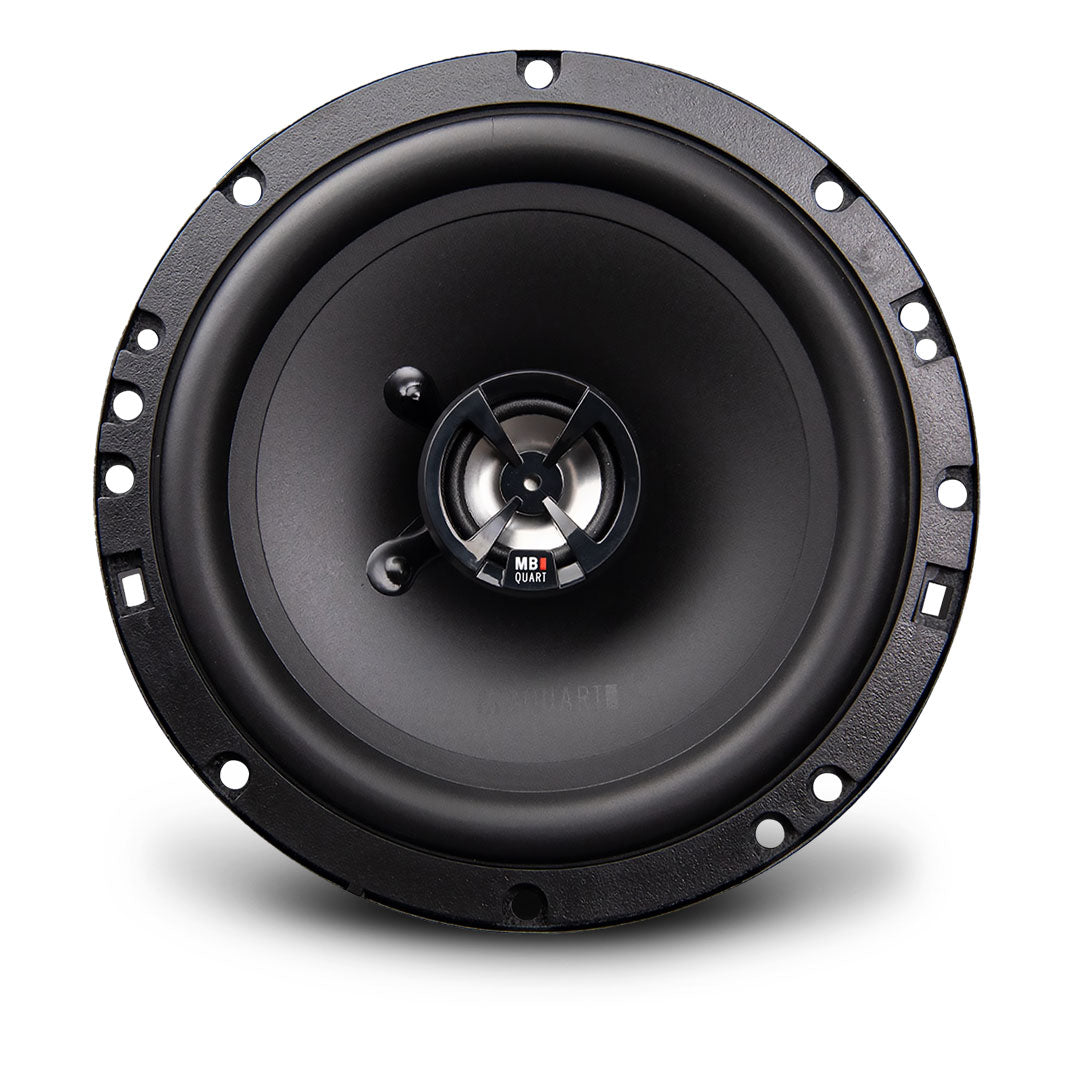

MB Quart Discus 6.5-inch 2-way coaxial car speakers with aluminum inverted dome tweeters and butyl rubber surrounds.

Specifications:

• Series: Discus
• Colour: Black
• Warranty: 2 Years
• Speaker RMS Power Handling (watts): 60
• Speaker Peak Power Handling (watts): 120
• Speaker Impedance (ohms): 4
• Speaker Frequency Response: 40Hz-22kHz
• Speaker Sensitivity: 88dB
• Speaker Crossover Slope: 12dB/Octave
• Speaker Mounting Diameter / Cut Out (in): 5.59
• Speaker Outside Diameter (in): 6.5
• Speaker Mounting Depth / Chassis Depth (in): 2.13
• Speaker Size (in): 6.5

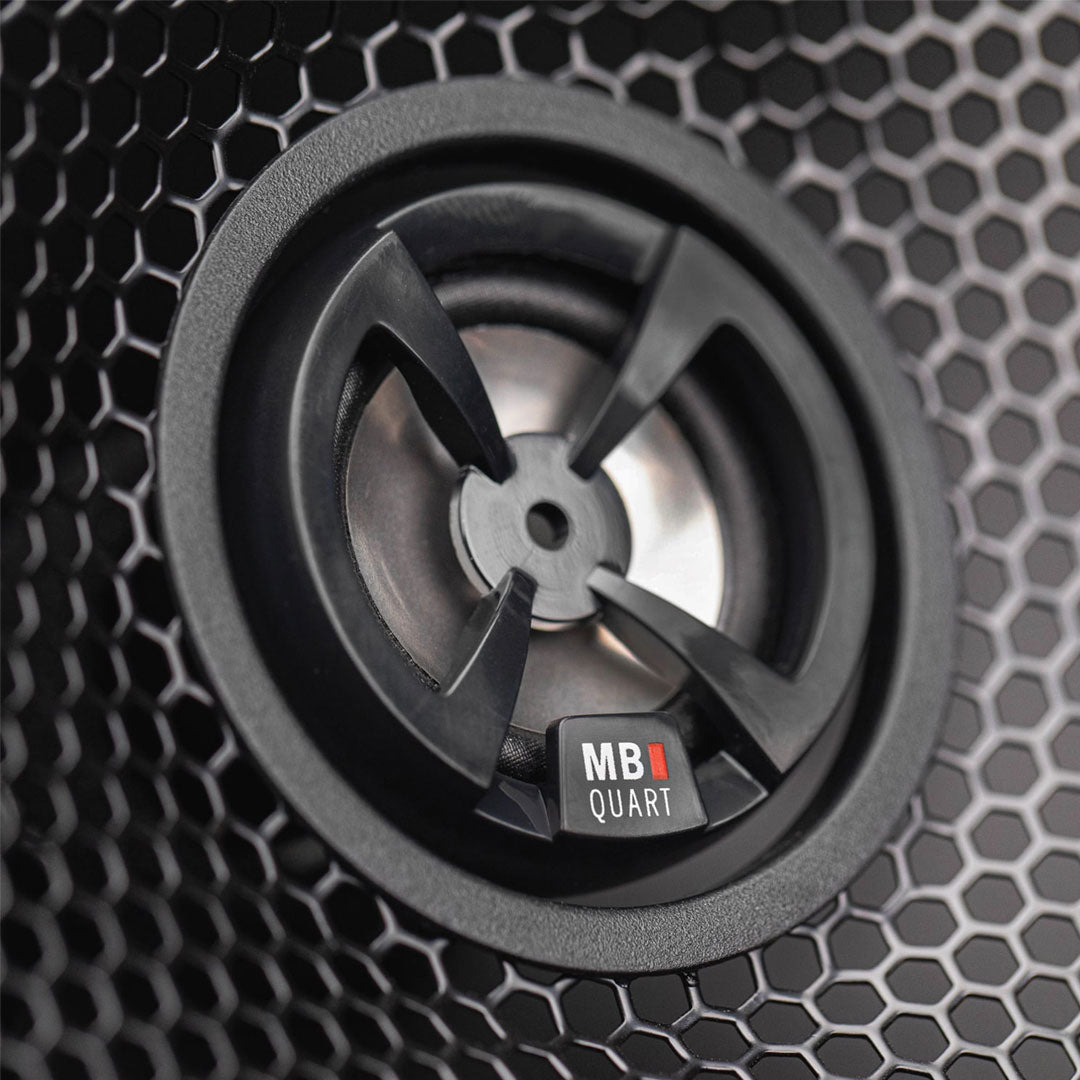

• Tweeters: Aluminum inverted dome tweeters deliver great sound with increased reliability.

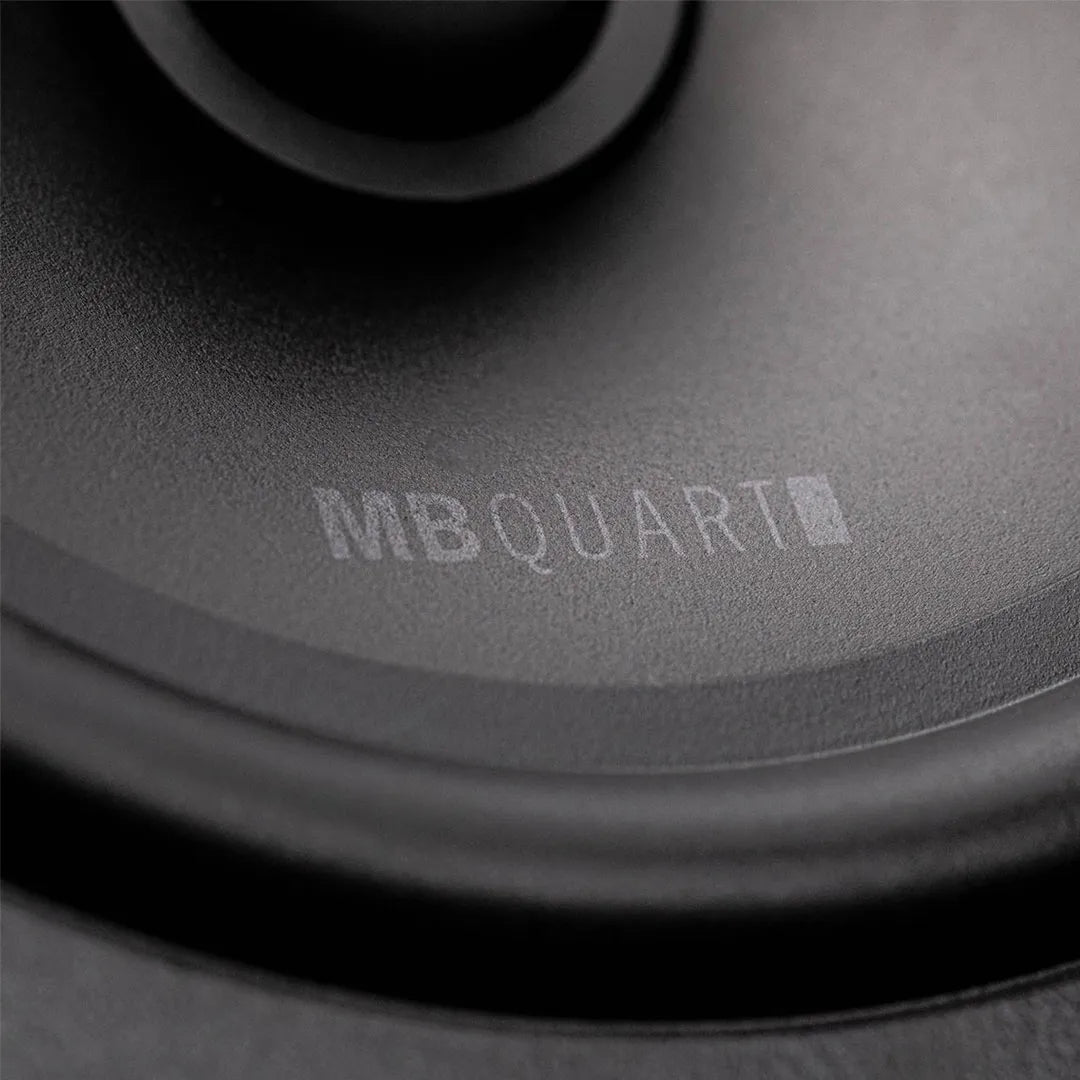

• Cone Material: Lightweight thermal-formed polypropylene cones enable faster midrange response.
• Surround / Cone Coupling: Butyl rubber surrounds provide durability and deeper mid-bass impact. The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather.
• Voice Coil / Former Assembly: Pure Copper voice coil creates a strong magnetic field with a very thin extrusion. Kapton voice coil former is lightweight and efficiently dissipates heat.

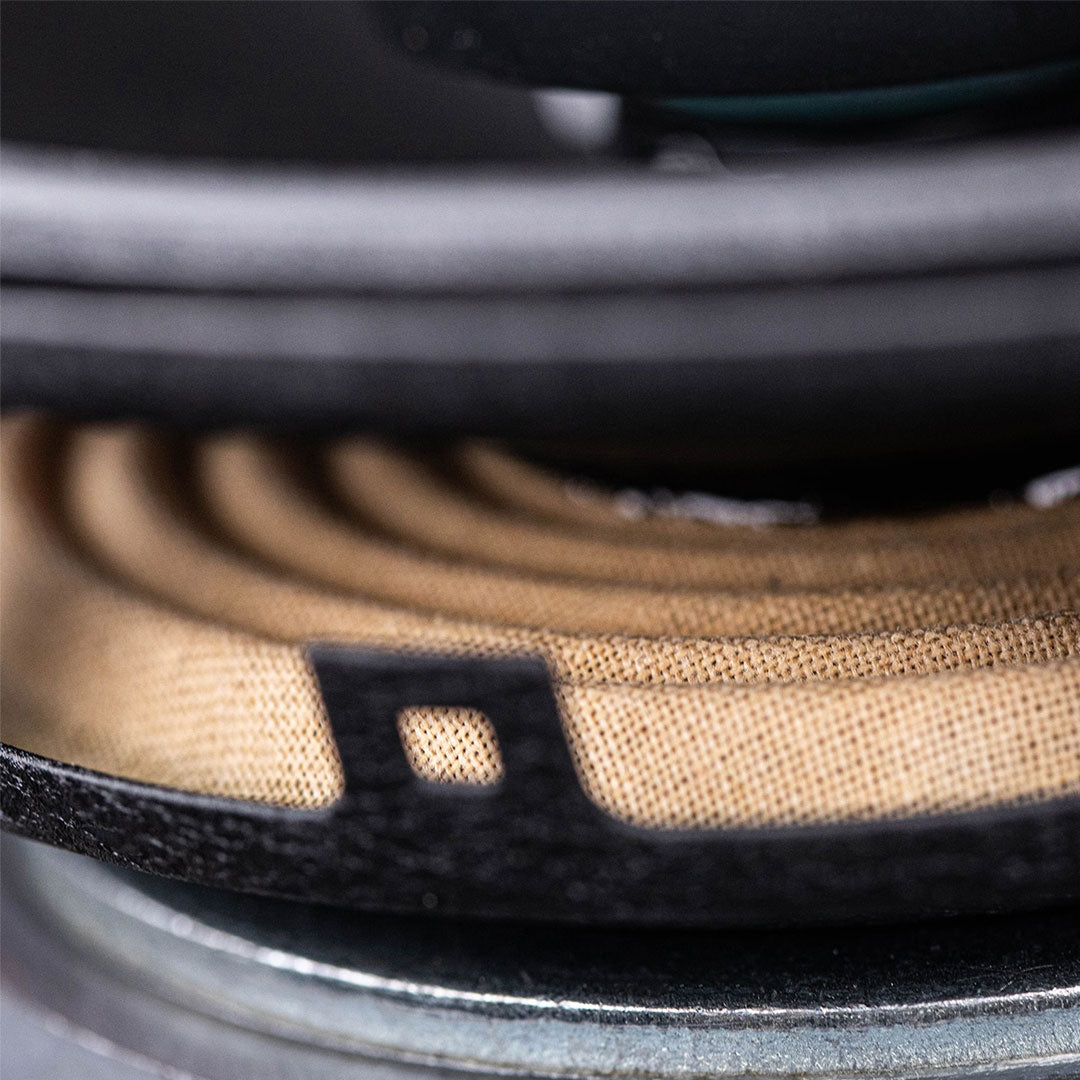

• Spider: Natural fiber allows flexibility while the infused epoxy gives strength during the manufacturing process.
• Cooling System: Over-coil cooling system allows air exchange over the voice coil through the spider
• Crossover: 6dB internal crossover integrated into the design to assure smooth midrange to tweeter frequency transitions.
• Frame: Heavy gauge progressive-die stamped steel frames for ultimate rigidity.

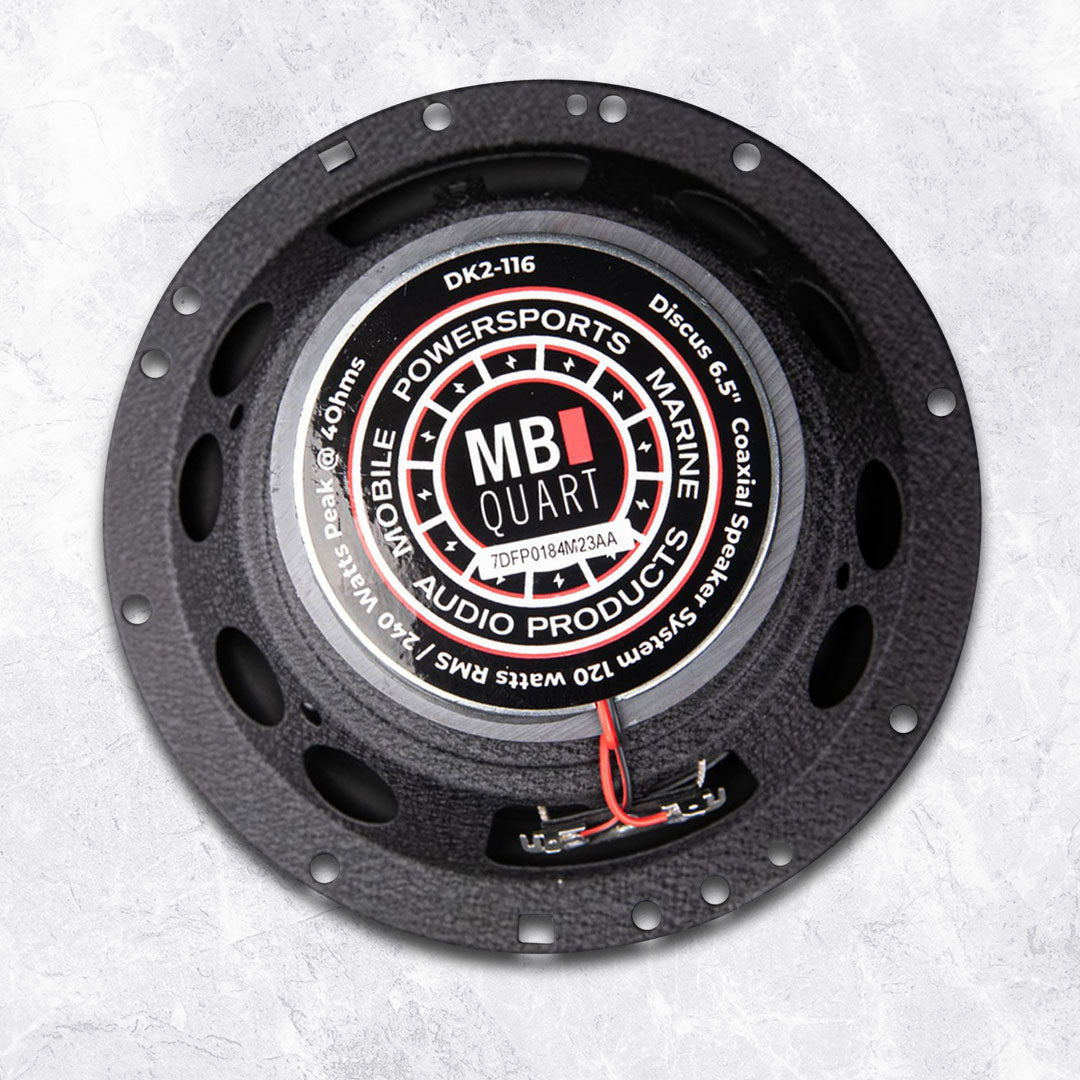

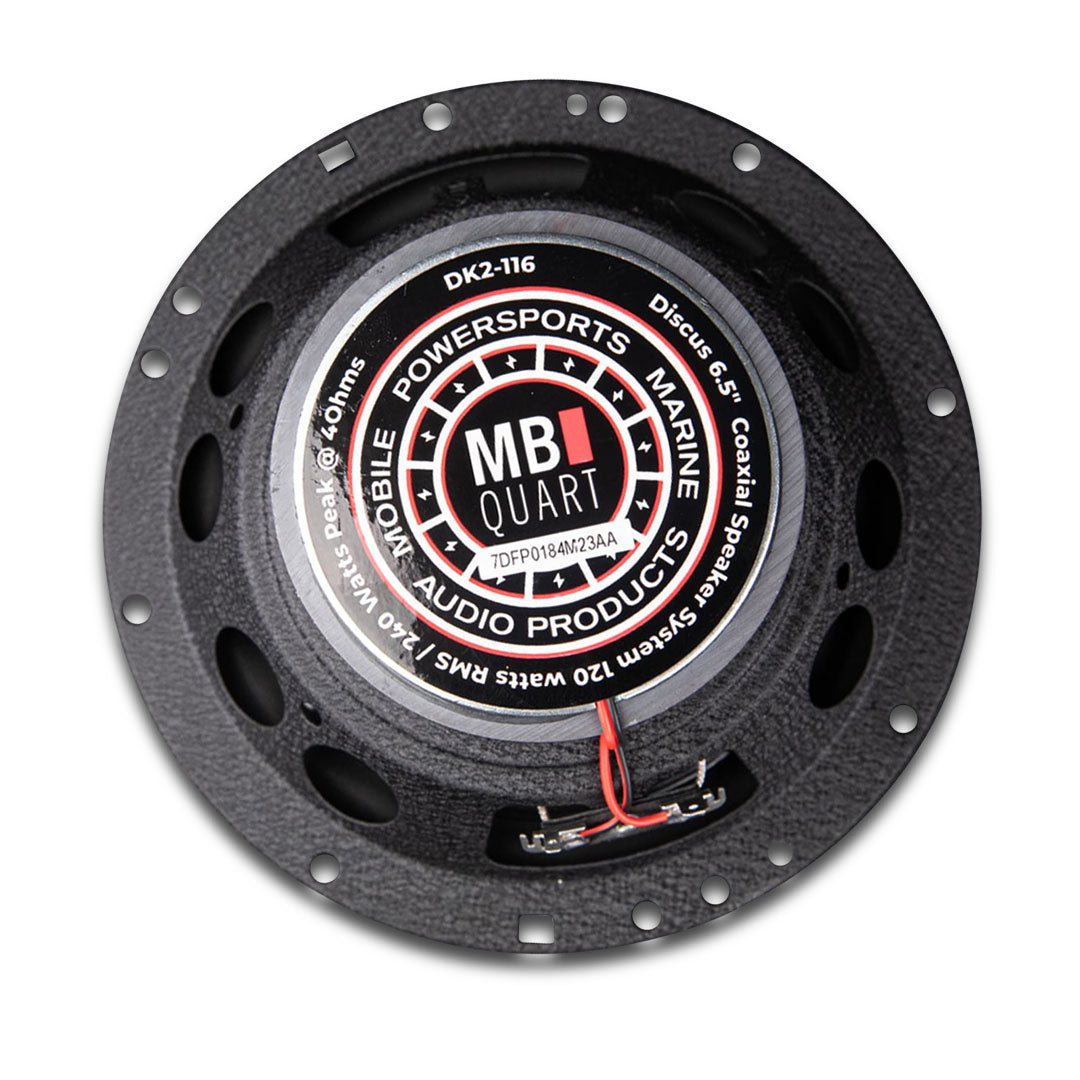

• Motor: Ferrite magnt motor creates a strong magnetic field while remaining small enough to fit nearly every application.

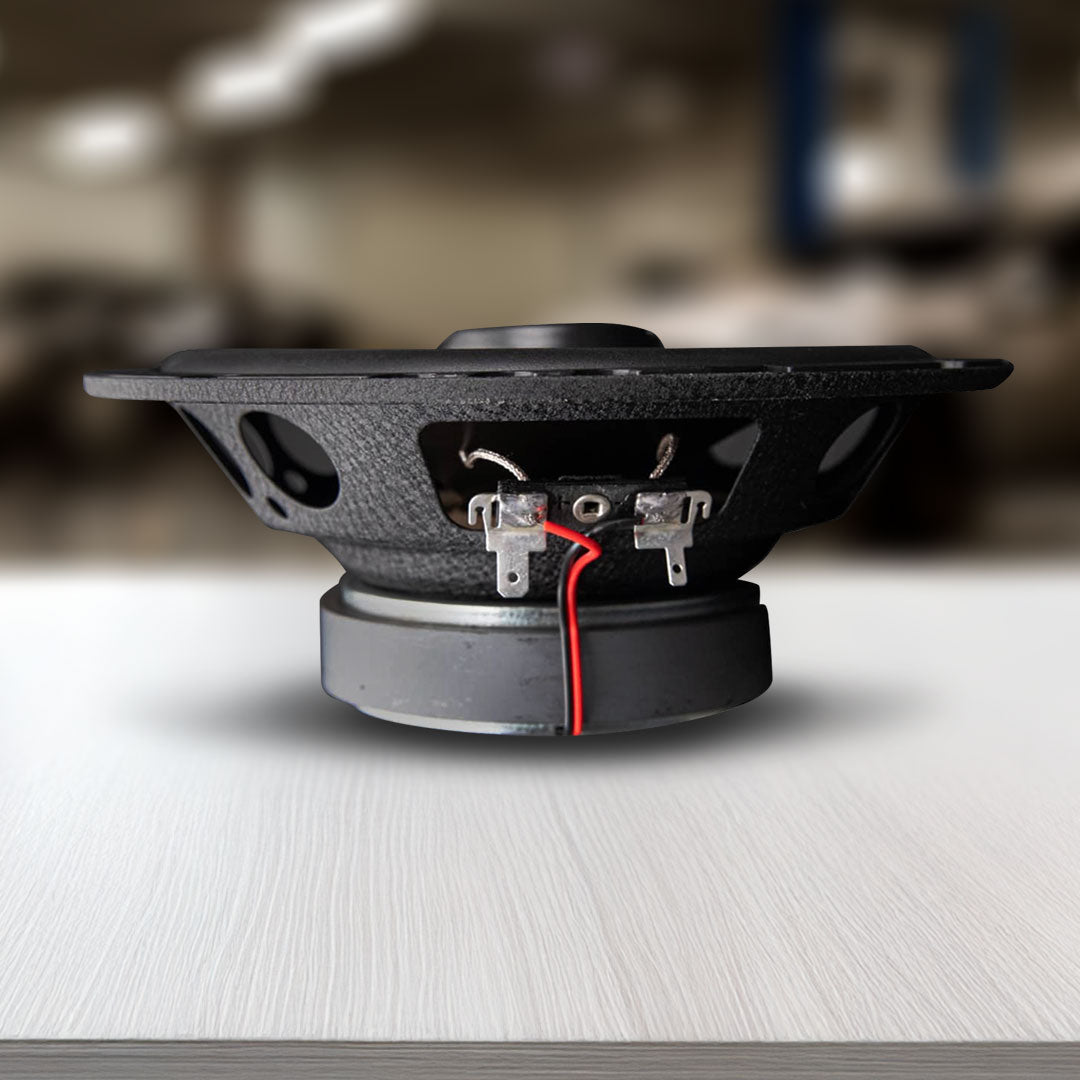

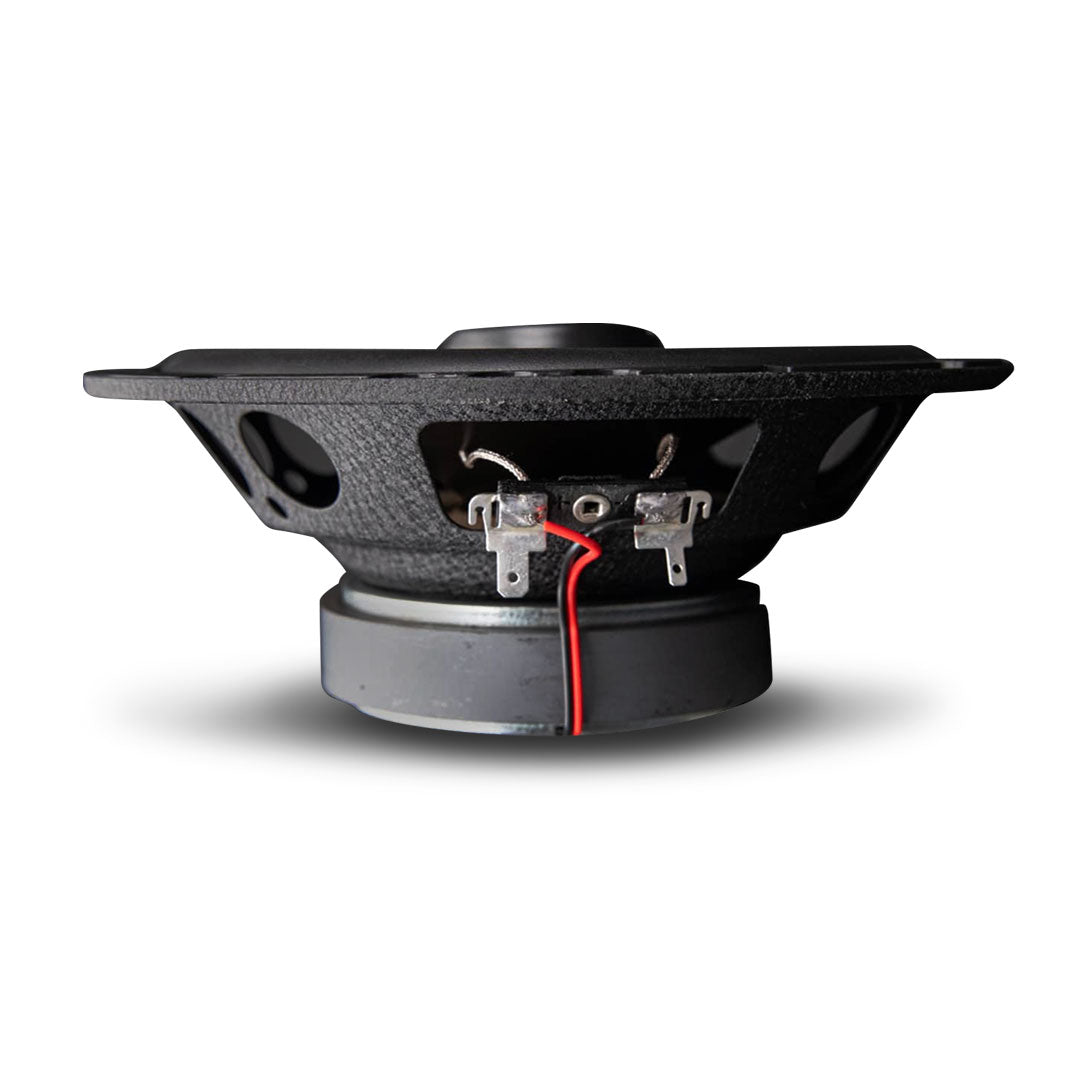

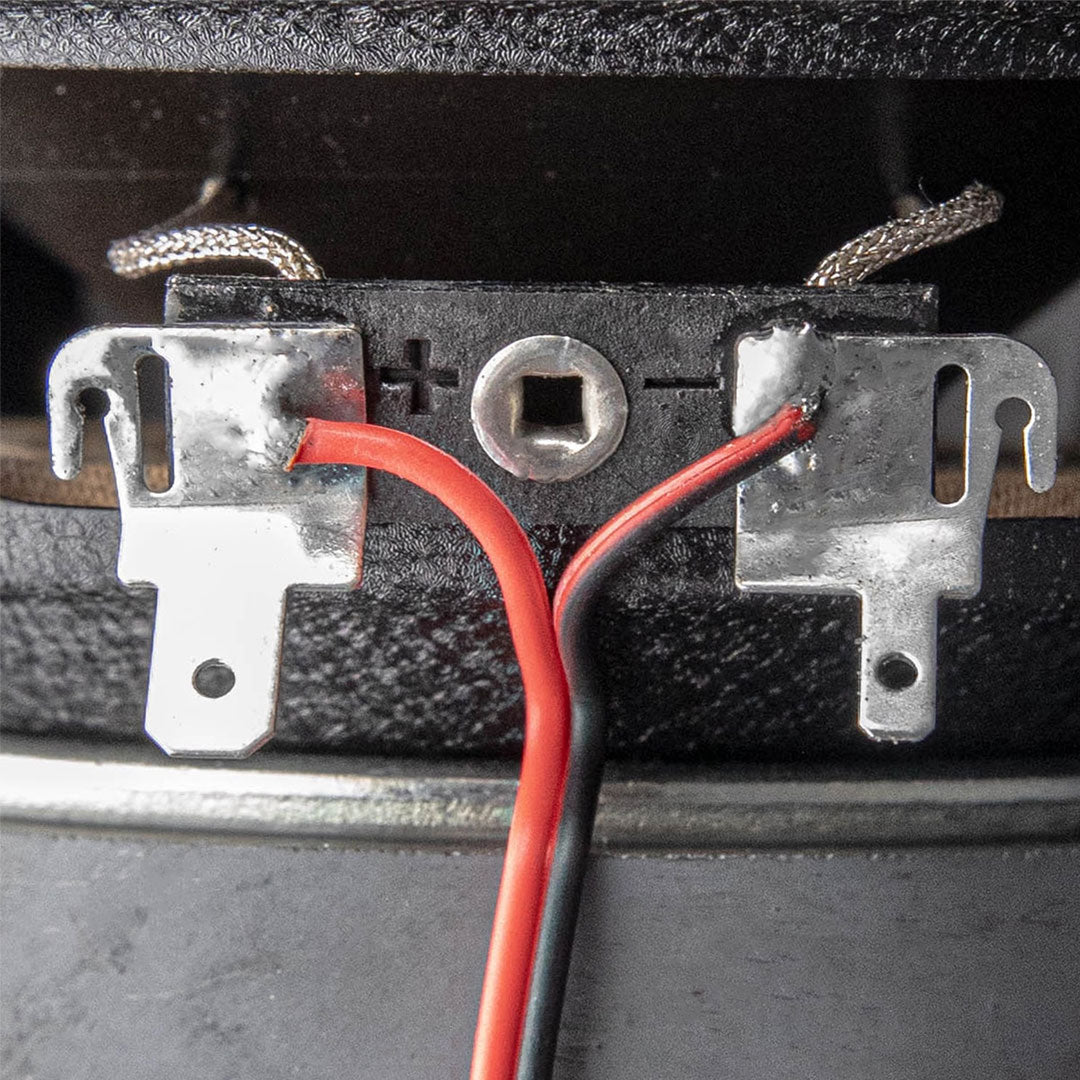

• Connectors: Use spade connectors or solder direct for the best connection. Tinsel Leads: Highly conductive while remaining flexible during high power applications.
