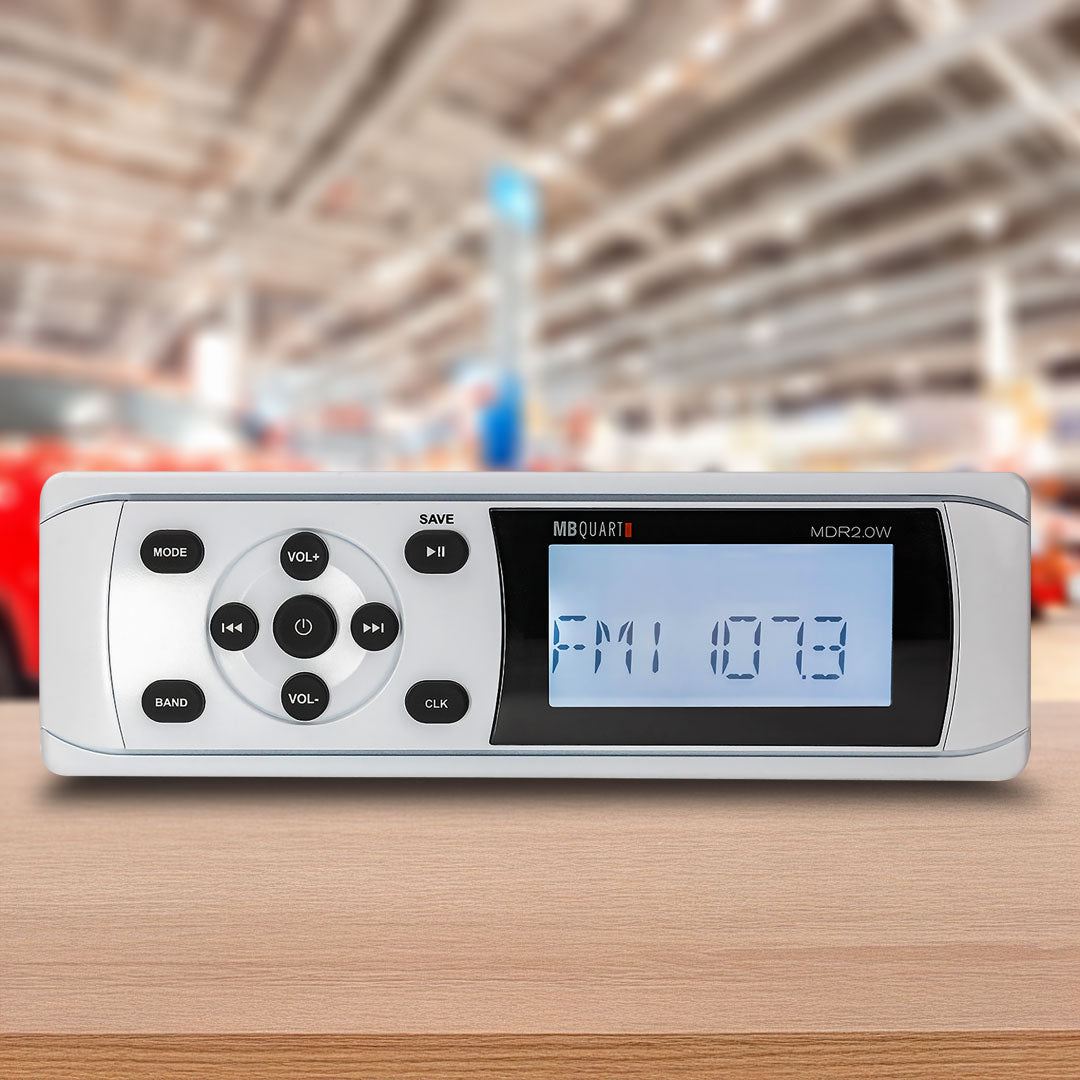

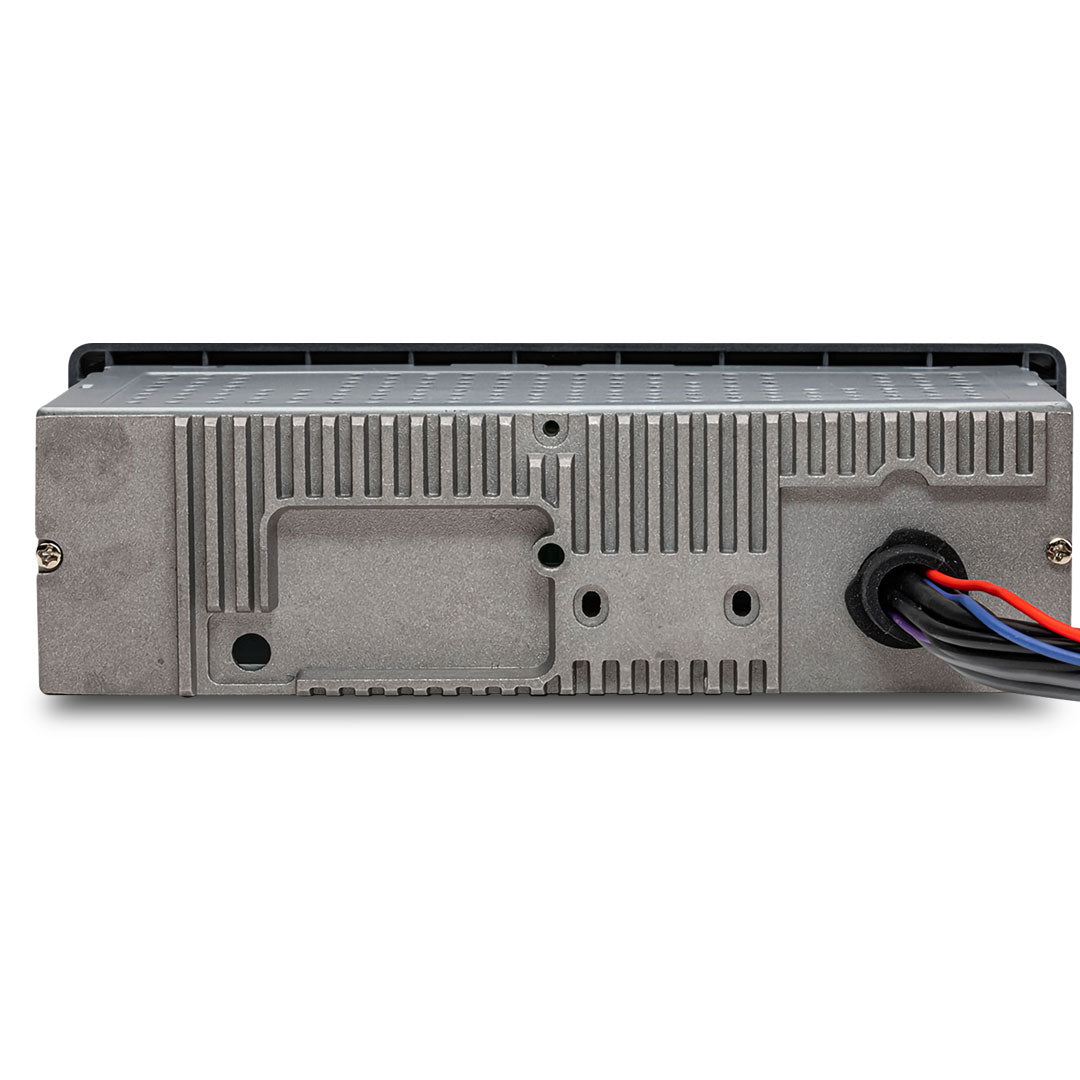

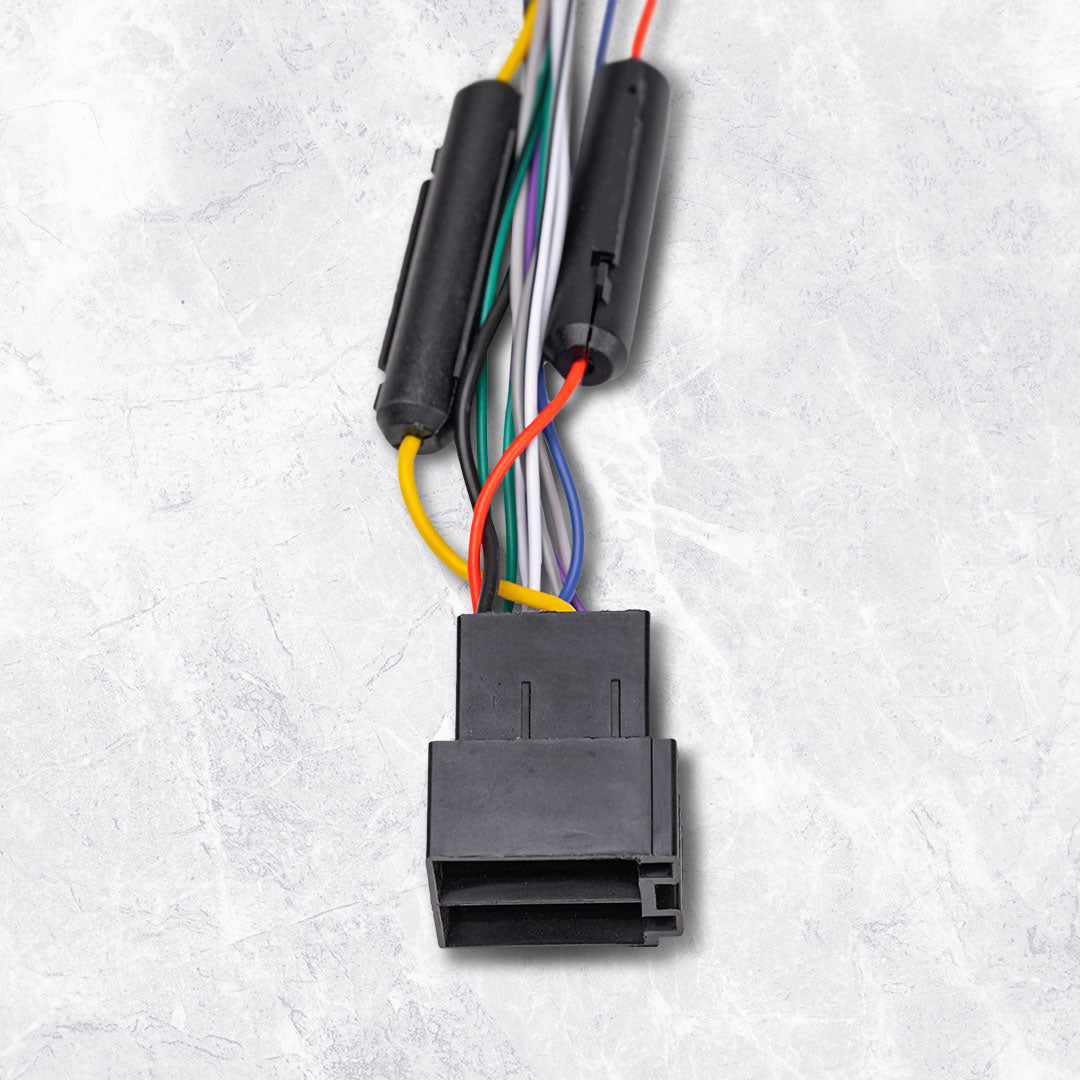

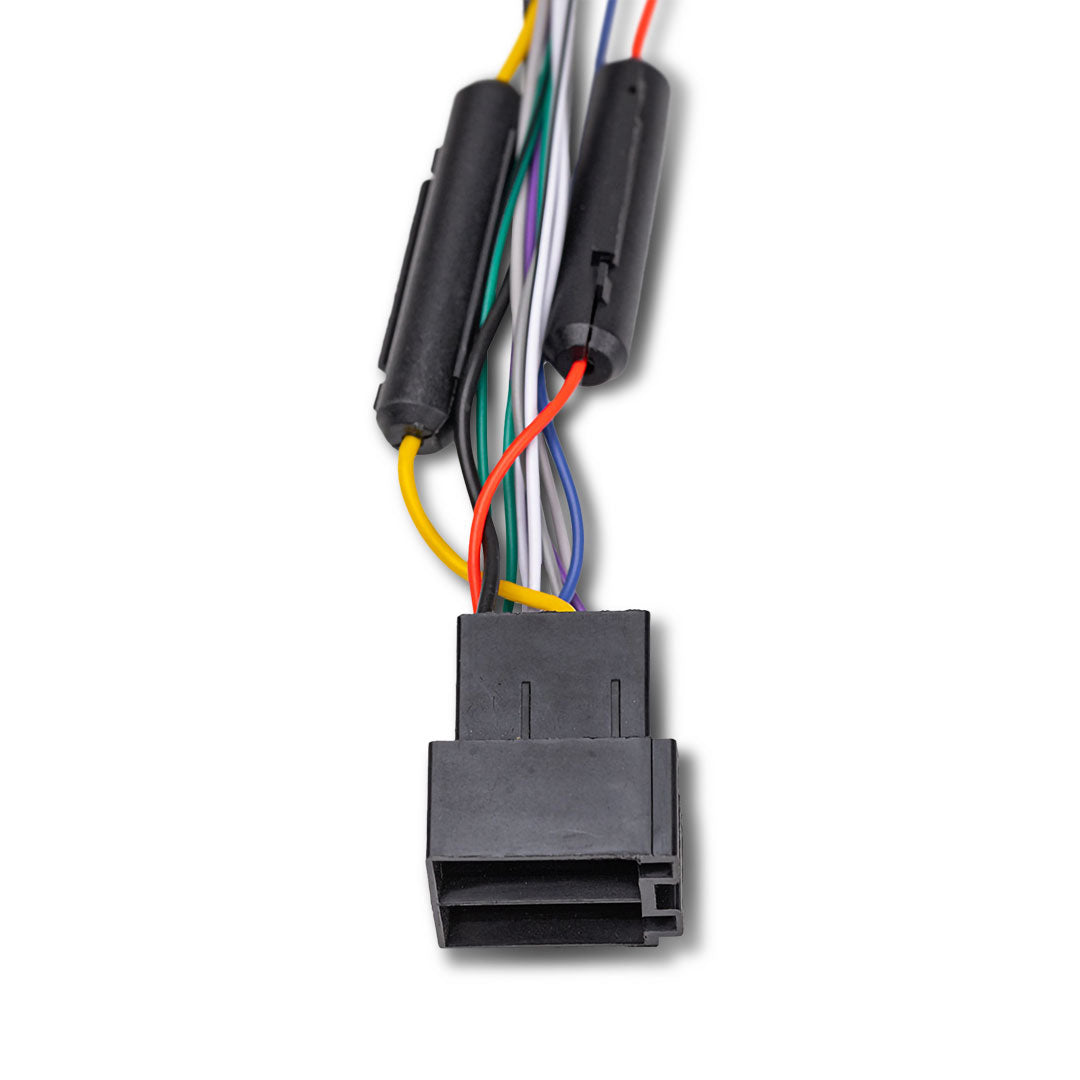

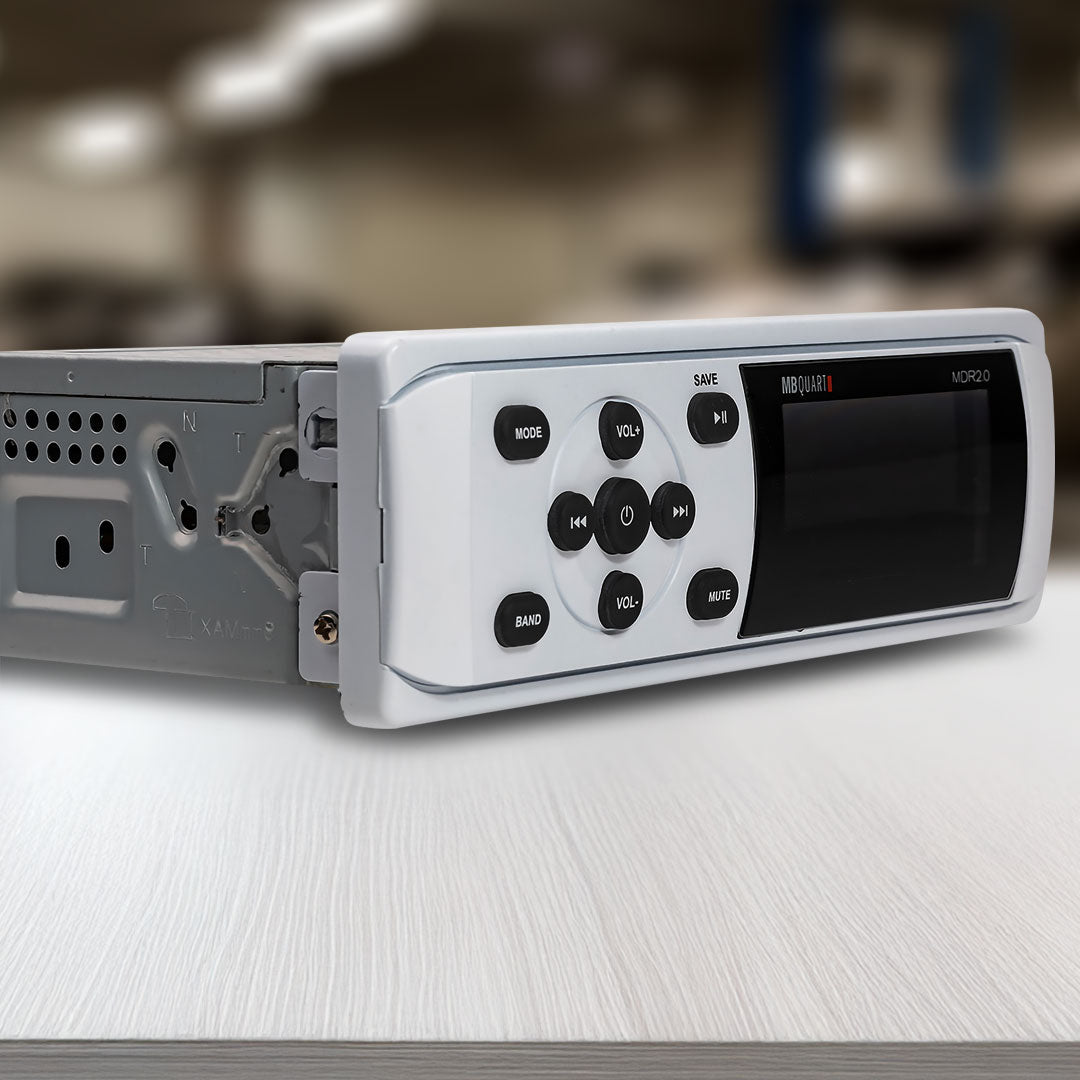

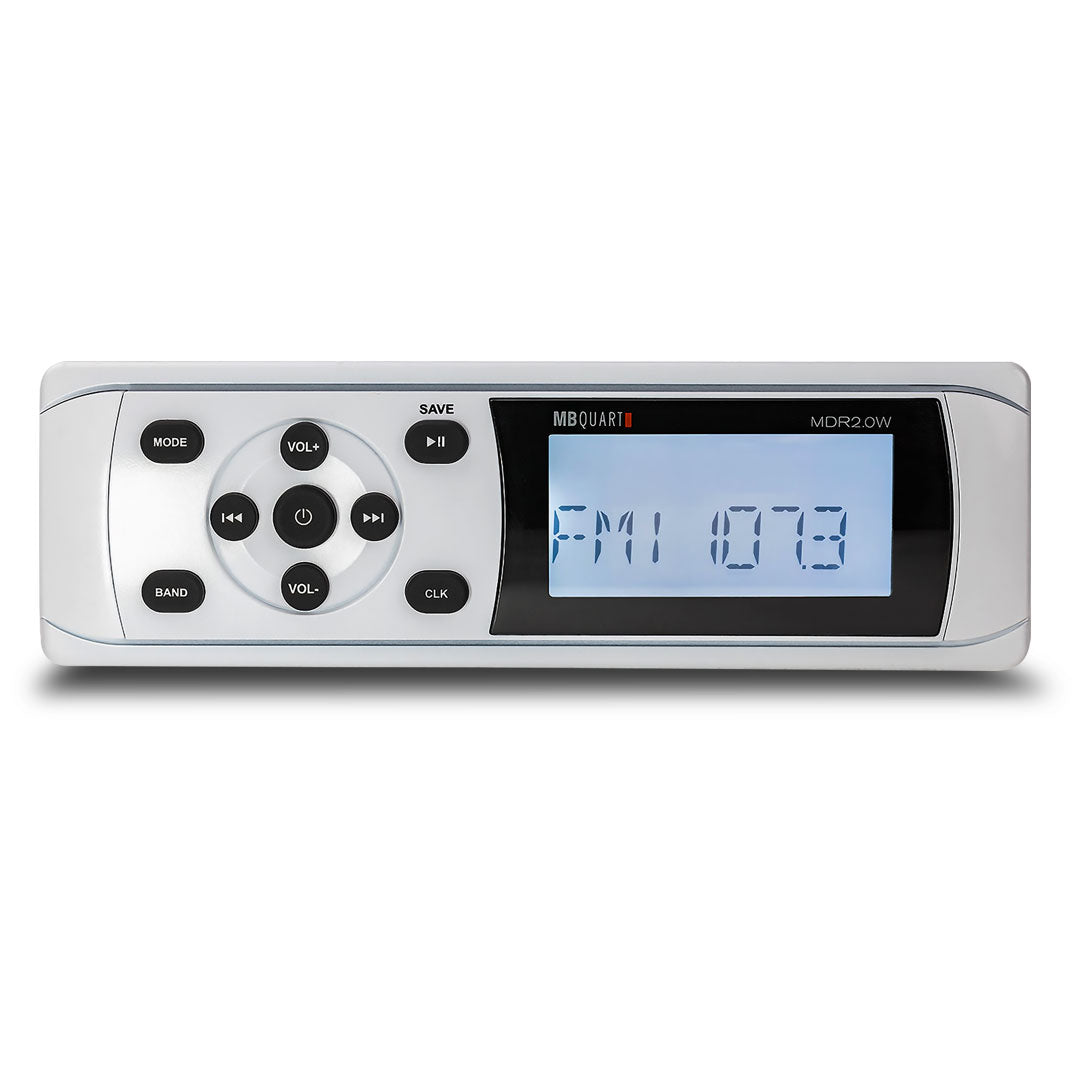

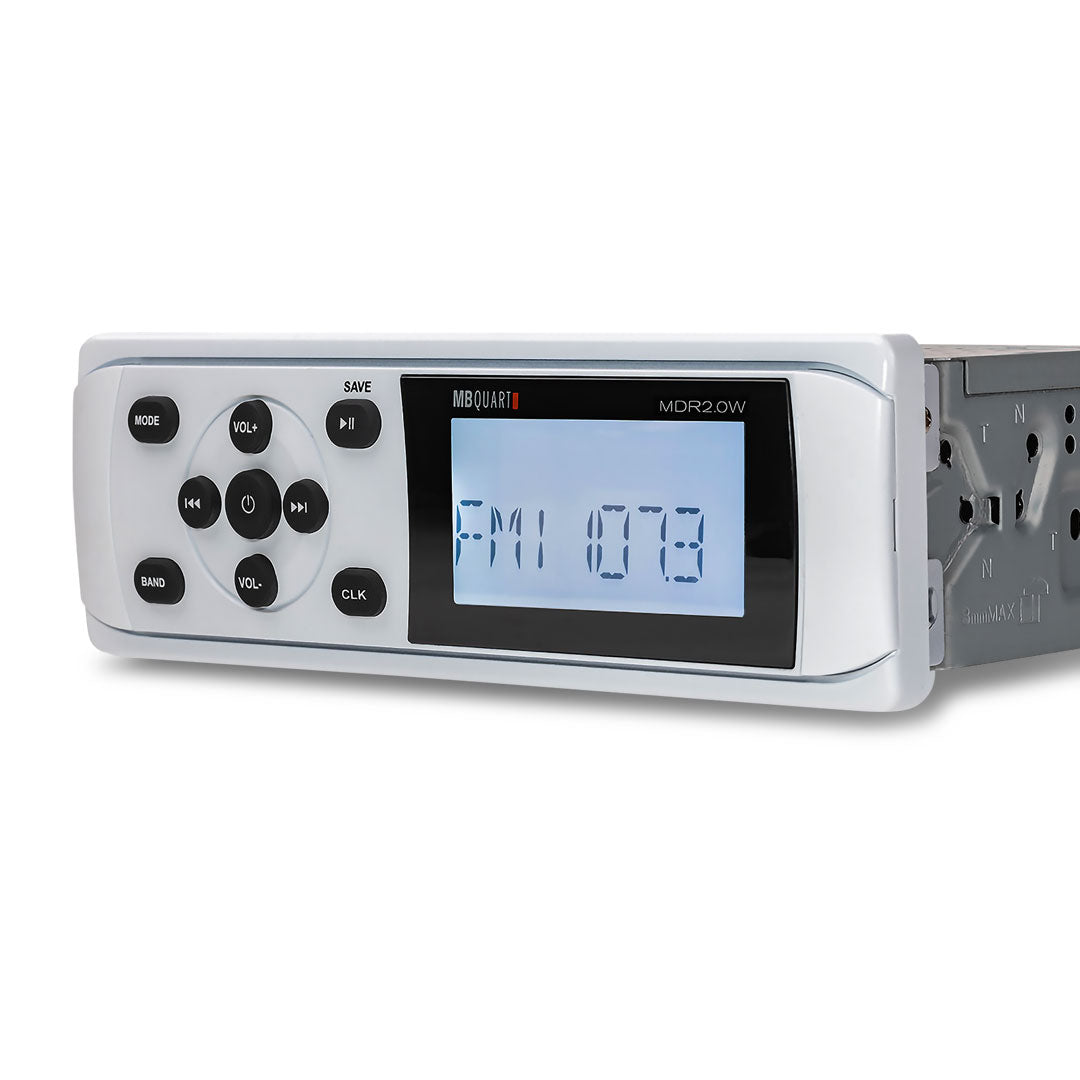

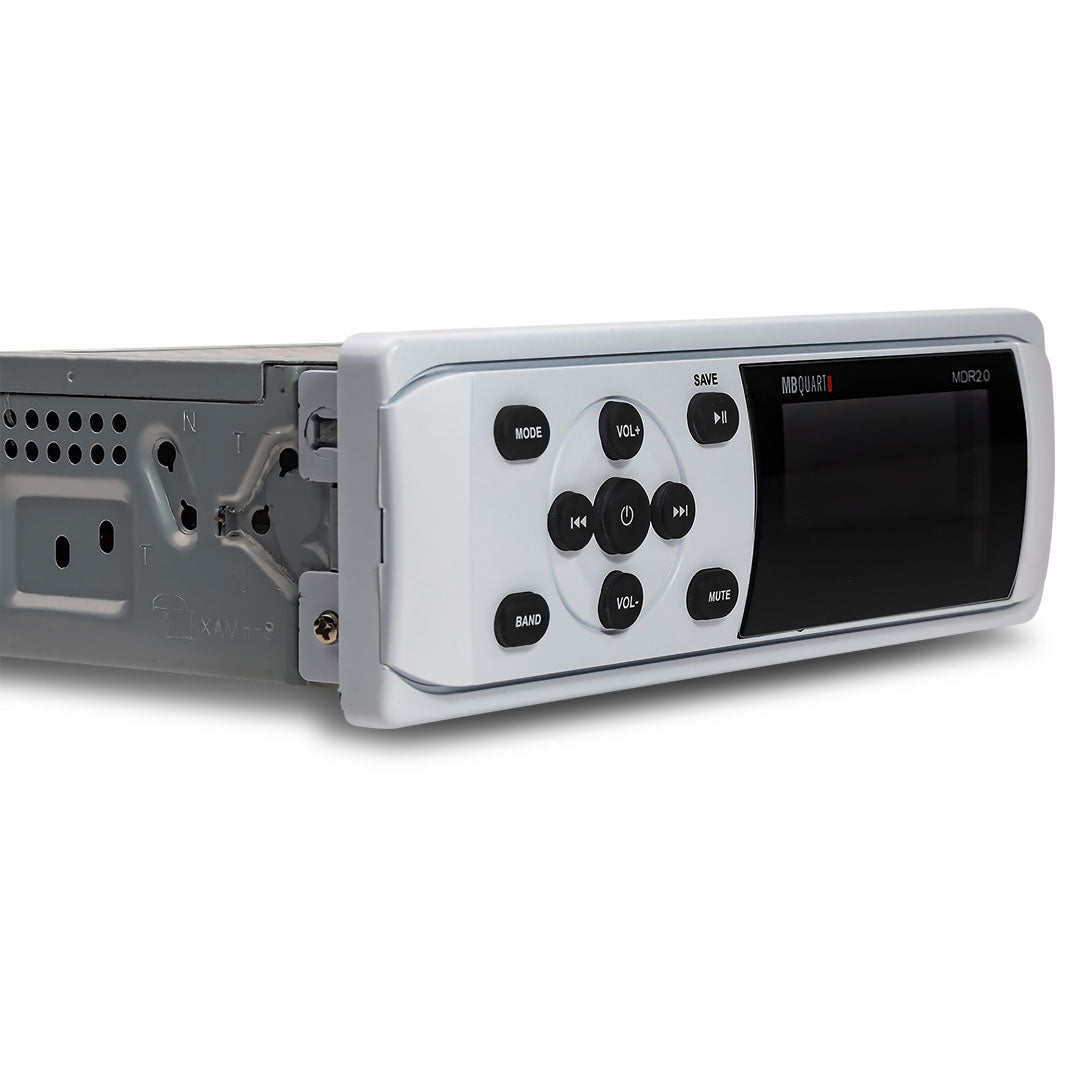

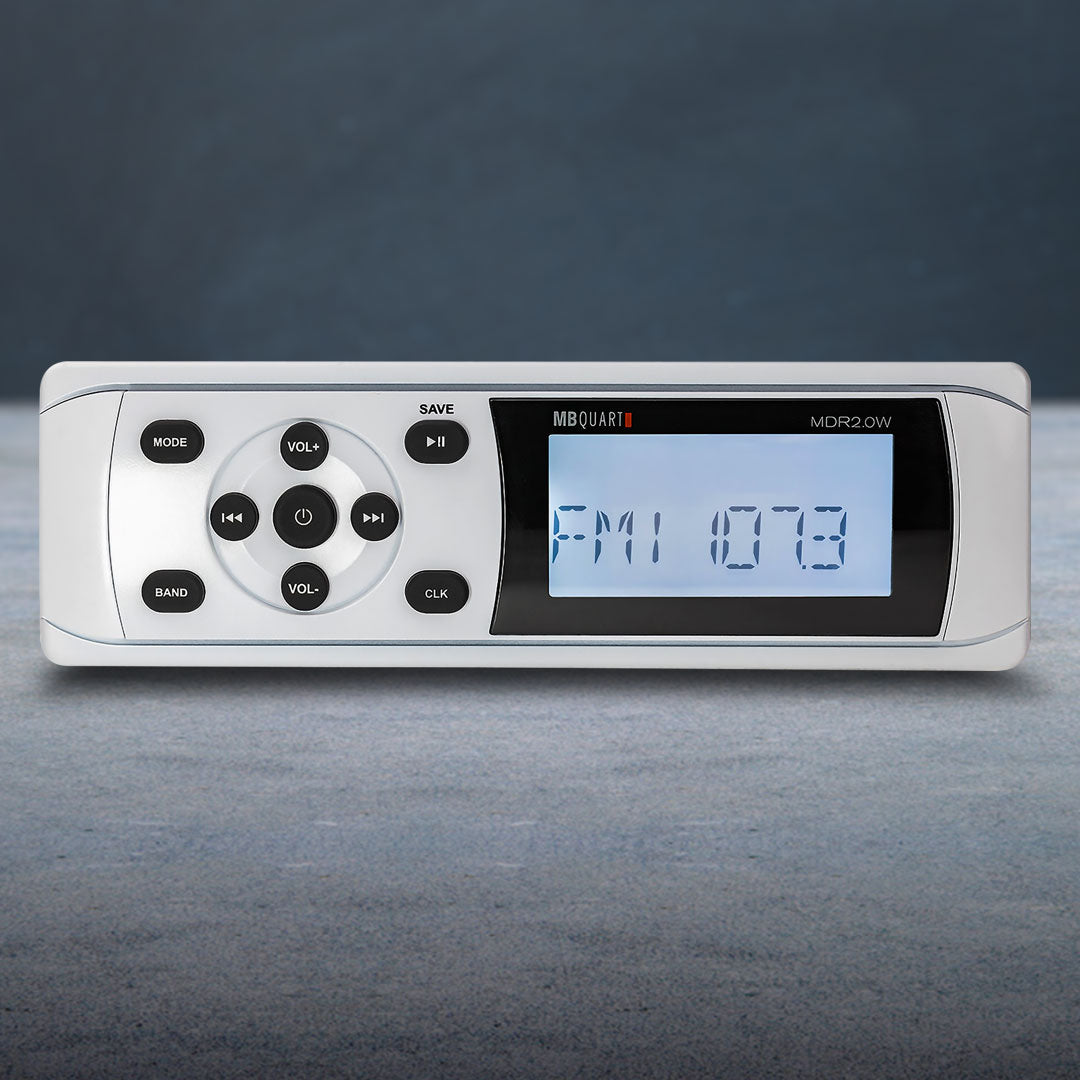

MB Quart MBQ-MDR2.0W | DIN Unit | Mechless Marine Radio/Source (White)

SKU: MBQMDR20W
Price
$299
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

All-in-One Audio Hub – MB Quart Multimedia Digital Receiver with 160W Amp, AM/FM, Bluetooth & USB Connectivity!

Multimedia Digital Receiver with 160 Watt internal amplifier features AM/FM, Bluetooth, USB.

Specifications:

  • Series: MDR
  • Color: White
  • Warranty: 1 Year
  • IPX Rating: IPX5
  • Marine Grade Protection / IPX Rating: Meets or exceeds IPX5 requirements for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors.
  • Source Unit Tuner Section FM Stereo Frequency Range: 87.5MHz-108MHz
  • Source Unit Tuner Section S/N Ratio: > 55dB
  • Source Unit Bluetooth Range (ft): 32
  • Source Unit RMS Power Output (watts): 4 x 20
  • Source Unit Peak Power Output (watts): 4 x 40
  • Source Unit S/N @1W: 81.2dBA
  • Source Unit Pre-amp Outputs (Y/N #); 1 Pair
  • Source Unit Pre-amp Voltage: 4.0V
  • Source Unit Minimum Impedance (ohms): 4
  • Source Unit Display Type: LCD
  • Source Unit Dimensions Mounting Hole (in): 7.0 x 2.0
  • Source Unit Dimensions Total Mounting Depth (in): 4
  • Additional Details: MAXIMUM THD+N AT 4 OHMS: 81.2dBA, EFFICIENCY AT FULL POWER 4 OHM (1KHZ): 0.639, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 4 Volts, SIGNAL TO NOISE (CTA-2006B): -86.2dBA AUX / -66.1dBA Bluetooth, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): Bluetooth -76.2 dBA / Aux -86.4dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): 20Hz10.2kHz USB / 30Hz9.7kHz Bluetooth, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): 20Hz20.0kHz USB / 30Hz20.0kHz Bluetooth, STEREO SEPARATION (AUX INPUT): -45.60dB @ 5kHz, FM MONO USABLE SENSITIVITY: 3.6V, AM MONO USABLE SENSITIVITY: 17V
  • Apple Control: Quick control and access of iTunes collection with iPhone, iPod and iPad.
  • Source Type: AM/FM/Bluetooth Radio allows all access to radio stations and content from Bluetooth enabled devices.

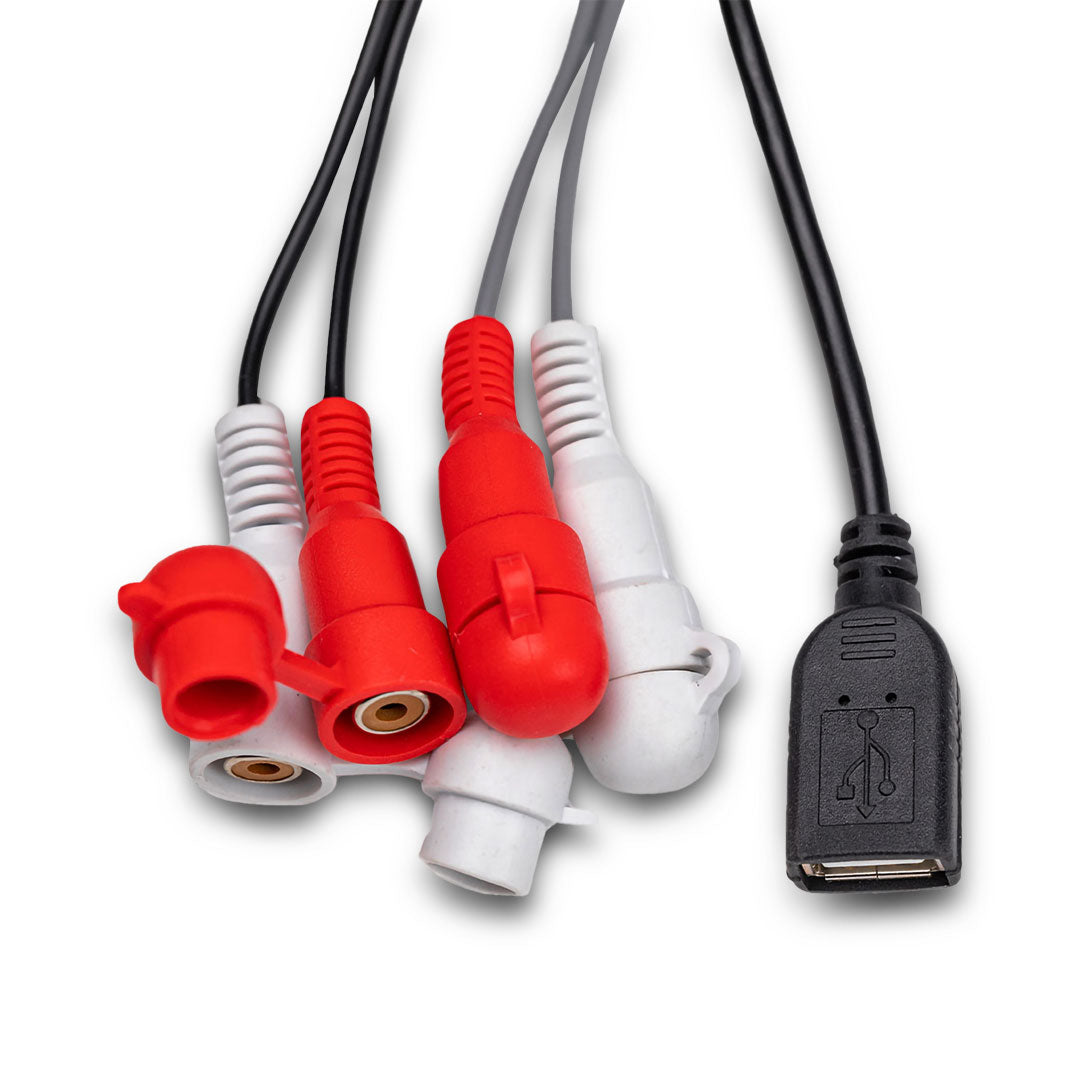

  • Input Types: Bluetooth, RCA, USB: Nearly nothing the device can not play.
  • Control Buttons: Front facing buttons to engage and adjust all features.
  • Bluetooth Connect: Bluetooth Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.
  • Secure Simple Pairing; Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system
  • Quick-Pair: No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY.
  • Built-In Power: Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle.
  • Control Method: 9 control buttons on faceplate.
  • Frequency Range: FM: 87.5-108, AM: 530-1710
