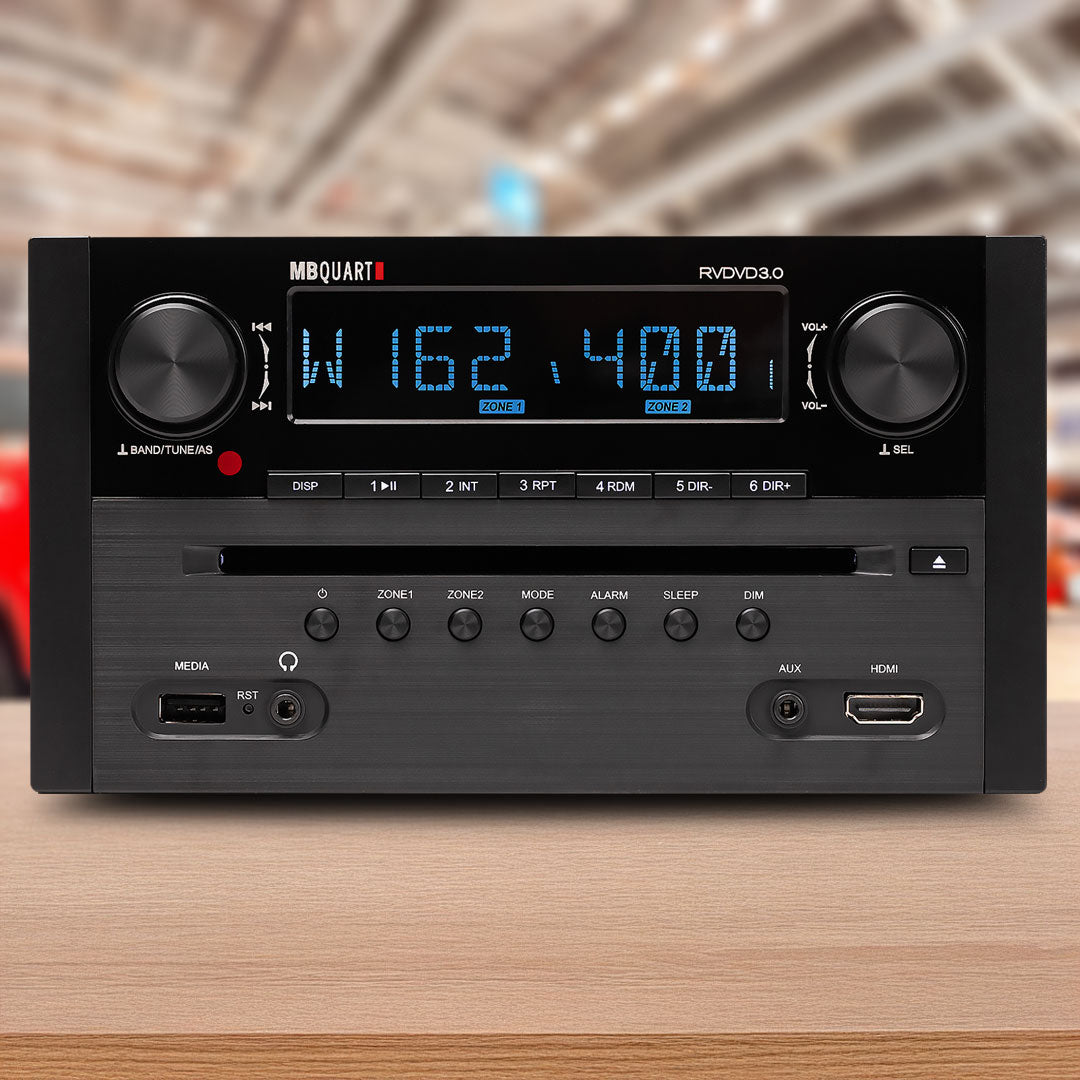

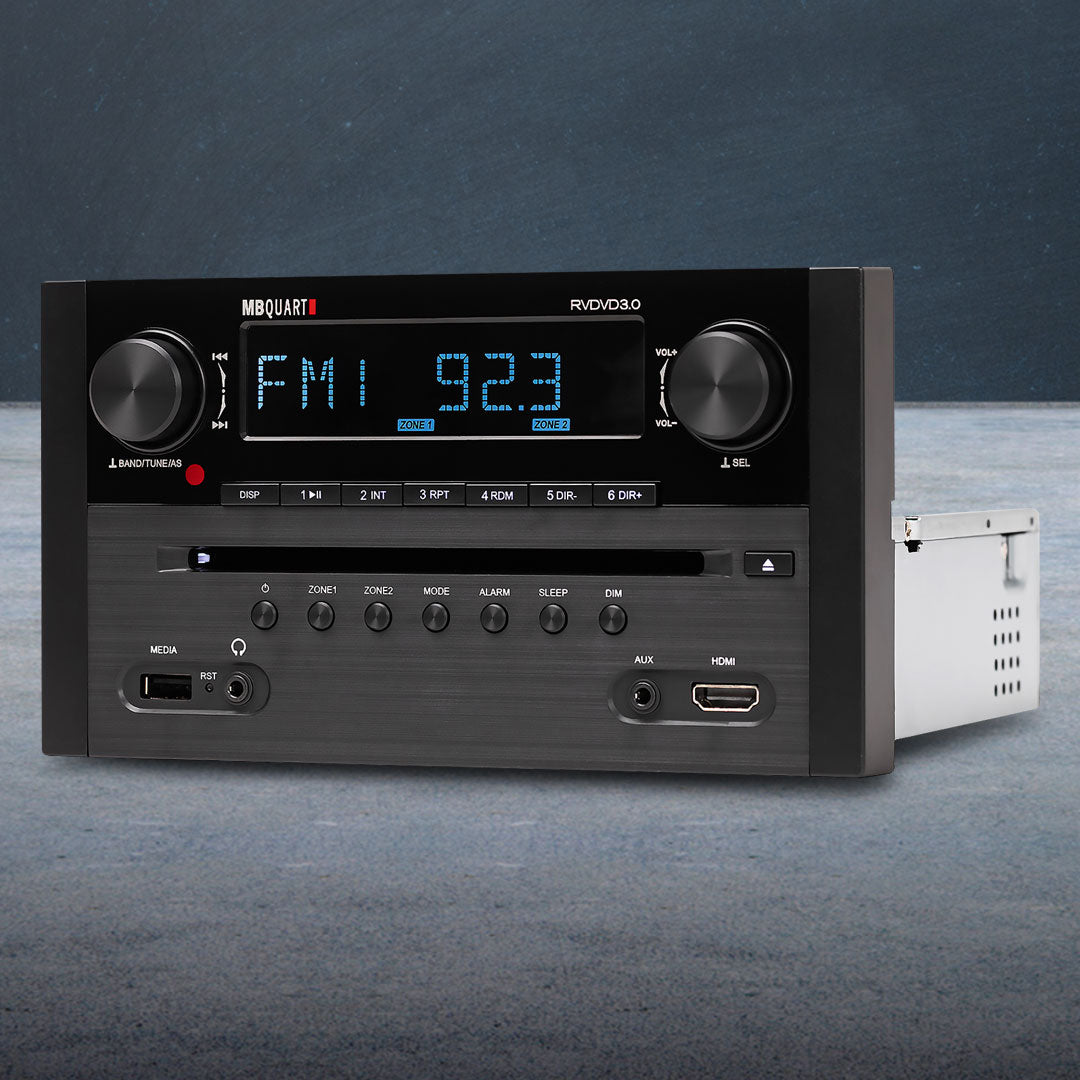

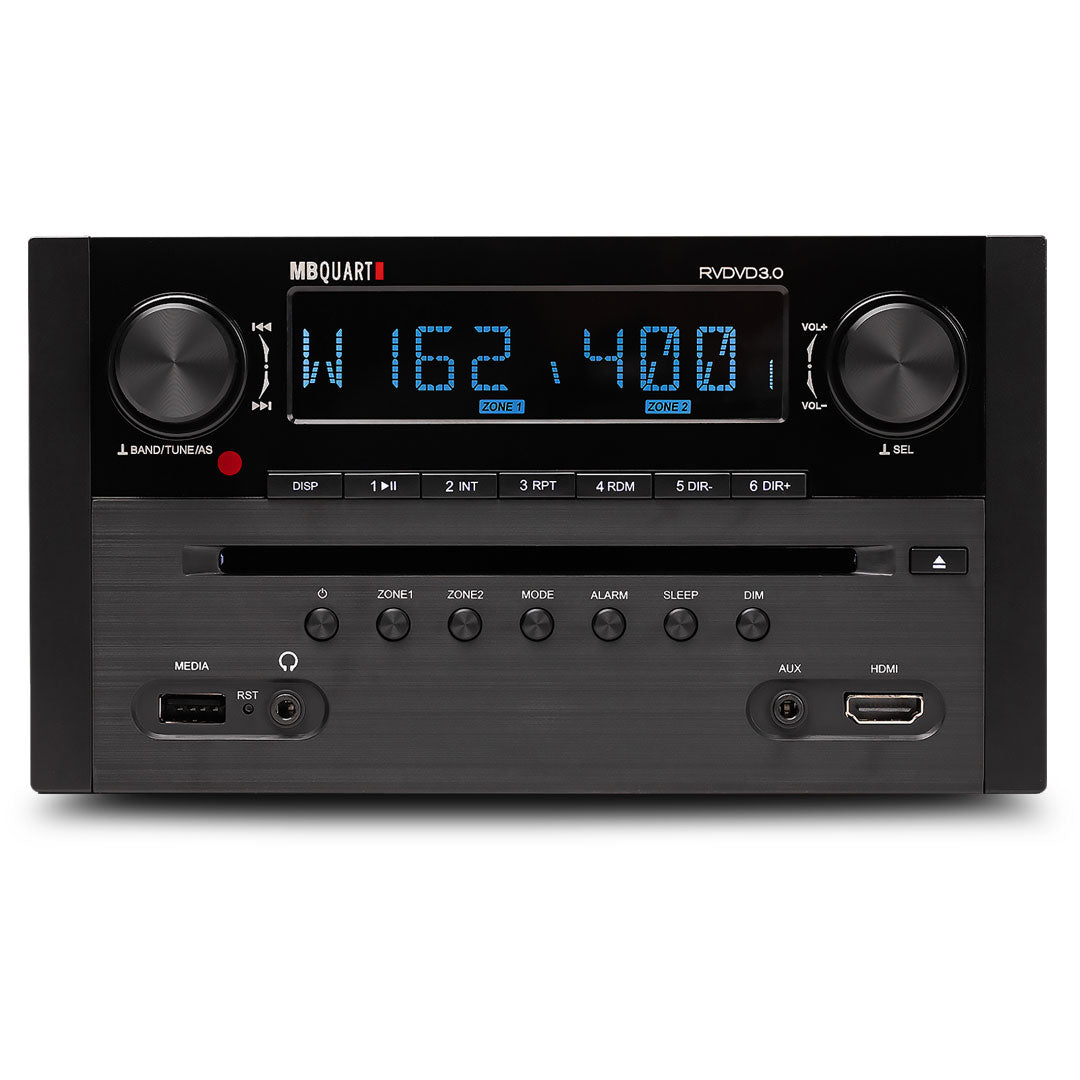

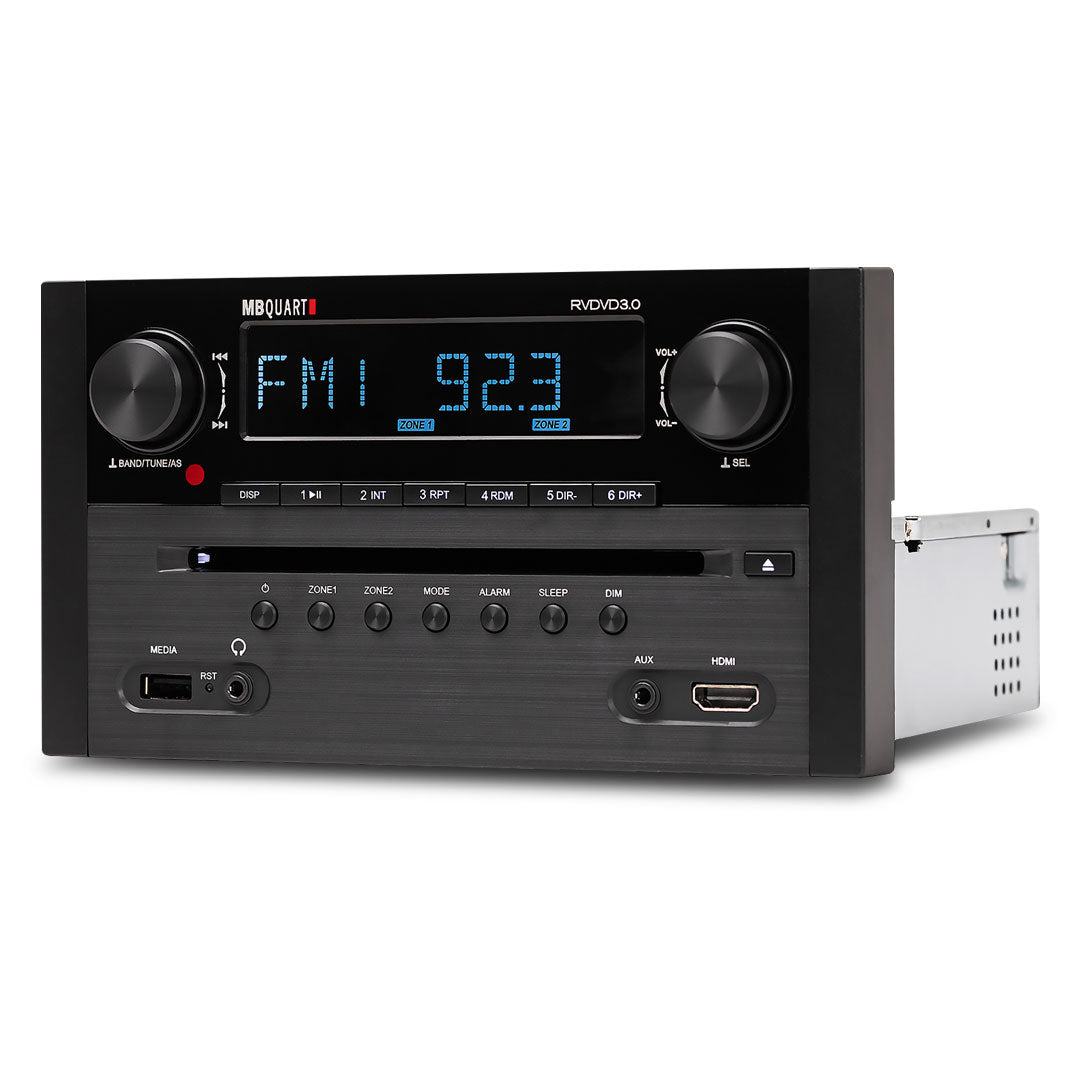

All-in-One Entertainment – MB Quart 160W Multi-Zone RV Source Unit with DVD, Bluetooth 4.0 & Full-Function Remote!
Digital Multi-Media, Multi-Zone, 160 Watt RV Source Unit with DVD, AM/FM & Bluetooth 4.0. Full function remote included.
Specifications:
- Series: RV
- Color: Black
- Warranty: 1 Year
- Source Unit Tuner Section FM Stereo Frequency Range: 87.5MHz-108MHz
- Source Unit Bluetooth Range (ft): 32
- Source Unit RMS Power Output (watts): 4 x 20
- Source Unit Peak Power Output (watts): 4 x 40

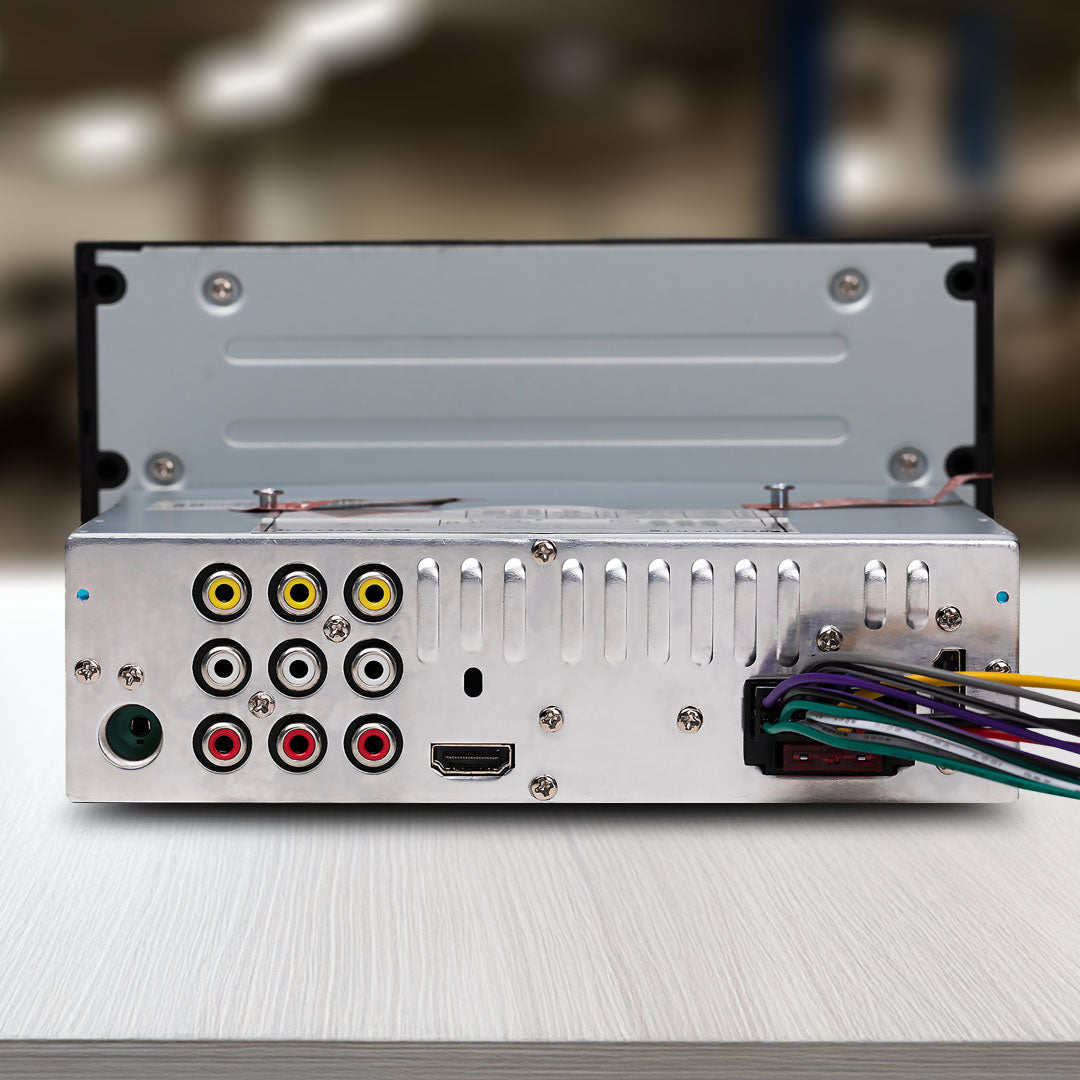

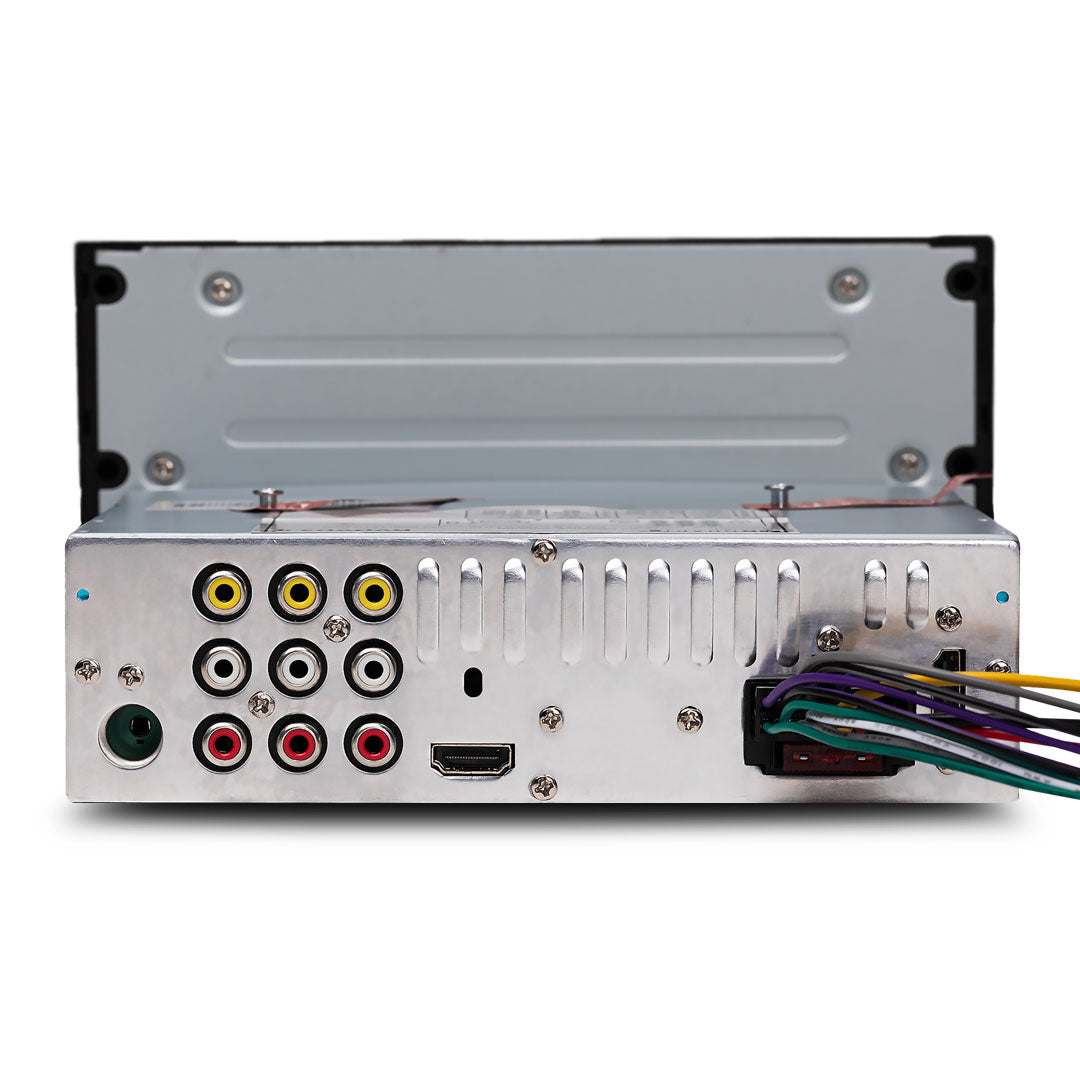

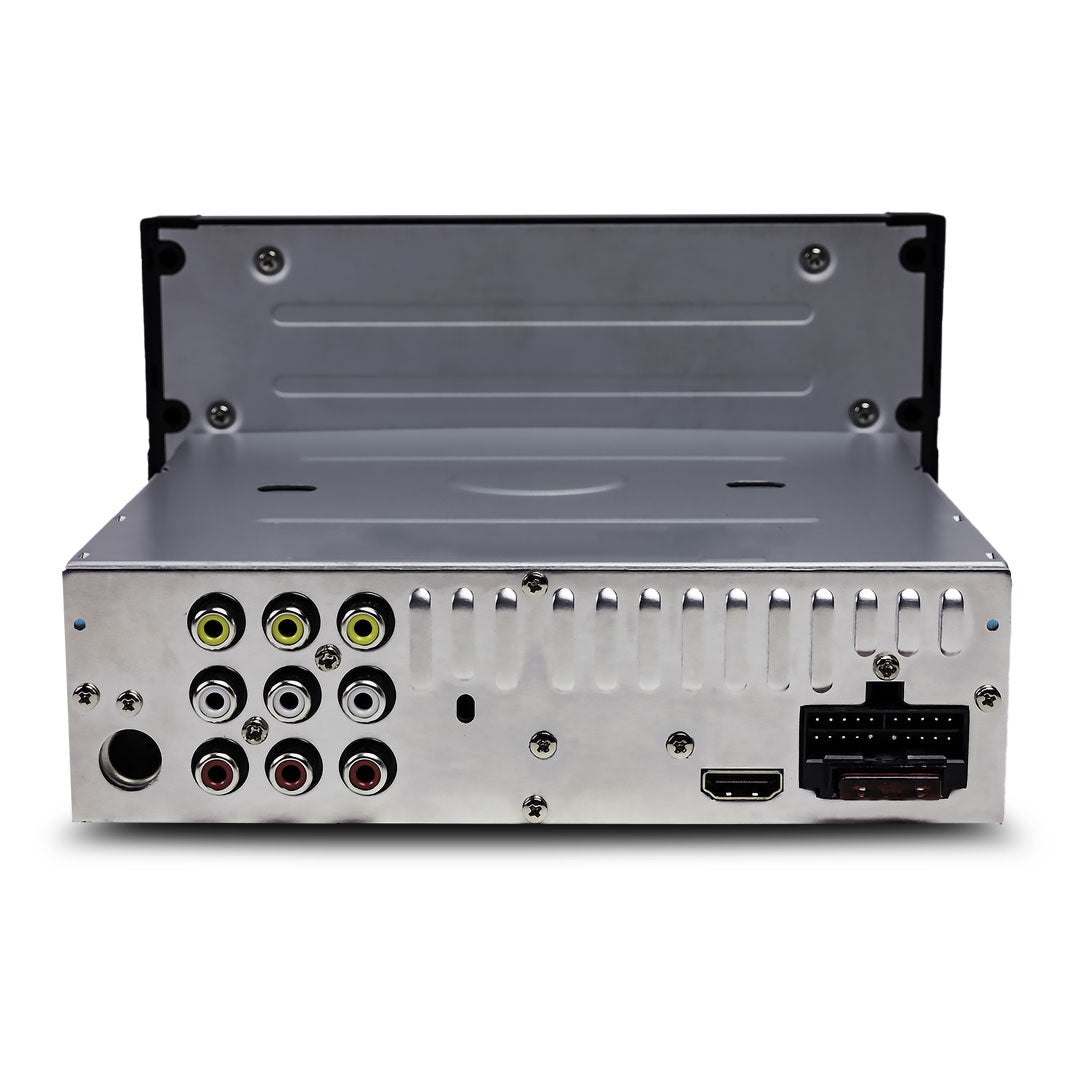

- Source Unit Pre-amp Outputs (Y/N #): AUDIO: 2 RCA Pair Front/Rear, AUDIO: Headphones Front Panel, VIDEO: 1 Video RCA Video Output, VIDEO: Video 2 In/Out, Yes
- Source Unit Pre-amp Voltage: 2.0V
- Source Unit Minimum Impedance (ohms): 4
- Source Unit Display Type: LCD
- Source Unit Display Backlit: Yes
- Source Unit Dimensions Mounting Hole (in): 7.0 x 2.0

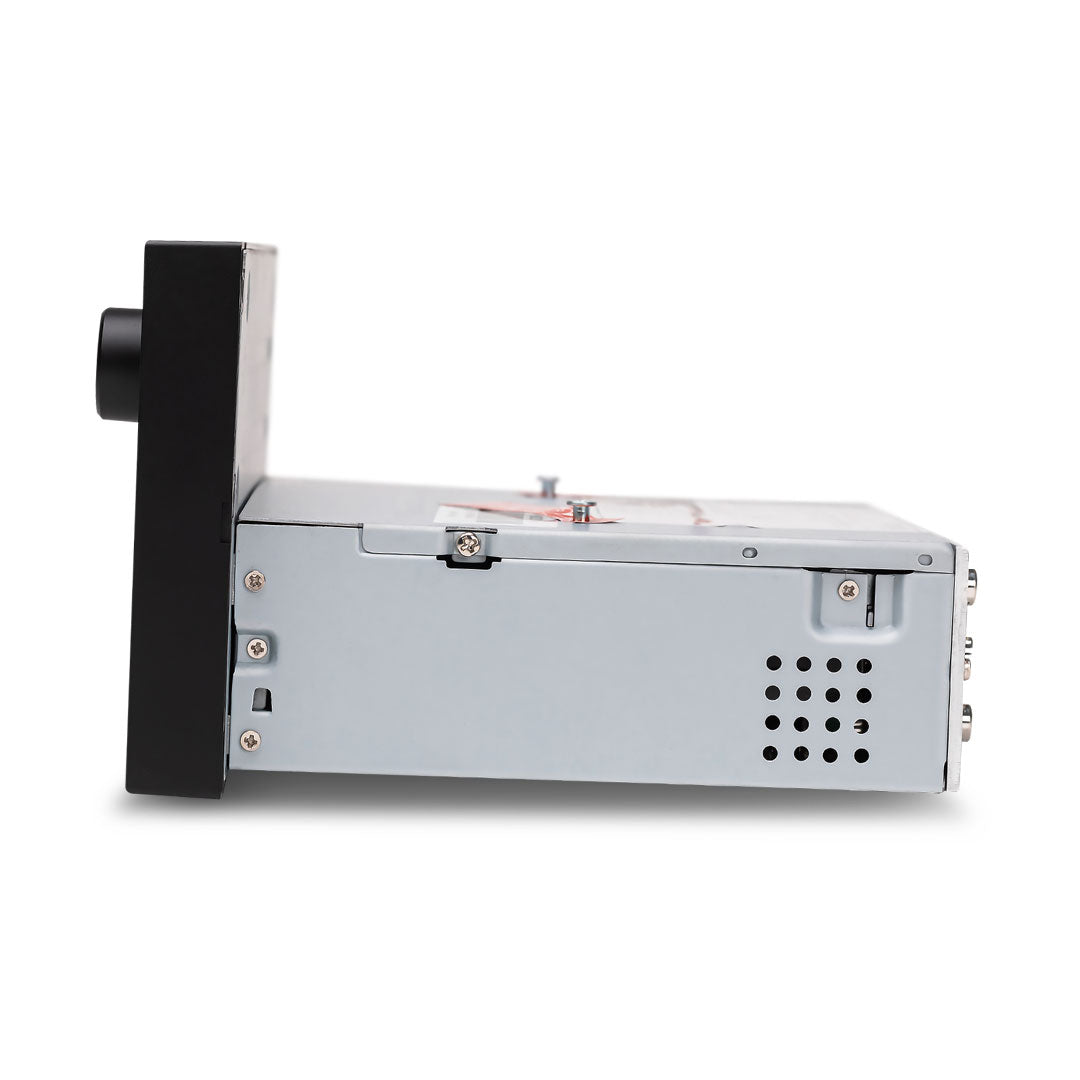

- Source Unit Dimensions Total Mounting Depth (in): 5.9
- Additional Details: MAXIMUM THD+N AT 4 OHMS: 83.3dBA, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 2 Volts, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): -89.3dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): DVD/CD 20Hz-20KHz / Bluetooth 20Hz-20KHz / Aux 10Hz-20KHz, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): DVD/CD 20Hz-20KHz / Aux 10Hz-20KHz / Bluetooth: 20Hz-16.8KHz, STEREO SEPARATION (AUX INPUT): -64dB @ 5kHz, FM MONO USABLE SENSITIVITY: 5.2V, AM MONO USABLE SENSITIVITY: 21.5V, DISC LOAD TIME: 14.9s, TRACK CHANGE TIME: 2.2s
- Source Unit Dimensions Mounting Bezel (Round) (in): 7.87 x 4.33 x 0.74
- Apple Control: Quick control and access of iTunes collection with iPhone, iPod and iPad.
- Source Type: AM/FM/Bluetooth, DVD
- Input Types: Bluetooth, RCA, USB, HDMI. Audio: CDDA, MP3, AC3, DTS, WMA. Picture: JPG, JPEG. Video: 720×576 – DAT, MPG, MPEG, MPA, MPE, VOB, AVI, MP4, DIV, DIVX, MOV, 3GP, M4A, FLV, SWF.
- Bluetooth Connect: Bluetooth Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.
- Secure Simple Pairing: Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system.
- Quick-Pair: No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY.
- Built-In Power: Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle.

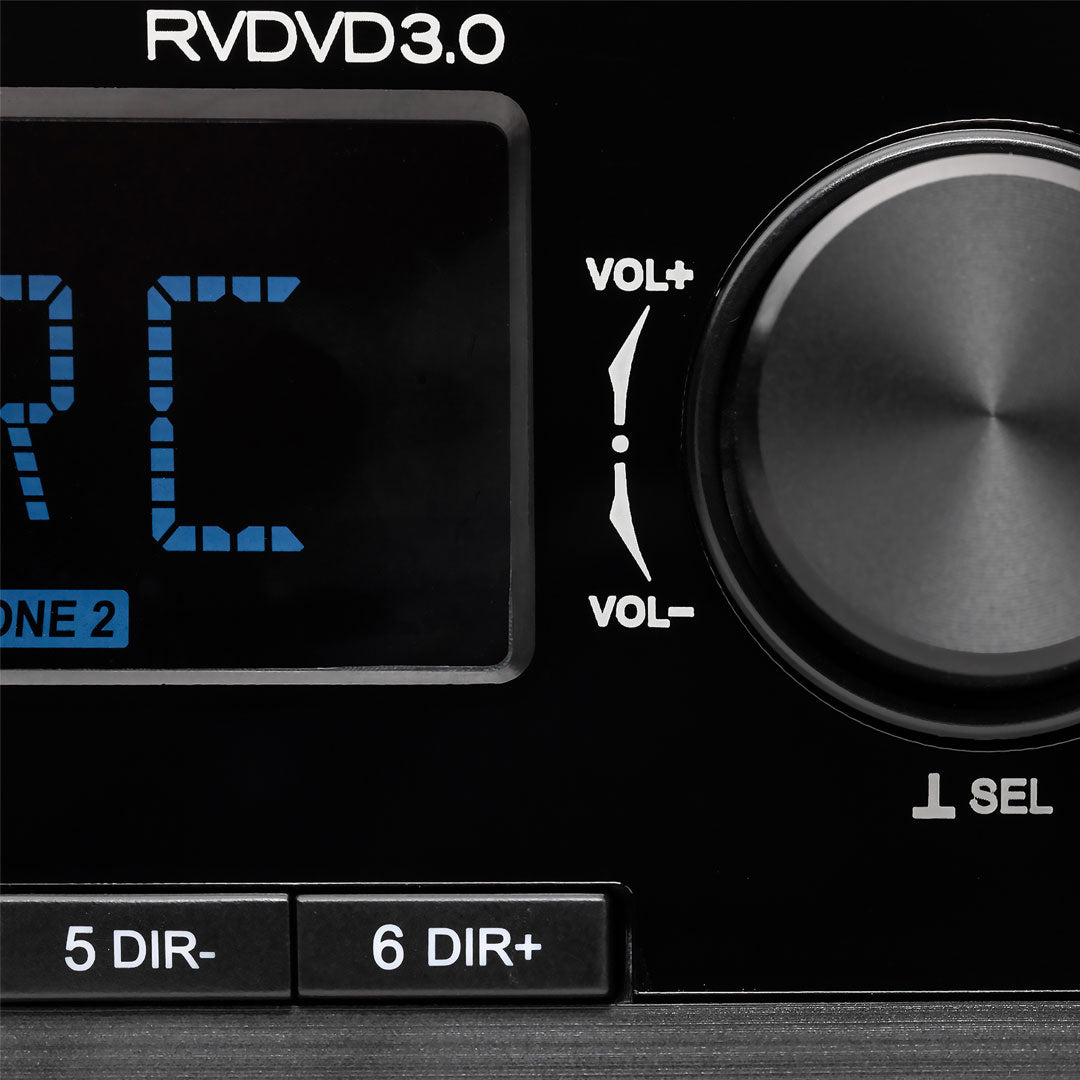

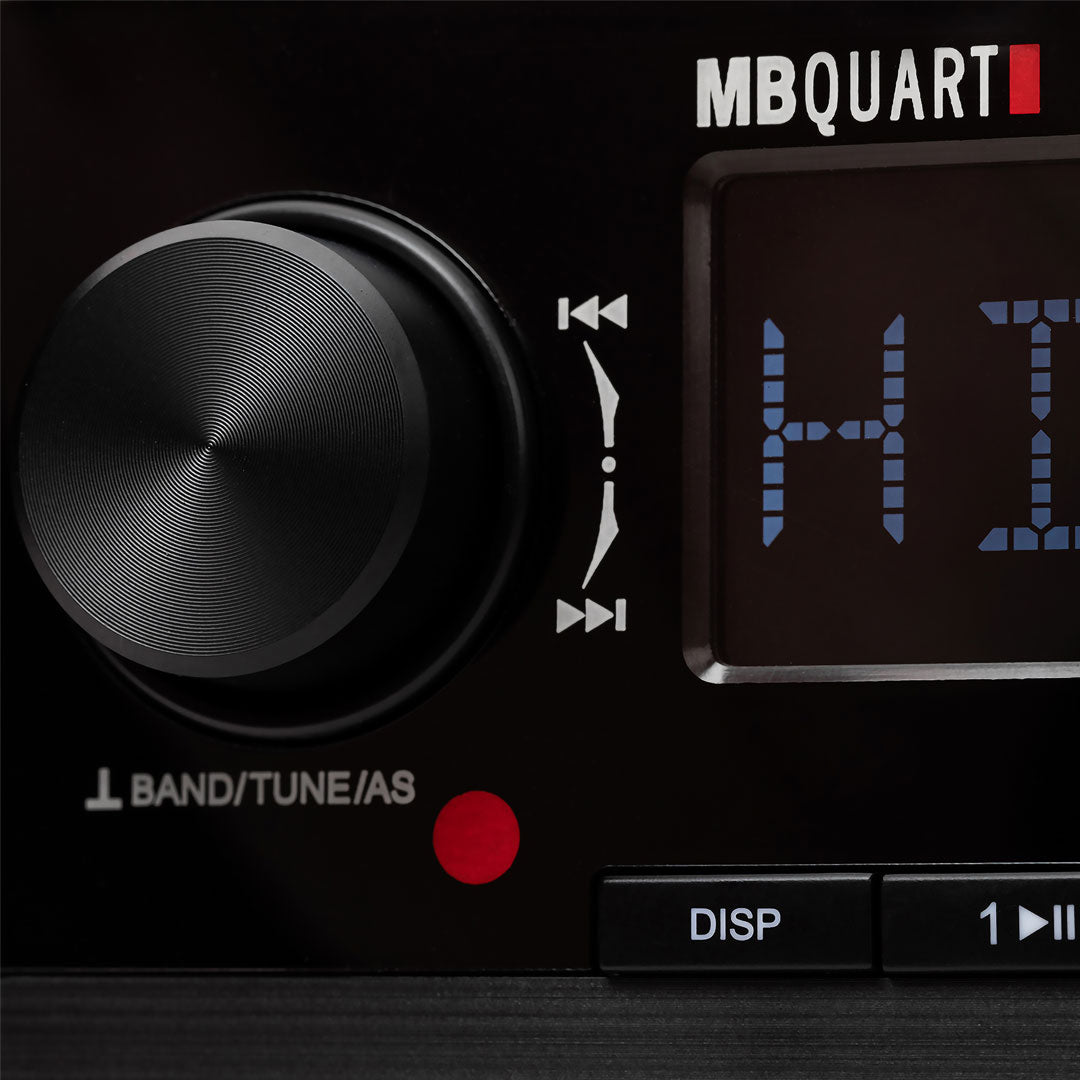

- Control Method: Unit is adjusted by master knob and menu selection.
- AM/FM Tuner Presets: AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations. 5 Weather Band Stations: Are preset from factory.
- Frequency Range: FM: 87.5-108MHz, AM: 520-1710kHz, Weather Band: 162.400-2162.550MHz
- Weather band: Stay alert to changing weather conditions when on the road.
- Video Input: HDMI & RCA (In/Out)
- Additional Inputs: HDMI THRU PUT: All audio and video from satellite or other digital services are pushed to the TV monitor and audio system.
- User Presets: FM1, FM2, FM3, AM, WB
- Dual Audio Zone Capability: Control volume in two different areas independently, such as passenger area and outdoor speakers.
- USB / Apple / Charging Port: Yes
- Bluetooth Version: Version 4.0
- Additional Features: ALARM CLOCK: On/Off Options, Alarm, Sleep, Power Up, Beep.
