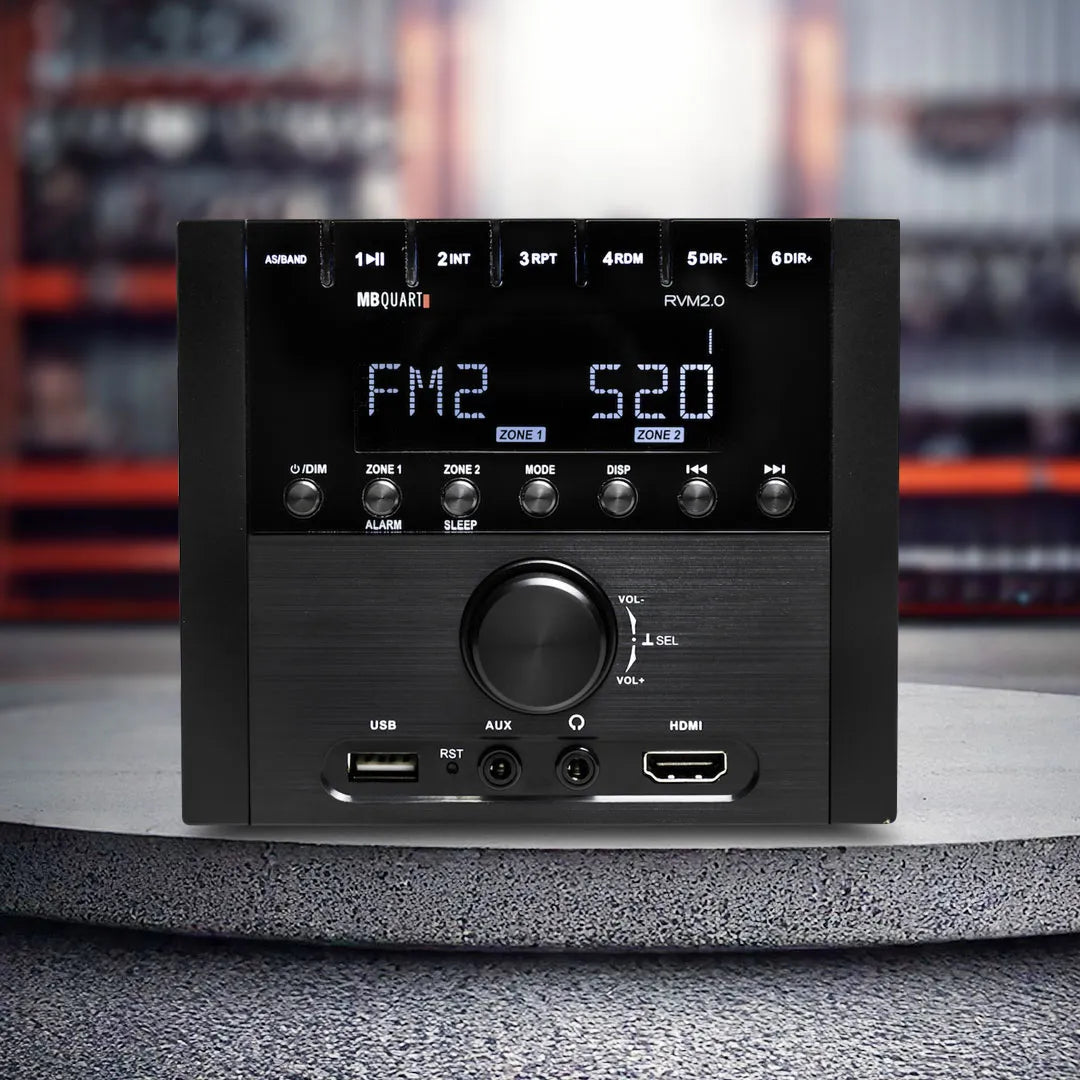

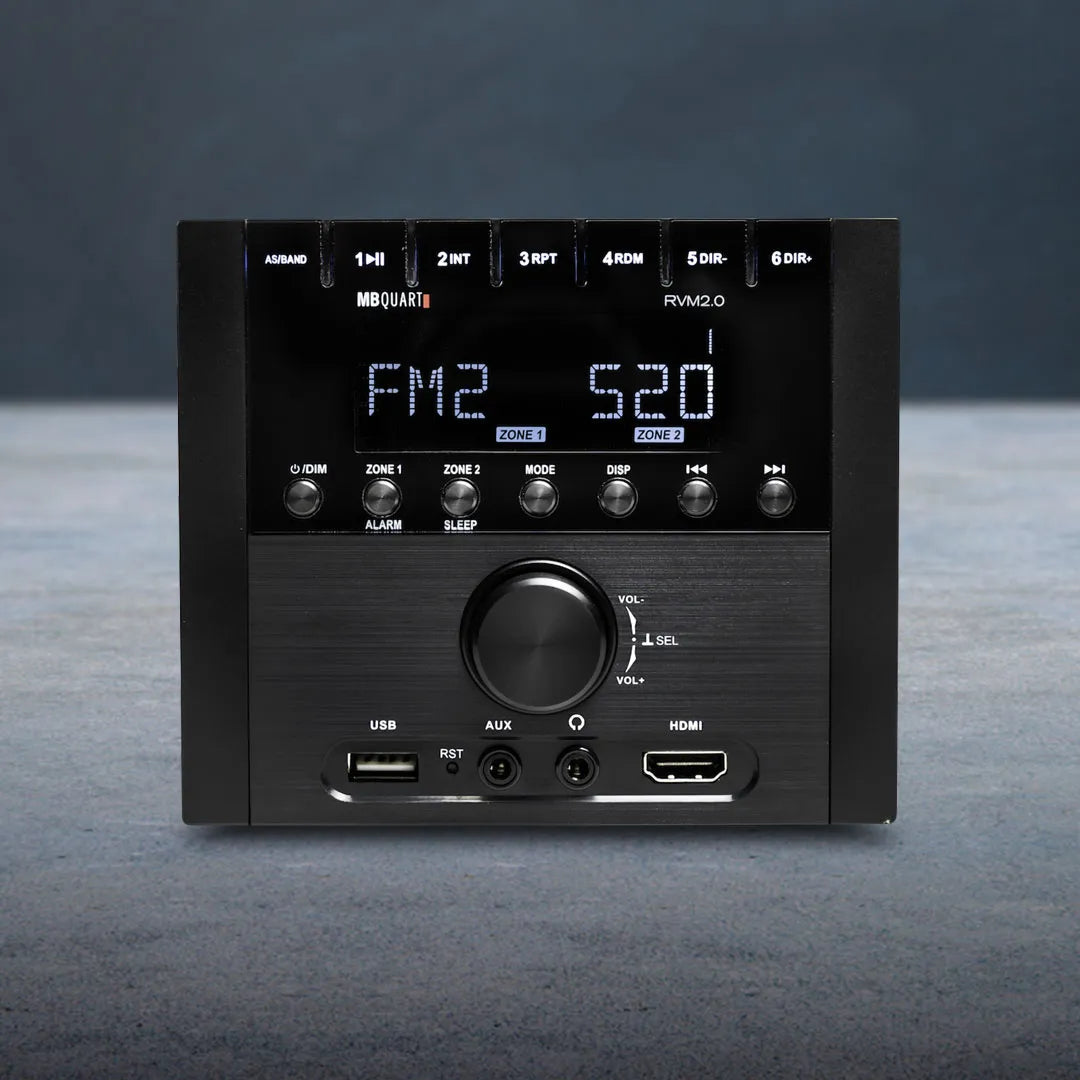

MB Quart MBQ-RVM2.0 | Digital Unit | Multi-Media Mechless

Versatile Multi-Zone Entertainment for Your RV

Digital Multimedia, Multi-Zone, 160 Watt RV Mechless Source Unit with AM/FM & Bluetooth 4.0.

Specifications:

• Series: RV
• Color: Black
• Warranty: 1 Year
• Source Unit Tuner Section FM Stereo Frequency Range: 87.5MHz-108MHz
• Source Unit Bluetooth Range (ft): 32
• Source Unit RMS Power Output (watts): 4 x 20
• Source Unit Peak Power Output (watts): 4 x 40

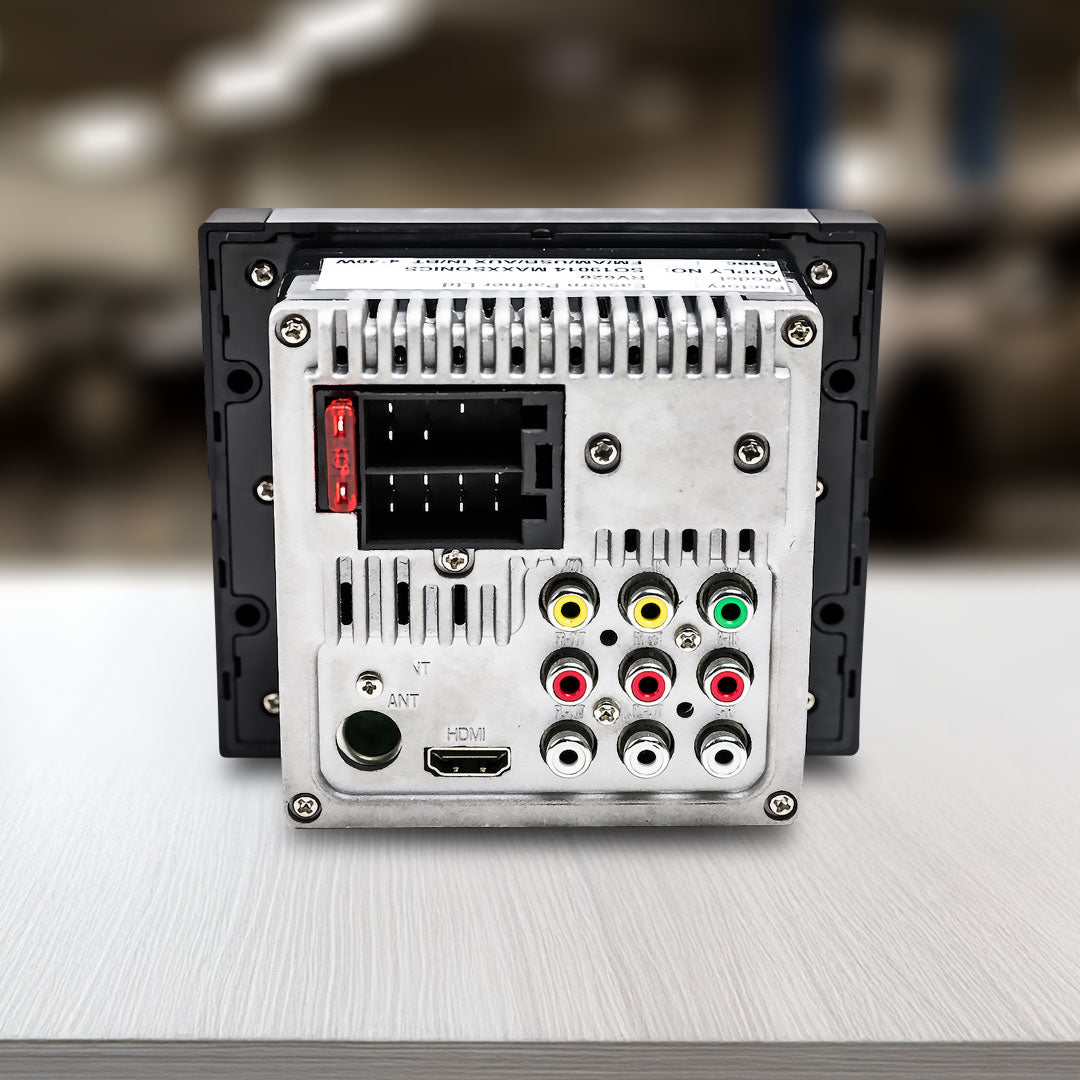

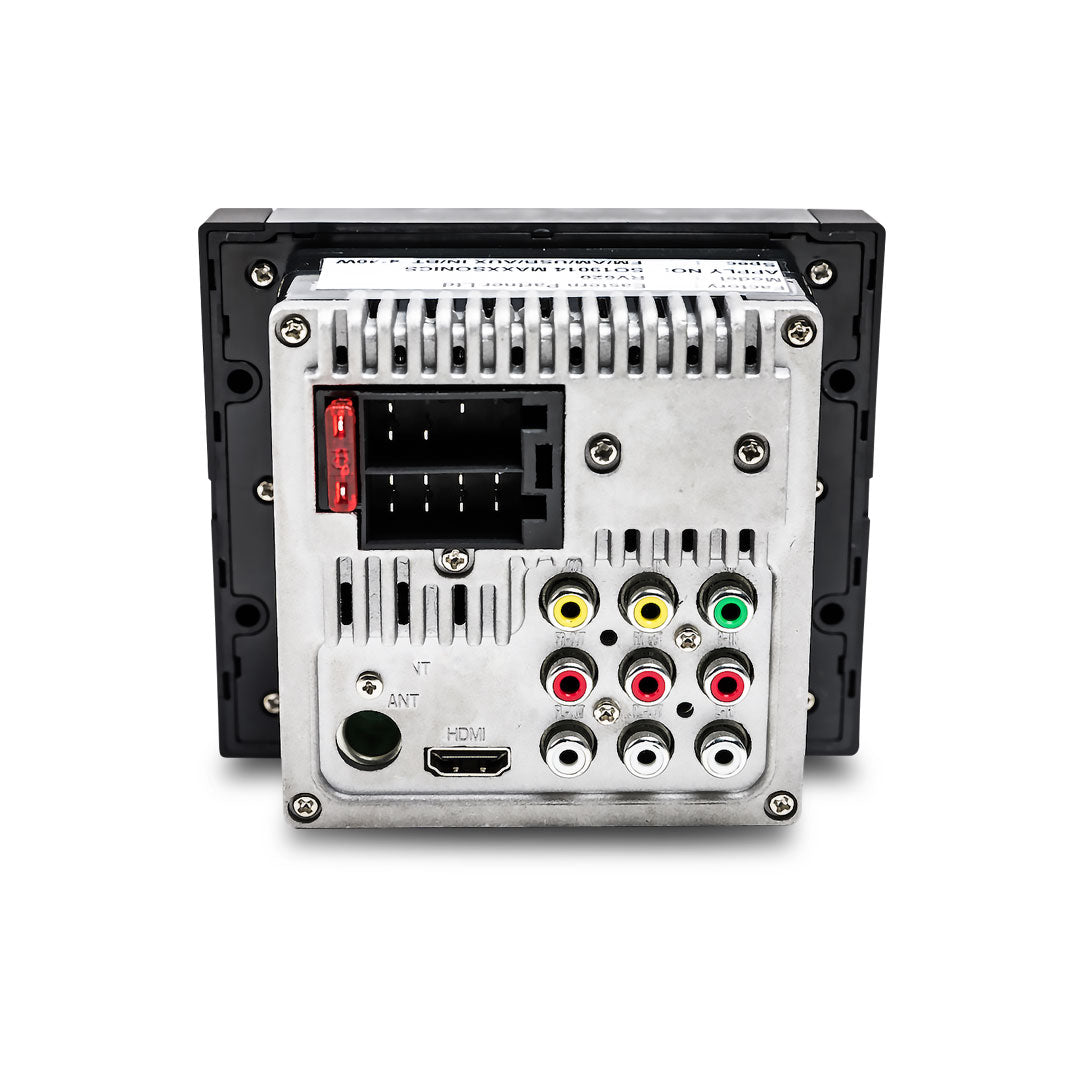

• Source Unit Pre-amp Outputs (Y/N #): AUDIO: 1 RCA Subwoofer, AUDIO: 2 RCA Pair Front/Rear, AUDIO: Headphones Front Panel
• Source Unit Pre-amp Voltage: 2.0V
• Source Unit Minimum Impedance (ohms): 4
• Source Unit Display Type: LCD
• Source Unit Display Backlit: Yes
• Source Unit Dimensions Mounting Hole (in): 3.88 x 4.0
• Source Unit Dimensions Total Mounting Depth (in): 1.88
• Additional Details: MAXIMUM THD+N AT 4 OHMS: 76.2dBA, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 2 Volts, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): -80.7dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): Bluetooth 20Hz-20KHz / Aux 10Hz-20KHz, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): Bluetooth 20Hz-20KHz / Aux 10Hz-20KHz, STEREO SEPARATION (AUX INPUT): -47dB @ 5kHz, FM MONO USABLE SENSITIVITY: 6.0V, AM MONO USABLE SENSITIVITY: 23.8V
• Source Unit Dimensions Mounting Bezel (Round) (in): 5.07 x 4.33 x 0.74
• Apple Control: Quick control and access of iTunes collection with iPhone, iPod and iPad.
• Source Type: AM/FM/Bluetooth
• Input Types: Bluetooth, RCA, and USB. The USB supports all new technology MP3, WMA, APE, FLAC and WAV files.
• Bluetooth Connect: Bluetooth Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.
• Secure Simple Pairing: Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system.
• Quick-Pair: No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY.
• Built-In Power: Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle.

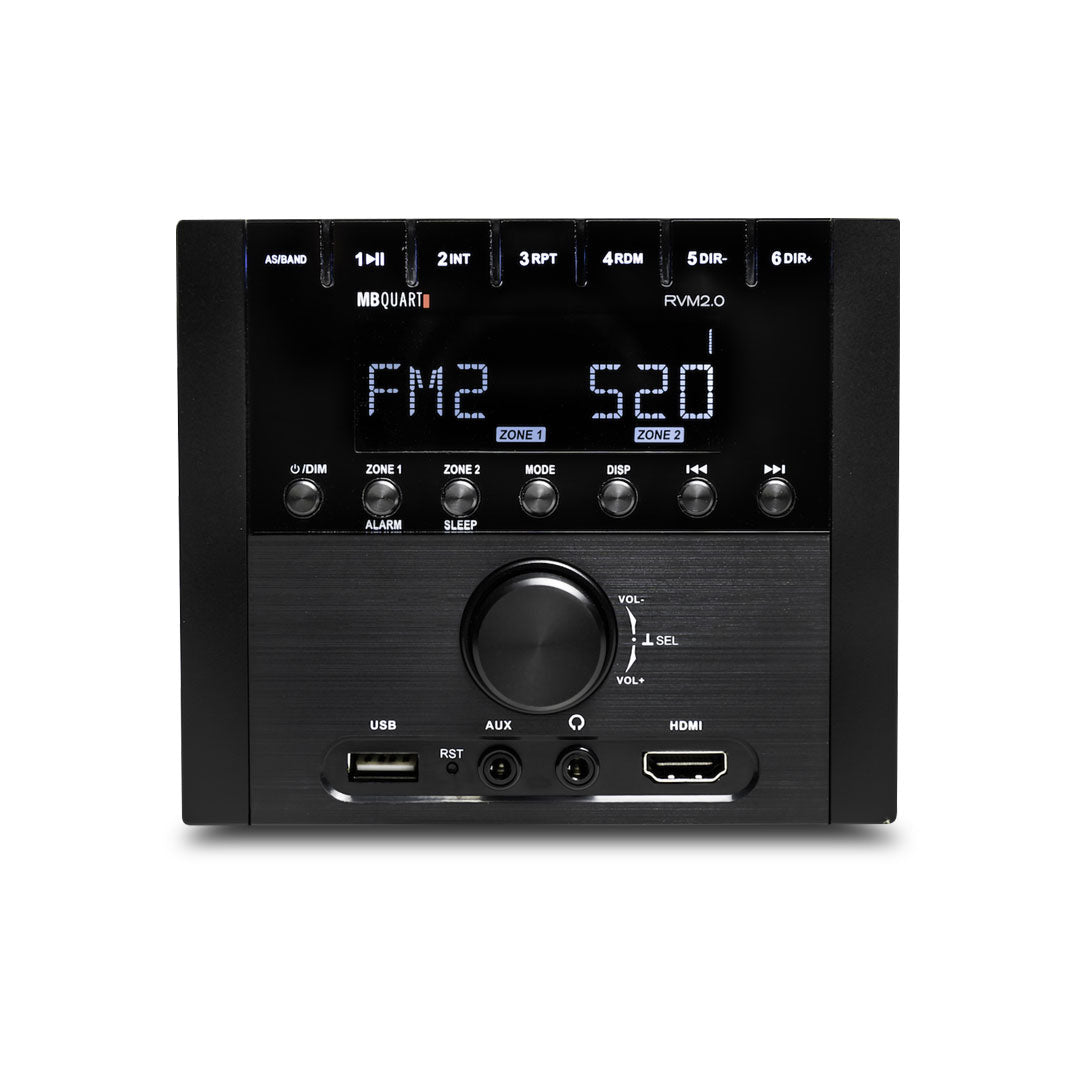

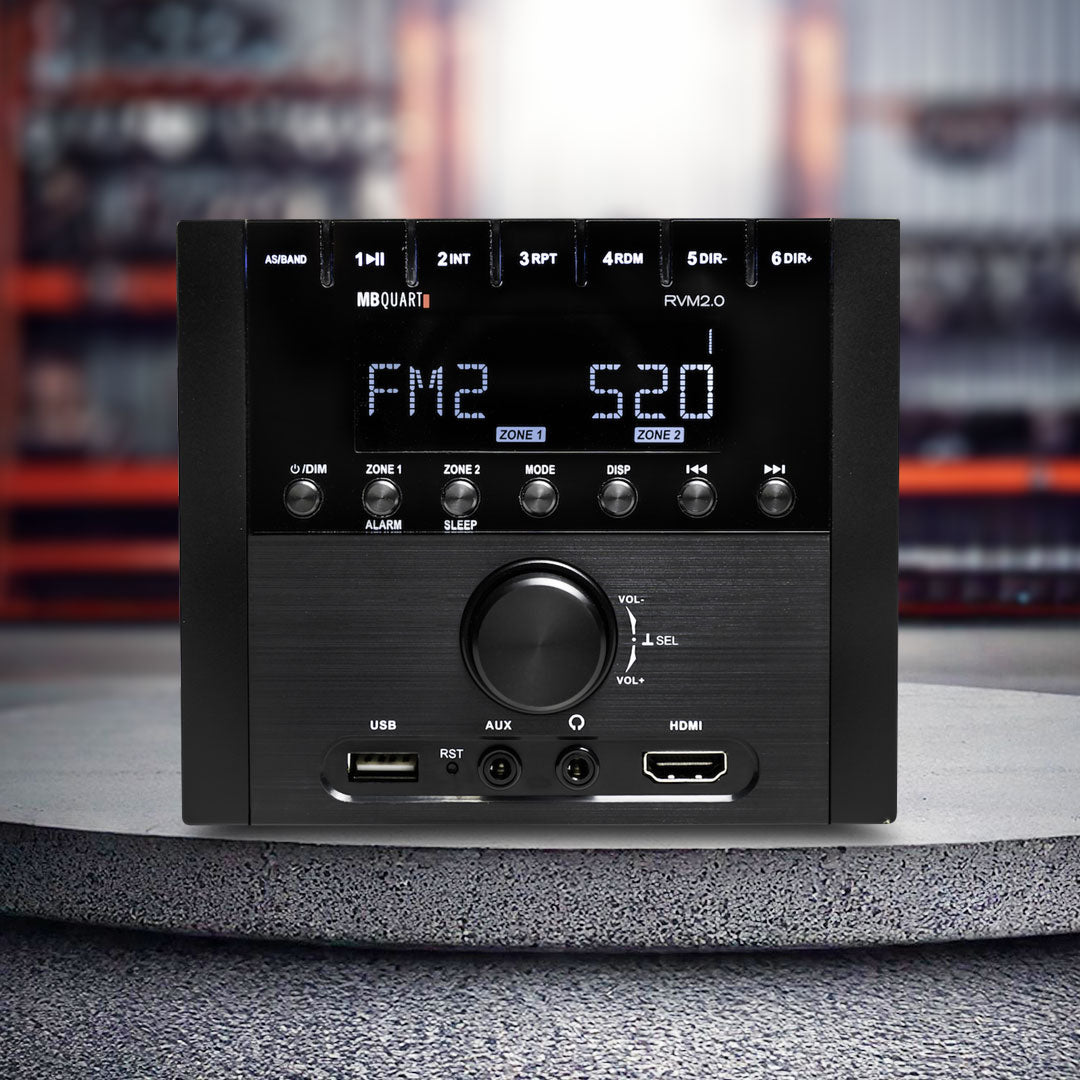

• Control Method: Unit is adjusted by master knob and menu selection.
• AM/FM Tuner Presets: AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations.
• Frequency Range: FM: 87.5-108MHz, AM: 520-1710kHz
• Video Input: HDMI Front/Rear, Pass Through
• Additional Inputs: HDMI THRU PUT: All audio and video from satellite or other digital services are pushed to the TV monitor and audio system.
• Dual Audio Zone Capability: Control volume in two different areas independently, such as passenger area and outdoor speakers.
• USB / Apple / Charging Port: Yes (Front panel, quick charge)
• Bluetooth Version: Version 4.0
• Additional Features: ALARM CLOCK: On/Off Options, Alarm, Sleep, Power Up, Beep.
