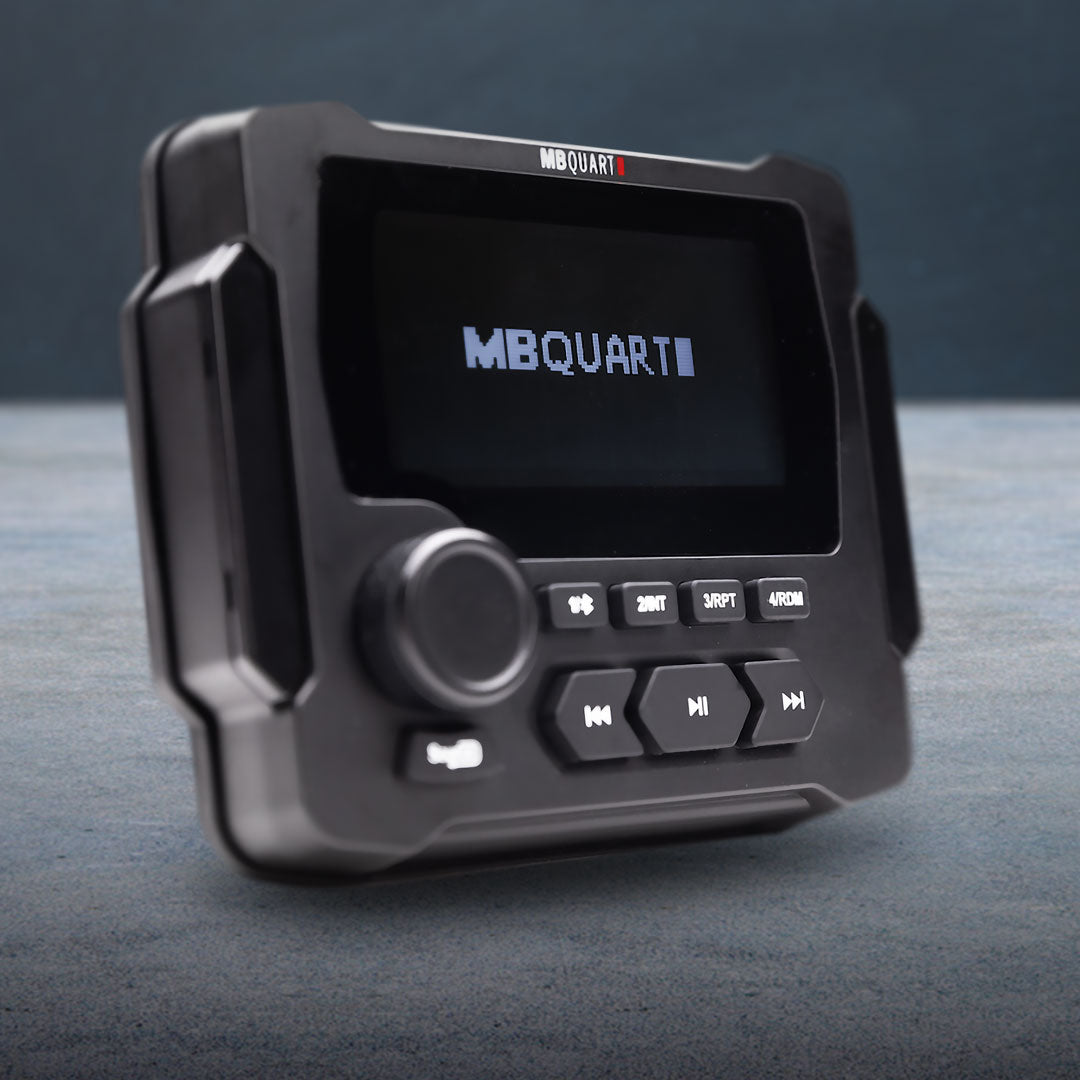

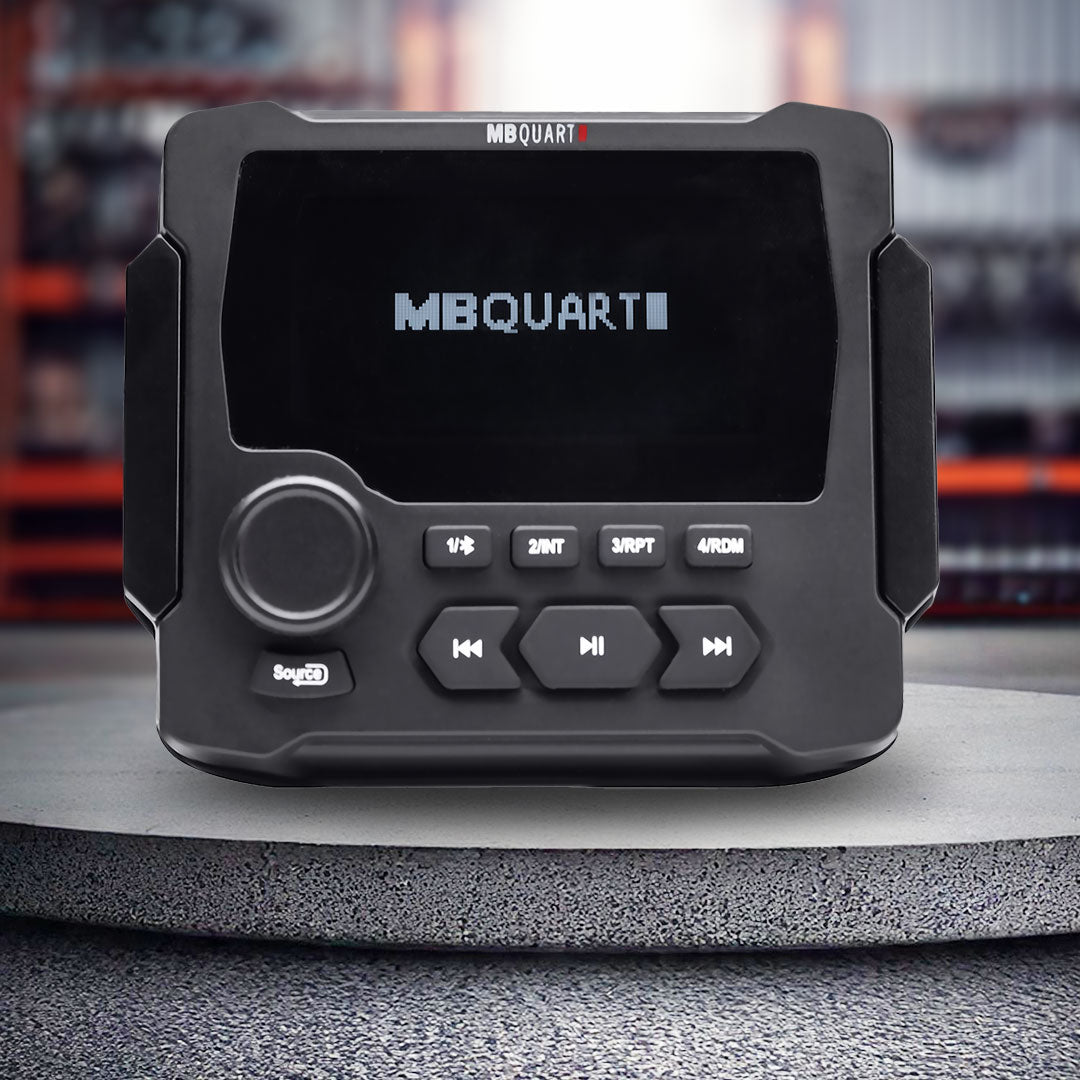

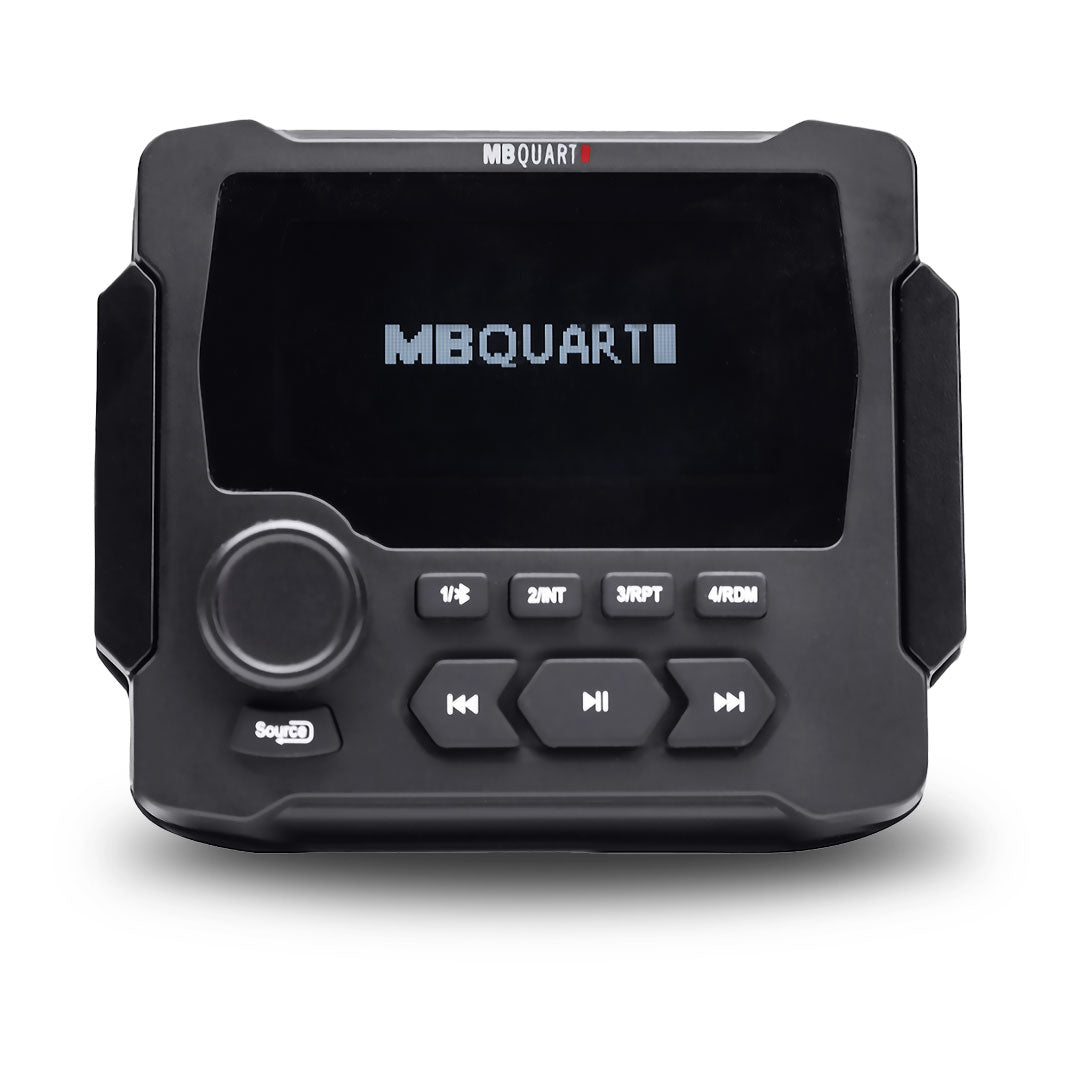

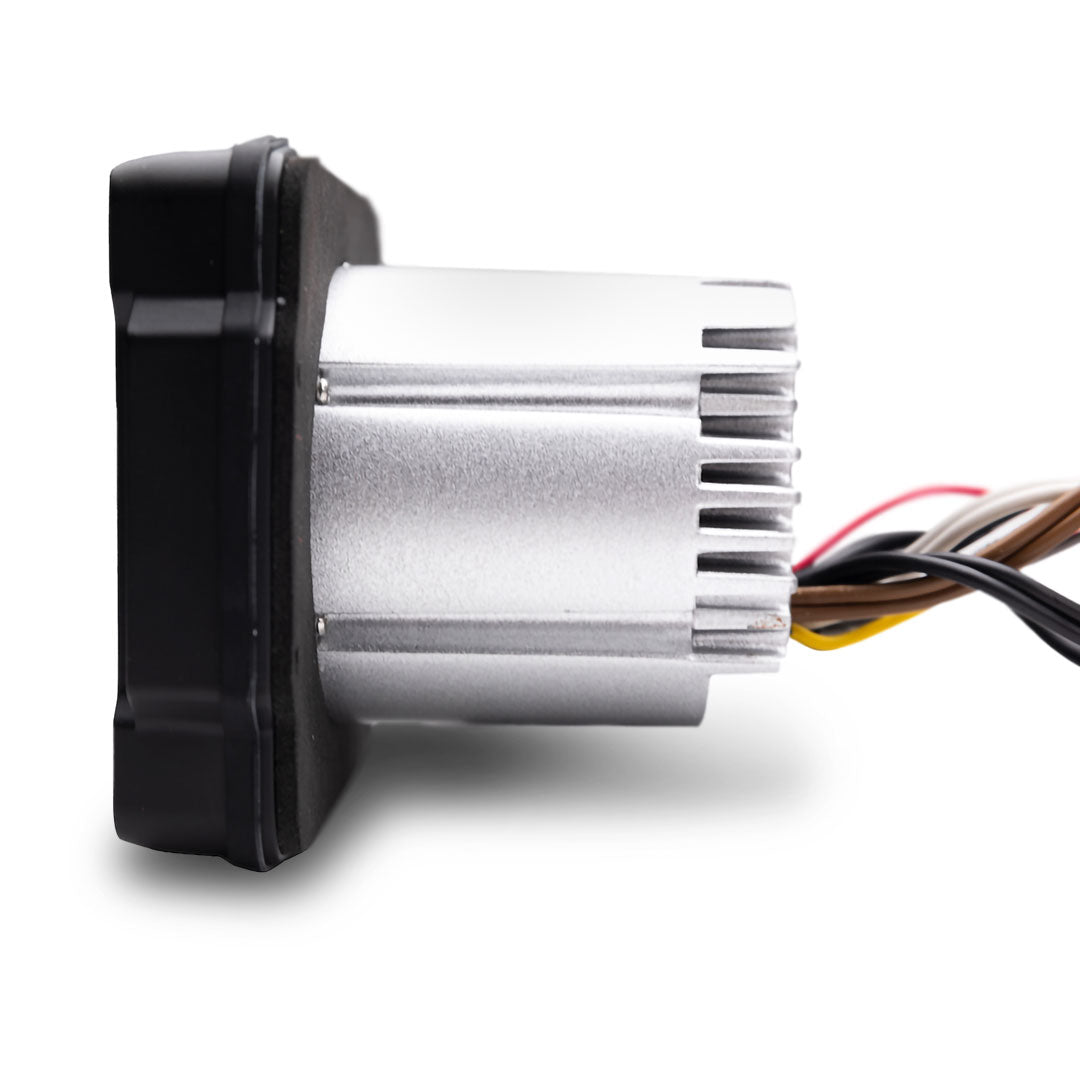

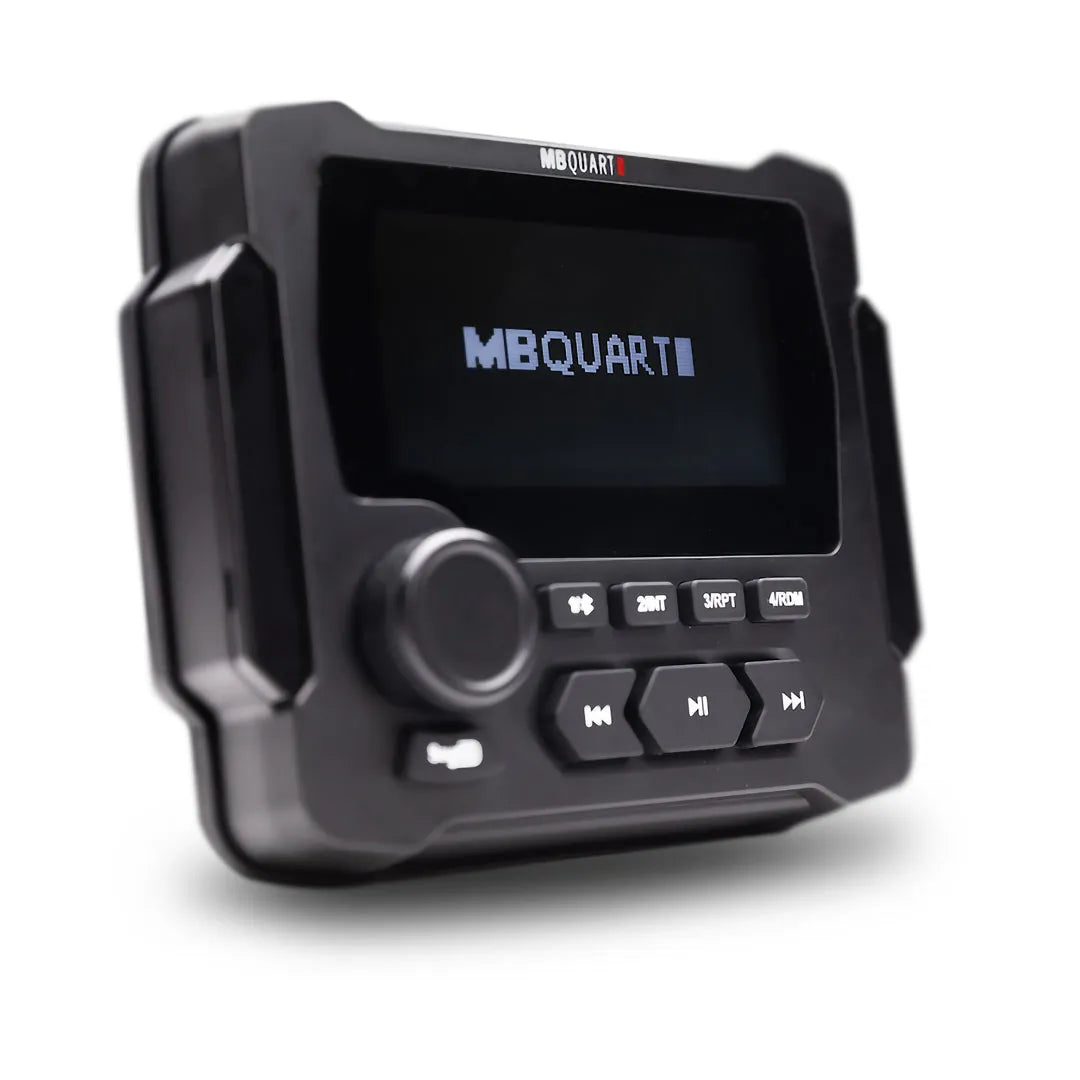

MB Quart MBQ-GMR-LCD | Bluetooth, AM/FM USB Radio | with Built in Amplifier

Compact Control, Big Features – MB Quart Gauge Mount Radio with Bluetooth, AM/FM, USB & Built-In Amplifier for Full-System Connectivity!

Gauge mount, Bluetooth, AM/FM USB radio with built in amplifier. Bass, treble controls, front & rear RCA outputs. 4 Volt input for dynamic power capability. RF-REM compatible for remote control connectivity.

Specifications:

• Series: Nautic
• Color: Black
• Warranty: 1 Year
• IPX Rating: IPX67
• Compatible Vehicle: Universal UTV
• UTV Kit Total System Power (watts): 400
• Source Unit: N2-WBT: Switch Mounted Bluetooth Connected Joystick Controller.
• Rear Speakers: NPT1-116: 6.5 inch 2 way Speakers in Tower Enclosures.
• Rear Speakers Mounting: Roll Cage Mounted.
• Full Range Amplifier: NA2-400.2: 400 Watt Two Channel Class D, Compact Powersports Amplifier.
• Full Range Amplifier Mounting
  Minimal Mounting Height/Depth Required.
• Harnessing: PS-AMPKIT: Universal Powersports Amplifier Installation Kit.
• Compatible Vehicle Fitment: Universal
• Marine Grade Protection / IPX Rating: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors. Meets or exceeds IP67 requirements for water and dust proofing.
• Source Unit Mounting: Any Available Carling Style Switch Hole.
• Amplifier Features: This audio system is powered by the NA2 series of amplifiers. The stereo amplifier is operating in 2 ohm mode for maximum volume to the speakers.
• Mount / Harness: Plug and Play Harness. Waterproof Connectors with premeasured wires. No guess work, no installation mistakes.
• Source Unit Tuner Section FM Stereo Frequency Range: 87.5MHz-108MHz
• Source Unit Tuner Section S/N Rati: > 55dB
• Source Unit Bluetooth Range (ft): 32
• Source Unit RMS Power Output (watts): 4 x 20
• Source Unit Peak Power Output (watts): 4 x 40
• Source Unit S/N @1W: 81.2dBA
• Source Unit Frequency Response (Aux In): 85Hz-20kHZ

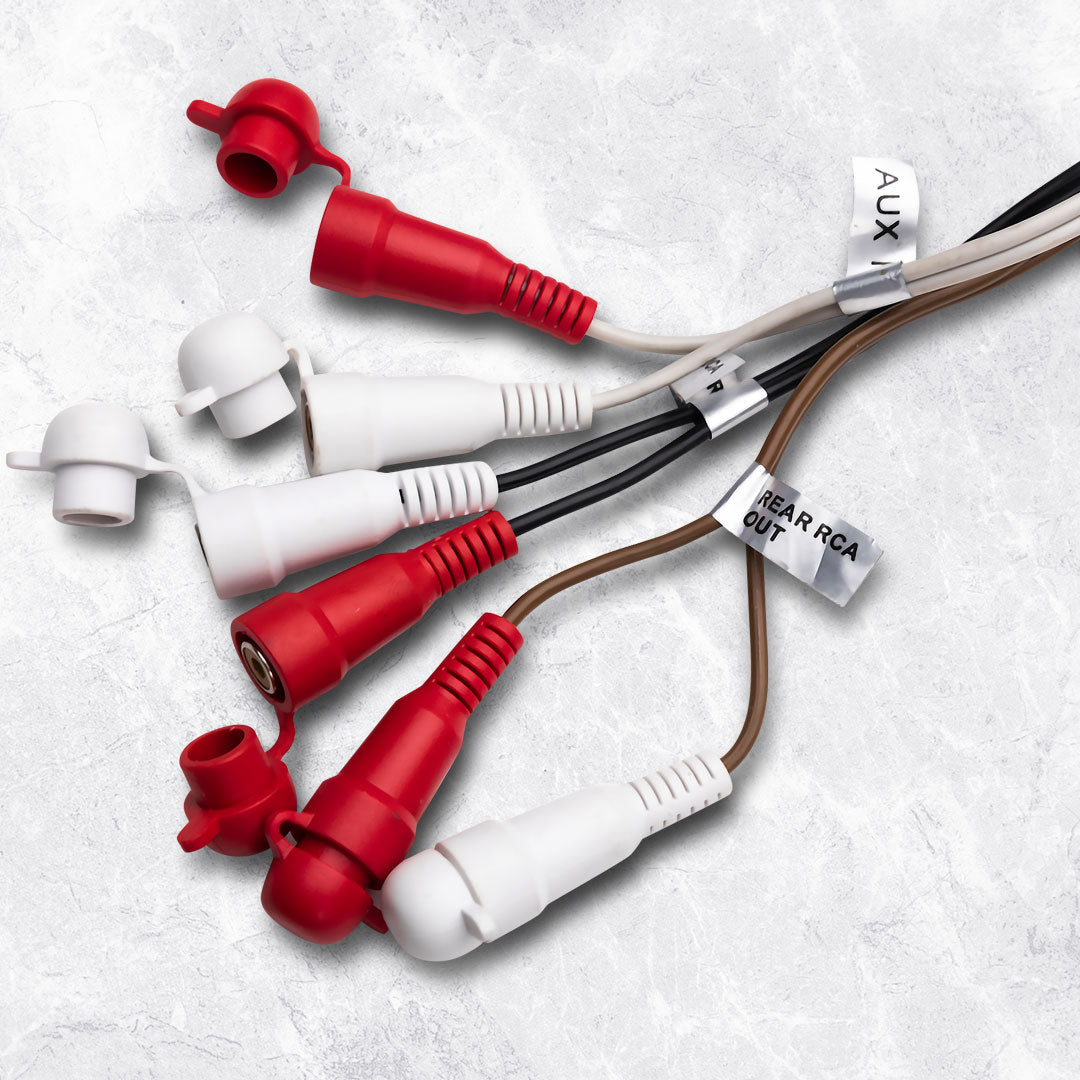

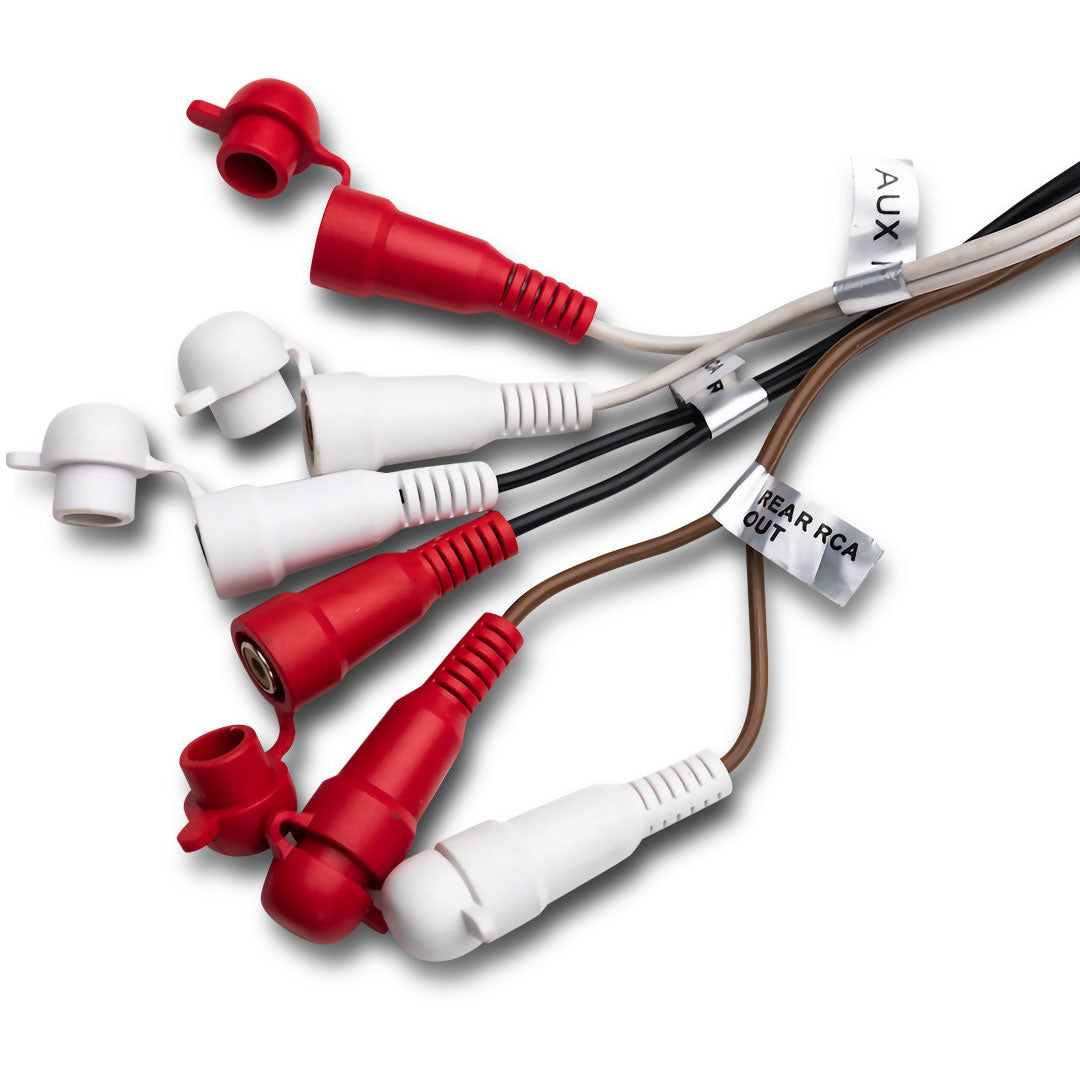

• Source Unit Pre-amp Outputs (Y/N #): 2pr Front/Rear
• Source Unit Pre-amp Voltage: 4.0V
• Source Unit Minimum Impedance (ohms): 4
• Source Unit Display Type: LCD
• Source Unit Display Backlit: Yes
• Source Unit LCD Font Size: Medium
• Source Unit Dimensions Mounting Hole (in): 3
• Source Unit Dimensions Total Mounting Depth (in): 4.1
• Source Unit Dimensions Mounting Bezel (Round) (in): 4.1
• Apple Control: Quick control and access of iTunes collection with iPhone, iPod and iPad.
• Source Type: AM/FM/Bluetooth Enabled Gauge Mount Radio allows all access to radio stations and content from Bluetooth enabled devices.
• Input Types: Bluetooth, RCA, USB: Nearly nothing the device can not play.
• Control Buttons: Unit is adjusted by master knob and menu selection.
• Bluetooth Connect: Bluetooth Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.
• Secure Simple Pairing: Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system.
• Quick-Pair: No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY.
• Built-In Power: Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle.
• Control Method: Unit is adjusted by master knob and menu selection.

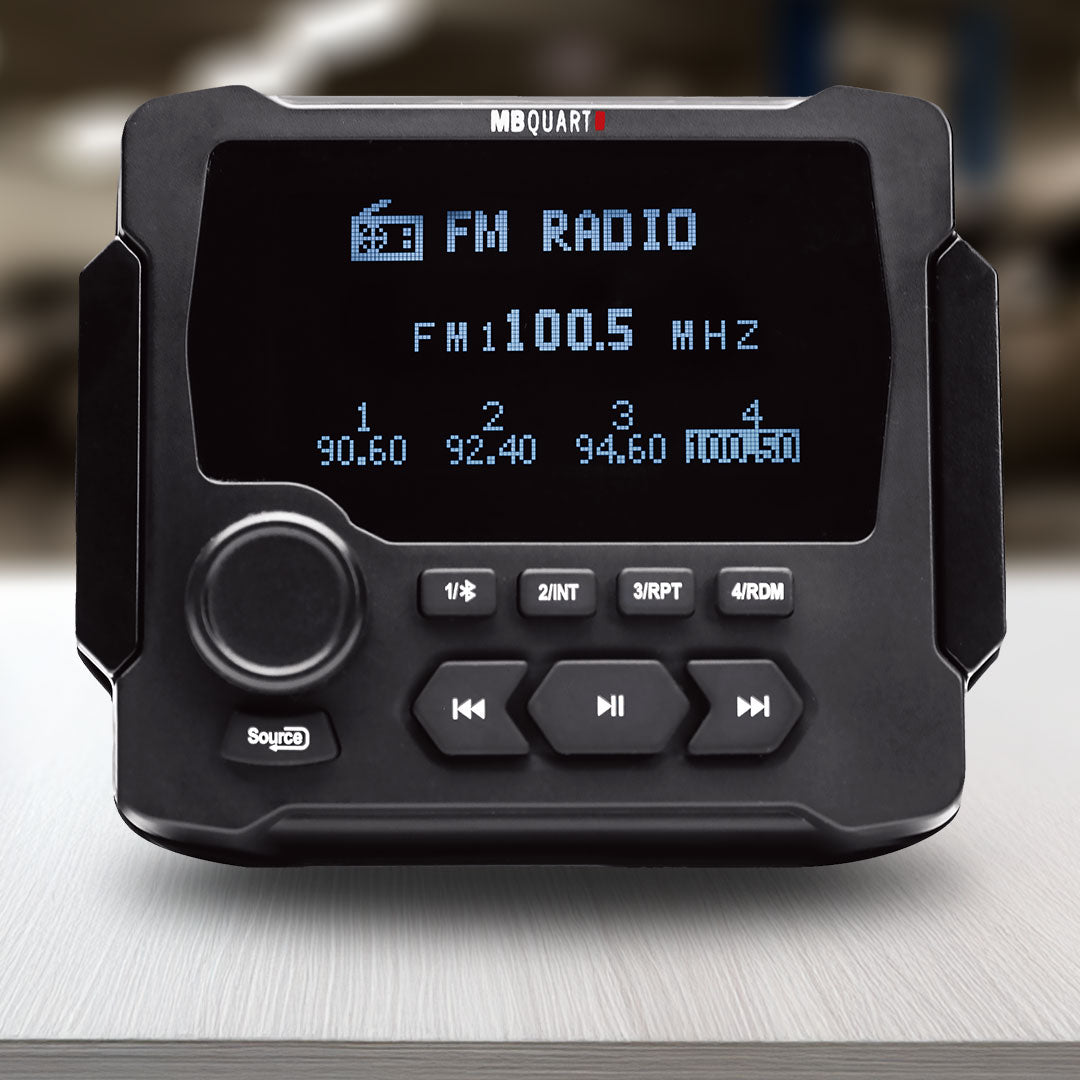

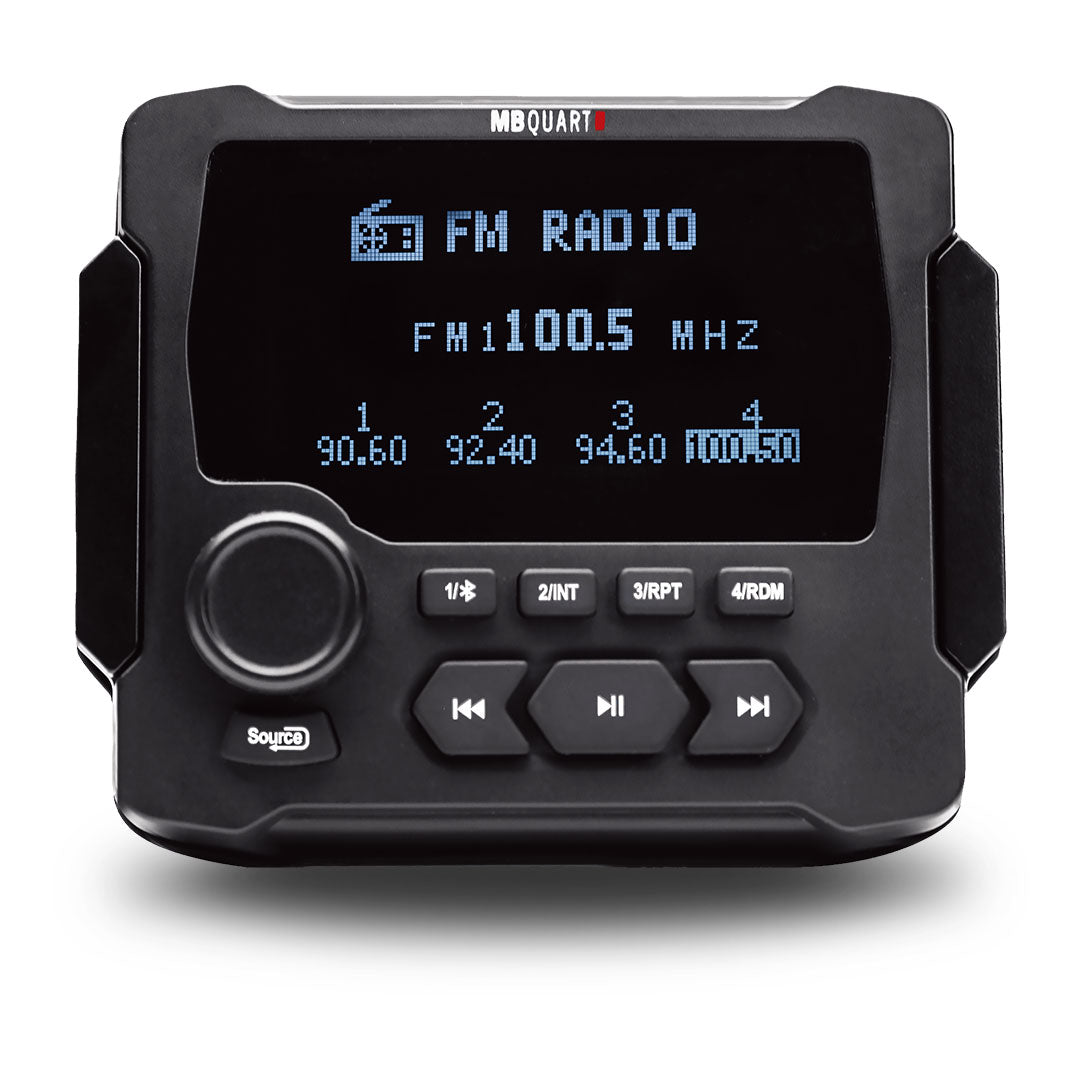

• AM/FM Tuner Presets: AM: 8 station, FM: 12 station. AM1, AM2, FM1, FM2, FM3 each memorize 4 stations each.
• Frequency Range: FM: 87.5-108, AM: 530-1710
• USB / Apple / Charging Port: 1 USB
• Bluetooth Version: Version 4.2

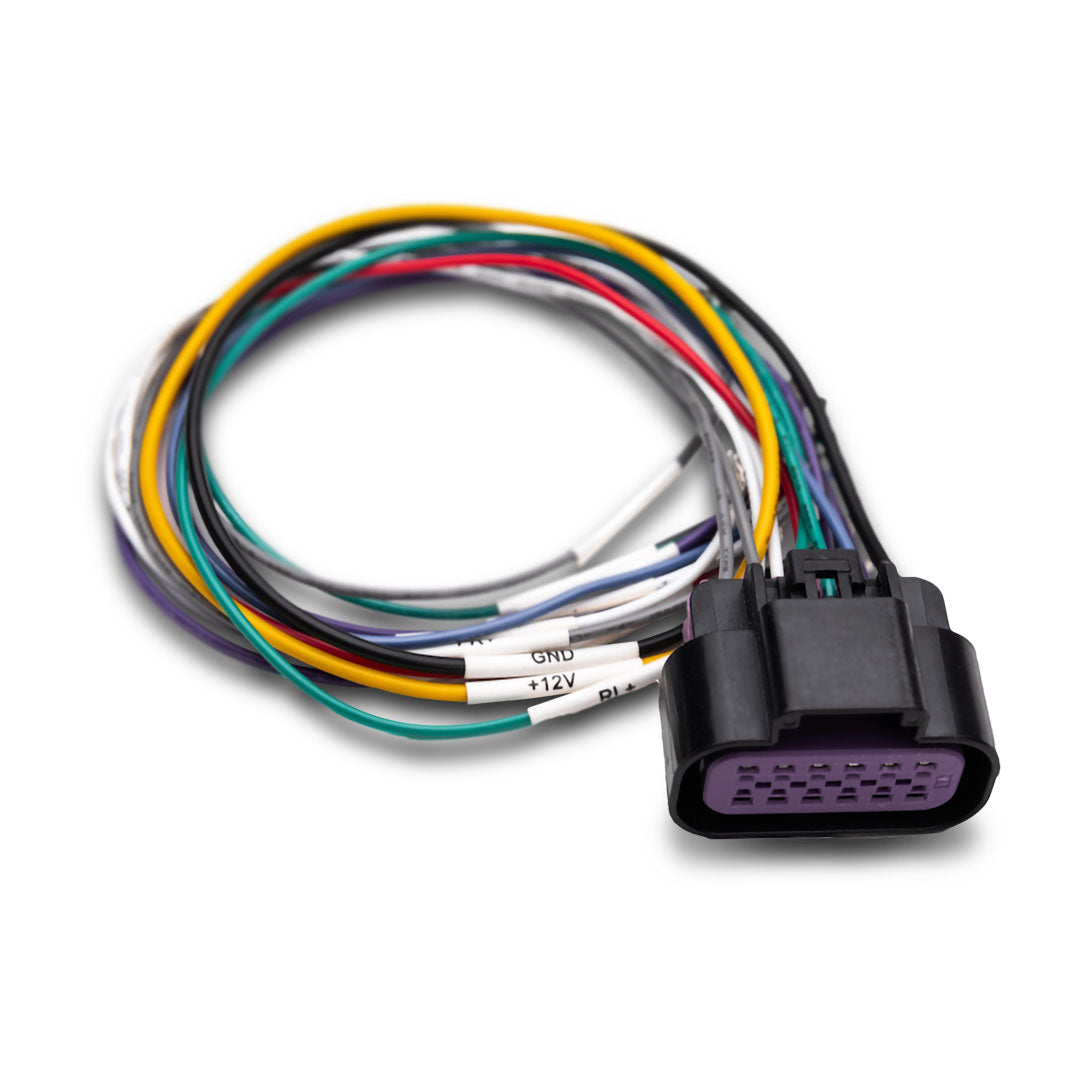

• Main Connector Type: MOLEX connector for simple installation and removal of unit when needed.
• Media Screen: On board 3.5 inch high-contrast LCD screen.
