Product features

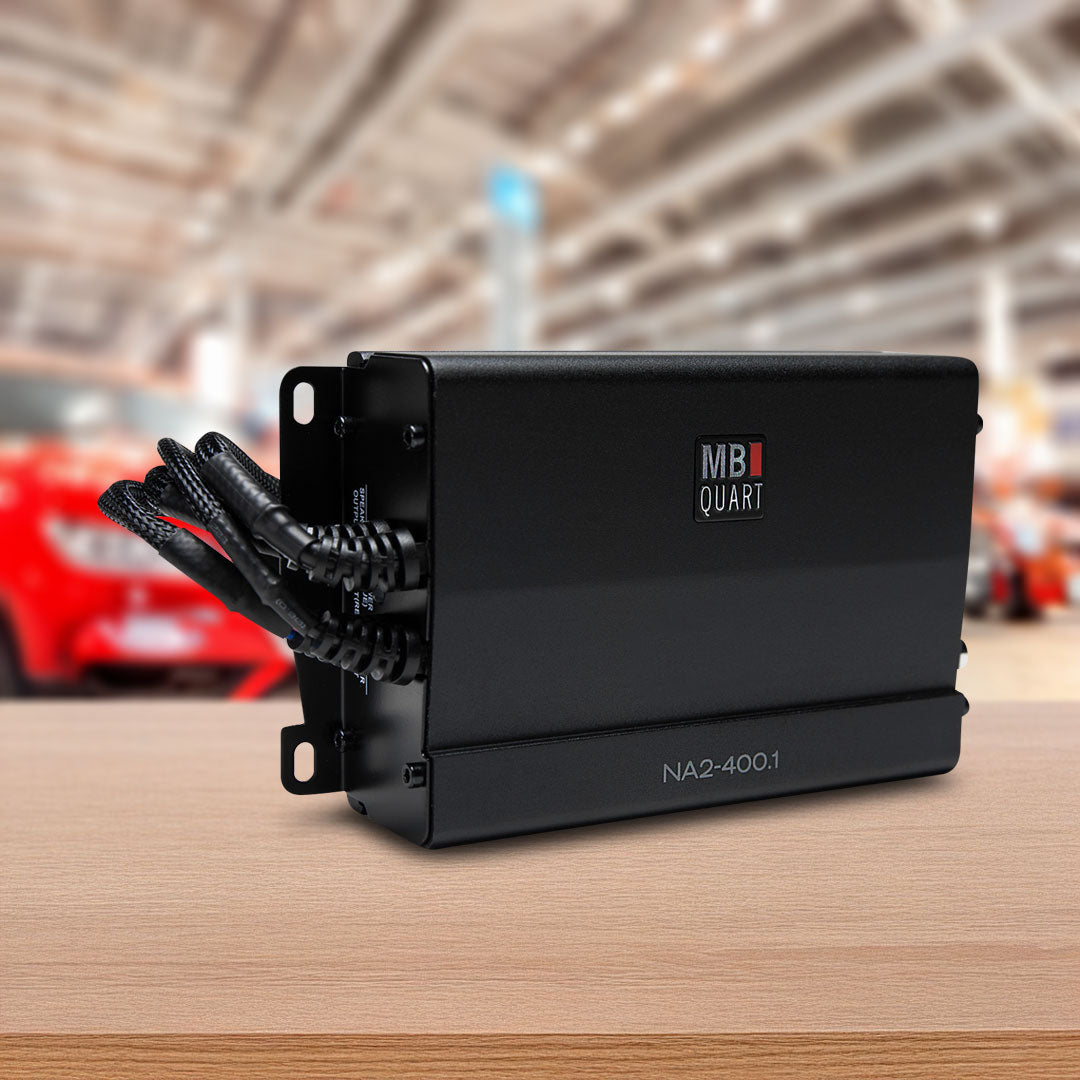

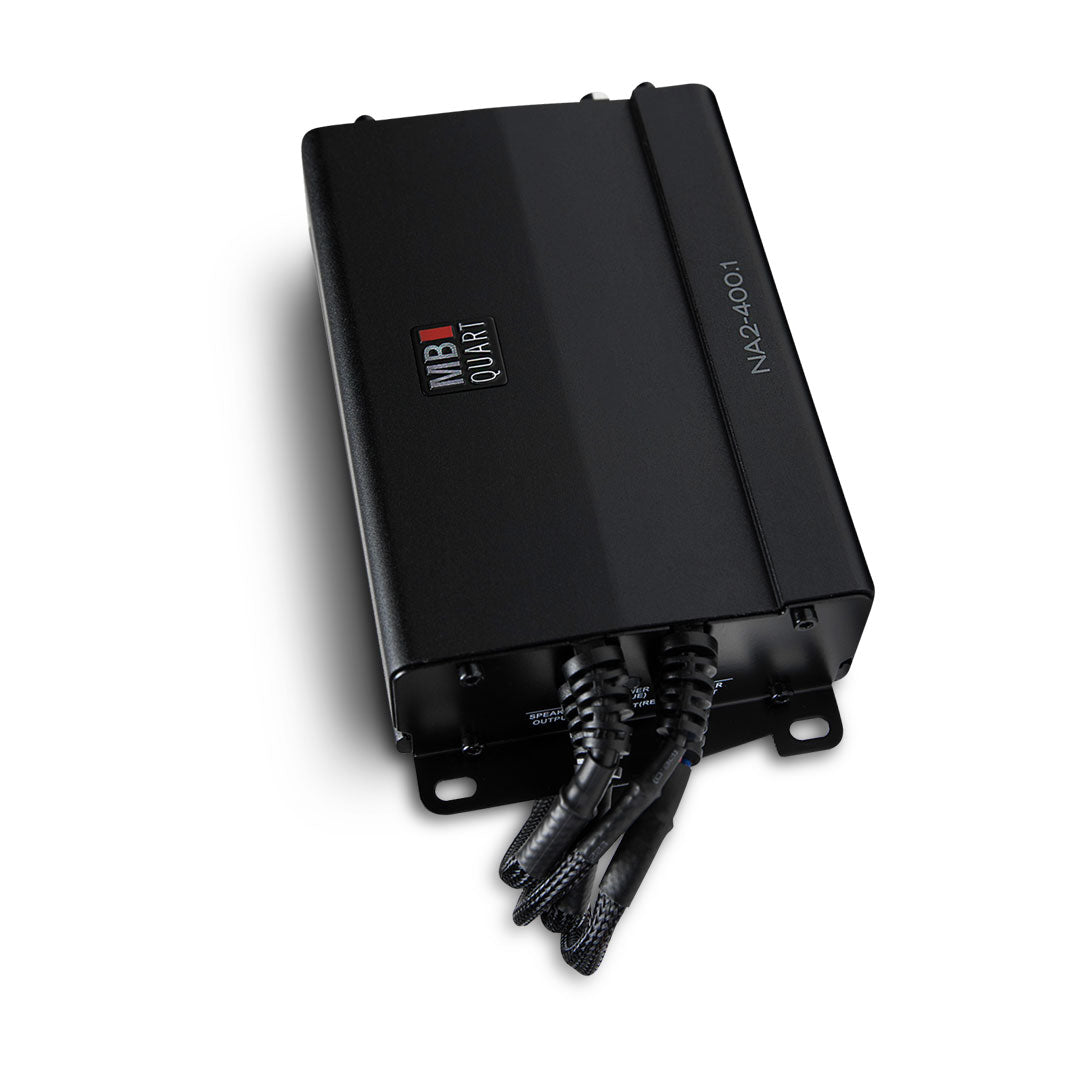

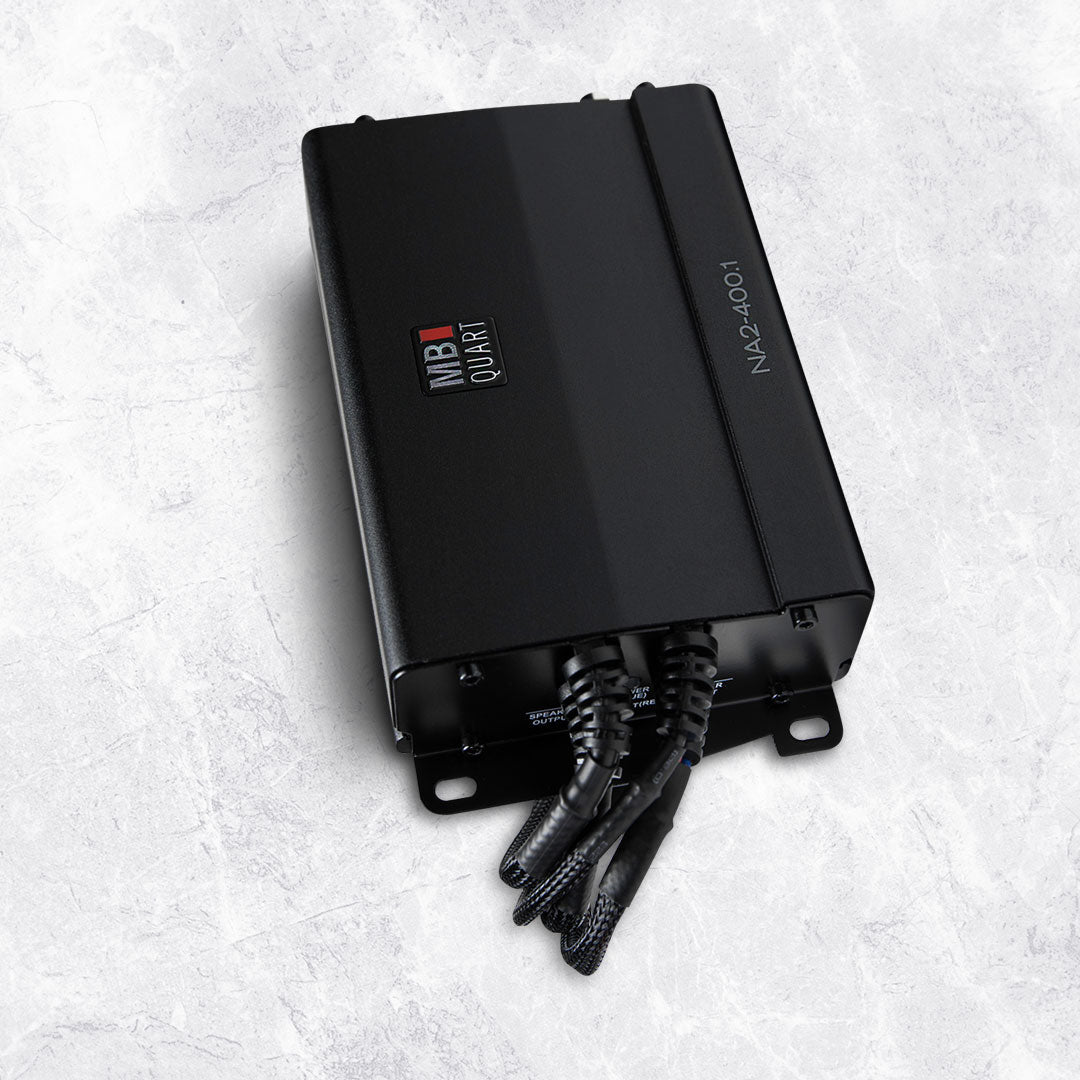

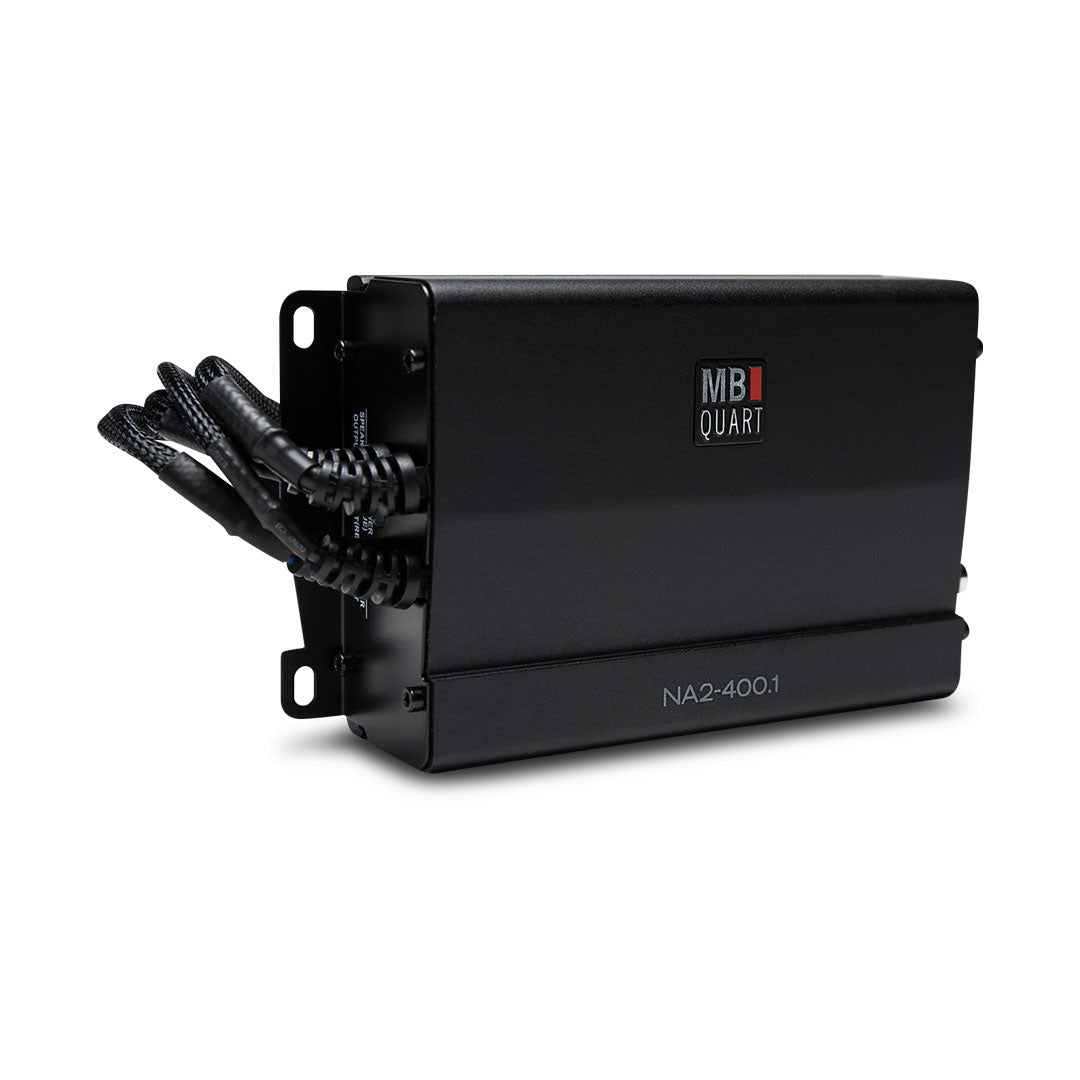

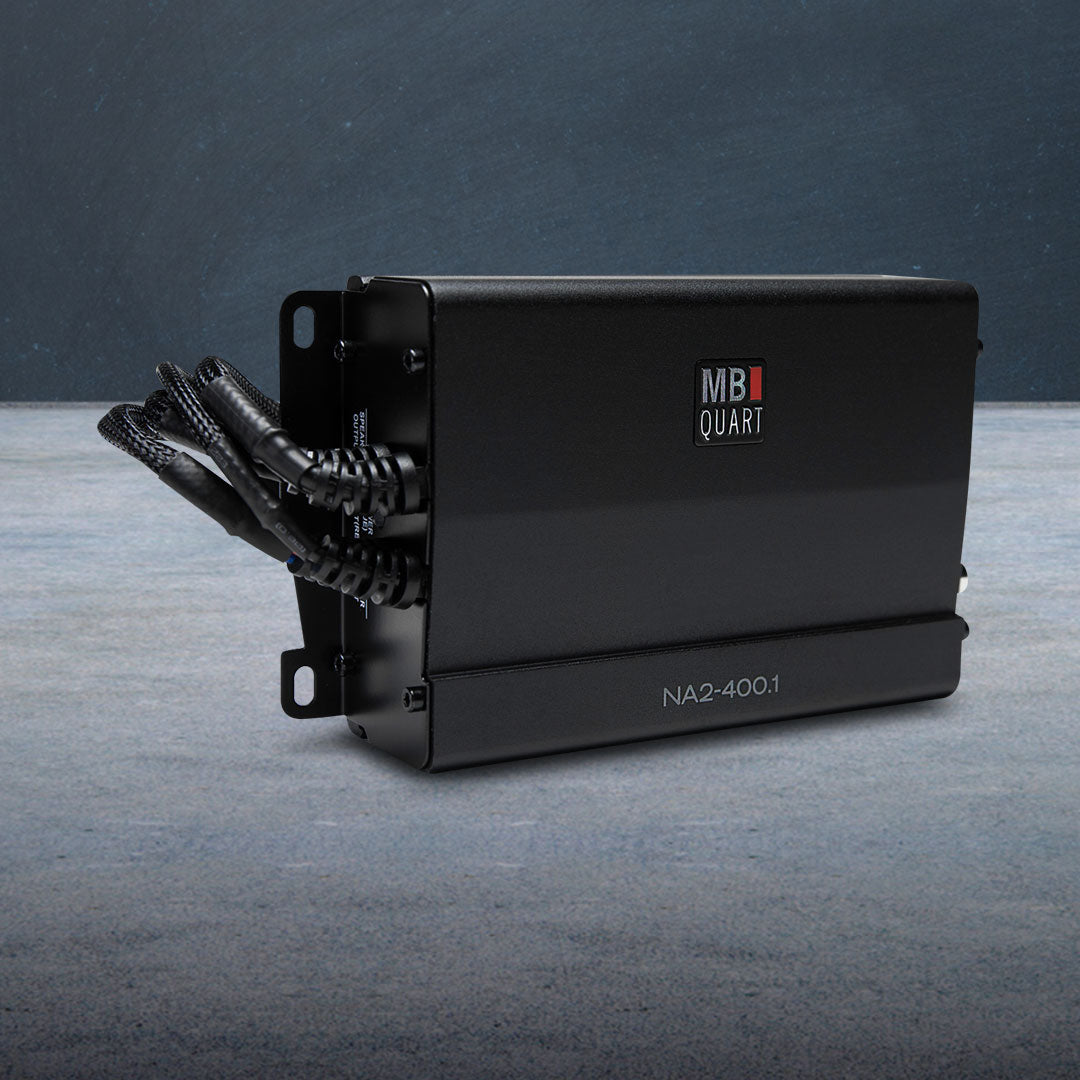

Single Channel. Massive Impact – MB Quart 1 x 400W Compact Powersports Amplifier for Deep, Focused Bass!
1 x 400 Watt Compact Powersports Amplifier.
Specifications:
- Colour: Black
- Warranty: 2 Years
- Amp Class: Full Range Class D
- Amp Total Channels: Mono
- Amp Max Power (watts): 400
- Amp Power @ 2 Ohm (ch x watts): 1 x 400
- Amp Power @ 4 Ohm (ch x watts): 1 x 200
- Amp Crossover: Electronic
- Amp Variable High Pass Crossover 12dB per Octave: 300Hz
- Amp Variable Low Pass Crossover 12dB per Octave: –
- Amp Subsonic Filter: 60Hz

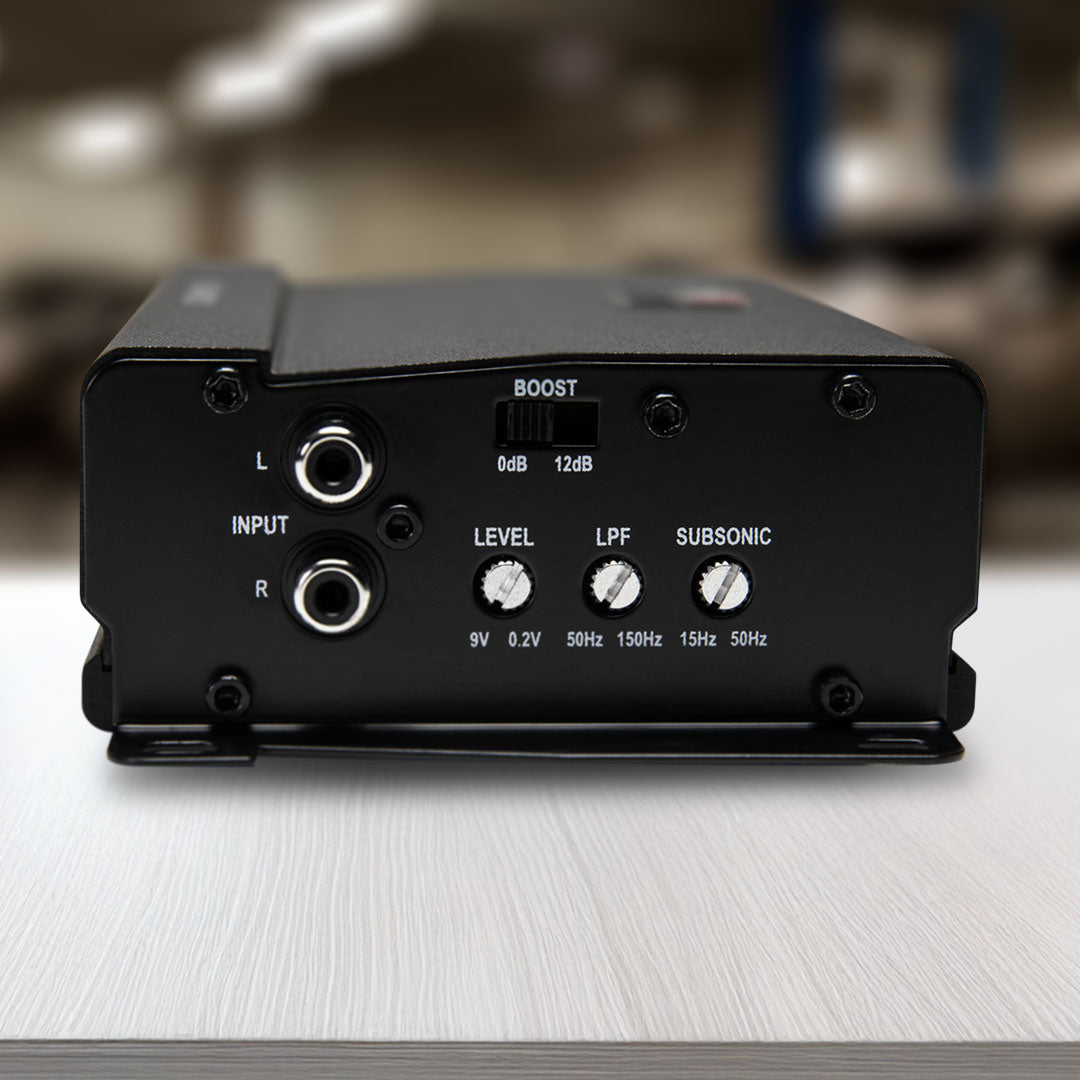

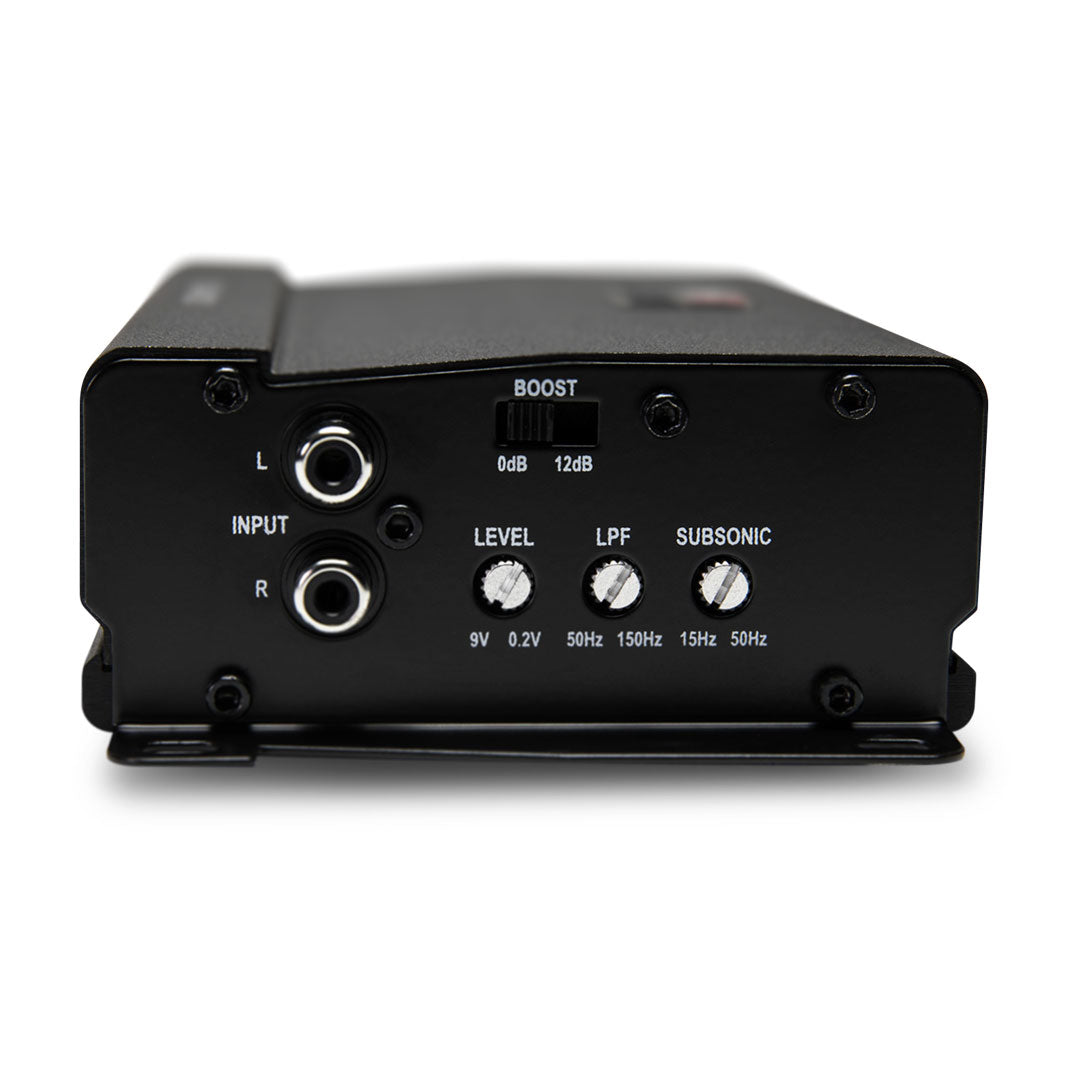

- Amp Bass Boost: 0-12dB @ 45Hz
- Amp Variable Voltage: 0.2-9V
- RCA Inputs: 2 Pair RCA Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
- Operation Mode: Mono operation: Designed to power 1 subwoofer or subwoofer system.
- Crossover Type: LPF: Complete control of amplifier signal, essential when using two or more amplifiers.
- Class / Topology: Full Range Class D: Highly efficient circuit topology which helps the amplifier develop a lot of power in a very small heatsink.
- Output Device Technology: PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
- Heat Sink: Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration.
- Power Supply: Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

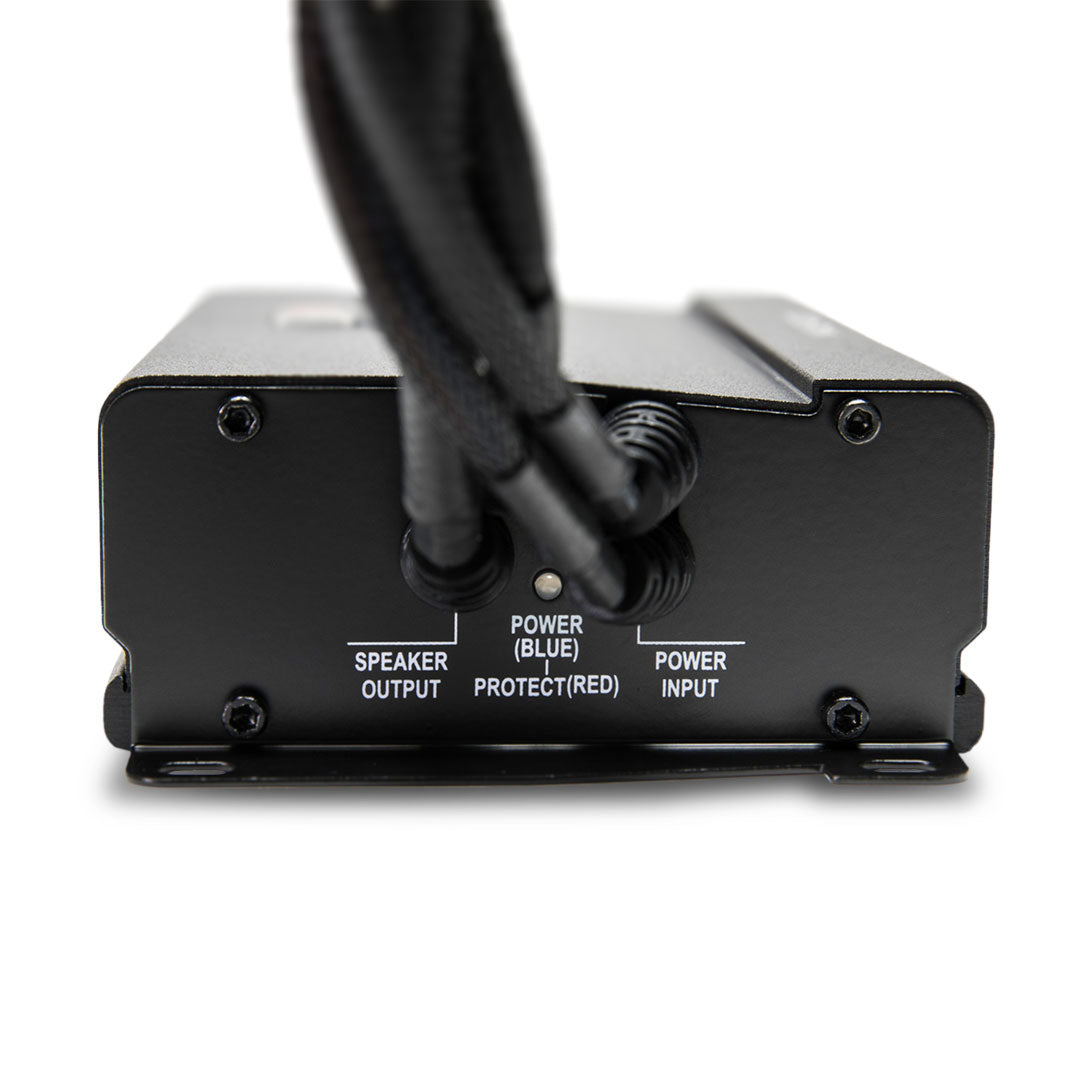

- Output Connections: Quick Disconnect Wires, RCA Connections: Quickly remove amplifier when you are putting machine up for the winter of as a security precaution.
- Connection Type: Nickel-plated connections: Nickel plated corrosion resistant connections.
- LED System Protection Circuitry Diagnostics: Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.
