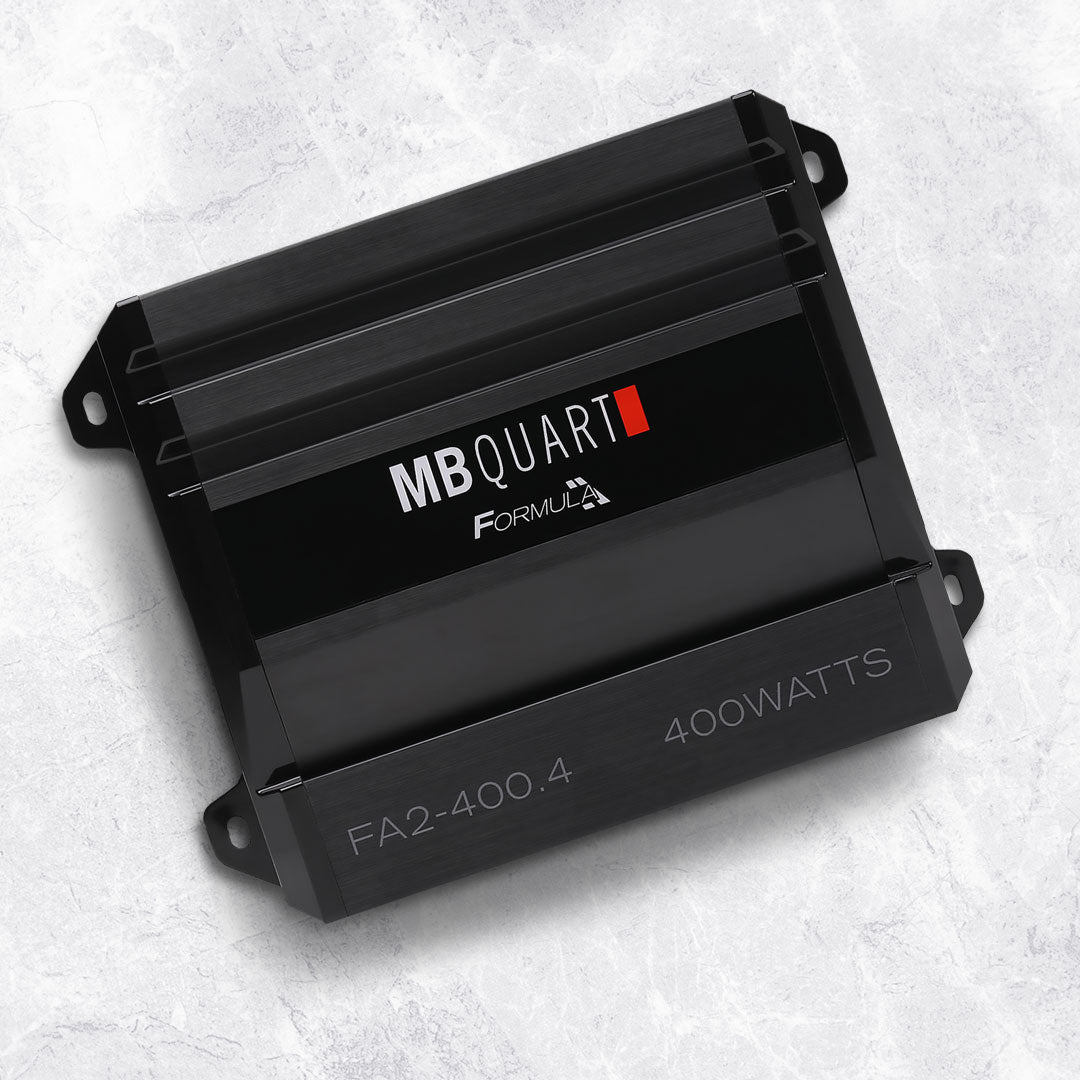

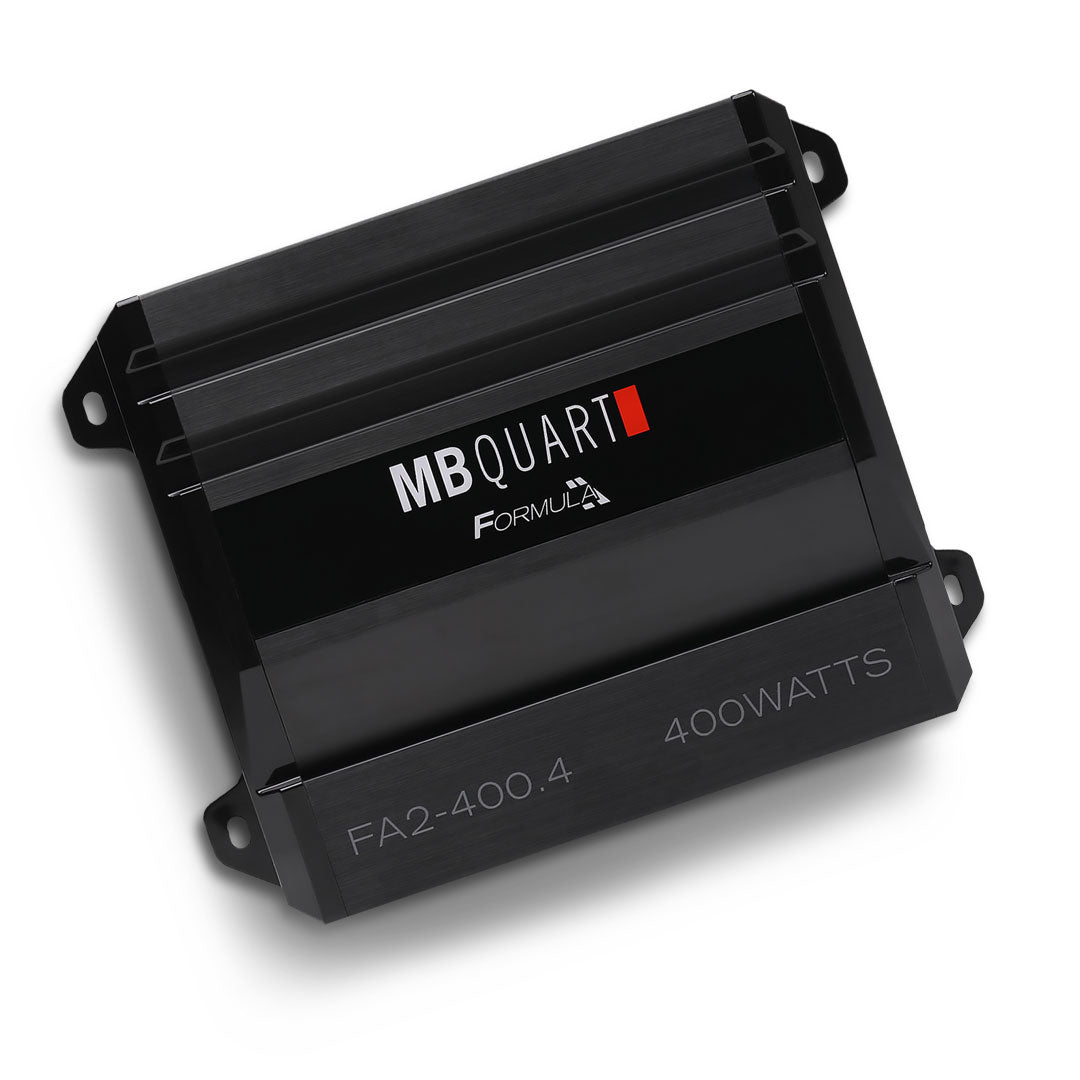

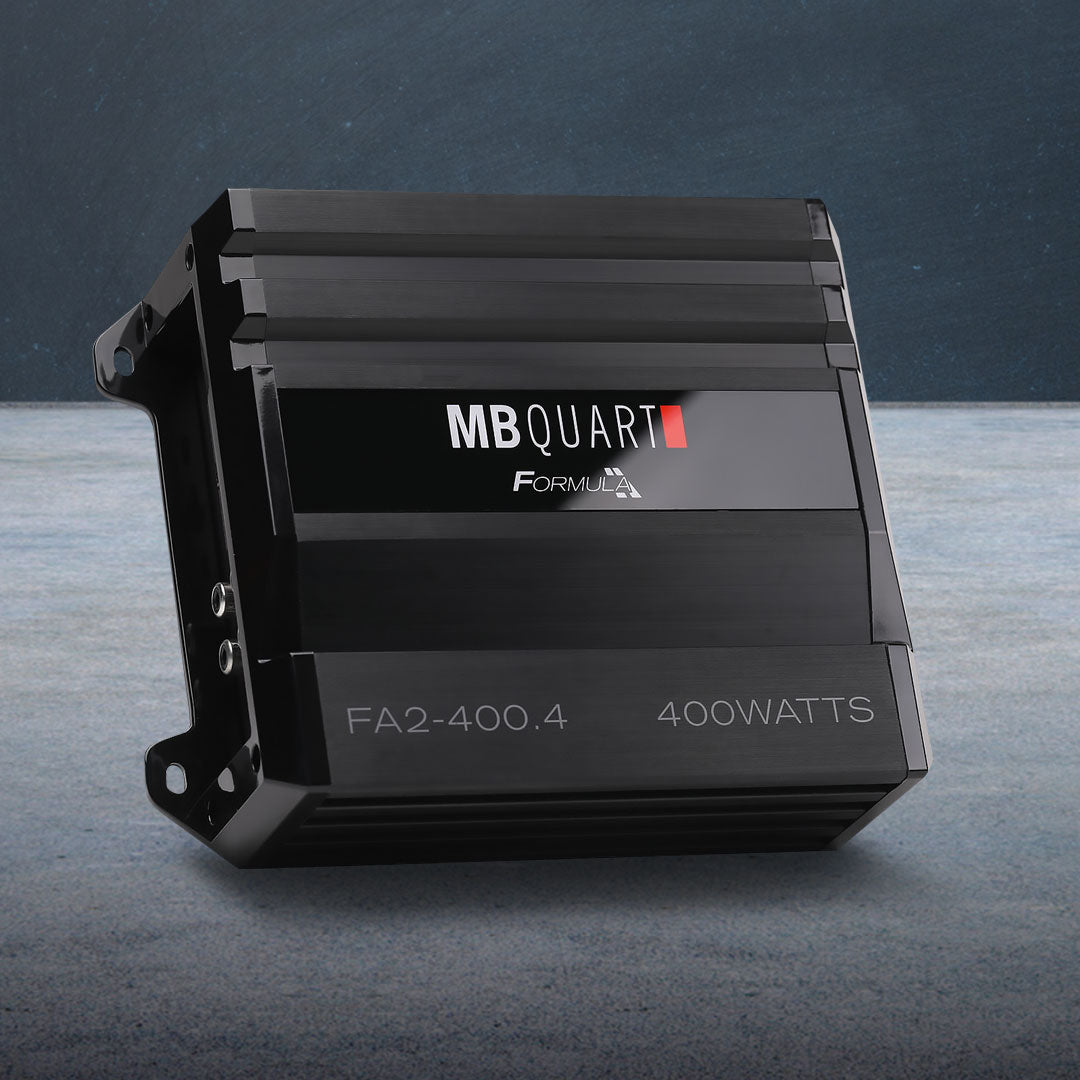

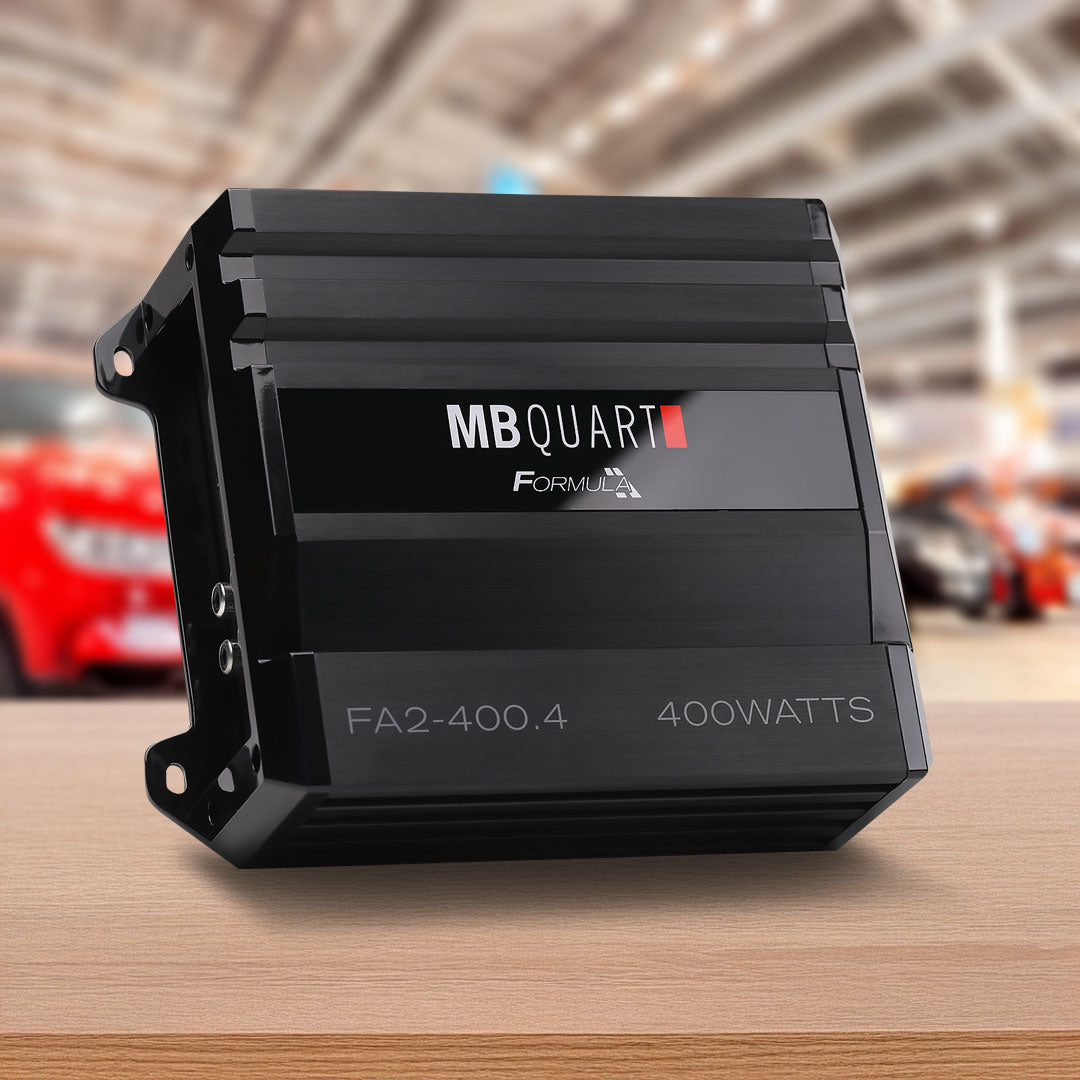

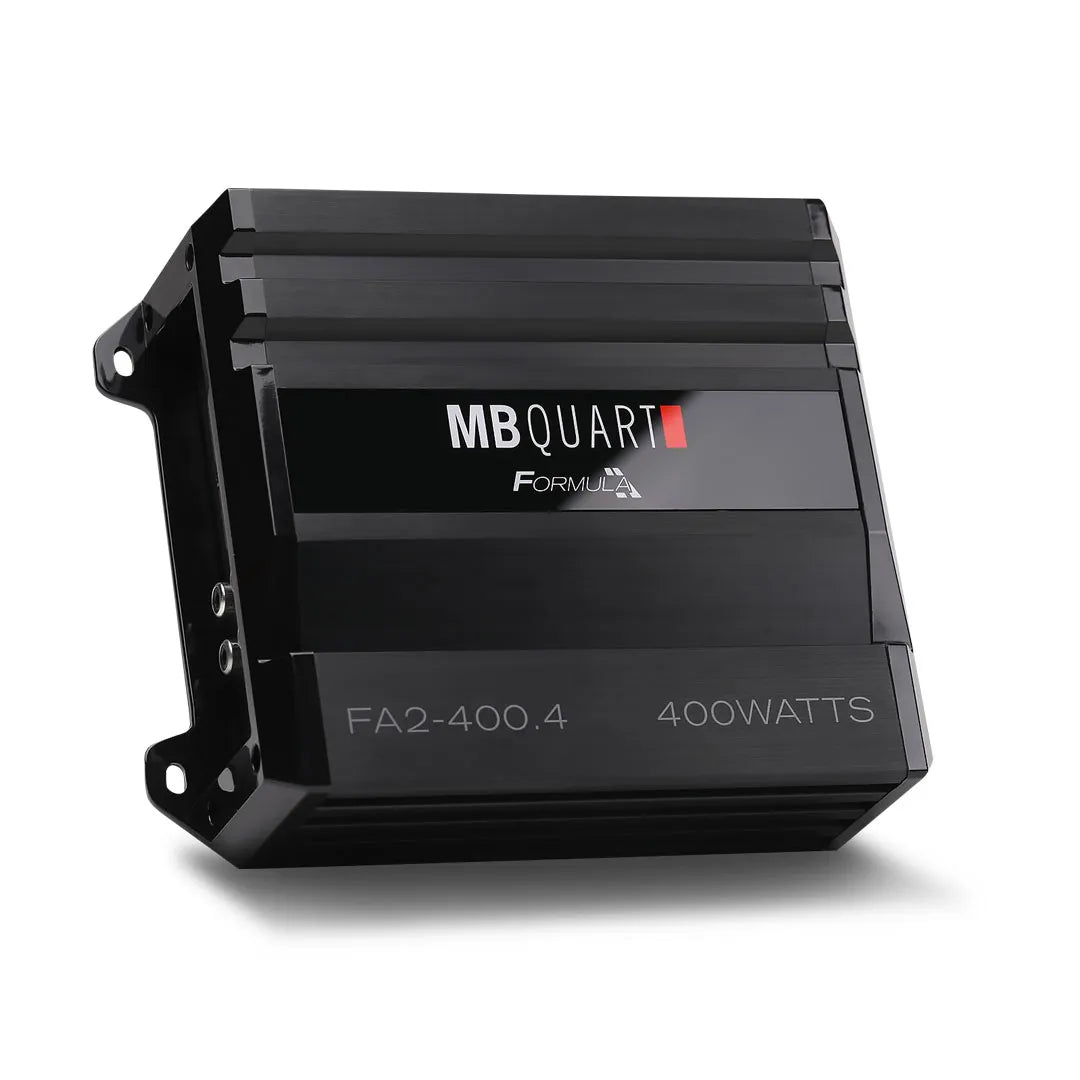

MB Quart MBQ-FA2-400.4 | 400 watt 4 Channel Amplifier | Formula Series

Precision Audio Performance: 400W 4-Channel Formula Series Amplifier

4 x 50 Watts @ 4 ohms, 4 x 100 Watts @ 2 Ohms

2 x 200 Watts Bridged @ 4 Ohms

Specifications:

• Colour: Black
• Warranty: 2 Years
• Compatible Vehicles: Universal
• Amp Class: Class D
• Amp Total Channels: 4
• Amp Max Power (watts): 400
• Amp Power @ 1 Ohm (ch x watts): –
• Amp Power @ 2 Ohm (ch x watts): 4 x 100
• Amp Power @ 4 Ohm (ch x watts): 4 x 50
• Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 200
• Amp Crossover: Variable Electronic 12dB Per Octave
• Amp Variable High Pass Crossover 12dB per Octave: 40Hz-400Hz
• Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-400Hz
• Amp Fusing: External 40A
• Low Noise Preamplifier Circuit: Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.

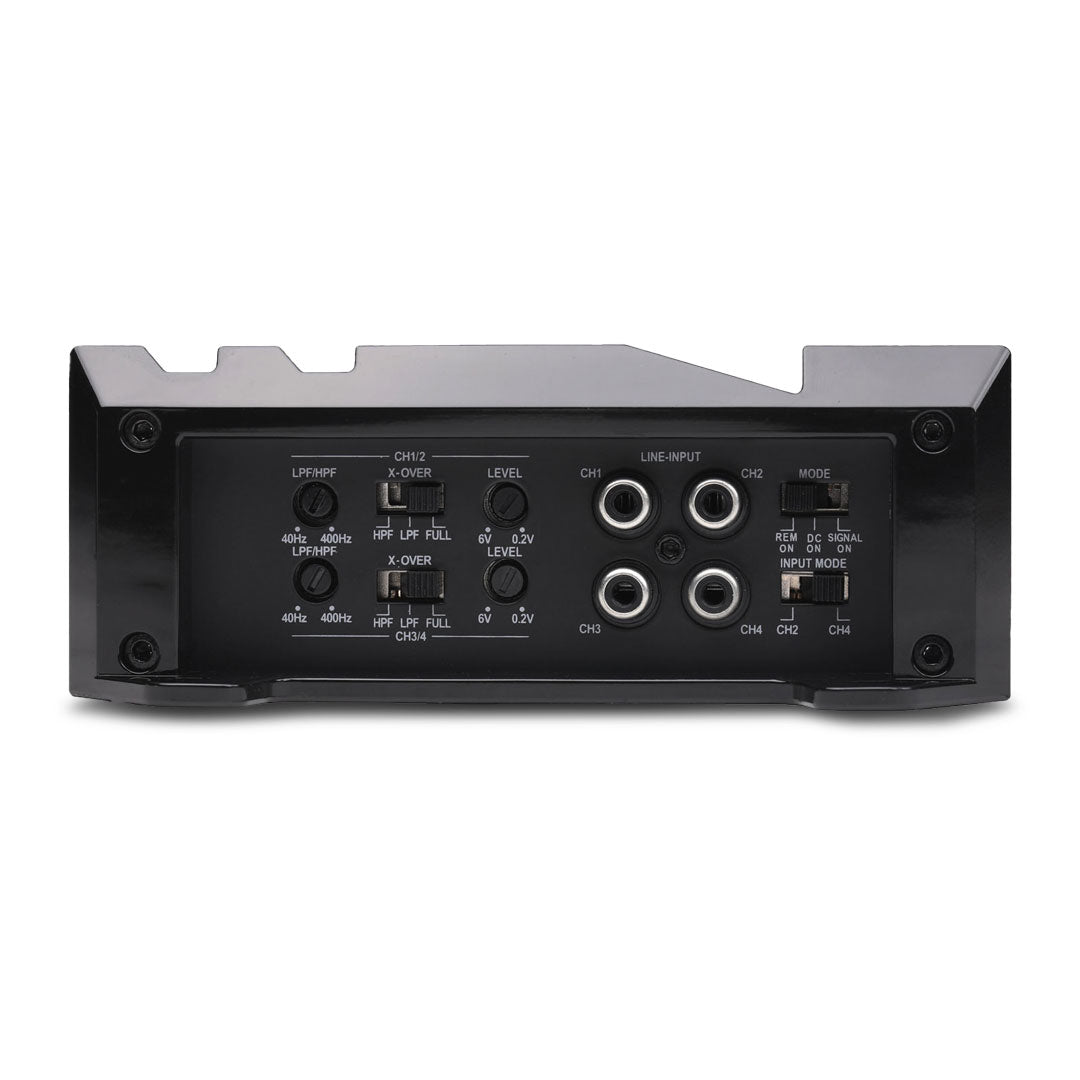

• RCA Inputs: Nickel Plated: High temperature impact resistant nickel-plated RCA inputs that allow for secure connections and is erosion resistant.
• High Level Inputs: DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.
• Operation Mode: 4 channel operation mode allows either stereo or mono bridged operation.
• Crossover Type: Variable electronic crossovers allow for complete control of the sound.
• Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.
• Output Device Technology: FLUID-FETS: MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers.
• Heat Sink: Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled.

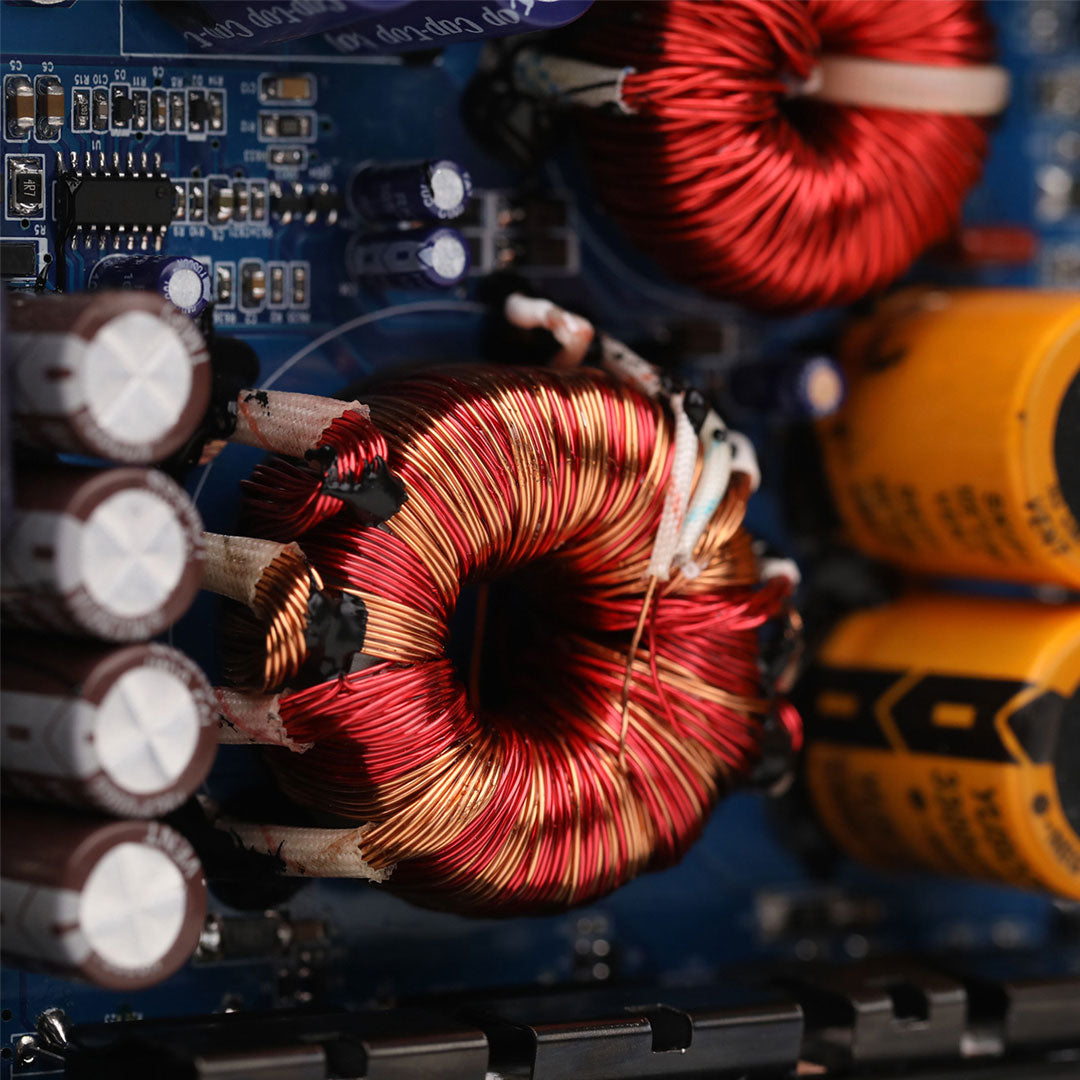

• Power Supply: Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to product efficient power without taxing the vehicle electrical system.

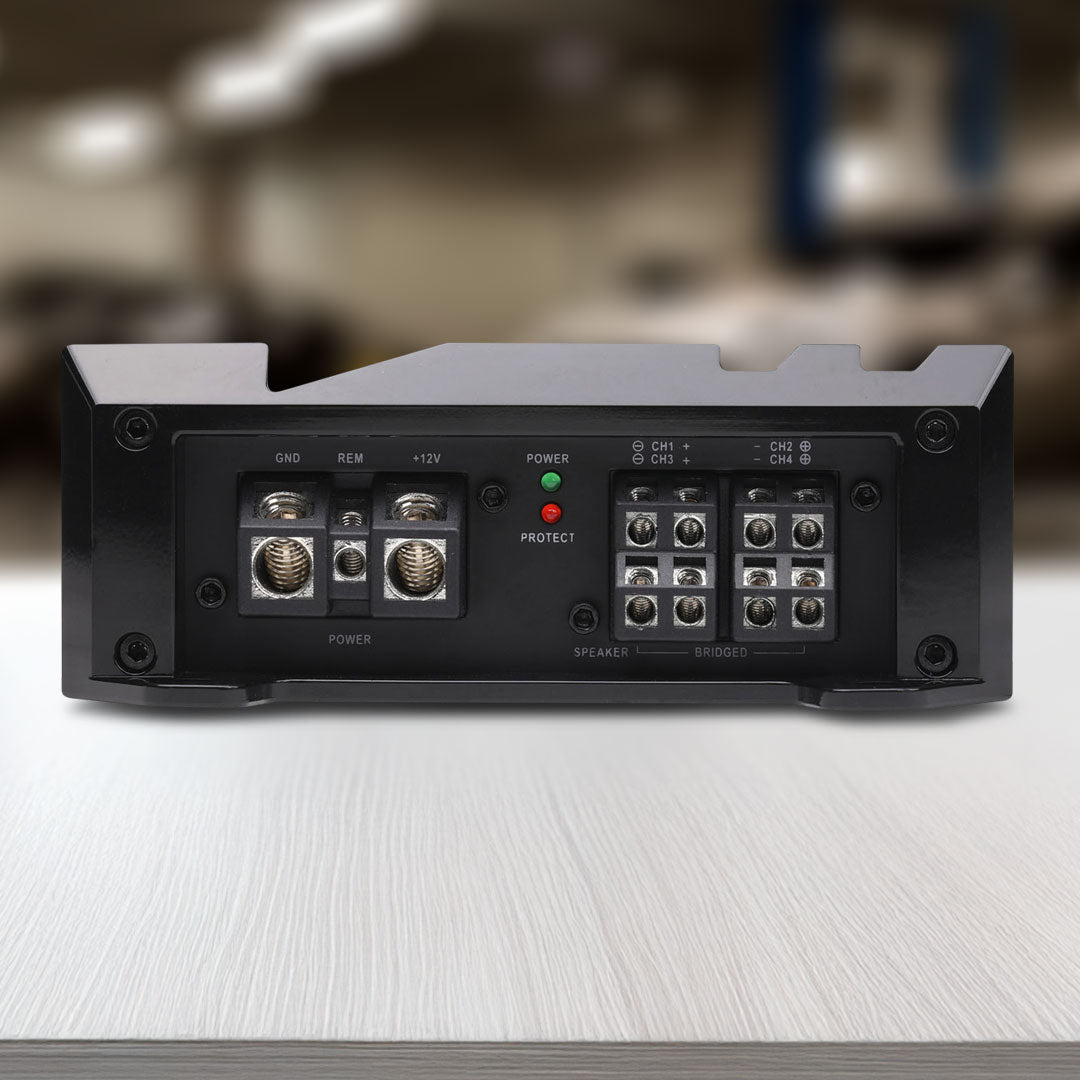

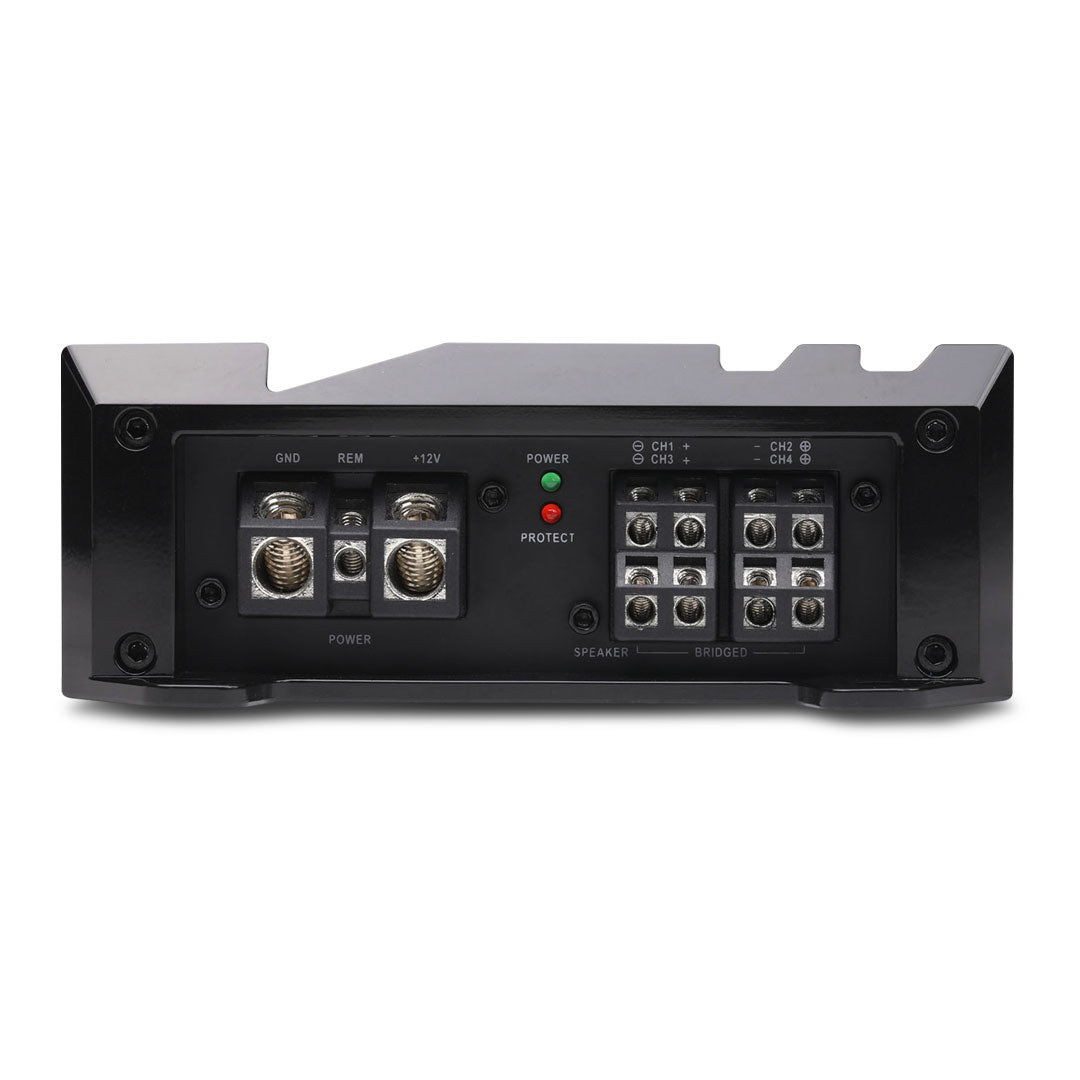

• Output Connections: Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier.
• Connection Type: Secure connection for all power, ground and speaker connections.
• LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
• Auto Turn-On: DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.
