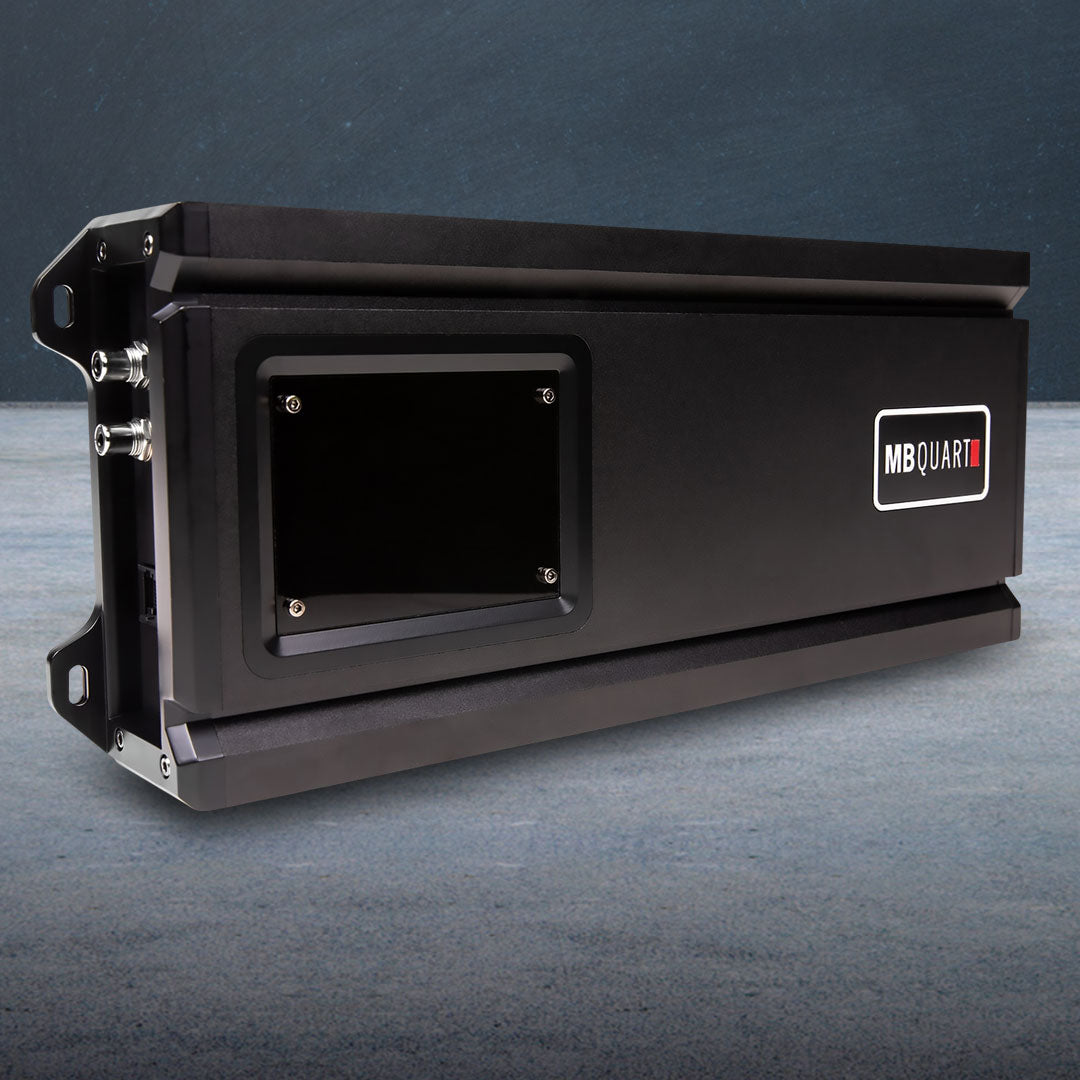

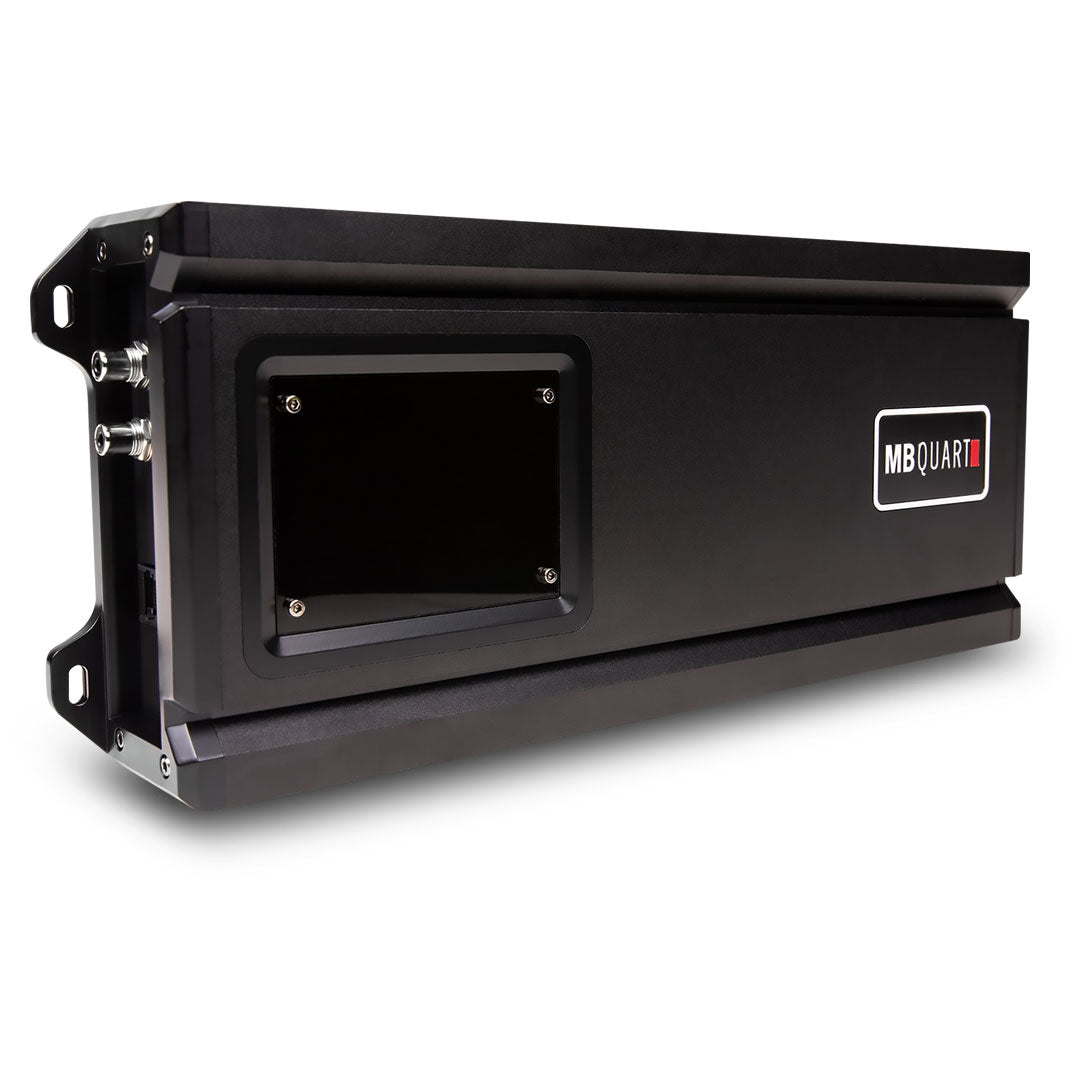

MB Quart MBQ-RA1-1500.1 | Amplifier | 1500 watt x 1 Reference

Powerful Performance: MB Quart RA1-1500.1 1500W Monoblock Amplifier

1500 x 1 RMS POWER @ 1OHM

MB Quart Reference series mono subwoofer car audio amplifier featuring innovative sound quality and power technology. The RA1-1500.1 is a 1500 watt 1 ohm stable car audio amplifier. Reference amplifiers feature DC Sensing to allow any amplifier to be easy integrated into an OEM system by simply adapting a RCA cable from the source unit. Bass remote is included.

Specifications:

• Colour: Black
• Warranty: 2 Years
• Compatible Vehicles: Universal
• Amp Class: Class SQ (Class D)
• Amp Total Channels: 1
• Amp Max Power (watts): 1500
• Amp Power @ 1 Ohm (ch x watts): 1 x 1500
• Amp Power @ 2 Ohm (ch x watts): 1 x 1000
• Amp Power @ 4 Ohm (ch x watts): 1 x 750
• Amp Mono Bridged @ 4 Ohms (ch x watts): N/A
• Amp Crossover: Electronic
• Amp Variable High Pass Crossover 12dB per Octave: N/A
• Amp Variable Low Pass Crossover 12dB per Octave: Variable 50Hz-250Hz
• Amp Subsonic Filter: 0-12dB
• Amp Bass Boost: OFF/25Hz
• Amp Variable Voltage: 0.02-9V
• Amp Signal to Noise: > 99dB
• Amp Frequency Response: 25Hz-250Hz
• Amp Total Harmonic Distortion (THD): < 0.07%
• Amp Speaker Level Audio Inputs: RCA

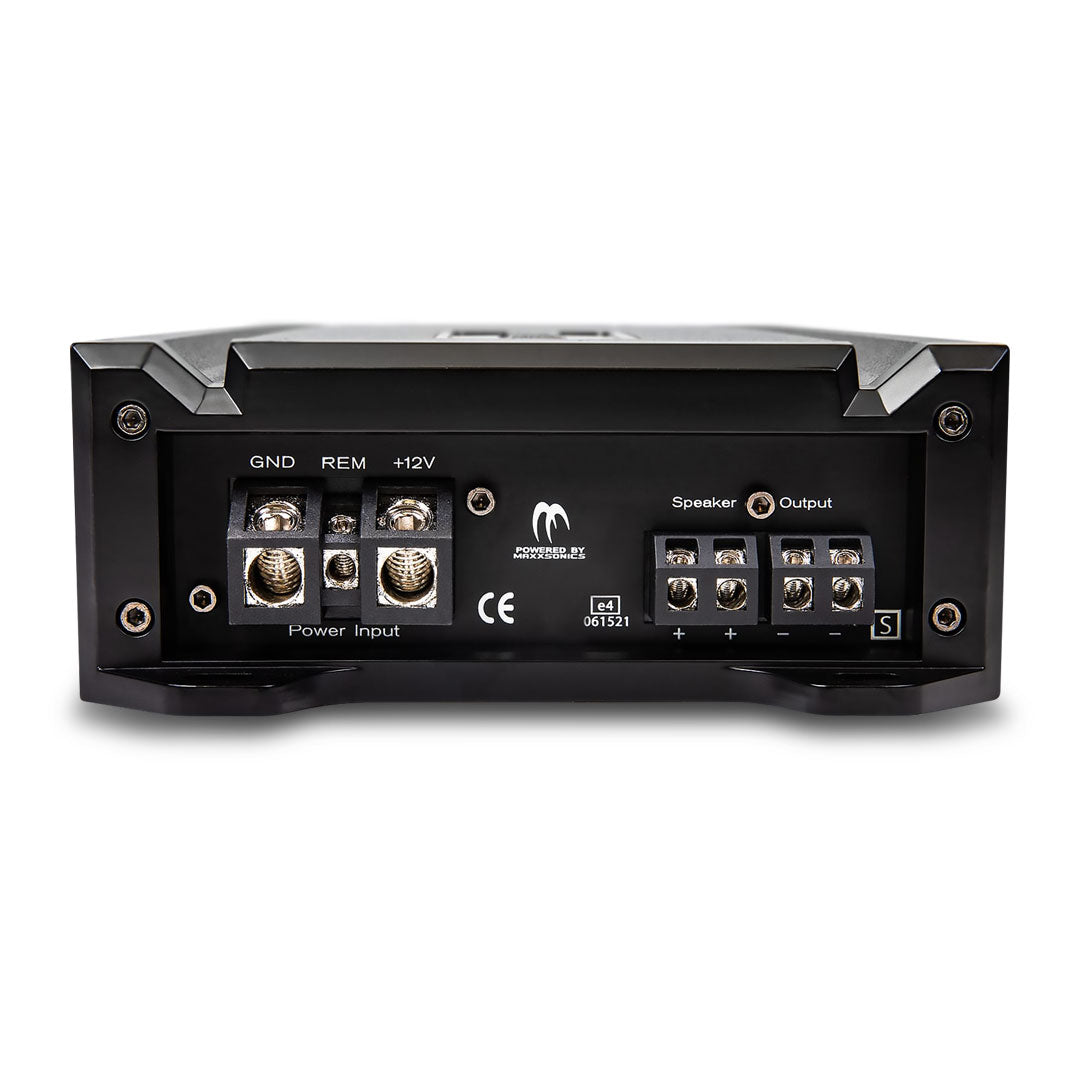

• Amp Power Terminal 12v/GND: 4 AWG
• Amp Speaker Terminal Wire Gauge: 12 AWG
• Amp Fusing: 150A External
• Low Noise Preamplifier Circuit: Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.

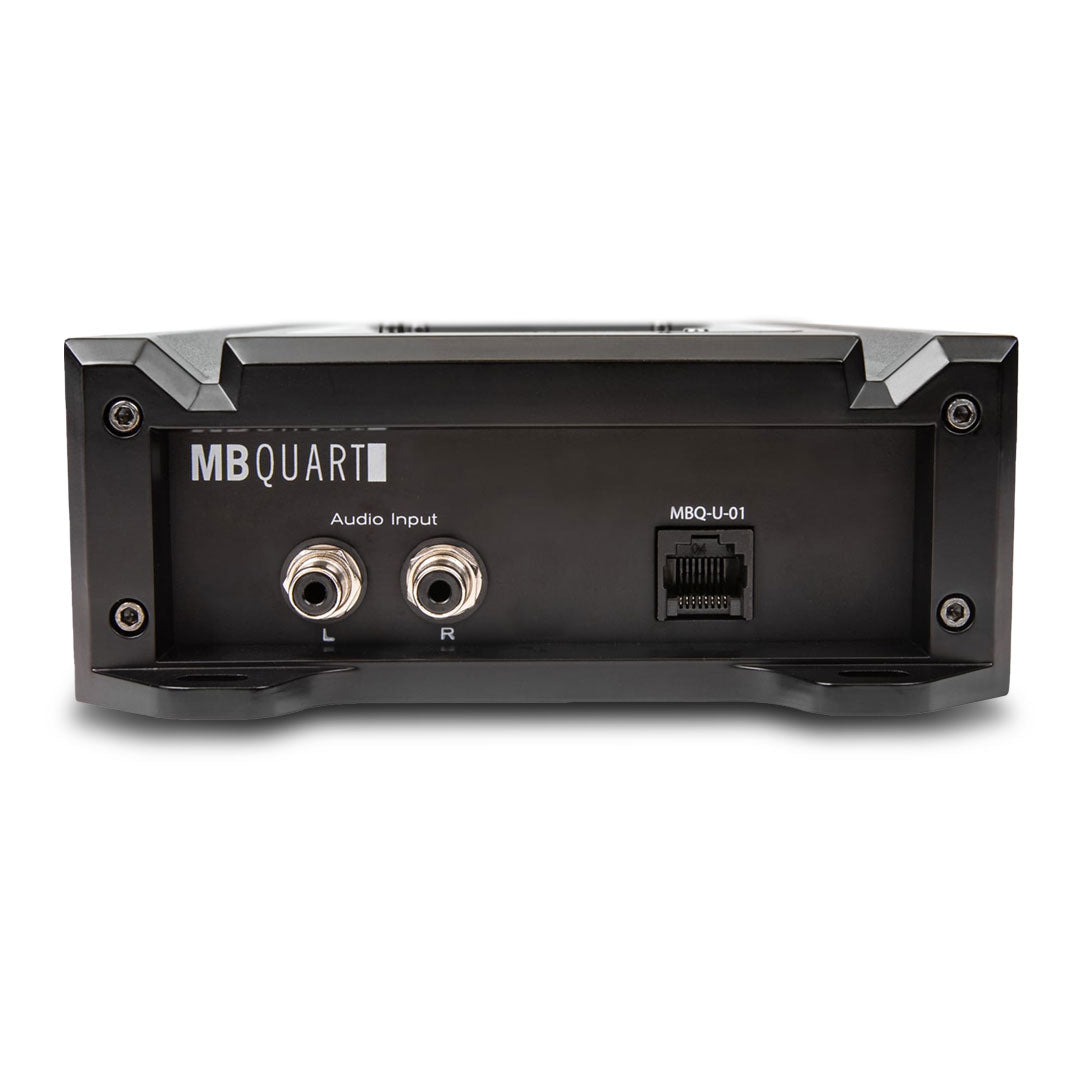

• RCA Inputs: Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
• High Level Inputs: See Auto-Sense Feature.
• Operation Mode: Mono only

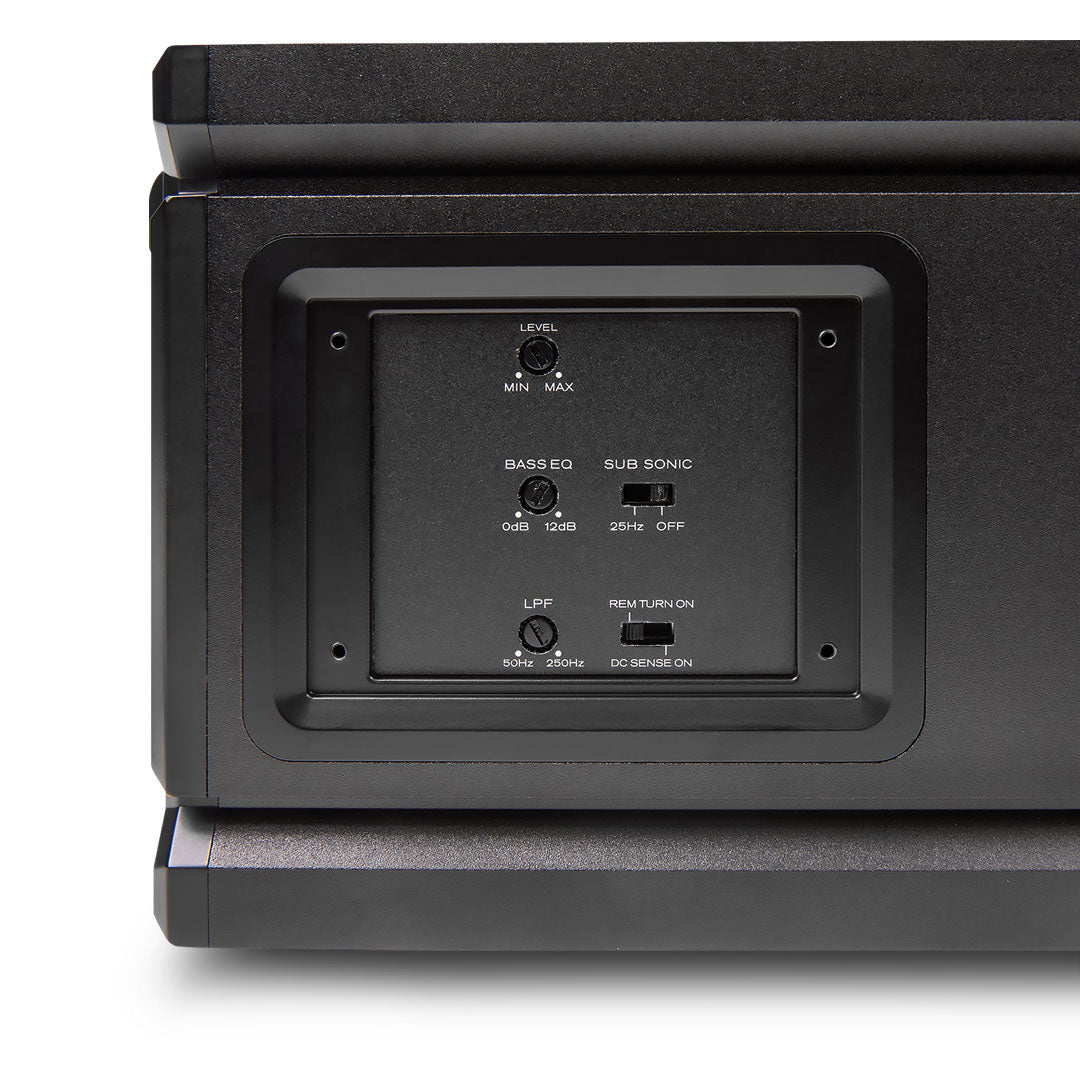

• Crossover Type: Variable electronic crossovers allow for complete control of the sound.
• Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.
• Class / Topology: Class Q1 Mono (Class D): MB Quart’s Class Q1 offers the efficiency of today’s D-Class with increased engineering to focus on sound quality from the power supply through the output devices, the FLUID-FETS.
• Output Device Technology: FLUID-FETS: MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers.
• Heat Sink: Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration.
• Power Supply: Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to produce efficient power without taxing the vehicle electrical system.

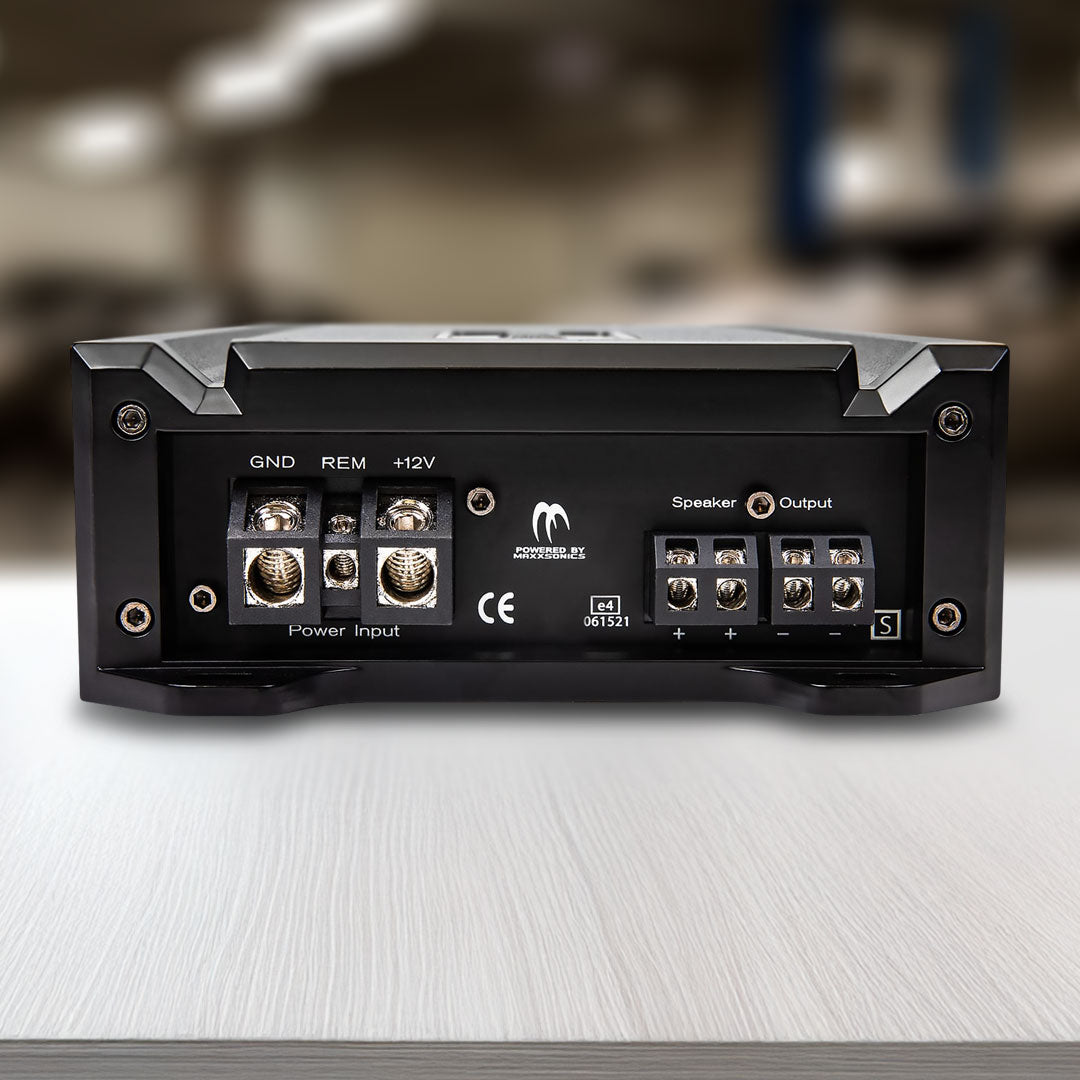

• Output Connections: Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier.
• Connection Type: Secure connection for all power, ground and speaker connections.

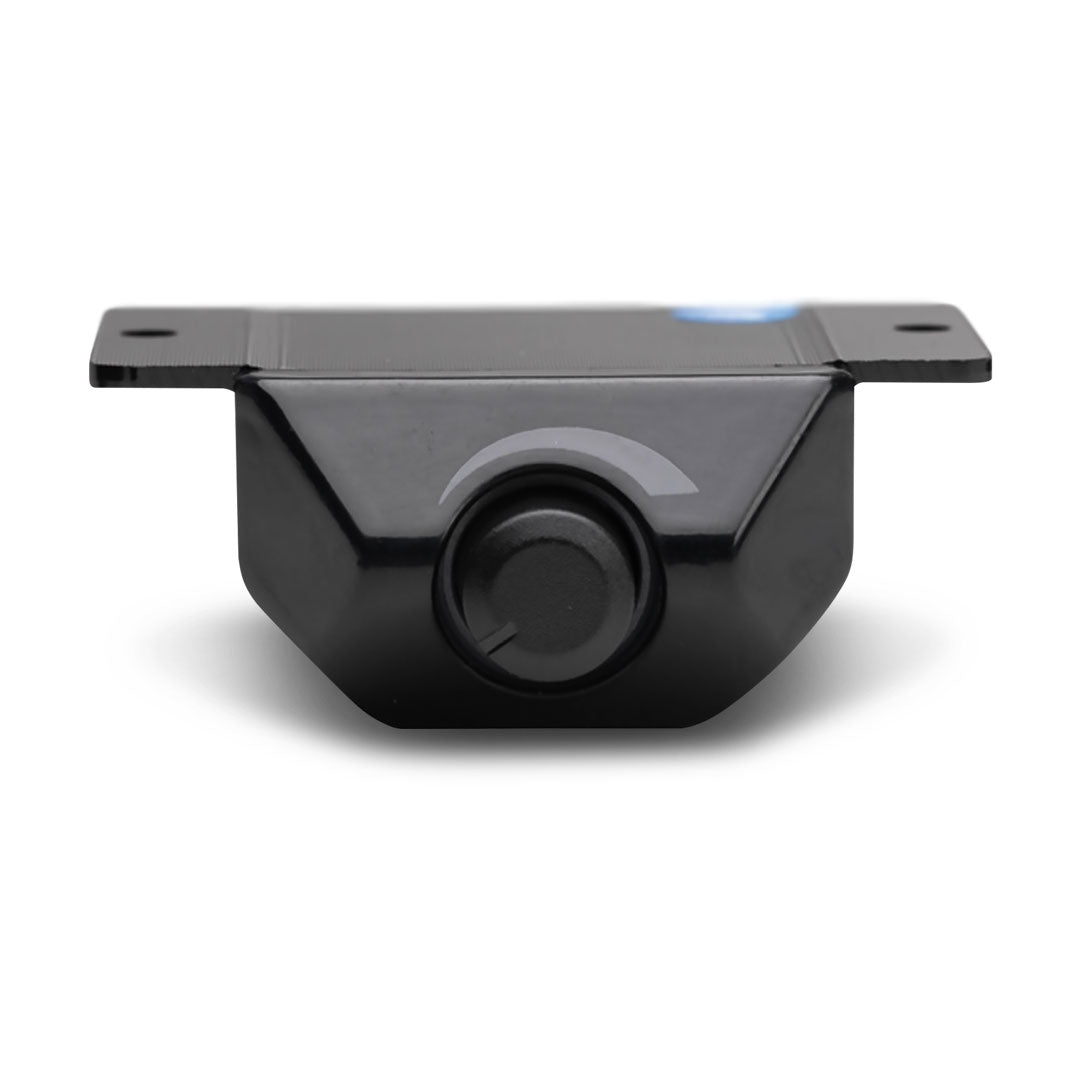

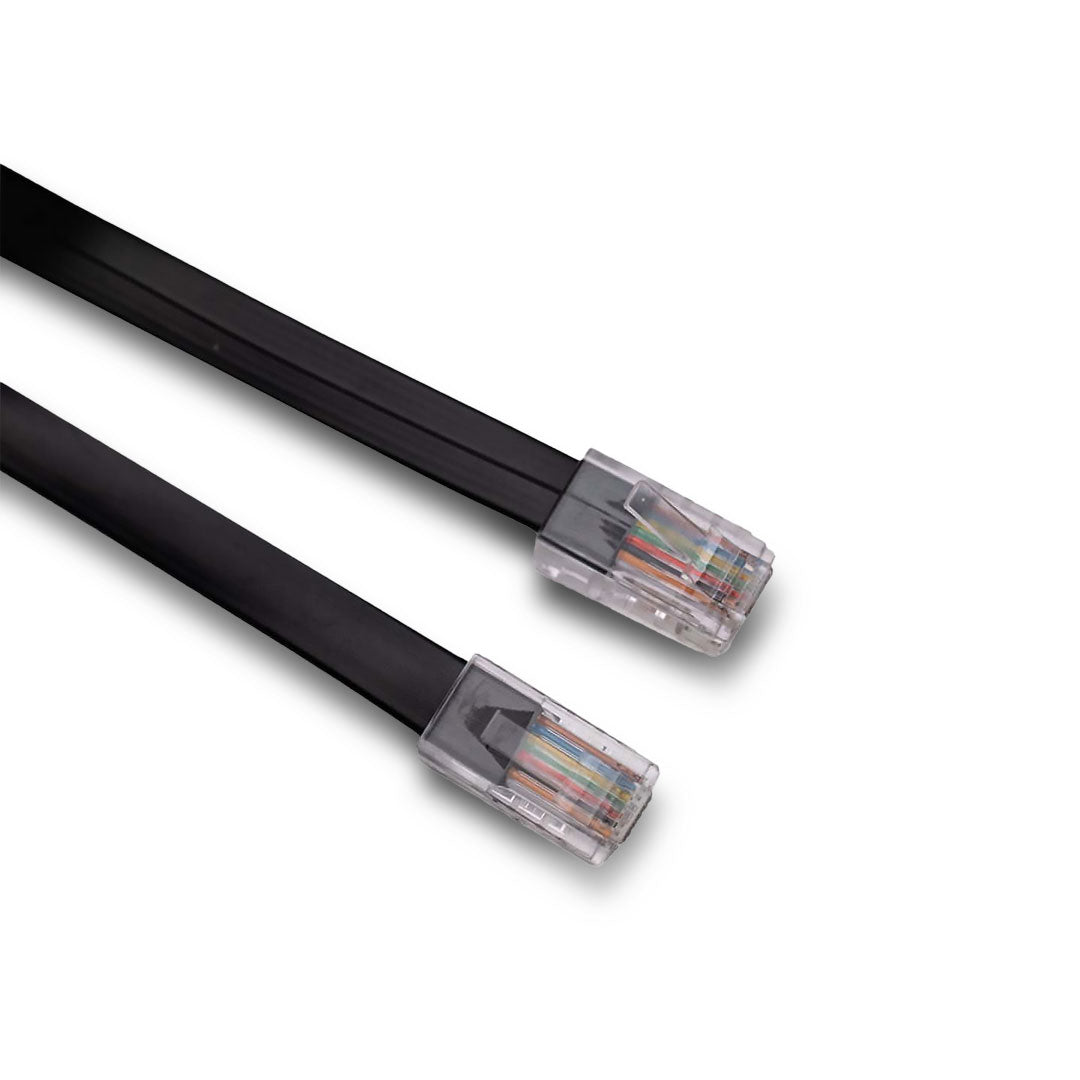

• Bass Remote Included: Included: Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
• Auto Turn-On: DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.
