MB Quart MBQ-RA1-1100.4 | Amplifier | 150 watt x 4 Reference

Elevate Your Sound System with MB Quart's 150W x 4 Reference Amplifier

150 x 4 RMS POWER @ 4OHMS

MB Quart Reference series 4-channel car audio amplifier featuring innovative sound quality and power technology. The RA1-1100.4 is a 1100 watt car audio amplifier. Reference amplifiers feature DC Sensing to allow any amplifier to be easy integrated into an OEM system by simply adapting a RCA cable from the source unit.

Specifications:

• Colour: Black
• Warranty: 2 Years
• Compatible Vehicles: Universal
• Amp Class: Class SQ (ClassD)
• Amp Total Channels: 4
• Amp Max Power (watts): 1100
• Amp Power @ 1 Ohm (ch x watts): N/A
• Amp Power @ 2 Ohm (ch x watts): 4 x 275
• Amp Power @ 4 Ohm (ch x watts): 4 x 150
• Amp Mono Bridged @ 4 Ohms (ch x watts): 2 x 550
• Amp Crossover: Electronic
• Amp Variable High Pass Crossover 12dB per Octave: CH1 & CH2: Switched Full/HPF/LPF 50Hz-250Hz, CH3 & CH4: Switched Full/HPF/LPF 50Hz-250Hz
• Amp Variable Low Pass Crossover 12dB per Octave: CH1 & CH2: Switched Full/HPF/LPF 50Hz-250Hz, CH3 & CH4: Switched Full/HPF/LPF 50Hz-250Hz
• Amp Subsonic Filter: 0-9dB
• Amp Bass Boost: N/A
• Amp Variable Voltage: 0.02-9V
• Amp Signal to Noise: > 101dB
• Amp Frequency Response: 10Hz-35Hz
• Amp Total Harmonic Distortion (THD): < 0.09%

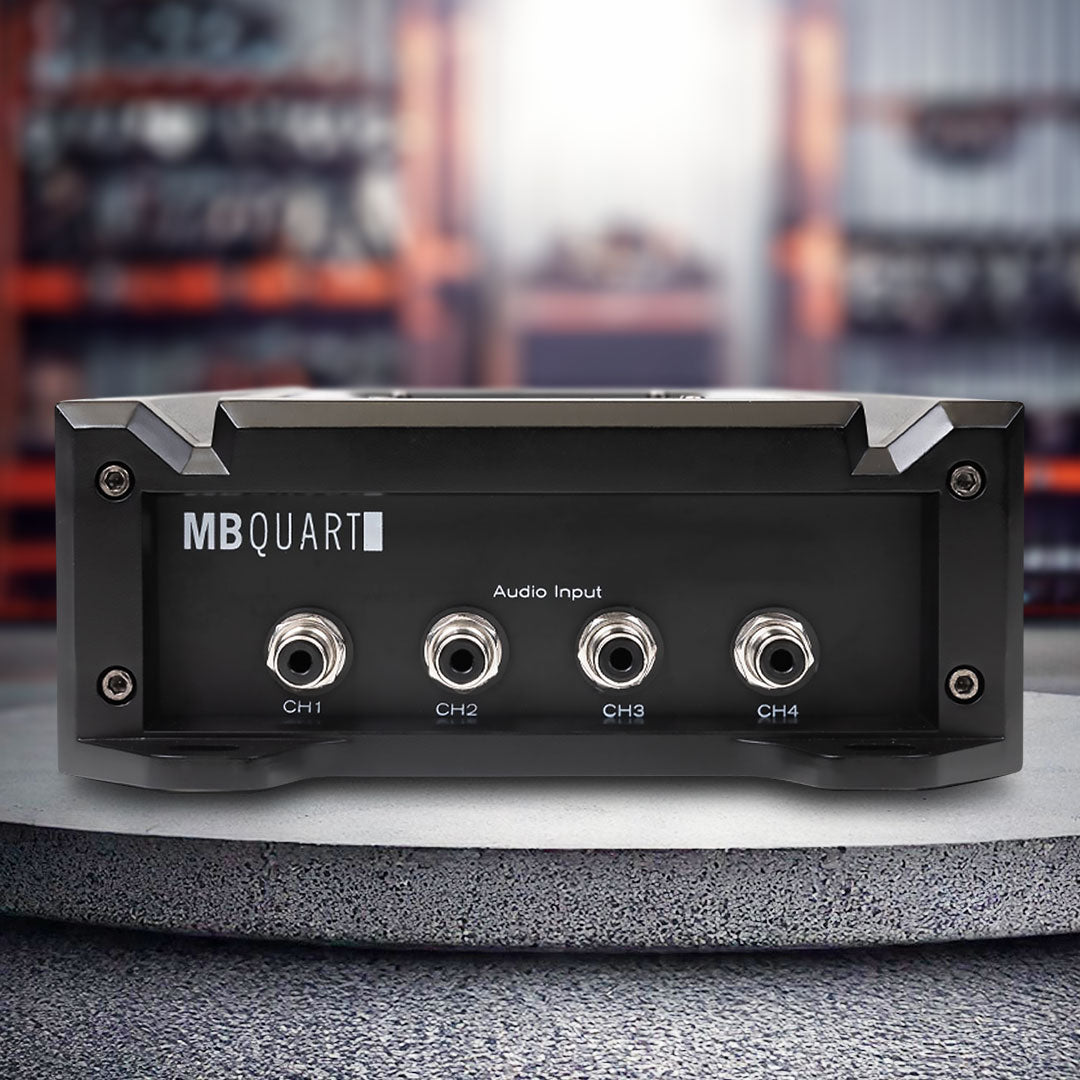

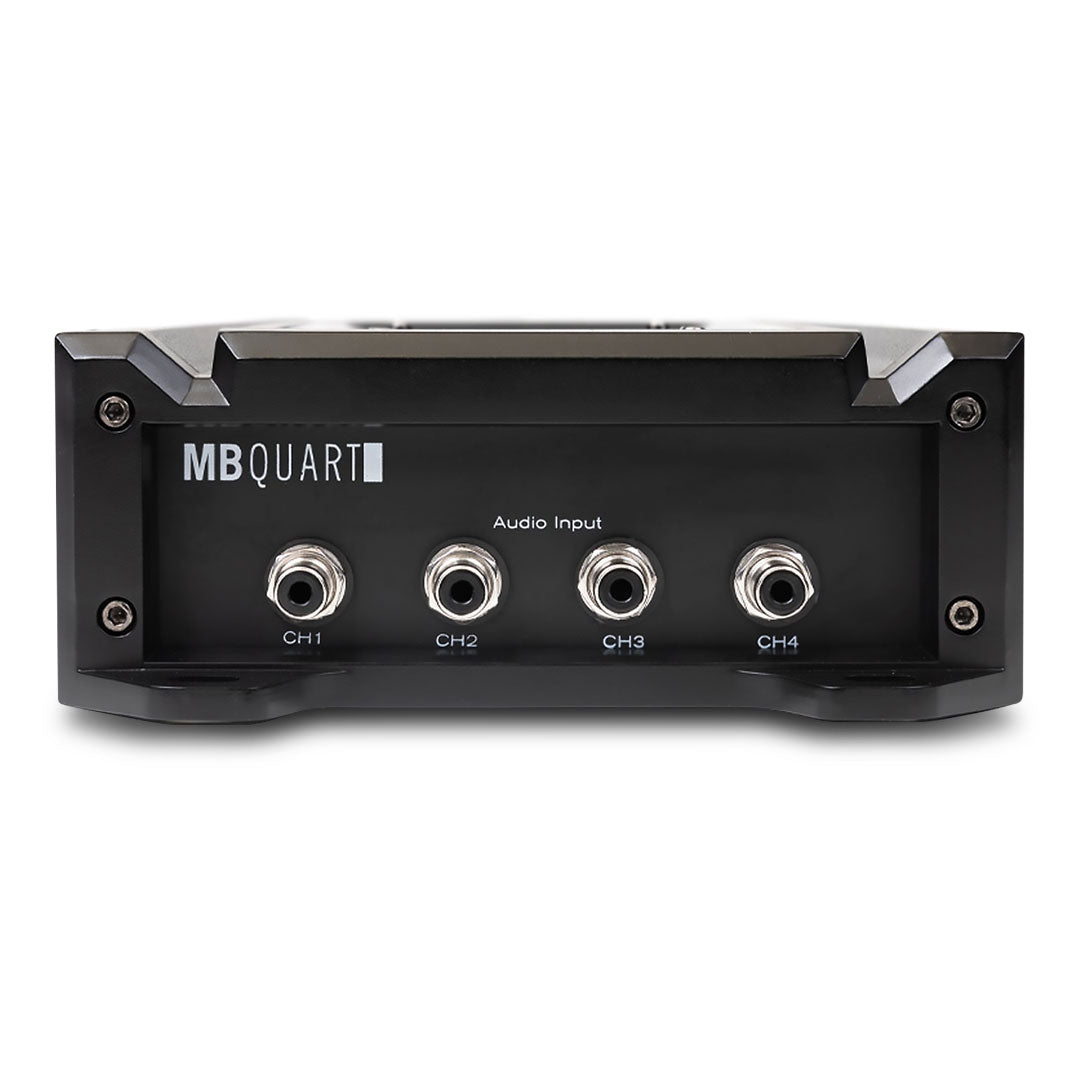

• Amp Speaker Level Audio Inputs: RCA
• Amp Power Terminal 12v/GND: 4 AWG
• Amp Speaker Terminal Wire Gauge: 12 AWG
• Amp Fusing: 90A External
• Low Noise Preamplifier Circuit: Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
• RCA Inputs: Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
• High Level Inputs: See Auto-Sense Feature.
• Operation Mode: 2 / 4 Channel

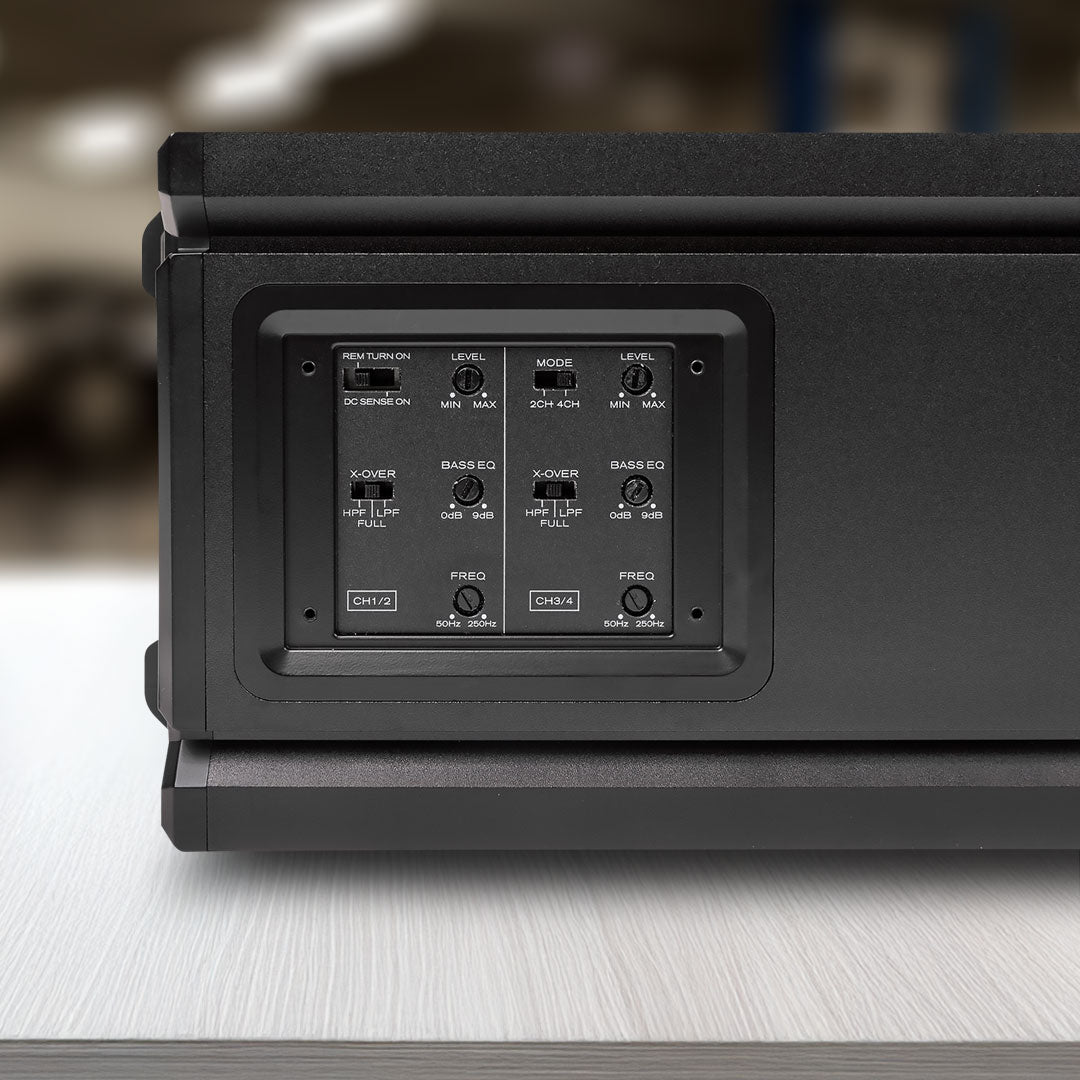

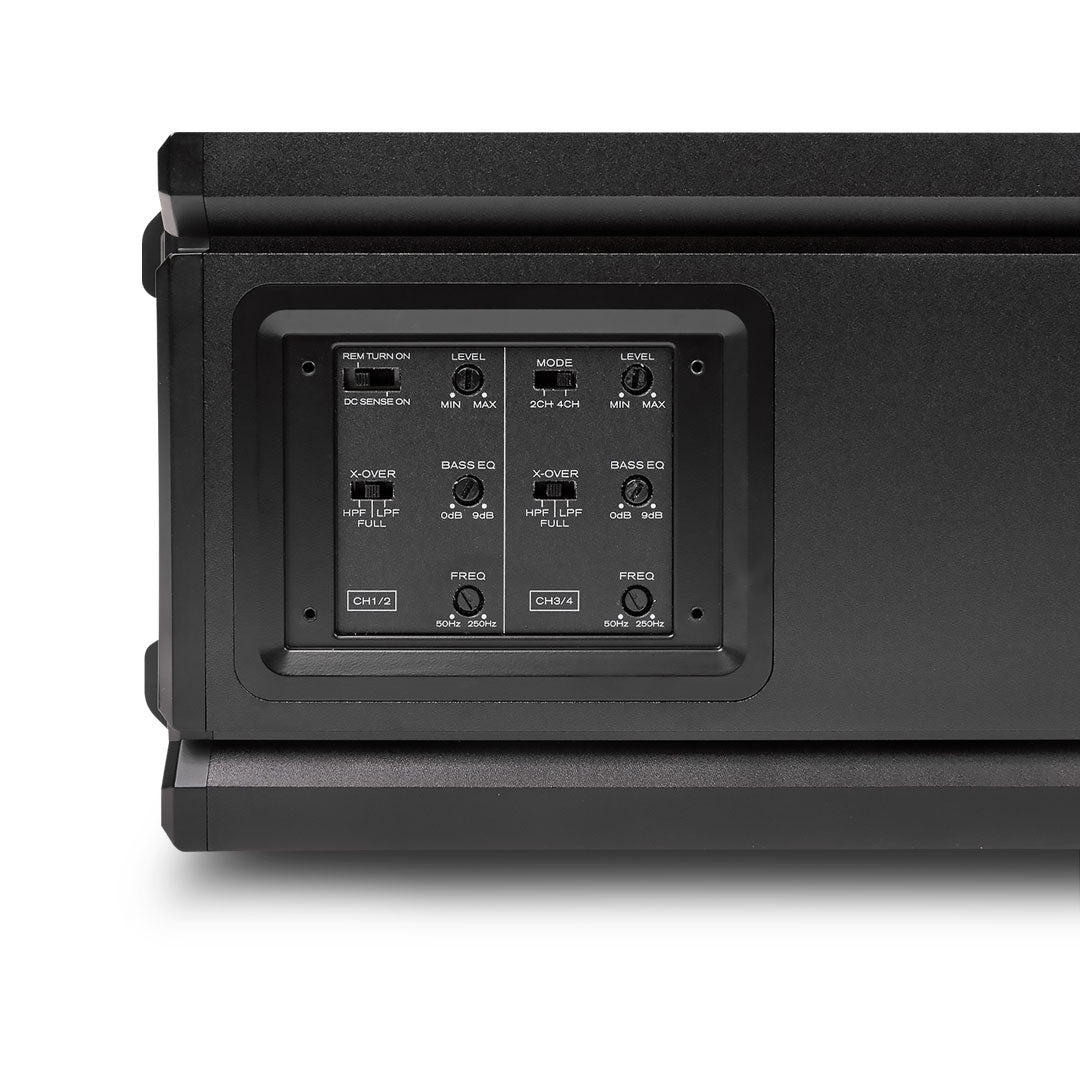

• Crossover Type: Variable electronic crossovers allow for complete control of the sound.
• Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.
• Class / Topology: Class SQ: Multi-channel amplifiers utilize the unique MB Quart Class SQ topology. Matched with Q-Stasis the sonic accuracy and clarity exceeds standard Class D amplifiers.
• Output Device Technology: FLUID-FETS: MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers.
• Heat Sink: Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration.
• Power Supply: Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to produce efficient power without taxing the vehicle electrical system.
• Output Connections: Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier.
• Connection Type: Secure connection for all power, ground and speaker connections.
• Bass Remote Included: N/A
• Auto Turn-On: DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.
