MB Quart MBQ-RW-110A | 10″ Subwoofer | Compact Powered

Enhance Your Vehicle's Bass with MB Quart's 10″ Compact Powered Subwoofer

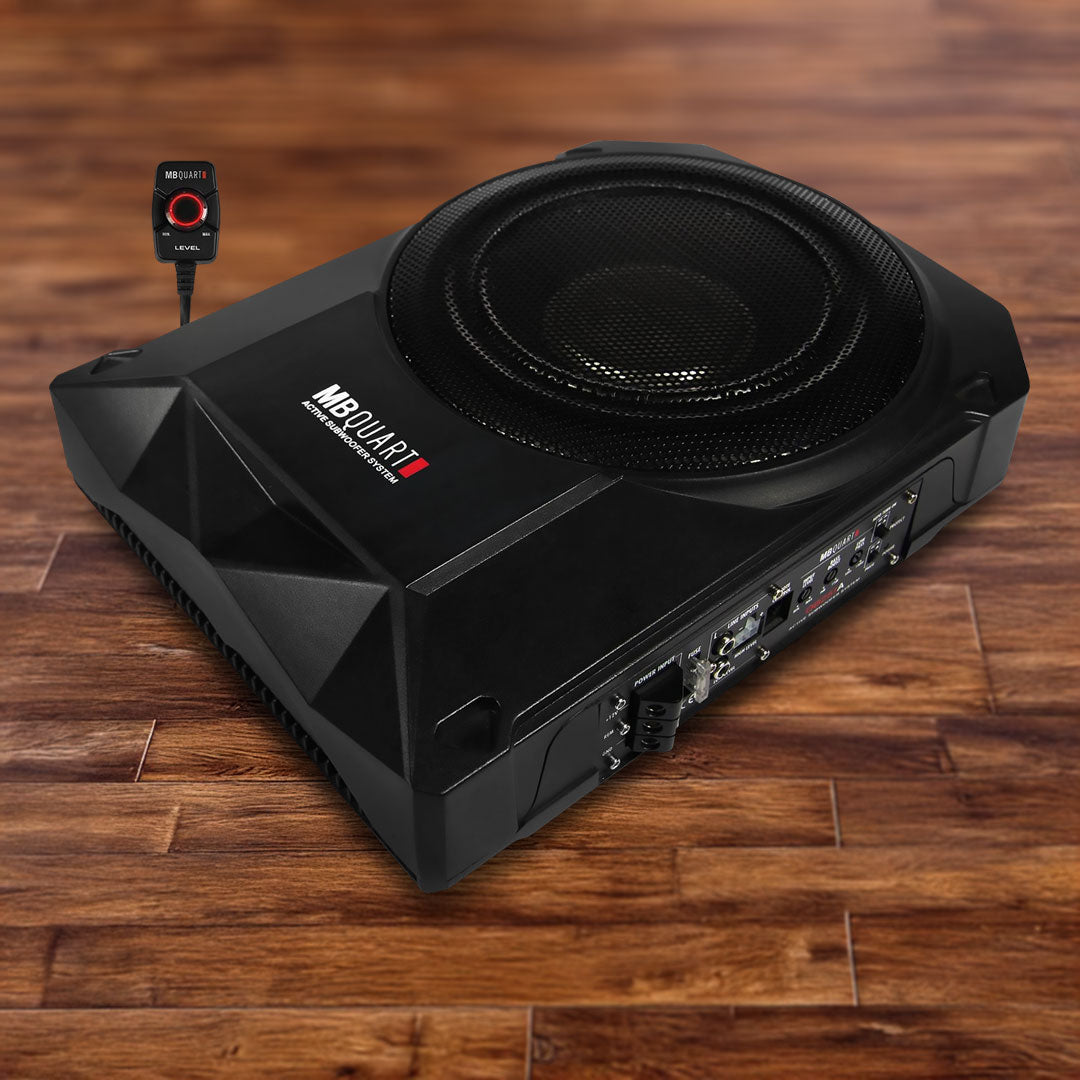

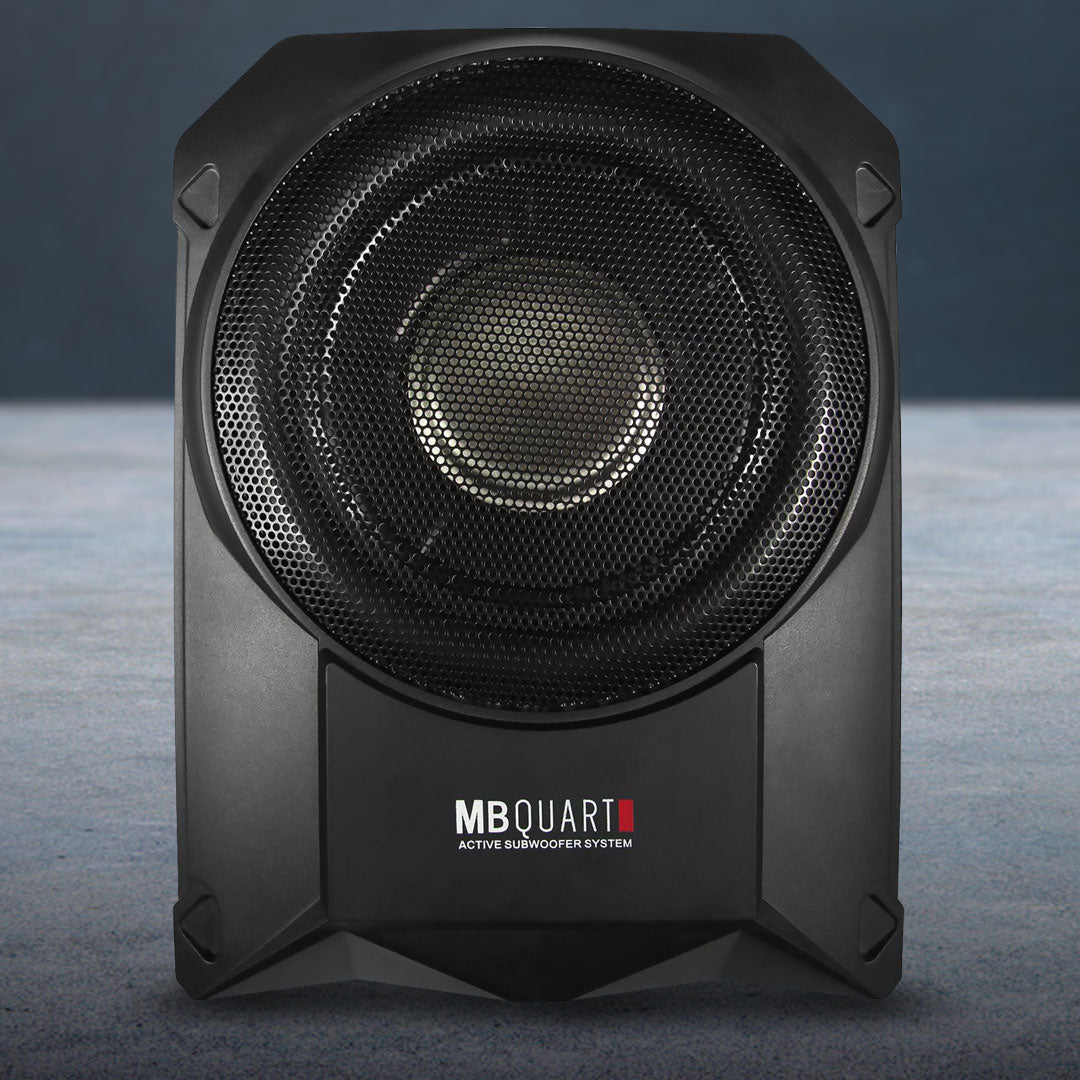

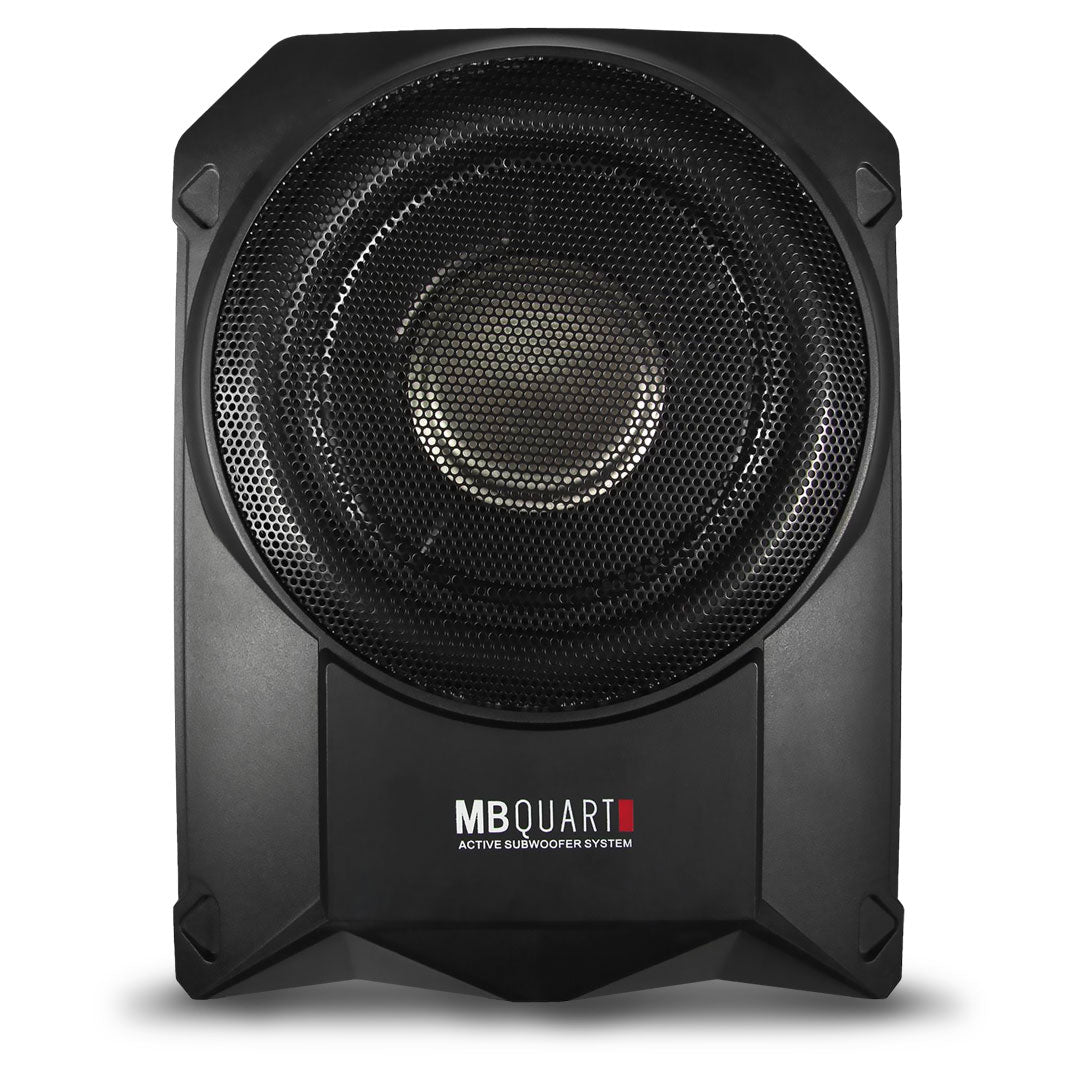

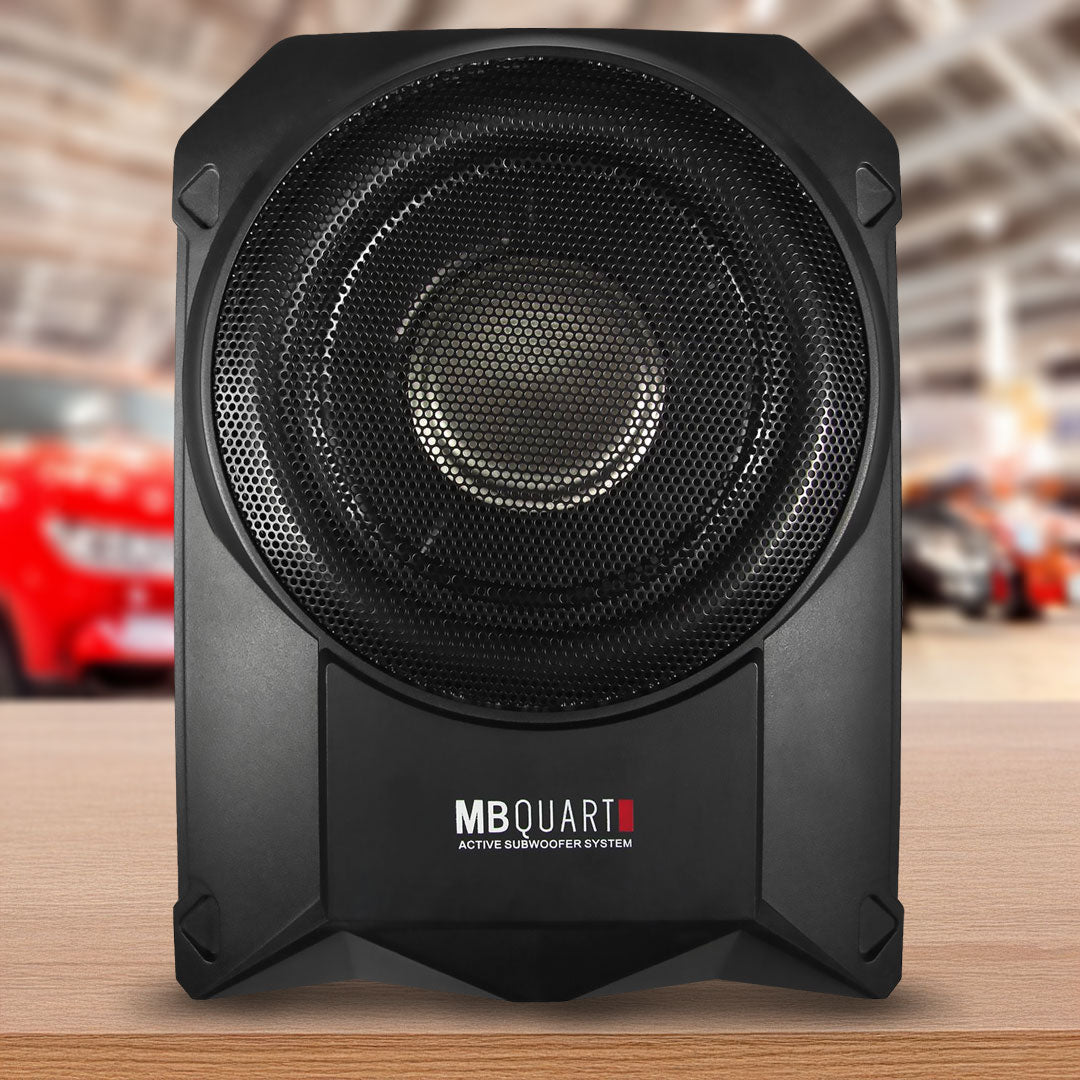

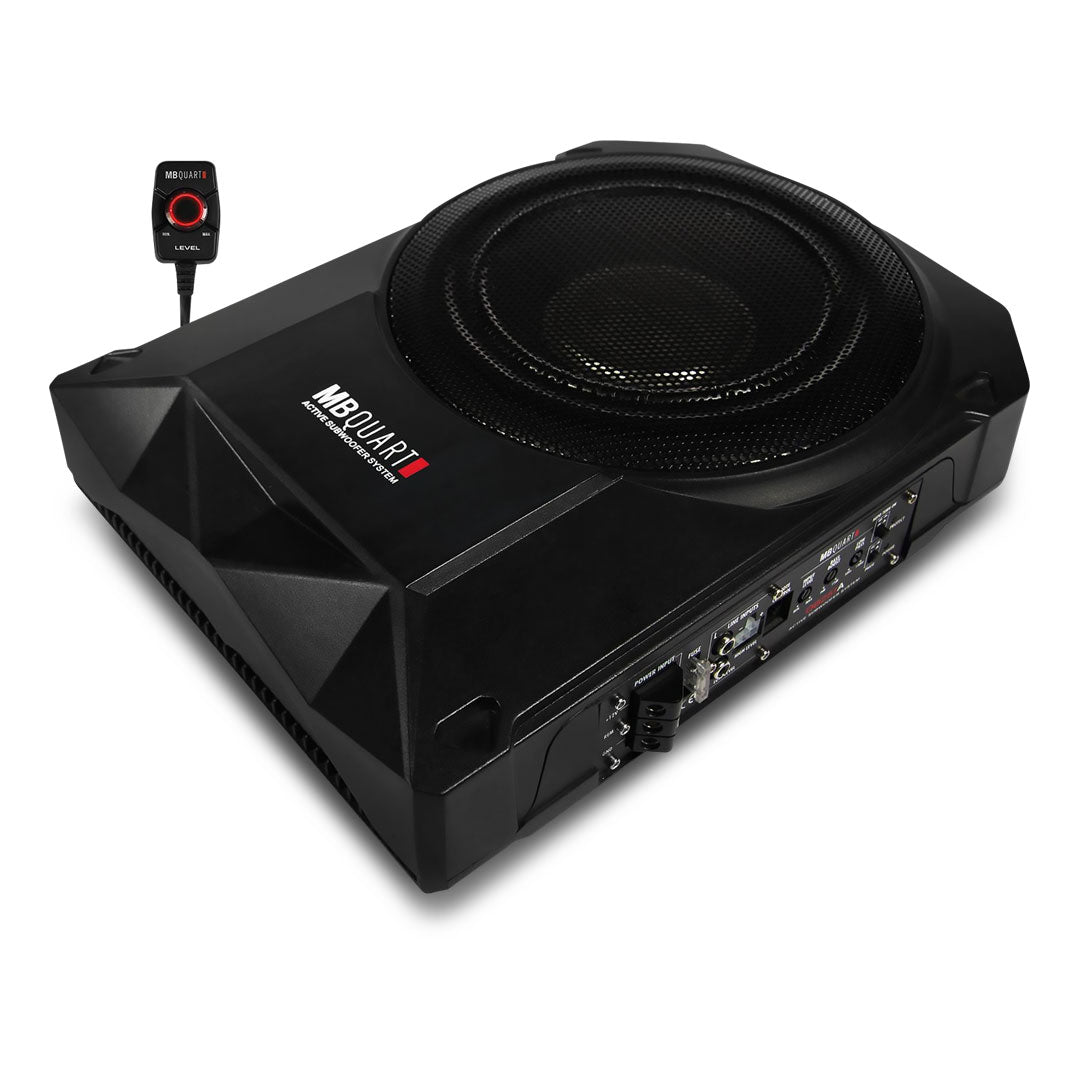

10″ DVC Reference Underseat Subwoofer with built-in 1 channel Class AB Amplifier.

Specifications:

• Colour: Black
• Warranty: 2 Years
• Subwoofer Configuration: Round
• Subwoofer Impedance (ohms): 4 Ohm
• Subwoofer RMS Power Handling (watts): 150 Watts
• Subwoofer Peak Power Handling (watts): 800 Watts
• Amp Class: Class A/B
• Amp Total Channels: 1 Ch
• Amp Max Power (watts): 800 Watts
• Amp Variable Low Pass Crossover 12dB per Octave: 50Hz-150Hz
• Amp Bass Boost: 0-12dB
• Amp Phase Shift: 0-180 Degrees
• Amp Variable Voltage: 0.2-9V
• Amp Frequency Response: 58Hz-20kHz
• Amp Power Terminal 12v/GND: 8 AWG
• Amp Fusing: 15 Amp
• Subwoofer Surround / Cone Coupling: The pressure treated foam surround along with the poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free.
• Subwoofer Voice Coil / Former Assembly: Vented aluminum former holds the voice coil while allowing the heat to be exchanged. (Less heat means less distortion)
• Subwoofer Spider: Poly cotton spider, along with the surround, allows the woofer to handle more power with minimum distortions.
• Subwoofer Frame / Venting: Heavy duty powder coated steel frame allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability.
• Subwoofer Motor: Vented high energy motor assembly with heavy duty magnets increases power handling and increases SPL.
• Subwoofer Cone: The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather.

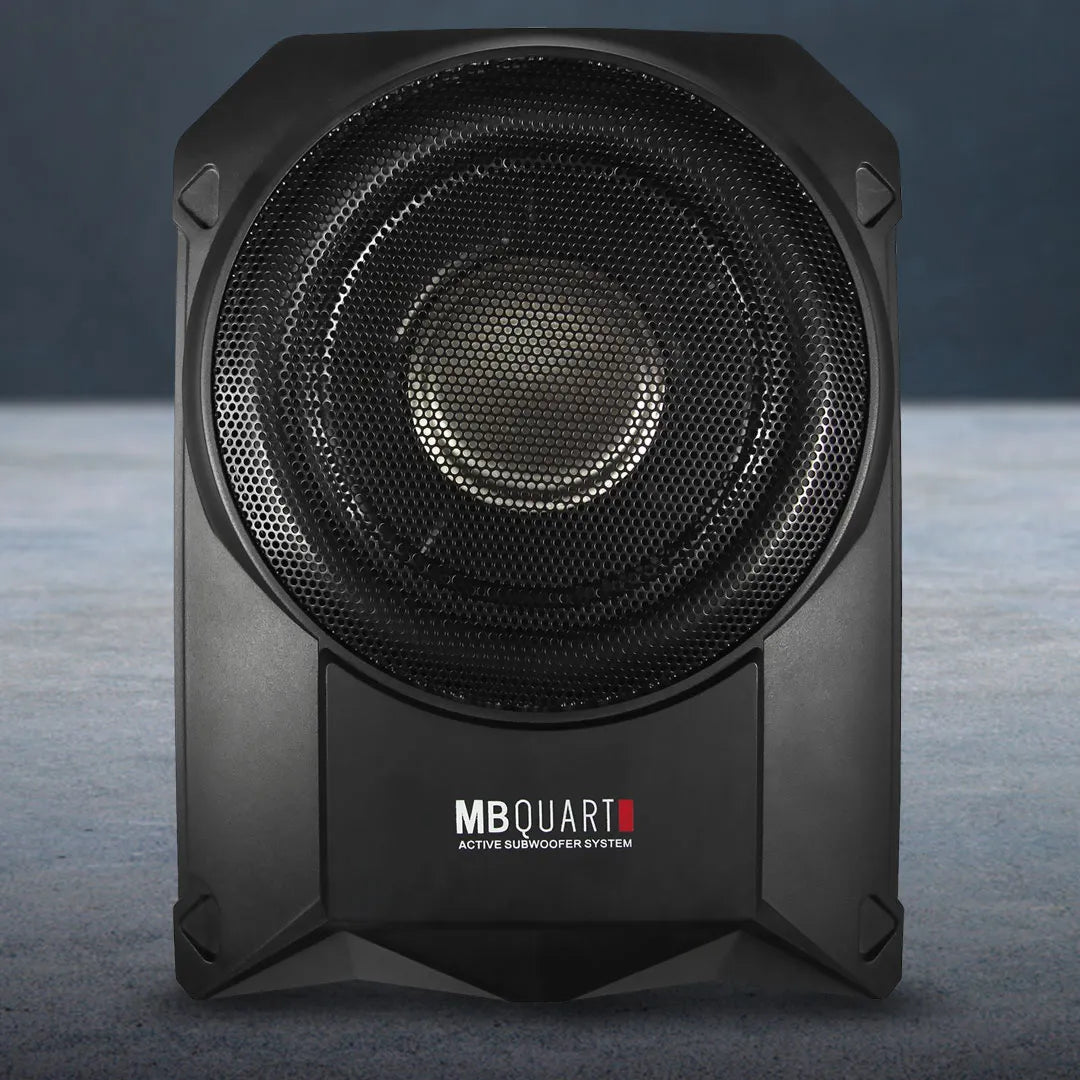

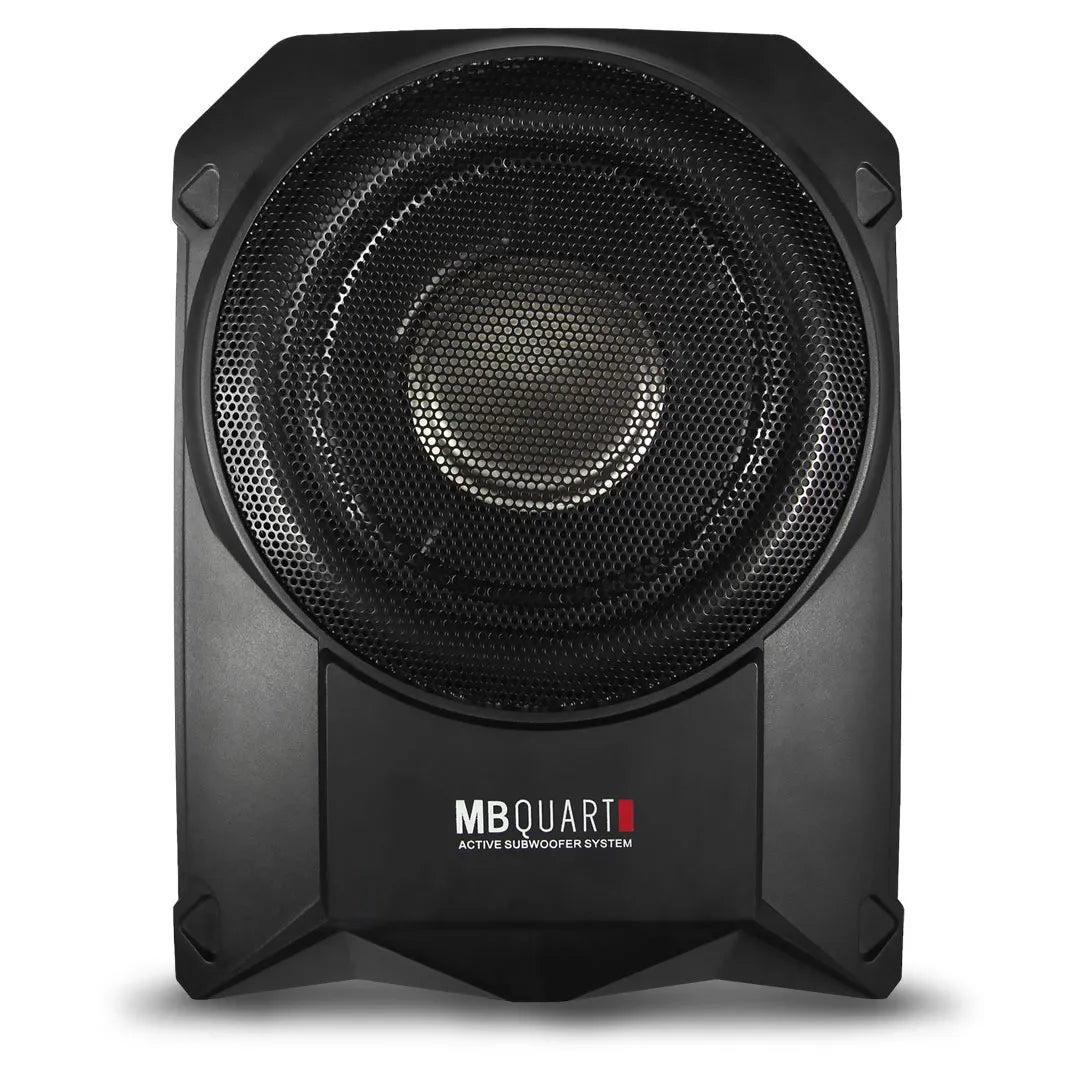

• Subwoofer Grills: Protective mesh grill built in.

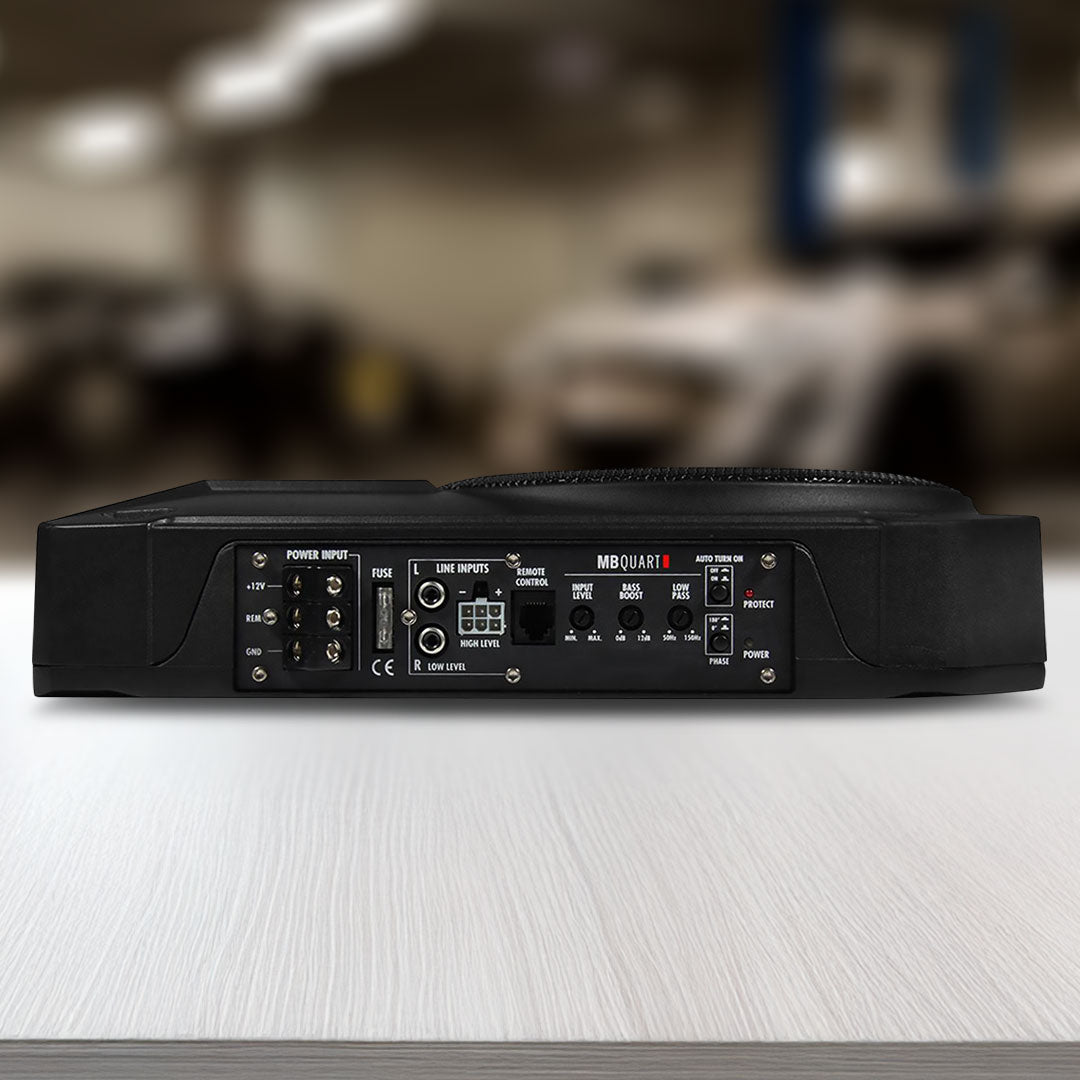

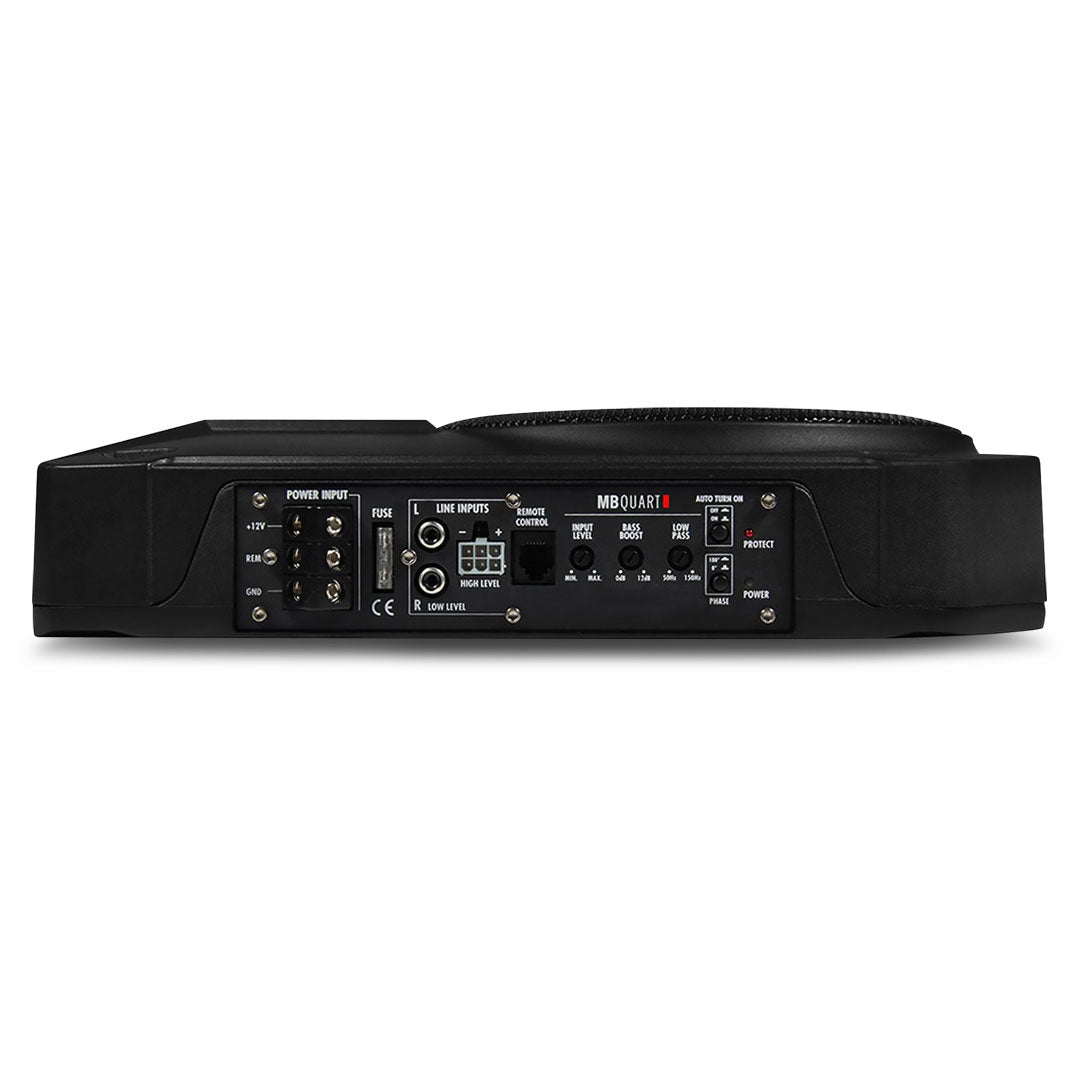

• Amp Inputs: RCA Inputs: Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path. High Level Inputs: Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
• Amp Operation Mode: Mono only
• Amp Heat Sink: QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.
• Amp Power Supply: High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system.
• Amp Output Connections: Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion.
• Amp Connection Type: Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.

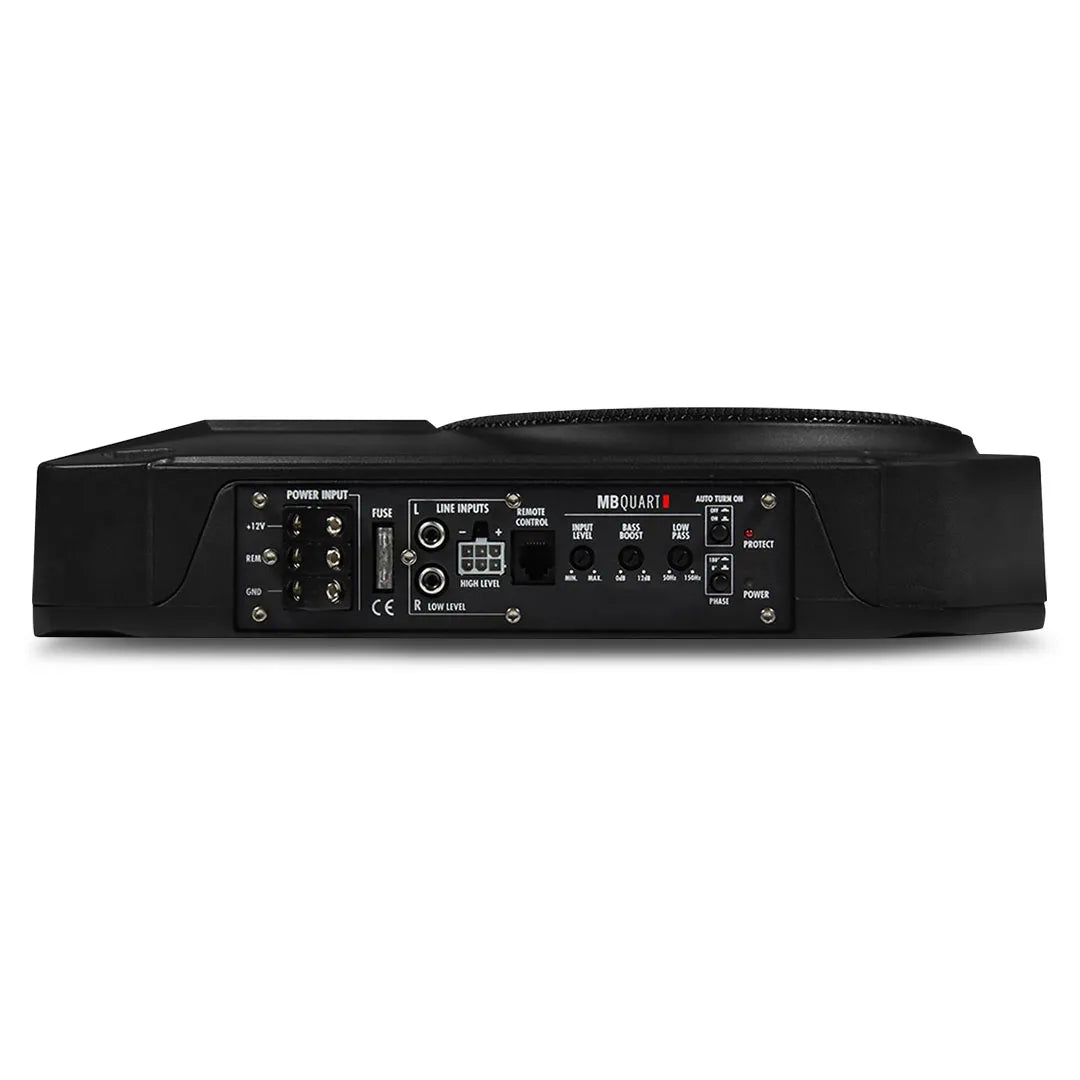

• Amp LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with lighted indicator on the amplifier end panel.

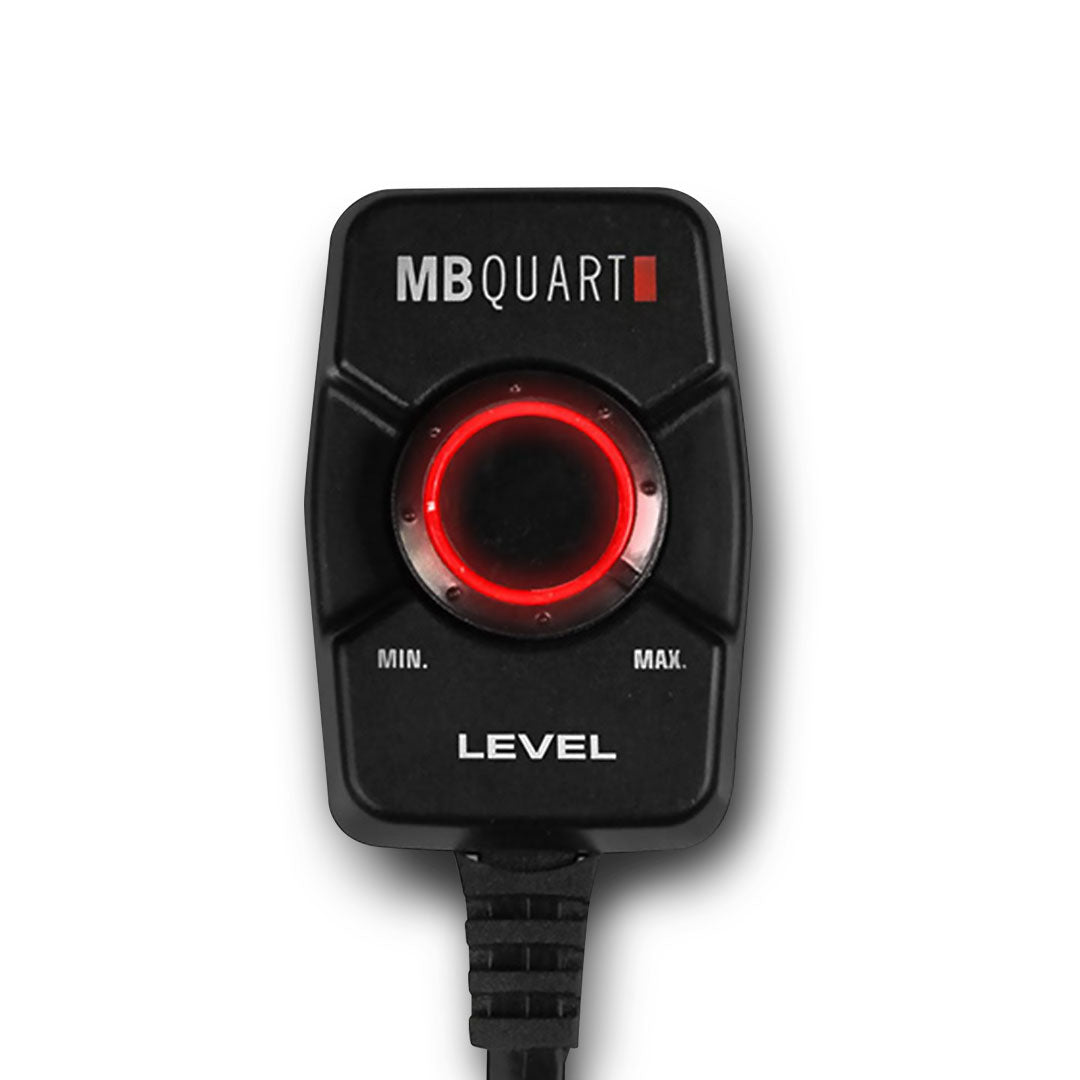

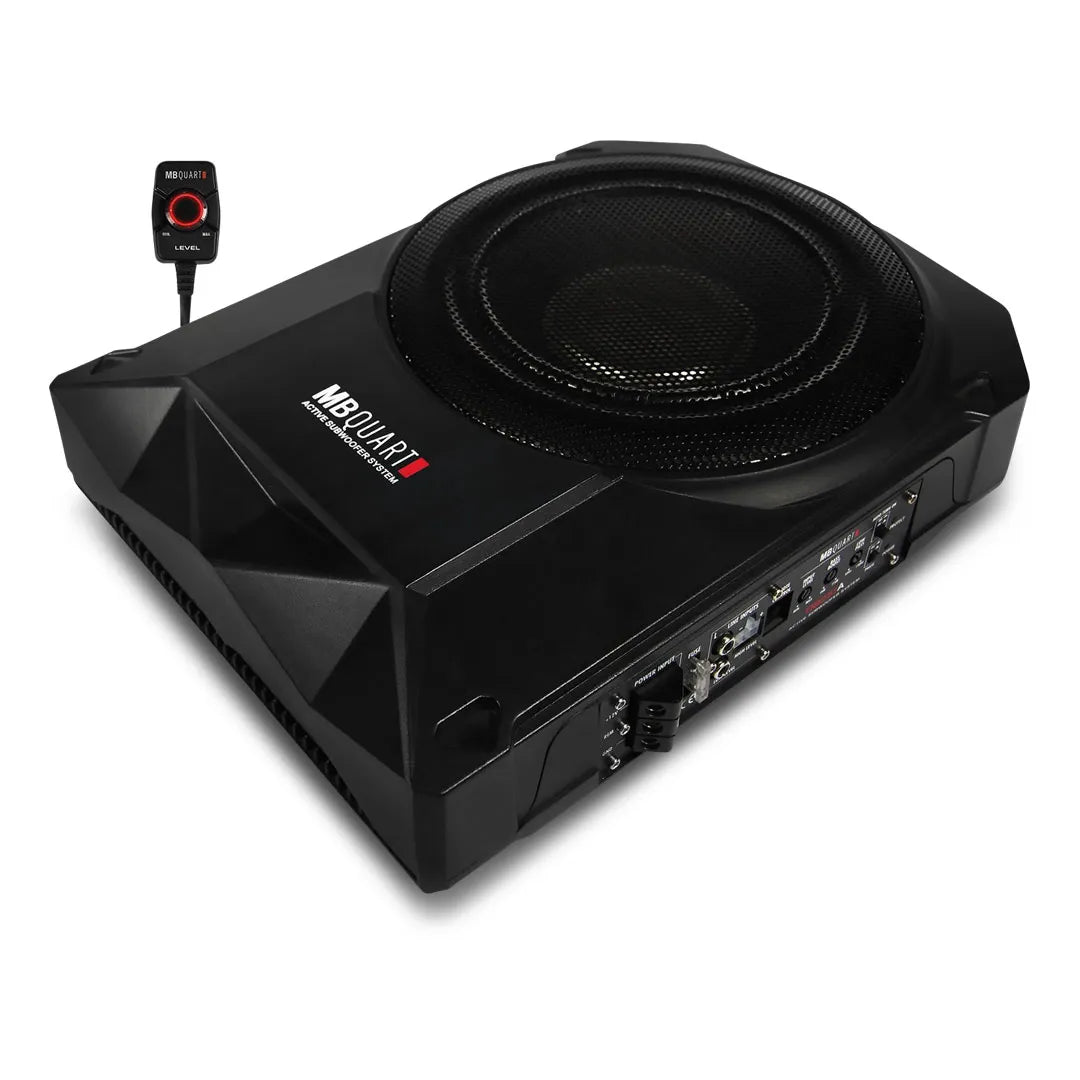

• Amp Bass Remote Included: Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
