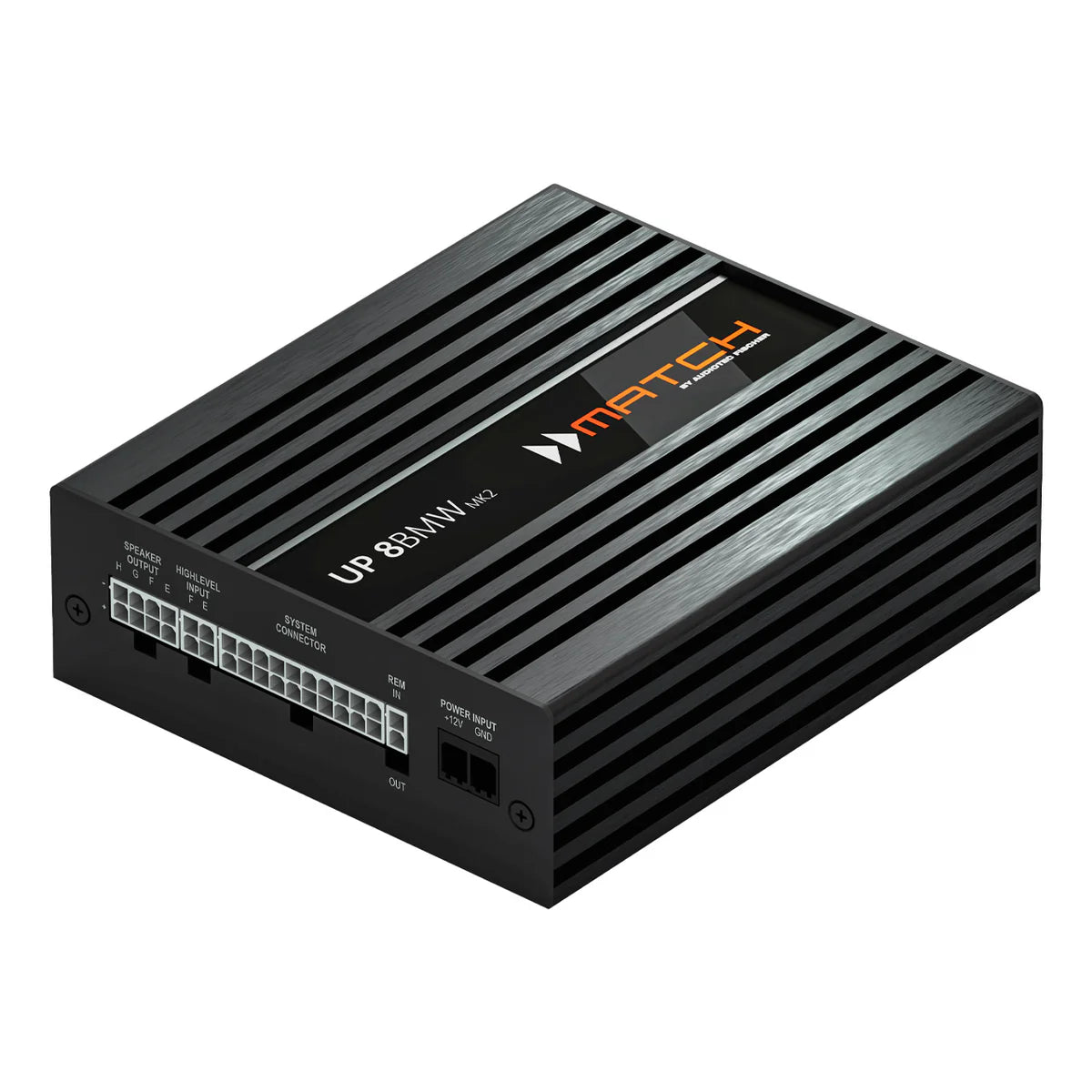

Match UP 8BMW MK2 8-Channel Class GD Plug-and-Play DSP Amplifier for BMW HiFi Option 676
An 8-channel Class GD plug-and-play amplifier with integrated 9-channel DSP from Match, specifically developed for BMW E and F series and BMW G30/G31 pre-facelift models with HiFi sound system option 676, the UP 8BMW MK2 delivers 6 x 65W RMS at 4Ω (channels A-F) and 2 x 125W RMS at 2Ω subwoofer channels (G-H), with 6 high-level ADEP.3 inputs, optical SPDIF, Extension Card 2.0 slot, USB-C, SOP Max, BMW-specific Plug-and-Play connection cable, BMW-specific mounting plate, galvanically isolated mono RCA output, BurrBrown converters, ACO 32-bit CoProcessor, AISA, TuneEQ 2.0, TuneToTarget, VCP, Augmented Bass Processing, RealCenter, Power Save Mode, Auto Remote, and EV-ready 10.5-18V operation.
Product Overview
The Match UP 8BMW MK2 is the dedicated plug-and-play upgrade amplifier for BMW HiFi systems, engineered specifically for BMW E and F series models and BMW G30/G31 (pre-facelift) fitted with the factory HiFi sound system (option 676, without RAM module). All vehicles with the RAM module (from 09/2019) are excluded. The included BMW-specific Plug-and-Play connection cable and BMW-specific mounting plate enable installation at the original factory amplifier location without cutting wires or permanent modification. Note: the mounting plate is not suitable for BMW 1 Series E models.
As an MK2 generation update, the UP 8BMW MK2 adds USB-C connectivity for DSP PC-Tool 6 access and an Extension Card 2.0 slot with cross-series compatibility and screw-secured plastic cover. It is configured with DSP PC-Tool 6 including TuneEQ 2.0 and TuneToTarget for automated system calibration, and is perfectly combinable with additional MATCH UPGRADE BMW components, subwoofers, 2-way systems, center speakers, and HELIX COMPOSE loudspeakers.
The Class GD amplifier delivers 6 x 65W RMS at 4Ω on channels A-F and 2 x 75W RMS at 4Ω / 2 x 125W RMS at 2Ω on subwoofer channels G-H, with maximum output of up to 80W (A-F) and 160W (G-H) per channel. The 9-channel DSP runs on a 64-bit fixed-point processor at 295 MHz (1.2 billion MAC operations per second) with BurrBrown A/D and D/A converters, 48kHz sampling rate, SNR of 104dB from digital input and 100dB from analog input. The 6 high-level ADEP.3 inputs (2.8-11V) seamlessly interface with the BMW factory HiFi head unit's speaker outputs. The optical SPDIF input (12-96kHz) accepts digital sources. SOP Max maintains stable output power regardless of input voltage. Power Save Mode reduces consumption when no signal is detected. Operating voltage is 10.5-18V with Start-Stop capability to 6V. Fused at 1 x 25A LP-Mini (APS).
Features & Benefits
BMW-Specific Plug-and-Play Installation for Option 676 HiFi Systems: The UP 8BMW MK2 is specifically developed for BMW E and F series and BMW G30/G31 pre-facelift models with HiFi sound system option 676 (without RAM module), installing at the factory amplifier location using the included BMW-specific Plug-and-Play connection cable and BMW-specific mounting plate without any wiring modification. All models with the RAM module (from 09/2019) are excluded.
8-Channel Class GD Output - 6 x 65W RMS Plus Dedicated Subwoofer Channels: Channels A-F deliver 6 x 65W RMS at 4Ω for full-range BMW speaker channels, while channels G-H deliver 2 x 75W RMS at 4Ω and 2 x 125W RMS at 2Ω for subwoofer output, covering a complete BMW speaker system upgrade from a single amplifier unit.
9-Channel Integrated DSP - 64-Bit Fixed-Point at 295 MHz: The 9-channel DSP delivers 64-bit fixed-point audio processing at 295 MHz (1.2 billion MAC operations per second) for precise multi-channel equalisation, crossover, time alignment, and sound effect processing tailored to the BMW acoustic environment.
6 High-Level ADEP.3 Inputs - Seamless BMW Factory HiFi Integration: The 6 high-level ADEP.3 inputs (2.8-11V, 9-33Ω) interface correctly with the BMW factory HiFi head unit's speaker load detection system, preventing error messages and feature loss in the factory audio system while providing clean signal extraction from all factory speaker outputs.
DSP PC-Tool 6 with TuneEQ 2.0 and TuneToTarget: The UP 8BMW MK2 is configured via DSP PC-Tool 6, featuring TuneEQ 2.0 for automated parametric EQ calibration and TuneToTarget for automated frequency response alignment to a reference target curve, significantly streamlining system calibration in the BMW acoustic environment.
ACO 32-Bit CoProcessor - AISA, VCP, RealCenter, Augmented Bass Processing, DLC, RTC: The ACO platform provides AISA (Advanced Input Signal Analyzer) with InputEQ for BMW factory signal analysis and correction, VCP cross-channel group equalizers and multi-way speaker configuration, RealCenter dynamic center image synthesis, Augmented Bass Processing (Dynamic Bass Enhancement and SubXpander), DLC, and RTC, with up to 10 sound setup memories.

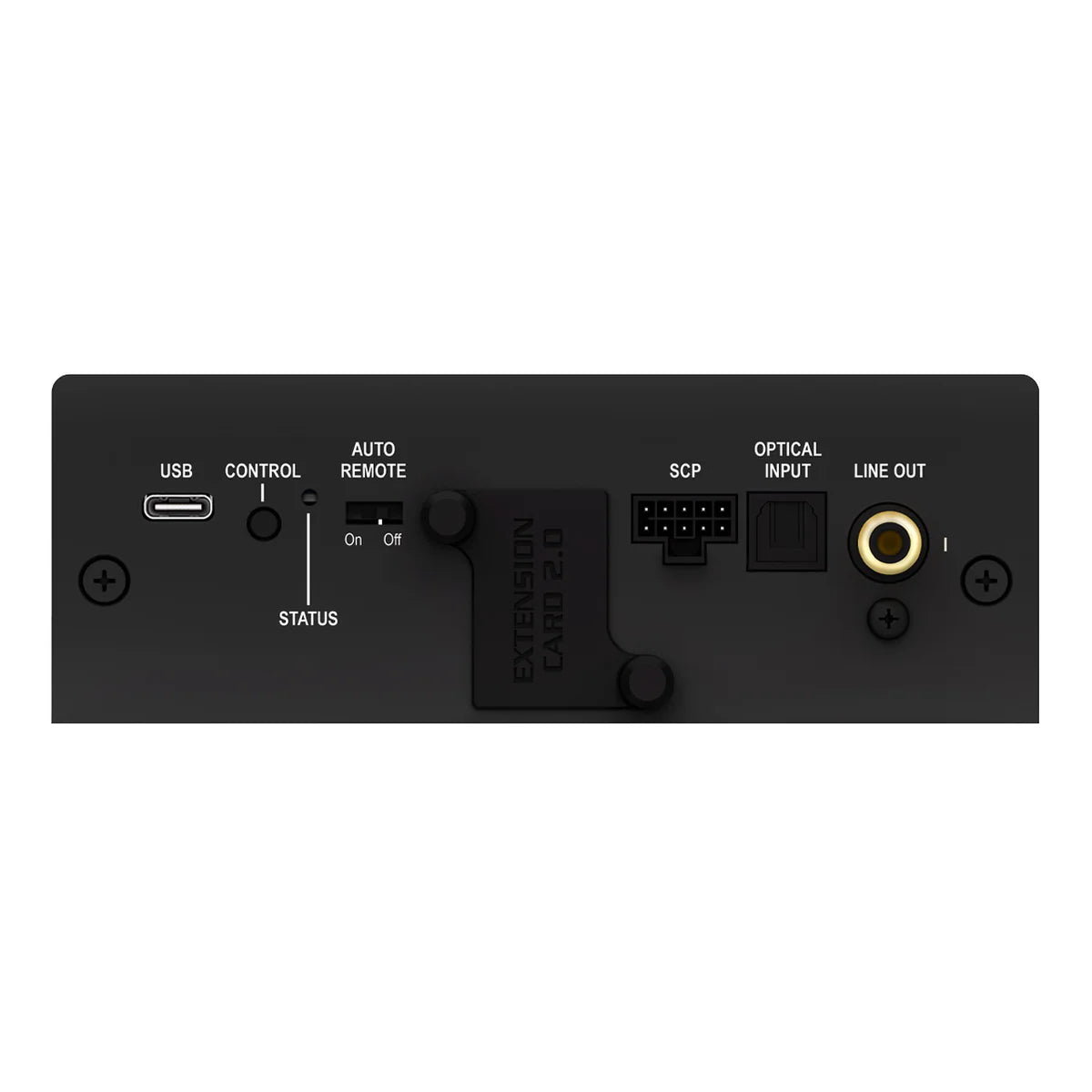

Extension Card 2.0 Slot - MK2 Update with Cross-Series Compatibility: The new Extension Card 2.0 slot accepts optional Bluetooth HD audio streaming, additional analog/digital input expansion cards, and future expansion modules, with cross-series compatibility and screw-secured plastic cover for secure integration.
USB-C for DSP PC-Tool 6 - MK2 Update: USB-C replaces the previous connection for modern, reliable access to DSP PC-Tool 6 for system configuration and calibration.
SOP Max - Stabilized Output Power: SOP Max maintains consistently stable full output power regardless of BMW electrical system voltage fluctuations, ensuring steady performance during Start-Stop events and in EV-compatible 18V operating conditions.
Galvanically Isolated Mono RCA Output: The galvanically isolated mono RCA output at 3V connects external amplifiers such as the Match UP 1FX subwoofer amplifier for system expansion without ground loop noise.
Compatible with MATCH BMW Upgrade Ecosystem: The UP 8BMW MK2 is designed as the centrepiece of a scalable BMW upgrade system, fully compatible with additional MATCH UPGRADE BMW components, MATCH subwoofers, 2-way speaker systems, center speakers, and HELIX COMPOSE loudspeakers.
EV-Ready - 10.5-18V Extended Operating Range: The extended operating voltage to 18V with Start-Stop capability to 6V ensures reliable operation in BMW EV and mild hybrid models with higher electrical system voltages.
What's in the Box
- Match UPGRADE Amplifier UP 8BMW MK2
- BMW HiFi Plug-and-Play Connection Cable

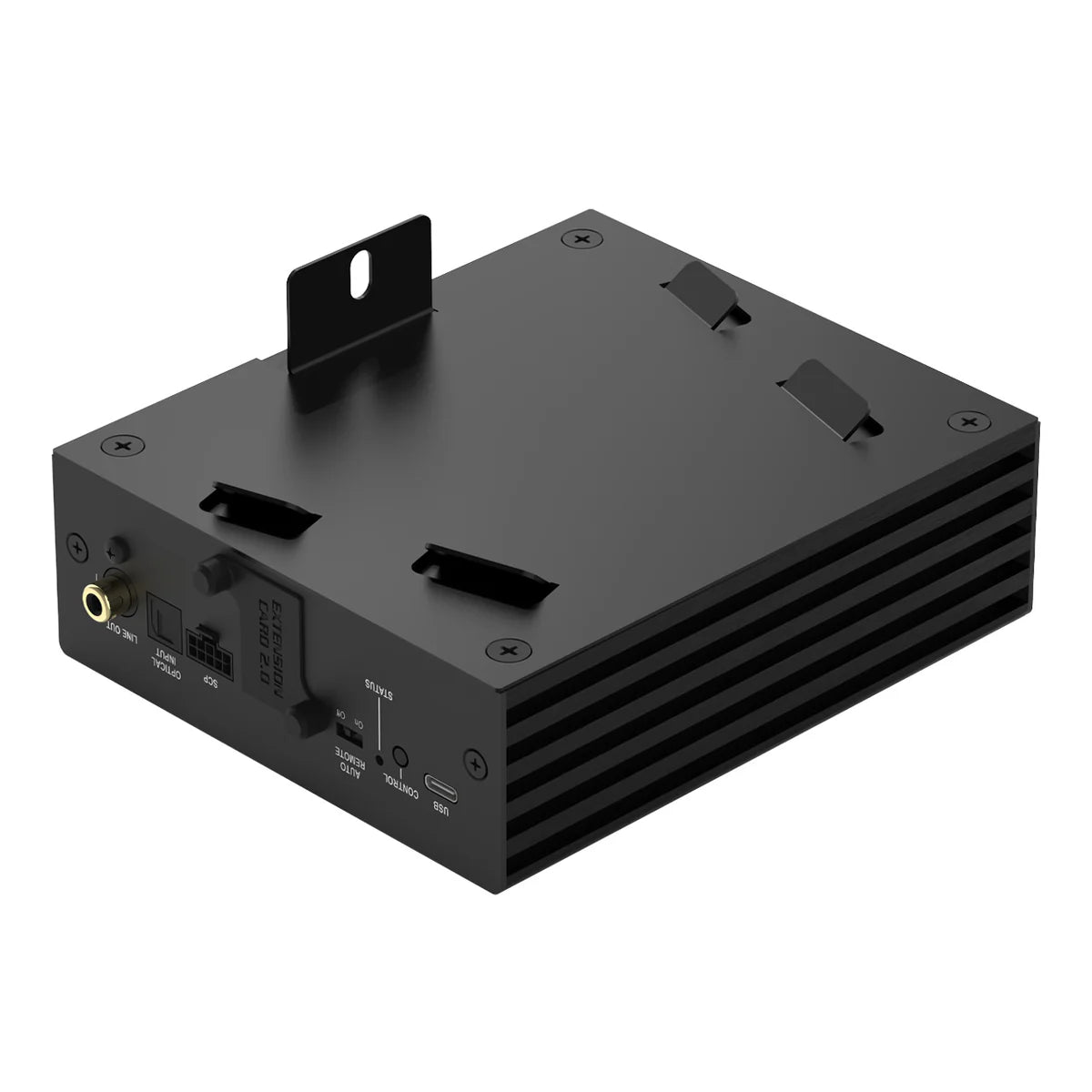

- BMW-Specific Mounting Plate and Mounting Material
- Power Input Connector
- USB Cable
- Instruction Manual
Technical Specs
| Specification | Detail |
|---|---|
| SKU | UP 8BMW MK2 |
| Brand | Match |
| Range | UPGRADE |
| Generation | MK2 |
| Compatible Vehicles | BMW E and F Series; BMW G30/G31 Pre-Facelift (HiFi Option 676, Without RAM Module) |
| Excluded Vehicles | All Models with RAM Module (from 09/2019); BMW 1 Series E (Mounting Plate Not Suitable) |
| Channels | 8 (Amplifier) / 9 (DSP) |
| Amplifier Class | Class GD (Pure GD Ultra HD) |
| Power RMS - Ch A-F at 4Ω | 6 x 65W (min. 3Ω) |
| Power RMS - Ch G-H at 4Ω | 2 x 75W (min. 3Ω) |
| Power RMS - Ch G-H at 2Ω | 2 x 125W |
| Max Output - Ch A-F at 4Ω | Up to 80W per Channel |
| Max Output - Ch G-H at 4Ω | Up to 90W per Channel |
| Max Output - Ch G-H at 2Ω | Up to 160W per Channel |
| THD at 1kHz, 1W into 4Ω | Less than 0.015% |
| THD+N at 1kHz, 1W into 4Ω | Less than 0.02% |
| High-Level Inputs | 6 x High-Level ADEP.3 (2.8-11V, 9-33Ω) |
| RCA Inputs | None |
| Digital Input | 1 x Optical SPDIF (12-96kHz) |
| Extension Card Slot | 2.0 (Cross-Series Compatible) |
| USB | USB-C |

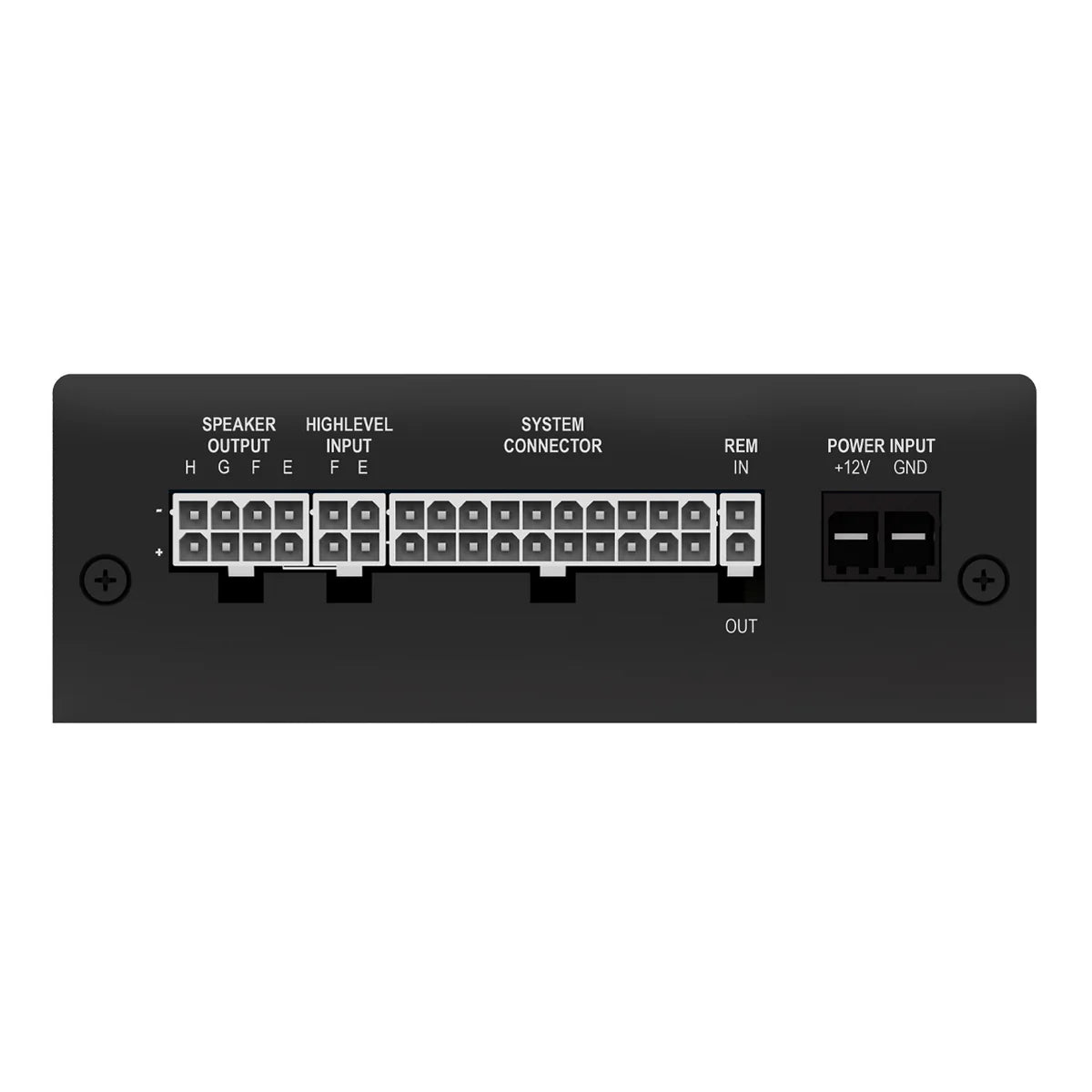

| Outputs | 8 x Speaker, 1 x RCA Mono (3V, Galvanically Isolated), 1 x Remote Out |
| Frequency Response | 15Hz-22,000Hz |
| SNR - Digital Input | 104dB (A-weighted) |
| SNR - Analog Input | 100dB (A-weighted) |
| DSP Resolution | 64-Bit Fixed-Point |
| DSP Processing Power | 295 MHz (1.2 Billion MAC ops/sec) |
| Sampling Rate | 48kHz |
| Signal Converters | BurrBrown A/D and D/A |
| CoProcessor | ACO 32-Bit |
| Sound Setup Memories | 10 |
| SCP | Yes (Smart Control Port) |
| SOP Max | Yes (Stabilized Output Power) |
| Power Save Mode | Yes |
| Auto Remote | Yes |
| Operating Voltage | 10.5-18V (Stable to 6V for 5 Seconds) |
| Power Rating | DC 12V, 40A Max |
| Idle Current | 380mA |
| Max Remote Output Current | 500mA |
| Fuse | 1 x 25A LP-Mini (APS) |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 46mm x 130mm x 153mm |
DSP Features
| Feature | Detail |
|---|---|
| AISA | Advanced Input Signal Analyzer with InputEQ for BMW factory signal correction |
| TuneEQ 2.0 | Automated parametric EQ calibration via measurement microphone |
| TuneToTarget | Automated frequency response alignment to reference target curve |
| VCP | Virtual Channel Processing with cross-channel group EQ |
| RealCenter | Dynamic center image synthesis |
| Augmented Bass Processing | Dynamic Bass Enhancement and SubXpander |
| DLC | Dynamic Loudness Control |
| RTC | Remote Tone Control |
| Sound Setups | Up to 10 with instant ACO switching |
| DSP PC-Tool | Version 6 |
Compatible With
The UP 8BMW MK2 is compatible with BMW E and F series and BMW G30/G31 pre-facelift models fitted with the BMW HiFi sound system option 676, without the RAM module. All models with the RAM module (from 09/2019) are excluded. The mounting plate is not suitable for BMW 1 Series E models. Confirm compatibility via the Match Sound Upgrade Finder before purchase. The UP 8BMW MK2 is compatible with the MATCH UPGRADE BMW component range, HELIX COMPOSE loudspeakers, the Match UP 1FX subwoofer amplifier, and optional Extension Card 2.0 accessories (sold separately). DSP configuration via DSP PC-Tool 6.
Frequently Asked Questions
Which BMW models is the UP 8BMW MK2 compatible with?
The UP 8BMW MK2 is compatible with BMW E and F series models and BMW G30/G31 pre-facelift models fitted with the factory HiFi sound system option 676. All models equipped with the RAM module (from 09/2019) are excluded. The mounting plate is not suitable for BMW 1 Series E models. Confirm your specific BMW model and factory sound system option using the Match Sound Upgrade Finder before purchase.
Does the UP 8BMW MK2 require any wiring modification?
No. The included BMW-specific Plug-and-Play connection cable connects directly to the factory BMW HiFi wiring at the factory amplifier location without cutting, splicing, or permanently modifying the original wiring.
What is new in the UP 8BMW MK2 compared to the original UP 8BMW?
The MK2 adds USB-C connectivity for DSP PC-Tool 6 access, the new Extension Card 2.0 slot with cross-series compatibility and screw-secured cover, AISA (Advanced Input Signal Analyzer) for improved BMW factory signal analysis, TuneEQ 2.0 and TuneToTarget for enhanced automated calibration, and SOP Max stabilized output power technology.
Can the UP 8BMW MK2 be expanded with additional subwoofer amplification?
Yes. The galvanically isolated mono RCA output at 3V can connect an external subwoofer amplifier such as the Match UP 1FX, expanding the system with dedicated subwoofer output power beyond the onboard channels G-H.
Is the UP 8BMW MK2 compatible with BMW EV models?
The UP 8BMW MK2's extended operating voltage to 18V with Start-Stop capability to 6V is designed to accommodate a range of BMW vehicle electrical systems. Confirm compatibility with your specific BMW model including any EV or mild hybrid variant using the Match Sound Upgrade Finder.
