Efficiency excellence for tailored OEM integrations with professional 6-channel DSP amplification and advanced Virtual Channel Processing

Product Overview

The MATCH UP 6DSP represents the pinnacle of professional car audio amplification, delivering authentic hi-fi sound through 6 dedicated amplifier channels and advanced 7-channel DSP processing. This true all-rounder provides all necessary features for effortless integration into existing vehicle sound systems while delivering the power and dynamics needed for premium audio performance. Perfect for upgrading standard sound systems with professional-grade DSP capabilities and flexible speaker configurations.

Key Specifications

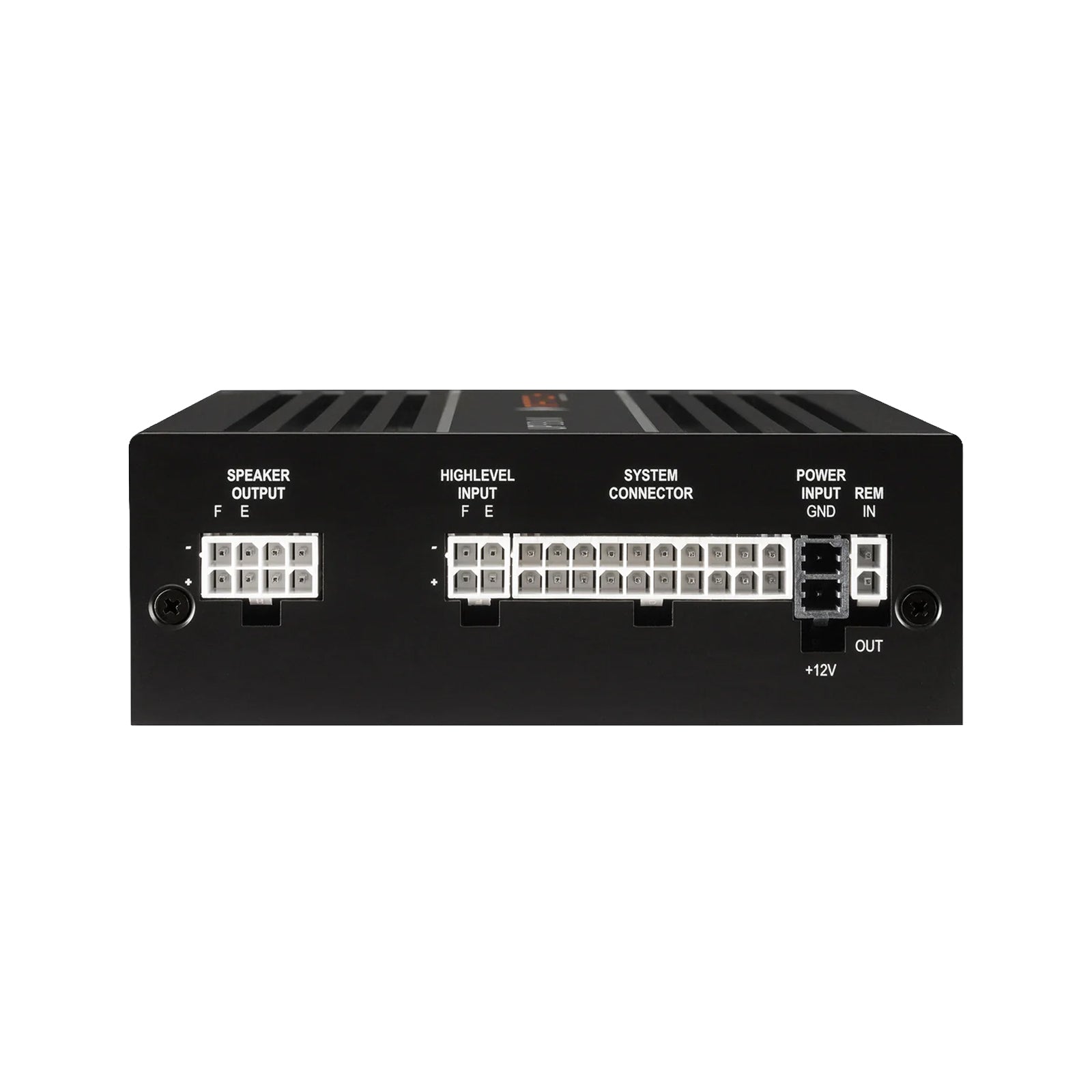

Amplifier Configuration:

• 6-channel amplifier with dedicated speaker outputs plus 1 RCA mono output
• Channels A-D: 4 x 65W RMS @ 4Ω (minimum 3Ω compatible) for front/rear speakers
• Channels E-F: 2 x 160W RMS @ 2Ω / 90W RMS @ 4Ω for subwoofer applications
• Total system power: 520W RMS maximum output capability
• Ultra-efficient Class GD amplifier technology with dynamic power supply control

DSP Processing System:

• 64-bit resolution audio DSP with 295 MHz processing power (1.2 billion MAC/sec)
• 7-channel DSP capability with Virtual Channel Processing (VCP) for complex routing
• Advanced 32-bit CoProcessor (ACO) platform for extended feature management
• TuneEQ automated frequency response correction with parametric EQ control
• BurrBrown A/D and D/A converters for audiophile signal quality

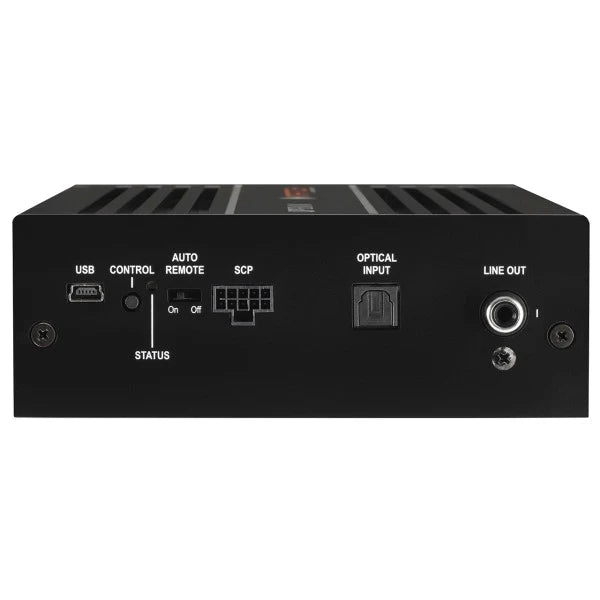

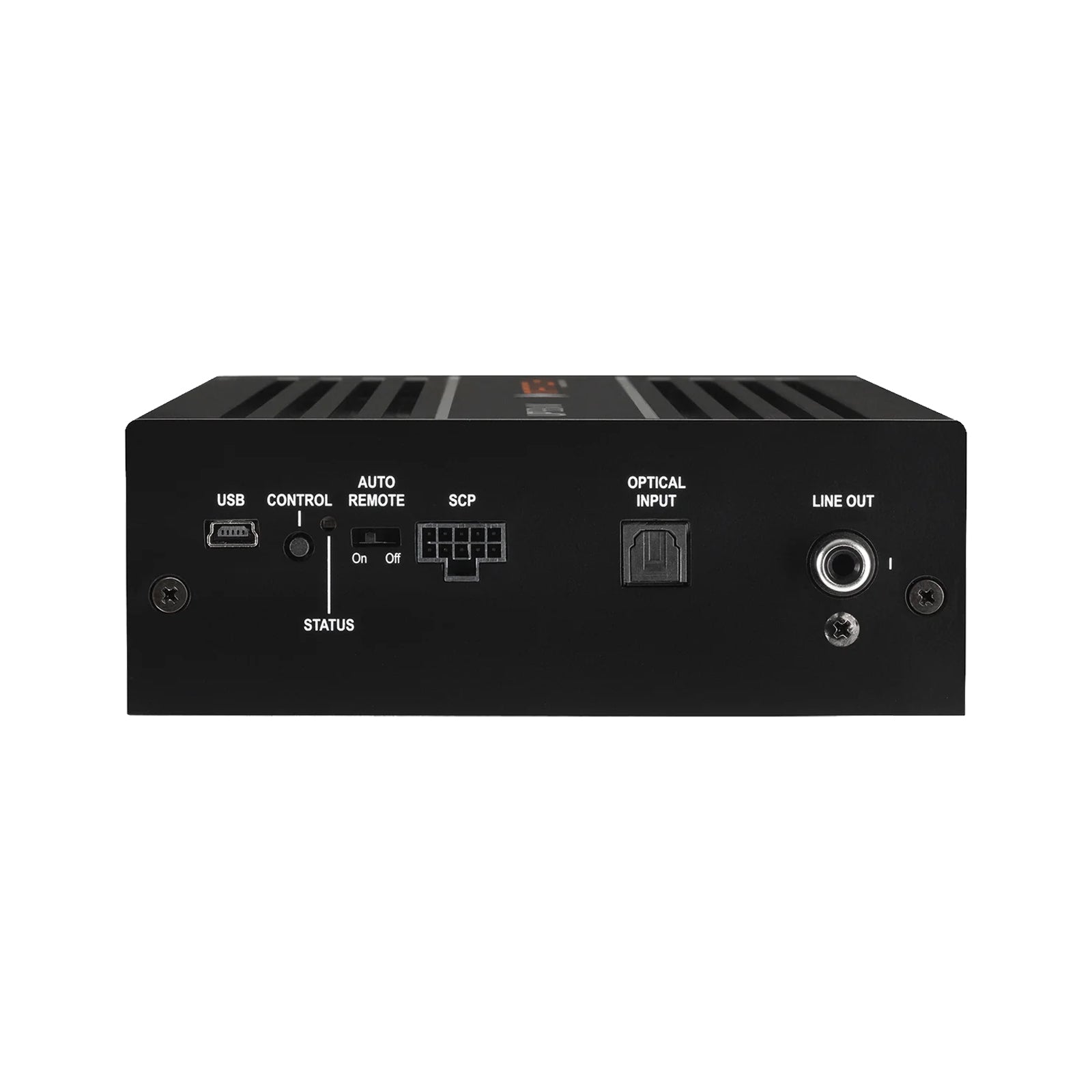

Integration Features:

• 6x high-level speaker inputs with ADEP.3 smart detection circuit
• 1x optical SPDIF digital input (12-96 kHz sampling rates)
• MATCH Extension Card (MEC) slot for Bluetooth HD and USB HD expansion
• Smart Control Port (SCP) for DIRECTOR, CONDUCTOR, and remote accessories

Features & Benefits

• Professional OEM Integration Excellence – Six high-level inputs with ADEP.3 circuit enable seamless integration into factory sound systems while maintaining steering wheel controls, navigation, and all original functionality
• Advanced Virtual Channel Processing – Innovative VCP technology allows complex signal routing and speaker configuration management, enabling multi-way systems and sophisticated acoustic setups impossible with conventional amplifiers
• Revolutionary TuneEQ Technology – Automated frequency response correction requires only single microphone measurement per channel to independently adjust parametric equalizers to desired reference curves, saving significant tuning time
• Proprietary DSP Sound Effects Suite – Includes RealCenter for enhanced soundstage, Augmented Bass Processing with Dynamic Bass Enhancement and SubXpander for optimized subwoofer performance, plus Input Signal Analyzer
• Flexible Power Distribution – Four 65W channels handle front/rear speakers while two powerful 160W channels drive demanding subwoofers, with 1:1 Input-to-Output Routing (IOR) capability for straightforward system designs
• Future-Ready Expansion Architecture – MEC slot supports Bluetooth HD Audio Streaming and High Resolution Audio USB interface, while SCP port enables professional remote control and system management accessories

Technical Specs

• Power output: 4 x 65W RMS @ 4Ω + 2 x 160W RMS @ 2Ω (520W total)
• Amplifier technology: Class GD with dynamically controlled power supply
• DSP resolution: 64-bit with 295 MHz processing power
• Frequency response: 10Hz - 22,000Hz extended range
• Signal-to-noise ratio: 106dB digital, 104dB analog (A-weighted)
• Total harmonic distortion: <0.03% at rated output
• Input sensitivity: 2.8-11V adjustable high-level input range
• Operating voltage: 10.5-18V with Start-Stop capability and EV compatibility
• Operating temperature: -40°C to +70°C automotive specification
• Dimensions: 46 x 130 x 130mm compact design
• Power consumption: 360mA idle, 35A maximum draw

Frequently Asked Questions

What makes the UP 6DSP different from standard 6-channel amplifiers?

The UP 6DSP combines professional 6-channel amplification with advanced 7-channel DSP processing, Virtual Channel Processing for complex routing, TuneEQ automated frequency correction, and proprietary sound effects like RealCenter and Augmented Bass Processing - features impossible with conventional amplifiers.

How does Virtual Channel Processing work with 6 physical channels?

VCP allows the 64-bit DSP to process up to 7 independent virtual channels internally, then intelligently route and mix them to the 6 physical amplifier outputs. This enables complex multi-way speaker systems and sophisticated acoustic management.

Can I integrate this amplifier with my factory head unit and steering wheel controls?

Yes, the ADEP.3 high-level input circuit automatically detects and optimizes signals from factory head units while maintaining complete functionality including steering wheel controls, navigation systems, and vehicle diagnostics.

What's included for expanding the system with additional components?

The UP 6DSP features MEC slot for Bluetooth HD and USB HD cards, mono RCA output for external subwoofer amplifiers, SCP port for DIRECTOR/CONDUCTOR controllers, and professional connection cables for system expansion.

How does TuneEQ automated frequency correction work?

TuneEQ requires only one measurement per channel with a calibration microphone to automatically adjust all parametric equalizer parameters (frequency, Q-factor, gain) to your desired reference curve, dramatically reducing professional tuning time while achieving precise results.

Compatible With / Goes Well With

MATCH Ecosystem: DIRECTOR system controller, CONDUCTOR multi-zone processor, MEC BT HD Bluetooth card, MEC USB HD interface, professional T-harnesses for vehicle integration

Professional Accessories: MTK1 calibration microphone for TuneEQ, URC remote controls, mounting brackets, vehicle-specific harnesses for seamless OEM integration

System Components: Premium speaker systems optimized for DSP processing, MATCH and HELIX subwoofers, professional installation accessories and sound deadening materials

Scope of Delivery

• 1 x MATCH UPGRADE amplifier UP 6DSP
• 5 x Connection cable
• 1 x Mounting plates & material
• 1 x USB cable
• 1 x Instruction manual
