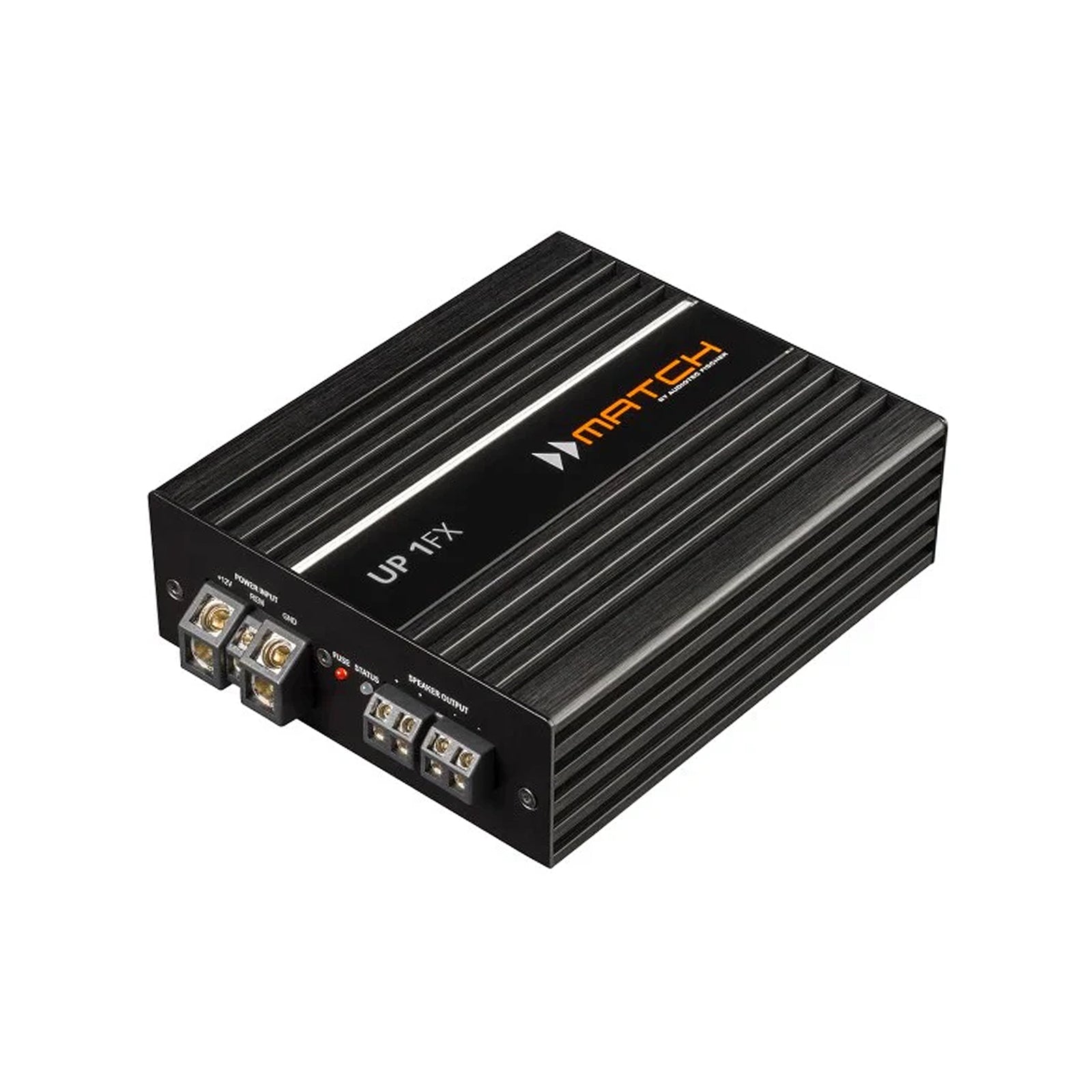

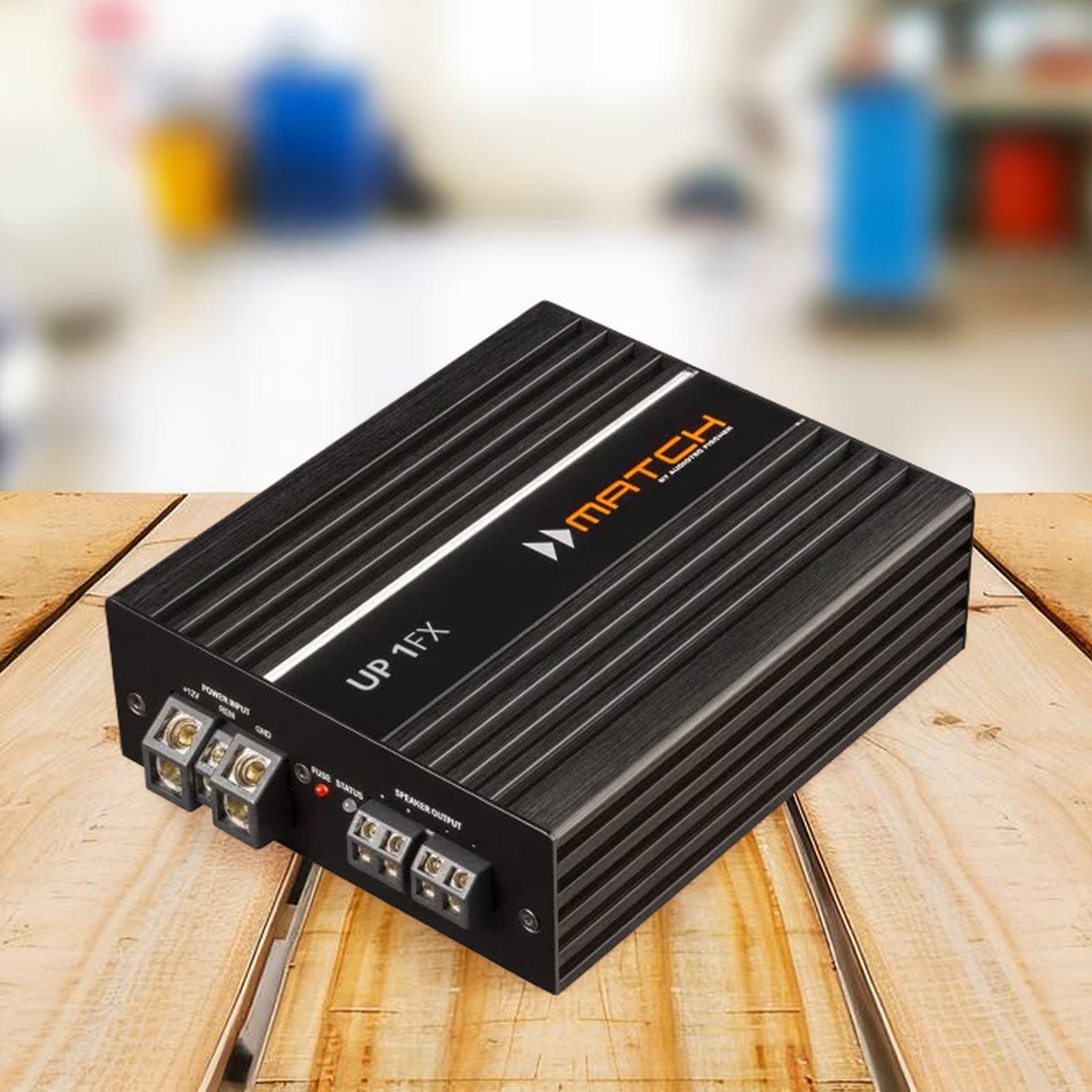

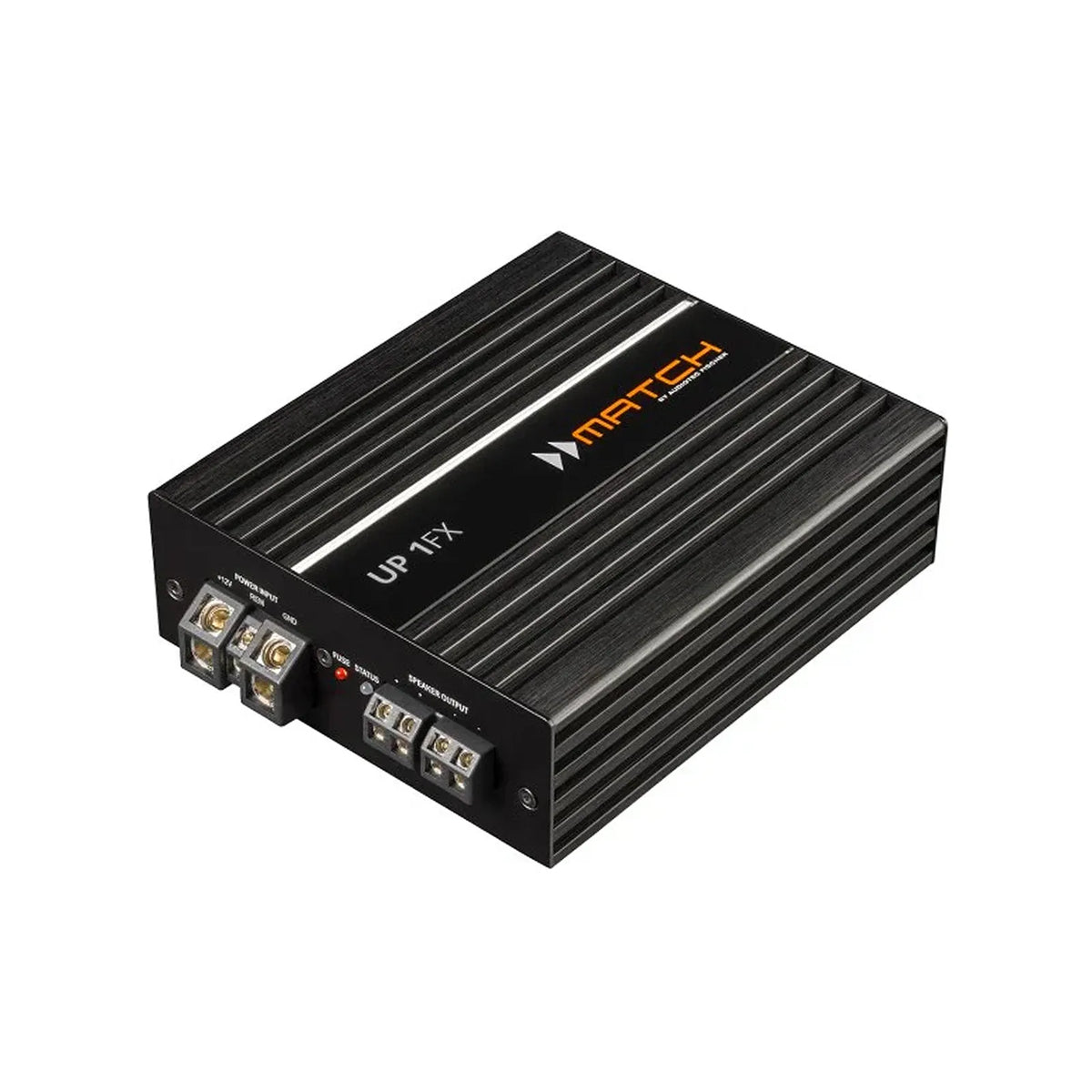

MATCH UP 1FX - 1 Channel Compact Digital High-Power Amplifier | 1Ω Stable

Unleash massive subwoofer performance from an ultra-compact German-engineered powerhouse.

Product Overview

The MATCH UP 1FX represents the pinnacle of compact high-power amplification technology, delivering up to 900W RMS in an incredibly small footprint. This single-channel Class D amplifier is specifically engineered for subwoofer applications and factory system upgrades, combining exceptional power density with audiophile-grade sound quality. Built with advanced ADEP.3 circuitry and Start-Stop capability, the UP 1FX integrates seamlessly with modern factory systems while providing the massive power needed to drive demanding subwoofers to their full potential.

Key Specifications

• Output power: 350W @ 4Ω / 600W @ 2Ω / 900W @ 1Ω RMS
• Maximum output: Up to 1000W RMS at 1Ω loading
• Class D technology: Advanced high-efficiency design
• Input options: 1× mono RCA, 2× high-level with signal summing
• Input sensitivity: Up to 32V RMS high-level capability
• Dimensions: 46 × 130 × 153mm ultra-compact footprint
• Operating voltage: 10.5-18V with Start-Stop compatibility
• Signal-to-noise ratio: 108dB (A-weighted)
• Total harmonic distortion: 0.002%

Features & Benefits

Massive Power in Minimal Space - Delivers 900W RMS from dimensions smaller than most smartphones, enabling powerful subwoofer installations in space-constrained vehicles without compromising performance or installation flexibility.

Factory Integration Excellence - ADEP.3 circuitry prevents diagnostic errors and preserves all factory radio functions including fader controls, while high-level inputs with signal summing eliminate the need for additional line output converters.

Modern Vehicle Compatibility - Start-Stop capability maintains operation during engine cycling, while extended 18V input voltage tolerance ensures compatibility with modern electric and hybrid vehicle electrical systems.

Audiophile Sound Quality - Ultra-low 0.002% THD and 108dB signal-to-noise ratio deliver pristine audio quality that rivals much larger amplifiers, making it suitable for both subwoofer and high-performance midbass applications.

DirectDSP Functionality - Unique bypass mode routes unfiltered signal directly to output stages, enabling perfect integration with external DSP processors and MATCH UPGRADE amplifier systems.

Technical Specs

Power Output:

• 1 × 350W RMS @ 4Ω
• 1 × 600W RMS @ 2Ω
• 1 × 900W RMS @ 1Ω
• Maximum: 1000W RMS @ 1Ω

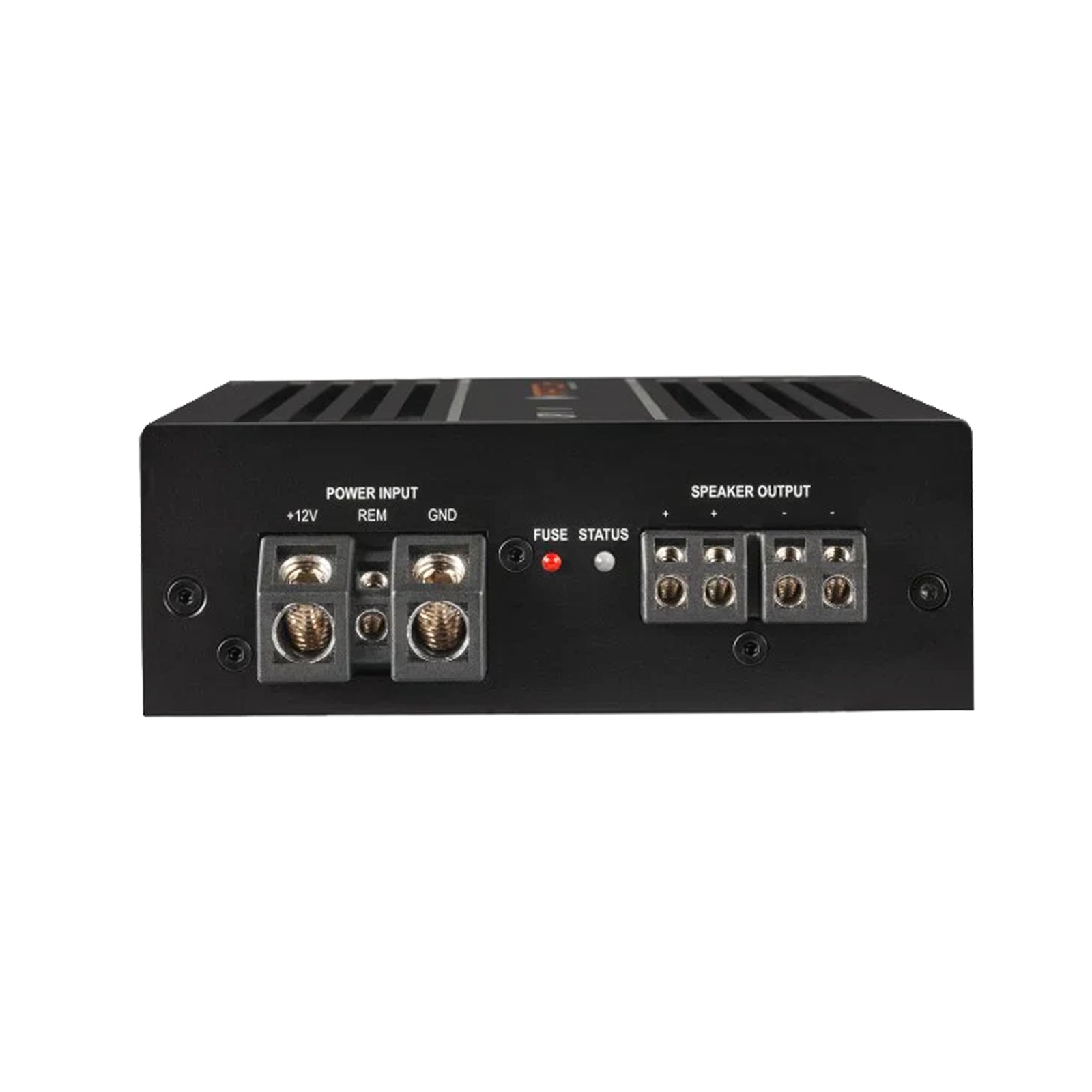

Input/Output Configuration:

• Inputs: 1× RCA/mono, 2× high-level stereo with summing
• Input sensitivity: 0.5-3V RCA / 2.5-32V high-level
• Input impedance: 8.6kΩ RCA / 9-33Ω high-level
• Outputs: 1× speaker terminal

Audio Performance:

• Frequency response: 10Hz - 25,000Hz
• Signal-to-noise ratio: 108dB (A-weighted)
• Total harmonic distortion: 0.002%
• Damping factor: 160

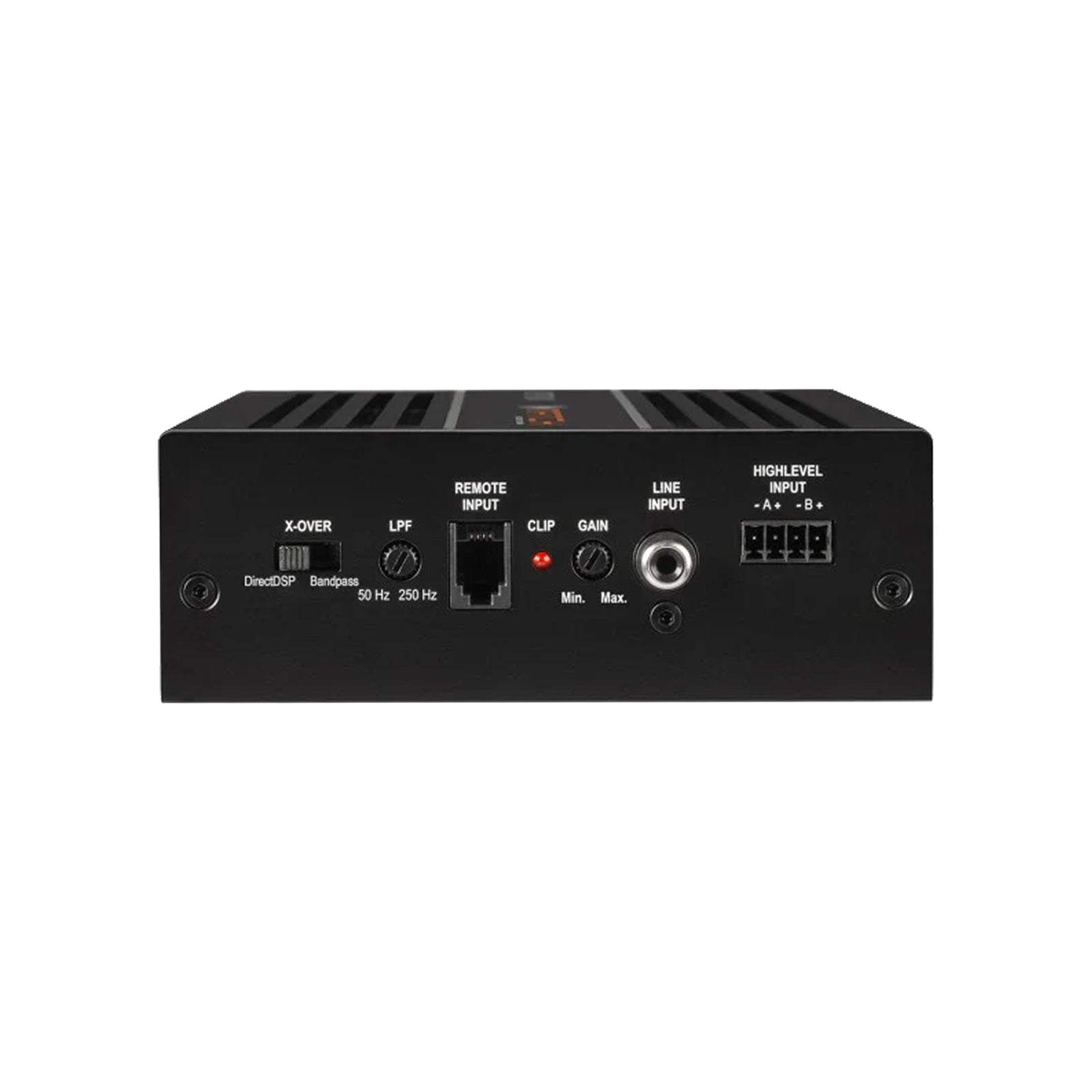

Control Features:

• Adjustable low-pass filter: 50Hz - 250Hz (defeatable)
• Subsonic filter: 15Hz (defeatable)
• Filter slope: 12dB/octave
• DirectDSP bypass mode
• Clipping indicator LED

Frequently Asked Questions

Will this work with my factory amplified system? Yes, the ADEP.3 circuitry is specifically designed to integrate with factory amplified systems without triggering diagnostic errors or losing radio functions like fader control.

Can I use this amplifier for speakers other than subwoofers? Yes, the DirectDSP mode bypasses internal filtering, making it excellent for driving high-performance midbass drivers in audiophile installations requiring external crossover control.

How much power will this draw from my electrical system? Maximum power consumption is 80A at 12V, but typical operation draws significantly less. The Start-Stop capability ensures reliable operation during engine cycling.

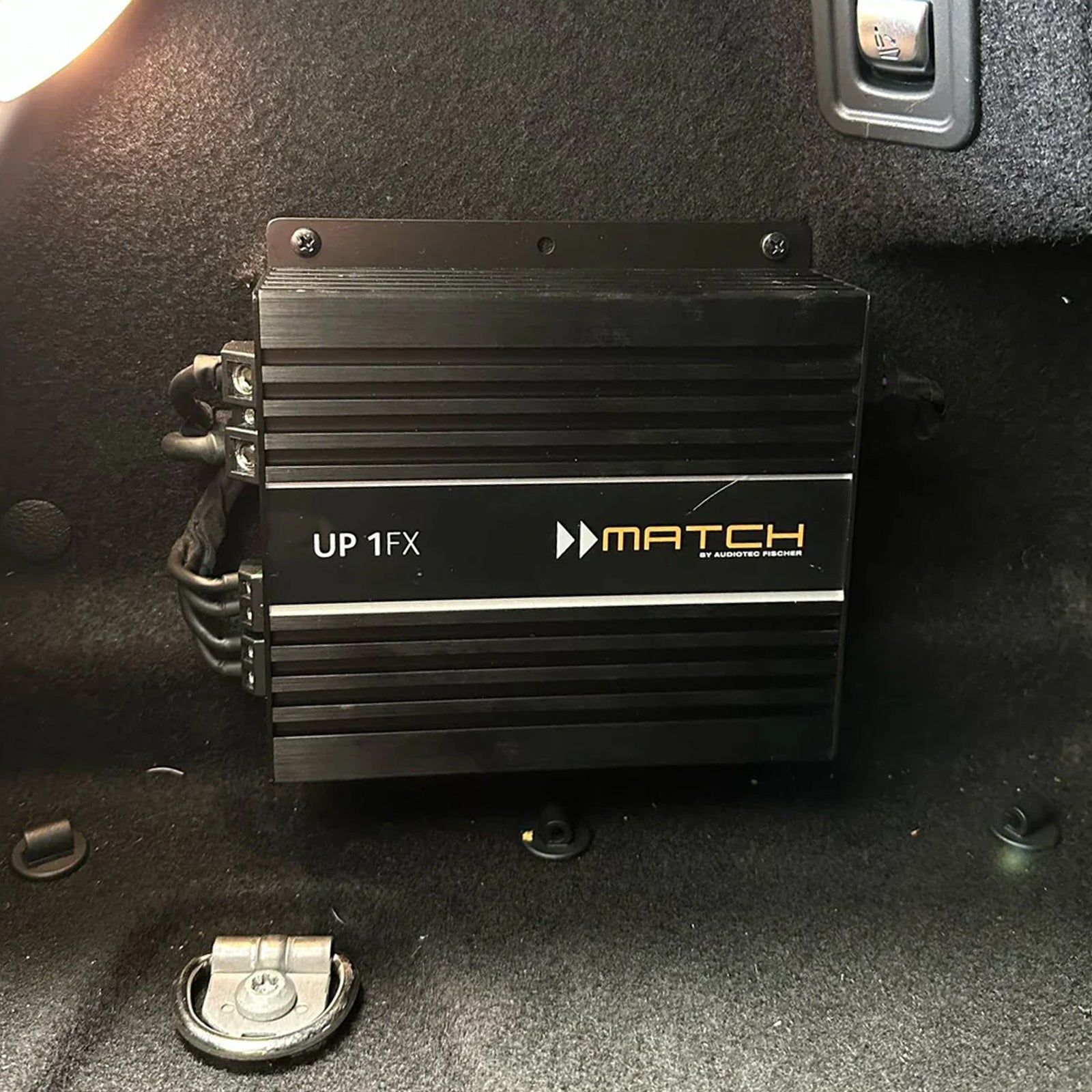

Will this fit in my limited installation space? At only 46×130×153mm, the UP 1FX is one of the most compact 900W amplifiers available, fitting in spaces where traditional high-power amplifiers cannot.

Is this compatible with MATCH DSP amplifiers? Yes, the mono RCA input and DirectDSP function make it the perfect complement to MATCH M series DSP amplifiers for dedicated subwoofer duties.

Compatible With / Goes Well With

Subwoofer Applications:

• HELIX subwoofer chassis and enclosures
• MATCH PP series subwoofer enclosures
• High-performance aftermarket subwoofers (1-4Ω)
• Factory subwoofer upgrades and replacements

System Integration:

• MATCH M series DSP amplifiers
• Factory radio systems with ADEP.3 compatibility
• External DSP processors via DirectDSP mode
• Modern vehicles with Start-Stop systems

Installation Accessories:

• Remote bass control (optional)
• High-quality power and signal cables
• Professional installation services
