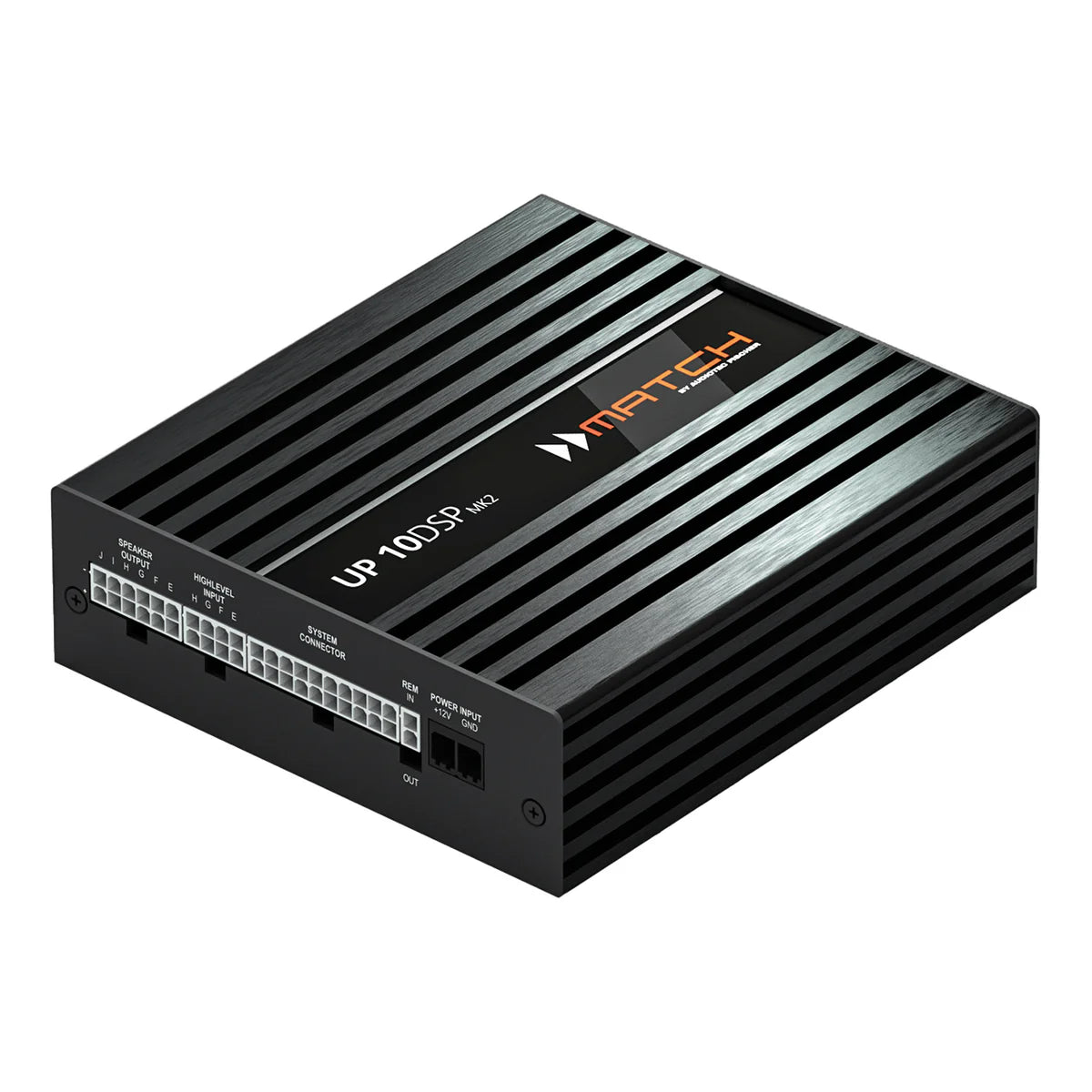

Match UP 10DSP MK2 10-Channel Class GD Plug-and-Play Amplifier with 11-Channel DSP
A 10-channel Class GD plug-and-play amplifier with integrated 11-channel DSP from Match, the UP 10DSP MK2 delivers 8 x 65W RMS at 4Ω (channels A-H) and 2 x 125W RMS at 2Ω subwoofer channels (I-J), with 8 high-level ADEP.3 inputs including 2 high-voltage inputs up to 32V, optical SPDIF, Extension Card 2.0 slot, USB-C, galvanically isolated mono RCA output, 64-bit DSP at 295 MHz, ACO 32-bit CoProcessor, AISA, TuneEQ, VCP, Augmented Bass Processing, RealCenter, SOP Max, Power Save Mode, Auto Remote, EV-ready 10.5-18V operation, and SCP Smart Control Port, with DSP PC-Tool 6 and TuneEQ 2.0 compatibility.
Product Overview
The Match UP 10DSP MK2 is the second-generation 10-channel plug-and-play amplifier from the Match UPGRADE range, purpose-built as the ideal solution for high-quality sound upgrades in modern vehicles with complex multi-channel factory sound systems. As an MK2 update, it adds USB-C connectivity, an Extension Card 2.0 slot with cross-series compatibility, and AISA (Advanced Input Signal Analyzer) for improved OEM signal analysis over the original UP 10DSP. It is also EV-ready with an extended operating voltage to 18V.
The Class GD amplifier delivers 8 x 65W RMS at 4Ω (minimum 3Ω) on channels A-H and 2 x 75W RMS at 4Ω / 2 x 125W RMS at 2Ω on subwoofer channels I-J, with maximum output of up to 80W per channel (A-H) and up to 160W per channel at 2Ω (I-J). The 11-channel DSP runs on a 64-bit fixed-point processor at 295 MHz (1.2 billion MAC operations per second) with BurrBrown A/D and D/A converters, 48kHz sampling rate, SNR of 105dB from digital input and 103dB from analog input, and THD at 1kHz below 0.015%.
The 8 high-level ADEP.3 inputs cover two sensitivity groups: channels A-F accept 4-16V for standard OEM applications, and channels G-H accept 4-32V for high-voltage OEM amplifier outputs. With the optional Extension Card 2.0 ANALOG IN module, the system expands to 10 inputs for full 1:1 IOR. The optical SPDIF input (12-96kHz) includes automatic digital signal detection for seamless switching between analog and digital inputs. The Extension Card 2.0 slot accepts Bluetooth HD, additional analog/digital inputs, and future expansion modules. The galvanically isolated mono RCA output (3V) connects external amplifiers such as the Match UP 1FX. SOP Max technology maintains consistent output power regardless of input voltage. Power Save Mode reduces consumption when no signal is detected. The SCP Smart Control Port accepts optional remote controls. Operating voltage is 10.5-18V with Start-Stop capability to 6V. Fused at 2 x 25A LP-Mini (APS). USB-C connection for DSP PC-Tool 6 with TuneEQ 2.0 and TuneToTarget.
Features & Benefits
10-Channel Output - 8 x 65W RMS at 4Ω Plus Dedicated Subwoofer Channels at 2 x 125W RMS: Channels A-H deliver 8 x 65W RMS at 4Ω for full-range speaker channels, while channels I-J deliver 2 x 75W RMS at 4Ω and 2 x 125W RMS at 2Ω for dedicated subwoofer outputs, covering a complete multi-channel OEM replacement system from a single amplifier unit.
11-Channel Integrated DSP - 64-Bit Fixed-Point at 295 MHz: The 11-channel DSP delivers 64-bit fixed-point audio processing at 295 MHz (1.2 billion MAC operations per second) for complex multi-channel equalisation, crossover, time alignment, and sound effect processing across all 10 amplifier output channels plus 1 additional DSP channel.
8 High-Level ADEP.3 Inputs with Dual Voltage Ranges - Up to 32V: Channels A-F accept 4-16V for standard OEM applications, and channels G-H accept 4-32V for high-voltage OEM amplifier outputs from premium factory systems including Harman, Bose, Burmester, and other high-output configurations. All 8 inputs use ADEP.3 Gen 3 circuitry for seamless OEM integration without error messages.
Extension Card 2.0 Slot - Expandable to 10 Inputs with 1:1 IOR: The new Extension Card 2.0 slot accepts the optional ANALOG IN expansion card to extend the system to 10 inputs, enabling direct 1:1 Input-to-Output Routing for all 10 channels. The Extension Card 2.0 also accepts Bluetooth HD streaming, additional digital inputs, and future expansion modules, with a screw-secured plastic cover and cross-series compatibility.

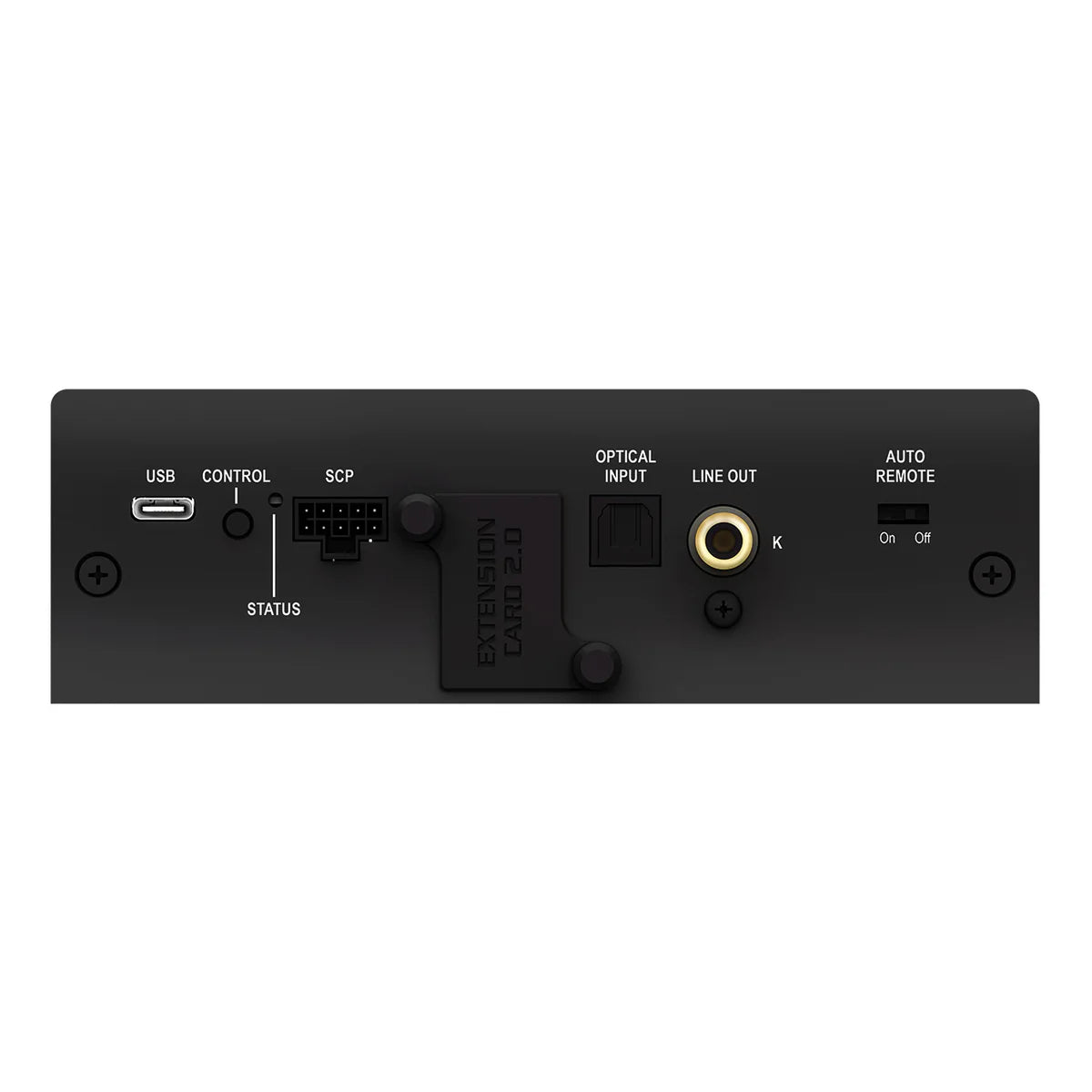

USB-C Connection for DSP PC-Tool 6: USB-C replaces the previous USB-A connection for modern, reliable access to DSP PC-Tool 6 software for system configuration, TuneEQ 2.0 automated calibration, and TuneToTarget function.
DSP PC-Tool 6 with TuneEQ 2.0 and TuneToTarget: The UP 10DSP MK2 is configured via DSP PC-Tool 6, featuring TuneEQ 2.0 for automated parametric EQ calibration and the new TuneToTarget function for automated frequency response alignment to a specified reference target curve, significantly streamlining complex multi-channel system tuning.
ACO 32-Bit CoProcessor - AISA, TuneEQ, VCP, RealCenter, Augmented Bass Processing, DLC, RTC: The ACO platform provides AISA (Advanced Input Signal Analyzer) with InputEQ for advanced OEM signal analysis and correction, TuneEQ automated calibration, VCP cross-channel group equalizers and multi-way speaker configuration with DSP Sound Effects, RealCenter dynamic center image synthesis, Augmented Bass Processing (Dynamic Bass Enhancement and SubXpander), DLC, and RTC, with up to 10 sound setup memories.
VCP - Virtual Channel Processing for Complex 10-Channel OEM Systems: VCP provides cross-channel group equalizers affecting multiple output channels simultaneously and multi-way speaker configuration with DSP Sound Effects, enabling the most complex OEM multi-channel system configurations including split front, rear, center, and subwoofer architectures to be implemented and tuned with precision.
SOP Max - Stabilized Output Power Technology: SOP Max maintains consistently stable full output power at all times regardless of input voltage fluctuations, ensuring steady system performance across all modern vehicle platforms including those with dynamic alternator regulation.
Power Save Mode - Automatic Consumption Reduction: Power Save Mode automatically reduces amplifier and connected amplifier power consumption when no music signal is detected, with adjustable switch-off delay via DSP PC-Tool 6.
Automatic Digital Signal Detection: The amplifier automatically detects and switches to the optical SPDIF input when a digital signal is present, with optional manual override via a remote control or deactivation in DSP PC-Tool 6.
EV-Ready - 10.5-18V Extended Operating Range: The extended operating voltage range of 10.5-18V with Start-Stop capability to 6V ensures reliable operation in electric vehicles, mild hybrids, and modern vehicles with higher electrical system voltages.
Galvanically Isolated Mono RCA Output: The galvanically isolated mono RCA output at 3V connects external amplifiers such as the Match UP 1FX without ground loop noise.
Auto Remote Switch and Start-Stop Capability: Auto Remote activates the amplifier from the audio signal without a remote wire. Start-Stop capability maintains stable operation to 6V.
What's in the Box
- Match UPGRADE Amplifier UP 10DSP MK2
- 2 x Connection Cables
- 1 x Power Input Connector
- Mounting Plates and Material
- USB Cable
- Instruction Manual
Technical Specs
| Specification | Detail |
|---|---|
| SKU | UP 10DSP MK2 |
| Brand | Match |
| Range | UPGRADE |
| Generation | MK2 |
| Channels | 10 (Amplifier) / 11 (DSP) |
| Amplifier Class | Class GD (Pure GD Ultra HD) |
| Power RMS - Ch A-H at 4Ω | 8 x 65W (min. 3Ω) |
| Power RMS - Ch I-J at 4Ω | 2 x 75W (min. 3Ω) |
| Power RMS - Ch I-J at 2Ω | 2 x 125W |
| Max Output - Ch A-H at 4Ω | Up to 80W per Channel |
| Max Output - Ch I-J at 4Ω | Up to 90W per Channel |
| Max Output - Ch I-J at 2Ω | Up to 160W per Channel |
| THD at 1kHz, 1W into 4Ω | Less than 0.015% |
| THD+N at 1kHz, 1W into 4Ω | Less than 0.02% |
| High-Level Inputs - Ch A-F | 6 x High-Level ADEP.3 (4-16V, 9-33Ω) |
| High-Level Inputs - Ch G-H | 2 x High-Level ADEP.3 (4-32V, 9-33Ω) |
| RCA Inputs | None |
| Digital Input | 1 x Optical SPDIF (12-96kHz) |
| Extension Card Slot | 2.0 (Cross-Series Compatible) |
| USB | USB-C |

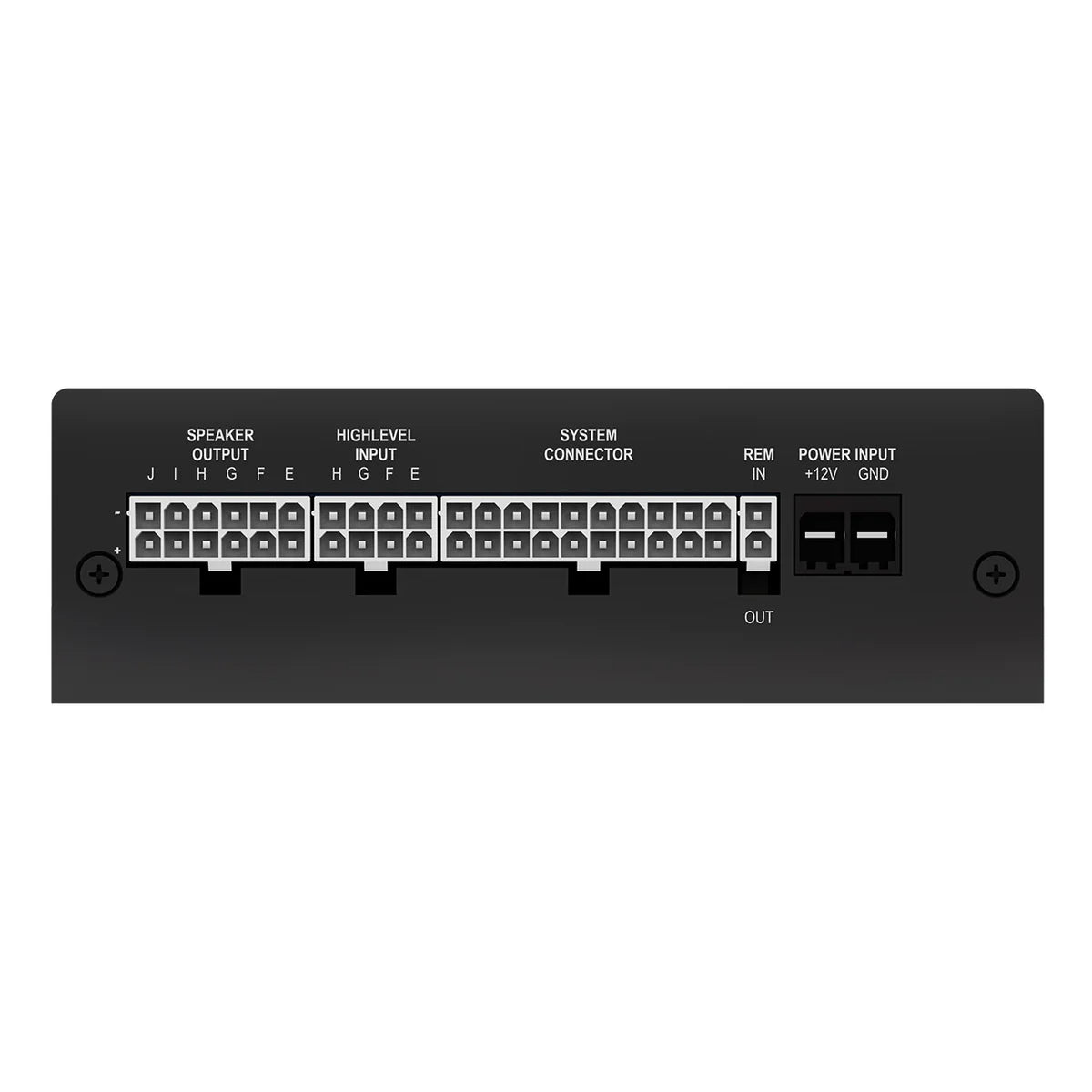

| Outputs | 10 x Speaker, 1 x RCA Mono (3V, Galvanically Isolated), 1 x Remote Out |
| Frequency Response | 15Hz-22,000Hz |
| SNR - Digital Input | 105dB (A-weighted) |
| SNR - Analog Input | 103dB (A-weighted) |
| DSP Resolution | 64-Bit Fixed-Point |
| DSP Processing Power | 295 MHz (1.2 Billion MAC ops/sec) |
| Sampling Rate | 48kHz |
| Signal Converters | BurrBrown A/D and D/A |
| CoProcessor | ACO 32-Bit |
| Sound Setup Memories | 10 |
| SCP | Yes (Smart Control Port) |
| SOP Max | Yes (Stabilized Output Power) |
| Power Save Mode | Yes |
| Auto Remote | Yes |
| Operating Voltage | 10.5-18V (Stable to 6V for 5 Seconds) |
| Power Rating | DC 12V, 60A Max |
| Idle Current | 500mA |
| Max Remote Output Current | 500mA |
| Fuse | 2 x 25A LP-Mini (APS) |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 46mm x 145mm x 163mm |
DSP Features
| Feature | Detail |
|---|---|
| AISA | Advanced Input Signal Analyzer with InputEQ for OEM signal correction |
| TuneEQ 2.0 | Automated parametric EQ calibration via measurement microphone |
| TuneToTarget | Automated frequency response alignment to reference target curve |
| VCP | Virtual Channel Processing with cross-channel group EQ |
| 1:1 IOR | Available with optional Extension Card 2.0 ANALOG IN module |
| RealCenter | Dynamic center image synthesis |
| Augmented Bass Processing | Dynamic Bass Enhancement and SubXpander |
| DLC | Dynamic Loudness Control |
| RTC | Remote Tone Control |
| Sound Setups | Up to 10 with instant ACO switching |
| DSP PC-Tool | Version 6 |
Compatible With
The UP 10DSP MK2 is compatible with 10.5-18V vehicle electrical systems including EV and mild hybrid platforms. High-level ADEP.3 inputs A-F support factory OEM head units at 4-16V. Channels G-H support high-voltage OEM amplifier outputs at 4-32V. Optical SPDIF accepts 12-96kHz digital signals. Extension Card 2.0 accessories including ANALOG IN, Bluetooth HD, and future modules are sold separately. Optional vehicle-specific plug-and-play wiring harnesses are sold separately. The optional Extension Card 2.0 ANALOG IN module is required for 1:1 IOR with 10 inputs. DSP configuration via DSP PC-Tool 6.
Frequently Asked Questions
What is new in the UP 10DSP MK2 compared to the original UP 10DSP?
The MK2 adds USB-C connectivity for DSP PC-Tool 6 access, the new Extension Card 2.0 slot (replacing the previous MEC slot) with cross-series compatibility and a screw-secured cover, AISA (Advanced Input Signal Analyzer) for improved OEM signal analysis, TuneEQ 2.0 and TuneToTarget for enhanced automated calibration, SOP Max stabilized output power technology, and an extended operating voltage to 18V for EV compatibility.
Can the UP 10DSP MK2 be expanded to 10 inputs for 1:1 routing?
Yes. With the optional Extension Card 2.0 ANALOG IN expansion module (sold separately), the UP 10DSP MK2 expands from 8 to 10 inputs, enabling full 1:1 Input-to-Output Routing for all 10 channels in complex OEM multi-channel system integrations.
Why do channels G-H have a different input sensitivity to channels A-F?
Channels G-H accept up to 32V RMS compared to the 16V maximum for channels A-F. This extended voltage range is specifically designed for connection to the higher-voltage speaker outputs of premium factory OEM amplifiers such as Harman, Bose, Burmester, and other high-output factory audio systems commonly found in luxury vehicles.
Is the UP 10DSP MK2 compatible with EV and mild hybrid vehicles?
Yes. The UP 10DSP MK2 operates across 10.5-18V with Start-Stop capability to 6V, supporting the higher and more variable supply voltages of electric vehicles and mild hybrid platforms, as well as conventional combustion engine vehicles.
What is the difference between the UP 10DSP MK2 and the UP 8DSP?
The UP 10DSP MK2 provides 10 amplifier channels and 11 DSP channels with 8 high-level inputs including 2 high-voltage inputs to 32V, Extension Card 2.0, USB-C, AISA, and TuneEQ 2.0 in a 46 x 145 x 163mm housing optimised for complex 10-channel OEM systems. The UP 8DSP provides 8 amplifier channels and 9 DSP channels in a 46 x 130 x 153mm housing. Choose the UP 10DSP MK2 for 10-channel premium OEM system upgrades with high-voltage input requirements; choose the UP 8DSP for 8-channel OEM system upgrades.
