MATCH PP-PAM 92b Car Radio to Amplifier T-Harness Molex - VAG Quadlock new, v.1 (VW-Audi Group)

MATCH PP-PAM 92b Adapters - Car Radio To Amplifier T-Harness | Molex

Professional integration solution for seamless MATCH DSP amplifier connection to VAG Group factory systems

Product Overview

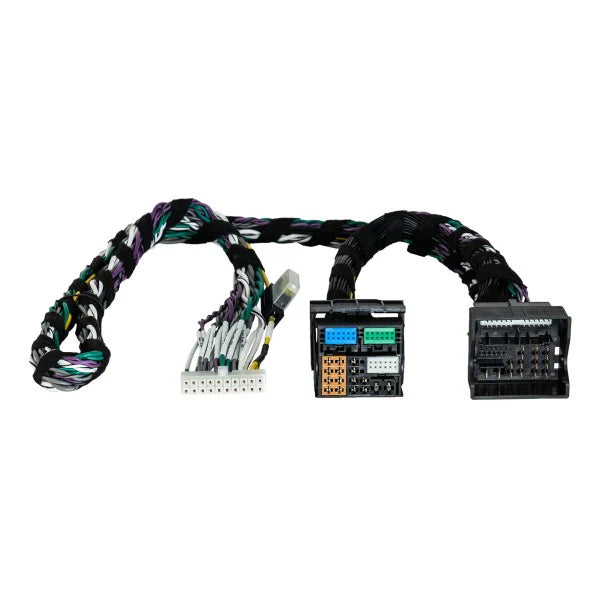

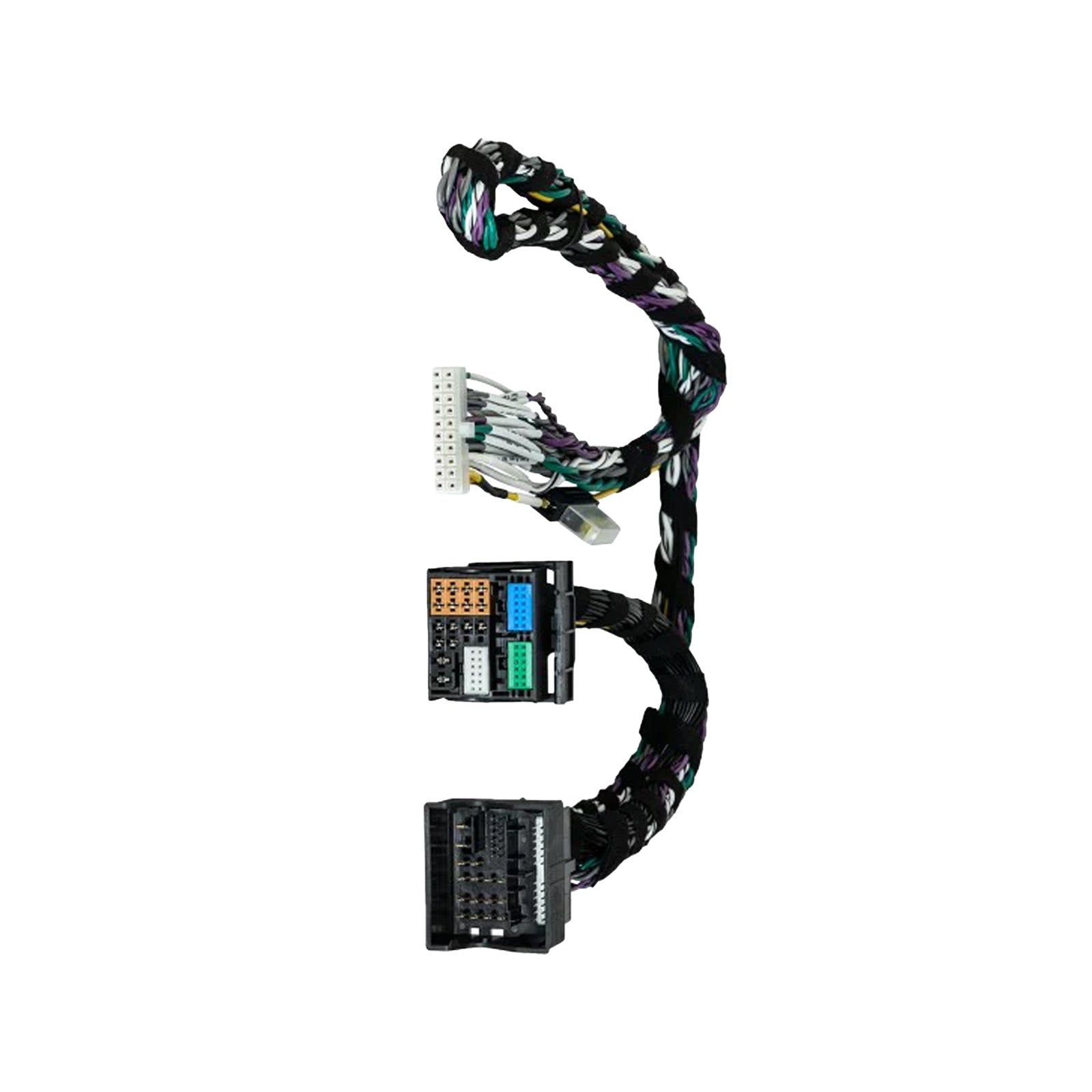

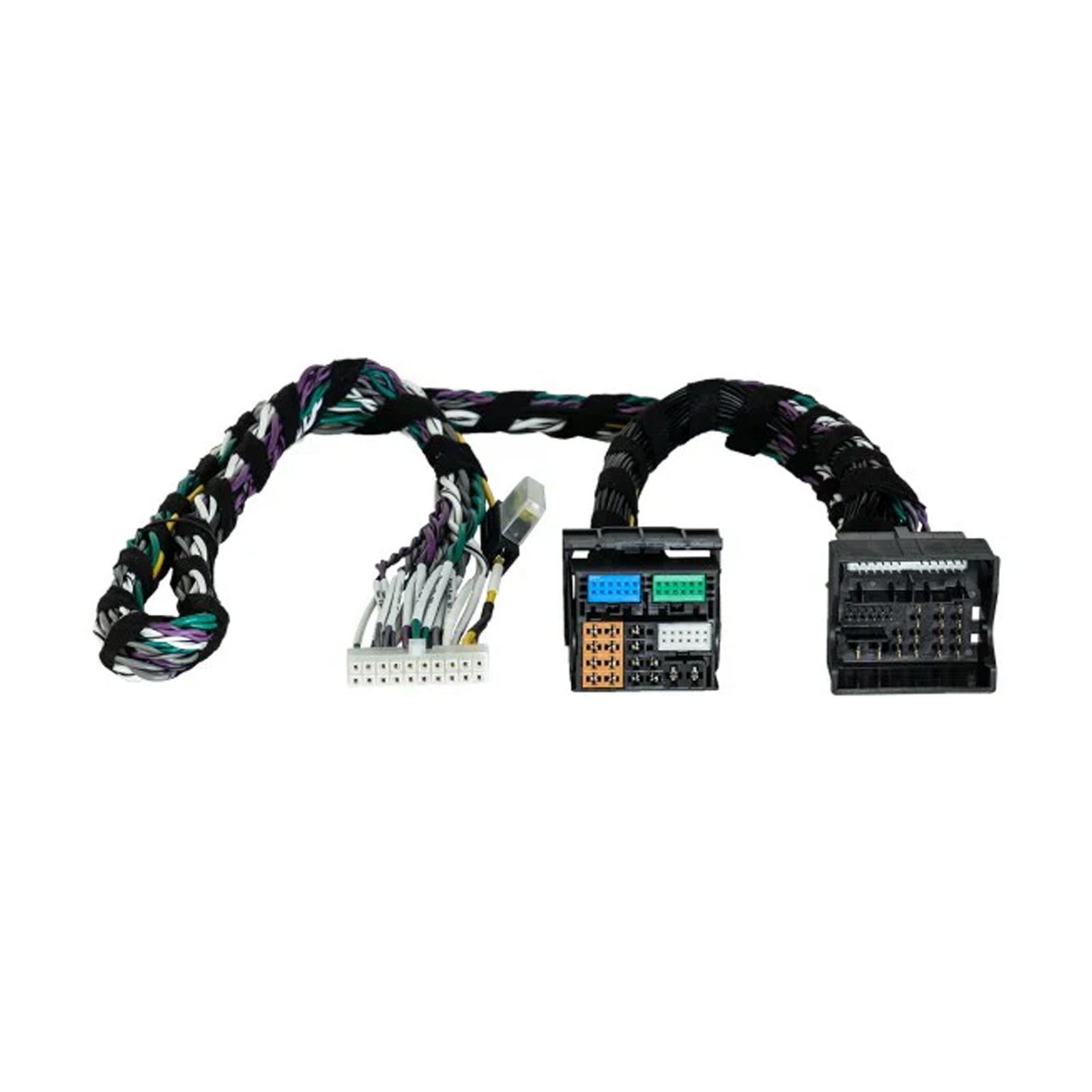

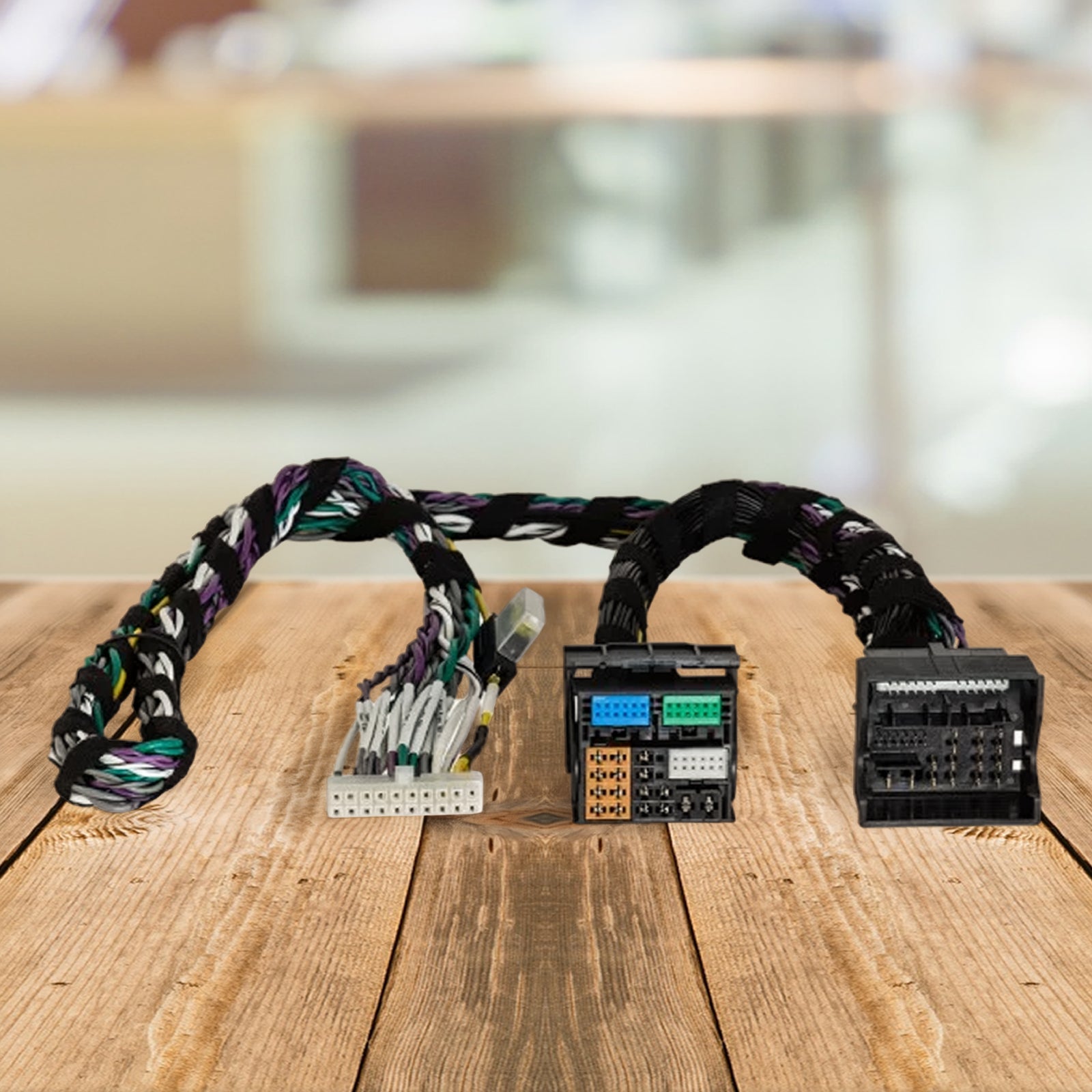

The MATCH PP-PAM 92b Premium Molex adapter provides the ideal solution for seamless integration of MATCH DSP amplifiers with 20-pin System Connector into VAG Group factory sound systems. Engineered to automotive industry standards with high-quality twisted FLRY automotive wiring, this T-harness adapter ensures optimal signal transmission and reliable connection between your MATCH amplifier and factory head unit without compromising original system functionality.

Key Specifications

Connector Configuration:

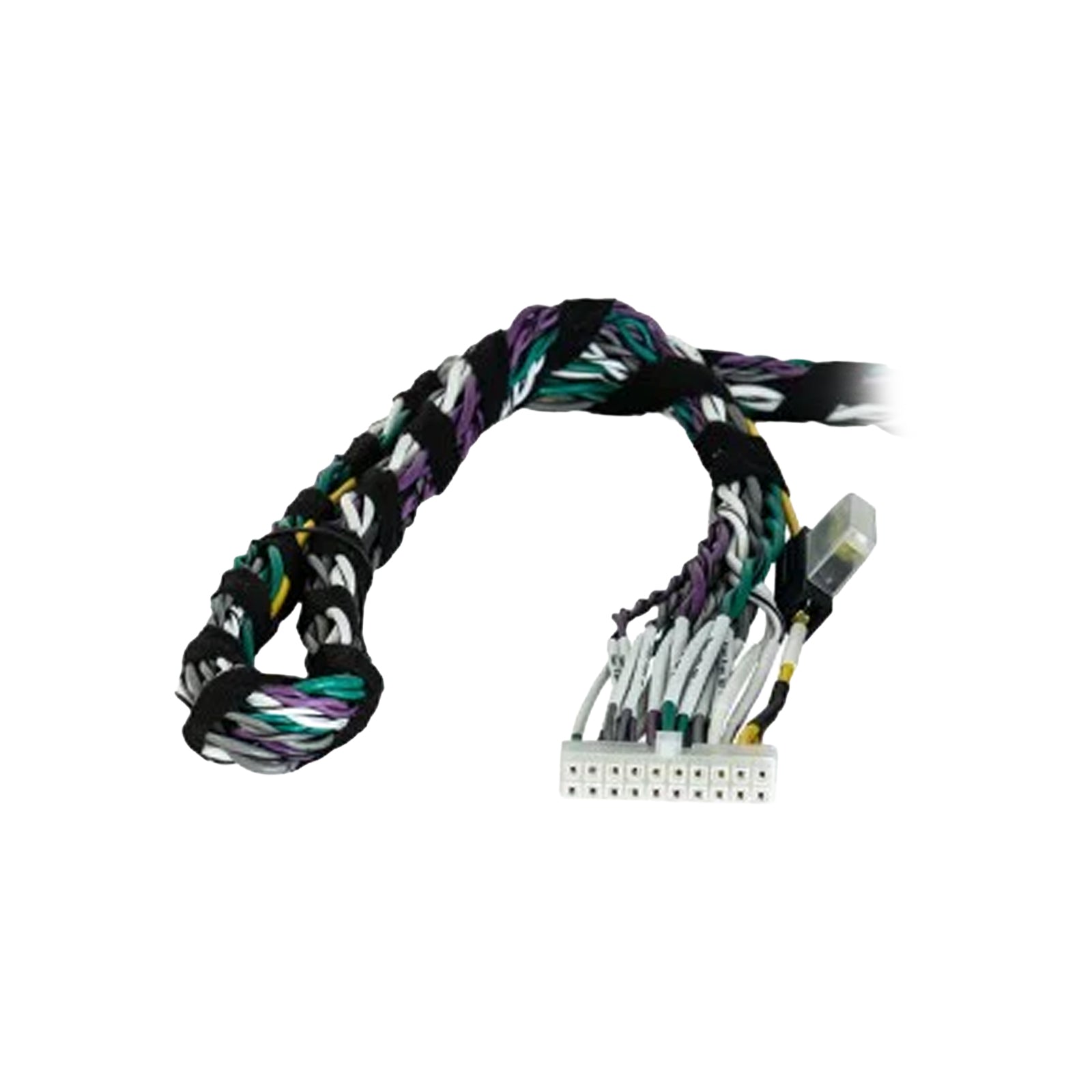

• 1 x 20-pin Molex connector for MATCH amplifier System Connector input

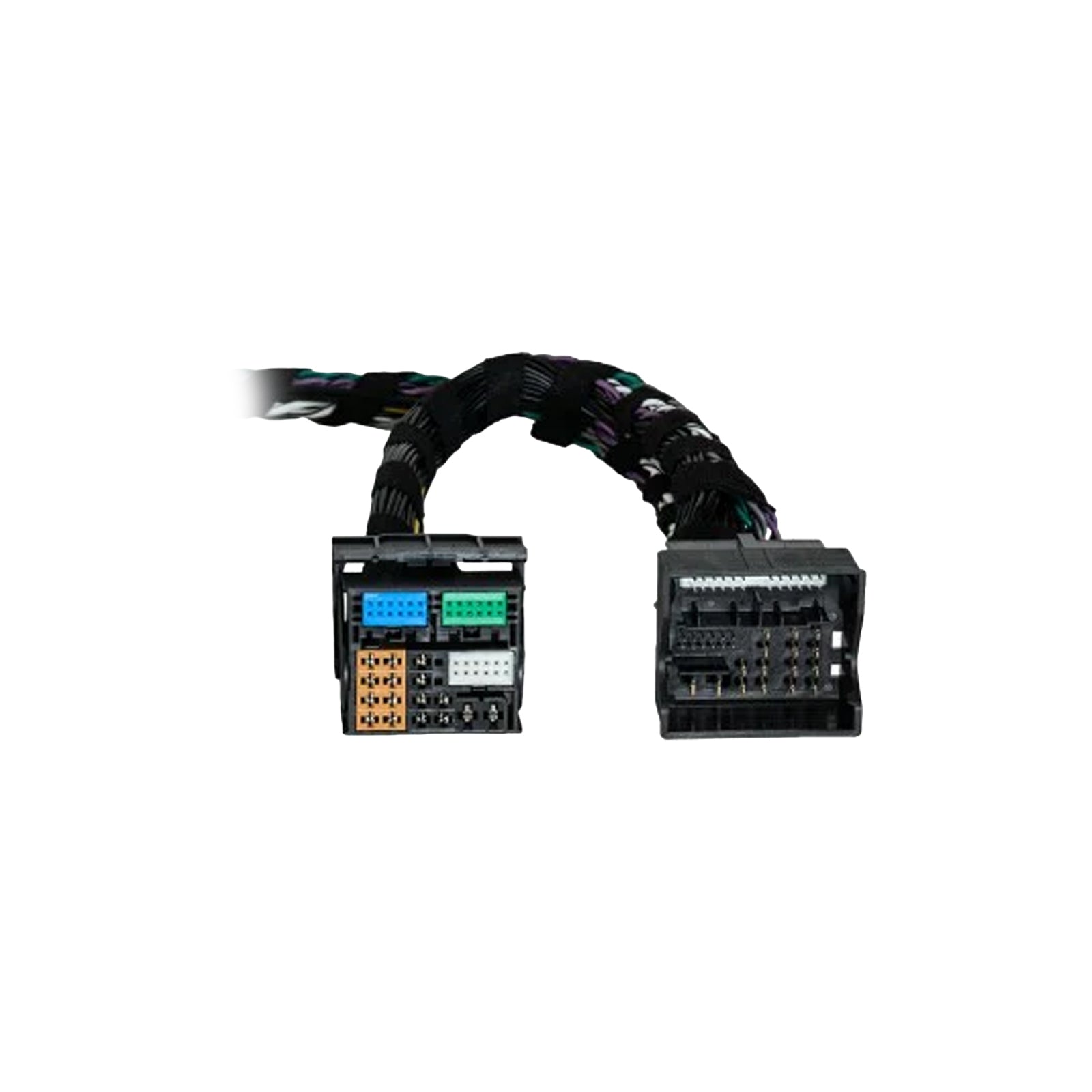

• 1 x 40-pin VAG Quadlock system jack (vehicle side connection)
• 1 x 40-pin VAG Quadlock system plug (factory harness connection)
• Cable harness length: 1.00 meter for flexible installation routing

Vehicle Compatibility:

• VW-Audi Group vehicles with 40-pin VAG Quadlock new v.1 systems only
• Compatible vehicle brands: Volkswagen, Audi, Seat, Škoda
• Use MATCH Upgrade Finder tool to verify specific model compatibility

Construction Standards:

• Automotive-grade twisted "FLRY" wiring specification
• Optimized cable cross-section for minimal conduction losses
• Tape-wrapped protection for enhanced durability and signal integrity

Features & Benefits

• Automotive Industry Standard Construction – Manufactured using high-quality twisted "FLRY" automotive wires meeting strict automotive specifications for temperature range, vibration resistance, and long-term reliability
• Optimized Signal Transmission – Precisely calculated cable cross-section and asymmetrical cable lengths ensure lowest conduction losses and optimal signal integrity between factory head unit and MATCH DSP amplifier
• Plug & Play Integration – T-harness design maintains all factory functionality including steering wheel controls, navigation systems, and vehicle diagnostics while adding MATCH amplifier integration
• Premium Molex Connection – Professional-grade 20-pin Molex connector ensures secure, corrosion-resistant connection to MATCH DSP amplifiers with System Connector input capability
• VAG Group Compatibility – Specifically engineered for 40-pin Quadlock systems found across Volkswagen, Audi, Seat, and Škoda vehicles plus select Toyota and Mercedes applications
• Professional Installation Ready – Asymmetrical cable lengths and tape protection facilitate clean, professional installation routing through vehicle interior panels and mounting locations

Technical Specs

• Cable length: 1.00 meter total harness length
• Wire specification: Twisted "FLRY" automotive-grade conductors
• Temperature range: -40°C to +105°C automotive specification
• Connector types: 20-pin Molex, dual 40-pin VAG Quadlock
• Signal compatibility: High-level and low-level audio signals
• Voltage rating: 12V automotive systems with Start-Stop compatibility
• Protection: Tape-wrapped harness with strain relief
• Installation method: T-harness plug & play design
• Construction: German engineering standards with automotive durability testing

Frequently Asked Questions

Which MATCH amplifiers are compatible with the PP-PAM 92b adapter?

The PP-PAM 92b is designed for MATCH DSP amplifiers featuring 20-pin System Connector input, including the M 5.4DSP, M 7.4DSP, and other MATCH amplifiers with Molex system integration. Verify compatibility using the MATCH Upgrade Finder tool for your specific amplifier model.

Does this T-harness maintain my factory steering wheel controls and navigation?

Yes, the T-harness design preserves all factory functionality including steering wheel controls, navigation systems, Bluetooth connectivity, and vehicle diagnostics. The adapter simply taps the audio signals for the MATCH amplifier while maintaining complete factory system operation.

How do I verify my vehicle has the compatible 40-pin Quadlock connector?

The 40-pin Quadlock is standard on most VAG Group vehicles (VW, Audi, Seat, Škoda) from approximately 2005 onwards, plus select Toyota and Mercedes models. Check your factory head unit connector or use the MATCH Upgrade Finder tool to confirm compatibility with your specific vehicle.

What's the difference between this premium adapter and standard aftermarket harnesses?

The PP-PAM 92b uses automotive-grade twisted "FLRY" wiring with optimized cross-sections for minimal signal loss, whereas standard harnesses often use basic copper wire. The premium construction ensures superior signal integrity and long-term reliability in automotive environments.

Can I install this adapter myself or do I need professional installation?

While the plug & play design enables DIY installation for experienced enthusiasts, professional installation is recommended to ensure proper routing, secure connections, and optimal integration with your MATCH DSP amplifier system for best performance results.

Compatible With / Goes Well With

MATCH Amplifiers: M 5.4DSP, M 7.4DSP, and other MATCH DSP amplifiers with 20-pin System Connector input capability

Professional Services: Authorized MATCH dealer installation, system tuning and calibration services, vehicle-specific integration consultation

System Components: MATCH Plug & Play speakers and subwoofers, DIRECTOR system controller, vehicle-specific mounting solutions and professional installation accessories

Scope of Delivery

• 1 x Premium Molex adaptor cable PP-PAM 92b
