Match PP 86DSP MK2 8-Channel Class HD Amplifier 9ch DSP PnP OEM

Match PP 86DSP MK2 8-Channel Class HD Plug-and-Play Amplifier with 9-Channel DSP

An 8-channel Class HD plug-and-play amplifier with integrated 9-channel DSP from Match, the PP 86DSP MK2 delivers 8 x 55W RMS at 4Ω and 8 x 70W RMS at 2Ω with 2Ω stability across all channels, with 6 high-level ADEP.3 inputs (5-11V), optical SPDIF, MEC expansion slot, 2 galvanically isolated mono RCA outputs, BurrBrown converters, 64-bit DSP at 295 MHz, ACO 32-bit CoProcessor, ISA, TuneEQ, VCP, Augmented Bass Processing, RealCenter, Power Save Mode, Automatic Digital Signal Detection, Auto Remote, EV-ready 10.5-18V operation, and SCP Smart Control Port.

Product Overview

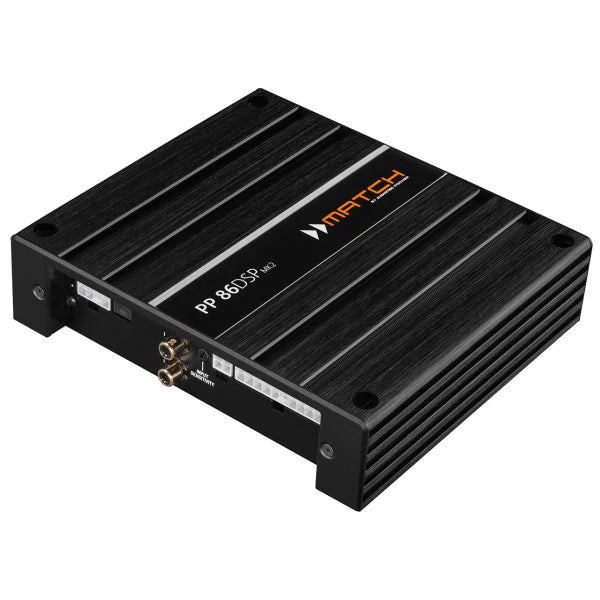

The Match PP 86DSP MK2 is the second-generation 8-channel plug-and-play DSP amplifier from the Match Plug-and-Play (PP) range, designed specifically for audiophile upgrades of multi-channel factory sound systems. As a continuation of the successful PP 86DSP, the MK2 adds enhanced connectivity and updated features while maintaining the same core plug-and-play integration approach using optional vehicle-specific cable harnesses (sold separately) for straightforward connection to existing factory speaker wiring.

The key differentiator of the PP 86DSP MK2 over the UPGRADE range is 2Ω stability across all 8 amplifier channels, enabling direct and reliable connection to virtually any OEM factory speaker, including low-impedance speakers common in premium factory audio systems. All 8 channels deliver 55W RMS at 4Ω and 70W RMS at 2Ω.

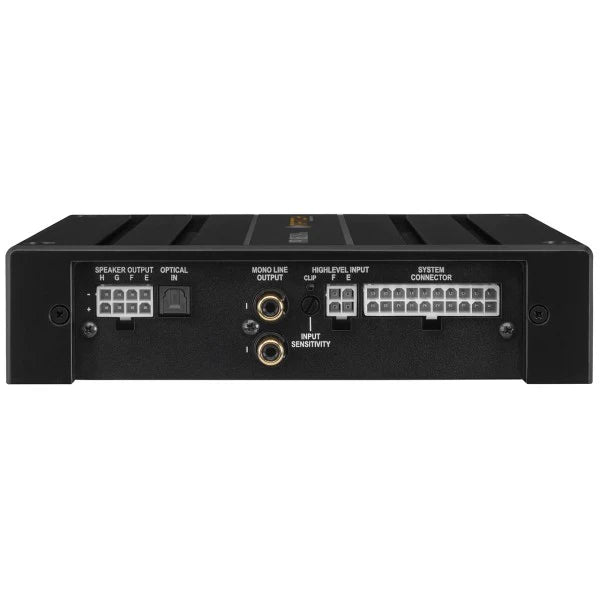

The 9-channel DSP runs at 295 MHz (1.2 billion MAC operations per second) with BurrBrown A/D and D/A converters, 48kHz sampling rate, SNR of 105dB from digital input and 103dB from analog input, and THD below 0.015%. The 6 high-level ADEP.3 inputs (5-11V, 9-33Ω) interface seamlessly with factory head units. The optical SPDIF input (12-96kHz) with Automatic Digital Signal Detection switches automatically when a digital signal is detected. The MEC slot accepts optional Bluetooth HD and USB audio streaming expansion cards, as well as the optional MEC ANALOG IN module for 1:1 IOR expansion. Two galvanically isolated mono RCA outputs at 3V connect external amplifiers such as the Match UP 1FX. Power Save Mode reduces consumption after 60 seconds of no signal. Start-Stop capability to 6V. Protect mode activates below 10.5V for more than 5 seconds. Operating voltage 10.5-18V for EV compatibility. Fused at 2 x 25A LP-Mini (APS).

Features & Benefits

2Ω and 4Ω Stability Across All 8 Channels - Compatible with All OEM Speakers: The PP 86DSP MK2 maintains 2Ω stability across all 8 amplifier channels, enabling direct connection to virtually any factory OEM speaker regardless of impedance, a key advantage over standard 4Ω stable amplifiers when integrating into factory multi-channel systems with low-impedance speaker loads.

8-Channel Class HD Output - 8 x 55W RMS at 4Ω / 8 x 70W RMS at 2Ω: All 8 channels deliver 55W RMS at 4Ω and 70W RMS at 2Ω for a complete 8-channel OEM speaker system upgrade from a single amplifier unit.

Class HD Technology - Maximum Efficiency with Low Heat Dissipation: Class HD combines the dynamic supply rail modulation of Class H technology with Class D switching efficiency, continuously varying the internal supply voltage to minimise idle losses and maintain near-maximum efficiency at all times for reliable operation in demanding OEM integration scenarios.

9-Channel Integrated DSP - 64-Bit Fixed-Point at 295 MHz: The 9-channel DSP delivers 64-bit fixed-point audio processing at 295 MHz (1.2 billion MAC operations per second) for multi-channel equalisation, crossover, time alignment, and sound effect processing across all 8 amplifier output channels plus 1 additional DSP channel.

6 High-Level ADEP.3 Inputs - Seamless OEM Integration: The 6 high-level ADEP.3 inputs (5-11V, 9-33Ω) interface correctly with factory head unit speaker load detection systems, preventing error messages and feature loss in OEM systems. The adjustable 5-11V sensitivity range covers all standard factory head unit output levels.

1:1 IOR with Optional MEC ANALOG IN Module: With the optional MEC ANALOG IN expansion module (sold separately), the PP 86DSP MK2 expands to the same number of inputs as amplifier output channels for 1:1 Input-to-Output Routing across all channels.

ACO 32-Bit CoProcessor - ISA, TuneEQ, VCP, RealCenter, Augmented Bass Processing: The ACO platform provides ISA with InputEQ for OEM signal analysis and correction, TuneEQ automated parametric EQ calibration, VCP cross-channel group equalizers, RealCenter dynamic center image synthesis, Augmented Bass Processing (Dynamic Bass Enhancement and SubXpander), and up to 10 sound setup memories with instant switching.

VCP - Virtual Channel Processing: VCP provides cross-channel group equalizers affecting multiple output channels simultaneously and multi-way speaker configuration with DSP Sound Effects, enabling complex OEM multi-channel system architectures including split front, rear, center, and subwoofer configurations.

Automatic Digital Signal Detection: Automatically switches to the optical SPDIF input when a digital signal is detected, with manual override via optional remote or deactivation in DSP PC-Tool.

Power Save Mode with 1-Second Reactivation: Automatically disables the remote output and connected amplifiers after 60 seconds of no signal, with 1-second reactivation when music is detected.

2 Galvanically Isolated Mono RCA Outputs: Two galvanically isolated mono RCA outputs at 3V connect external amplifiers such as the Match UP 1FX subwoofer amplifier without ground loop noise.

MEC Slot - MATCH Extension Card for System Expansion: Accepts optional Bluetooth HD streaming, USB high-resolution audio streaming, and ANALOG IN expansion modules.

EV-Ready - 10.5-18V Extended Operating Range: Extended operating voltage to 18V with Start-Stop capability to 6V supports modern EV and mild hybrid vehicle platforms.

What's in the Box

• Match PP 86DSP MK2 Amplifier
• 3 x Connection Cables
• 1 x USB Cable
• Mounting Material
• Instruction Manual

Technical Specs

DSP Features

Compatible With

The PP 86DSP MK2 is compatible with 10.5-18V vehicle electrical systems including EV and mild hybrid platforms. High-level ADEP.3 inputs support factory OEM head units at 5-11V. Optical SPDIF input accepts 12-96kHz digital signals. The MEC ANALOG IN module is required for 1:1 IOR and is sold separately. Optional MEC modules including Bluetooth HD and USB audio streaming cards are sold separately. Optional vehicle-specific plug-and-play cable harnesses for OEM integration are sold separately. DSP configuration via DSP PC-Tool 5.

Frequently Asked Questions

What makes the PP 86DSP MK2 different from the UP 8DSP?

Both are 8-channel Class amplifiers with 9-channel DSP from Match. The PP 86DSP MK2 uses Class HD technology and is 2Ω stable across all 8 channels, making it suited for direct connection to virtually any factory OEM speaker including low-impedance loads. The UP 8DSP uses Class GD technology with higher per-channel output power but is rated to 4Ω minimum on channels A-F. The PP range is specifically designed for multi-channel OEM speaker replacement at lower output power; the UPGRADE range targets higher-performance aftermarket speaker installations.

What is 2Ω stability and why does it matter for OEM system upgrades?

2Ω stability means all 8 amplifier channels can safely drive speaker loads down to 2Ω without performance degradation or thermal shutdown. Many factory OEM speakers, particularly in premium factory systems, have nominal impedances below 4Ω. A 2Ω stable amplifier can connect directly to these speakers without modification, making the PP 86DSP MK2 compatible with virtually all factory speaker configurations.

Does the PP 86DSP MK2 require a remote wire for turn-on?

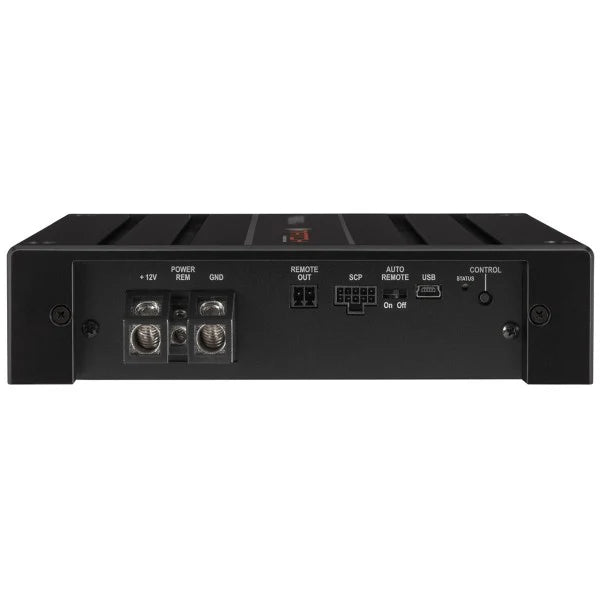

No. The Auto Remote function activates the amplifier from the audio signal without requiring a separate remote wire.

Can the PP 86DSP MK2 be expanded to support more inputs?

Yes. With the optional MEC ANALOG IN expansion module (sold separately), the system expands to support 1:1 Input-to-Output Routing across all channels. The MEC slot also accepts optional Bluetooth HD and USB audio streaming cards.

What happens if the supply voltage drops below 10.5V?

If the supply voltage drops below 10.5V for more than 5 seconds, the PP 86DSP MK2 enters protect mode (status LED illuminates red) to prevent further battery discharge. Normal operation resumes when voltage returns to the operating range.
