Transform your car's audio with professional DSP amplification in an ultra-compact smartphone-sized package

Product Overview

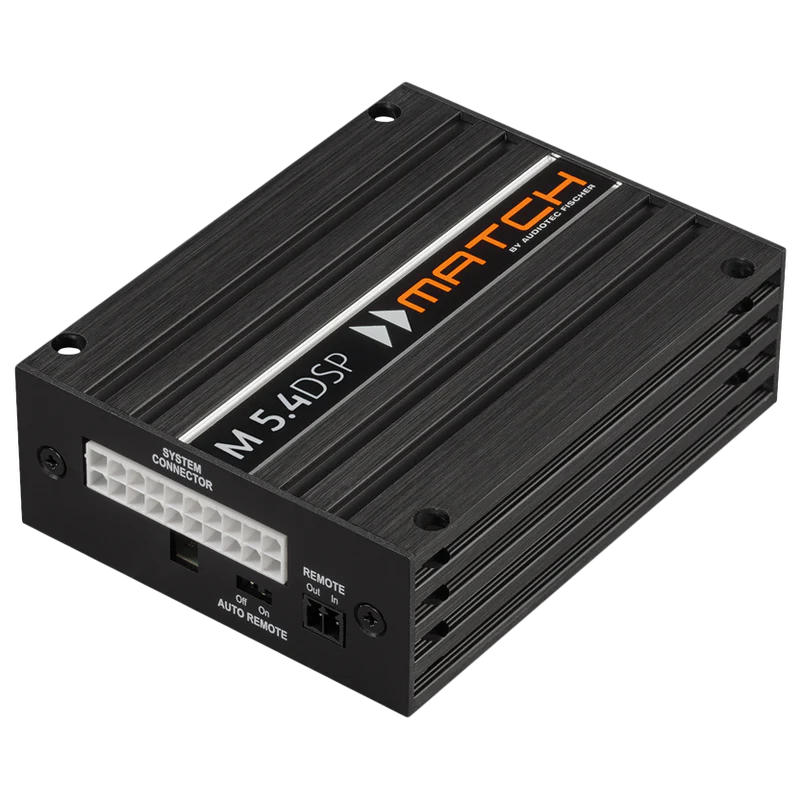

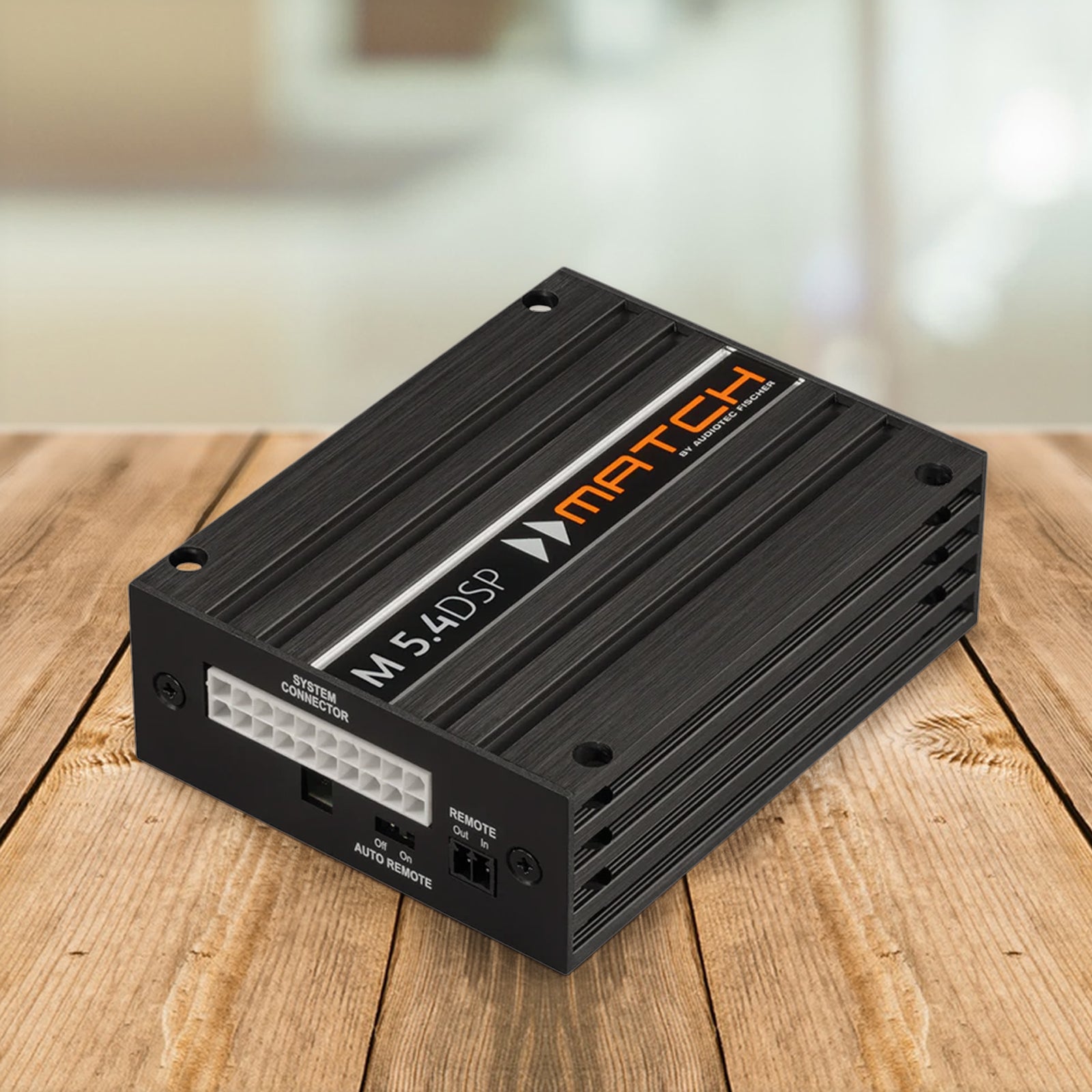

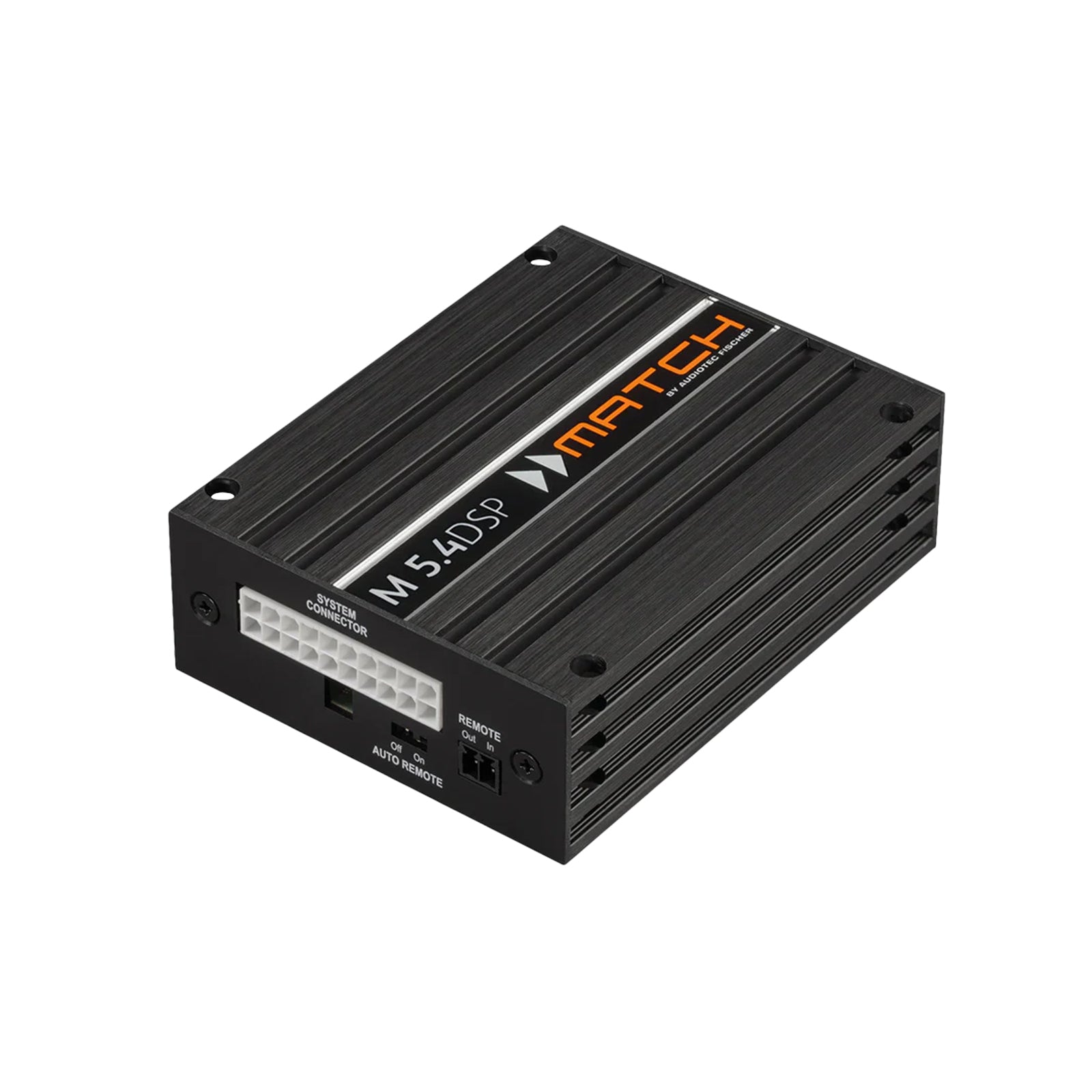

The MATCH M 5.4DSP represents the pinnacle of micro amplifier technology, delivering an incredible 400W RMS of clean power through advanced Class GD amplification and 64-bit DSP processing. Despite being barely larger than a smartphone, this German-engineered amplifier transforms any factory audio system into a professional HiFi experience with plug & play installation capability and extensive DSP features for precise acoustic tuning.

Key Specifications

Amplifier Configuration:

• 5-channel output: 4 main channels plus dedicated subwoofer channel
• HighPower mode: 4 x 60W RMS @ 4Ω + 160W subwoofer @ 2Ω
• MidPower mode: 4 x 35W RMS @ 4Ω + 90W subwoofer @ 4Ω for plug & play applications
• Total system power: 400W RMS / 800W Peak maximum output
• Ultra-compact dimensions: 35 x 85 x 110mm (smartphone-sized footprint)

DSP Processing System:

• 64-bit resolution audio DSP with 295 MHz processing power
• 9-channel DSP capability with Virtual Channel Processing (VCP)
• Advanced 32-bit CoProcessor (ACO) platform for system management
• BurrBrown A/D and D/A converters for audiophile signal quality
• 48 kHz sampling rate with optical SPDIF input support (12-96 kHz)

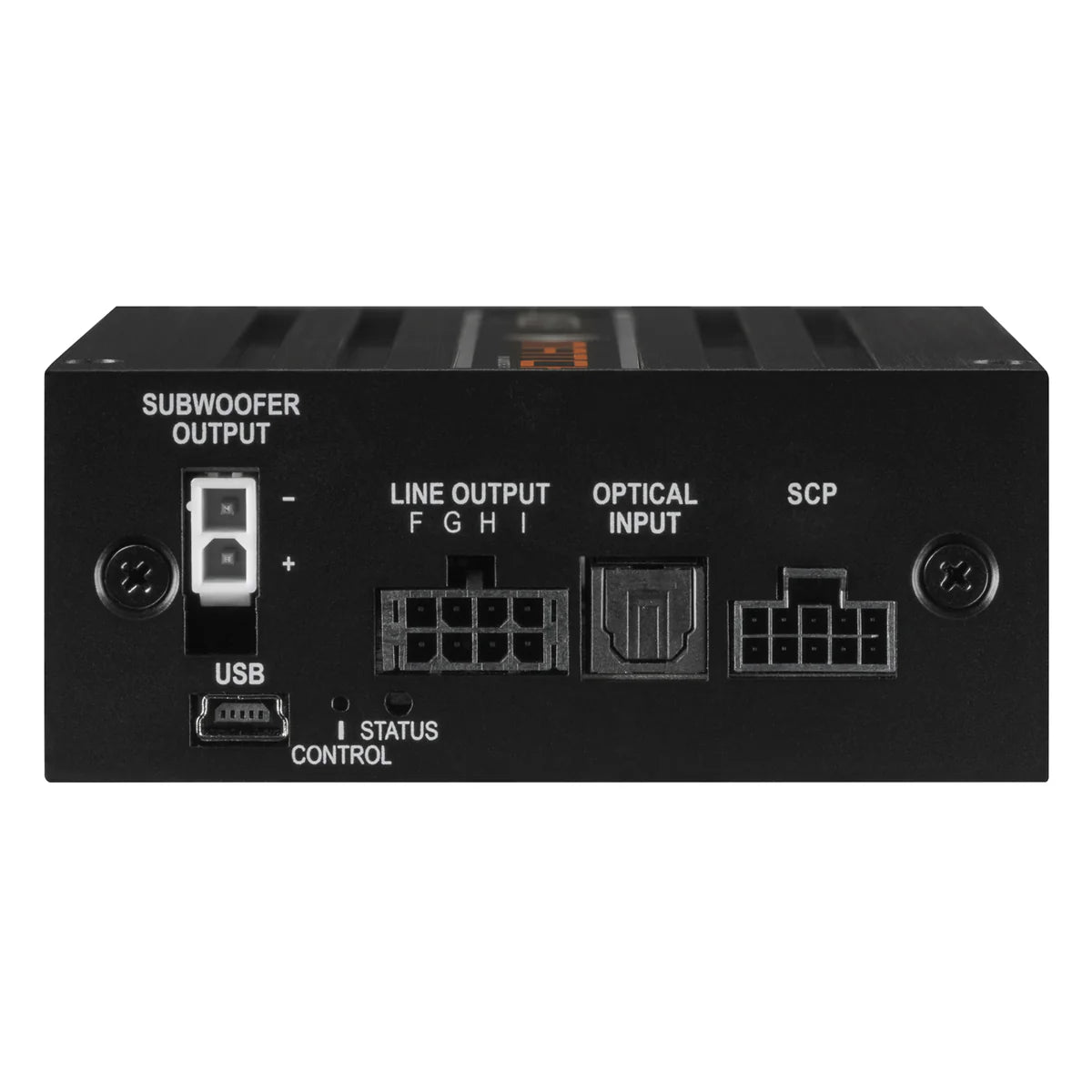

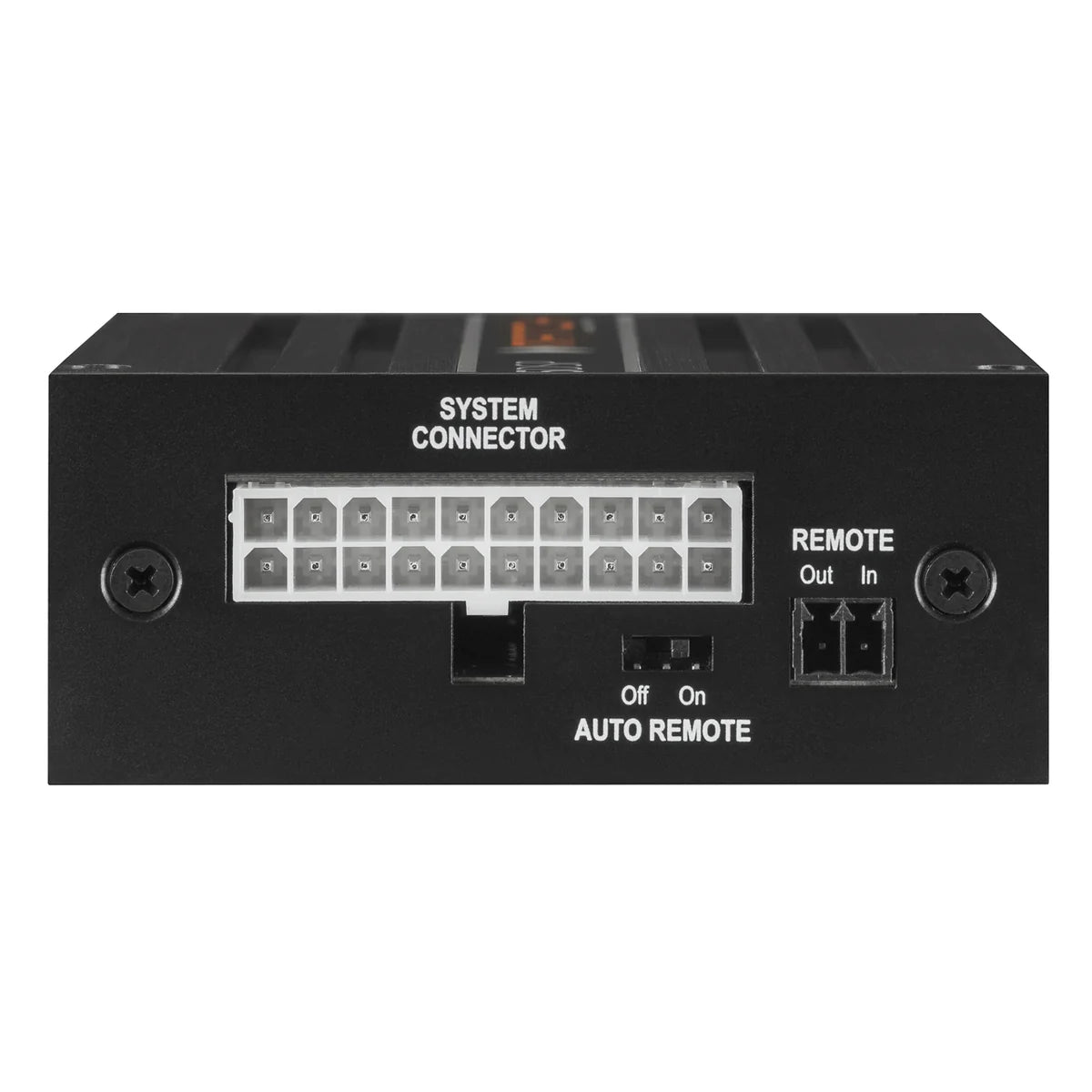

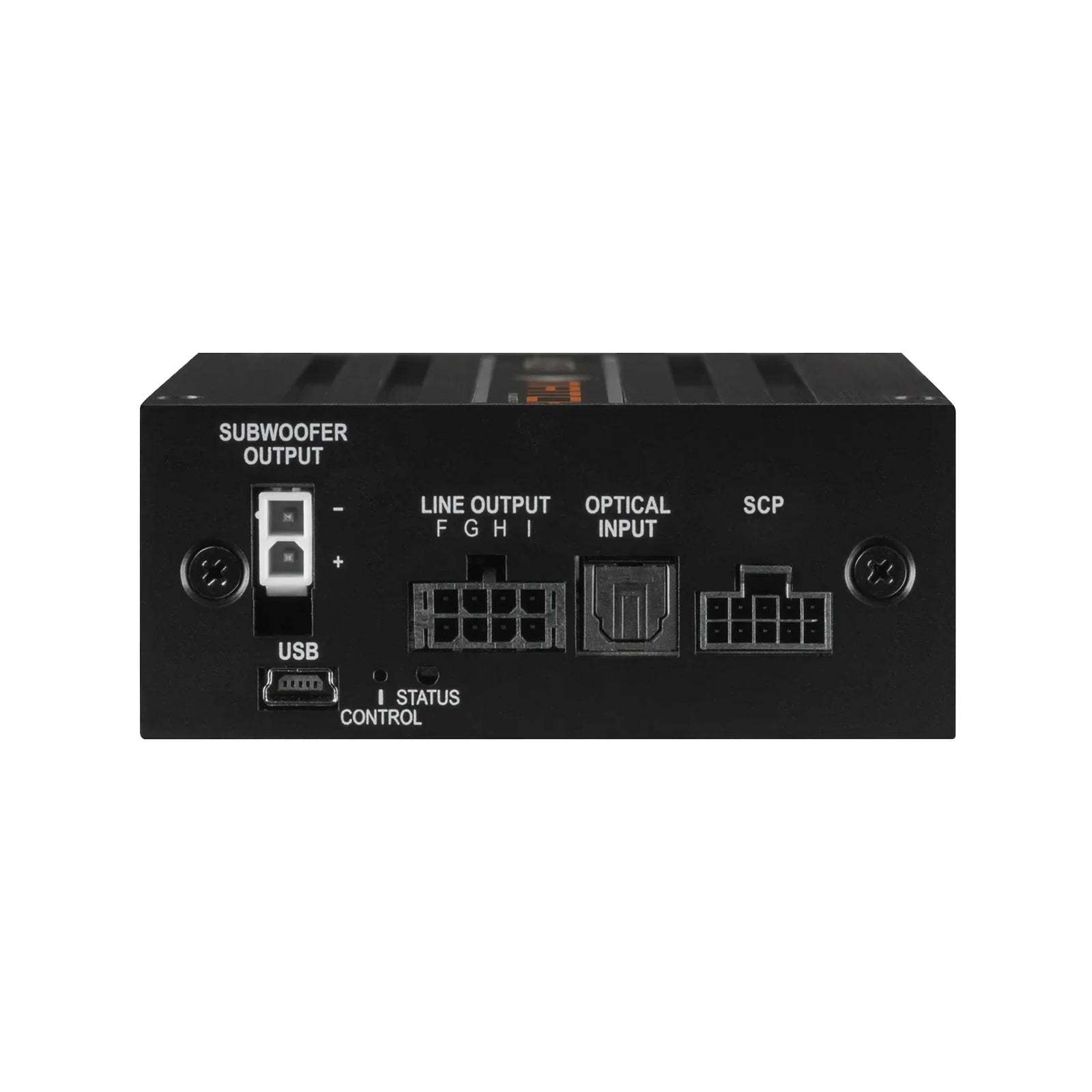

Input/Output Configuration:

• 4x high-level speaker inputs with ADEP.3 smart detection circuit

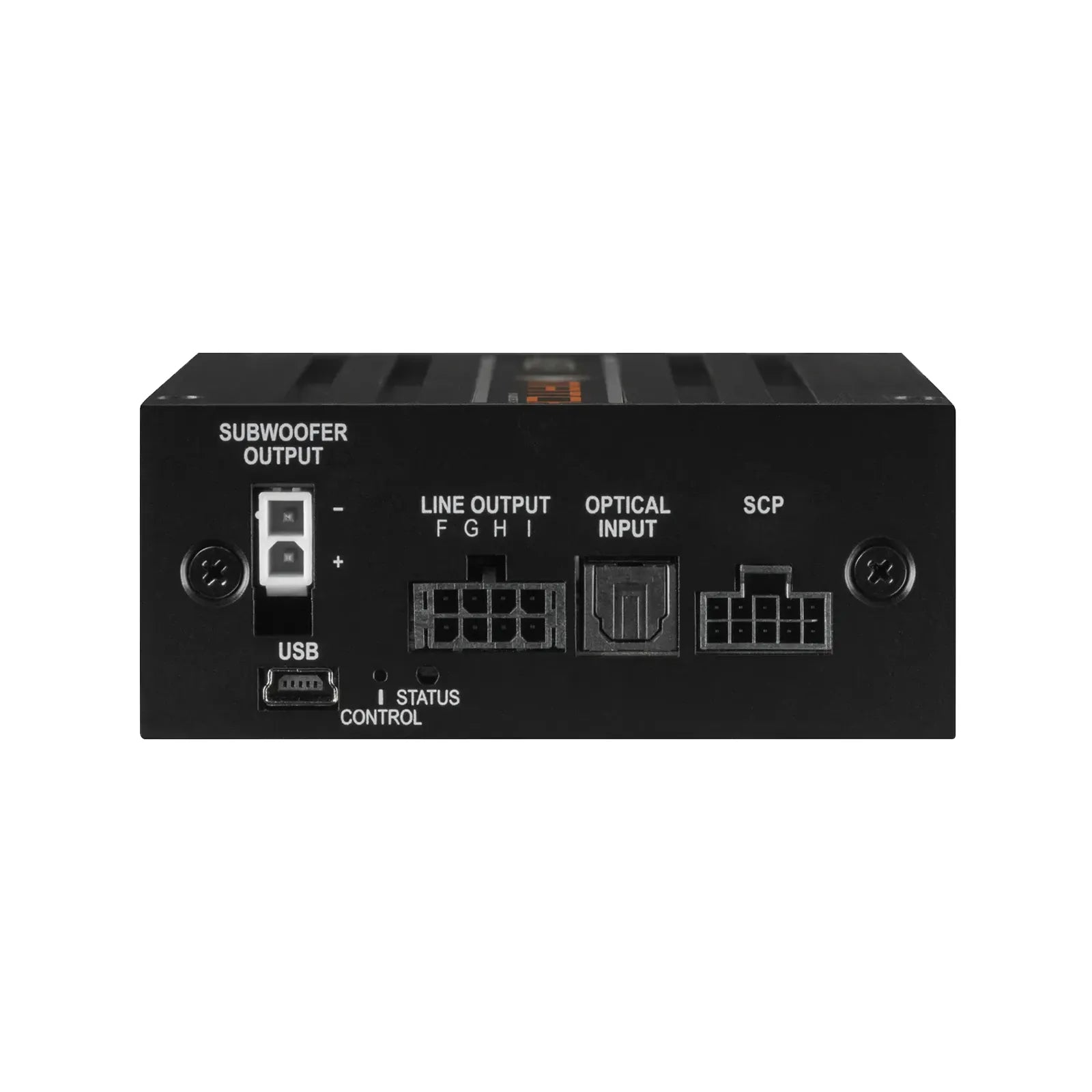

• 1x optical SPDIF digital input for premium source integration
• 5x speaker outputs plus 4x RCA line outputs for system expansion

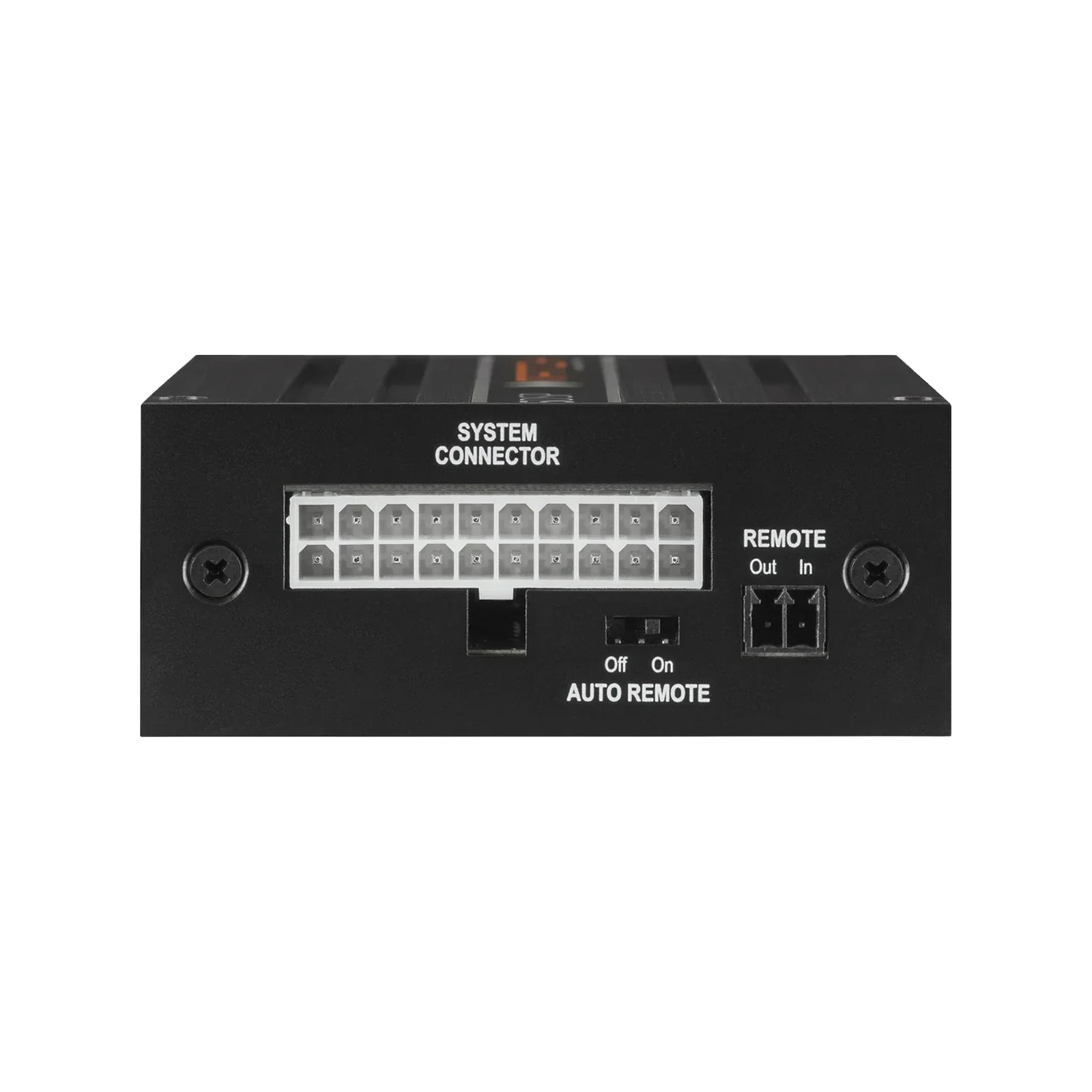

• Smart Control Port (SCP) for optional accessories and remote control

Features & Benefits

• Smartphone-Sized Power Giant – Revolutionary micro design delivers 400W RMS total output in dimensions smaller than most smartphones, enabling stealth installation in virtually any vehicle location
• Dual Power Mode Operation – HighPower mode maximizes performance for dedicated installations, while MidPower mode enables plug & play operation without separate power supply for seamless factory integration
• Professional 64-Bit DSP Suite – Advanced signal processing includes Input Signal Analyzer (ISA), InputEQ compensation, Augmented Bass Processing, StageXpander, RealCenter processing, and comprehensive crossover control
• ADEP.3 Smart Integration – Intelligent high-level input circuit automatically detects and optimizes signal from any factory head unit with Auto Turn-On functionality and Start-Stop vehicle compatibility
• Audiophile Signal Chain – BurrBrown converters, >105dB signal-to-noise ratio, and <0.03% THD ensure studio-quality audio reproduction with professional damping factor >50
• Expandable System Architecture – Four RCA outputs and Smart Control Port enable connection of additional amplifiers and optional accessories like WIFI CONTROL, DIRECTOR, and CONDUCTOR for complex system builds

Technical Specs

• Power output HighPower: 4 x 60W RMS @ 4Ω, 160W subwoofer @ 2Ω
• Power output MidPower: 4 x 35W RMS @ 4Ω, 90W subwoofer @ 4Ω
• Amplifier technology: Class GD ultra-efficient design
• DSP resolution: 64-bit with 295 MHz processing (1.2 billion MAC/sec)
• Frequency response: 20Hz - 20,000Hz full spectrum
• Signal-to-noise ratio: >105dB digital, >99dB analog (A-weighted)
• Total harmonic distortion: <0.03% at rated output
• Input sensitivity: 5-11V adjustable high-level input
• Operating voltage: 10.5-17V with Start-Stop capability (6V minimum)
• Dimensions: 35 x 85 x 110mm / 1.34 x 3.35 x 4.33"
• Power consumption: 280mA idle, 40A maximum draw

Frequently Asked Questions

What makes the MATCH M 5.4DSP different from standard 5-channel amplifiers?

The M 5.4DSP combines ultra-compact smartphone-sized design with professional 64-bit DSP processing and dual power modes. Unlike standard amplifiers, it includes advanced features like Input Signal Analyzer, Augmented Bass Processing, and Virtual Channel Processing for complex system configurations impossible with conventional amplifiers.

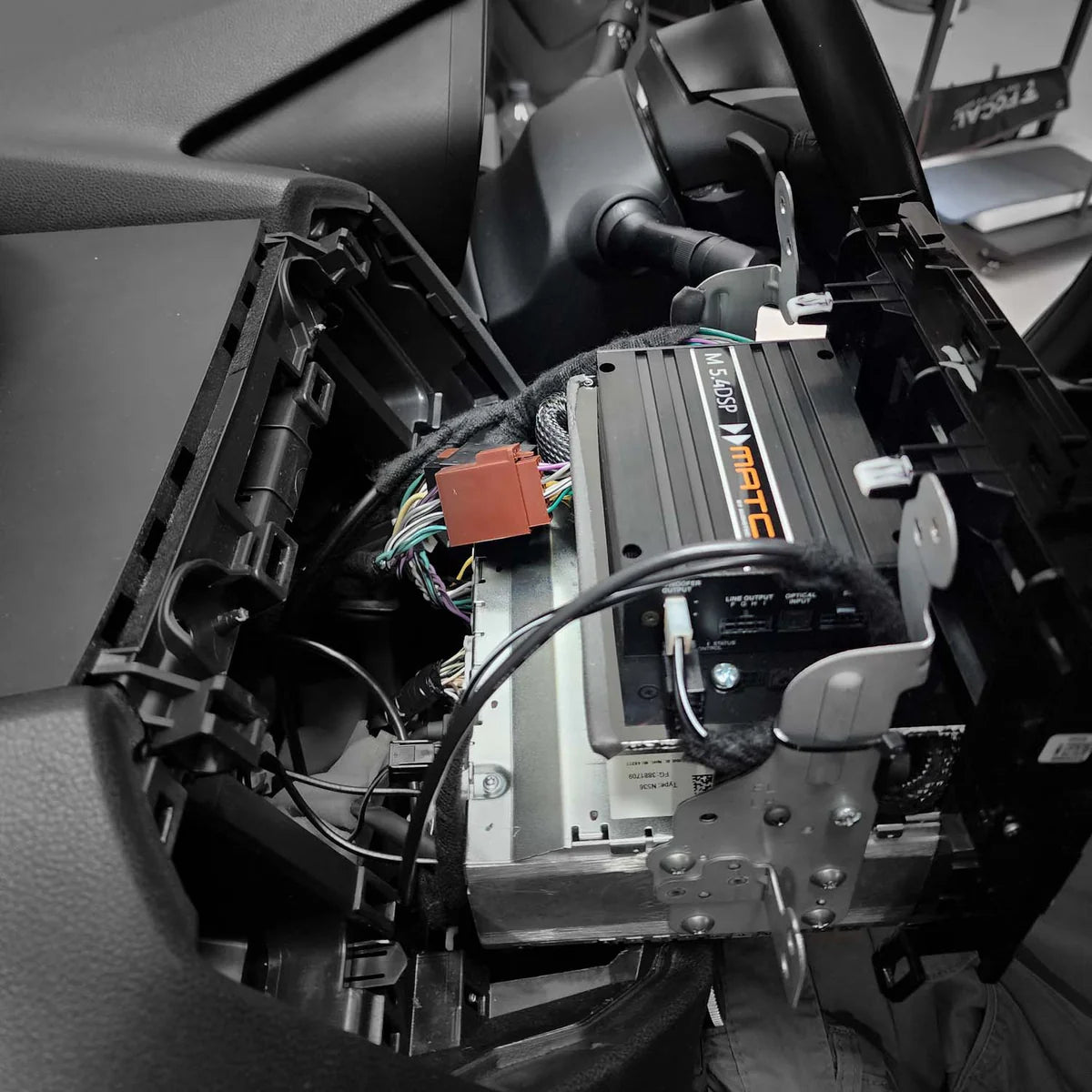

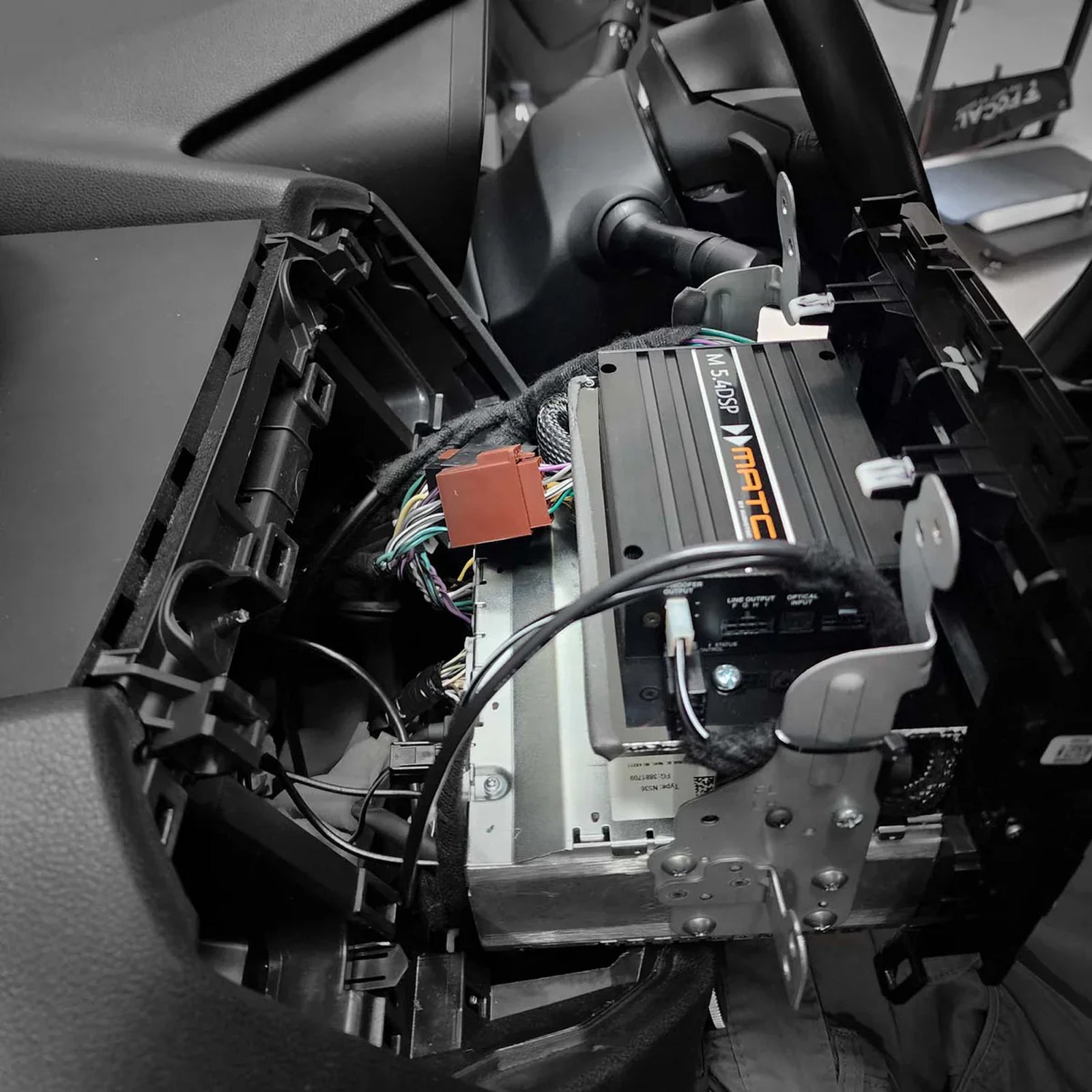

Can I install this amplifier using my factory head unit without additional power wiring?

Yes, the MidPower mode enables plug & play installation using factory high-level inputs with the ADEP.3 circuit. This provides 4 x 35W RMS + 90W subwoofer output without requiring separate power supply, perfect for factory integration while maintaining Start-Stop compatibility.

How does the 9-channel DSP work with only 5 physical amplifier channels?

The Virtual Channel Processing (VCP) system allows the 64-bit DSP to process up to 9 independent channels internally, then mix them down to the 5 physical outputs. This enables complex routing like front/rear/center/subwoofer processing with separate EQ and time alignment for each virtual channel.

What's included for connecting subwoofers and additional amplifiers?

The package includes PP-SOC subwoofer connection cable for MATCH Plug & Play subs, Line Output-to-RCA cable for connecting additional amplifiers, and PP-IOC connection cable. The 4x RCA outputs provide 3V signal for driving multiple additional amplifiers in complex systems.

Does this amplifier work with modern Start-Stop vehicles and steering wheel controls?

Yes, the M 5.4DSP features Start-Stop capability operating down to 6V supply voltage and Auto Remote switching. The ADEP.3 high-level input circuit maintains full compatibility with factory steering wheel controls, navigation systems, and all modern vehicle electronics.

Compatible With / Goes Well With

MATCH Ecosystem: DIRECTOR system controller, CONDUCTOR multi-zone processor, WIFI CONTROL wireless interface, MATCH Plug & Play subwoofers and installation accessories

Installation Accessories: Vehicle-specific T-harnesses, professional installation kits, calibration microphones for DSP tuning, sound deadening materials for optimal acoustic performance

System Expansion: Additional MATCH amplifiers via RCA outputs, custom speaker packages, component speaker systems optimized for DSP processing and advanced acoustic tuning capabilities
