Product features

LV Automotive LV5423 288-Piece Fuse Assortment Kit 3AG Glass Mini Blade ATS and Maxi Fuses

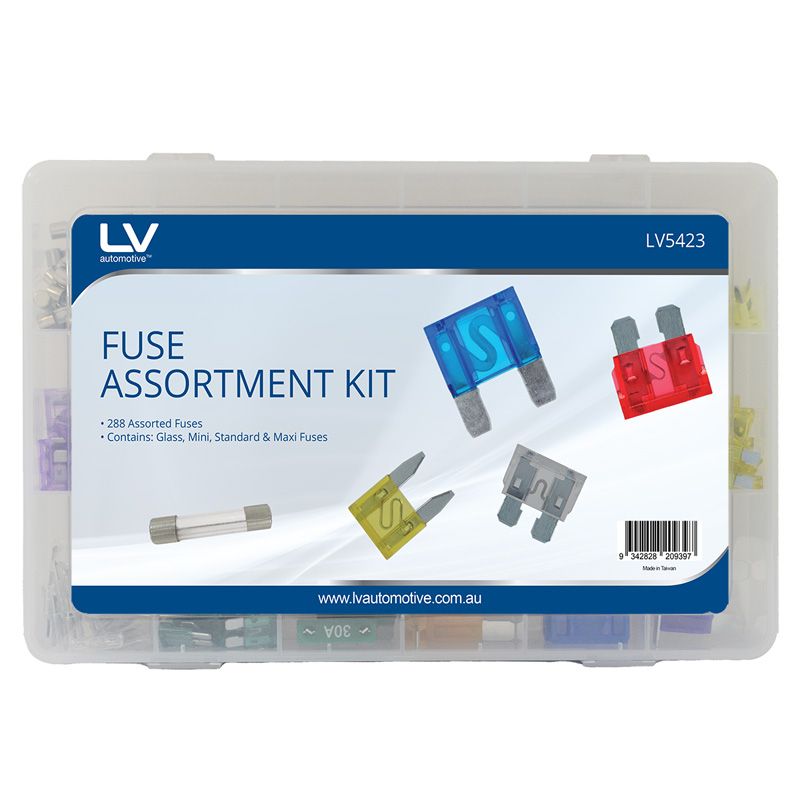

A comprehensive 288-piece automotive fuse assortment kit from LV Automotive, the LV5423 covers four fuse types across a wide range of amperage ratings including 3AG glass fuses, mini blade fuses, standard ATS blade fuses, and maxi blade fuses, supplied in a hard carry case with fuse removal tool. RoHS compliant.

Product Overview

The LV Automotive LV5423 is a comprehensive 288-piece fuse assortment kit designed to provide a complete range of the most commonly used automotive fuse types and ratings in a single organised carry case. The kit covers 3AG glass cylindrical fuses, mini blade (ATM) fuses, standard ATS blade fuses, and maxi blade fuses across a broad range of amperage ratings from low-current accessory circuits through to heavy-draw applications. A fuse removal tool is included. The hard carry case keeps all fuse types and sizes organised and protected for workshop, vehicle, or roadside use. RoHS compliant.

Features & Benefits

288-Piece Assortment Across Four Fuse Types: The LV5423 covers 3AG glass, mini blade, standard ATS blade, and maxi blade fuse types, providing a single kit solution for the most commonly encountered fuse formats in passenger vehicles, 4WDs, caravans, marine, and commercial vehicle applications.

3AG Glass Fuses: Traditional cylindrical glass fuses used in older vehicles and a range of aftermarket accessories and electrical components.

Mini Blade Fuses (ATM): Compact mini blade format fuses used in modern passenger vehicles and smaller circuit applications. The mini blade assortment covers amperage ratings from 5A to 30A across multiple quantities per rating.

Standard ATS Blade Fuses: Standard full-size automotive blade fuses used across a wide range of passenger, 4WD, and commercial vehicle fuse boxes. Covering amperage ratings for common vehicle circuit protection requirements.

Maxi Blade Fuses: Large-format maxi blade fuses for heavy-draw circuits including main power feeds, large amplifiers, winches, and high-current accessory installations.

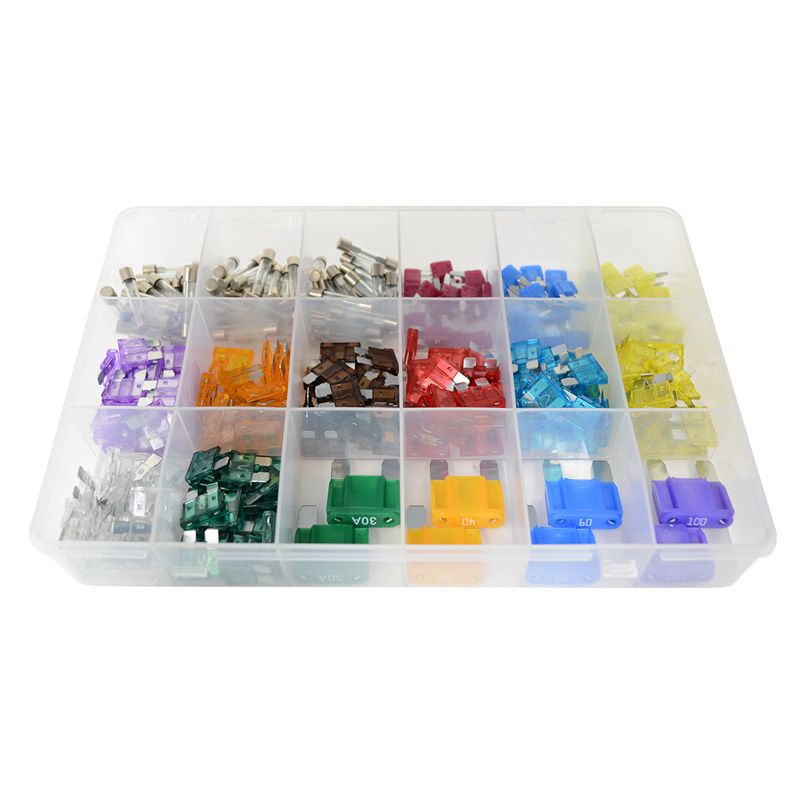

Hard Carry Case with Organised Storage: The hard plastic carry case organises all fuse types and sizes in clearly labelled compartments for fast identification and retrieval during installation or fault diagnosis.

Fuse Removal Tool Included: A fuse removal tool is included to safely extract fuses from tight fuse box positions without damaging the fuse or holder.

RoHS Compliant: The LV5423 kit is RoHS compliant for safe use and disposal in line with environmental standards.

Kit Contents

Fuse Type Amperage Colour Quantity
Mini Blade (ATM) 5A Tan 10
Mini Blade (ATM) 7.5A Brown 10
Mini Blade (ATM) 10A Red 15
Mini Blade (ATM) 15A Blue 25
Mini Blade (ATM) 20A Yellow 15
Mini Blade (ATM) 25A White 10
Mini Blade (ATM) 30A Green 15
3AG Glass Various Various Included
Standard ATS Blade Various Various Included
Maxi Blade Various Various Included
Fuse Removal Tool - - 1
Total 288 pieces

Note: Full per-type and per-amperage quantities for 3AG glass, standard ATS, and maxi blade fuses should be confirmed from the product packaging before listing.

Technical Specs

Specification Detail
SKU LV5423
Brand LV Automotive
Total Pieces 288
Fuse Types 3AG Glass, Mini Blade (ATM), Standard ATS Blade, Maxi Blade
Includes Fuse Removal Tool
Storage Hard Plastic Carry Case
Compliance RoHS Compliant

Compatible With

The LV5423 fuse assortment kit is suited to passenger vehicles, 4WDs, caravans, marine, and commercial vehicle applications where a comprehensive range of glass, mini blade, ATS, and maxi blade fuses are required. Confirm the correct fuse type, amperage, and rating for each circuit before replacement.

Frequently Asked Questions

What fuse types are included in the LV5423?

The LV5423 includes four fuse types: 3AG cylindrical glass fuses, mini blade (ATM) fuses, standard ATS blade fuses, and maxi blade fuses, covering a broad range of amperage ratings across all four formats.

Does the LV5423 include a fuse removal tool?

Yes. A fuse removal tool is included in the kit for safe extraction of fuses from tight fuse box positions.

Is the LV5423 suitable for 4WD and caravan applications?

Yes. The kit covers fuse types and ratings commonly used in 4WDs, caravans, and aftermarket accessory installations including maxi blade fuses for heavy-draw circuits.

How are the fuses organised in the LV5423?

All fuse types and sizes are stored in a hard plastic carry case with organised compartments for fast identification and retrieval.

Is the LV5423 RoHS compliant?

Yes. The LV5423 is RoHS compliant.
