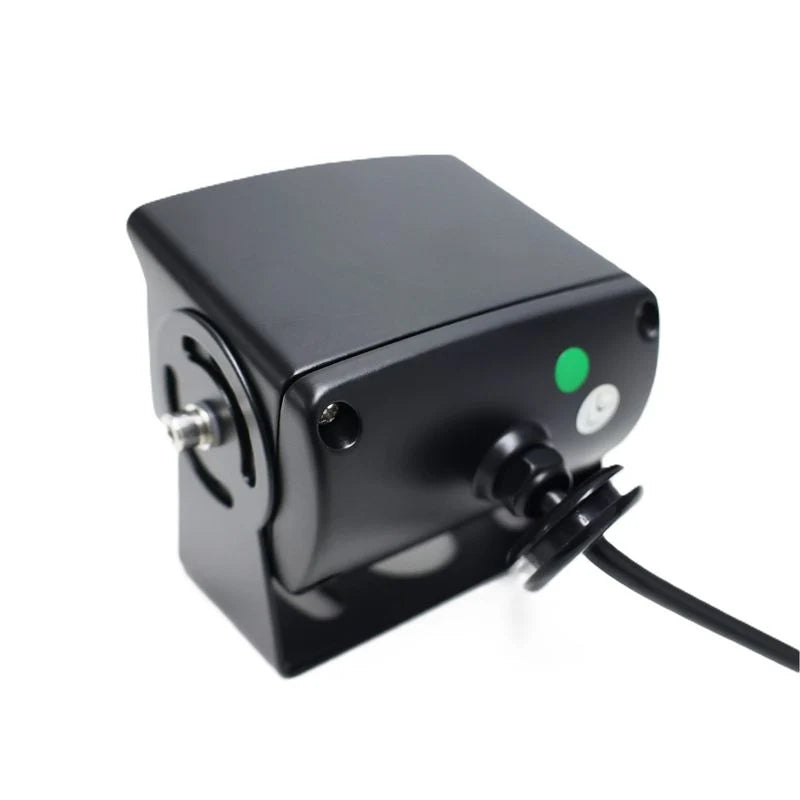

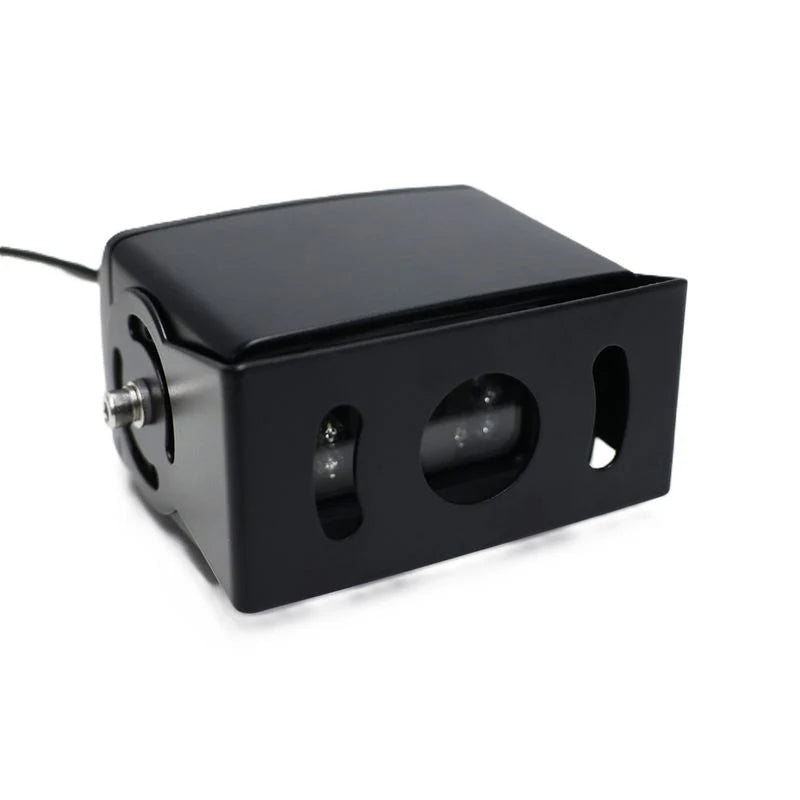

Low Voltage LV7152 12V AHD Heavy Duty Reverse Camera IP69K 1080P
Low Voltage LV7152 12V AHD Heavy Duty Reverse Camera IP69K 1080P
Low Voltage LV7152 12V AHD Heavy Duty Reverse Camera IP69K 1080P
Low Voltage LV7152 12V AHD Heavy Duty Reverse Camera IP69K 1080P
Click to open expanded view

Low Voltage LV7152 12V AHD Heavy Duty Reverse Camera IP69K 1080P

SKU: LV7152
Price
$110
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Low Voltage LV7152 12V AHD Heavy Duty Reverse Camera IP69K Rated 1080P Resolution 120 Degree Viewing Angle with Sony CCD Sensor Suits LV7149 System

The LV7152 from Low Voltage is a 12V AHD heavy duty reverse camera with IP69K rating, 1080P resolution, and a 120 degree viewing angle, designed for use as a replacement or additional camera with the LV7149 commercial grade 7 inch AHD quad display reverse camera system. The Sony 1/3 inch CCD image sensor provides reliable image quality in heavy truck, mining, and industrial applications. Includes a 10m cable with 4-pin screw type connectors for a secure connection to the LV7149 display unit.

Product overview

The LV7152 is engineered for commercial and industrial applications where durability and reliable image quality are critical. The IP69K rating provides protection against high-pressure water jets and steam cleaning, making it suited to heavy trucks, mining vehicles, and industrial machinery operating in demanding environments. The 120 degree viewing angle provides a wide field of view behind the vehicle to assist the driver in identifying obstacles and hazards during reversing manoeuvres.

The LV7152 is designed for use with the Low Voltage LV7149 commercial grade 7 inch AHD quad display system, which supports up to four simultaneous camera inputs and can display one to all four camera feeds at once. The 10m cable with 4-pin screw type connectors provides a secure, vibration-resistant connection between the camera and the LV7149 display unit. Operating voltage is 12V.

Features and benefits

IP69K rating for heavy duty applications: The IP69K rating provides protection against high-pressure water jets and steam cleaning, suited to heavy truck, mining, and industrial machinery operating in harsh environments where the camera is exposed to high-pressure wash-down procedures.

1080P AHD resolution with Sony CCD sensor: The 1/3 inch Sony CCD image sensor delivers 1080P AHD resolution, providing clear, reliable image quality in commercial and industrial reversing applications.

120 degree viewing angle: The 120 degree viewing angle provides a wide field of view behind the vehicle, assisting the driver in identifying obstacles and hazards during reversing manoeuvres in commercial and industrial environments.

Compatible with LV7149 quad display system: Designed for use as a replacement or additional camera with the Low Voltage LV7149 commercial grade 7 inch AHD quad display reverse camera system, which supports up to four simultaneous camera inputs.

10m cable with 4-pin screw type connectors: The 10m cable with 4-pin screw type connectors provides a secure, vibration-resistant connection between the camera and the LV7149 display unit, suited to commercial vehicle installations where cable security is critical.

Technical specs

Specification Detail
SKU LV7152
Brand Low Voltage
Operating Voltage 12V
Image Sensor 1/3 inch Sony CCD
Resolution 1080P AHD
Viewing Angle 120 degrees
IP Rating IP69K
Cable Length 10m
Cable Connector 4-pin screw type
Compatible System LV7149 quad display reverse camera system

Frequently asked questions

What is IP69K and why does it matter for a reverse camera?
IP69K is the highest level of ingress protection against water, providing protection against high-pressure, high-temperature water jets and steam cleaning from any direction. For a reverse camera fitted to a heavy truck, mining vehicle, or industrial machine, this means the camera can withstand high-pressure wash-down procedures without water ingress or damage.

Is the LV7152 compatible with the LV7149 display system?
Yes. The LV7152 is designed for use with the Low Voltage LV7149 commercial grade 7 inch AHD quad display reverse camera system. The LV7149 supports up to four simultaneous camera inputs and can display one to all four camera feeds at once. The 4-pin screw type connectors on the LV7152 cable provide a secure connection to the LV7149 display unit.

Can the LV7152 be used as a standalone reverse camera without the LV7149 system?
The LV7152 is designed for use with the LV7149 display system and uses AHD signal output with 4-pin screw type connectors specific to that system. Confirm compatibility with your specific display unit before ordering if you intend to use the LV7152 with a different display system.

What cable length is included with the LV7152?
The LV7152 includes a 10m cable with 4-pin screw type connectors for connection to the LV7149 display unit.

Is professional installation recommended for the LV7152?
Given the commercial and industrial application of this camera and the requirement for secure cable routing in heavy truck and mining vehicle environments, professional installation is recommended to ensure a safe and correct result.
