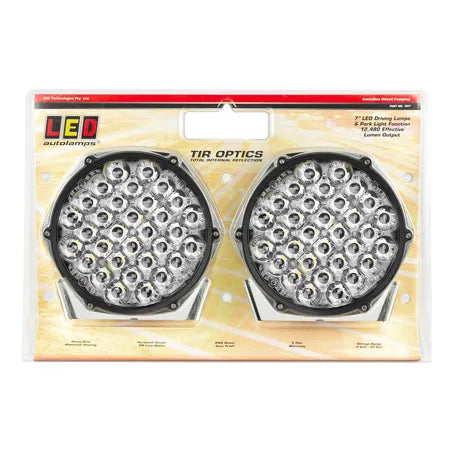

LED Autolamps TIR7 9/32 7 Inch High Powered Driving Light With Park Light Function 12480 Effective Lumen
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps TIR7 9/32 7 Inch High Powered Driving Light With Park Light Function 12480 Effective Lumen

SKU: TIR7
Price
$625
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps TIR7 9-32V 160W 7-Inch Round LED Driving Light TIR Optics 12480lm Effective 6500K Park Light Function Combination Beam Aluminium Housing IP68 189mm x 175mm x 65mm Trunnion Bracket

The LED Autolamps TIR7 is a 9-32V 160W 7-inch round LED driving light with TIR optics delivering 12480lm effective output at 6500K. Combination beam with park light function. Aluminium housing, PMMA lens. 189mm x 175mm x 65mm. 9.2A at 13.8V. Trunnion bracket with 4mm 304 painted stainless steel. 3-pin connector. IP68. Sold individually.

Product overview

The TIR7 is a high-powered 7-inch round LED driving light using TIR (Total Internal Reflection) optics to deliver focused, high-intensity output with no light loss through reflectors. Each LED has its own focused TIR optic for maximum light intensity and beam efficiency. At 160W and 12480lm effective output, the TIR7 delivers exceptional forward illumination at 6500K cool white. The integrated park light function provides a low-output auxiliary lamp for parking and position light use. Aluminium housing for heat dissipation. PMMA lens. 4mm 304 painted stainless steel trunnion bracket. 3-pin connector. IP68 fully waterproof. 9-32V compatible with 12V and 24V systems. Sold individually.

Features and benefits

160W, 12480lm effective output at 6500K.

TIR optics with focused optic per LED: No light loss through reflectors — maximum intensity per LED.

Park light function: Integrated low-output park and position light.

Combination beam pattern.

7-inch round format: 189mm x 175mm x 65mm.

Heavy duty aluminium housing.

PMMA lens.

4mm 304 painted stainless steel trunnion bracket.

3-pin connector.

IP68 fully waterproof and submersible.

9-32V: Compatible with 12V and 24V vehicle electrical systems.

9.2A current draw at 13.8V.

Sold individually.

Technical specs

Specification Detail
SKU TIR7
Brand LED Autolamps
Type 7-inch round LED driving light
Power 160W
Effective Lumens 12480lm
Colour Temperature 6500K
Optic TIR (Total Internal Reflection)
Beam Pattern Combination
Park Light Yes
Shape Round
Housing Material Aluminium
Lens Material PMMA
Housing Colour Black
Mount Trunnion bracket (4mm 304 painted stainless steel)
Connector 3-pin
Operating Voltage 9V to 32V
Current Draw 9.2A at 13.8V
Dimensions 189mm x 175mm x 65mm
Waterproof Rating IP68
Weight 3.9kg
Manufactured In China

Frequently asked questions

What are TIR optics and why do they matter?

TIR (Total Internal Reflection) optics use a focused lens for each individual LED to maximise light intensity and eliminate the light loss that occurs with reflector-based designs. The result is more usable light output per watt compared to a standard reflector driving light.

Does the TIR7 have a park light function?

Yes. The TIR7 includes an integrated park light function for low-output auxiliary use as a parking or position lamp.

What is the beam pattern on the TIR7?

The TIR7 uses a combination beam pattern delivering both spot and flood light output.

What voltage does the TIR7 operate on?

The TIR7 operates on 9V to 32V, compatible with both 12V and 24V vehicle electrical systems.

Is the TIR7 waterproof?

Yes. The TIR7 has an IP68 rating, meaning it is fully dust-tight and can withstand continuous submersion in water beyond 1 metre depth.
