LED Autolamps MAXILAMPC3XRW 12/24V Stop/Tail/Indicator/Reverse/Reflector 3 Lamp Combination Black Chrome

Five Functions. One Light. ADR Approved. IP67. 12/24V Ready.

Product Overview

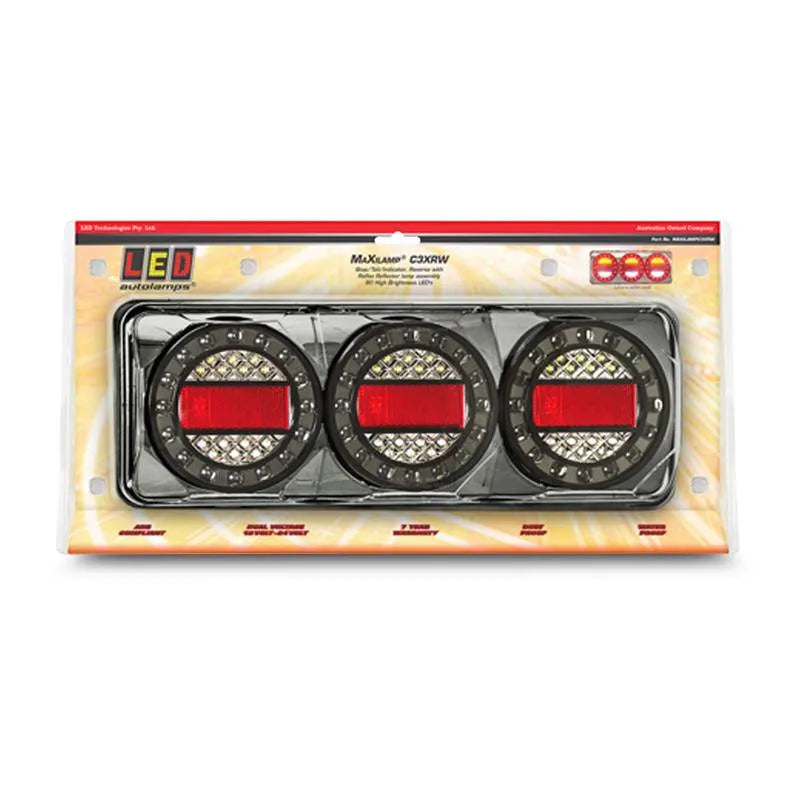

The LED Autolamps MAXILAMPC3XRW is a 3-lamp combination tail light combining five functions in a single black chrome unit stop, tail, indicator, reverse, and reflector in a surface-mount 370 × 135 × 40mm housing for 12V and 24V applications. ADR approved across all four active light functions (stop/tail, indicator, reverse) plus ECE-rated reflector, it is a compliant, ready-to-install solution for trailers, trucks, caravans, and commercial vehicles where a multi-function rear lamp meeting Australian Design Rules is required.

The IP67 waterproof rating means it handles full immersion to 1 metre boat trailers, stock trailers, and worksite equipment that regularly encounters water, mud, and pressure washing. Pre-wired with a 400mm lead and surface-mount fitment at 269mm centre-to-centre, it is sold individually. 3M tape mounting is available as an option for applications where drilling is not preferred.

Key Specifications

• Part Number: MAXILAMPC3XRW
• Brand: LED Autolamps
• Series: Maxilamp
• Voltage: 12–24V
• Light Functions: Stop / Tail / Indicator / Reverse / Reflector
• Light Type: LED
• Size: 370mm × 135mm × 40mm
• Mount Centre to Centre: 269mm
• Mounting: Surface mount
• Connector: Pre-wired — 400mm lead
• Housing Colour: Black Chrome
• IP Rating: IP67 — 100% waterproof
• ADR Compliance:
  • Stop/Tail: ADR 49/00
  • Indicator: ADR 6/00 Cat 2A
  • Reverse: ADR 1/00
  • Reflector: ECE 02 Cat 1A
• Current Draw:
  • Stop: 0.54A
  • Tail: 0.08A
  • Indicator: 0.77A
  • Reverse: 0.67A
• 3M Tape Mounting: Available
• Sold: Individually

Features & Benefits

• Five functions, one unit — stop, tail, indicator, reverse, reflector — A single 370mm housing replaces what would otherwise require separate stop/tail, indicator, reverse, and reflector components. Simplifies installation on trailers, trucks, and caravans — one wiring run, one mounting location, one product to source and replace.
• ADR approved across all active functions — Stop/tail to ADR 49/00, indicator to ADR 6/00 Cat 2A, reverse to ADR 1/00, and reflector to ECE 02 Cat 1A. Full ADR compliance is required for on-road registered trailers, caravans, and commercial vehicles in Australia — the MAXILAMPC3XRW is correctly specified and approved for these applications.
• IP67 — full waterproof immersion protection — IP67 means the lamp is dustproof and protected against water immersion to 1 metre depth for up to 30 minutes. Suited to boat trailers regularly launched into waterways, stock trailers exposed to high-pressure washing, and any trailer operating in rain, mud, and creek crossings. A common failure point for tail lights on working trailers — IP67 removes that concern.
• 12V and 24V — universal voltage range — The 12–24V operating range covers both standard passenger vehicle and caravan tow setups (12V) and truck and heavy vehicle applications (24V) without requiring a separate product for each voltage. One SKU fits both systems.
• Low current draw across all functions — LED technology keeps current demand minimal across all five functions: 0.54A stop, 0.08A tail, 0.77A indicator, 0.67A reverse. Reduces load on vehicle wiring and trailer connectors — particularly important in 24V truck applications and long cable run trailer setups where voltage drop and heat at connectors are ongoing concerns.
• Pre-wired 400mm lead — installation-ready — The 400mm pre-wired lead provides cable length for routing through the trailer or vehicle body to the main wiring loom without requiring on-site crimping or connector termination at the lamp.
• Surface mount at 269mm centre to centre — standard fitment — Standard surface mount with a 269mm bolt centre distance makes the MAXILAMPC3XRW a drop-in replacement for many trailer and truck factory lamp positions. Confirm mounting hole pattern against your existing installation before ordering.
• Black chrome housing — premium finish — The black chrome design suits premium trailer, boat, and commercial vehicle builds where a clean, consistent aesthetic is required alongside functional compliance.
• 3M tape mounting available — Optional 3M tape mounting provides an adhesive-fix option for applications where drilling is not preferred or the mounting surface is not suitable for bolting through.
• Sold individually — Purchased as a single lamp — order the quantity required for your trailer or vehicle configuration.

Technical Specs

Compatible With / Goes Well With

Typical Applications:

• Box trailers and enclosed trailers (registered on-road)
• Boat trailers — IP67 rated for regular water immersion
• Stock and farm trailers
• Caravans and camper trailers
• Trucks, semi-trailers, and heavy vehicles (12V and 24V)
• Commercial vehicles requiring ADR-compliant multi-function rear lamps

Goes Well With:

• 7-pin flat trailer connectors and harnesses
• LED trailer wiring looms
• 3M tape mounting tape (if surface adhesive mount preferred)
• LED Autolamps front clearance lights and side markers for matching trailer light sets

Frequently Asked Questions

Is the MAXILAMPC3XRW ADR approved for registered trailers and vehicles in Australia?

Yes — the lamp is ADR approved for stop/tail (ADR 49/00), indicator (ADR 6/00 Cat 2A), and reverse (ADR 1/00), with the reflector meeting ECE 02 Cat 1A. This makes it compliant for on-road registered trailers, caravans, and commercial vehicles in Australia.

How many of these lamps do I need for a trailer?

The MAXILAMPC3XRW is sold individually. Most standard trailers require two rear combination lamps — one per side. Confirm the lamp configuration required for your specific trailer type and applicable Australian road rules or ADR requirements.

Can this lamp be used on a boat trailer that is regularly submerged?

Yes — the IP67 rating confirms the lamp is protected against water immersion up to 1 metre depth for up to 30 minutes. This covers standard boat trailer launching and retrieval in waterways. Ensure the pre-wired connector is also appropriately sealed and protected for immersed use.

Does this lamp work on both 12V and 24V vehicles?

Yes — the MAXILAMPC3XRW operates across the full 12–24V range, making it compatible with both 12V passenger vehicle and caravan tow setups and 24V truck and heavy vehicle electrical systems without modification.

What is the mounting hole spacing for this lamp?

The surface mount centre-to-centre distance is 269mm. Confirm this measurement against your trailer or vehicle's existing lamp mounting holes before ordering. For new installations, this dimension is the bolt pattern to drill to.
