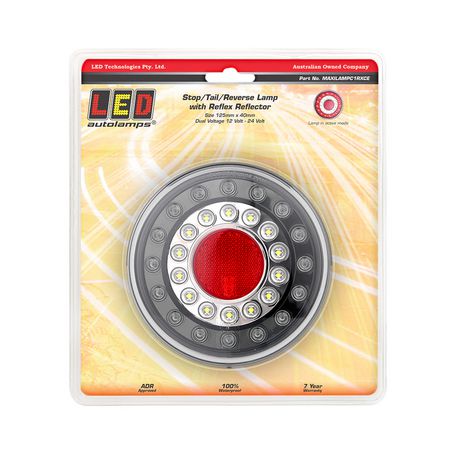

LED Autolamps MAXILAMPC1XCE LED stop/tail/indicator/reflector light in black, packaged in a blister pack with red and white branding.
LED Autolamps MAXILAMPC1XCE LED stop/tail/indicator/reflector light in black, packaged in a blister pack with red and white branding.
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps MAXILAMPC1XCE 12/2V Maxilamp Stop/Tail/Indicator/Reflector Black

SKU: MAXILAMPC1XCE
Price
$173
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps MAXILAMPC1XCE 12-24V MaxiLamp Stop Tail Indicator and Reflector Round 125mm x 40mm Black Chrome 2-Bolt Surface Mount PMMA Acrylic Lens ABS Base ECE Approved CTA060073 IP67 7 Year Warranty

The LED Autolamps MAXILAMPC1XCE is a 12-24V MaxiLamp round combination lamp with stop, tail, indicator, and inbuilt reflex reflector functions. Black chrome finish. 125mm round, 125mm x 45mm x 40mm overall. PMMA acrylic lens, ABS base. 2-bolt surface mount. ECE approved (CTA060073). IP67 waterproof. 7-year warranty. Sold individually.

Product overview

The MAXILAMPC1XCE is a round 125mm stop, tail, indicator, and reflector combination lamp in the LED Autolamps MaxiLamp series, with a black chrome finish and 2-bolt surface mount. PMMA acrylic lens provides UV resistance and long-term clarity. ABS base construction. ECE CTA060073 approval confirms road-legal compliance in Australia across all four functions. IP67 waterproof. 12-24V compatible. 7-year warranty.

Features and benefits

Stop, tail, indicator, and inbuilt reflex reflector in one unit.

High-brightness LEDs.

Black chrome finish.

Round 125mm x 40mm format.

PMMA acrylic lens: UV-resistant for long-term outdoor use.

ABS base.

2-bolt surface mount.

ECE approved (CTA060073): Compliant for road use in Australia across all four functions.

IP67 fully waterproof and submersible.

12V and 24V compatible.

7-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU MAXILAMPC1XCE
Brand LED Autolamps
Series MaxiLamp
Type Stop/tail/indicator/reflector combination lamp
Shape Round
Diameter 125mm
Overall Dimensions 125mm x 45mm x 40mm
Finish Black chrome
Lens Material PMMA acrylic
Base Material ABS
Mount Type 2-bolt surface mount
Operating Voltage 12V to 24V
Waterproof Rating IP67
ECE Compliance CTA060073
Weight 0.394kg
Manufactured In China (Taiwan)
Warranty 7 years

Frequently asked questions

Is the MAXILAMPC1XCE ECE approved?

Yes. The MAXILAMPC1XCE holds ECE approval CTA060073, confirming compliance for road use in Australia across all four functions.

What functions does the MAXILAMPC1XCE cover?

The MAXILAMPC1XCE covers stop, tail, indicator, and inbuilt reflex reflector functions in a single round combination lamp unit.

What lens material does the MAXILAMPC1XCE use?

The MAXILAMPC1XCE uses a PMMA acrylic lens, providing UV resistance and long-term optical clarity for outdoor use.

What voltage does the MAXILAMPC1XCE operate on?

The MAXILAMPC1XCE operates on 12V and 24V systems.

Is the MAXILAMPC1XCE waterproof?

Yes. The MAXILAMPC1XCE has an IP67 rating, meaning it is fully dust-tight and can withstand submersion in up to 1 metre of water for up to 30 minutes.
