LED Autolamps LR12/2 12V Load Resistor In Blister Pack Of 2
Click to open expanded view
LED AUTOLAMPS logo

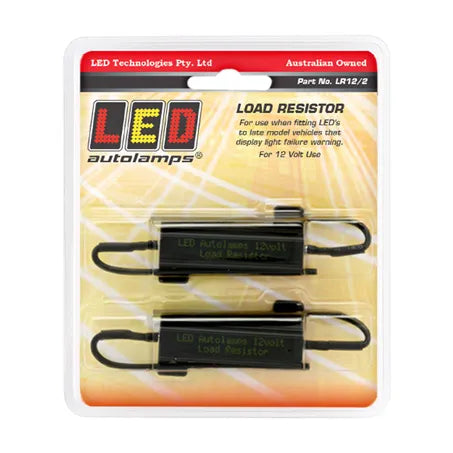

LED Autolamps LR12/2 12V Load Resistor In Blister Pack Of 2

SKU: LR122
Price
$42
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

12V LED Load Resistor Twin Pack Prevents Dashboard Errors, 21W Equivalent Draw

Product Overview

The LED Autolamps LR12/2 is a twin pack of 12V load resistors designed to prevent dashboard warning errors when LED lamps are fitted to vehicles that expect the higher current draw of a standard 21W incandescent globe. By drawing the same current as a 21W globe, the LR12/2 tricks the vehicle's electrical system into recognising a correctly loaded circuit eliminating false globe failure warnings.

Must be mounted to a metal surface for heat dissipation. IP67 rated and backed by a 5-year warranty.

Features & Benefits

  • Prevents dashboard errors — eliminates false globe failure warnings that occur when low-draw LED lamps are fitted to vehicles with CANbus or load-sensing electrical systems
  • Draws same current as a 21W globe — mimics the load of a standard incandescent indicator globe so the vehicle's system registers a normal circuit
  • Twin pack — two resistors supplied; typically one is required per lamp circuit
  • IP67 rated — fully sealed against dust and water immersion; suitable for exposed vehicle body mounting
  • Must be mounted to metal surface — heat generated by the resistor requires a metal mounting surface for safe dissipation; do not mount to plastic or timber
  • 12V only — designed for 12V vehicle electrical systems
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU LR12/2
Type Load Resistor
Pack Contents 2 resistors
Voltage 12V
Equivalent Load 21W incandescent globe
Mounting Metal surface required
Protection Rating IP67
Warranty 5 years

Compatible With / Goes Well With

  • Vehicles with CANbus or load-sensing electrical systems generating false globe failure warnings after LED lamp installation
  • LED indicator and stop/tail lamps fitted to modern vehicles expecting 21W globe load
  • LED Autolamps indicator and stop/tail lamps for 12V applications
  • LED Autolamps LED LOAD RESISTORS AND CANBUS MODULES category

Frequently Asked Questions

What is a load resistor and why do I need one?

Modern vehicles use CANbus or load-sensing systems to detect globe failures. LED lamps draw far less current than incandescent globes, so the system registers the circuit as a failed globe and triggers a dashboard warning. A load resistor adds resistance to the circuit to mimic the draw of a standard 21W globe, eliminating the false error.

Does the LR12/2 work with any LED lamp?

The LR12/2 is rated to draw the same current as a 21W globe, making it compatible with LED lamps replacing standard 21W indicator or stop/tail globes. For other wattage applications, confirm compatibility with F.A.E. or LED Autolamps.

Why must the load resistor be mounted to a metal surface?

Load resistors generate significant heat in operation. Mounting to a metal surface allows this heat to dissipate safely. Mounting to plastic, rubber, or timber risks heat damage to the surrounding material and potential failure of the resistor.

What is the IP rating on the LR12/2?

The LR12/2 is rated IP67, meaning it is fully sealed against dust and water immersion — suitable for mounting in exposed locations on the vehicle body.

What warranty does the LR12/2 carry?

The LR12/2 is backed by a 5-year warranty from LED Autolamps.
