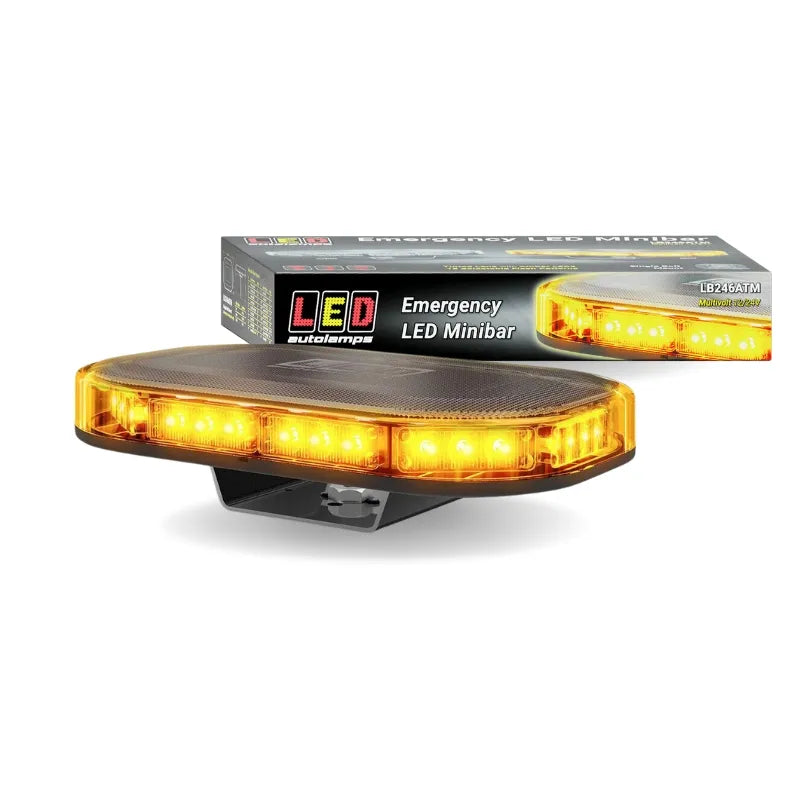

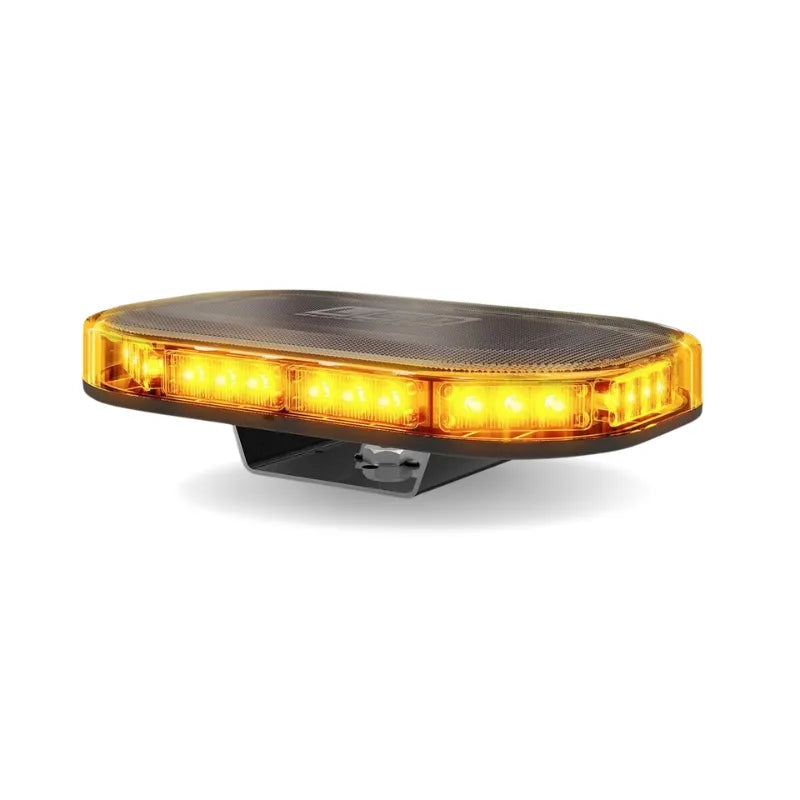

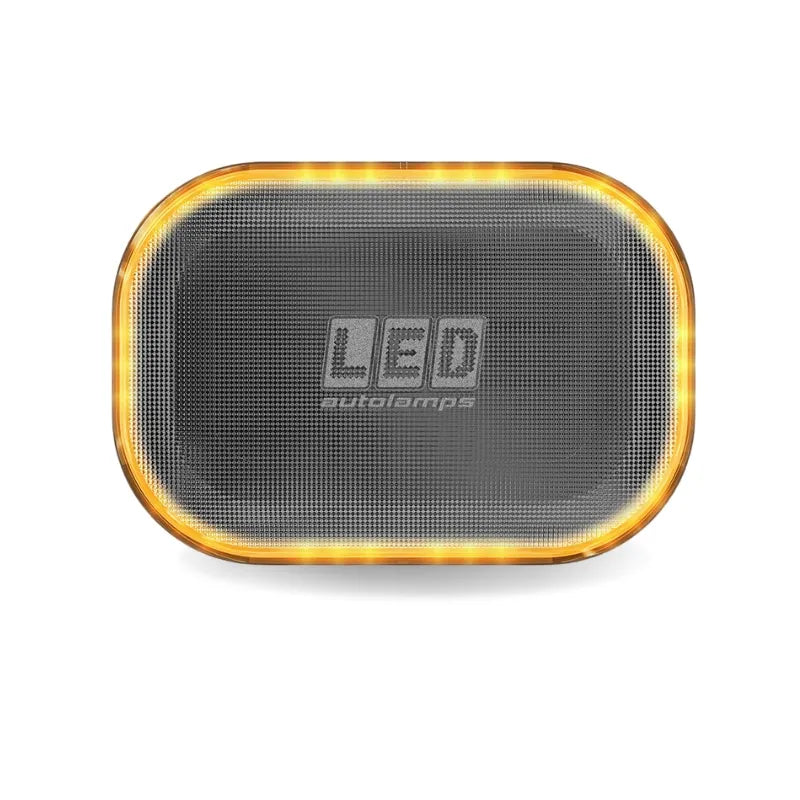

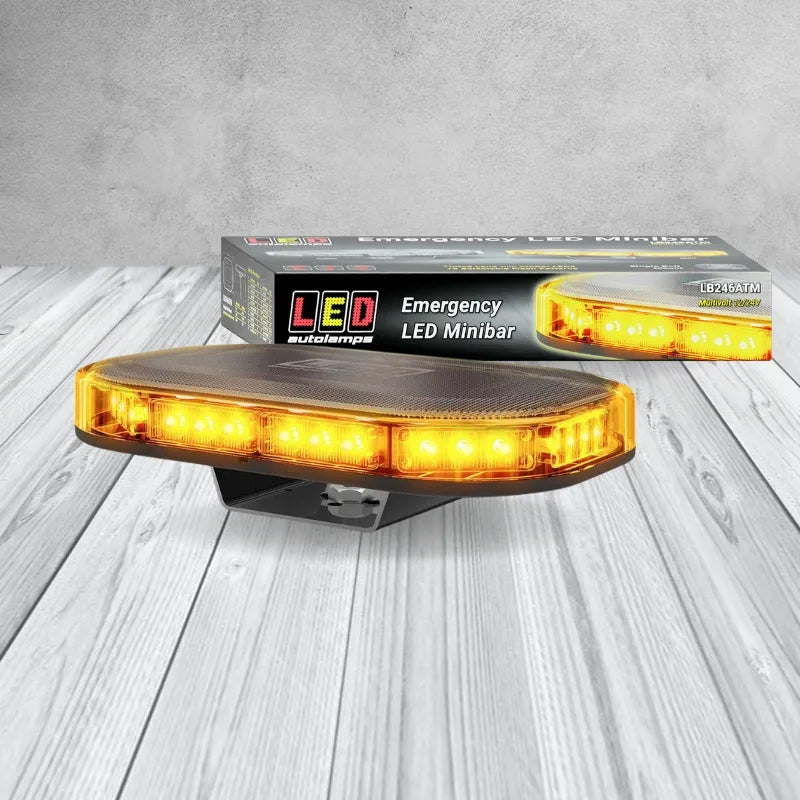

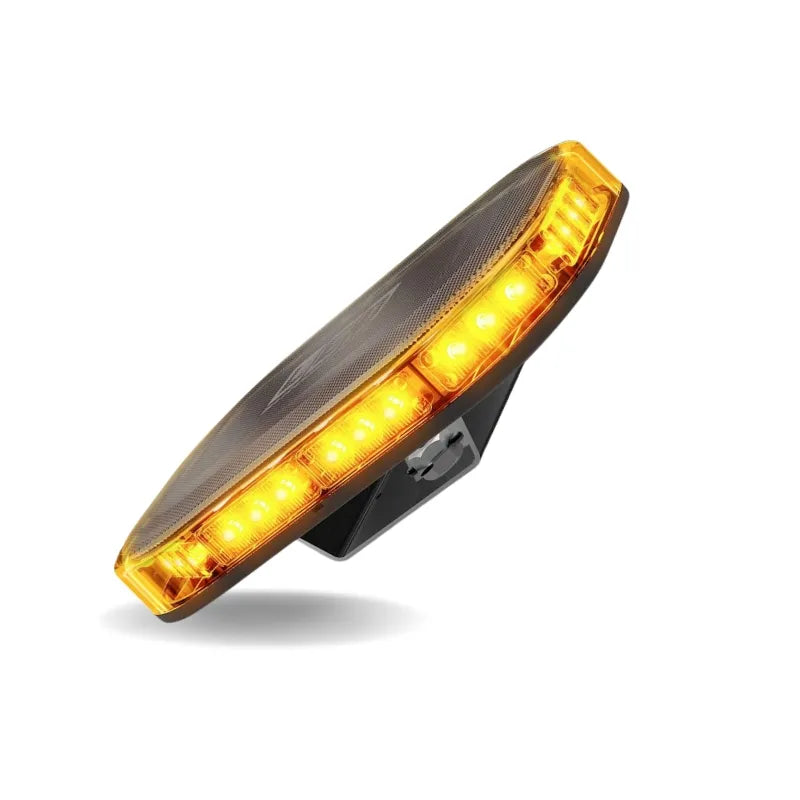

LED Autolamps LB246ATM 12/24V Emergency LED Minibar - Amber

SAE J845 Class 1 Amber Emergency Mini Light Bar Single Bolt Mount, Tinted Lens, 18 Flash Patterns.

Product Overview

The LED Autolamps LB246ATM is a heavy-duty amber LED emergency mini light bar featuring a tinted lens with amber LEDs, 18 selectable flash patterns, and a single bolt mount for secure permanent installation. Certified to SAE/J845 Class 1 and ECE R65/R10 standards, the LB246ATM delivers the same Class 1 warning output as the broader LB246 series in a compact 246mm x 171mm x 64mm format.

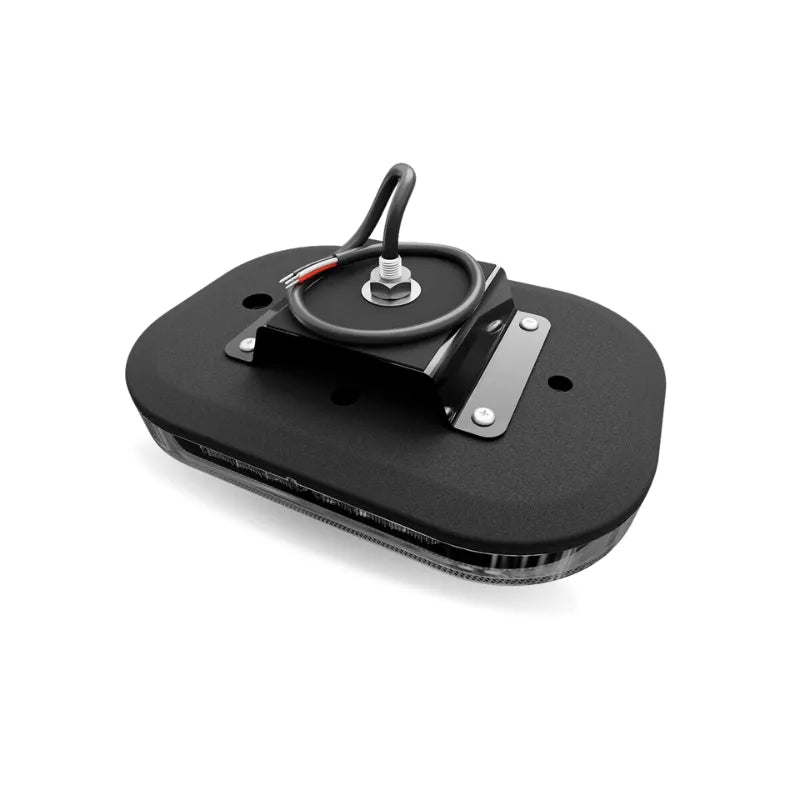

The single bolt mount differentiates the LB246ATM from both the LB246ATMM (magnetic mount) and LB246AM (permanent multi-bolt mount) providing a clean, centralised single-bolt fixing suitable for vehicle rooflines and cab tops where a single fastener installation is preferred. With IP65 weatherproofing, a -40°C to +60°C operating range, and LED Autolamps' 5-year warranty, the LB246ATM is a reliable, compliant amber warning solution for emergency, construction, and commercial vehicle applications.

Key Specifications

• LED colour: Amber
• Lens: Tinted with amber LEDs
• Housing colour: Black
• Dimensions: 246mm x 171mm x 64mm
• Mount type: Single bolt
• Flash patterns: 18 selectable
• LED type: 1-watt high brightness
• Compliance: SAE/J845 Class 1, ECE R65, ECE R10
• IP rating: IP65
• Input voltage: 12–24V DC
• Operating temperature: -40°C to +60°C
• Warranty: 5 years
• Weight: 1.8kg
• Packaging: Box single unit
• Brand: LED Autolamps
• SKU: LB246ATM

Features & Benefits

• Single bolt mount: Clean, centralised single-bolt installation suited to vehicle roof lines and cab tops where a minimal fixing footprint is preferred
• SAE/J845 Class 1 and ECE R65/R10 certified: International compliance standards for emergency vehicle warning light output and electromagnetic compatibility
• 18 selectable flash patterns: Comprehensive pattern selection for operational and regulatory flexibility
• 1-watt high brightness LEDs: Premium LED output for maximum amber warning visibility in daylight conditions
• Tinted amber lens: Amber tinted lens with amber LEDs delivers rich, consistent amber warning output
• IP65 weatherproof: Protected against dust and low-pressure water spray for outdoor use
• -40°C to +60°C operating range: Reliable across Australia's extreme temperature conditions
• 12V and 24V compatible: Suits both passenger vehicles and 24V commercial trucks and vans
• 5-year warranty: Backed by LED Autolamps' 5-year product warranty

Technical Specs

Compatible With

Universal suits all 12V and 24V vehicles requiring amber emergency warning lighting including:

• Emergency and first response vehicles
• Roadside assistance and breakdown vehicles
• Construction, earthmoving, and mine site vehicles
• Pilot and escort vehicles
• Slow-moving agricultural and heavy haulage vehicles

Frequently Asked Questions

How does the LB246ATM differ from the LB246ATMM and LB246AM?

All three are 246mm amber emergency mini light bars with the same SAE/J845 Class 1 compliance and 18 flash patterns. The LB246ATMM uses a magnetic mount, the LB246ATM uses a single bolt mount, and the LB246AM uses a permanent multi-bolt mount. Choose based on your preferred installation method.

Is this light bar legal for use on public roads in Australia?

SAE/J845 Class 1 and ECE R65 certification meets international output standards for emergency warning lighting. However, legal requirements for amber light bar use on public roads vary by Australian state and territory. Always confirm local regulatory requirements before fitting for on-road use.

What does Class 1 compliance mean?

Class 1 is the highest output classification under SAE/J845 the standard for primary emergency vehicle warning lights, ensuring maximum light output and visibility.

How many flash patterns does this light bar have?

The LB246ATM offers 18 selectable flash patterns, allowing operators to choose the most appropriate warning signal for their application.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions about this product.
