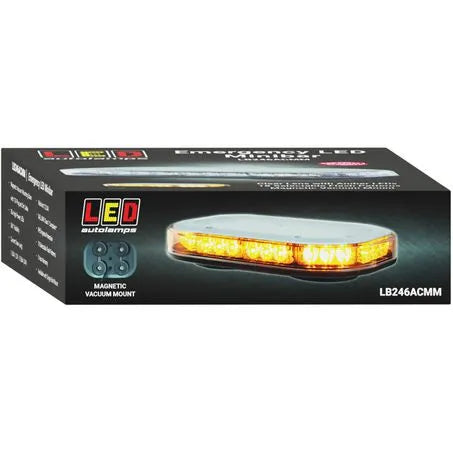

LB246ACMM amber light bar with its retail box
LB246ACMM amber light bar with its retail box
LB246ACMM light bar with amber lens and coiled lead
LB246ACMM light bar with amber lens and coiled lead

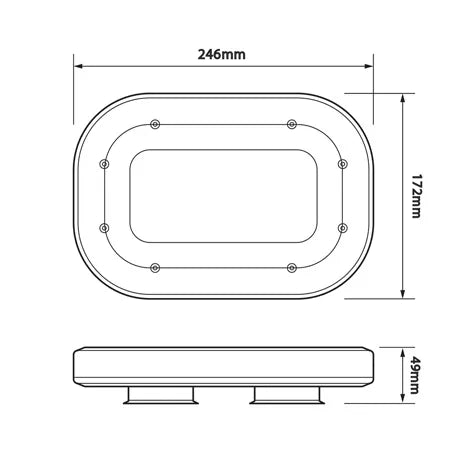

Dimension drawing of the LB246ACMM, 246mm long
Dimension drawing of the LB246ACMM, 246mm long
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps LB246ACMM 12/24V Amber Emergency Mini Light Bar Magnetic Mount

SKU: LB246ACMM
Price
$292.95
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
LB246ACMM amber light bar with its retail box

LED Autolamps LB246ACMM 12/24V Amber Emergency Mini Light Bar Magnetic Mount

$292.95

Product features

Service vehicles and escort utes stopping on a road shoulder need warning lights that other drivers notice early, even in daylight.

The LB246ACMM is a 246mm amber mini light bar with 30 one watt LEDs, 18 selectable flash patterns and a Class 1 rating under SAE J845. It sits on a dual vacuum magnetic base, so it can go on the roof for a job and come off again at the end of the day.

LB246ACMM features

  • 30 amber LEDs at 1W each
  • 18 selectable flash patterns
  • SAE J845 Class 1, ECE R65 and ECE R10
  • Vacuum magnetic mount
  • 10V to 30V operation, IP67

Specifications

Type Amber emergency mini light bar
LED Count 30
LED Power 1W per LED
LED Colour Amber
Housing Colour Black
Light Output Class Class 1 QUAD
Flash Patterns 18 selectable
Mount Type Vacuum magnetic
Operating Voltage 10V to 30V
Dimensions 246mm x 172mm x 49mm
Compliance SAE/J845 Class 1, ECE R65, ECE R10
IP Rating IP67

Fitment and compatibility

Runs on 10V to 30V, so it suits 12V and 24V vehicles. The magnetic base needs a flat steel roof panel.

What is in the box

LED Autolamps does not list the box contents on its spec sheet. Ask us about the packed items and power lead type before you order.

Install notes

Magnetic bars usually plug into a socket, though some fleets prefer a hard wired switch. Talk to Albion Park Rail on (02) 4257 2636 about the wiring you need.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

How many flash patterns does the LB246ACMM have?

18 selectable patterns.

Is it legal for road use?

It is rated SAE J845 Class 1 and ECE R65, but check your state rules for amber light use.

What size is it?

246mm x 172mm x 49mm.

Will the magnet hold on my roof?

It needs a flat steel panel. Tell us the vehicle and we will check.

Also for your build: LED Light Bars, LED Light Bars and Driving Lights

What voltage does the LB246ACMM run on?

The specifications list operating Voltage: 10V to 30V.
