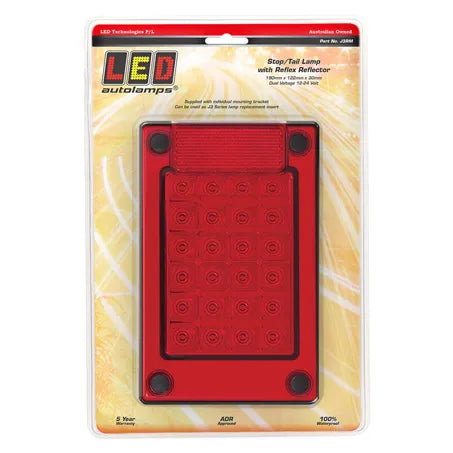

LED Autolamps J3RM Red LED Stop/Tail Lamp Insert For J3 Series Blister Pack

SKU: J3RM
Price
$174
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps J3RM Red LED Stop and Tail Lamp Insert for J3 Jumbo Series Inbuilt Reflex Reflector Individually Mountable with Bracket 190mm x 122mm x 30mm ADR Approved CTA042964 IP67 12-24V

The LED Autolamps J3RM is a red LED stop and tail lamp insert for the J3 Jumbo series. Inbuilt reflex reflector. Individually mountable with bracket. 190mm x 122mm x 30mm. ADR approved (CTA042964). IP67 waterproof. 12-24V. Five-year warranty. Sold individually.

Product overview

The J3RM is a red stop and tail lamp insert for the LED Autolamps J3 Jumbo series, functioning as both a replacement lens and an individually mountable stop and tail lamp with inbuilt reflex reflector. The bracket allows each insert to be surface-mounted independently of the full J3 series lamp assembly. ADR CTA042964 approval confirms road-legal compliance in Australia. IP67 waterproof. 12-24V compatible.

Features and benefits

Red stop and tail lamp insert for J3 Jumbo series.

Inbuilt reflex reflector: Active LED and passive reflector combined in one unit.

Individually mountable with bracket: Can be surface-mounted independently.

Replacement lens for Jumbo series lamps.

190mm x 122mm x 30mm.

ADR approved (CTA042964): Compliant for road use in Australia.

IP67 fully waterproof and submersible.

12V and 24V compatible.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU J3RM
Brand LED Autolamps
Series J3 Jumbo
Type Red stop/tail lamp insert
LED Colour Red
Housing Colour Black
Operating Voltage 12V to 24V
Dimensions 190mm x 122mm x 30mm
Mount Type Surface mount with bracket
Waterproof Rating IP67
ADR Compliance CTA042964
Weight 0.5kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the J3RM ADR approved?

Yes. The J3RM holds ADR approval CTA042964, confirming compliance for road use in Australia as a stop and tail lamp.

What is the difference between the J3RM and the J3AM?

The J3RM is a red stop and tail lamp insert. The J3AM is an amber indicator lamp insert. Both suit the J3 Jumbo series, share the same 190mm x 122mm x 30mm format, ADR CTA042964 approval, inbuilt reflex reflector, individually mountable bracket, and IP67 rating.

Can the J3RM be mounted independently?

Yes. The J3RM includes a bracket for individual surface mounting, allowing it to be installed independently of the full J3 series lamp assembly.

What voltage does the J3RM operate on?

The J3RM operates on 12V and 24V systems.

Is the J3RM waterproof?

Yes. The J3RM has an IP67 rating, meaning it is fully dust-tight and can withstand submersion in up to 1 metre of water for up to 30 minutes.
