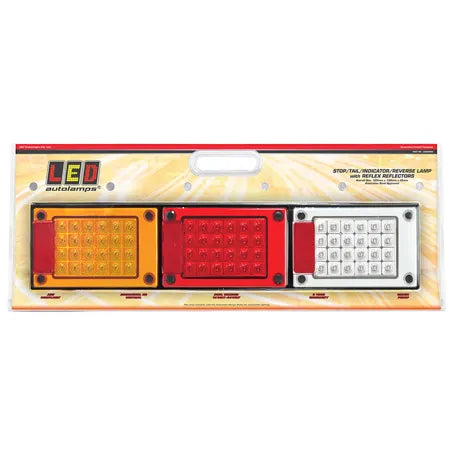

LED Autolamps J3BARWM multi-volt jumbo stop, tail, indicator, and reverse lamp assembly in packaging with red, yellow, and clear lenses.
LED Autolamps J3BARWM multi-volt jumbo stop, tail, indicator, and reverse lamp assembly in packaging with red, yellow, and clear lenses.
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps J3BARWM Multi Volt Jumbo Stop/Tail/Indicator/Reverse Lamp Assembly

SKU: J3BARWM
Price
$290
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps J3BARWM 12-24V Jumbo Stop Tail Indicator and Reverse Lamp Assembly Individually Mountable Inbuilt Reflex Reflectors 595mm x 130mm x 45mm 500mm Mounting Centres Pre-Wired ADR Approved CTA042964 CRN42965 CRN42964 CRN42967 CRN42966 IP67

The LED Autolamps J3BARWM is a 12-24V Jumbo stop, tail, indicator, and reverse combination lamp assembly with inbuilt reflex reflectors. Individually mountable with bracket. 595mm x 130mm x 45mm, 500mm mounting centres, pre-wired, surface mount. ADR approved (CTA042964). Stop/tail CRN42965, indicator CRN42964, reverse CRN42967, reflector CRN42966. IP67 waterproof. Five-year warranty. Sold individually.

Product overview

The J3BARWM adds a reverse function to the J3BARRM stop/tail/indicator assembly, providing a complete four-function Jumbo combination lamp in the same 595mm x 130mm x 45mm housing with 500mm mounting centres. The J3 series inserts are individually mountable with bracket, allowing each function section to be surface-mounted independently. Inbuilt reflex reflectors provide passive reflective compliance. Four CRN references confirm full road-legal compliance for stop/tail (CRN42965), indicator (CRN42964), reverse (CRN42967), and reflector (CRN42966) functions. ADR CTA042964. Pre-wired surface mount. IP67 waterproof. 12-24V compatible.

Features and benefits

Jumbo format stop, tail, indicator, and reverse combination lamp.

Individually mountable with bracket: Each section can be surface-mounted independently.

Inbuilt reflex reflectors: Active LED and passive reflector combined in one assembly.

595mm x 130mm x 45mm.

500mm mounting centres.

Pre-wired surface mount.

ADR approved (CTA042964), stop/tail CRN42965, indicator CRN42964, reverse CRN42967, reflector CRN42966: Full road-legal compliance in Australia.

IP67 fully waterproof and submersible.

12V and 24V compatible.

Five-year warranty.

Technical specs

Specification Detail
SKU J3BARWM
Brand LED Autolamps
Series J3 Jumbo
Type Stop/tail/indicator/reverse combination lamp assembly
Housing Colour Black
Operating Voltage 12V to 24V
Current — Stop 0.47A at 13.8V
Current — Tail 0.04A at 13.8V
Current — Indicator 0.42A at 13.8V
Current — Reverse 0.18A at 13.8V
Dimensions 595mm x 130mm x 45mm
Mounting Centres 500mm
Connection Pre-wired
Mount Type Surface mount
Waterproof Rating IP67
ADR Compliance CTA042964
Stop/Tail CRN CRN42965
Indicator CRN CRN42964
Reverse CRN CRN42967
Reflector CRN CRN42966
Weight 2.3kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the J3BARWM ADR approved?

Yes. The J3BARWM holds ADR approval CTA042964 with stop/tail CRN42965, indicator CRN42964, reverse CRN42967, and reflector CRN42966, confirming full road-legal compliance across all functions in Australia.

What is the difference between the J3BARWM and the J3BARRM?

The J3BARWM adds a reverse function (CRN42967, 0.18A) to the stop, tail, indicator, and reflector functions of the J3BARRM. Both share the same 595mm x 130mm x 45mm housing, 500mm mounting centres, ADR CTA042964 approval, and IP67 rating.

Can the J3 series inserts be mounted individually?

Yes. The J3 series inserts are individually mountable with bracket, allowing each function section to be surface-mounted independently of the full assembly.

What are the mounting centres on the J3BARWM?

The J3BARWM has 500mm mounting centres.

Is the J3BARWM waterproof?

Yes. The J3BARWM has an IP67 rating, meaning it is fully dust-tight and can withstand submersion in up to 1 metre of water for up to 30 minutes.
