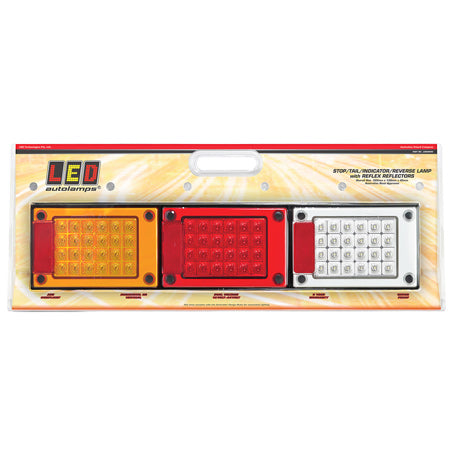

LED Autolamps J3BARWM multi-volt jumbo stop, tail, indicator, and reverse lamp assembly in packaging with red, yellow, and clear lenses.
LED Autolamps J3BARWM multi-volt jumbo stop, tail, indicator, and reverse lamp assembly in packaging with red, yellow, and clear lenses.
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps J3BARWM Multi Volt Jumbo Stop/Tail/Indicator/Reverse Lamp Assembly

SKU: J3BARWM
Price
$290
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved Jumbo Stop/Tail/Indicator/Reverse Assembly 595mm, Full CRN Certification, IP67

Product Overview

The LED Autolamps J3BARWM is the four-function flagship of the J3 Jumbo series a 12/24V rear combination lamp covering stop, tail, indicator, reverse, and inbuilt reflex reflectors across the same 595mm x 130mm x 45mm Jumbo housing as the J3BARRM, with the addition of a reverse function carrying its own CRN42967 certification.

All five functions carry individual CRN approvals: stop/tail CRN42965, indicator CRN42964, reverse CRN42967, and reflector CRN42966. Drawing 0.47A stop, 0.04A tail, 0.42A indicator, and 0.18A reverse at 13.8V. Rated IP67 and backed by a 5-year warranty.

Features & Benefits

  • Five functions in one Jumbo assembly — stop, tail, indicator, reverse, and inbuilt reflex reflectors with individual CRN certifications
  • Full CRN certification — stop/tail CRN42965, indicator CRN42964, reverse CRN42967, reflector CRN42966
  • 595mm Jumbo form factor — suited to wide-body trucks, semi-trailers, and heavy commercial vehicles
  • Inbuilt reflex reflectors — integrated passive reflective elements for additional rear visibility and compliance
  • All four current draws confirmed — stop 0.47A, tail 0.04A, indicator 0.42A, reverse 0.18A at 13.8V
  • 500mm centre-to-centre mount — confirm against your panel before installation
  • Pre-wired surface mount — ready to connect out of the pack
  • ADR road approved — meets Australian Design Rules for legal on-road use across all functions
  • IP67 rated — fully sealed against dust and water immersion
  • 12/24V dual voltage — compatible with 12V and 24V vehicle electrical systems
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU J3BARWM
Series Jumbo
Lamp Type Stop / Tail / Indicator / Reverse / Reflector
Voltage Range 12V / 24V
Dimensions 595mm x 130mm x 45mm
Mount Centre-to-Centre 500mm
Stop Current Draw 0.47A @ 13.8V
Tail Current Draw 0.04A @ 13.8V
Indicator Current Draw 0.42A @ 13.8V
Reverse Current Draw 0.18A @ 13.8V
Reflector Inbuilt reflex
Mounting Surface mount
Connector Pre-wired
Protection Rating IP67
Stop/Tail Compliance ADR — CRN42965
Indicator Compliance ADR — CRN42964
Reverse Compliance ADR — CRN42967
Reflector Compliance ADR — CRN42966
Warranty 5 years

Compatible With / Goes Well With

  • Wide-body trucks, semi-trailers, and heavy commercial vehicles requiring full-function Jumbo rear combination lighting
  • 12V and 24V vehicle electrical systems
  • LED Autolamps J3BARRM (same 595mm Jumbo form factor, without reverse)
  • LED Autolamps J3AM and J3RM inserts (same J3 Jumbo series)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the J3BARWM approved for road use in Australia?

Yes. The J3BARWM holds individual ADR CRN certifications for all five functions — stop/tail (CRN42965), indicator (CRN42964), reverse (CRN42967), and reflector (CRN42966) — meeting Australian Design Rules for full legal on-road use.

How does the J3BARWM differ from the J3BARRM?

The J3BARWM adds reverse function with its own CRN42967 certification to the same 595mm x 130mm Jumbo form factor as the J3BARRM. Choose the J3BARWM for a complete five-function assembly; choose the J3BARRM where a separate reverse lamp is preferred.

What are all four current draws?

Stop draws 0.47A, tail 0.04A, indicator 0.42A, and reverse 0.18A — all at 13.8V.

What is the IP rating on the J3BARWM?

The J3BARWM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed truck body and trailer mounting.

What warranty does the J3BARWM carry?

The J3BARWM is backed by a 5-year warranty from LED Autolamps.
