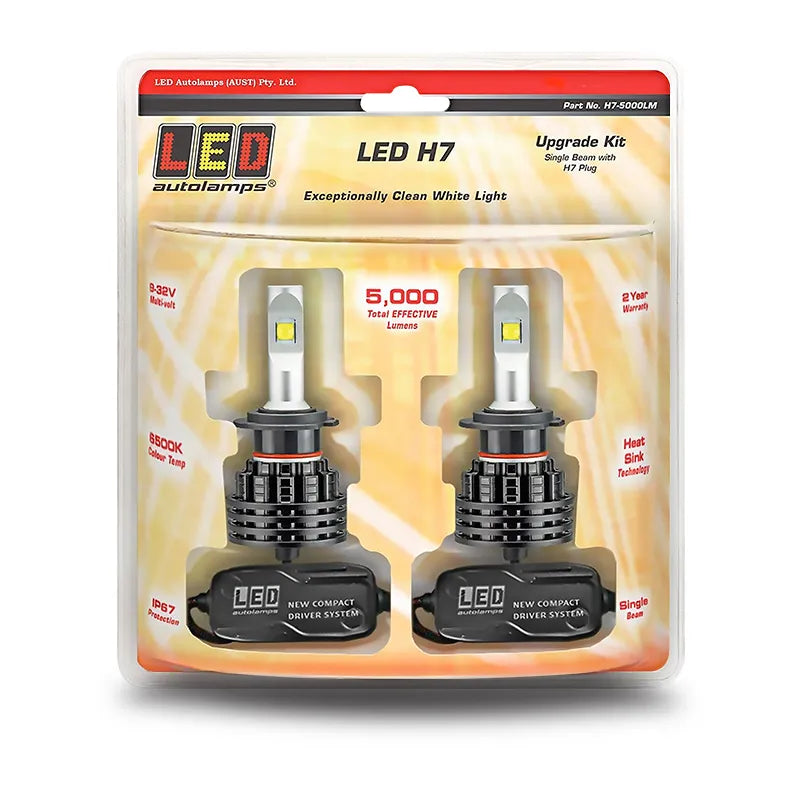

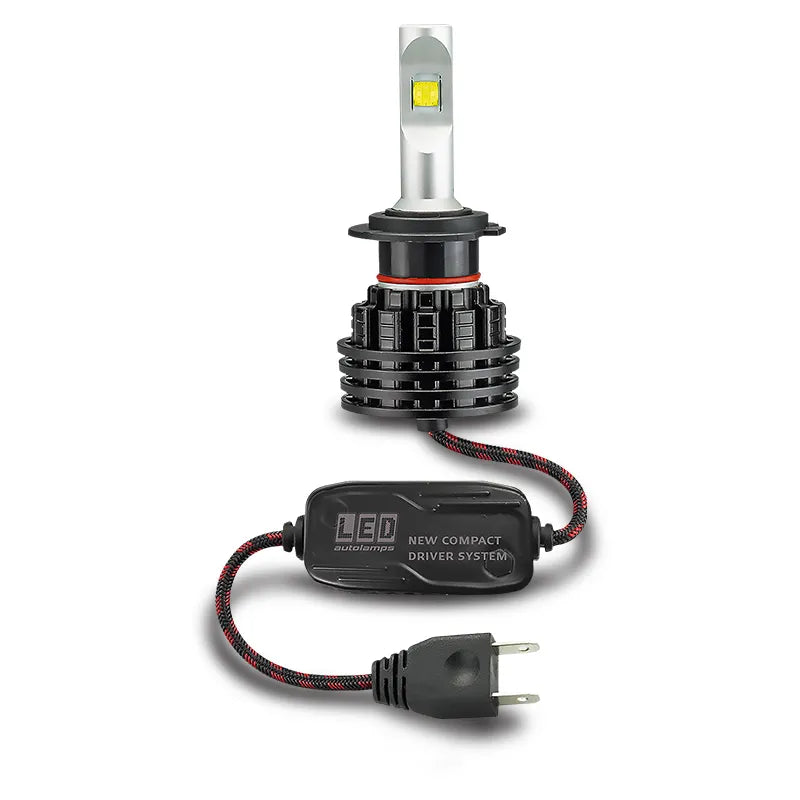

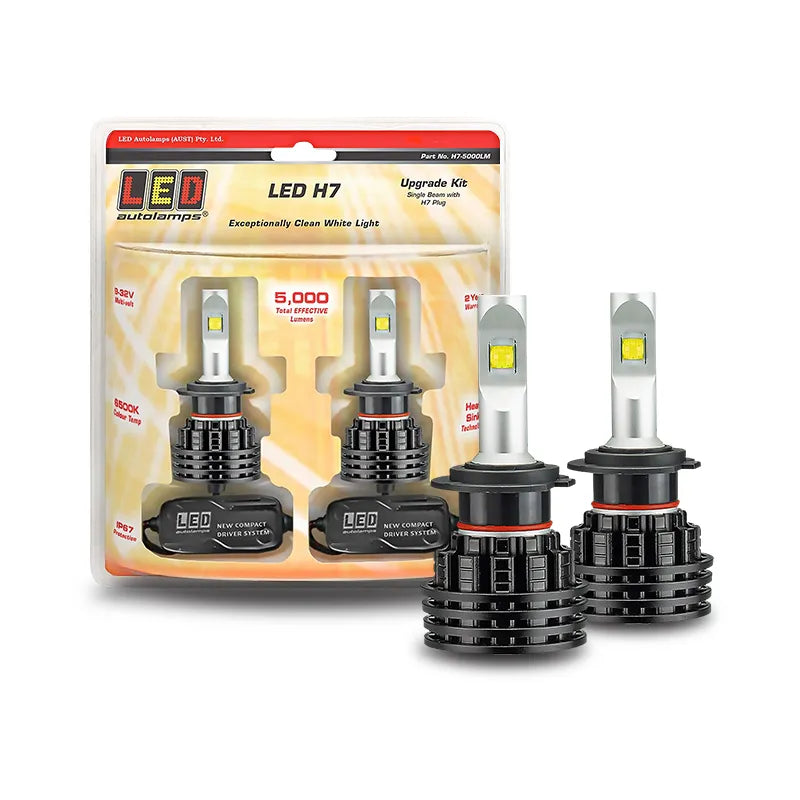

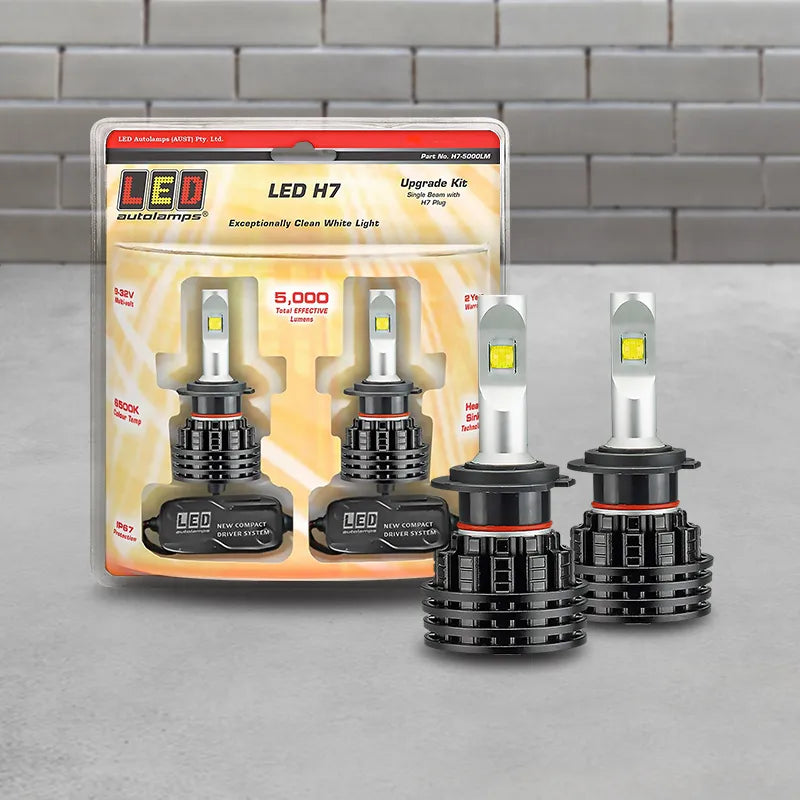

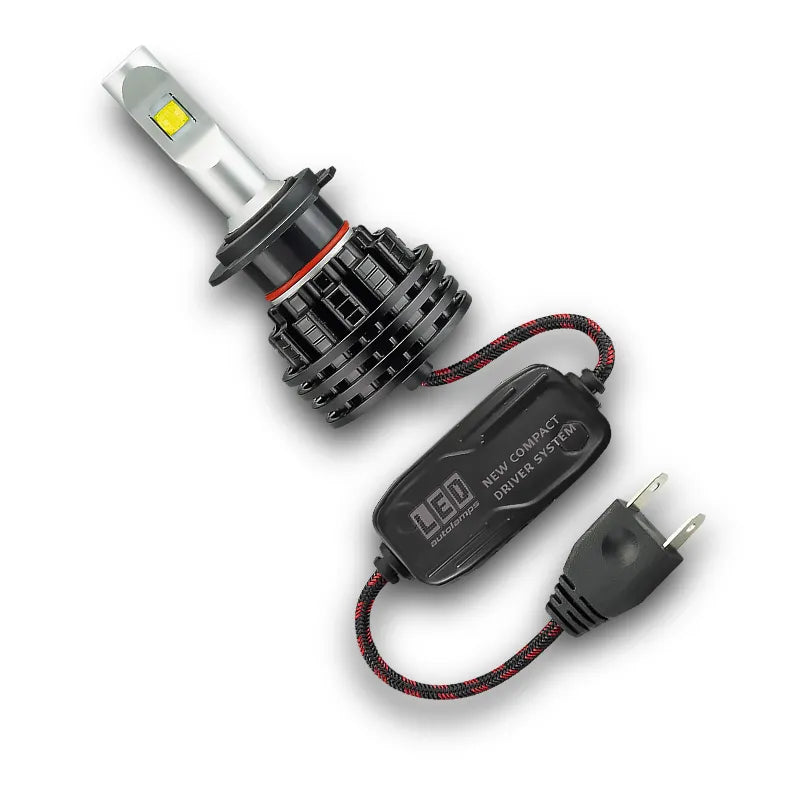

LED Autolamps H7-5000LM 9/32V H7 LED Headlight Kit Single Beam

H7 LED Headlight Conversion 5000 Lumens, 6500K Cool White, COB LED, 9–32V, Replaces 55W.

Product Overview

The LED Autolamps H7-5000LM is a single H7 LED headlight conversion kit designed to replace a standard 55W H7 halogen headlight globe with a modern COB LED unit delivering 5000 lumens and 6500K cool white light output. With a direct H7 plug-in design (PX26d base), installation is straightforward simply unplug the existing H7 halogen and plug in the LED replacement.

Operating across a wide 9–32V DC input range, the H7-5000LM suits both 12V passenger vehicles and 24V commercial trucks using standard H7 single beam headlight globes. The compact 82mm x 40mm round aluminium housing provides effective heat dissipation for the COB LED array, and the 6500K cool white output delivers a noticeably brighter, more modern appearance compared to standard H7 halogen globes. Supplied as a single unit two units required for a complete vehicle headlight upgrade. Backed by a 2-year warranty.

Key Specifications

• Globe type: H7 LED (single beam)
• Globe base: PX26d (H7)
• Replaces: 55W H7 halogen
• Effective lumens: 5000lm
• Colour temperature: 6500K (cool white)
• LED type: COB (Chip on Board)
• Voltage range: 9–32V DC
• Housing: Aluminium black
• Dimensions: 82mm x 40mm (round)
• ADR approval: Not ADR approved
• Warranty: 2 years
• Weight: 0.28kg
• Packaging: Blister pack single unit
• Brand: LED Autolamps
• SKU: H7-5000LM

Features & Benefits

• 5000 lumens output: Delivers significantly more light output than the standard 55W H7 halogen it replaces, improving road visibility in low-light conditions
• COB LED technology: Chip on Board LED construction provides a high-density light source for maximum brightness and an even beam pattern
• 6500K cool white: Crisp daylight-style colour temperature delivers a modern, bright white light appearance
• Direct H7 plug-in installation: PX26d base matches the standard H7 connector for straightforward plug-in replacement without wiring modification in most vehicles
• 9–32V voltage range: Suits both 12V passenger vehicles and 24V commercial trucks running standard H7 single beam headlight configurations
• Energy saving: LED technology draws significantly less current than the 55W halogen it replaces, reducing electrical system load
• Aluminium housing: Provides effective heat dissipation for the COB LED array, extending operating life
• 2-year warranty: Backed by LED Autolamps' 2-year product warranty

Technical Specs

Compatible With

Suits vehicles using standard H7 (PX26d) single beam headlight globes including many:

• Passenger cars and SUVs with H7 headlight configurations
• 4WDs and utes with H7 single beam headlights
• Commercial trucks and vans with H7 headlight systems (9–32V)

Frequently Asked Questions

Is this globe ADR approved for road use in Australia?

No the H7-5000LM is marked "Non AD" in the supplier specifications, indicating it is not ADR approved for use on public roads in Australia. Always check the legal requirements for headlight globe modifications in your state or territory before installing this product in a road-going vehicle.

How many units are required for a full vehicle headlight upgrade?

This listing is for a single globe. Two units are required for a complete vehicle headlight upgrade one per headlight. Purchase two units if upgrading both headlights simultaneously.

Will this globe work on my CAN bus vehicle?

Some modern vehicles with CAN bus systems or globe-out detection circuits may display error warnings when low-current LED globes replace higher-draw halogen globes. A CAN bus decoder or load resistor may be required confirm vehicle compatibility before purchasing.

What does this globe replace?

The H7-5000LM is designed to replace standard 55W H7 halogen globes in vehicles using the H7 PX26d single beam headlight format.

What is the colour temperature of this globe?

The H7-5000LM is 6500K a cool white, daylight-style colour temperature that produces a brighter, crisper appearance compared to the warm yellow output of standard H7 halogen globes.
