LED Autolamps H1-5000LM 9/32V H1 LED Headlight Kit Single Beam Twin Blister

SKU: H15000LM
Price
$106
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

H1 LED Headlight Conversion 5000 Lumens, 6500K Cool White, COB LED, 9–32V. Twin Blister Pack.

Product Overview

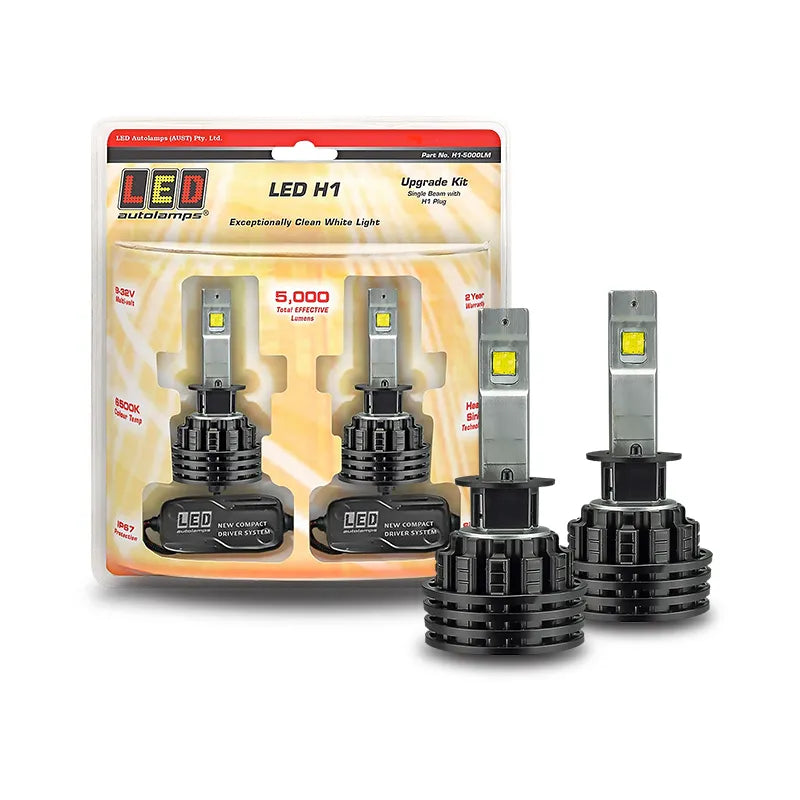

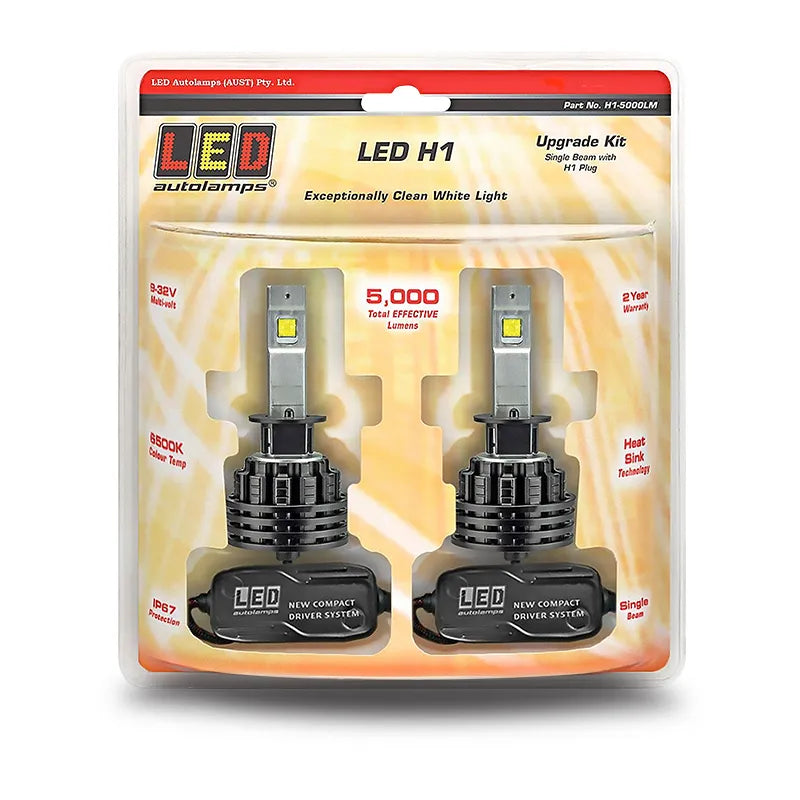

The LED Autolamps H1-5000LM is an H1 LED headlight conversion kit supplied as a twin blister pack two globes per pack for a complete vehicle headlight upgrade in a single purchase. Designed to replace standard H1 single beam halogen globes, these COB LED units deliver 5000 lumens and 6500K cool white output for noticeably brighter, more modern headlight illumination compared to standard H1 halogen globes.

Direct H1 plug-in installation makes fitting straightforward simply unplug the existing H1 halogen and connect the LED replacement. Operating across a wide 9–32V DC input range, the H1-5000LM suits both 12V passenger vehicles and 24V commercial trucks using H1 single beam headlight configurations. The compact 79mm x 40mm round aluminium housing provides heat dissipation for the COB LED array. Backed by a 2-year warranty.

Key Specifications

  • Globe type: H1 LED (single beam)
  • Effective lumens: 5000lm
  • Colour temperature: 6500K (cool white)
  • LED type: COB (Chip on Board)
  • Voltage range: 9–32V DC
  • Housing: Aluminium black
  • Dimensions: 79mm x 40mm (round)
  • ADR approval: Not ADR approved
  • Warranty: 2 years
  • Weight: 0.28kg
  • Pack quantity: 2 (twin blister)
  • Brand: LED Autolamps
  • SKU: H1-5000LM

Features & Benefits

  • 5000 lumens output: Delivers significantly more light than the standard H1 halogen it replaces, improving road visibility in low-light conditions
  • COB LED technology: Chip on Board LED construction provides a high-density light source for maximum brightness and an even beam pattern
  • 6500K cool white: Crisp daylight-style colour temperature delivers a modern, bright white light appearance compared to the warm yellow of standard halogen globes
  • Direct H1 plug-in installation: Matches the standard H1 connector for straightforward plug-in replacement without wiring modification in most vehicles
  • 9–32V voltage range: Suits both 12V passenger vehicles and 24V commercial trucks running H1 single beam headlight configurations
  • Energy saving: LED technology draws significantly less current than the standard H1 halogen it replaces, reducing electrical system load
  • Aluminium housing: Provides effective heat dissipation for the COB LED array, extending operating life
  • Twin blister pack: Two globes per pack for a complete vehicle headlight upgrade in a single purchase
  • 2-year warranty: Backed by LED Autolamps' 2-year product warranty

Technical Specs

Specification Detail
SKU H1-5000LM
Brand LED Autolamps
Globe Type H1 LED Single Beam
Effective Lumens 5000lm
Colour Temperature 6500K (cool white)
LED Type COB
Voltage Range 9–32V DC
Housing Material Aluminium
Housing Colour Black
Dimensions 79mm x 40mm (round)
ADR Approval Not ADR approved
Warranty 2 Years
Weight 0.28kg
Pack Quantity 2 (twin blister)

Compatible With

Suits vehicles using standard H1 single beam headlight globes including many:

  • Passenger cars and SUVs with H1 headlight configurations
  • 4WDs and utes with H1 single beam headlights
  • Commercial trucks and vans with H1 headlight systems (9–32V)

Frequently Asked Questions

Is this globe ADR approved for road use in Australia?

No the H1-5000LM is marked "Non ADR" in the supplier specifications, indicating it is not ADR approved for use on public roads in Australia. Always check the legal requirements for headlight globe modifications in your state or territory before installing this product in a road-going vehicle.

How many globes are included in this pack?

This is a twin blister pack containing two H1 LED globes sufficient for a complete vehicle headlight upgrade with one globe per headlight.

Will this globe work on my CAN bus vehicle?

Some modern vehicles with CAN bus systems or globe-out detection circuits may display error warnings when low-current LED globes replace higher-draw halogen globes. A CAN bus decoder or load resistor may be required confirm vehicle compatibility before purchasing.

What does this globe replace?

The H1-5000LM is designed to replace standard H1 single beam halogen globes in vehicles using the H1 headlight format.

How does the H1-5000LM differ from the H7-5000LM?

Both are LED headlight conversion kits with the same 5000lm output and 6500K colour temperature, but they use different globe bases H1 and H7 respectively. Always confirm which globe type your vehicle uses before purchasing.
