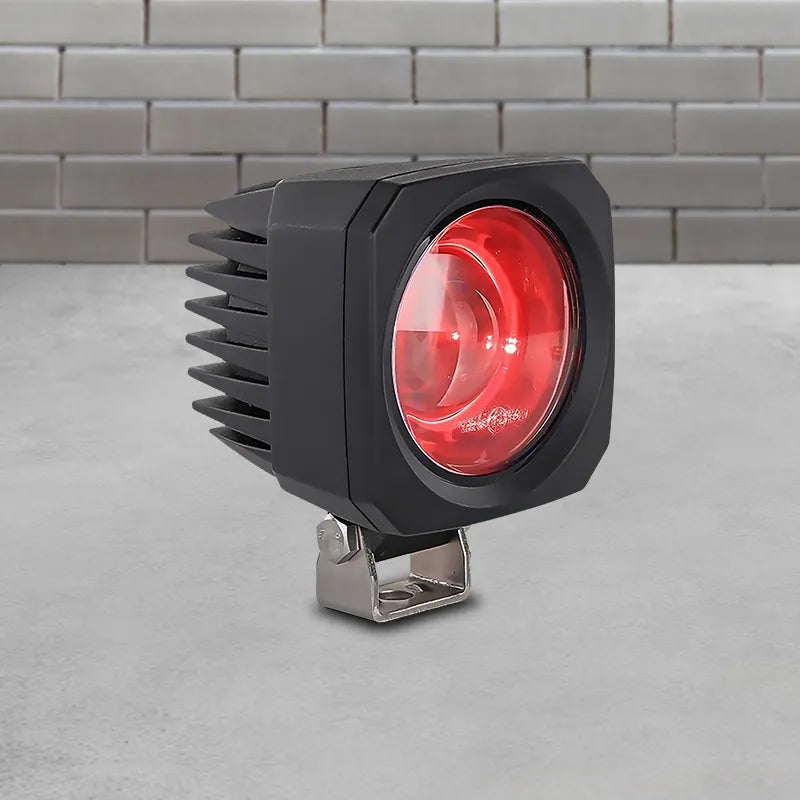

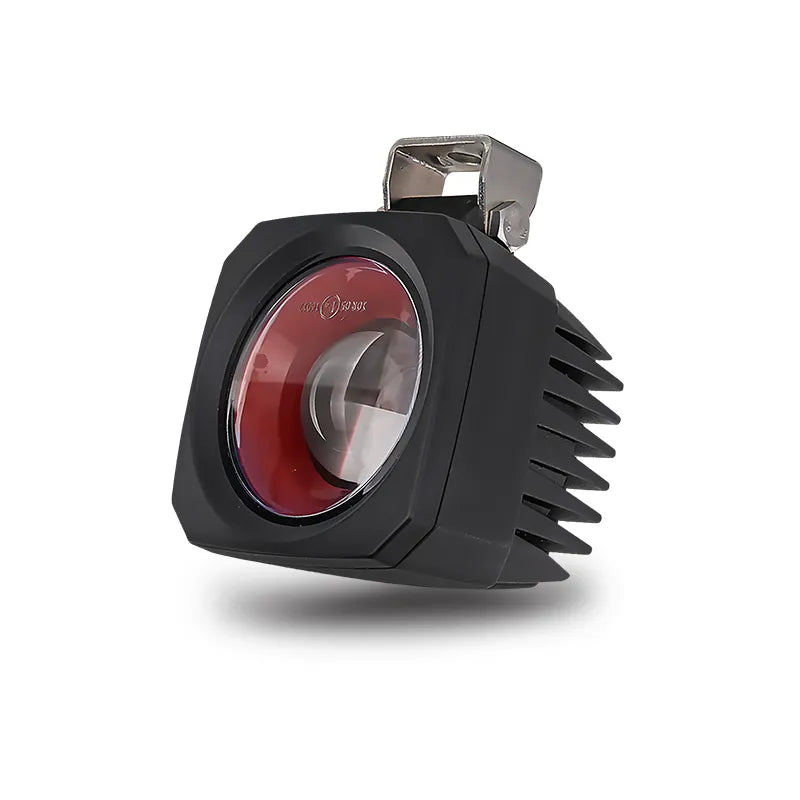

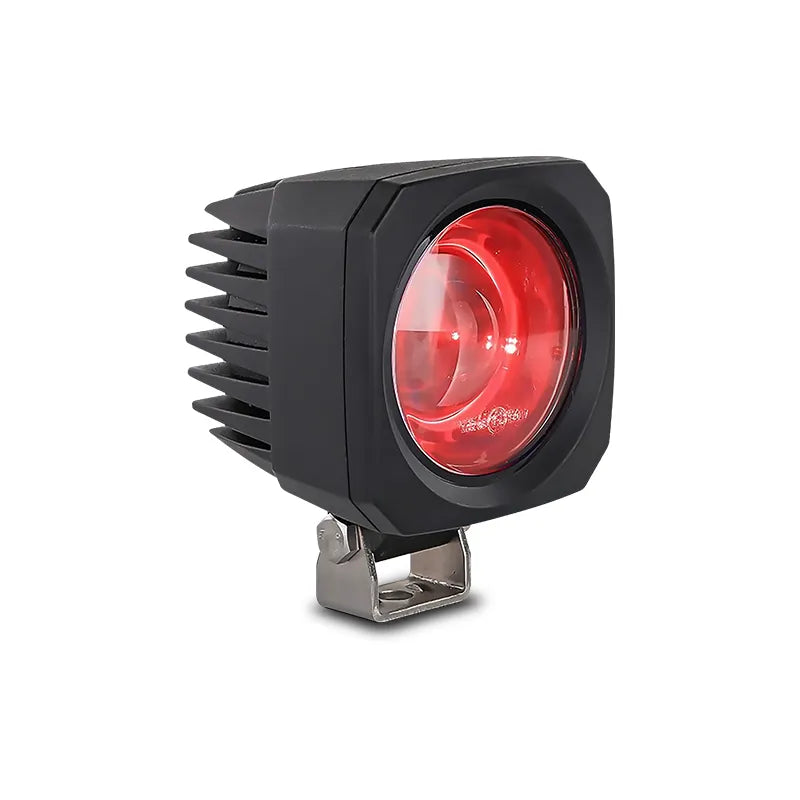

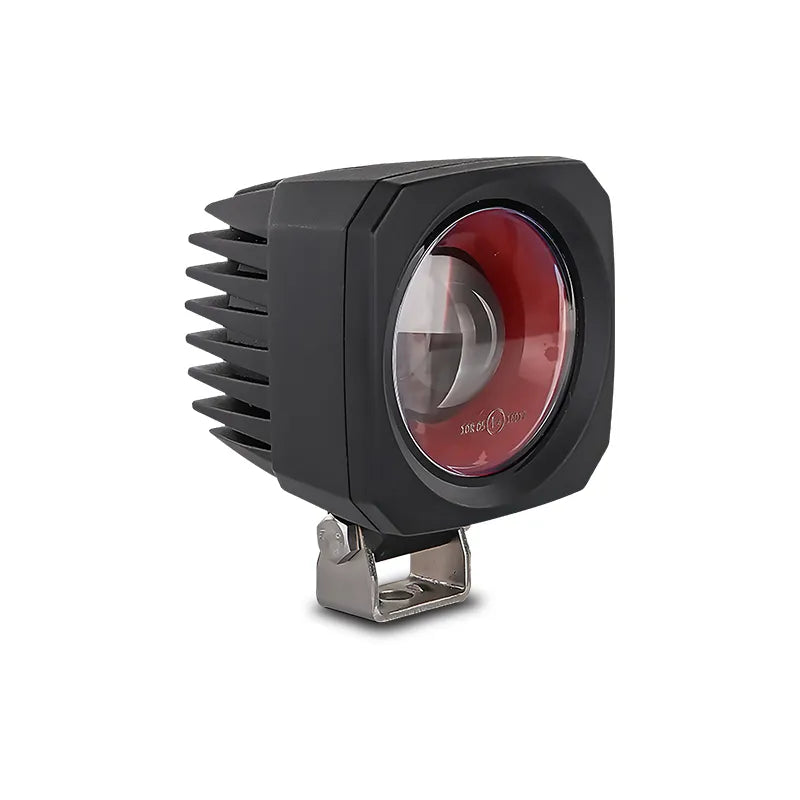

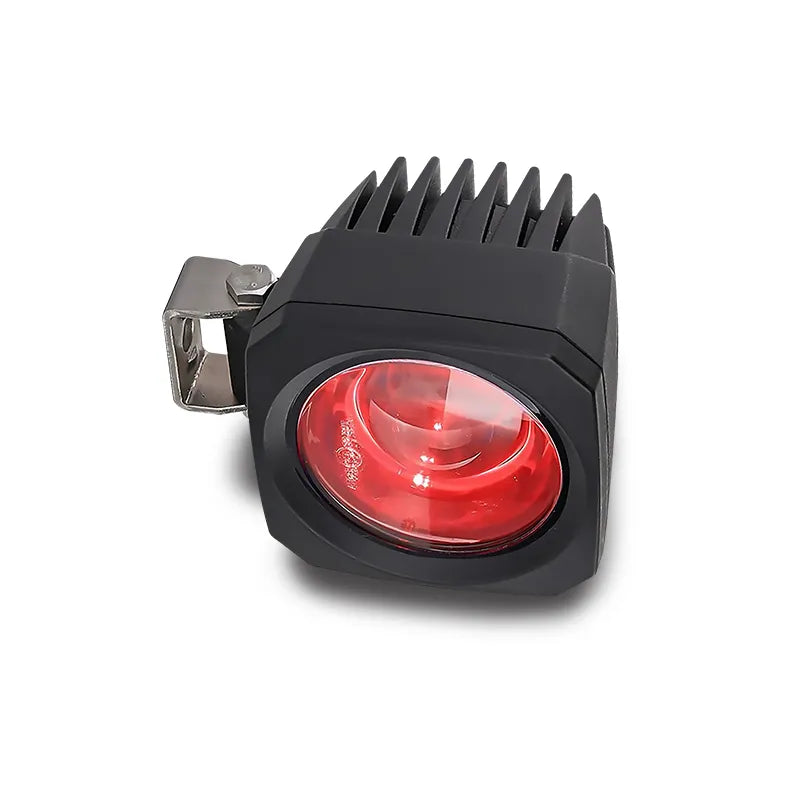

LED Autolamps FLT02 Red Spot Forklift Lamp No Plug

Red Square Beam Forklift Safety Lamp Projects a 4.5m Red Square Warning Zone. 10–94V, IP67, ECE R10.

Product Overview

The LED Autolamps FLT02 is a red square beam forklift safety lamp designed to project a clearly visible red square onto the floor ahead of or behind a forklift, reach truck, or other material handling equipment creating a defined red warning zone that alerts pedestrians and warehouse workers to the vehicle's presence and movement before it comes into view.

Unlike the line beam pattern of the FLT04, the FLT02 projects a square red zone onto the floor, providing a broader warning area around the forklift for enhanced pedestrian safety in warehouses, distribution centres, loading docks, and industrial facilities. With 4 LEDs projecting up to 4.5 metres and a robust aluminium housing in a compact 76mm x 89mm x 74mm body, the FLT02 mounts via an adjustable bracket for precise angle control. The broad 10–94V multivolt input range covers 12V, 24V, 36V, and 48V forklift electrical systems. IP67 rated and ECE R10/EMC approved, supplied without a plug for direct bare wire connection. Backed by LED Autolamps' 3-year warranty.

Key Specifications

• Function: Red square beam safety lamp
• Light projection: 4.5m
• LED count: 4 LEDs
• LED colour: Red
• Lens: Polycarbonate
• Housing: Aluminium black
• Dimensions: 76mm x 89mm x 74mm
• Cable: 45cm fixed no plug (bare wires)
• Mount type: Adjustable bracket bolt mount
• IP rating: IP67
• Input voltage: 10–94V DC (multivolt)
• Current draw: 0.67A @ 10V / 0.09A @ 94V
• Compliance: ECE R10 / EMC approved
• Warranty: 3 years
• Weight: 0.38kg
• Packaging: Box single unit
• Brand: LED Autolamps
• SKU: FLT02

Features & Benefits

• 4.5m red square beam projection: Projects a defined red square zone up to 4.5 metres from the lamp onto the warehouse floor, providing a broader pedestrian warning area compared to a line beam pattern
• 4 LED red square beam: Four LEDs combine to produce a clearly defined red square warning pattern on the floor for maximum pedestrian visibility
• Improves pedestrian safety: The projected red square alerts workers to the forklift's presence before it appears, significantly reducing collision risk in high-traffic warehouse environments
• 10–94V multivolt operation: Covers 12V, 24V, 36V, and 48V forklift and material handling equipment electrical systems without voltage converters
• Adjustable bracket mount: Bolt to the vehicle and adjust the angle to optimise the floor projection distance and safety zone for the specific operating environment
• Aluminium housing: Robust construction for demanding industrial warehouse environments
• IP67 weatherproof: Fully protected against dust and temporary water immersion for wash-down and outdoor yard environments
• ECE R10 and EMC approved: Meets electromagnetic compatibility requirements for commercial vehicle use
• 3-year warranty: Backed by LED Autolamps' 3-year product warranty

Technical Specs

Compatible With

Suits all 10–94V material handling and industrial vehicles requiring red square beam safety projection including:

• Forklifts (electric and LPG) 12V, 24V, 36V, 48V systems
• Reach trucks and order pickers
• Pallet jacks and electric ride-on vehicles
• Warehouse tuggers and tow tractors
• Any industrial vehicle operating in pedestrian-shared environments

Frequently Asked Questions

What is the difference between the FLT02 and the FLT04?

The FLT04 projects a red line beam while the FLT02 projects a red square beam providing a broader defined warning zone on the floor around the forklift. Both project up to 4.5 metres and share the same 10–94V voltage range, IP67 rating, and 3-year warranty.

Why does the supplier title say "Red Spot" when the official function is "Red Square Beam"?

The supplier title contains an error. The confirmed function from the official LED Autolamps FLT Series data sheet is Red Square Beam not a red spot. This has been corrected throughout the listing.

Does this lamp come with a plug?

No the FLT02 is supplied with a 45cm bare wire cable without a plug. Direct wiring to the vehicle's electrical system is required by a qualified electrician.

Why is the voltage range 10 to 94 volts?

Forklifts operate on a range of electrical systems typically 12V, 24V, 36V, or 48V. The 10–94V multivolt range ensures compatibility across all common forklift electrical systems without voltage regulators.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions about this product.
