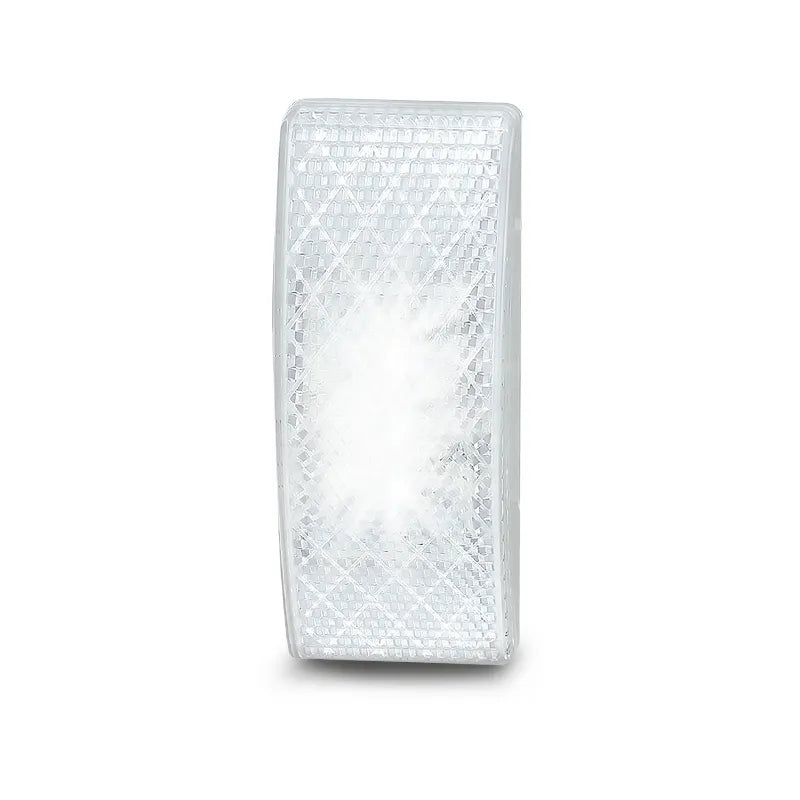

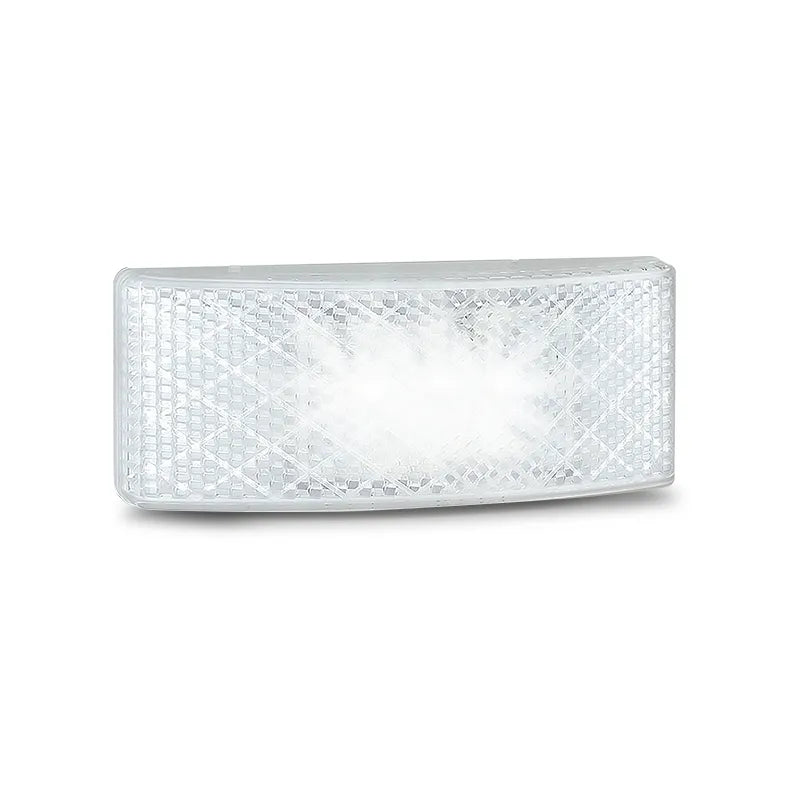

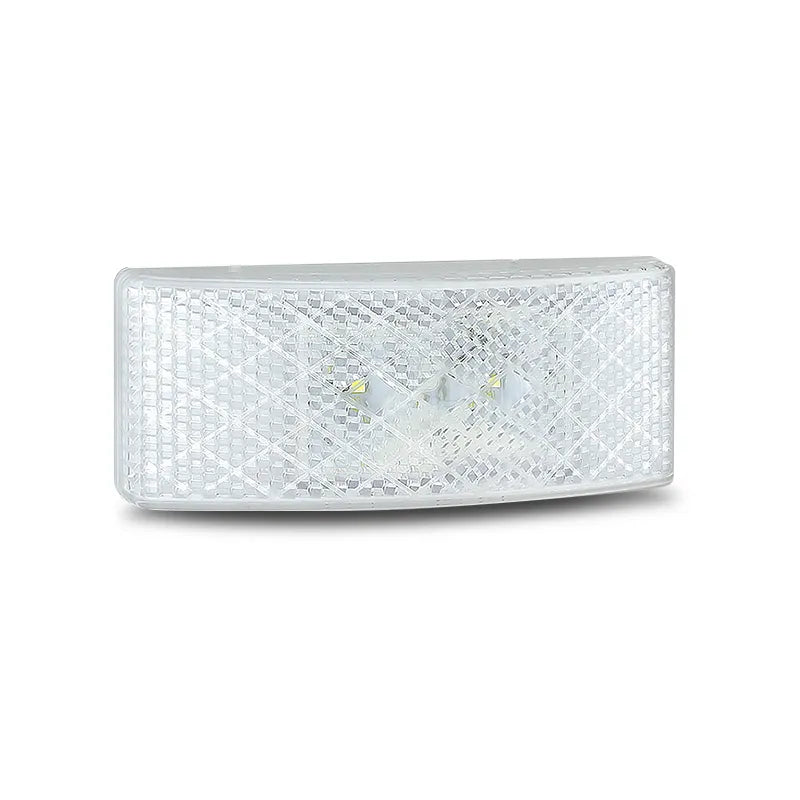

LED Autolamps EU38WMHDB White 3 LED Feo Marker W/ Reflector

White 3 LED Front End Outline Marker with Inbuilt Reflector No Tools, 3M Tape, ADR/ECE, IP67.

Product Overview

The LED Autolamps EU38WMHDB is a white LED front end outline (FEO) marker lamp with an integrated reflex reflector one of the easiest-to-install marker lamps in the LED Autolamps range. At just 100mm x 38mm x 13mm with a 13mm ultra-low profile depth, the EU38WMHDB sits nearly flush with the mounting surface, maintaining clean aerodynamic lines on modern trailers, trucks, and caravans.

Installation requires no tools drill one 8mm hole for the cable, remove the protective film from the 3M adhesive backing, and simply push the lamp into place using the two serrated plug locators. The curved diamond pattern polycarbonate lens houses 3 LEDs for the main white output and an integrated reflex reflector for passive reflective compliance. ADR and ECE approved, IP67 rated, and backed by a 5-year warranty the EU38WMHDB is a practical, legally compliant white front end marker for any 12V or 24V trailer and commercial vehicle application.

Key Specifications

• Function: White front end outline (FEO) marker with integrated reflex reflector
• LED count: 3 LEDs
• LED colour: White
• Lens: Polycarbonate curved diamond pattern
• Dimensions: 100mm x 38mm x 13mm
• Locator spacing: 60mm centres (2x serrated plugs)
• Cable: Approx. 35cm
• Mount: 3M adhesive tape no tools required
• Mounting hole: 1x 8mm hole for cable
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ADR and ECE approved
• Warranty: 5 years
• Packaging: Single unit
• Brand: LED Autolamps
• SKU: EU38WMHDB

Features & Benefits

• No tools required: The 3M adhesive tape and serrated plug locator system allows installation without screws, drills, or brackets simply press into place for a fast, clean result
• Ultra-slim 13mm profile: At just 13mm deep, the EU38WMHDB is one of the most low-profile FEO markers available, maintaining clean lines on modern trailers and caravans
• Integrated reflex reflector: Combines active LED output and passive reflector compliance in a single compact unit
• 3 white LEDs: Bright white LED output for front end outline marking on 12V and 24V vehicles and trailers
• Curved diamond pattern lens: Polycarbonate lens with signature EU38 series curved diamond pattern for a contemporary appearance
• ADR and ECE approved: Fully compliant with Australian Design Rules and ECE standards for front end outline marker use on road vehicles and trailers
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 12V and 24V compatible: Multivolt operation suits passenger trailers, caravans, and 24V commercial truck applications
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring white ADR-compliant front end outline markers including:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks
• Agricultural and construction trailers

Pairs well with:

• LED Autolamps 42AM amber side direction indicator
• LED Autolamps 35CARM red/amber side marker
• LED Autolamps combination rear lamps

Frequently Asked Questions

Does this marker require drilling to install?

Only one 8mm hole is required for the cable. The lamp body is secured entirely by the 3M adhesive tape and two serrated plug locators no screws, brackets, or additional holes are needed.

Is this lamp ADR approved for Australian road use?

Yes the EU38WMHDB is ADR and ECE approved, confirming it meets Australian legal requirements for white front end outline marker use on trailers and road vehicles.

Does this lamp include a reflex reflector?

Yes an integrated reflex reflector is built into the lamp body, providing both active LED output and passive reflective compliance in a single unit.

What voltage systems does this lamp suit?

The EU38WMHDB operates on 12–24V DC, making it compatible with both 12V passenger and caravan trailer applications and 24V commercial truck systems.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm mounting requirements and quantity needed before purchasing. Contact the seller if you're unsure prior to purchase.
