LED Autolamps EU38WMHD 12-24V Front Marker LED White With Reflector Perm Mount

SKU: EU38WMHD
Price
$31
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

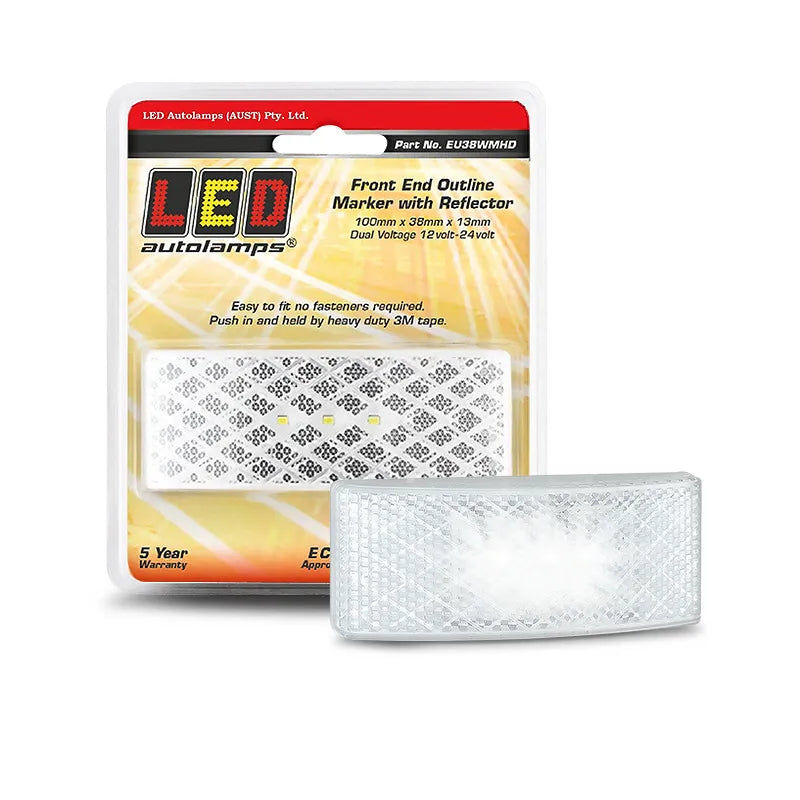

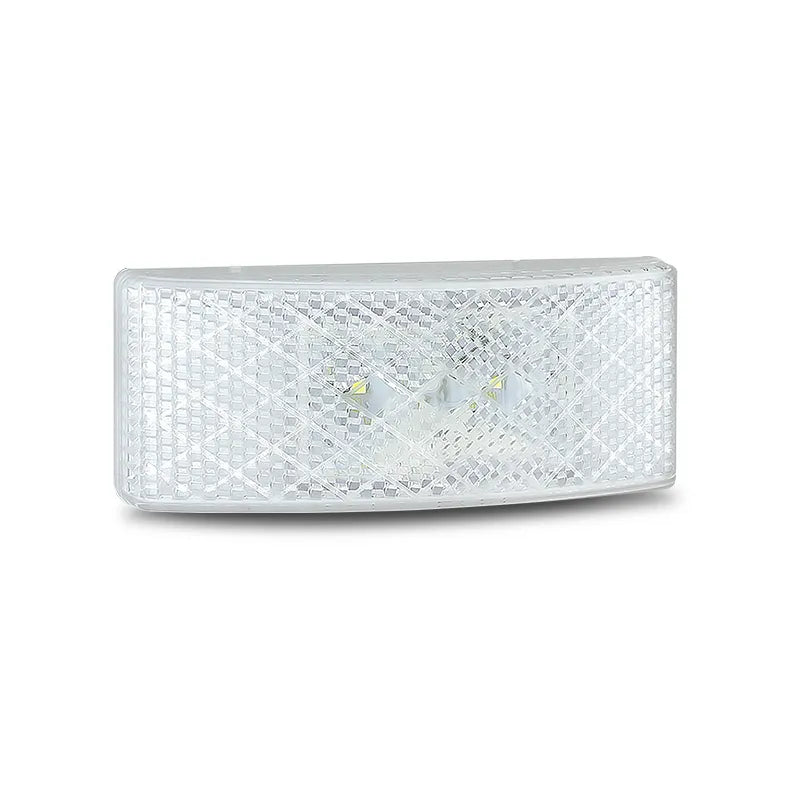

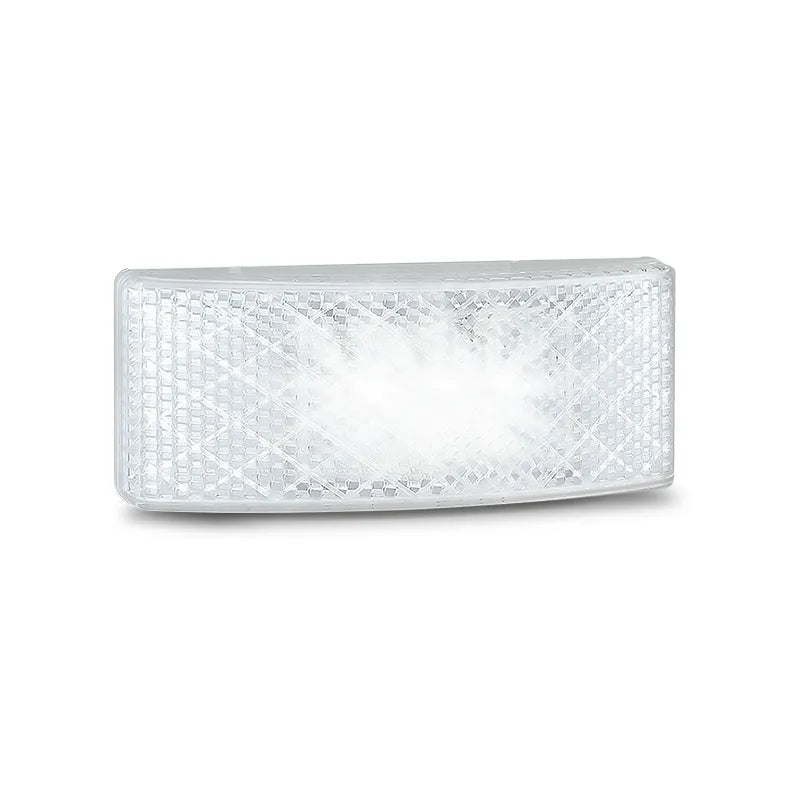

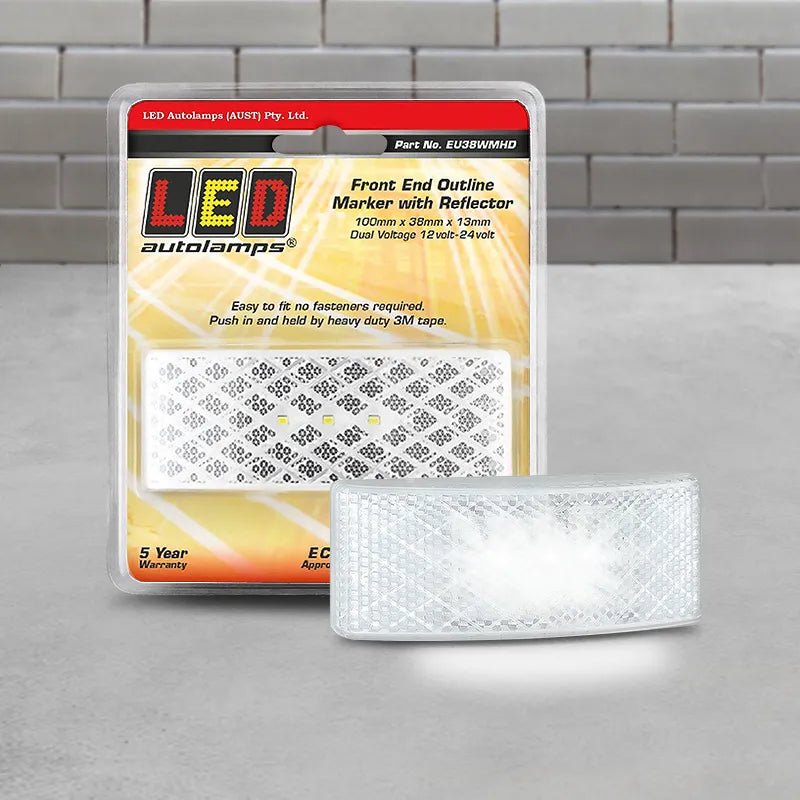

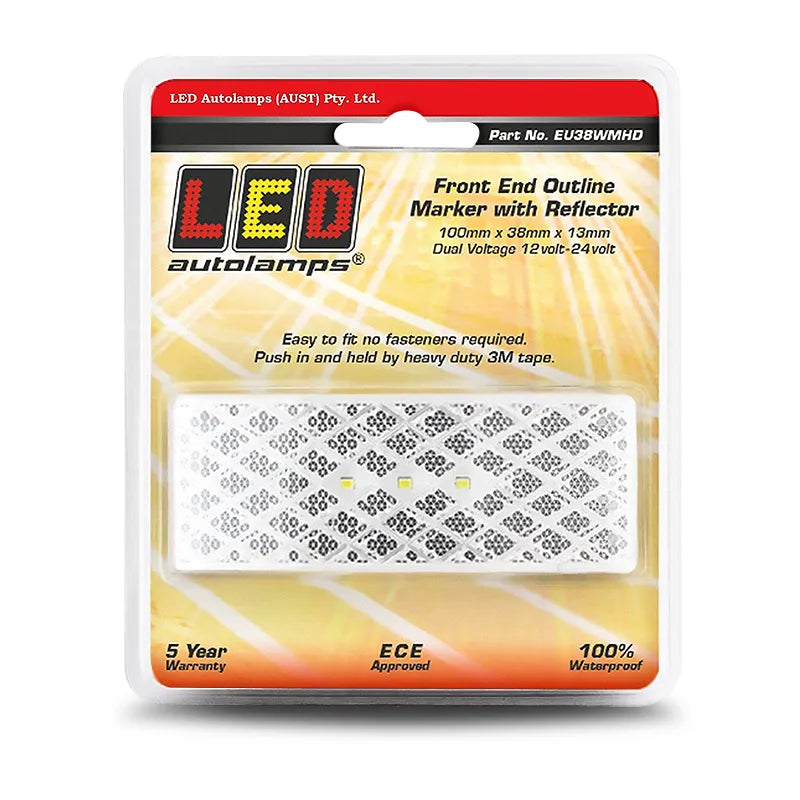

White LED Front Marker with Inbuilt Reflector Permanent 3M Mount, Low Profile, ADR/ECE, IP67.

Product Overview

The LED Autolamps EU38WMHD is a white LED front end outline (FEO) marker lamp with an integrated reflex reflector from the EU38 series the standard housing version of the EU38 white front marker range. Measuring just 100mm x 38mm x 13mm with an ultra-slim 13mm profile, the EU38WMHD provides ADR and ECE compliant white front marker and reflector coverage in a single compact unit for permanent adhesive mounting on trailer frames, cab corners, and body panels.

The permanent 3M adhesive tape mount and serrated plug locator system makes installation fast and clean no tools, no screws, no brackets. The curved diamond pattern polycarbonate lens houses white LEDs with an integrated reflex reflector for combined active and passive front marker compliance. Compatible with both 12V and 24V systems, IP67 rated, and backed by LED Autolamps' 5-year warranty.

Key Specifications

  • Function: White front end outline (FEO) marker with integrated reflex reflector
  • LED colour: White
  • Lens: Polycarbonate curved diamond pattern
  • Dimensions: 100mm x 38mm x 13mm (depth 13mm)
  • Locator spacing: 60mm centres (2x serrated plugs)
  • Cable: Approx. 35cm
  • Mount: Permanent 3M adhesive tape
  • Mounting hole: 1x 8mm hole for cable
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Compliance: ADR and ECE approved
  • Warranty: 5 years
  • Packaging: Single unit
  • Brand: LED Autolamps
  • SKU: EU38WMHD

Features & Benefits

  • Permanent 3M adhesive mount: Fast, clean installation peel and press for a permanent, low-profile result without screws or brackets
  • Ultra-slim 13mm profile: Sits nearly flush with the mounting surface for unobtrusive front marker positioning
  • Integrated reflex reflector: Combines active white LED output and passive reflector compliance in a single compact unit
  • White LED front marker: Bright white output for front end outline marker applications on 12V and 24V trailers and commercial vehicles
  • Curved diamond pattern polycarbonate lens: Durable, UV-resistant lens in the signature EU38 series style
  • ADR and ECE approved: Meets Australian Design Rules and ECE standards for white front marker use on road vehicles and trailers
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Multivolt operation suits passenger trailers, caravans, and 24V commercial truck applications
  • 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Specification Detail
SKU EU38WMHD
Brand LED Autolamps
Series EU38 Series
Function White Front End Outline Marker + Inbuilt Reflector
LED Colour White
Lens Polycarbonate curved diamond pattern
Depth 13mm
Length 100mm
Width 38mm
Locator Spacing 60mm centres (2x serrated plugs)
Cable Length Approx. 35cm
Mount Type Permanent 3M adhesive tape
Mounting Hole 1x 8mm for cable
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
Compliance ADR and ECE approved
Warranty 5 Years
Packaging Single unit

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring white ADR-compliant front end outline markers including:

  • Box trailers, car trailers, and boat trailers
  • Caravans and camper trailers
  • Light and heavy commercial trucks
  • Agricultural and construction trailers

Frequently Asked Questions

How does the EU38WMHD differ from the EU38WMHDB?

The EU38WMHD and EU38WMHDB share identical specifications same function, dimensions, and compliance. The difference is the housing colour the EU38WMHDB features a black housing while the EU38WMHD is the standard housing variant. Confirm which housing suits your application before purchasing.

Is this mount truly permanent?

The 3M adhesive tape creates a strong, reliable permanent bond to the mounting surface. Ensure the surface is clean and correctly positioned before applying removal after bonding may damage the lamp or surface.

Is this lamp ADR approved for Australian road use?

Yes the EU38WMHD is ADR and ECE approved for white front end outline marker use on Australian road vehicles and trailers.

Does this lamp include a reflex reflector?

Yes an integrated reflex reflector provides both active white LED output and passive reflective compliance in a single unit.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm mounting requirements and quantity needed before purchasing. Contact the seller if you're unsure prior to purchase.
