LED Autolamps EU38RMHDB Red 3 LED Side Marker w/ Reflector
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps EU38RMHDB Red 3 LED Side Marker w/ Reflector

SKU: EU38RMHDB
Price
$31
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Red 3 LED Side Marker with Inbuilt Reflector No Tools, 3M Tape, ADR/ECE, IP67.

Product Overview

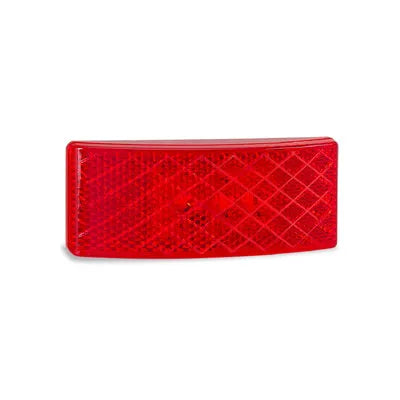

The LED Autolamps EU38RMHDB is a red LED side marker lamp with an integrated reflex reflector from the EU38 series the standard single-unit version of the EU38 red marker range. Measuring just 100mm x 38mm x 13mm with an ultra-slim 13mm profile, the EU38RMHDB delivers ADR and ECE compliant red side marker and reflector coverage in a single compact unit that mounts nearly flush to the surface.

Installation requires no tools drill one 8mm hole for the cable, remove the 3M adhesive backing film, and push the lamp firmly into place using the two serrated plug locators on 60mm centres. The curved diamond pattern polycarbonate lens houses 3 red LEDs with an integrated reflex reflector for combined active and passive side marker compliance. Compatible with both 12V and 24V systems, IP67 rated, and backed by LED Autolamps' 5-year warranty. Supplied as a single unit.

Key Specifications

  • Function: Red side marker with integrated reflex reflector
  • LED count: 3 LEDs
  • LED colour: Red
  • Lens: Polycarbonate curved diamond pattern
  • Dimensions: 100mm x 38mm x 13mm
  • Locator spacing: 60mm centres (2x serrated plugs)
  • Cable: Approx. 35cm
  • Mount: 3M adhesive tape no tools required
  • Mounting hole: 1x 8mm hole for cable
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Compliance: ADR and ECE approved
  • Warranty: 5 years
  • Packaging: Single unit (blister pack)
  • Brand: LED Autolamps
  • SKU: EU38RMHDB

Features & Benefits

  • No tools required: 3M adhesive tape and serrated plug locator installation drill one 8mm cable hole, peel and press into place
  • Ultra-slim 13mm profile: One of the most low-profile red side markers available, maintaining clean lines on modern trailers and caravans
  • Integrated reflex reflector: Combines active red LED output and passive reflector compliance in a single compact unit
  • 3 red LEDs: Bright red LED output for side marker applications on 12V and 24V trailers and commercial vehicles
  • Curved diamond pattern polycarbonate lens: Durable, UV-resistant lens in the signature EU38 series style
  • ADR and ECE approved: Meets Australian Design Rules and ECE standards for red side marker use on Australian road vehicles and trailers
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Multivolt operation suits passenger trailers, caravans, and 24V commercial truck applications
  • 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Specification Detail
SKU EU38RMHDB
Brand LED Autolamps
Series EU38 Series
Function Red Side Marker + Inbuilt Reflector
LED Count 3
LED Colour Red
Lens Polycarbonate curved diamond pattern
Dimensions 100mm x 38mm x 13mm
Locator Spacing 60mm centres (2x serrated plugs)
Cable Length Approx. 35cm
Mount Type 3M adhesive tape no tools required
Mounting Hole 1x 8mm for cable
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
Compliance ADR and ECE approved
Warranty 5 Years
Packaging Single unit (blister pack)

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring red ADR-compliant side markers including:

  • Box trailers, car trailers, and boat trailers
  • Caravans and camper trailers
  • Light and heavy commercial trucks
  • Agricultural and construction trailers
  • Horse floats and livestock trailers

Frequently Asked Questions

How does the EU38RMHDB differ from the EU38BRMHDB?

The EU38RMHDB and EU38BRMHDB share identical specifications same function, dimensions, LEDs, and compliance. The EU38BRMHDB is the bulk/bare pack variant while the EU38RMHDB is the standard single-unit blister pack version. Both feature a black housing.

Does this marker require drilling to install?

Only one 8mm hole is required for the cable. The lamp body is secured entirely by the 3M adhesive tape and two serrated plug locators no screws, brackets, or additional holes are needed.

Is this lamp ADR approved for Australian road use?

Yes the EU38RMHDB is ADR and ECE approved, confirming it meets Australian legal requirements for red side marker use on trailers and road vehicles.

Does this lamp include a reflex reflector?

Yes an integrated reflex reflector is built into the lamp body, providing both active red LED output and passive reflective compliance in a single unit.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm mounting requirements and quantity needed before purchasing. Contact the seller if you're unsure prior to purchase.
