LED Autolamps EU38BRMHDB Red 3 LED Side Marker with Reflector

Red 3 LED Side Marker with Inbuilt Reflector No Tools, 3M Tape, ADR/ECE, IP67.

Product Overview

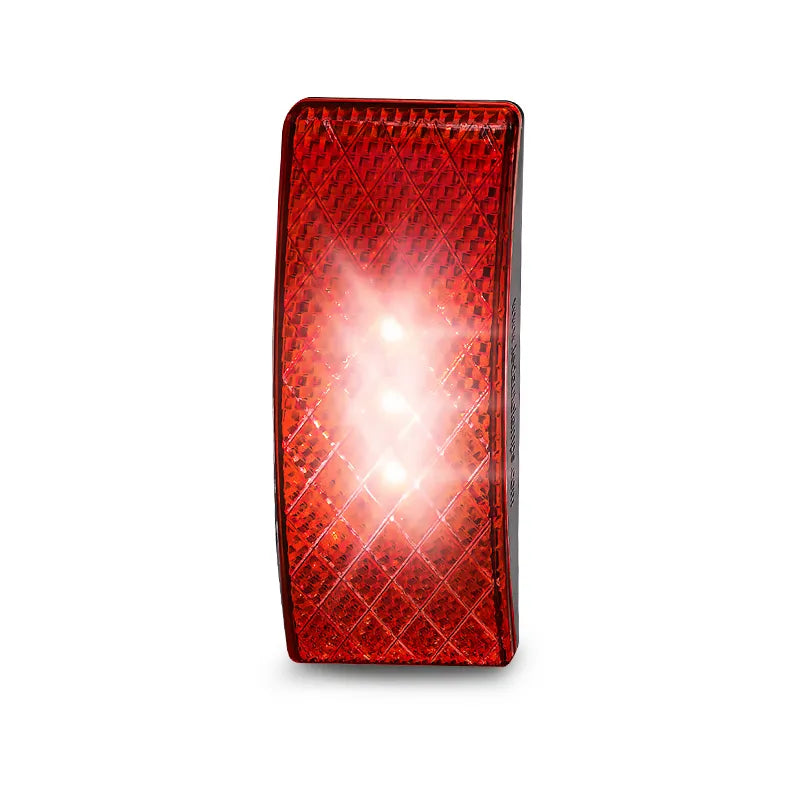

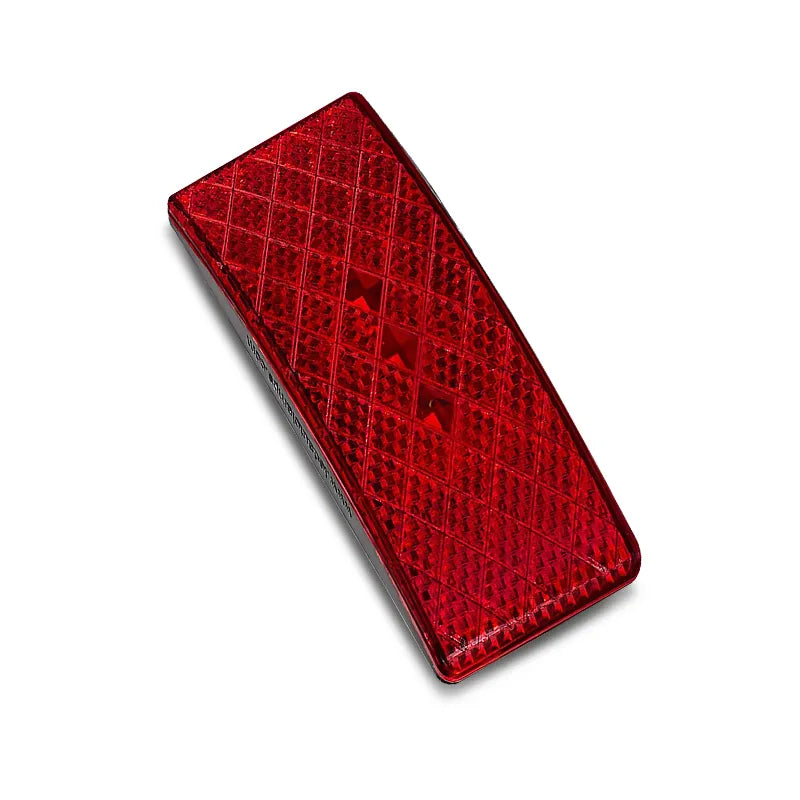

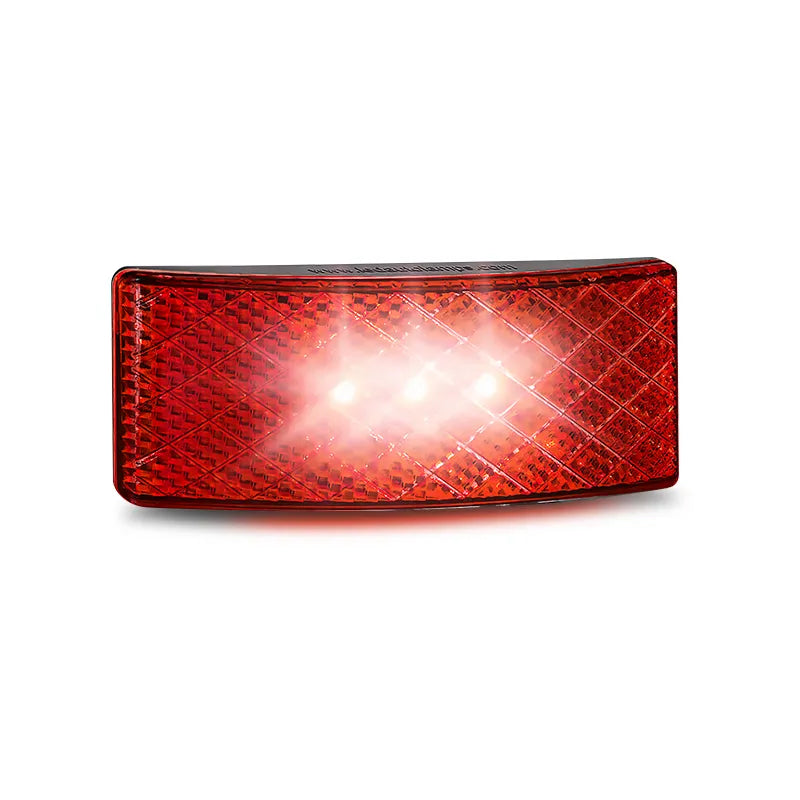

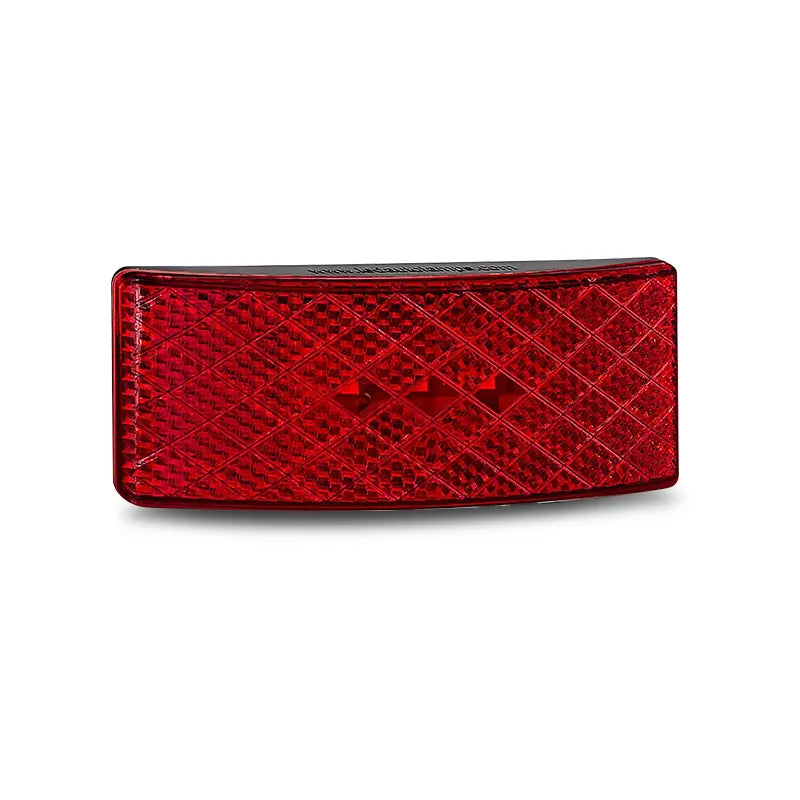

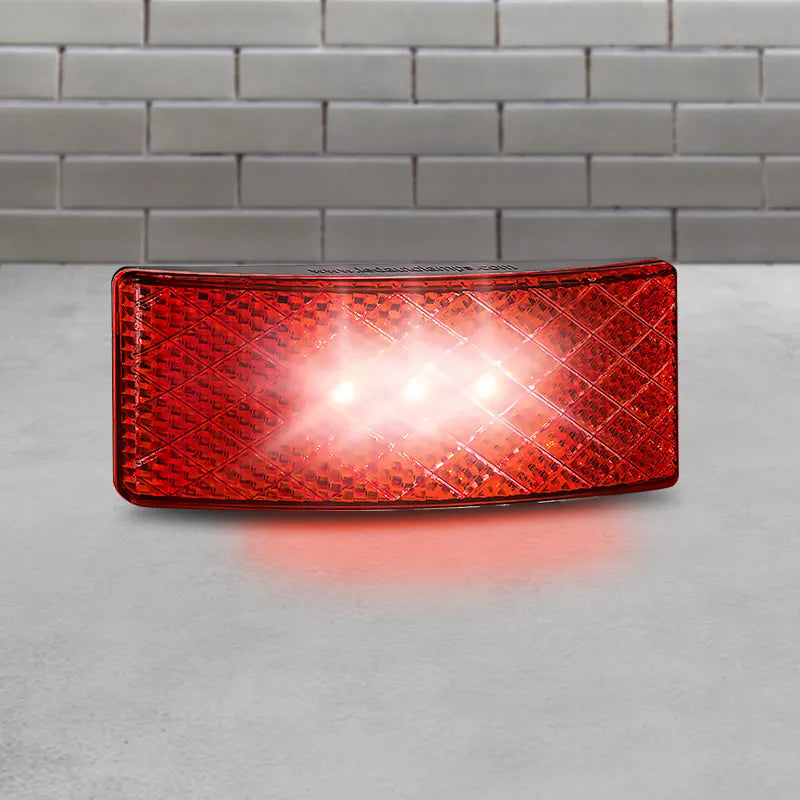

The LED Autolamps EU38BRMHDB is a red LED side marker lamp with an integrated reflex reflector from the EU38 series one of the most widely used low-profile marker lamp designs across Australian trailers, caravans, and commercial vehicles. Measuring just 100mm x 38mm x 13mm with an ultra-slim 13mm profile, the EU38BRMHDB provides red side marker and reflector compliance in a single compact unit that mounts nearly flush to the surface.

Installation is straightforward and requires no tools drill one 8mm hole for the cable, remove the protective film from the 3M adhesive backing, and push the lamp firmly into place using the two serrated plug locators on 60mm centres. The curved diamond pattern polycarbonate lens houses 3 red LEDs with an integrated reflex reflector for combined active and passive compliance on the sides of trailers and commercial vehicles. ADR and ECE approved, IP67 rated, and backed by LED Autolamps' 5-year warranty. Supplied as a single unit.

Key Specifications

• Function: Red side marker with integrated reflex reflector
• LED count: 3 LEDs
• LED colour: Red
• Lens: Polycarbonate curved diamond pattern
• Dimensions: 100mm x 38mm x 13mm
• Locator spacing: 60mm centres (2x serrated plugs)
• Cable: Approx. 35cm
• Mount: 3M adhesive tape no tools required
• Mounting hole: 1x 8mm hole for cable
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ADR and ECE approved
• Warranty: 5 years
• Packaging: Single unit (bulk/bare pack)
• Brand: LED Autolamps
• SKU: EU38BRMHDB

Features & Benefits

• No tools required: 3M adhesive tape and serrated plug locator installation simply drill one 8mm cable hole, peel and press into place
• Ultra-slim 13mm profile: Sits nearly flush with the mounting surface for clean, unobtrusive side marker positioning on trailer side rails and body panels
• Integrated reflex reflector: Combines active red LED output and passive reflector compliance in a single compact unit, reducing the total number of components required
• 3 red LEDs: Bright red LED output for side marker applications on 12V and 24V trailers and commercial vehicles
• Curved diamond pattern polycarbonate lens: Durable, UV-resistant lens in the signature EU38 series style
• ADR and ECE approved: Meets Australian Design Rules and ECE standards for side marker use on Australian road vehicles and trailers
• IP67 waterproof: Completely sealed against dust and temporary water immersion for reliable outdoor performance
• 12V and 24V compatible: Multivolt operation suits passenger trailers, caravans, and 24V commercial truck applications
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring red ADR-compliant side markers including:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks
• Agricultural and construction trailers
• Horse floats and livestock trailers

Frequently Asked Questions

Does this marker require drilling to install?

Only one 8mm hole is required for the cable. The lamp body is secured entirely by the 3M adhesive tape and two serrated plug locators no screws, brackets, or additional holes are needed.

Is this lamp ADR approved for Australian road use?

Yes the EU38BRMHDB is ADR and ECE approved, confirming it meets Australian legal requirements for red side marker use on trailers and road vehicles.

Does this lamp include a reflex reflector?

Yes an integrated reflex reflector is built into the lamp body, providing both active red LED output and passive reflective compliance in a single unit.

How does this lamp differ from the EU38BWMHDB?

The EU38BRMHDB emits red light for side marker applications while the EU38BWMHDB emits white light for front end outline marker applications. Both share the same EU38 series dimensions, 3M adhesive mounting, and specifications.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always confirm mounting requirements and quantity needed before purchasing. Contact the seller if you're unsure prior to purchase.
