LED Autolamps 97RIM Twin Function Rear Position Supplementary Rear Indicator
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 97RIM Twin Function Rear Position Supplementary Rear Indicator

SKU: 97RIM
Price
$49
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved Twin-Function Rear Position Lamp with Supplementary Rear Indicator Black Bezel, 3-Wire, Multivolt

Product Overview

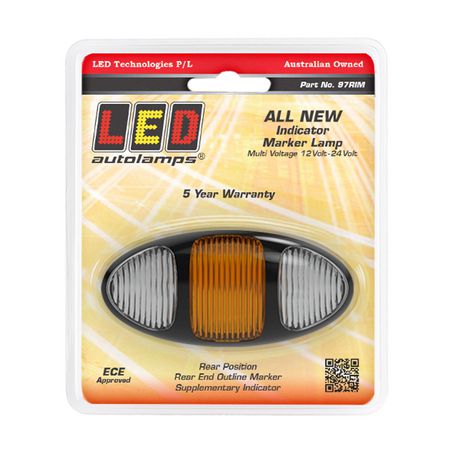

The LED Autolamps 97RIM is a dual-function lamp combining a rear position lamp with a supplementary rear direction indicator in a single 99mm x 47mm x 28.5mm unit. The 3-wire connection allows each function to operate independently the rear position lamp stays on as a constant red running light while the indicator operates on a separate amber turn signal circuit.

The rear-facing companion to the 97WIM and 97AIM, sharing the same black bezel 99 series form factor. ADR approved, multivolt.

Features & Benefits

  • Twin function — combines rear position lamp and supplementary rear indicator in a single unit, reducing fitting count on trailer and truck body rear panels
  • 3-wire connection — rear position and indicator functions operate on separate circuits for independent operation
  • Black bezel — matches the 97AIM and 97WIM for a consistent appearance across all positions
  • ADR approved — meets Australian Design Rules for legal on-road use across both functions
  • Multivolt — compatible with 12V and 24V vehicle electrical systems

Technical Specs

Specification Detail
SKU 97RIM
Lamp Type Rear Position / Rear Indicator (Twin Function)
Bezel Colour Black
Wiring 3-wire
Voltage Range 12V / 24V
Dimensions 99mm x 47mm x 28.5mm
Mounting Surface mount
Compliance ADR

Compatible With / Goes Well With

  • Trucks, trailers, and commercial vehicles requiring combined rear position and rear indicator functions in a single fitting
  • 12V and 24V vehicle electrical systems
  • LED Autolamps 97AIM twin-function side indicator with amber marker (same form factor)
  • LED Autolamps 97WIM twin-function front position with front indicator (same form factor)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 97RIM approved for road use in Australia?

Yes. The 97RIM is ADR approved, meeting Australian Design Rules requirements for legal on-road use across both rear position and rear indicator functions.

How does the 97RIM complete the 97 series?

The 97RIM is the rear-facing unit in the 97 series, joining the 97WIM (front position/indicator) and 97AIM (side indicator/marker). All three share the same 99mm x 47mm x 28.5mm black bezel form factor and 3-wire connection for a consistent, fully matched marker and indicator lamp system across the full vehicle.

What is the purpose of the 3-wire connection?

Three wires provide separate circuits for the rear position lamp and rear indicator — one for the running lights circuit, one for the turn signal circuit, and one for ground — allowing each function to operate independently.

What voltage range is the 97RIM compatible with?

It is multivolt rated, compatible with both 12V and 24V vehicle electrical systems.

What warranty does the 97RIM carry?

Warranty information was not confirmed in available supplier data.
