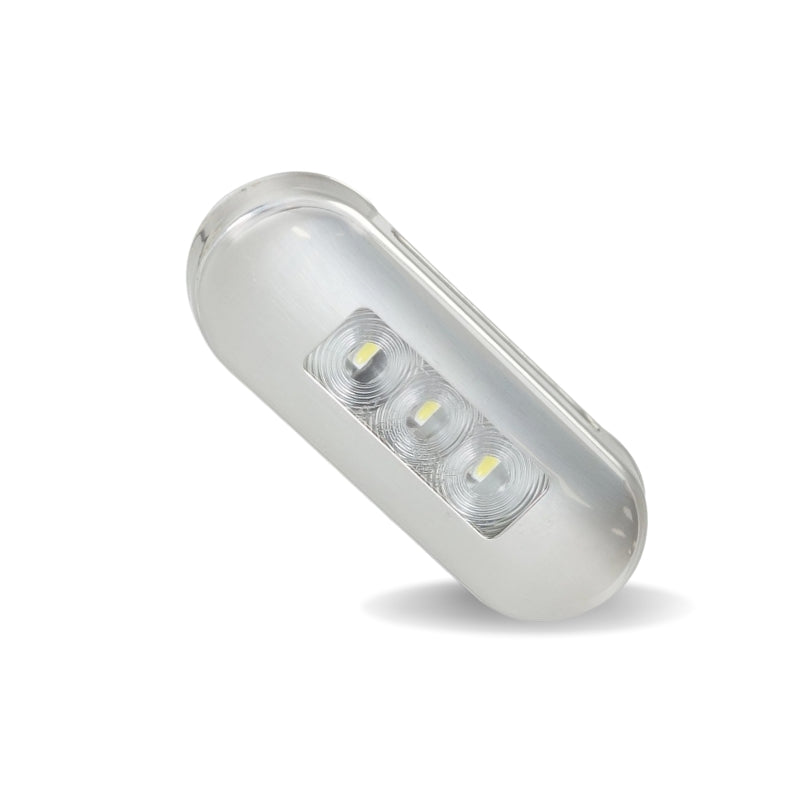

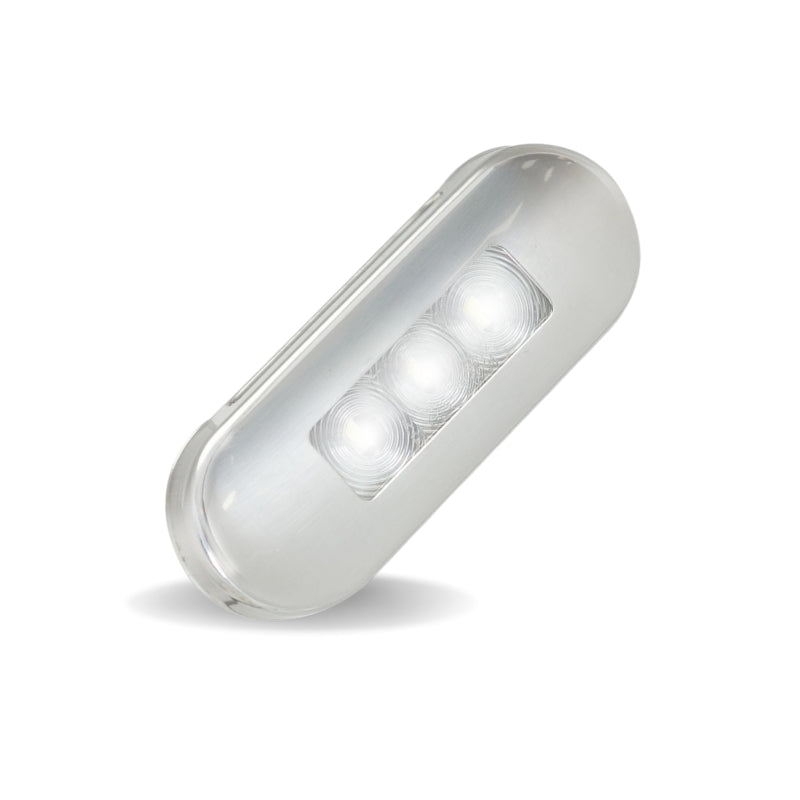

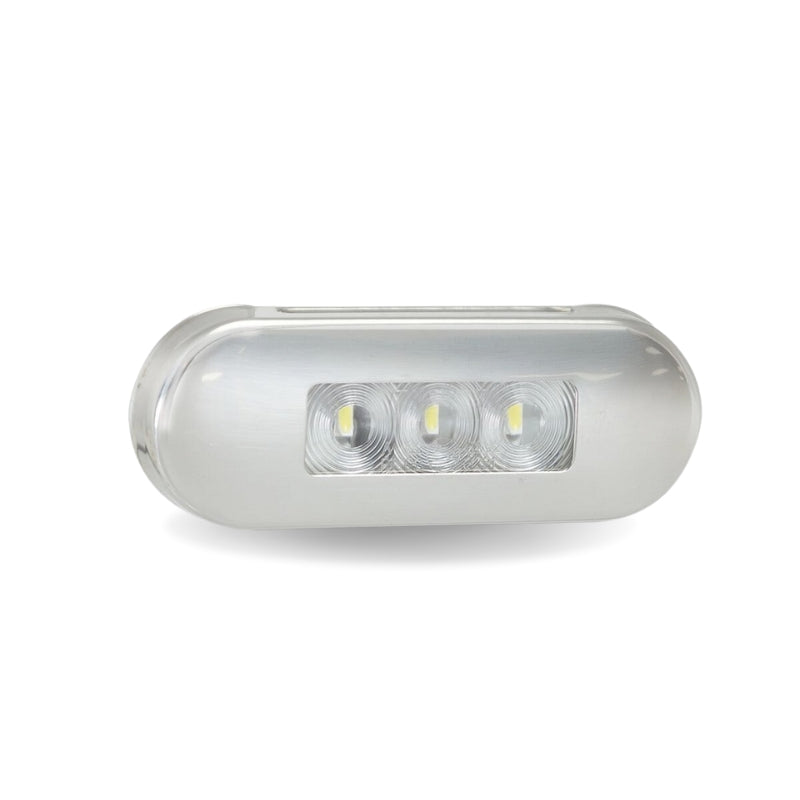

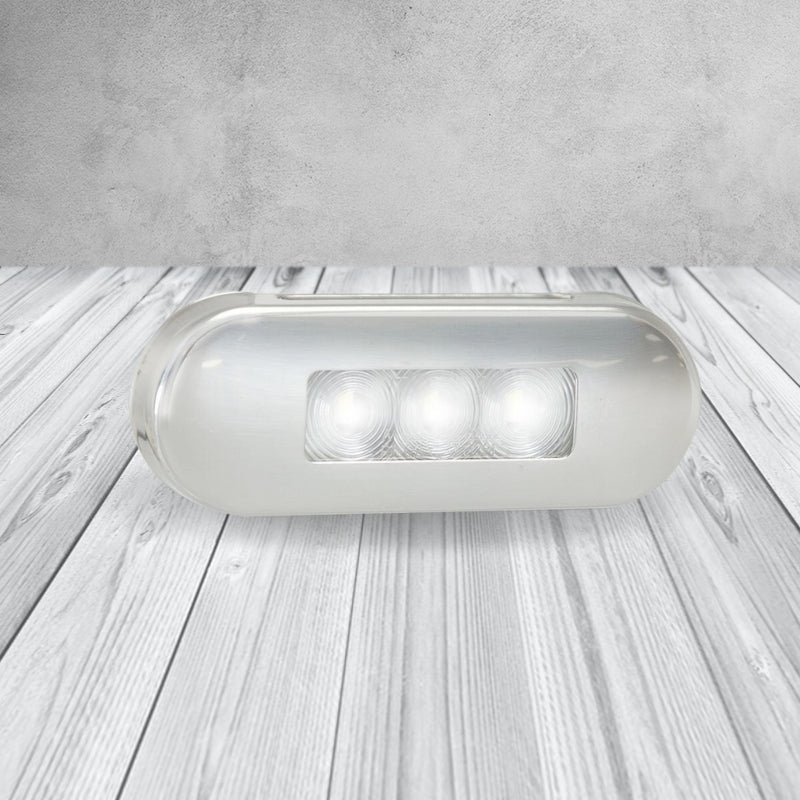

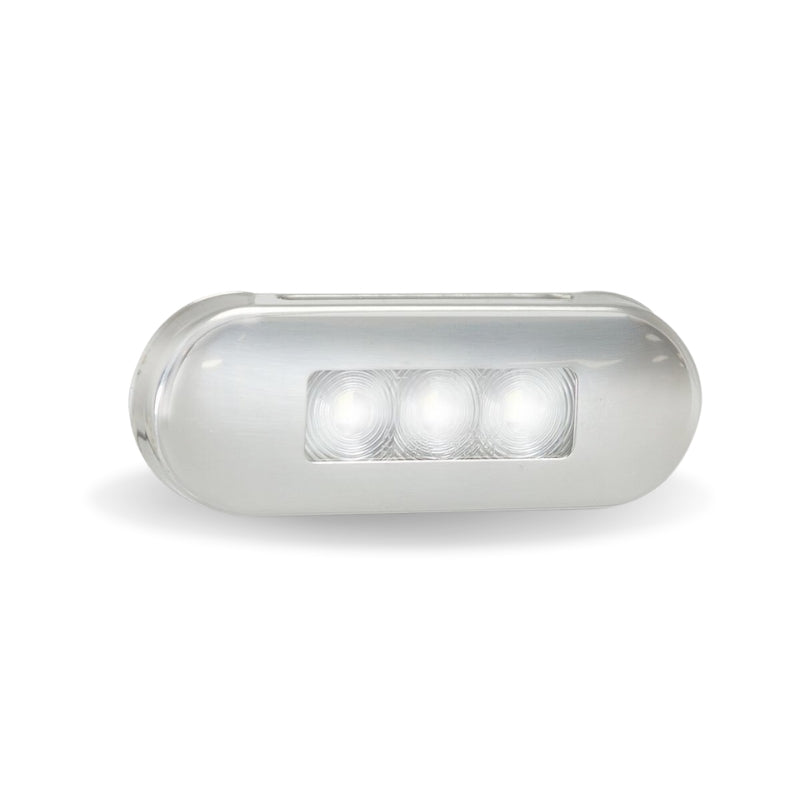

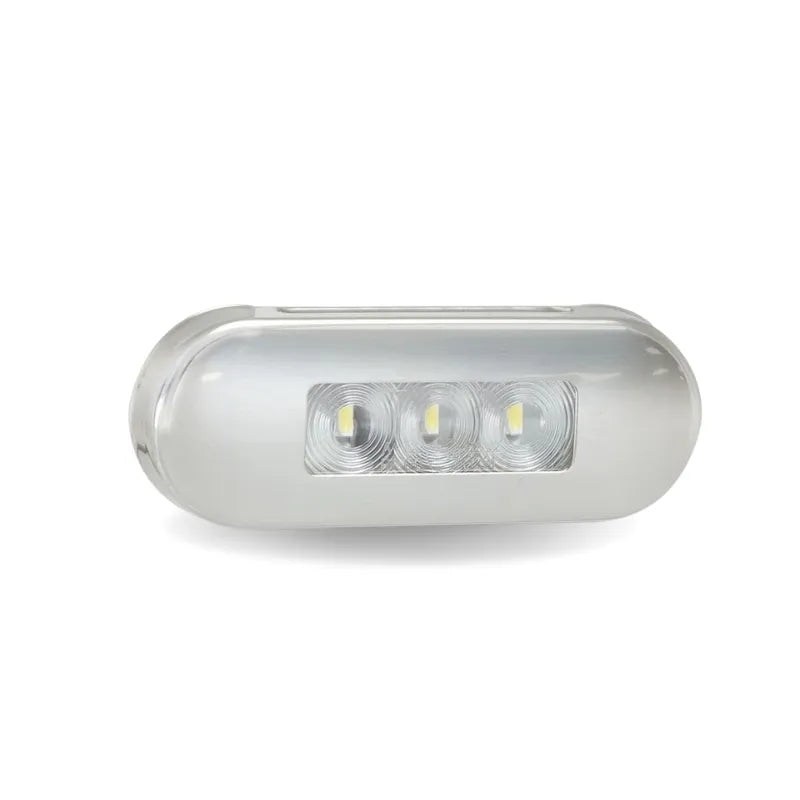

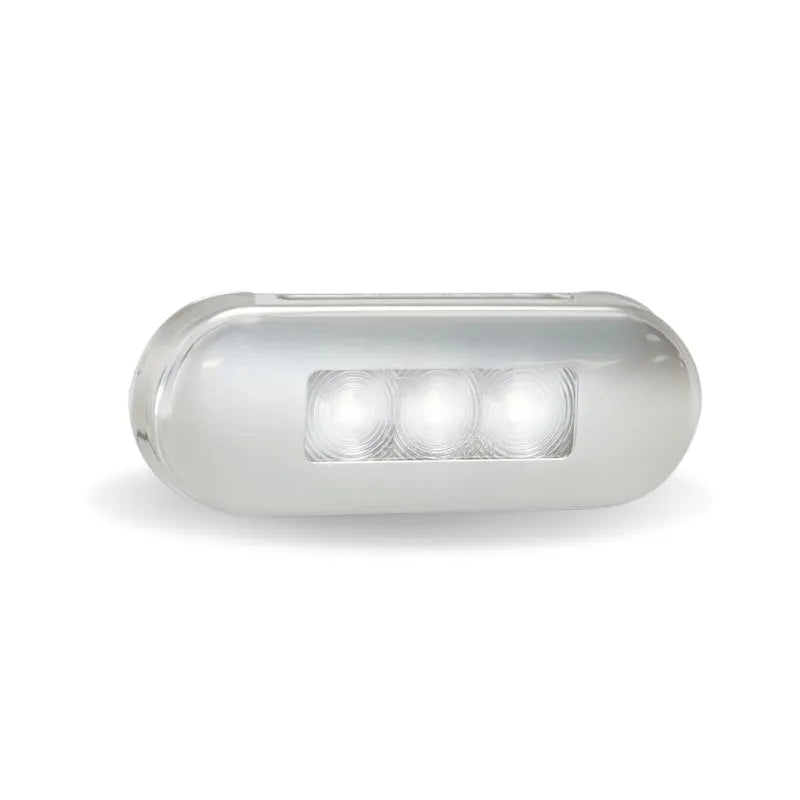

LED Autolamps 86WMB 12-24V LED Front Marker Light Stainless Steel Bezel

Low-Profile Front Marker Lighting for Trucks, Trailers, and Caravans ADR Approved, Clear Lens, Stainless Steel Bezel.

Product Overview

The LED Autolamps 86WMB is a compact, low-profile front marker light from the popular 86-series range, built for trucks, semi-trailers, caravans, and heavy vehicles requiring ADR-compliant front marking. Featuring a clear lens with a stainless steel bezel, it delivers a clean, contemporary appearance when both lit and unlit a preferred choice for premium truck and trailer builds where the marker light aesthetic is as important as compliance.

Dual voltage operation across 12V and 24V, IP67 waterproof rating, and a slim 10mm profile make the 86WMB equally at home on a long-haul road train or a privately built touring caravan. At 86mm × 31mm, it shares the same compact footprint as the rest of the 86-series range, allowing a consistent and matched LED marker fitout across the front, sides, and rear of the vehicle using a single lamp family.

Key Specifications

• Colour: Clear lens
• Light style: Front marker / clearance marker
• Voltage: 12V – 24V (dual voltage)
• IP rating: IP67 — fully dust-tight; immersion-resistant to 1m depth for 30 minutes
• Compliance: ADR Road Approved
• Mount type: Permanent mount
• Bezel finish: Stainless steel
• Dimensions: 86mm (L) × 31mm (W) × 10mm (D)
• Light type: LED
• Sold as: Each
• Warranty: 5 years
• Current draw: Not specified — confirm with LED Autolamps
• Compliance codes: Not specified — confirm with LED Autolamps

Features & Benefits

• Clear Lens with LED Light Source — The clear lens maintains a flush, unobtrusive appearance when unlit, keeping the exterior profile of the vehicle clean and consistent — a popular choice for modern truck body builds and custom caravan exterior fitouts.
• ADR Road Approved — Meets Australian Design Rules for on-road use as a front marker or clearance lamp. Full road-legal compliance from day one — no third-party certification required.
• IP67 Waterproof and Dustproof — Completely sealed against dust and capable of withstanding water immersion to 1 metre for 30 minutes. Built for river crossings, heavy rain, and high-pressure workshop wash-downs across Australian working vehicle environments.
• 12V – 24V Dual Voltage — Works natively across both light vehicle and heavy transport electrical systems without modification — a single SKU for mixed-fleet or combined passenger and commercial vehicle applications.
• Low Profile Permanent Mount — The slim 10mm depth profile sits flush against body panels, trailer rails, and caravan side walls — minimising wind resistance and snagging risk in tight clearance environments and at loading docks.
• Stainless Steel Bezel — Corrosion-resistant bezel construction suited to coastal, marine-adjacent, and high-humidity environments, with a premium truck-style finish to complement modern builds and caravan exterior styling.
• Part of the Matched 86-Series Range — The 86WMB shares the same 86mm × 31mm footprint as the 86AM (amber marker), 86RM (rear marker), and 86ARM (side marker), enabling a cohesive, matched LED marker fitout across the entire vehicle using the same lamp family.
• 5-Year Warranty — Backed by a 5-year manufacturer's warranty — strong coverage for a permanently mounted front marker in demanding Australian operating conditions.

Technical Specs

Compatible With / Goes Well With

Suitable vehicle and trailer types:

• Trucks and semi-trailers (12V and 24V systems)
• B-doubles and road trains
• Caravans and camper trailers
• Box trailers and flatbed trailers
• Horse floats and stock trailers
• Buses and coaches
• Heavy haulage and plant transport vehicles
• Custom trailer and caravan builds requiring ADR-compliant front marker lighting

Part of the LED Autolamps 86-Series matched range:

• LED Autolamps 86AM — amber marker, clear lens (front/side)
• LED Autolamps 86RM — red rear marker, clear lens
• LED Autolamps 86ARM — red/amber side marker, permanent mount

Pairs well with:

• LED Autolamps combination stop/tail/indicator lamp assemblies for a full LED rear lighting upgrade
• LED Autolamps wiring harness accessories

Frequently Asked Questions

Is the LED Autolamps 86WMB ADR approved for use as a front marker on Australian vehicles?

Yes. The 86WMB carries full ADR road approval for use as a front marker or clearance lamp on Australian registered vehicles — road-legal from the moment it's fitted.

What colour light does the 86WMB emit?

The supplier specifies a clear lens and the product description does not confirm the LED output colour. For front marker and clearance lamp applications, output colour requirements are governed by ADR standards for the vehicle type and mounting position. Confirm the specific LED output colour with LED Autolamps before purchase.

Does the 86WMB match other lamps in the LED Autolamps 86-series?

Yes. The 86WMB shares the same 86mm × 31mm footprint and permanent-mount stainless steel bezel design as the 86AM (amber marker), 86RM (red rear marker), and 86ARM (side marker) — enabling a fully matched LED marker fitout across the front, side, and rear of the vehicle.

What does the IP67 rating mean for a front marker in outdoor use?

IP67 means the lamp is completely sealed against dust and can withstand water immersion to 1 metre for 30 minutes — protecting it against rain, road spray, wash-downs, and the wet conditions encountered in Australian transport and touring environments.

Is the 10mm depth profile suitable for flush body panel mounting?

Yes. The 10mm profile sits close to the mounting surface with minimal protrusion, making it suitable for flush fitting on truck body panels, trailer rails, and caravan side walls where depth clearance behind the mounting point may be limited.
