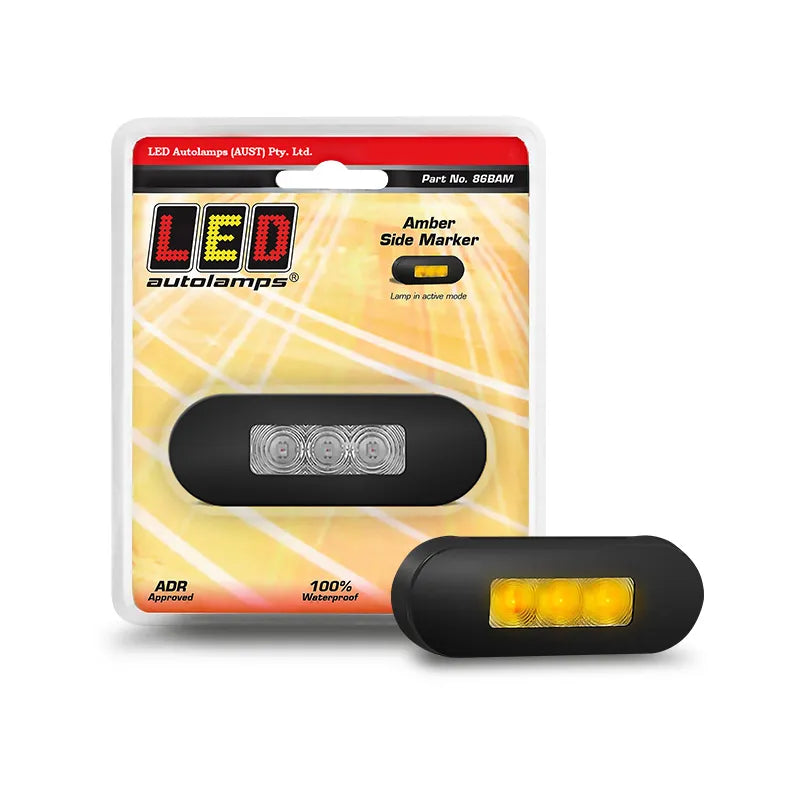

LED Autolamps 86BAM Amber Side Marker Lamp Clear Lens Coloured Black Steel Bezel Blister Pack
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 86BAM Amber Side Marker Lamp Clear Lens Coloured Black Steel Bezel Blister Pack

SKU: 86BAM
Price
$25
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Amber LED Side Marker Black Steel Bezel, Clear Lens, ADR Approved, 12/24V, Blister Single Pack.

Product Overview

The LED Autolamps 86BAM is an amber side marker lamp from the 86 Series the black steel bezel version with clear lens and amber LEDs. The 86 Series is a popular truck-style, low-profile marker featuring a clear lens with coloured LEDs, ADR approved, IP67 rated, 12–24V, 5-year warranty, 86mm x 31mm x 10mm. The "B" prefix in the SKU denotes the black steel bezel the dark finish alternative to the standard brushed stainless steel bezel of the 86AM (stainless) and 86AMB (stainless bulk) variants.

Installation: surface mount horizontally remove bezel and fit with screw, then clip bezel back into place. Supplied as a single blister pack unit.

Key Specifications

  • Function: Amber side marker
  • Lens: Clear with internal amber LEDs
  • Bezel: Black steel
  • Dimensions: 86mm x 31mm x 10mm
  • Mount type: Surface mount remove bezel, screw fix, clip bezel back
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Compliance: ADR approved
  • Warranty: 5 years
  • Packaging: Blister pack single unit
  • Brand: LED Autolamps
  • SKU: 86BAM

Features & Benefits

  • Black steel bezel: Dark finished steel bezel for a modern, low-profile appearance suits contemporary trailer and commercial vehicle builds where stainless or chrome bezels are not preferred
  • Clear lens with amber LEDs: Modern clean lens appearance with internal amber LEDs for bright, consistent amber side marker output
  • Popular truck-style design: The 86 Series is the most widely specified truck-style side marker lamp in the LED Autolamps range
  • Clip-back bezel: Remove bezel, screw fix to surface, clip bezel back for a clean, concealed-fastener finish
  • 86mm x 31mm x 10mm: Low-profile 10mm depth for flush side panel installation
  • ADR approved: Legal for amber side marker use on Australian road vehicles and trailers
  • IP67 waterproof: Completely sealed against dust and temporary water immersion
  • 12V and 24V compatible: Suits trailers, caravans, and 24V commercial trucks
  • 5-year warranty: Backed by LED Autolamps' 5-year warranty

Technical Specs

Specification Detail
SKU 86BAM
Brand LED Autolamps
Series 86 Series
Function Amber Side Marker
Lens Clear internal amber LEDs
Bezel Black steel
Dimensions 86mm x 31mm x 10mm
Mount Type Surface mount remove bezel, screw fix, clip back
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
Compliance ADR approved
Warranty 5 Years
Packaging Blister Pack single unit

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles requiring amber ADR-compliant side markers:

  • Trucks and commercial vehicles requiring a dark bezel marker
  • Box trailers, car trailers, and boat trailers
  • Caravans and camper trailers

Frequently Asked Questions

What is the difference between the 86BAM and the 86AM?

Both are amber side markers in the 86 Series with clear lens and amber LEDs. The 86BAM has a black steel bezel while the 86AM has a brushed stainless steel bezel. Choose based on your preferred finish.

How many LEDs does this lamp have?

The 86 Series amber marker typically has 3 LEDs confirmed from the Automotive Superstore 86AMB listing. This is consistent with the 86BAM.

Is this lamp ADR approved?

Yes ADR approved for amber side marker use on Australian road vehicles and trailers.

How is this lamp mounted?

Surface mount horizontally remove bezel and fit with screw, then clip bezel back into place.
