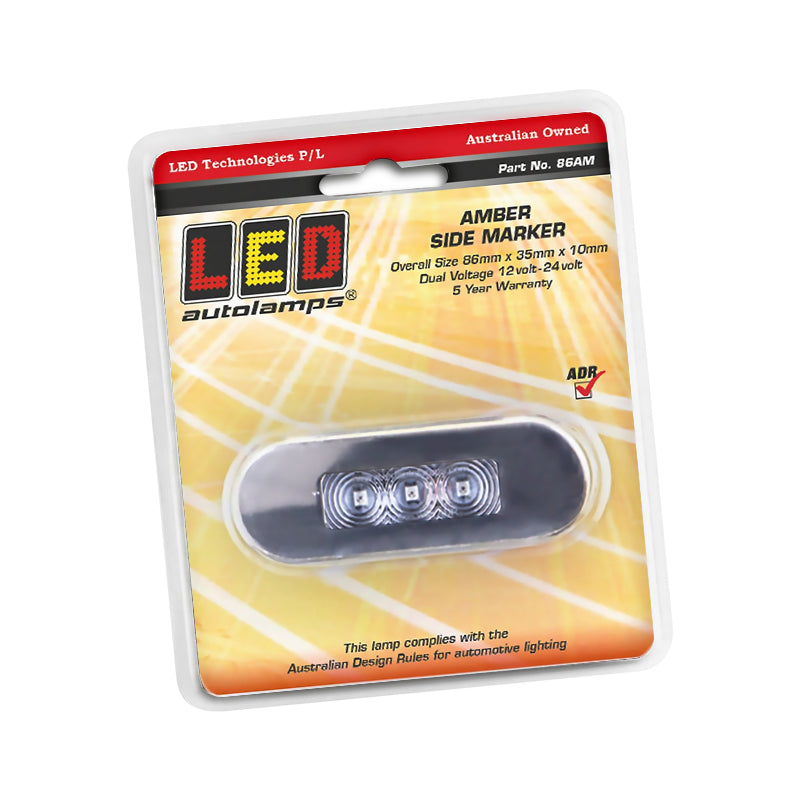

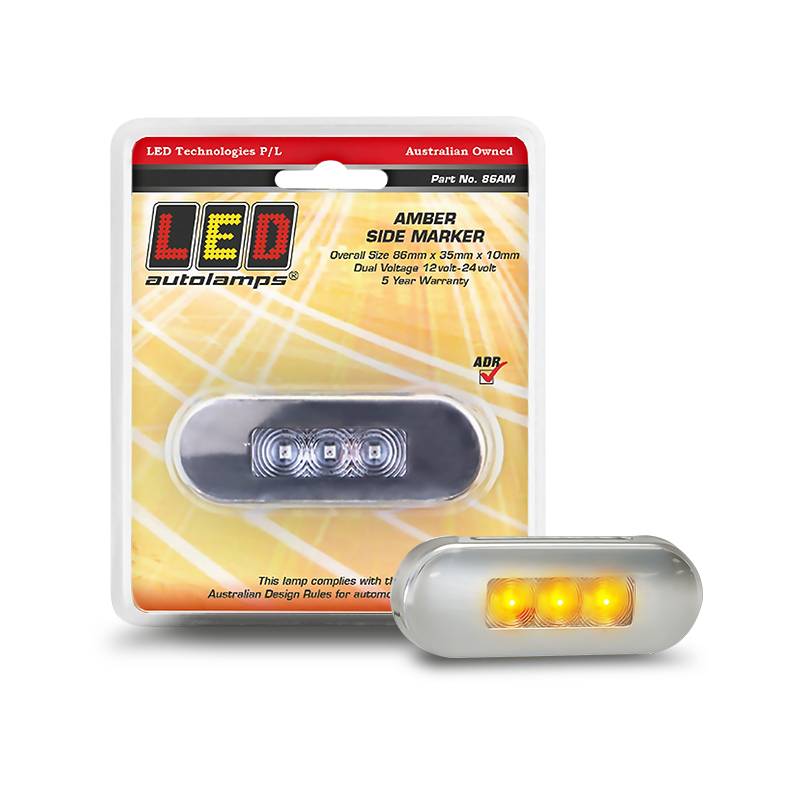

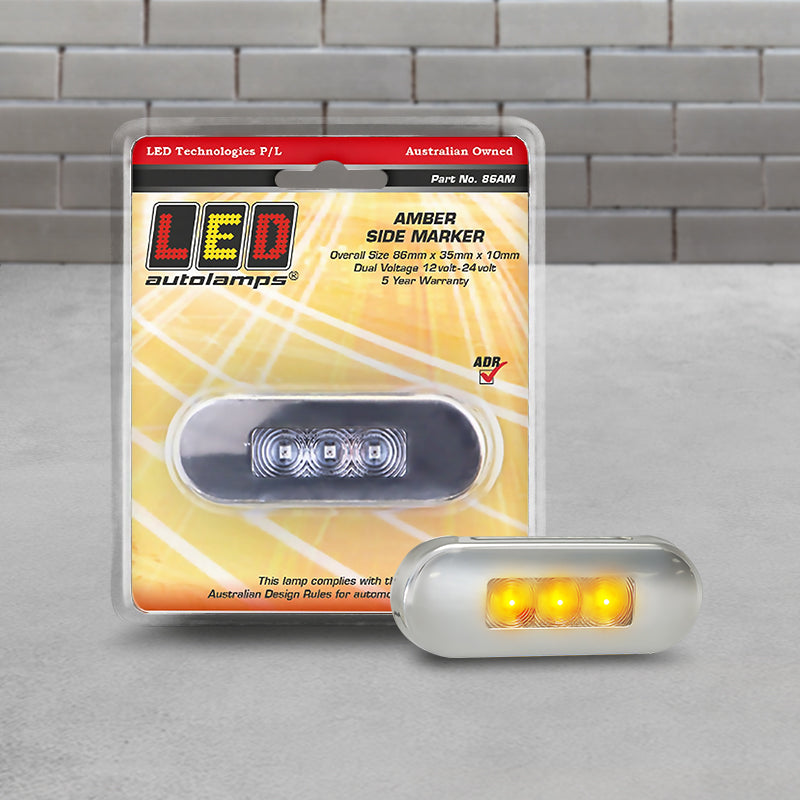

LED Autolamps 86AM 12/24V Amber Marker Clear Lens Coloured LEDs Stainless Steel Bezel

Crisp Amber Visibility for Trucks, Trailers, and Caravans Clear Lens, Coloured LEDs, ADR Approved.

Product Overview

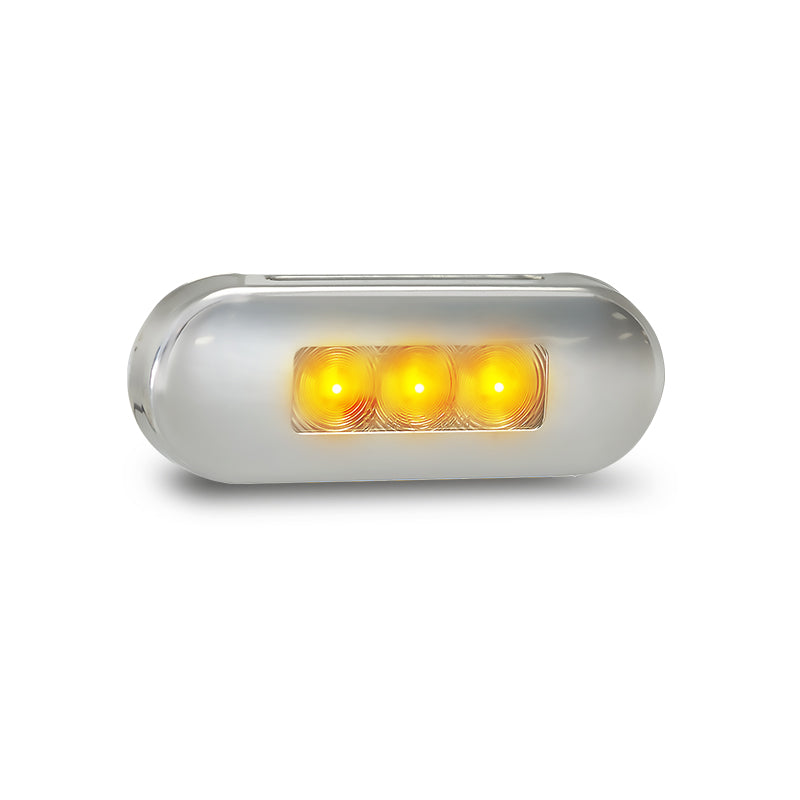

The LED Autolamps 86AM is a compact, low-profile amber marker light designed for trucks, semi-trailers, caravans, and heavy vehicles. Featuring a clear lens with coloured LEDs, it delivers bold, high-contrast amber illumination that cuts through glare and low-light conditions a cleaner, more modern alternative to traditional coloured-lens markers.

Built for dual-voltage operation across 12V and 24V systems, the 86AM suits light commercials and heavy transport vehicles without modification. The stainless steel bezel and IP67 waterproof rating ensure long-term durability across Australian conditions from coastal humidity to outback heat and corrugated station tracks.

Key Specifications

• Voltage range: 12V – 24V DC (dual voltage compatible)
• Colour: Amber
• Lens type: Clear lens with coloured LEDs
• Dimensions: 86mm (L) × 31mm (W) × 10mm (D)
• IP rating: IP67 — fully dust-tight; immersion-resistant to 1m depth for 30 minutes
• Compliance: ADR Road Approved
• Mount type: Permanent mount
• Bezel finish: Stainless steel
• Light type: LED
• Light style: Marker light
• Sold as: Each

Features & Benefits

• Clear Lens with Coloured LEDs — Delivers sharp, high-contrast amber output while the clear lens maintains a clean, contemporary appearance when unlit — a popular choice for custom truck and trailer builds that prioritise aesthetics alongside compliance.
• ADR Road Approved — Meets Australian Design Rules for on-road use. Fit it, connect it, and drive — full road-legal compliance from day one, no third-party sign-off required.
• IP67 Waterproof & Dustproof — Completely sealed against dust and capable of withstanding water immersion to 1 metre for 30 minutes. Built for river crossings, heavy rain, and high-pressure workshop wash-downs.
• 12V – 24V Dual Voltage — Works natively across both light vehicle and heavy transport electrical systems. A single part number covers your entire fleet or mixed-vehicle setup without converters or rewiring.
• Low Profile, Permanent Mount Design — At just 10mm deep, the 86AM sits flush against any body panel or trailer rail, minimising wind resistance and snagging risk in tight clearance applications.
• Stainless Steel Bezel — Corrosion-resistant finish suited to coastal, marine-adjacent, and high-humidity environments, with a premium truck-style aesthetic to complement modern builds.
• Popular Truck Style — Purpose-designed to suit late-model commercial vehicle and custom trailer builds. A go-to for fleet operators and fabricators who want ADR-compliant marker lighting that looks the part.

Technical Specs

Compatible With / Goes Well With

Suitable vehicle and trailer types:

• Trucks and semi-trailers (12V and 24V systems)
• B-doubles and road trains
• Caravans and camper trailers
• Box trailers and flatbed trailers
• Horse floats and stock trailers
• Buses and coaches
• Heavy haulage and plant transport vehicles
• Custom trailer builds requiring ADR-compliant amber marker lighting

Pairs well with:

• Other LED Autolamps marker, clearance, and tail light products
• LED Autolamps wiring harness accessories

Frequently Asked Questions

Is the LED Autolamps 86AM ADR compliant for use on Australian roads?

Yes. The 86AM carries full ADR (Australian Design Rules) road approval, making it legal for fitment on vehicles operated on Australian public roads, highways, and national transport corridors.

What is the advantage of a clear lens with coloured LEDs over a coloured lens?

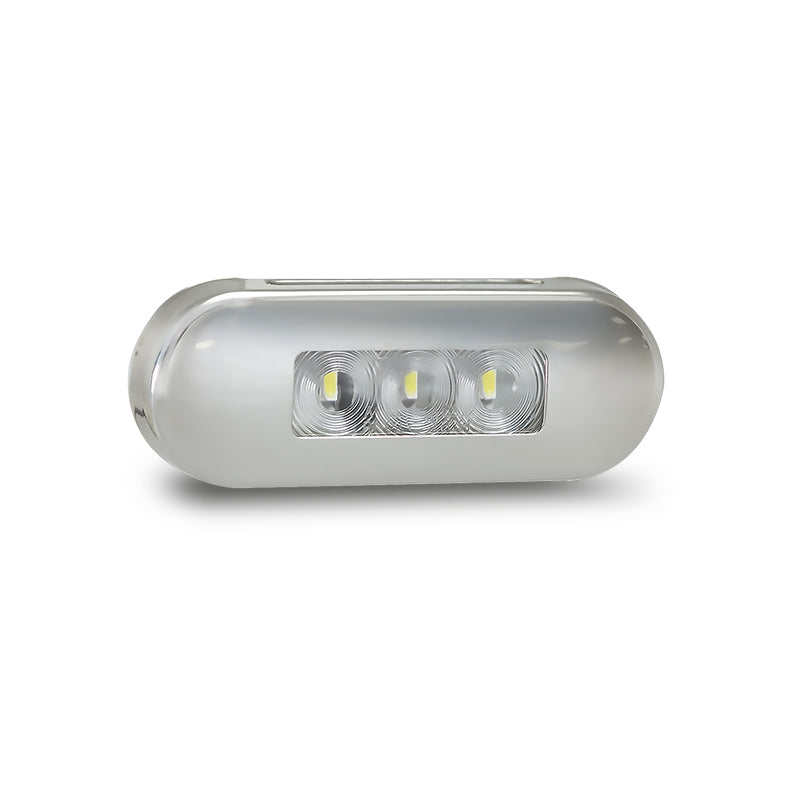

A clear lens with coloured LEDs gives a clean, unlit appearance when the light is off, offering a more modern aesthetic for custom builds while delivering the same compliant amber output when illuminated.

Will the 86AM work on both 12V and 24V electrical systems?

Yes. The 86AM operates natively across the 12V to 24V range, covering passenger vehicles, light commercials, and heavy trucks without any voltage conversion or additional components.

What does the IP67 rating mean in practical terms?

IP67 means the unit is completely sealed against dust and can withstand submersion to 1 metre for up to 30 minutes — suitable for river crossings, heavy downpours, and pressure wash maintenance.

What warranty does the LED Autolamps 86AM carry?

The supplier data contains conflicting warranty information and this has not been confirmed. Please contact LED Autolamps or your authorised reseller directly for accurate warranty terms before purchasing.
