LED Autolamps 82BARW 12V 82 Series Stop/Tail/Indicator/Reverse Lamp Black Bracket
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 82BARW 12V 82 Series Stop/Tail/Indicator/Reverse Lamp Black Bracket

SKU: 82BARW
Price
$170
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ECE Approved 12V Stop/Tail/Indicator/Reverse Lamp Black Bracket, 281x101mm, IP67

Product Overview

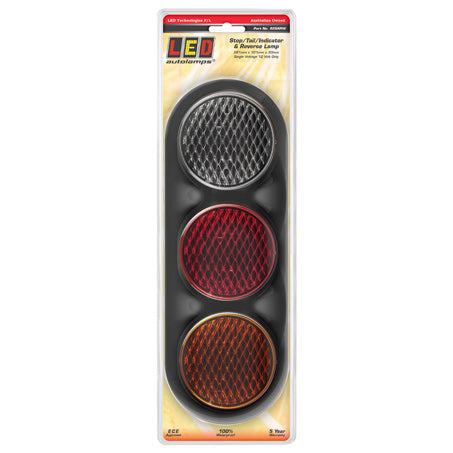

The LED Autolamps 82BARW is the black bracket variant of the 82 series rear combination lamp, covering stop, tail, indicator, and reverse functions in the same 281mm x 101mm x 30mm low-profile form factor as the 82CARW. Where the 82CARW uses a clear lens, the 82BARW uses conventional coloured lenses in a black bracket housing suited to standard trailer and truck body rear panel installations.

ECE Australian road approved and rated IP67, backed by a 5-year warranty.

Features & Benefits

  • Black bracket — professional finish suits a wide range of trailer and vehicle body aesthetics
  • Stop, tail, indicator, and reverse in one assembly — four functions in a single low-profile surface-mount unit
  • Low-profile 30mm depth — slim bracket sits close to the panel surface
  • ECE Australian road approved — meets international and Australian road approval standards for legal on-road use
  • IP67 rated — fully sealed against dust and water immersion
  • 12V only — designed for 12V trailer and vehicle electrical systems
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 82BARW
Lamp Type Stop / Tail / Indicator / Reverse
Voltage 12V
Dimensions 281mm x 101mm x 30mm
Housing Colour Black
Mounting Surface mount (bracket)
Protection Rating IP67
Compliance ECE (Australian road approved)
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring a 12V four-function rear combination lamp
  • LED Autolamps 82CARW (same 281mm x 101mm form factor, clear lens variant)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 82BARW approved for road use in Australia?

Yes. The 82BARW is ECE Australian road approved, meeting international and Australian road approval standards for legal on-road use across all four functions.

How does the 82BARW differ from the 82CARW?

The 82BARW uses a black bracket with conventional coloured lenses, while the 82CARW uses a clear lens. Both share the same 281mm x 101mm x 30mm form factor and ECE approval — choose based on the preferred lens and bracket aesthetic.

What functions does the 82BARW cover?

It combines stop, tail, indicator, and reverse in a single surface-mount bracket assembly.

What is the IP rating on the 82BARW?

The 82BARW is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion.

What warranty does the 82BARW carry?

The 82BARW is backed by a 5-year warranty from LED Autolamps.
