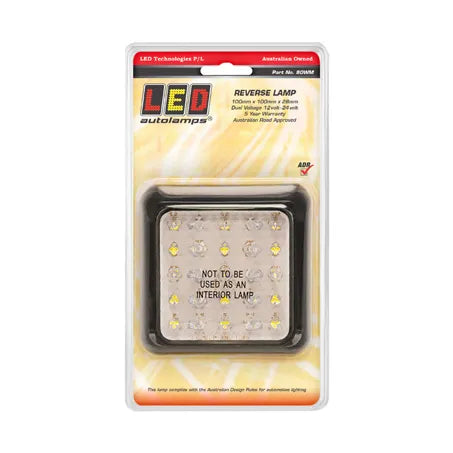

LED Autolamps 80WM 12/24V Reversing Lamp 25 White LEDs With 40cm Wire
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 80WM 12/24V Reversing Lamp 25 White LEDs With 40cm Wire

SKU: 80WM
Price
$138
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

ADR Approved 25 White LED Reverse Lamp Clip-In Lens, 100x100mm, 0.31A, 40cm Wire

Product Overview

The LED Autolamps 80WM is a 12/24V reverse lamp with 25 white LEDs and a clip-in replaceable lens, measuring 100mm x 100mm x 28mm in a black housing with a 60mm centre-to-centre mount. Supplied with a 40cm pre-wired cable, it is approved under CRN35797 the same reverse compliance reference as the 80BARWM making it a natural standalone reverse lamp companion to the 80 series combination lamps.

Drawing 0.31A at 13.8V, IP67 rated, and backed by a 5-year warranty.

Features & Benefits

  • 25 white LEDs — bright, consistent reverse output across the 100mm square lamp face
  • Clip-in replaceable lens — lens swaps independently without removing the full housing from the panel
  • ADR approved — certified under CRN35797 for legal on-road use as a reverse lamp
  • 40cm pre-wired cable — generous lead for flexible installation routing
  • 60mm centre-to-centre mount — confirm against your panel before installation
  • IP67 rated — fully sealed against dust and water immersion
  • 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
  • 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Specification Detail
SKU 80WM
Lamp Type Reverse
LED Quantity 25
LED Colour White
Housing Colour Black
Voltage Range 12V / 24V
Dimensions 100mm x 100mm x 28mm
Mount Centre-to-Centre 60mm
Current Draw 0.31A @ 13.8V
Cable Length 400mm
Lens Clip-in replaceable
Mounting Surface mount
Connector Pre-wired
Protection Rating IP67
Compliance ADR — CRN35797
Packaging Blister pack
Warranty 5 years

Compatible With / Goes Well With

  • Trailers, trucks, and commercial vehicles requiring a standalone reverse lamp
  • 12V light vehicles and 24V heavy transport applications
  • LED Autolamps 80BARRM stop/tail/indicator lamp (same 80 series — add 80WM for reverse)
  • LED Autolamps 80BARWM (same CRN35797 reverse certification — four-function version)
  • LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 80WM approved for road use in Australia?

Yes. The 80WM is ADR approved under CRN35797, meeting Australian Design Rules requirements for legal on-road use as a reverse lamp.

How does the 80WM pair with the 80BARRM?

The 80BARRM covers stop, tail, and indicator. Adding the 80WM provides the reverse function separately — sharing the same CRN35797 reverse approval as the 80BARWM — for a complete 80 series rear lighting system.

What does the clip-in lens mean for maintenance?

The lens clips out independently, allowing replacement without removing the full lamp from the mounting surface — consistent with the individual lens replacement design across the 80 series.

What is the current draw of the 80WM?

The 80WM draws 0.31A at 13.8V — the same reverse current as the 80BARWM, confirming consistent LED specification across the 80 series.

What warranty does the 80WM carry?

The 80WM is backed by a 5-year warranty from LED Autolamps.
