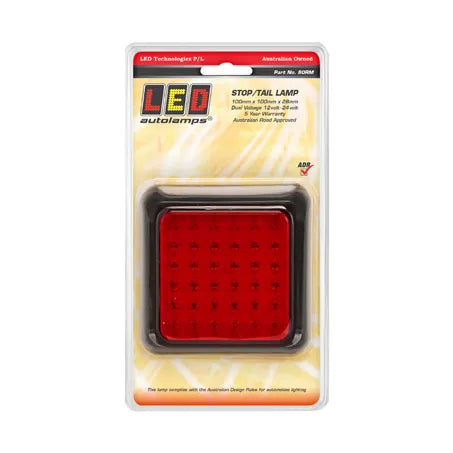

LED Autolamps 80RM 12/24 Multi Volt Stop/Tail Lamp 36 LEDs With 40cm Wire (Each)
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 80RM 12/24 Multi Volt Stop/Tail Lamp 36 LEDs With 40cm Wire (Each)

SKU: 80RM
Price
$79
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 80RM 12-24V 36 LED Stop and Tail Lamp 100mm x 100mm x 28mm 60mm Mounting Centres 40cm Wire Clip-In Replaceable Lens Black Housing ADR Approved CTA060070 CRN33059 IP67

The LED Autolamps 80RM is a 12-24V 36-LED stop and tail lamp. 100mm x 100mm x 28mm, 60mm mounting centres, 40cm pre-wired cable, surface mount. Clip-in replaceable lens. ADR approved (CTA060070), CRN33059. IP67 waterproof. Five-year warranty. Sold individually.

Product overview

The 80RM is a stop and tail lamp in the 80 series square format, suited to trailers and commercial vehicles requiring a compact ADR-compliant stop and tail lamp without an integrated indicator. At 100mm x 100mm x 28mm with 60mm mounting centres and 40cm wire it suits standard compact trailer lamp positions. The clip-in replaceable lens allows the lens to be replaced without replacing the full lamp. ADR CTA060070 approval and CRN33059 confirm road-legal compliance in Australia. IP67 waterproof. 12-24V compatible.

Features and benefits

36 LED stop and tail lamp.

Clip-in replaceable lens: Lens can be replaced without replacing the full lamp.

100mm x 100mm x 28mm.

60mm mounting centres.

40cm pre-wired cable.

Surface mount.

Black housing.

ADR approved (CTA060070), CRN33059: Road-legal compliance in Australia.

IP67 fully waterproof and submersible.

12V and 24V compatible.

Five-year warranty.

Technical specs

Specification Detail
SKU 80RM
Brand LED Autolamps
Type Stop/tail lamp
LED Count 36
Housing Colour Black
Operating Voltage 12V to 24V
Current — Stop 0.33A at 13.8V
Current — Tail 0.06A at 13.8V
Dimensions 100mm x 100mm x 28mm
Mounting Centres 60mm
Cable Length 40cm
Connection Pre-wired
Mount Type Surface mount
Lens Clip-in replaceable
Waterproof Rating IP67
ADR Compliance CTA060070
CRN CRN33059
Weight 0.25kg
Manufactured In China (Taiwan)
Warranty Five years

Frequently asked questions

Is the 80RM ADR approved?

Yes. The 80RM holds ADR approval CTA060070 and CRN33059, confirming road-legal compliance in Australia as a stop and tail lamp.

Does the 80RM include an indicator function?

No. The 80RM covers stop and tail functions only. For a stop/tail/indicator combination, contact us about the 80BSTIM.

Can the lens on the 80RM be replaced?

Yes. The 80RM features a clip-in replaceable lens, allowing the lens to be replaced without replacing the full lamp unit.

What are the mounting centres on the 80RM?

The 80RM has 60mm mounting centres.

Is the 80RM waterproof?

Yes. The 80RM has an IP67 rating, meaning it is fully dust-tight and can withstand submersion in up to 1 metre of water for up to 30 minutes.
